CW6280C/3000 gap bed used heavy duty lathe machine made by DMTG

Product Overview

Description

CW6280C/3000 gap bed used heavy duty lathe machine made by DMTG





1. Product Features

• This machine tool is especially used for injection molding in automobile, motorcycle, electronics, aerospace, military, petroleum and other industries for mass production of cylindrical, arc, conical, end, grooving, and various metric and inch screw placements of rotating parts. , High-precision automatic processing.

2. Product Specification



MODEL	CW6280C
CAPACITIES
Max.swing over bed	800mm
Max.swing over cross slide	485mm
Max.swing over gap	1000mm
Valid length of gap	230mm
Center distance	3000mm
Max.turning length	2750mm
Bed width	550mm
HEADSTOCK
Spindle hole	105mm
Spindle nose	D-11
Spindle taper	1:20
Spindle speeds(Number)	14-750RPM(18 STEPS)
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds)	1-240mm(54 kinds)
Inch threads rangs(Kinds)	28-1 inch(36 kinds)
Moudle threads range(kinds)	0.5-60 DP(27 kinds)
Diametral threads range(kinds)	30-1 t.p.i.(27 kinds)
Longtudinal feeds range(kinds)	0.048-24.3mm/r (72 kinds)
Cross feed range(kinds)	0.024-12.15mm/r (72 kinds)
Rapid feed:Long./Cross	4/2m/min
Leadscrew size:Diameter/Pitch	T48mm/12mm
CARRIAGE
Cross slide travel	420mm
Compound rest travel	200mm
Size of tool shank	32*32mm
TAILSTOCK
Spindle diameter	100mm
Spindle taper	MORSE#6
Spindle travel	240 mm
MOTOR
Main drive motor	11kw
Coolant pump motor	0.09kw
Rapid feed motor	1.1kw

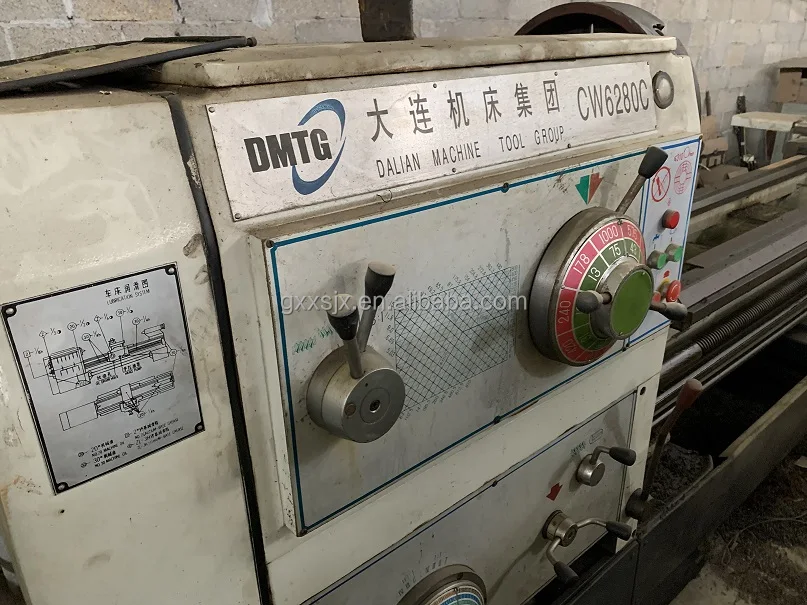

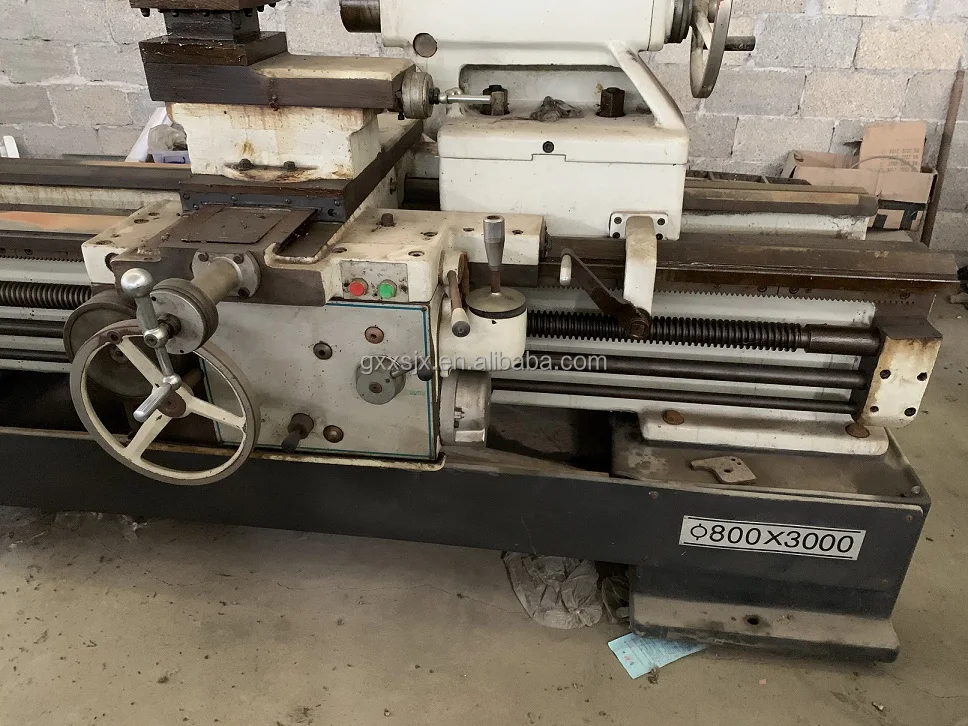

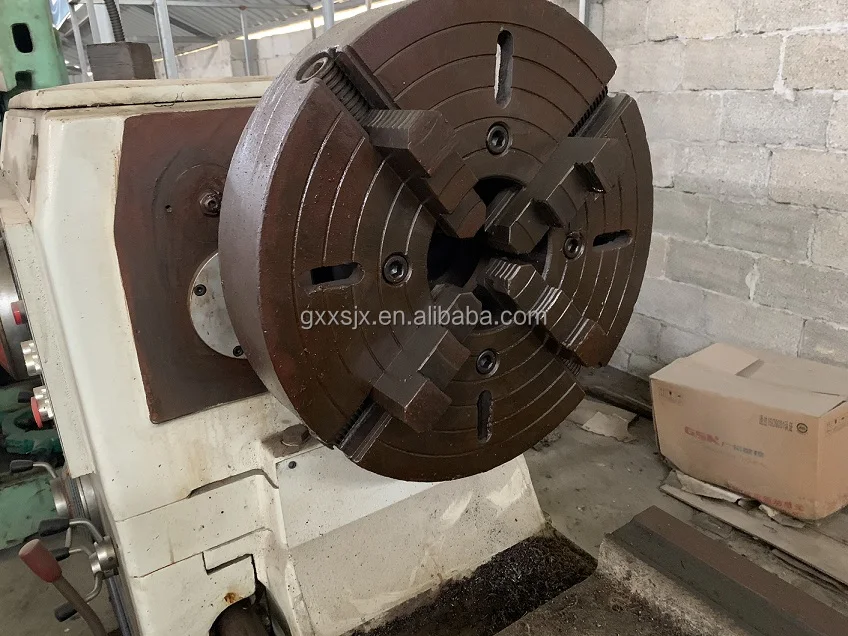

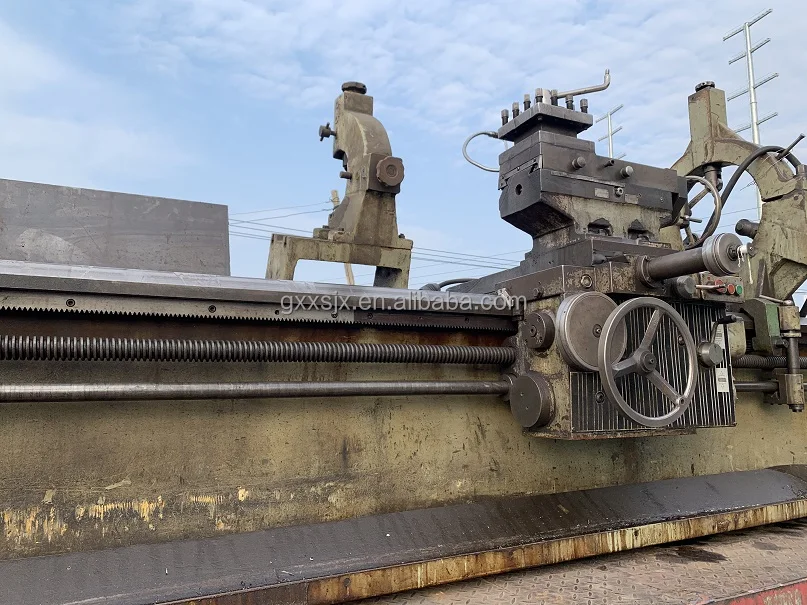

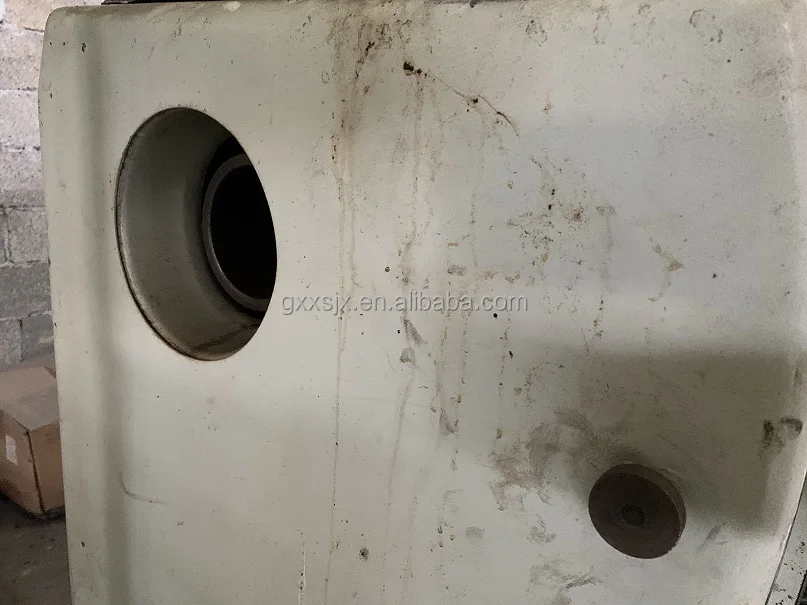

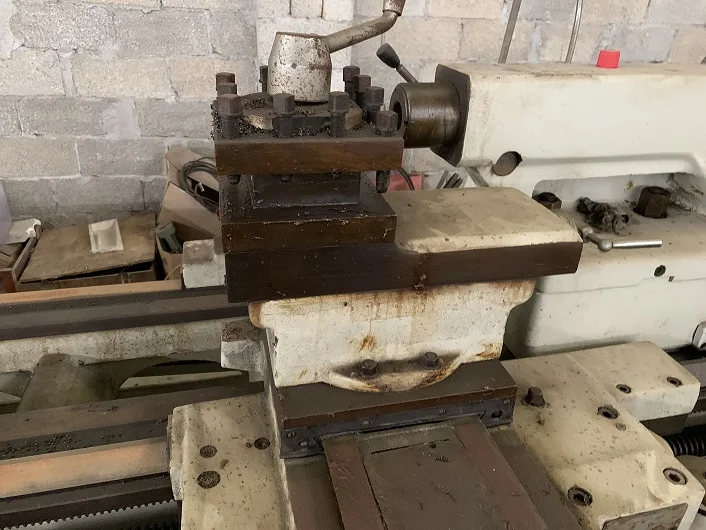

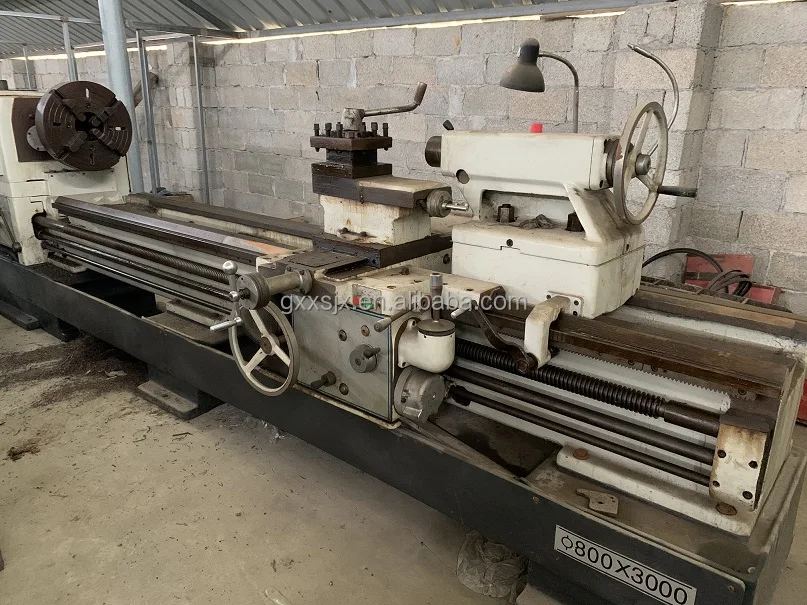

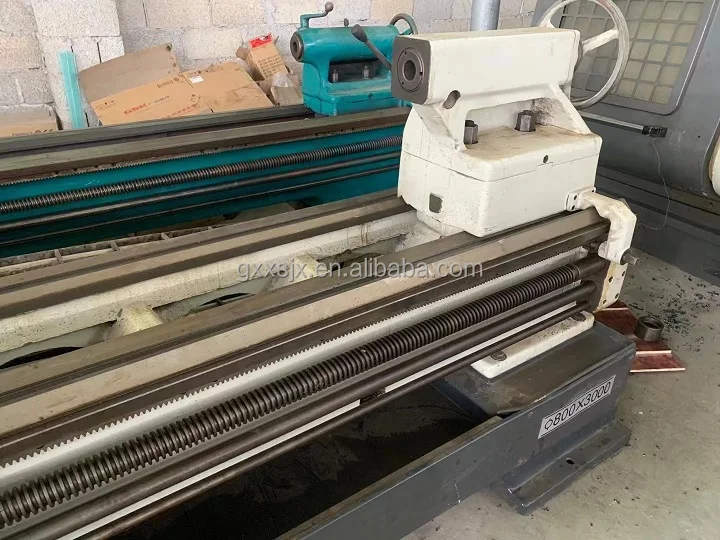

3.Product Details

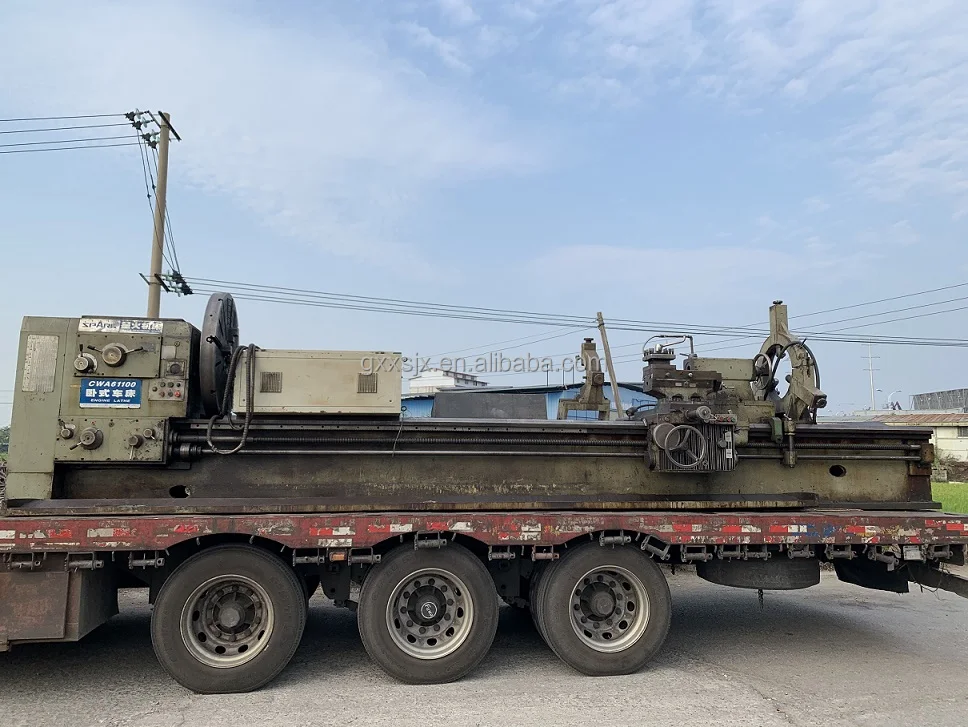

4. Product Package

We use plywood packge for our machine,which shall protect our machine during the shipment.



Why Choose Us?

•  We have our own factory and strong production capacity.


•  we insist on good quality and have strict quality standards


•  The hiring of experienced staff to guarantee high quality.


•  Our product can be made as per your requirement .


•  24 hour online communication for you.


•  We have more than 6 years of export experience.

FAQ

Q: What information should I let you know, if I want to get a product offer?

A: 1. the size of your work piece

    2. the CNC system you preferred if you need CNC type

    3. the work piece drawing if you have



Q: How to control the quality of production processes?

A: We have a professional quality inspectors to check on the quality of the finished product.



Q: Is it possible to visit your factory?

A: It is very convenient to visit us and all clients from around the world are highly welcomed.



Q: What’s the MOQ?

A: The MOQ is 1 set.



Q: What’s the quality assurance and service ?

A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
