Wireless bluetooth ble Locsmart ble market C3 ibeacons
- Category: >>>
- Supplier: Locsmart Iot Technology (suzhou) Co. Ltd.
Share on (1600759017684):
Product Overview
Description
Product Description

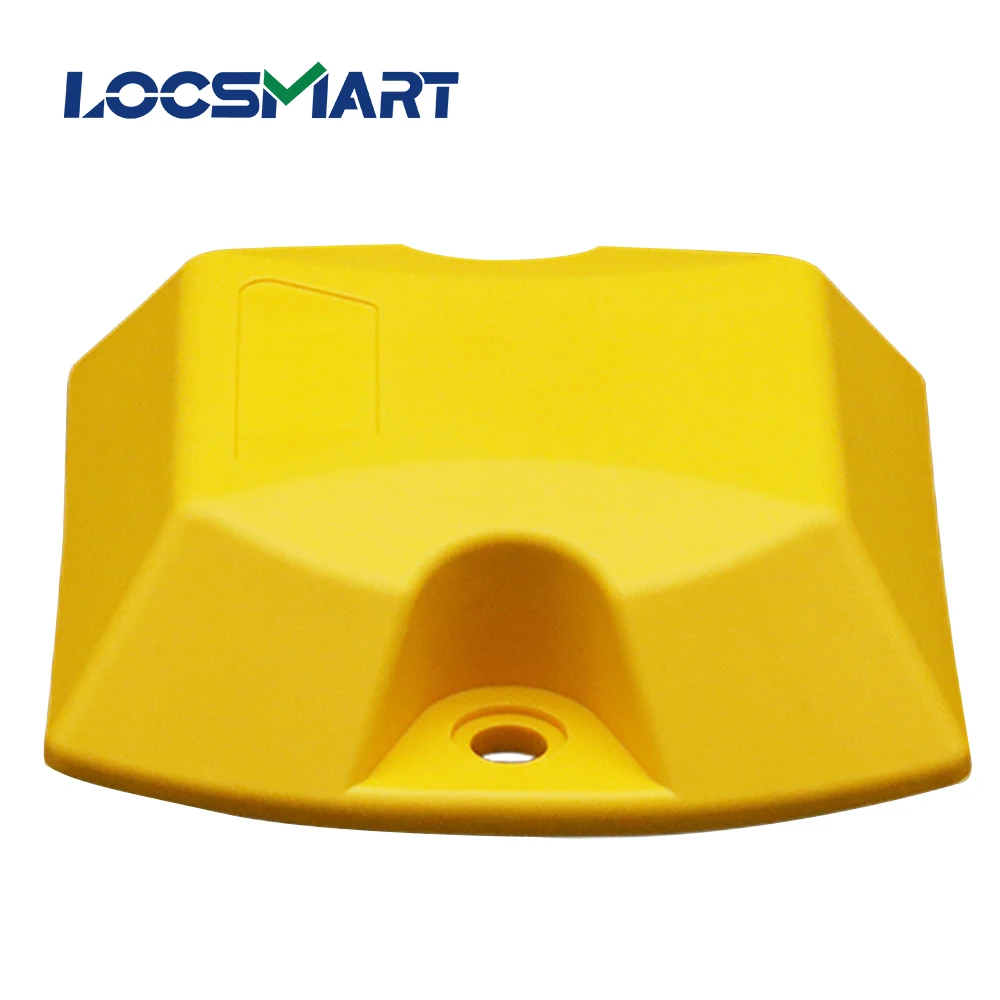

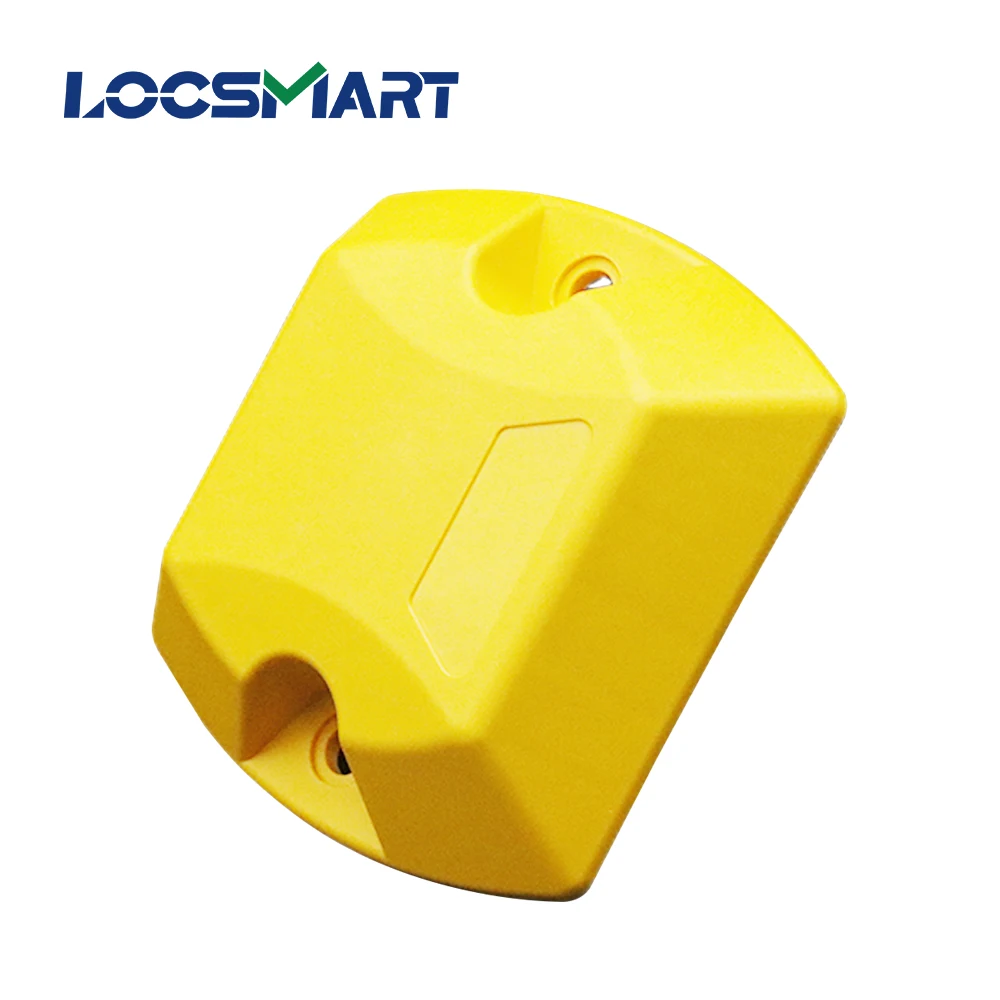

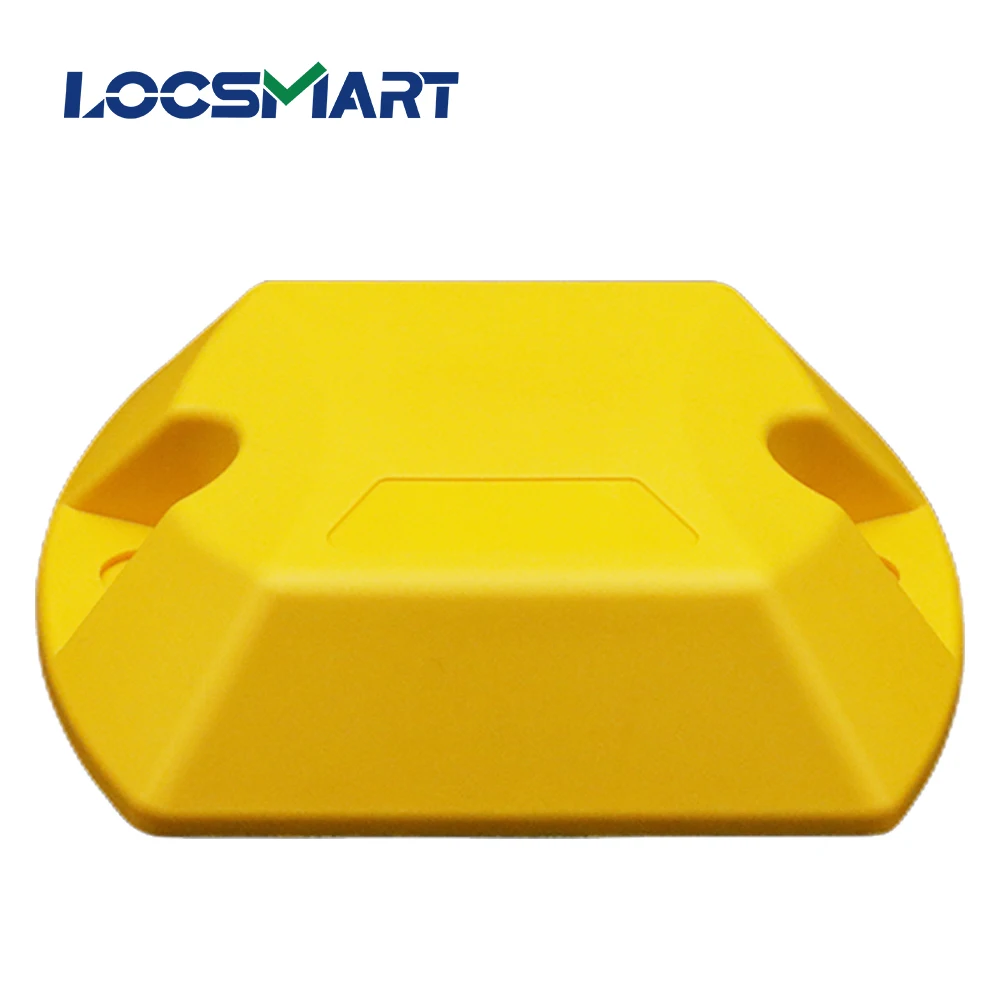

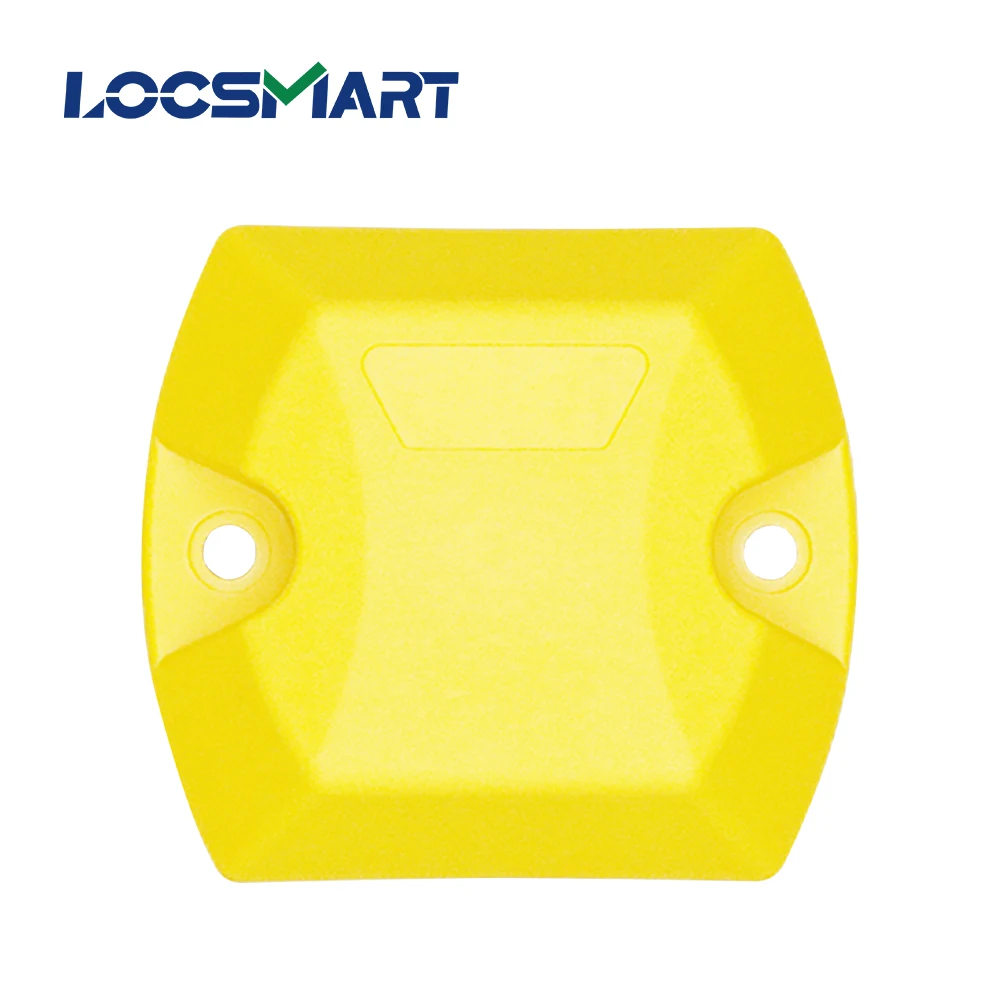

The C3 Outdoor Landing Beacon is a positioning beacon for indoor and outdoor scenes.
The product is equipped with low-power high-performance Bluetooth chip and large capacity battery, in the case of low-power broadcast, the service life of up to 8 to 10 years. At the same time, the internal and external layout of the product structure adopts reliable technology, which increases the ability of waterproof and dustproof ( IP68 ), shockproof and pressureproof ( 20 tons ), and meets the practical requirements of strong compressive performance and maintenance-free outdoor deployment in parking application management scenarios such as hospitals, parks, chemical plants, shared electric vehicles, shared bicycles, etc.
The product can be deployed on the outdoor ground and other harsh environments, making the application of positioning beacons expand to all kinds of harsh environmental conditions.
Specification
chipset | Dialog 14580 |
Bluetooth protocol | BLE 5.1 |
Battery parameter | ER14505, lithium 2400mAh |
Endurance time | 14 years + |
Operating voltage | 3.0V |
Transmission current | 100mA |
Broadcast range | 50m |
antenna | PCB onboard |
Sensor parameter | NA |
Waterproofing class | IP68 |
Specification and size | 107mm*98mm*26mm (L*W*H) |
Weight (including battery) | About 246 grams |
Type of certificate | TBD |
color | Yellow |
other | — |
Installation mode | Lock screws ( ground ) |
Scenario application
1. Bicycle-sharing ground electronic fence. 2. do smart parking applications, parking lot monitoring.
3. Information push.
