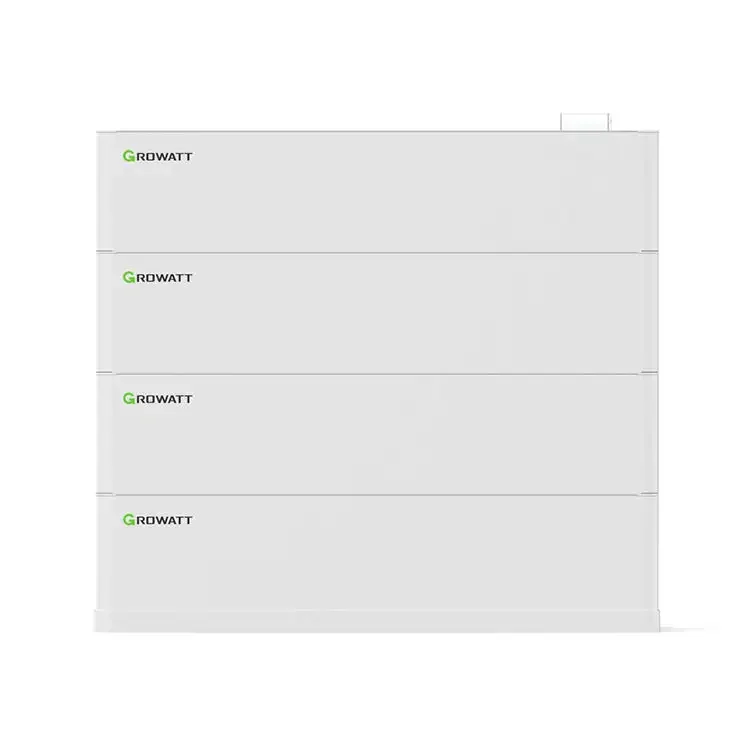

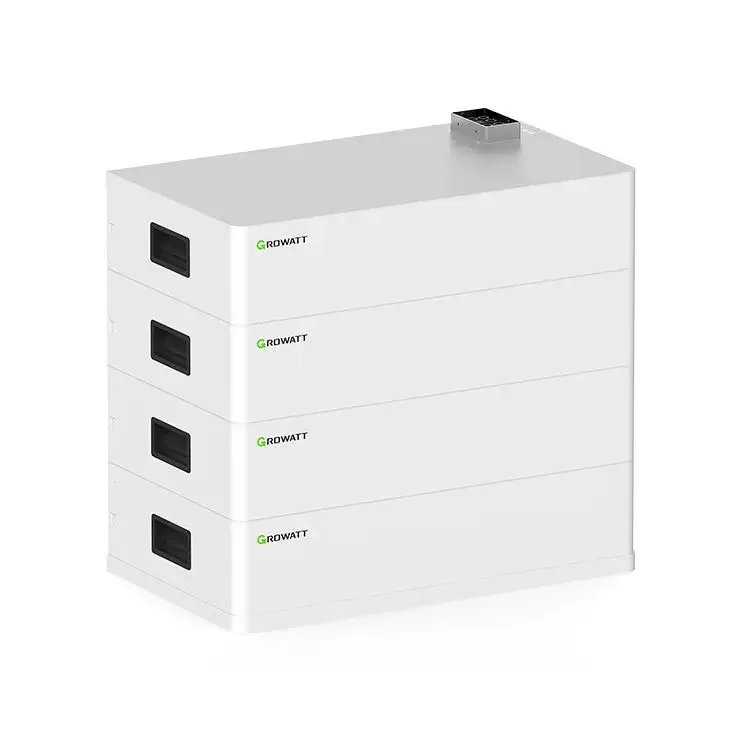

Growatt AXE 15.0L lithium battery energy storage 10kw 20kwh 30kwh 40kwh 50kwh Modular battery energy storage systems
- Category: >>>
- Supplier: Jiangsu Gaoyue New Energy Technology Group Co. Ltd.
Share on (1600759134196):
Product Overview
Description
Product Description
Specification
Datasheet | AXE 5.0L | AXE 10.0L | AXE 15.0L | AXE 20.0L | AXE 25.0L | ||||

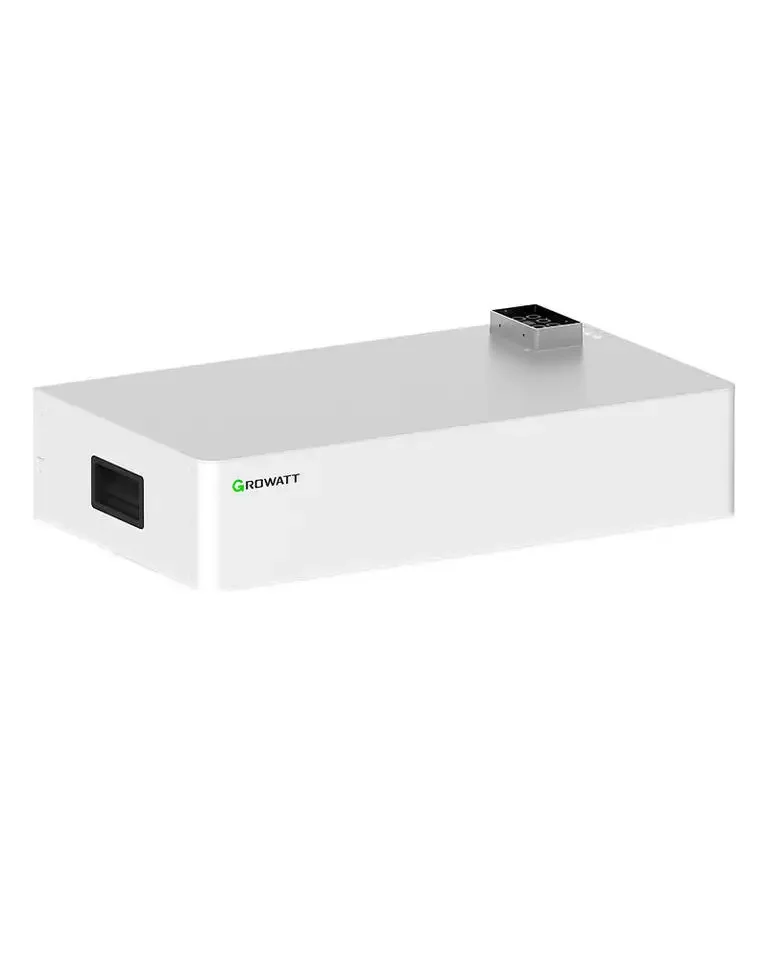

Battery Module | AXE 5.0L - C1 (5.0kWh, 51.2V, 45kg) | ||||||||
Number of Modules | 1 | 2 | 3 | 4 | 5 | ||||
Energy Capacity | 5.0kWh | 10.0kWh | 15.0kWh | 20.0kWh | 25.0kWh | ||||
Dimension (W/D/H)*1 | 650/350/165mm (25.6/14.6/6.5in) | 650/350/305mm (25.6/14.6/12in) | 650/350/445mm (25.6/14.6/17.5in) | 650/350/585mm (25.6/14.6/23in) | 650/350/725mm (25.6/14.6/28.5in) | ||||
Weight | 47kg/103.4Ib | 92kg/202.4Ib | 137kg/301.4Ib | 182kg/400.4Ib | 227kg/499.4Ib | ||||
Max Charge | 60A | 120A | 120A | 120A | 120A | ||||
Max Discharge | 60A | 120A | 120A | 120A | 120A | ||||
Number of Modules | AXE 30.0L | AXE 35.0L | AXE 40.0L | AXE 45.0L | AXE 50.0L |
Energy Capacity | 6 | 7 | 8 | 9 | 10 |
Dimension (W/D/H)*1 | 30.0kWh | 35.0kWh | 40.0kWh | 45.0kWh | 50.0kWh |
Weight | 650/350/865mm (25.6/14.6/34in) | 650/350/1005mm (25.6/14.6/39.6in) | 650/350/1145mm (25.6/14.6/45.1in) | 650/350/1285mm (25.6/14.6/50.6in) | 650/350/1425mm (25.6/14.6/56.1in) |
Max Charge | 272kg/598.4Ib | 317kg/697.4Ib | 362kg/796.4Ib | 407kg/895.4Ib | 452kg/994.4Ib |
Max Discharge | 120A | 120A | 120A | 120A | 120A |
120A | 120A | 120A | 120A | 120A |
General | ||
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | |
Nominal Voltage | 51.2V | |
Operating voltage Range | 48 - 57.6V | |
IP Protection | IP20 /NEMA Type1 | |
Installation | Floor installation* 2 | |
Operation Temperature | 0°C-50°C/32-122°F | |
Features | ||
DoD | 92% | |
Mult-cluster AXE battery system in parallel | Max. 8 clusters ( Max. 400kWh ) | |
BMS Monitoring Parameters | SOC, System voltage, Current, Cell voltage, Cell temperature, PCBA temperature measurement | |
Communication Port | CAN/RS485 | |
Warranty(5/10 years) | Yes/Opt | |
Certification CE, ROHS, UL1973+FCC, UN38.3+PI965 | ||
Details Images

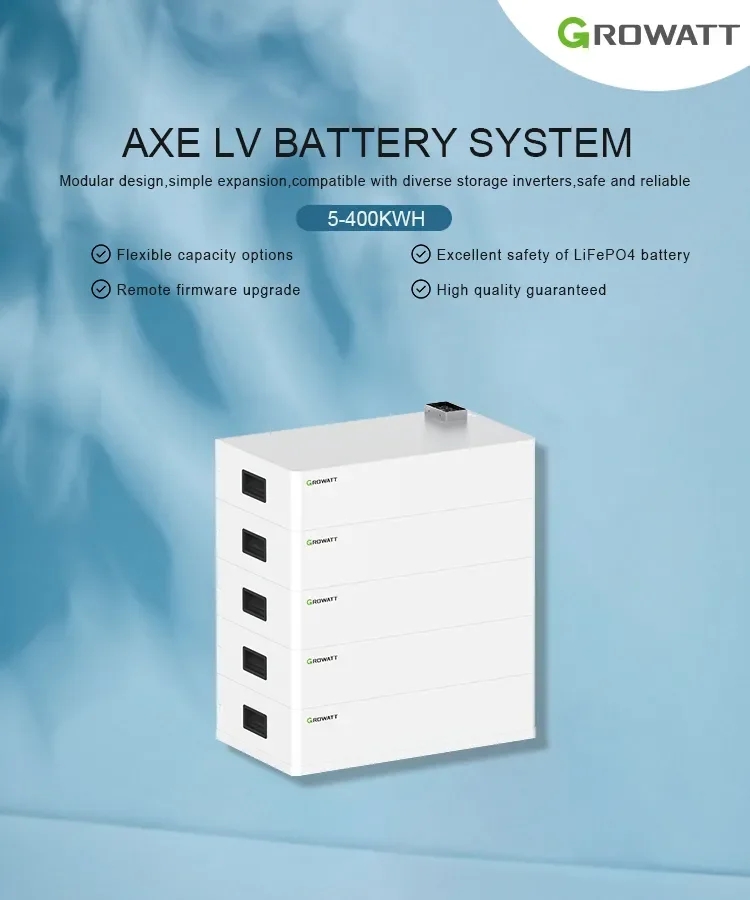

Ark LV Lithium Ion Battery

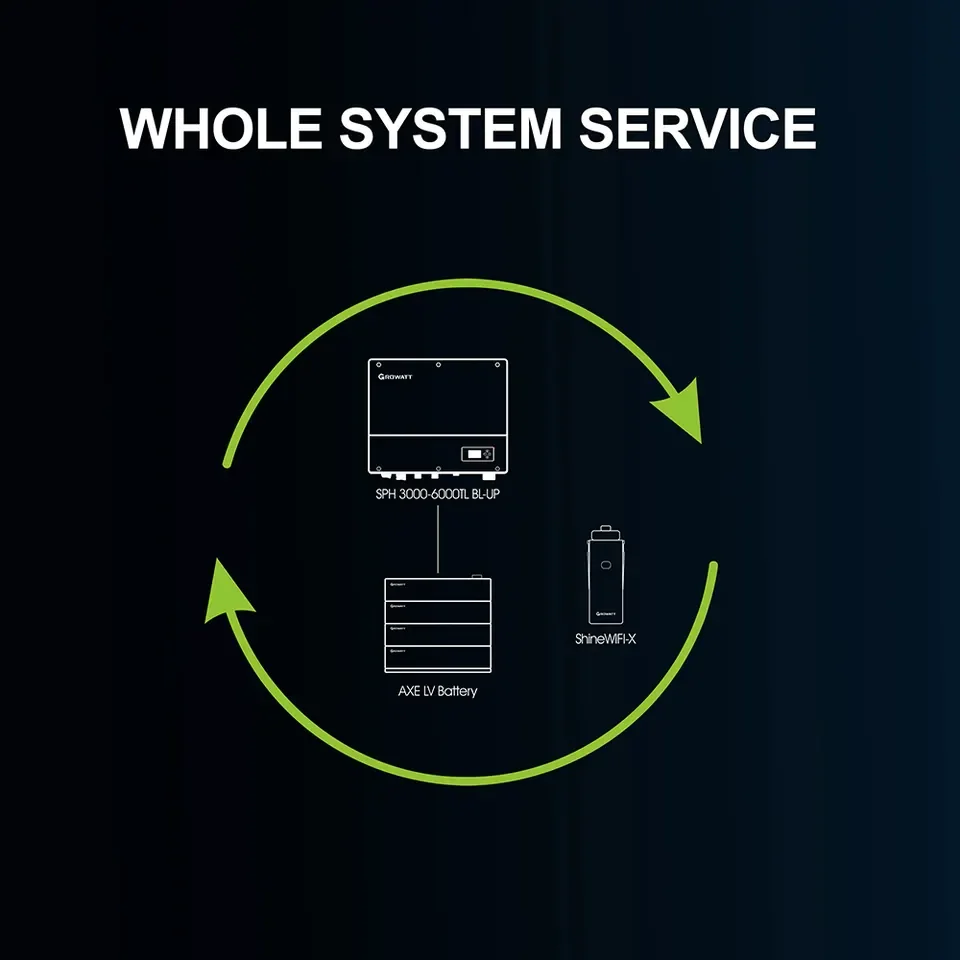

Off Grid & Hybrid Inverter Optional , WiFi Module/GPRS Optional, Remote Firmware Upgrade
10 Years Waranty for Battery
Can Communicate Port

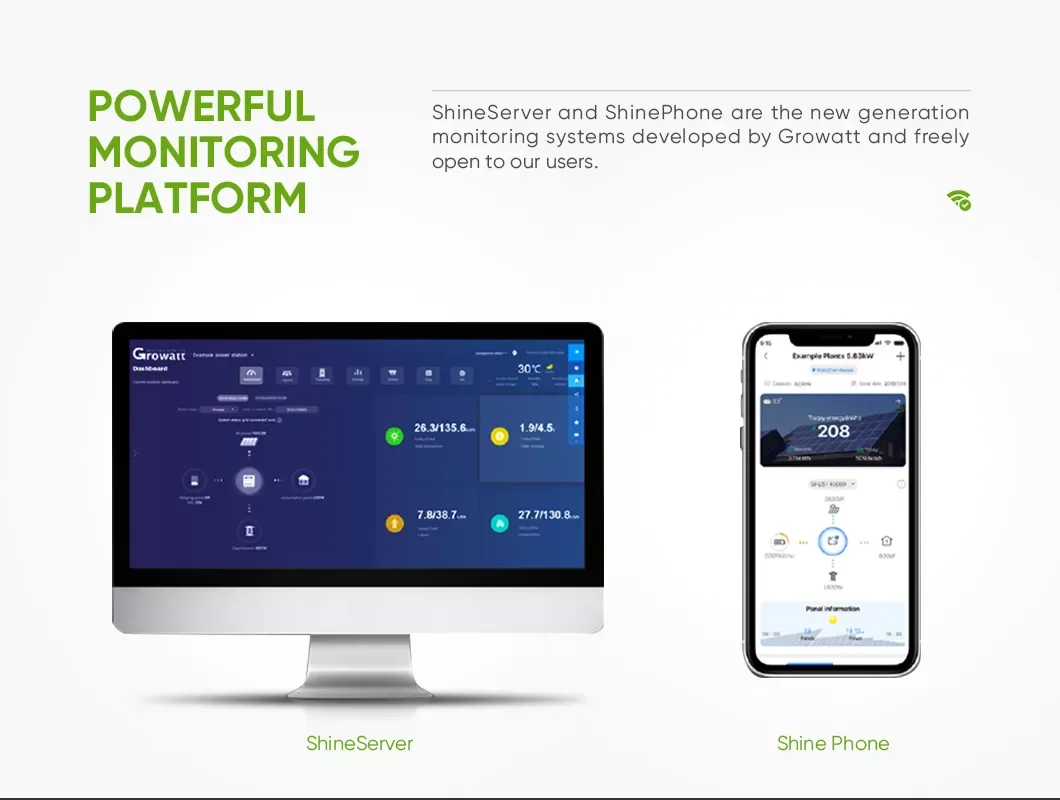

With BMS Monitoring Function
Off Grid & Hybrid Inverter Optional , WiFi Module/GPRS Optional, Remote Firmware Upgrade
10 Years Waranty for Battery
Can Communicate Port
With BMS Monitoring Function
Our Lithium battery modules can cooperate with most inverters on the market. More brands are coming soon..

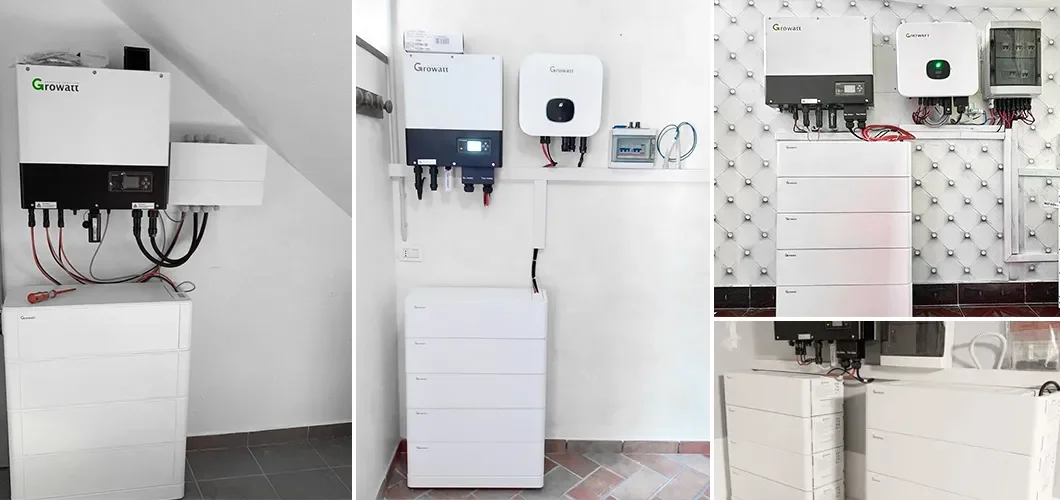

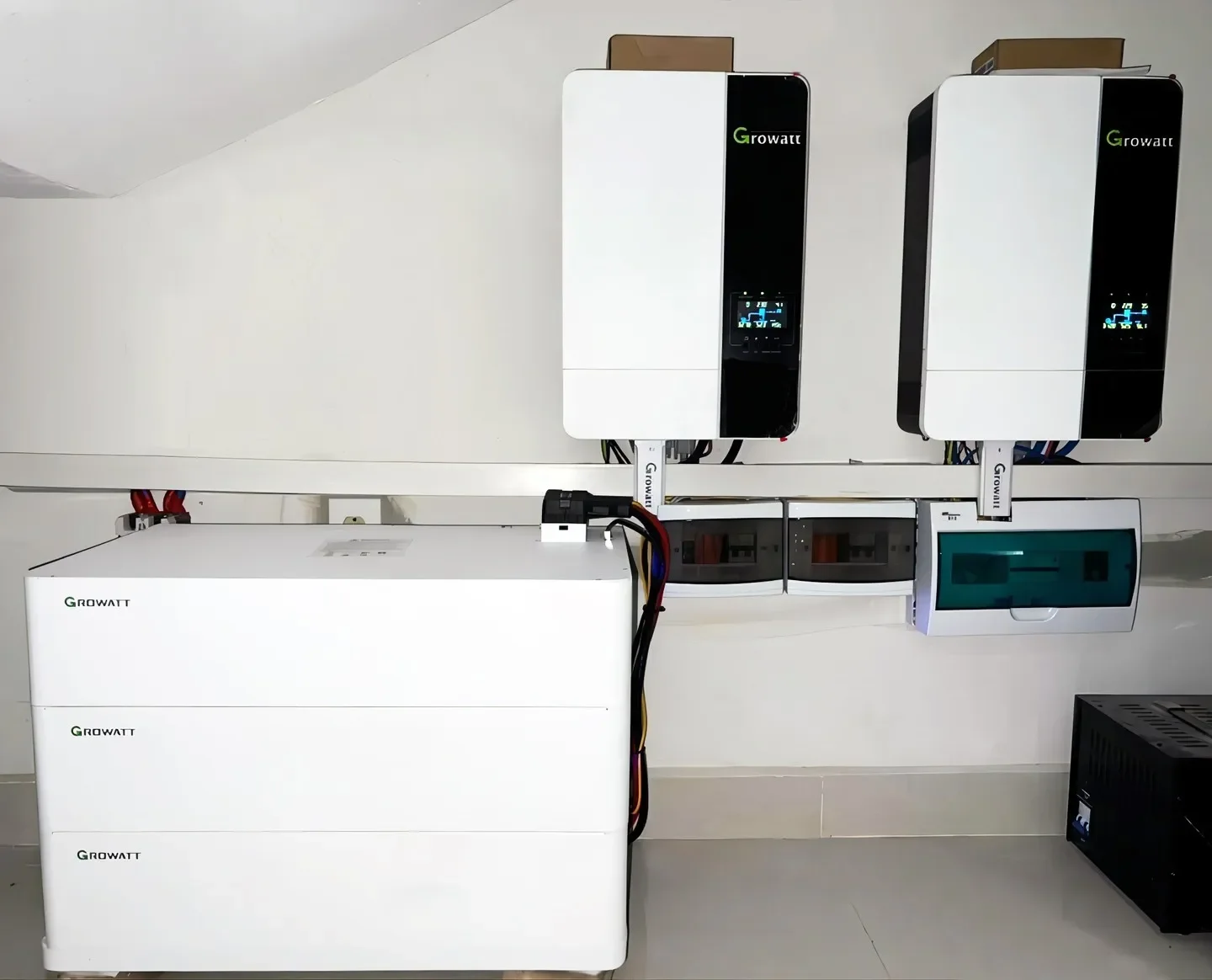

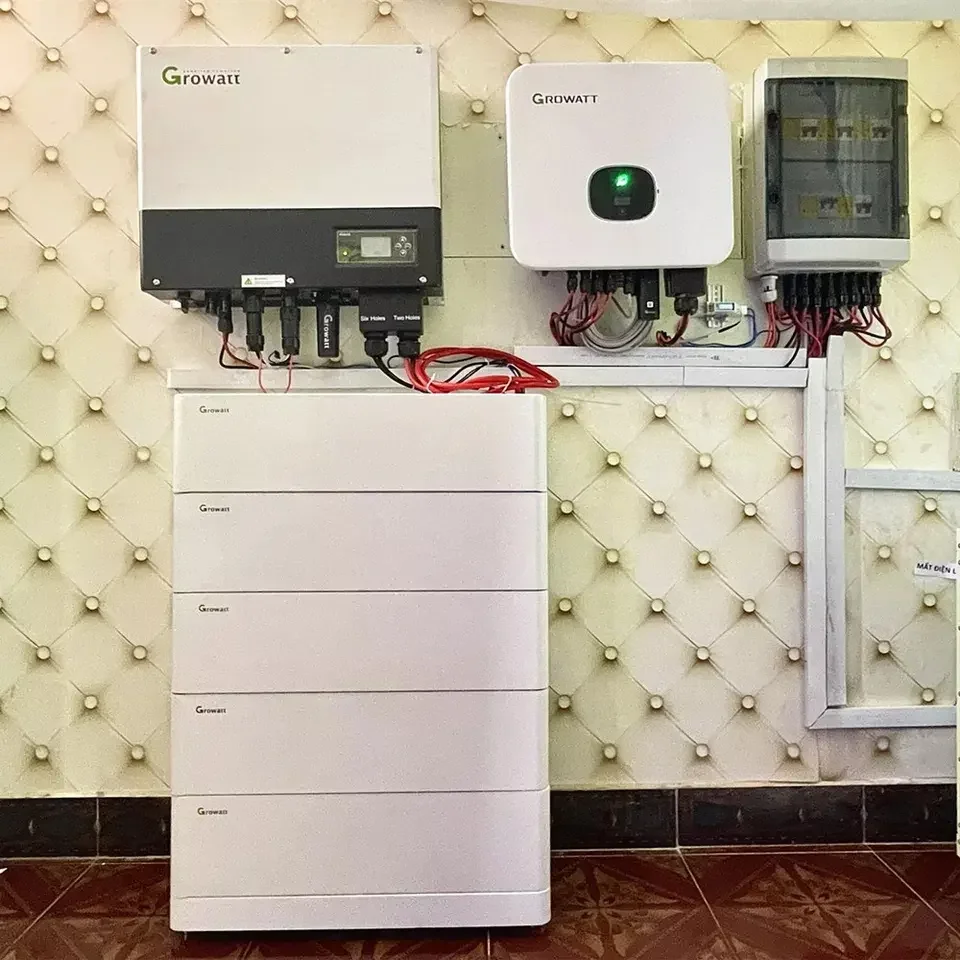

Customer Photos
Packing & Delivery
Certificate
FAQ
1. who are we?
We are based in jiangsu, China, start from 2022,sell to Western Europe(20.00%),Northern Europe(20.00%),Mid East(20.00%),Southeast
Asia(15.00%),North America(15.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel, Solar Inverter, Solar Energy Machinery Fittings, Off Grid Solar System, On Grid Solar System
4. why should you buy from us not from other suppliers?
Jiangsu Goyue is a high-tech enterprise, the introduction of advanced automatic production and testing equipment, the company has
obtained ISO9001 quality management system certification, TUV, IEC61215, CE and other authoritative product certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in jiangsu, China, start from 2022,sell to Western Europe(20.00%),Northern Europe(20.00%),Mid East(20.00%),Southeast
Asia(15.00%),North America(15.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel, Solar Inverter, Solar Energy Machinery Fittings, Off Grid Solar System, On Grid Solar System
4. why should you buy from us not from other suppliers?
Jiangsu Goyue is a high-tech enterprise, the introduction of advanced automatic production and testing equipment, the company has
obtained ISO9001 quality management system certification, TUV, IEC61215, CE and other authoritative product certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
