Lab Battery Grade Graphite Sheet Price
US $5.00-$15.00
0.13mm thermally conductive electric insulation carbon graphite paper for cooling batteries
- Category: Graphite Sheets >>>
- Supplier: Jiangxi,Dasen,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Natural graphite is sintered with flake graphite and earthy graphite, and its carbon content reaches 99.4% ~ 99.8%.
Oriented film: Graphite film using advanced technology to make high-purity graphite materials to regular orientation structure

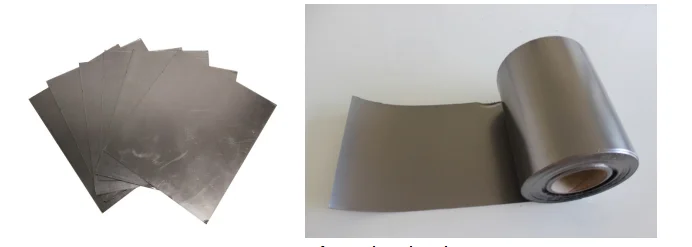

Pictures of the natural graphite sheet
Features of natural graphite sheet:
* Excellent thermal conductivity: up to 500W/m·K
* Lightweight: Specific gravity: 0.87 to 1.6 g/cm3
(30% lighter than aluminum, 80% lighter than copper in the same size)
* Low thermal resistance, 40% lower than aluminum, 20% lower than copper
* Low heat resistance
* Low repulsion and easy to keep the product's shape after attaching
* RoHS, REACH compliant
* Siloxane Free
Parameters of the natural graphite sheet | Parameters of the natural graphite sheet | |||||||||||
TYPE | DSN60030 | DSN60050 | DSN60080 | DSN60100 | DSN60130 | DSN60150 | ||||||
Carbon Content | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% | ||||||
Color | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey | ||||||
Thickness (mm) | 0.03 | 0.05 | 0.08 | 0.1 | 0.13 | 0.15 | ||||||
Thickness Tolerance (mm) | ±0.005 | ±0.005 | ±0.01 | ±0.02 | ±0.02 | ±0.03 | ||||||
Density (g/cm³) | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | ||||||
Hardness (shore A) | 85 | 85 | 85 | 85 | 85 | 85 | ||||||
Tensile Strength (psi) | 650 | 650 | 650 | 650 | 650 | 650 | ||||||
Temperature Range | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | ||||||
Thermal Conductivity (X-Y axis) | 400-500 W/m.K | 400-500 W/m.K | 350-450 W/m.K | 300-400 W/m.K | 300-400 W/m.K | 250-350 W/m.K | ||||||
Thermal Conductivity (Z axis) | 7-10 W/m.K | 7-10 W/m.K | 7-10 W/m.K | 7-10 W/m.K | 7-10 W/m.K | 7-10 W/m.K | ||||||
Thermal Resistance @100pis | 0.07℃-in²/w | 0.08℃-in²/w | 0.9℃-in²/w | 0.1℃-in²/w | 0.16℃-in²/w | 0.2℃-in²/w | ||||||
@681pis | 0.42℃-in²/w | 0.51℃-in²/w | 0.57℃-in²/w | 0.66℃-in²/w | 0.95℃-in²/w | 1.07℃-in²/w | ||||||
Volume Resistivity | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | ||||||
Outgassing TML | 0.15% | 0.15% | 0.15% | 0.15% | 0.15% | 0.15% | ||||||
Outgassing CVCM | 0.09% | 0.09% | 0.09% | 0.09% | 0.09% | 0.09% | ||||||
TYPE | DSN60200 | DSN60500 | DSN60800 | DSN61000 | DSN62000 | DSN63000 |
Carbon Content | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% |
Color | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey |
Thickness (mm) | 0.2 | 0.5 | 0.8 | 1.0 | 2.0 | 3.0 |
Thickness Tolerance (mm) | ±0.03 | ±0.05 | ±0.08 | ±0.1 | ±0.15 | ±0.15 |
Density (g/cm³) | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.0±0.1 | 1.0±0.1 | 1.0±0.1 |
Hardness (shore A) | 85 | 85 | 85 | 85 | 85 | 85 |
Tensile Strength (psi) | 650 | 650 | 650 | 650 | 650 | 650 |
UL Flammability Rating | 94VO | 94VO | 94VO | 94VO | 94VO | 94VO |
Temperature Range | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ |
Thermal Conductivity (X-Y axis) | 250-350 W/m.K | 250-350 W/m.K | 200-300 W/m.K | 100-200 W/m.K | 100-200 W/m.K | 100-200 W/m.K |
Thermal Conductivity (Z axis) | 7-10 W/m.K | 3-5 W/m.K | 3-5 W/m.K | 3-5 W/m.K | 3-5 W/m.K | 3-5 W/m.K |
Thermal Resistance @100pis | 0.25℃-in²/w | 0.37℃-in²/w | 0.5℃-in²/w | 0.6℃-in²/w | 0.77℃-in²/w | 0.73℃-in²/w |
@681pis | 1.16℃-cm²/w | 1.3℃-cm²/w | 1.58℃-cm²/w | 1.7℃-cm²/w | 1.93℃-cm²/w | 1.88℃-cm²/w |
Volume Resistivity | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm |
Outgassing TML | 0.23% | 0.23% | 0.23% | 0.23% | 0.23% | 0.23% |
Outgassing CVCM | 0.16% | 0.16% | 0.16% | 0.16% | 0.16% | 0.16% |

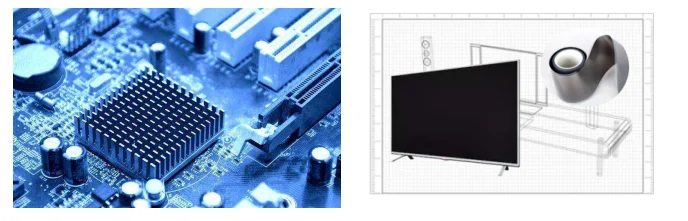

Product Application
★ Widely used in the metallurgical industry as refractories
★ Widely used in the electronics industry as the electrode conductive material
★ Water-resistant lubricating material
★ Anti-corrosion materials in petroleum metallurgical industry
★ Used in a centrifugal pump and other equipment: make a pump or a seal
★ Used in an industrial furnace: make industrial furnace parts
★ The point solution process is used as an electrolytic plate: quality assurance
Nine industries:
· High-temperature furnace
· Metal industry
· Glass refractories
· Petrochemical industry
· Automobile industry
· Mechanical engineering
· Electric discharge
· Semiconductor industry
· Photovoltaic power generation
Product workshop

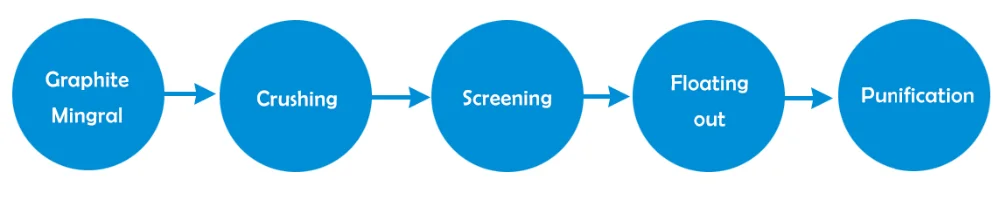

Mineral processing of natural graphite sheet:
