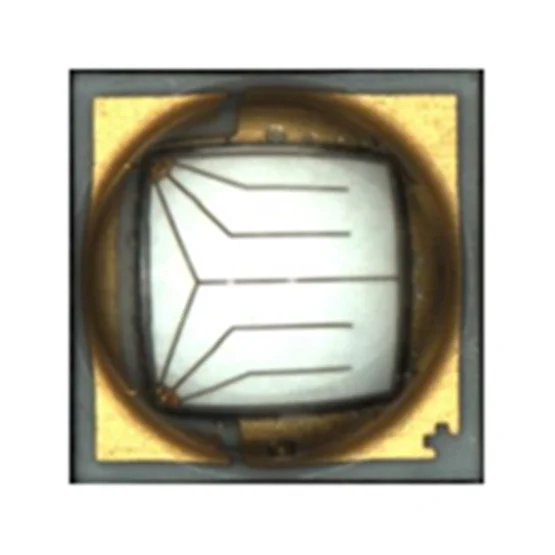

High Radiant Flux 3V 1500mA 6W SMD 3535 UVA 365nm LED Diode LEUVA33W70RL00 For UV Curing
- Category: >>>
- Supplier: Shenzhen Tongrui Photoelectric Co. Ltd.
Share on (1600759276263):
Product Overview
Description
Product Description

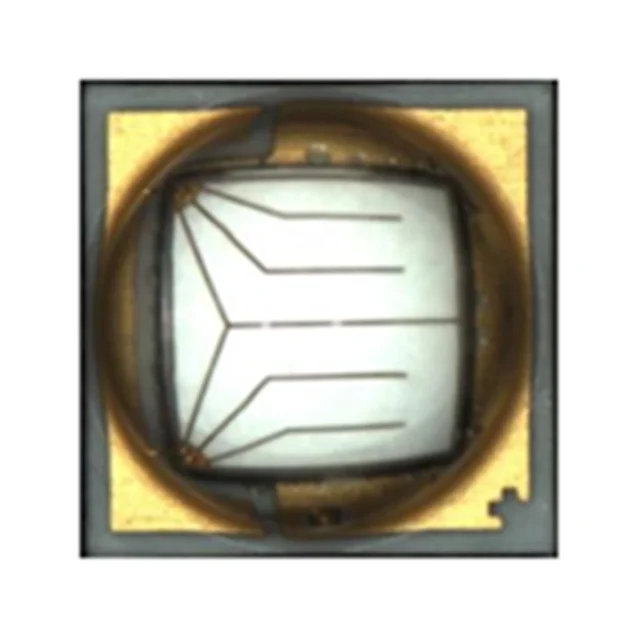

3535 3V 1500mA 5W UVA 365nm LEDs
An ideal choice for UV Curing, Photo-Catalyst, Sensor Light applications
Features
(1)Lighting Color(Peak Wavelength) : 365nm(2)Surface Mount Type : 3.40×3.40×2.37 mm
(3)SMT ceramic package with silicone lens
(4)Operates at a maximum current of up to 1.5A
(5)Viewing Angle(Directivity) : Typical 130°
Applications
— UV Curing
— UV Ink Curing
— UV Ink Curing
— Photo-Catalyst
— Sensor Light
— Sensor Light

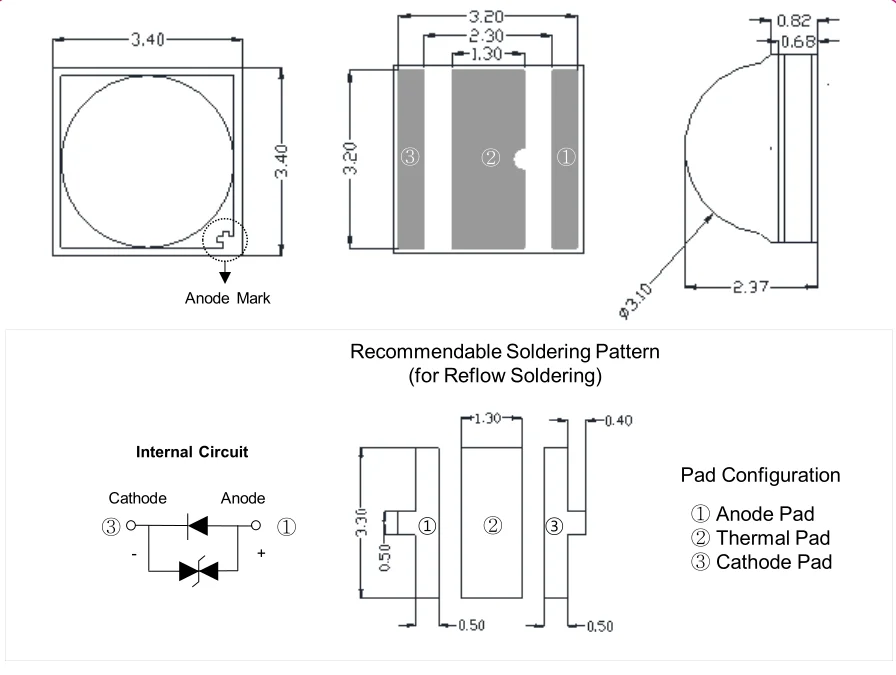

1. All dimension units are millimeters.
2. All dimension tolerance is ±0.13mm unless otherwise noted.
3. Scale : none
3. Scale : none

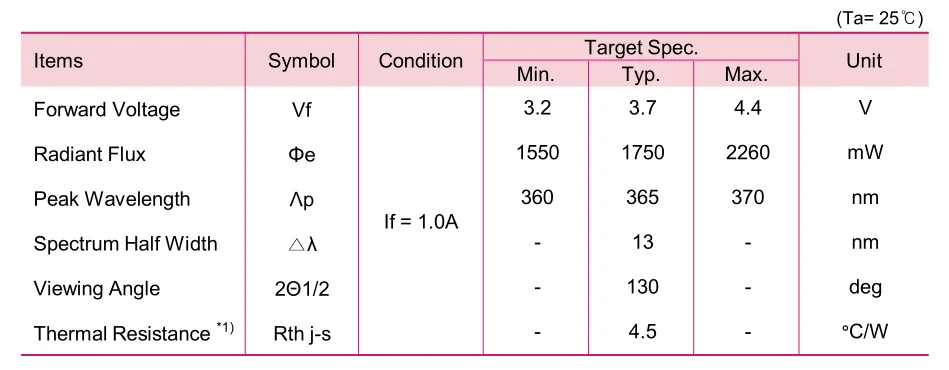

Specification
Model | LEUVA33W70RL00 |
Max. Forward Current | 1500mA |
Operating Voltage | 3.20-4.40V |
Color | UV(Ultraviolet) |
Wavelength | 360-370nm(Typ. 365nm) |
Power | 6.6W |
Radiant Flux | 1550-2260mW@25°C |
Minimum Packing Quantity | 500 pcs/reel |
