Growatt Solar Energy System Growatt Hot Sale Growatt SPF 5000 ES Solar Panels 5Kw Outdoor Solar Energy System 5000W OFF GRID SOL
- Category: >>>
- Supplier: Shaanxi Beiye Green Facilities Co. Ltd.
Share on (1600759741606):
Product Overview
Description

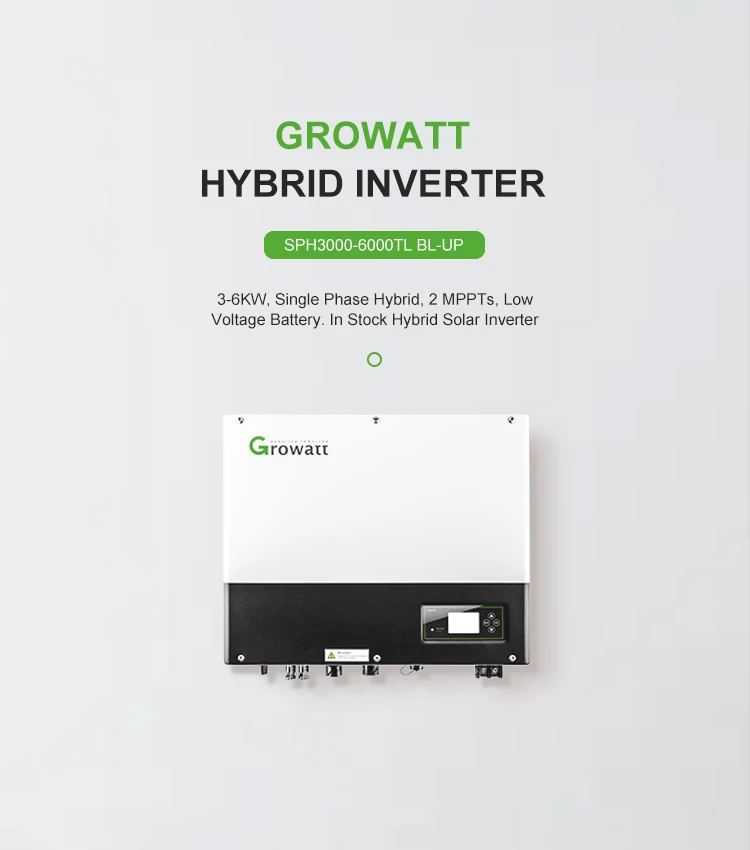

Products Description
Products Description
Technical Specifications
Technical Specifications
Datasheet | SPH3000TL BL-UP | SPH3600TL BL-UP | SPH4000TL BL-UP | SPH4600TL BL-UP | SPH5000TL BL-UP | SPH6000TL BL-UP | ||||||
Input data(PV) | ||||||||||||
Max. recommended PV power (for module STC) | 6000W | 7200W | 8000W | 9200W | 10500W | 11200W | ||||||
Max. DC voltage | 550V | |||||||||||
Start voltage | 120V | |||||||||||
MPP voltage range | 120-550V/360V | |||||||||||
No. of MPP trackers | 2 | |||||||||||
No. of PV strings per MPP tracker | 1 | |||||||||||
Max. input current per MPP tracker | 13.5A | |||||||||||
Max. short-circuit current per MPP tracker | 16.5A | |||||||||||
Output data(AC) | ||||||||||||
AC nominal power | 3000W | 3680W | 4000W | 4600W | 5000W | 6000W | ||||||
Max. AC apparent power | 3000VA | 3680VA | 4000VA | 4600VA | 5000VA | 6000VA | ||||||
Nominal AC voltage (range) | 230V/(180Vac-270Vac) | |||||||||||
AC grid frequency (range) | 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) | |||||||||||
Max. output current | 16A | 16A | 22A | 22A | 27A | 27A | ||||||
Adjustable power factor | 0.8leading...0.8lagging | |||||||||||
THDi | <3% | |||||||||||
AC grid connection type | Single phase | |||||||||||
Battery data (DC) | ||||||||||||
Battery voltage range | 42~59V | |||||||||||
Max charging and discharging current | 66A | 75A | 85A | 85A | 85A | 85A | ||||||
Continuous charging and discharging power | 3000W | 3680W | 4000W | 4000W | 4000W | 4000W | ||||||
Type of battery | Lithium /Lead-acid | |||||||||||
Backup power(AC) | ||||||||||||
Max. AC output power | 3000W | 3680W | 4000W | 4000W | 4000W | 4000W | ||||||
Max. output current | 17.4A | |||||||||||
Nominal AC output voltage | 230Vac | |||||||||||
Nominal AC output frequency | 50/60HZ | |||||||||||
THDv | <3% | |||||||||||
Switch time | <10ms | |||||||||||
Efficiency | ||||||||||||
MAX. efficiency | 97.20% | 97.20% | 97.30% | 97.40% | 97.50% | 97.60% | ||||||
European efficiency | 97% | 97% | 97.10% | 97.10% | 97.20% | 97.20% | ||||||
MPPT efficiency | ≥99.5% | |||||||||||
Protection devices | ||||||||||||
DC switch | Yes | |||||||||||
DC reverse polarity protection | Yes | |||||||||||
AC/DC surge protection | Yes | |||||||||||
Battery reverse protection | Yes | |||||||||||
AC short-circuit protection | Yes | |||||||||||
Ground fault monitoring | Yes | |||||||||||
Grid monitoring | Yes | |||||||||||
Anti-islanding protection | Yes | |||||||||||
Residual-current monitoring unit | Yes | |||||||||||
Insulation resistance monitoring | Yes | |||||||||||

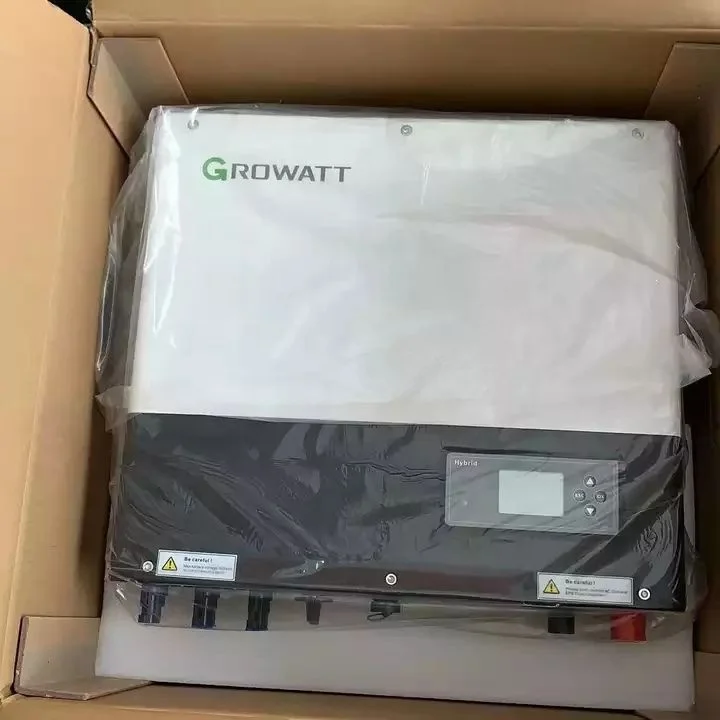

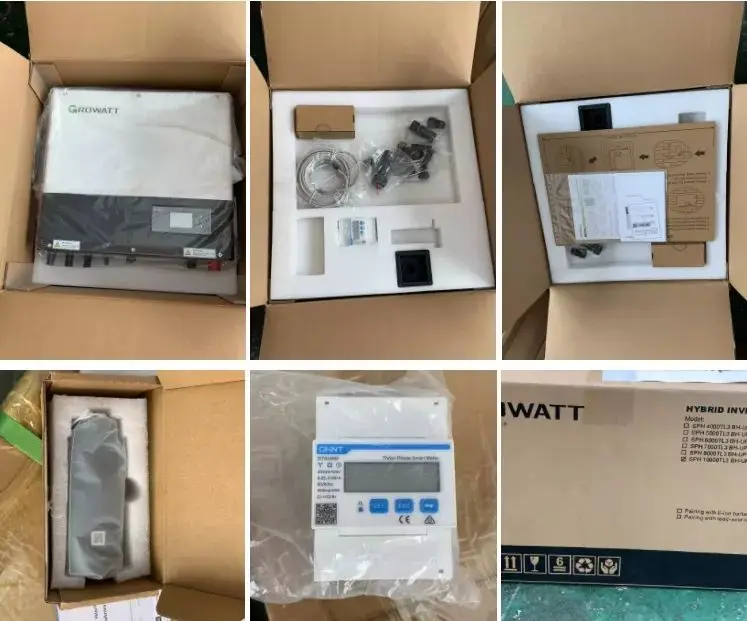

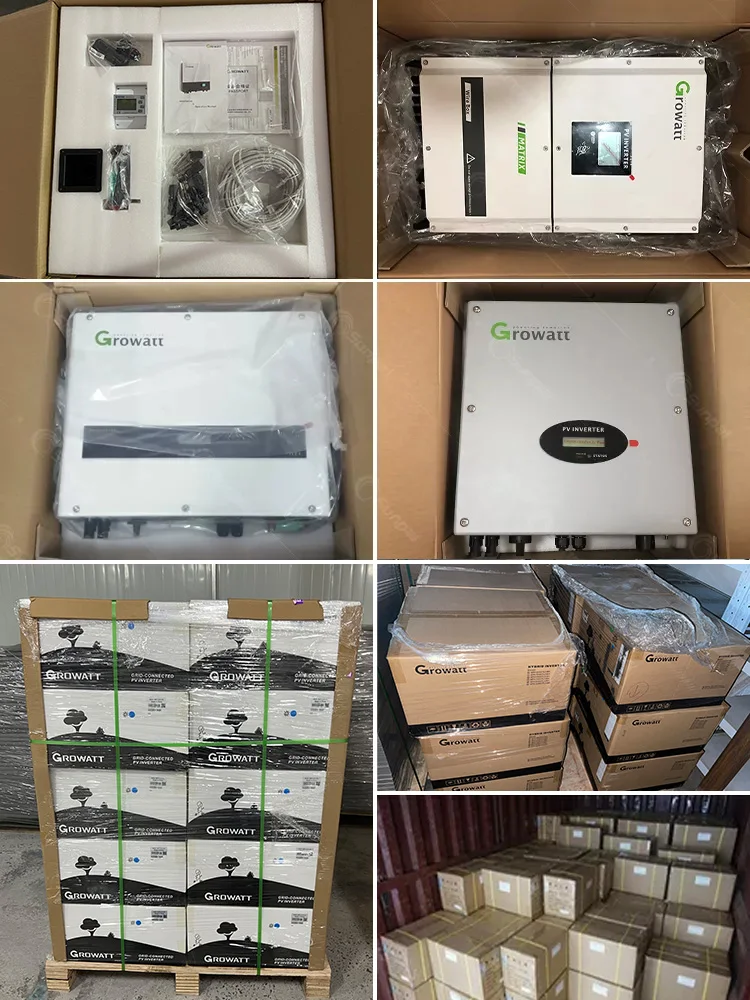

Professional Packing
Professional Packing

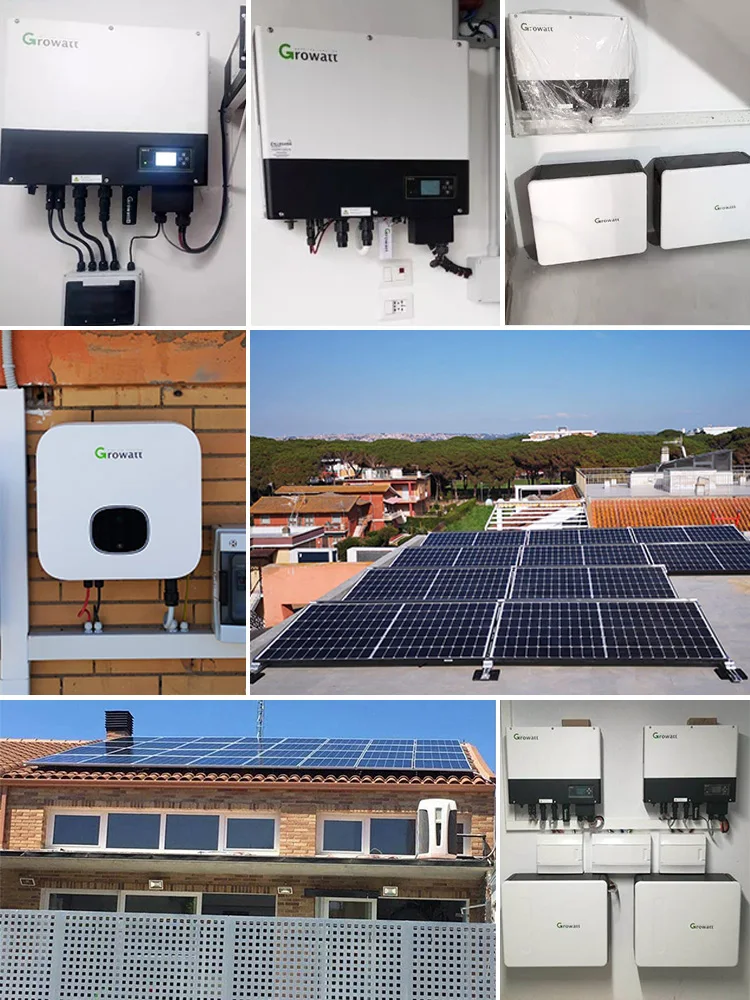

Projects Cases
Projects Cases
You May Like
You May Like

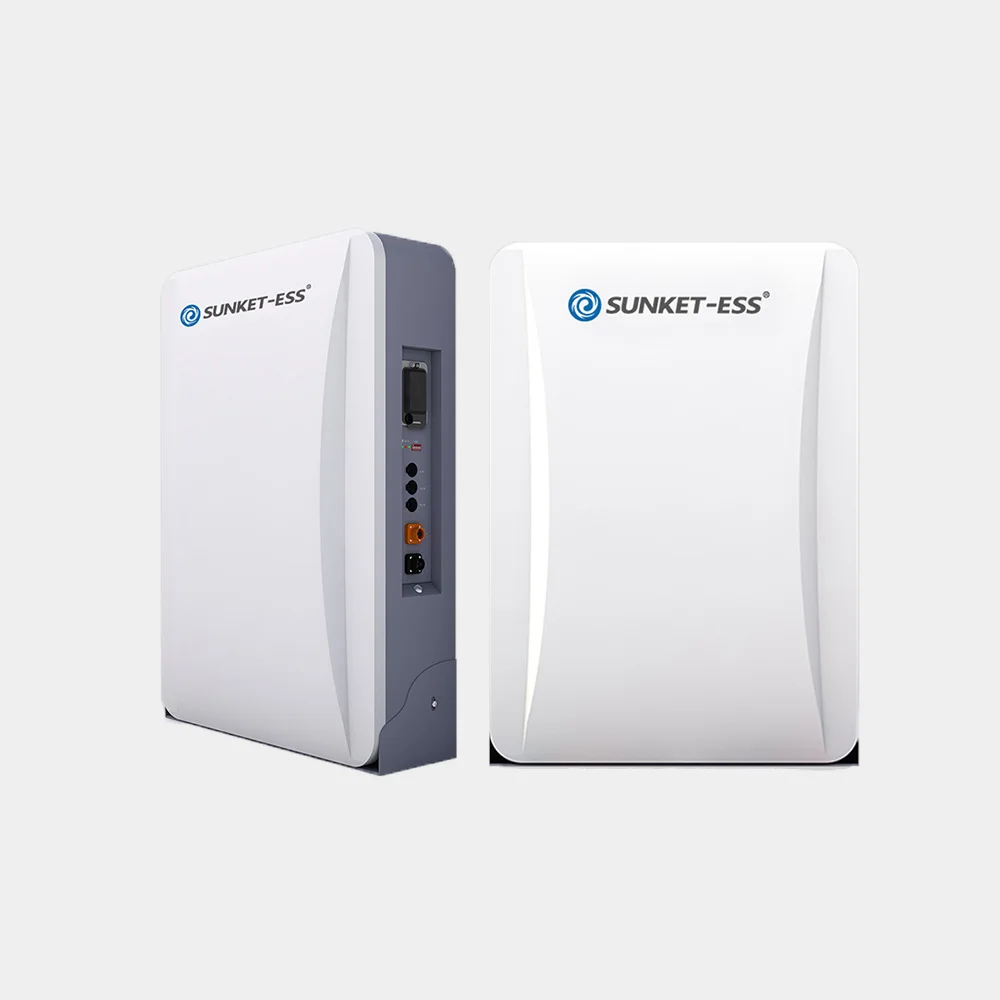

Wall Mounted Series
Wall Mounted Battery Solution
51.2V 5kWh(100AH)/10kWh(200AH)

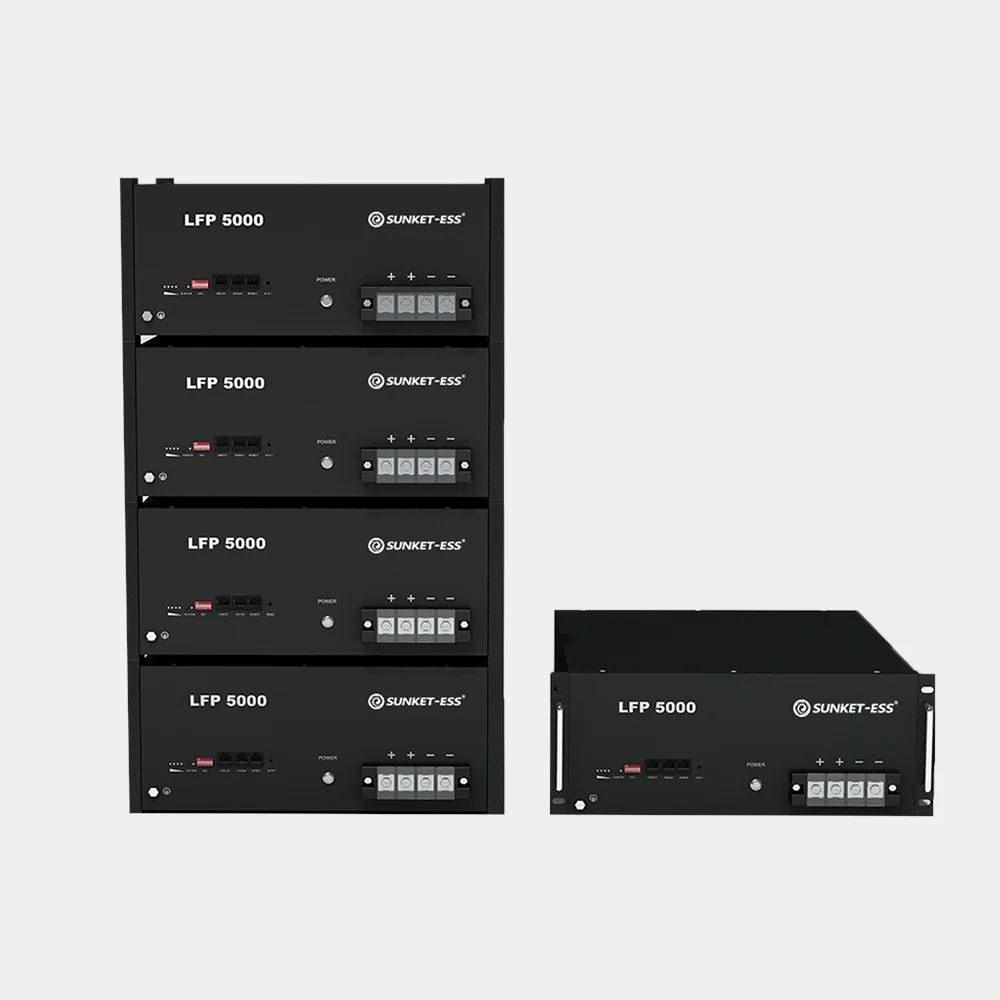

Rack Mounted Series
Rack Mounted Battery Solution
51.2V 5kWh-80kWh
ounted
Stack Mounted Series
Stack M Lithiuem Battery
57.6V 50AH
3kWh/LV
