Custom Design Fanless Mini Pc I7 Quad Core Dual Lan DDR4 64GB RAM 6 USB 2 Display Industrial Computer Desktop
- Category: >>>
- Supplier: Shenzhen Hystou Technology Co. Limited
Share on (1600759848271):
Product Overview
Description
VR
Details Images

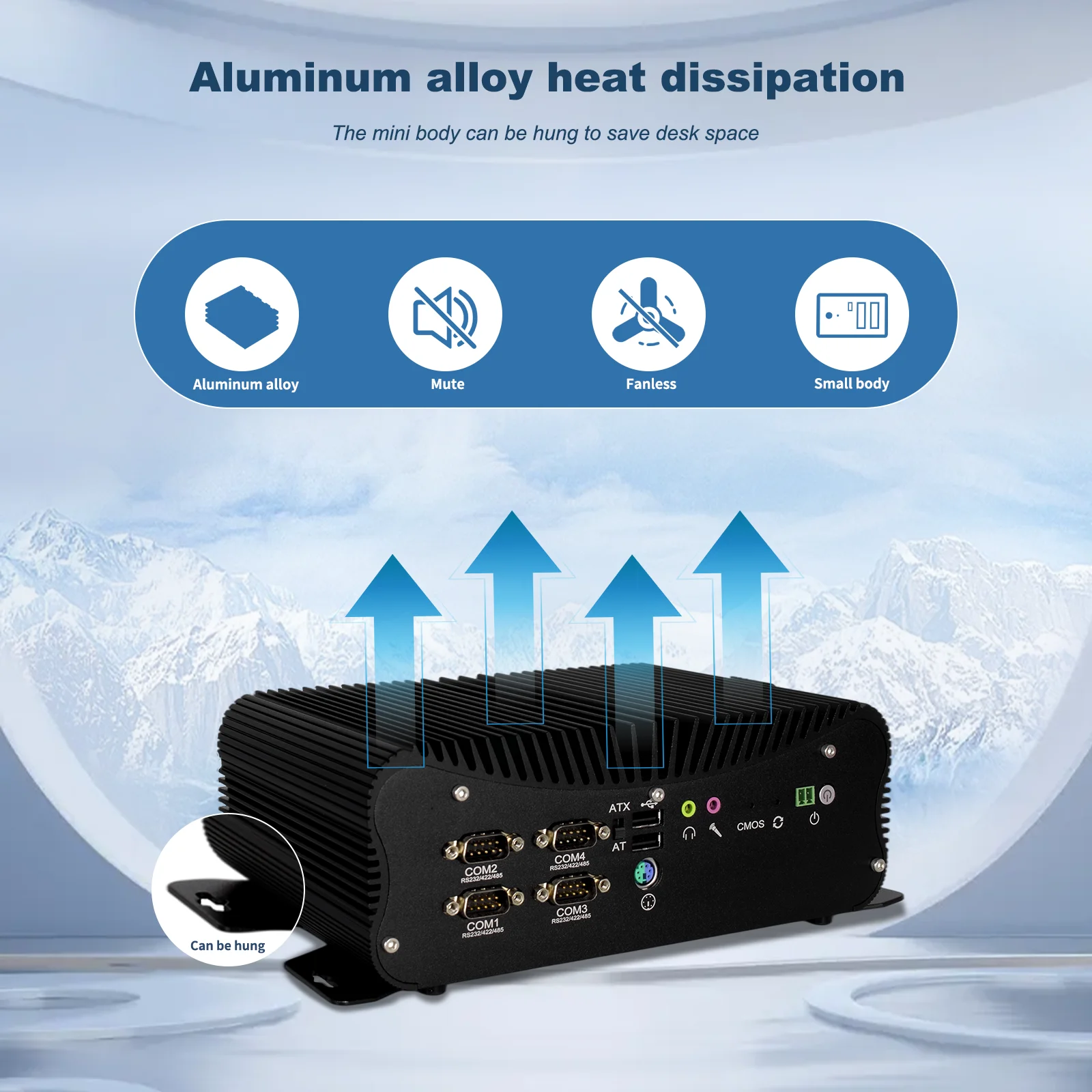

【Fanless Cooling Design】
The Mini PC shell is made of brushed full aluminum alloy. It's a perfect silent computer with fanless design, as there is no fan inside, the pc runs totally silent all day long, brushed full aluminum alloy shell for heat dissipation, no need to worry about heat dissipation, help you get a better and more powerful computing experience.

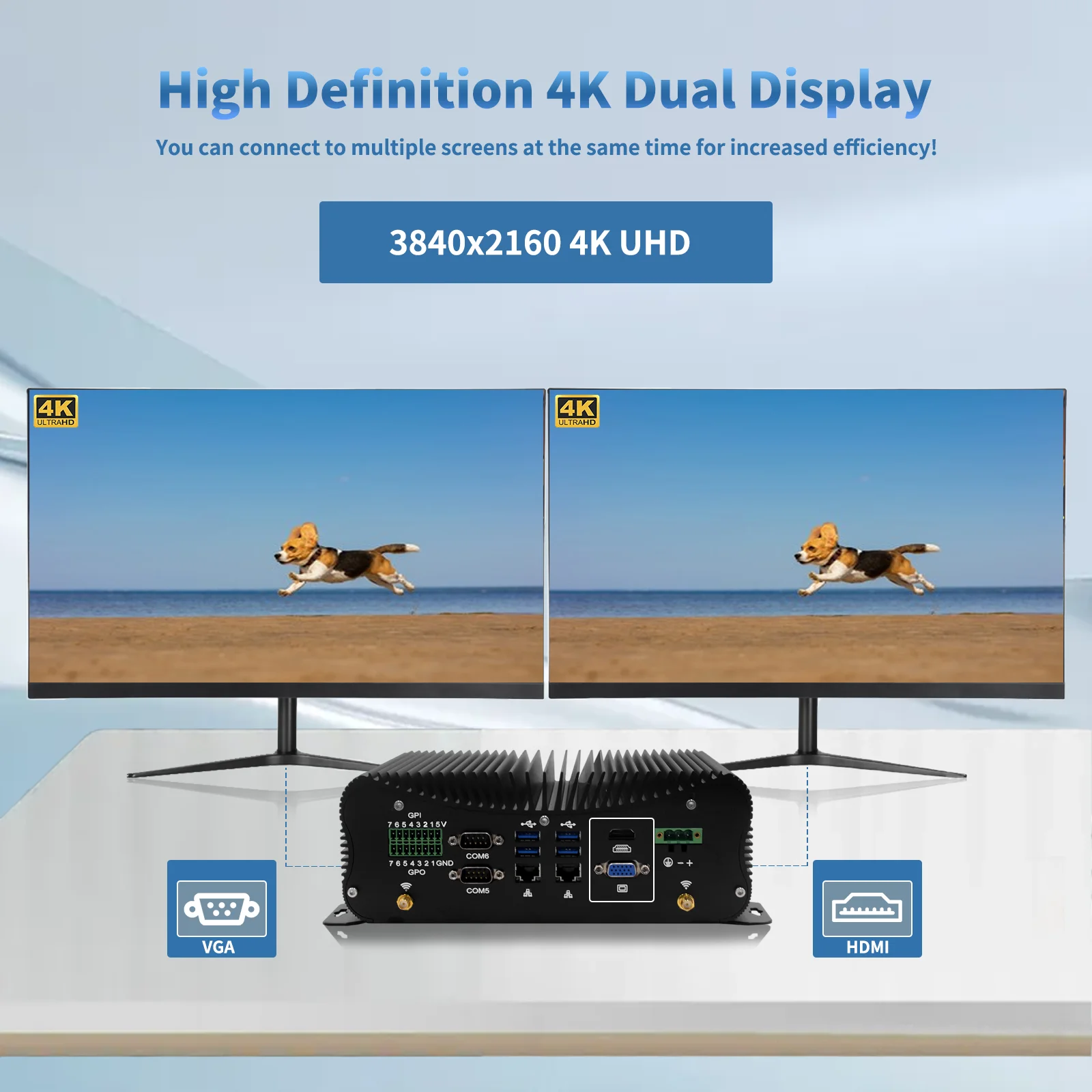

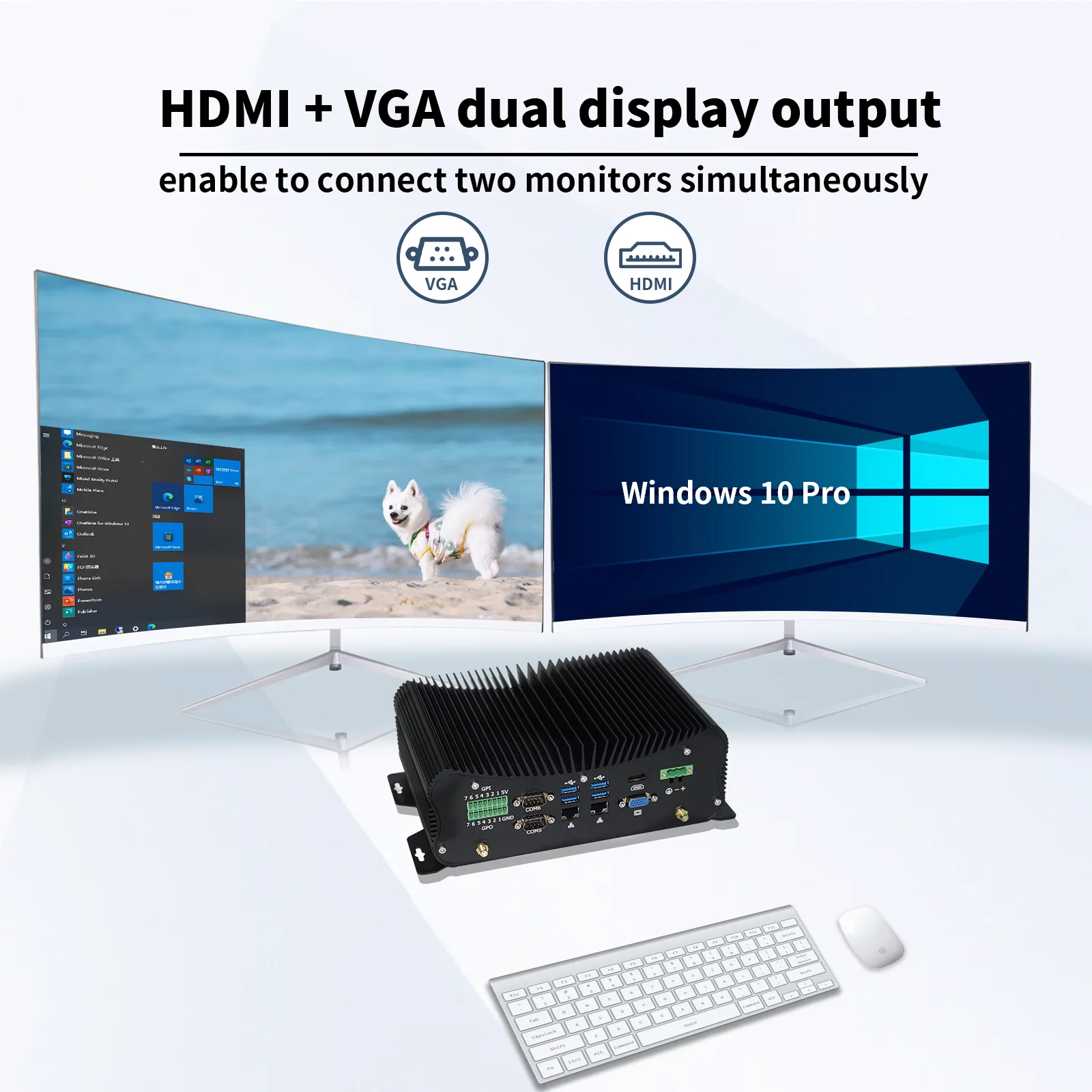

【Dual Display】
This Mini Pc has a HD-MI port and a VGA port, which means that the P12B can be used at the same time and seamlessly connect two monitors, which can bring more fun to life. Video playback, home theater, and enjoy entertainment with your family.
Product Description
CPU | Intel Core I7-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz) | ||
TDP | 15W~28W | ||
CPU Lithography | 14 nm | ||
Memory Specifications | |||
Max Memory Size | 64GB | ||
Memory Types | 2*DDR4 SO-DIMM 260 pin | ||
Memory Channels | Dual Channels | ||
ECC Memory | Don’t support | ||

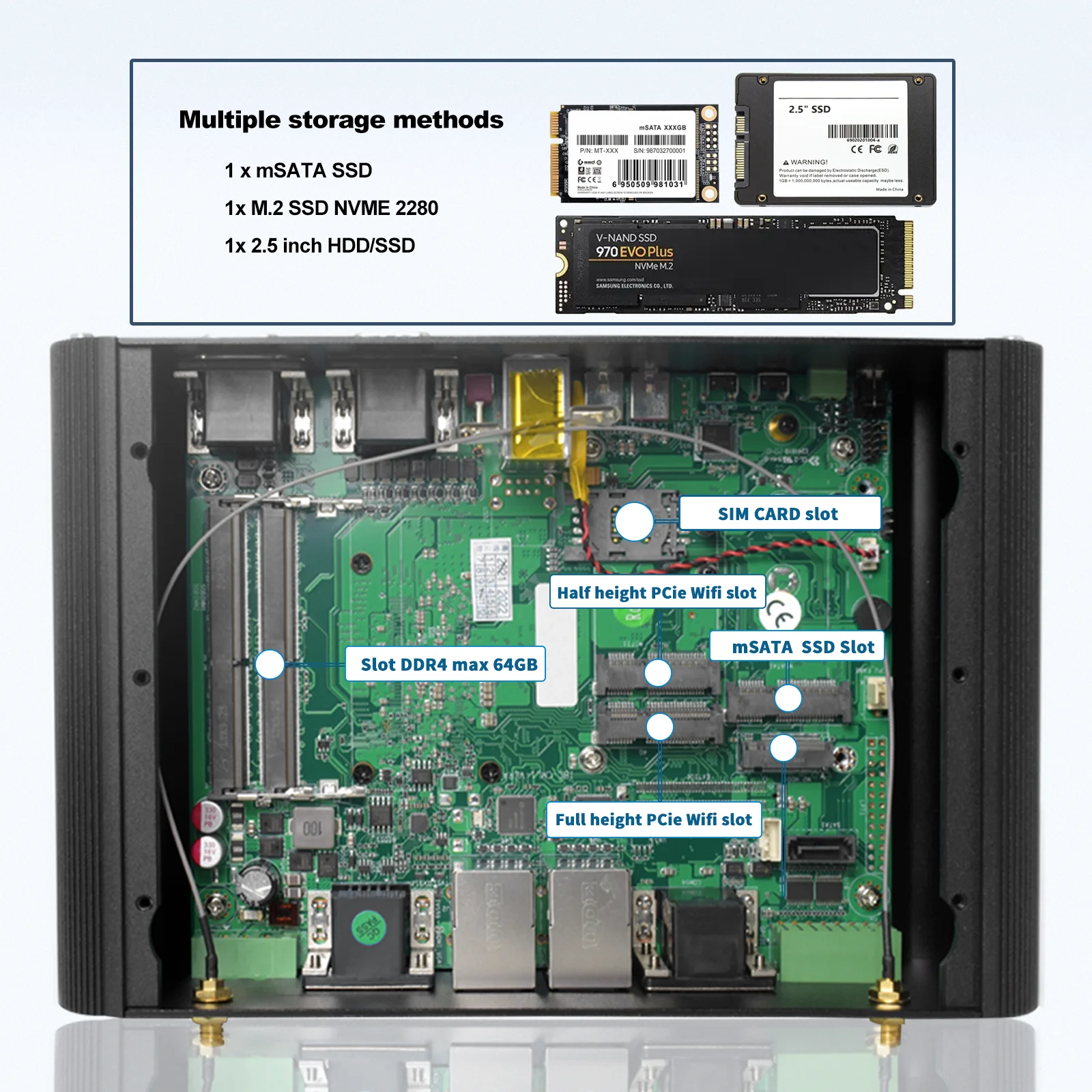

Storage Specification | |||
m.2 SSD | 1*M.2 2280 M KEY PCIE3.0 | ||
SATA | 1*SATA3.0 Slot for 2.5 inch HDD/SSD | ||
mSATA | 1*mSATA slot | ||
Graphics | |||
Processor Graphics | Intel lris Plus Graphics 650 for 7th CPU,Intel UHD Graphics 620 for 8th CPU,Intel UHD Graphics for 10th CPU | ||
HDMI | 1*HD-MI 4096*2304@30Hz(4K) | ||
DP | 1*VGA 1920*1080@60Hz(1080P) | ||
Power Specification | |||
Adapter Output | DC 12V/5A for 7,8th CPU,19V/4.74A for 10th CPU | ||
Adapter Input | AC 110-240V, 50/60HZ | ||
Consumption | 55W~80W | ||
Auto Power On | Support Auto Power On Function | ||

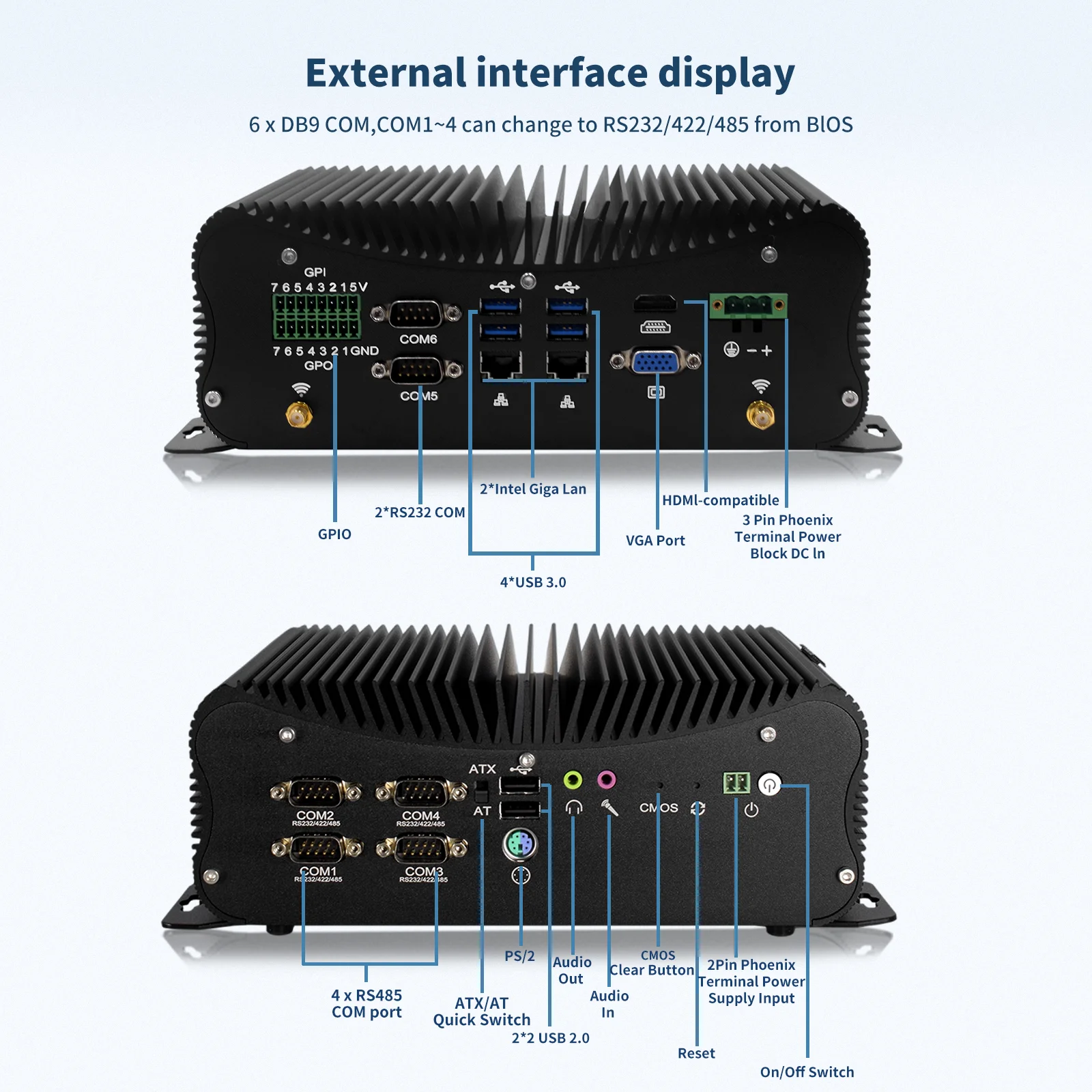

In & Out interfaces | |||
USB Port | 4*USB 3.0 port,2*USB 2.0 port | ||
Audio | 1*3.5mm MIC in & SPK out | ||
Video | HD-MI 4096*2304@30Hz + VGA 1920*1080@60Hz 2 Display Output | ||
Audio Cards | USB Audio Device/Realtek ALC662 | ||
Lan Port | 2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211/I219-V | ||

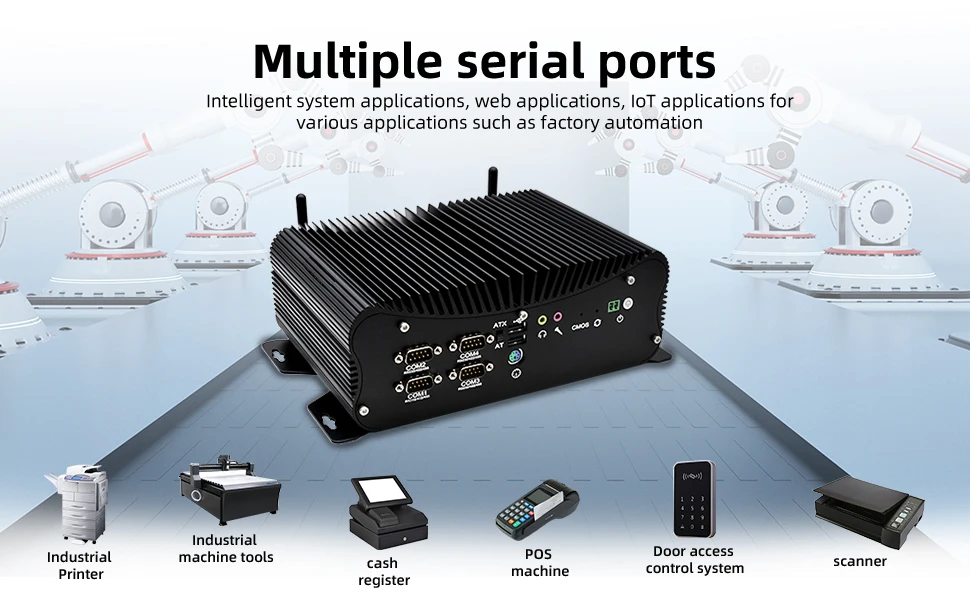

Com Port | 6*RS232 Com port/2*RS232 Com port + 4*RS422 Com port or 4*RS485 Com port(Com1~Com4) | ||
GPIO | 1*18pin GPIO Phoenix Terminal(7*Input 7*Output GPIO) | ||
Other | 1*PS2,1*Power Button,1*2pin power switch,1*Reset Button,1* Clear CMOS Button;1*ATX/AT switch | ||

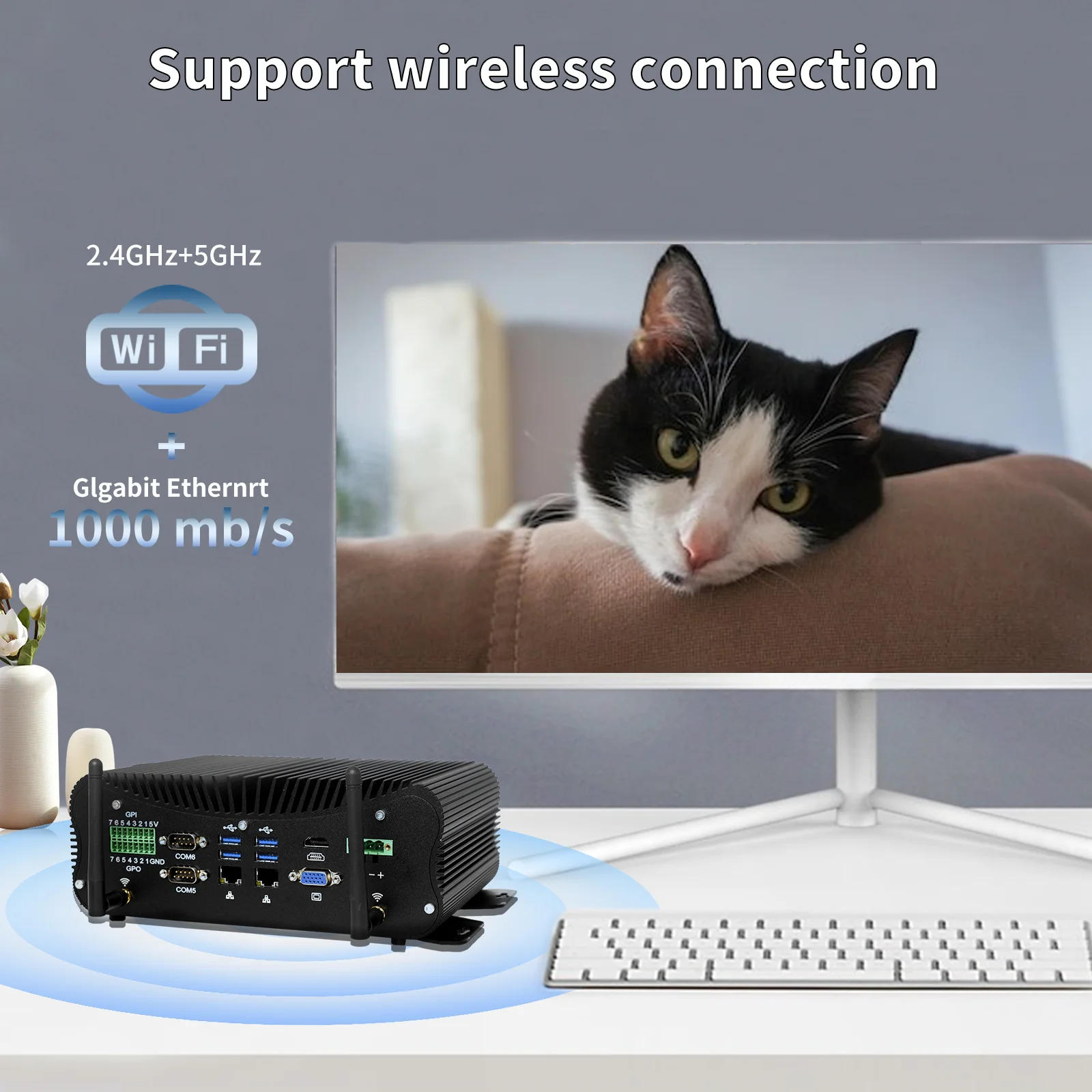

Wi-Fi | Inside Wifi & Blue-tooth Combo | ||
Others | |||
System | Support Windows 10, Linux | ||
BIOS | Support RAID,AUTO POWER ON,Wake On LAN,Resume By Alarm,Watch Dog,PXE | ||
SIM | 1*SIM slot | ||
MPCIE | 1*MPCIE,Support 4G/WIFI module | ||
Work Environment | -10℃--60℃(14F~140F) , 30%--90% Humidity | ||
Case Material | Full Brushed Aluminum Alloy | ||
Dimension | PC size 249*150*86mm Package size 315*285*135mm | ||
Weight | Net 2.4kg; Gross 3.3kg | ||
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.The more you purchase, the cheaper the prlce.
Packing&Shipping
PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
