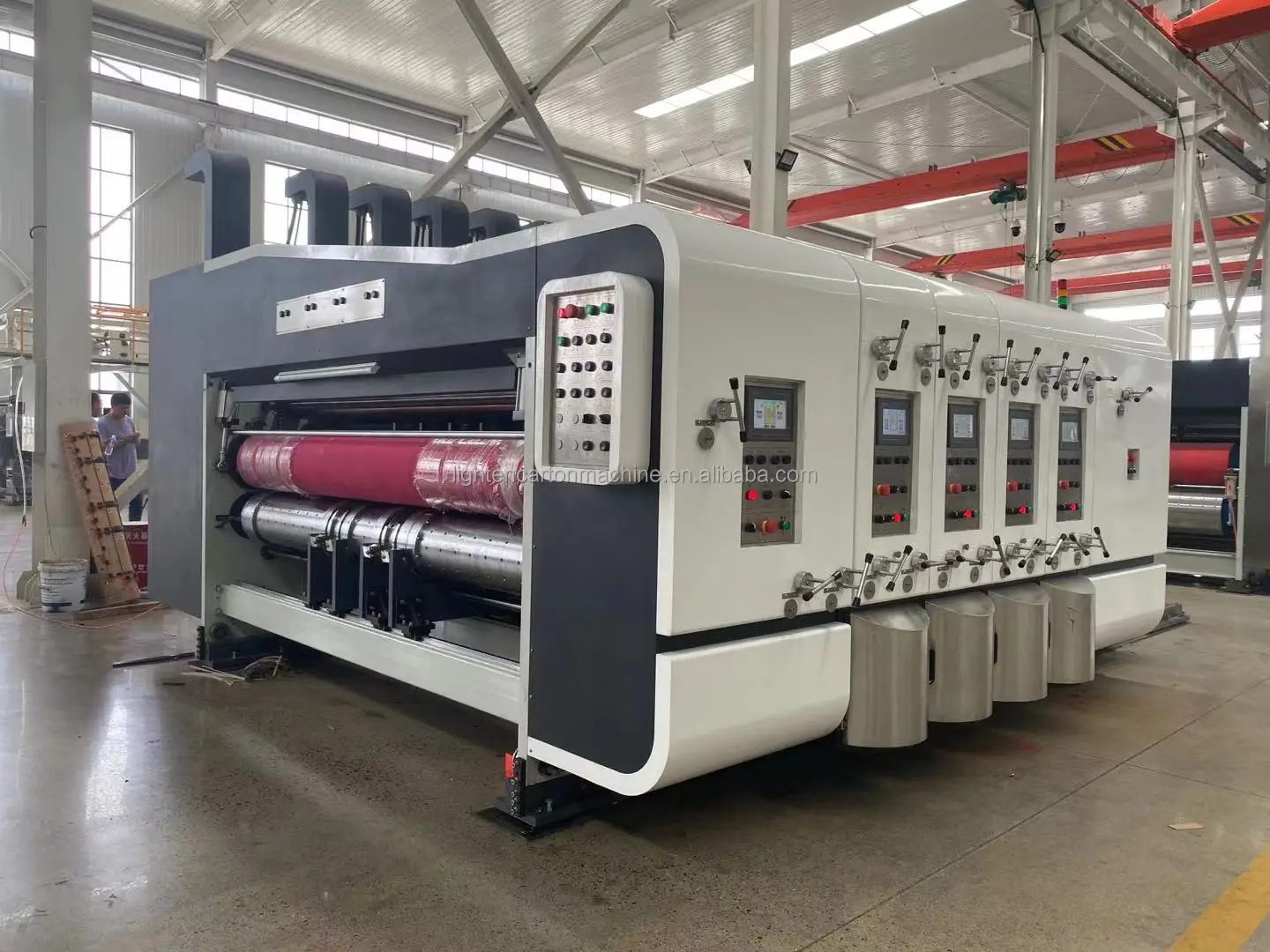

Высокоскоростная машина для производства картонных коробок flexo 2, 3 4 вида цветов, картонная печатная машина, гофрированный принтер, слоттер для производителя чехла
- Category: >>>
- Supplier: Cangzhou Lighten Import & Export Trading Co. Ltd.
Share on (1600760137535):
Product Overview
Description
Product Description

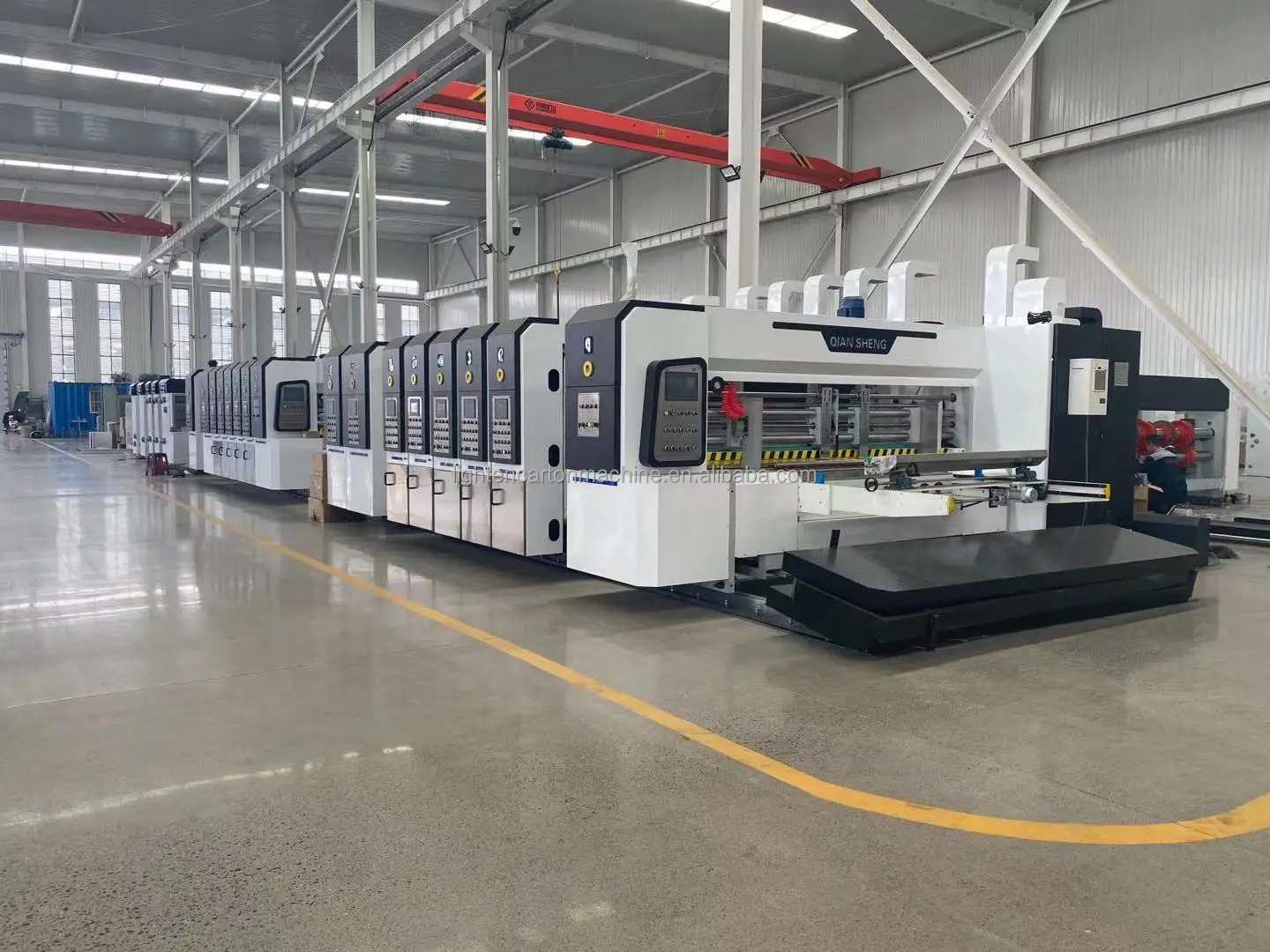

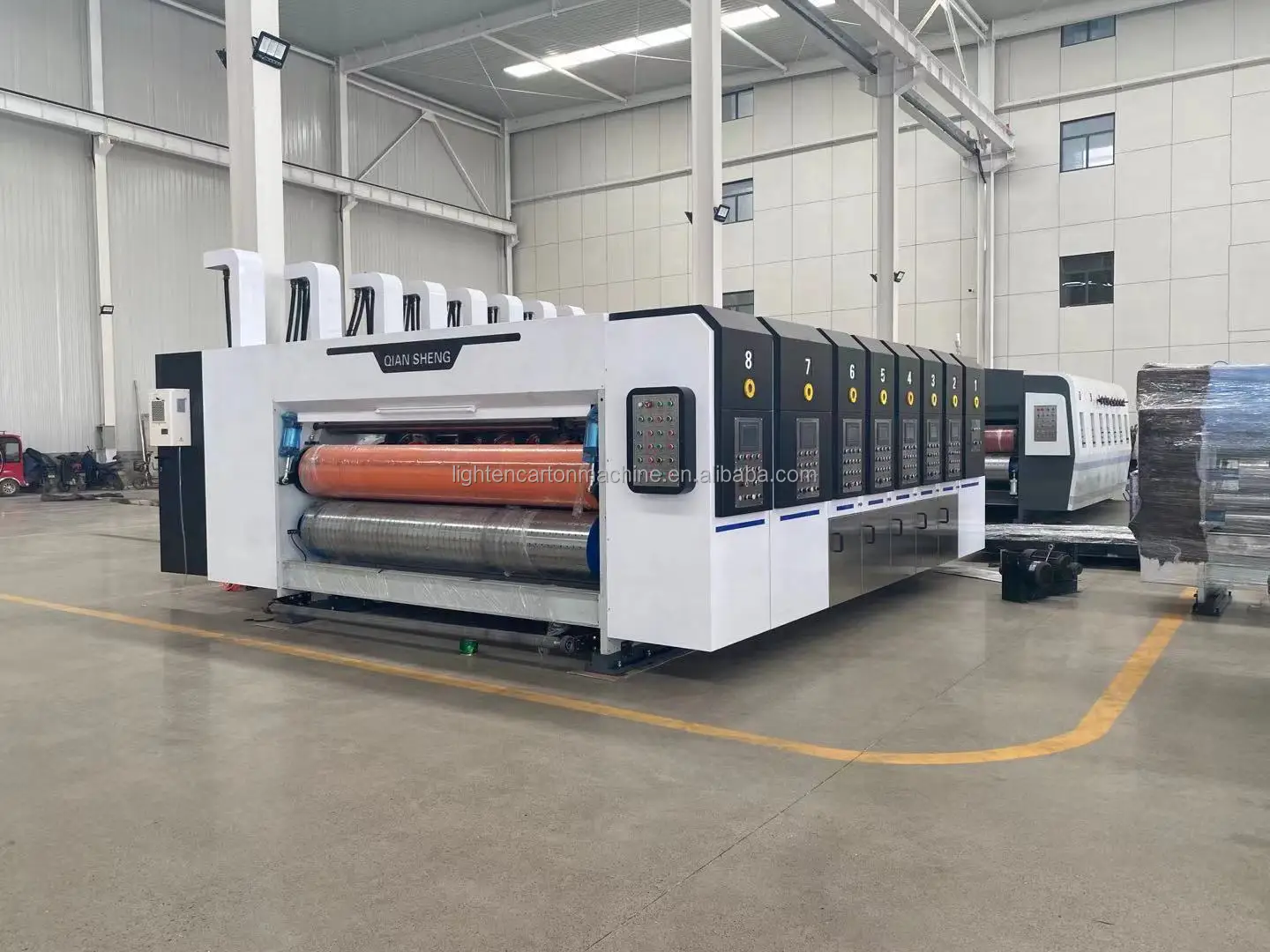

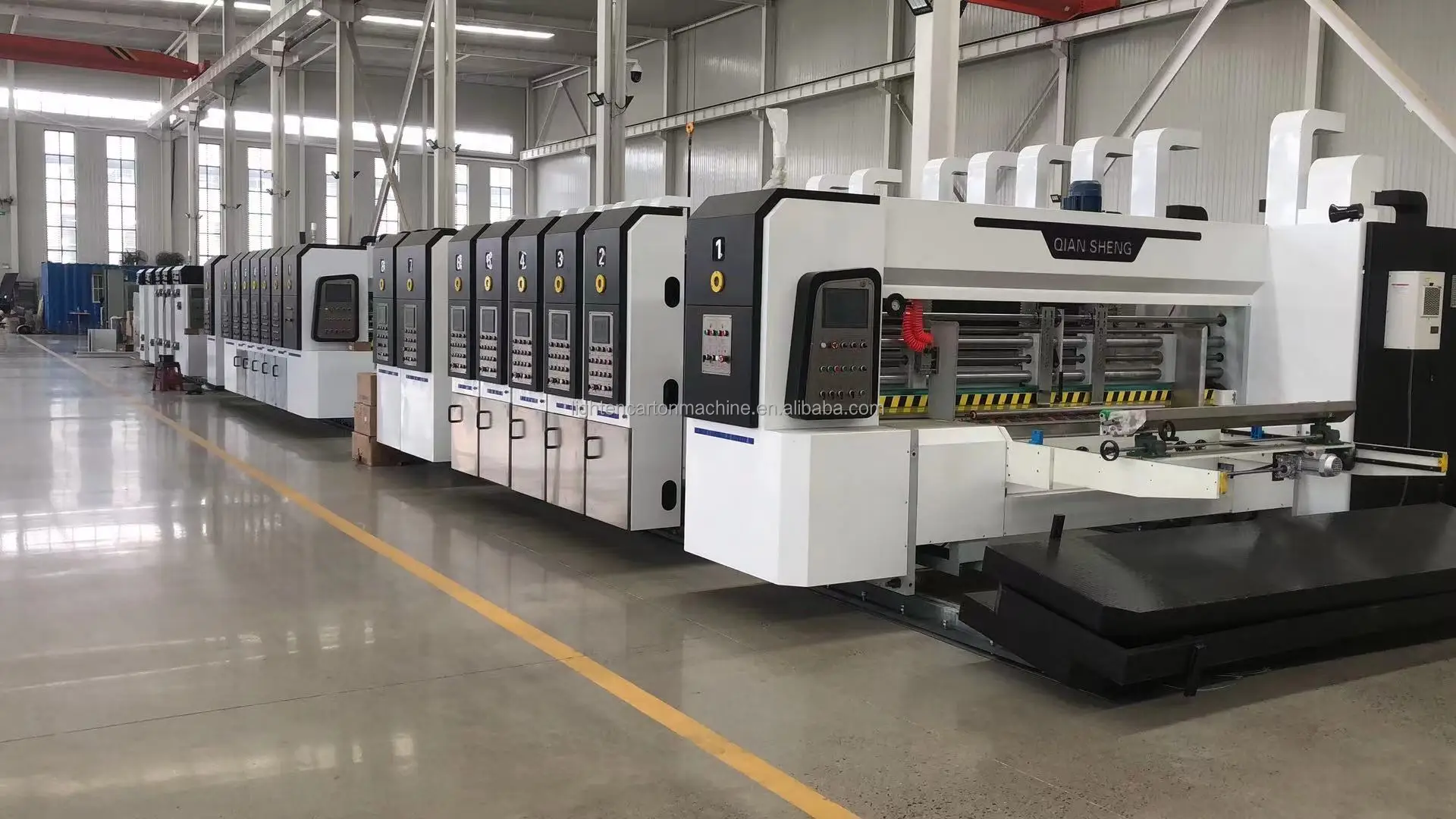

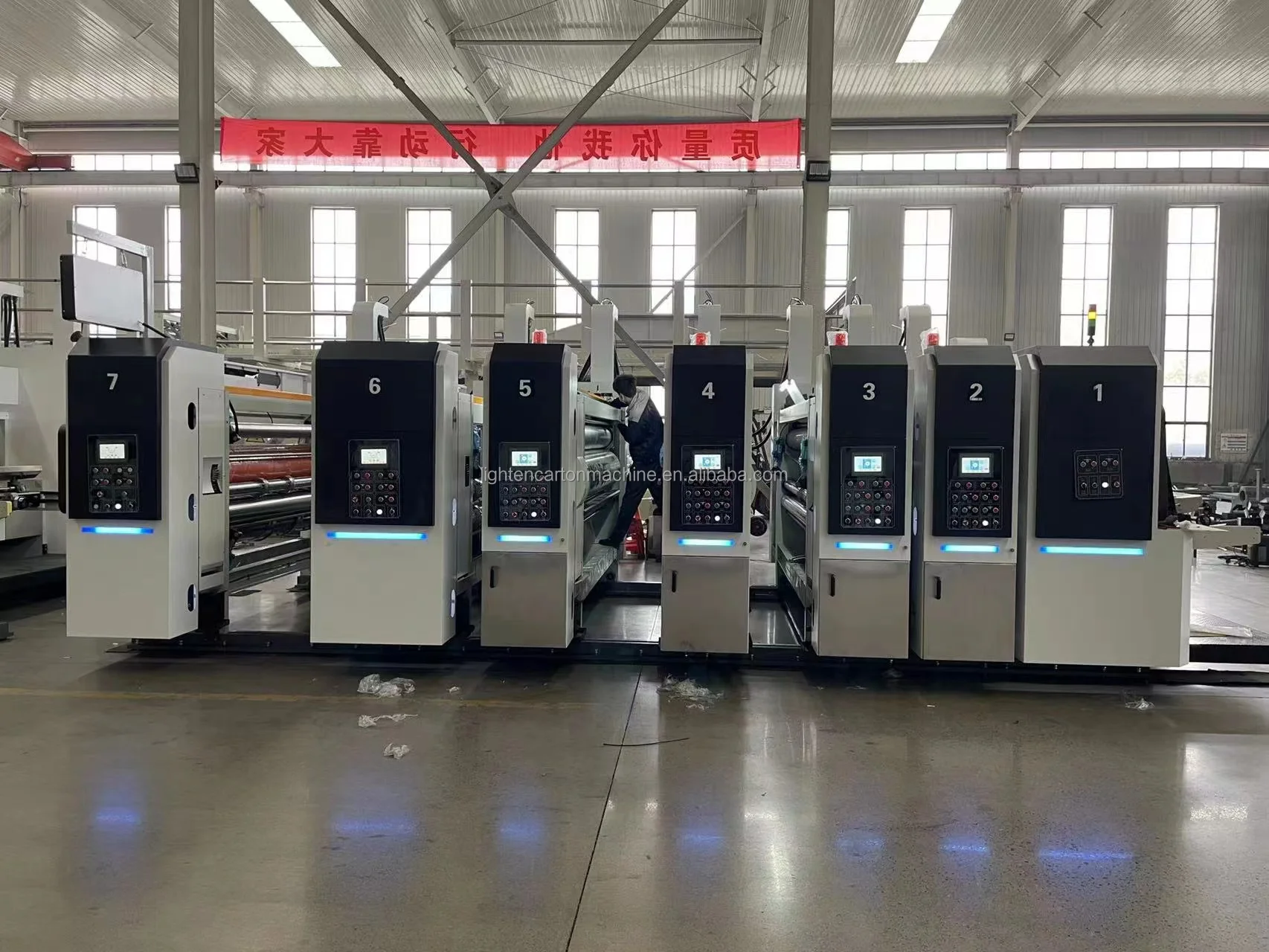

GYKM- High speed flexo printing slotting rotary die cutting with vibrating stacker machine
Maximum Paper Feeding size: 920×2200mm 1200×2400mm 1400×2600mm
(We can custom-made the machine size for you)
Machine running speed: 150~280 pieces/minutes
1. The main wall body: After Japan mitsubishi five-sided machining center processing.
2. Transmission gear: High precision grinding teeth.
3. Printing roller: 45# steel rolling welding, computer dynamic balance correction, grinding and hard chromium plating.
4. Anilox roller: Dynamic balance correction
5. Electrical part: Siemense, Scheigher, Delta, Fatek,
6.Lead edge feeder unit. vacuum sucking feeding cardboard
7. Auto ink circulation system
8. Fully electric control slotting creasing slitting knives which is easy to change order.
9.The gear of the machine: Auto lubrication with oil
10.Machine body thickness:60mm
11.Automatic separate, pneumatic lock up.
No. | Parameter | Unit | Model: GYKM-1224 | Model: GYKM-1428 | Model: GYKM-920 | |
1 | Machine size(inner side) | mm | 2600 | 3000 | 3000 | |
2 | Max. Design speed | pieces/min | 200 | 180 | 250 | |
3 | Economical speed | pieces/min | 0-180 | 0-160 | 0-220 | |
4 | Max. Paper Feeding size | mm | 1200×2400 | 1400×2800 | 920×2400 | |
5 | Min. Paper feeding size | mm | 320×800 | 350×800 | 280×700 | |
6 | Max. Printing size | mm | 1200×2200 | 1400×2600 | 1200×2400 | |
7 | Minimum.slotting distance | mm | Negative knife: 300×100×300×100mm Positive knife: 180 ×180×180×180mm | Negative knife: 300×100×300×100mm Positive knife: 180 ×180×180×180mm | Negative knife: 280×80×280×80 Positive knife: 160×160×160×160mm | |
8 | Skip paper feeding size | mm | 1400×2400 | 1600×2800 | 1200×2400 | |
9 | Precision of printing | mm | ±0.5 | ±0.5 | ±0.5 | |
10 | Standard print plate thickness | mm | 7.2 | 7.2 | 7.2 | |
11 | Paperboard thickness | mm | 2-10 | 2-10 | 2-10 | |
12 | Max. Die cutting size | mm | 1200×2300 | 1400×2700 | 920×2300 | |
13 | Precision of die cutting | mm | ±1 | ±1 | ±1 | |
14 | Die cutting paperboard thickness | mm | 2-10 | 2-10 | 2-10 | |
15 | Print roller axial direction adjustment | mm | ±10 | ±10 | ±10 | |

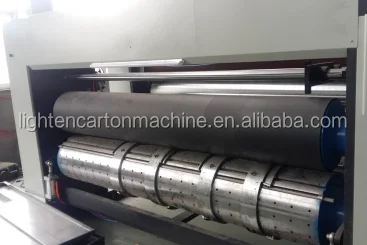

Lead edge feeder
1. Adsorption lead edge feeding system.
2. With Dust extraction device.

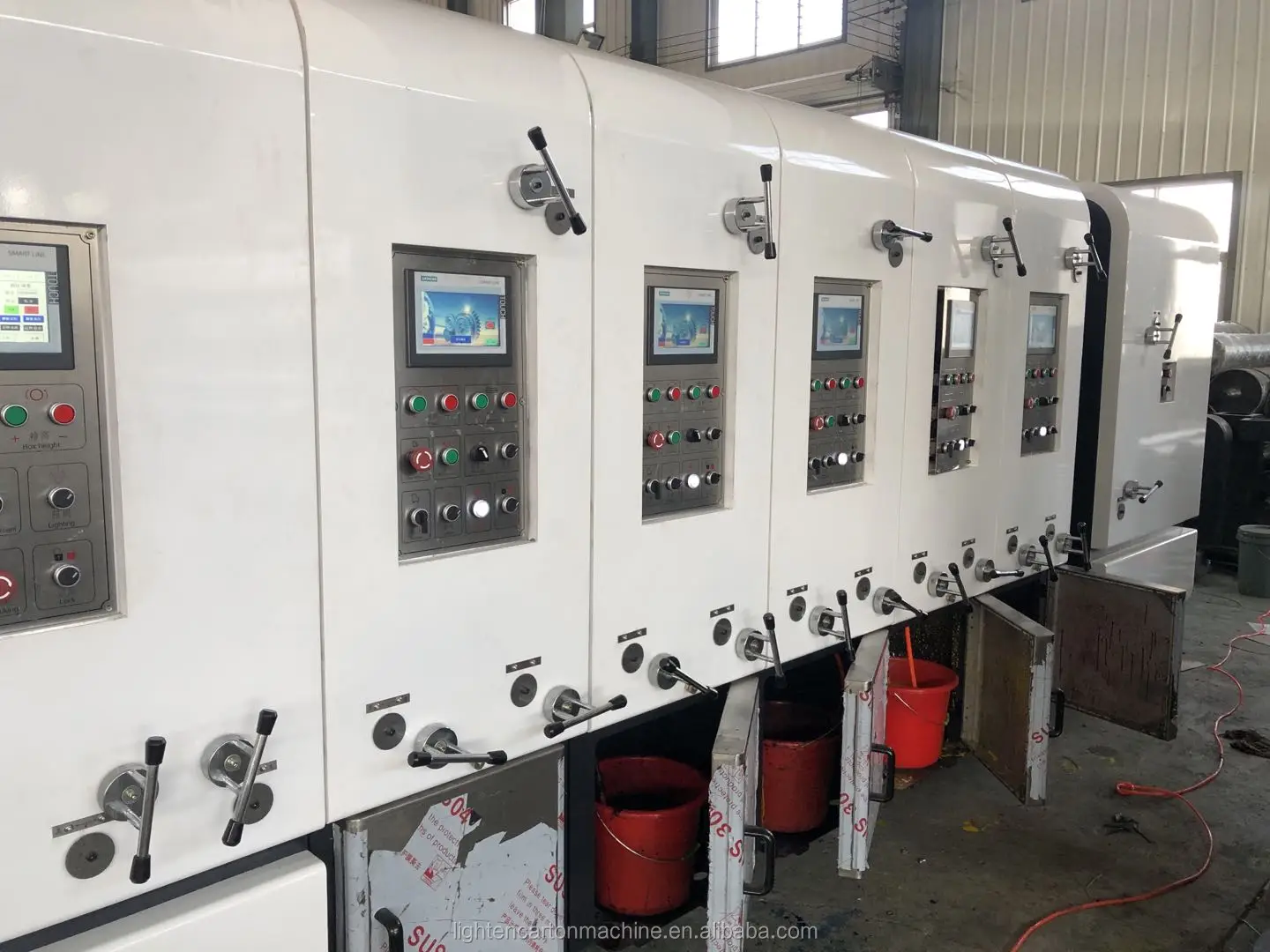

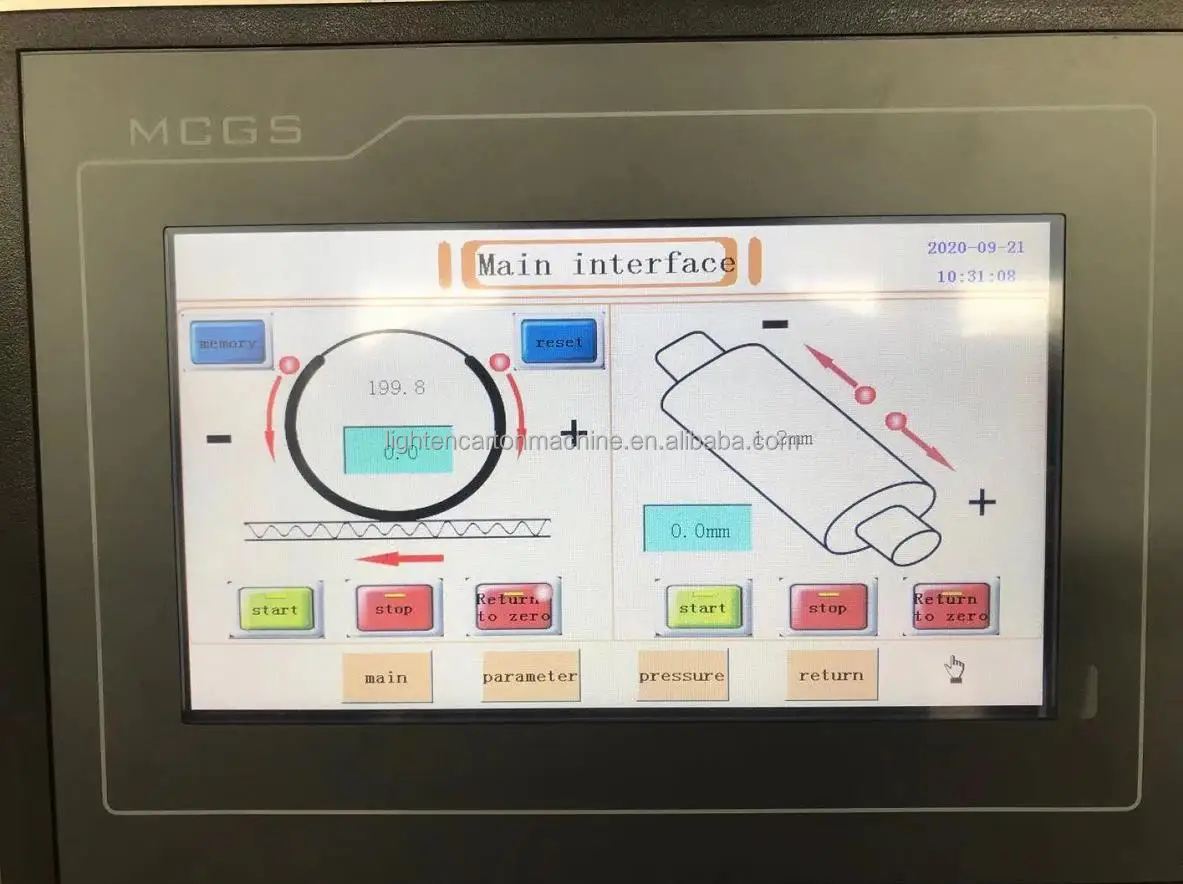

3. Operation control switch (PLC computer control). The control panel is equipped with a 10-inch touch screen, which can control the Lead edge feeding unit, printing unit,
slotting unit, die cutting unit, and is easy to operate.
slotting unit, die cutting unit, and is easy to operate.
4. Automatic zero device.

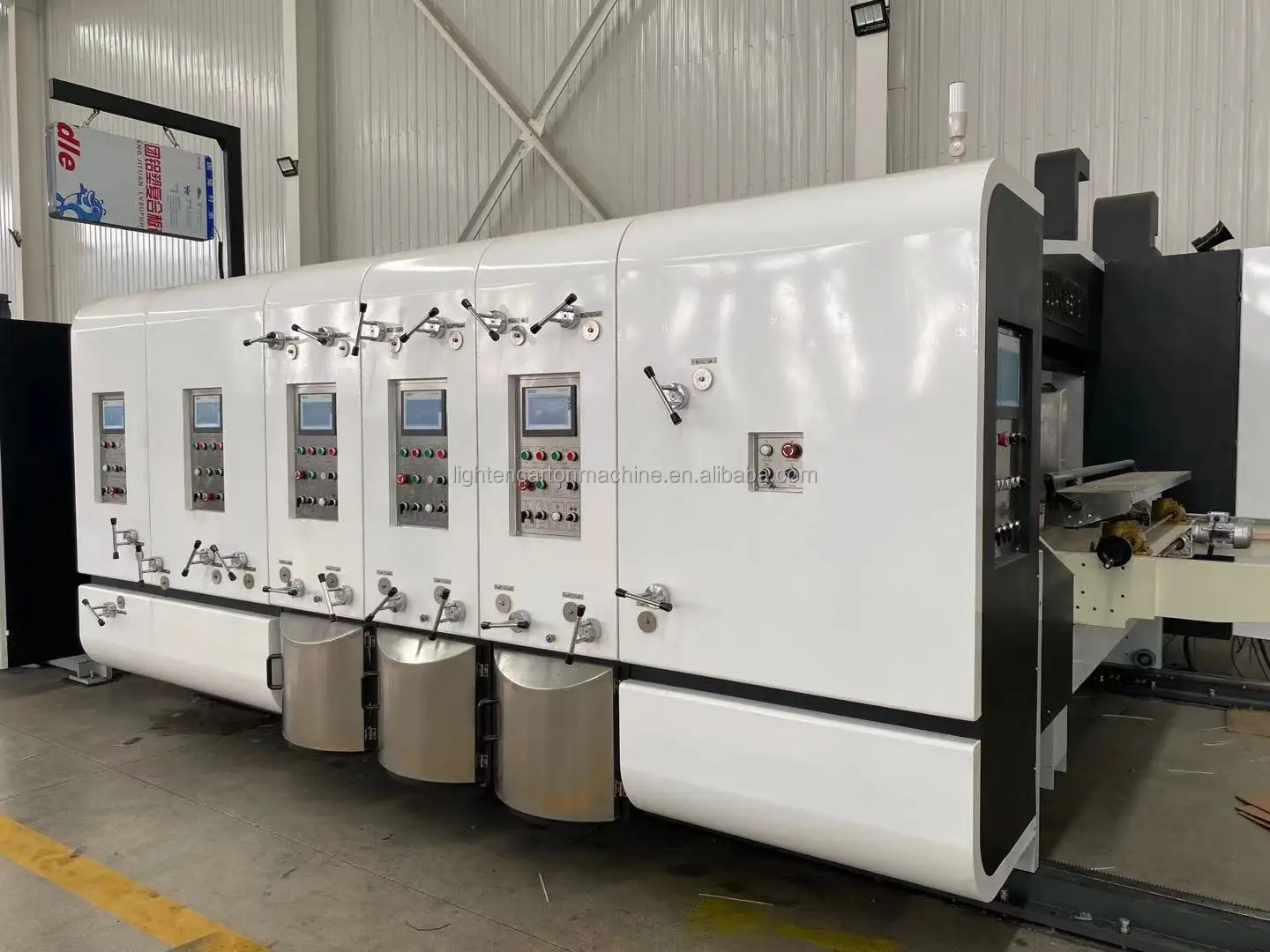

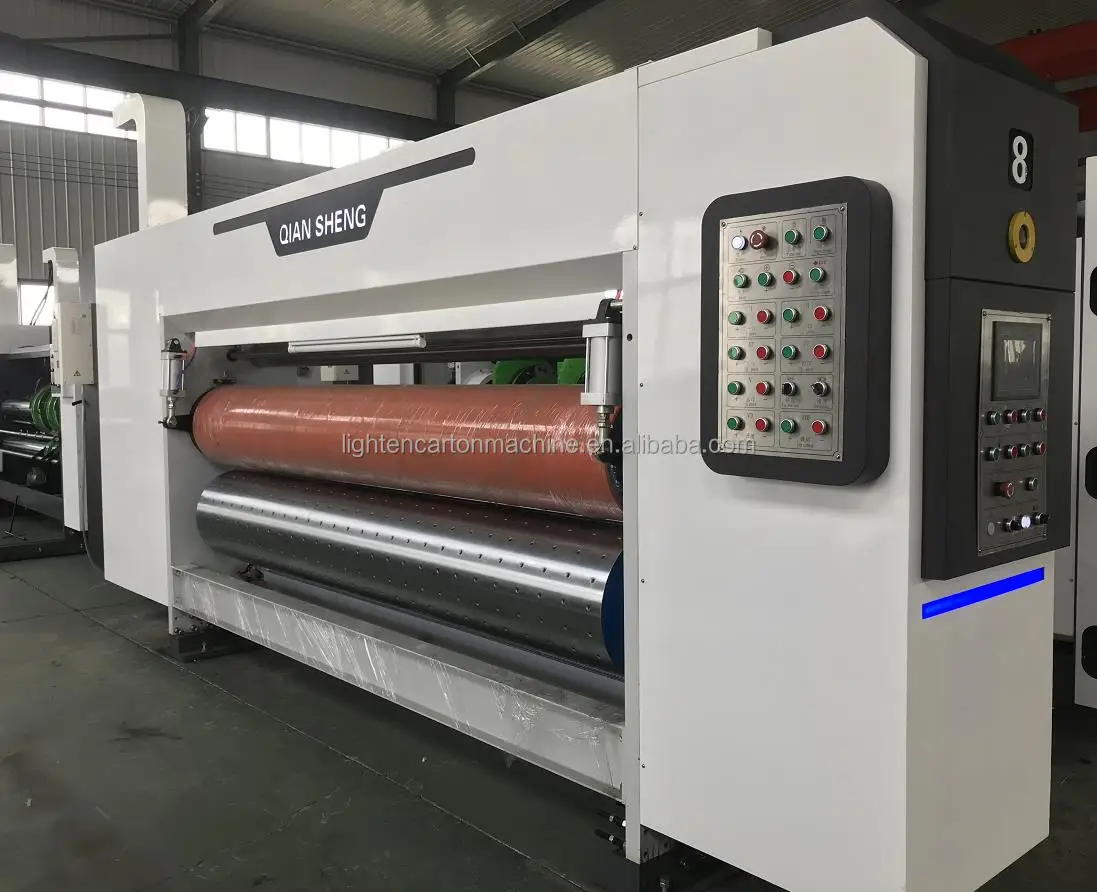

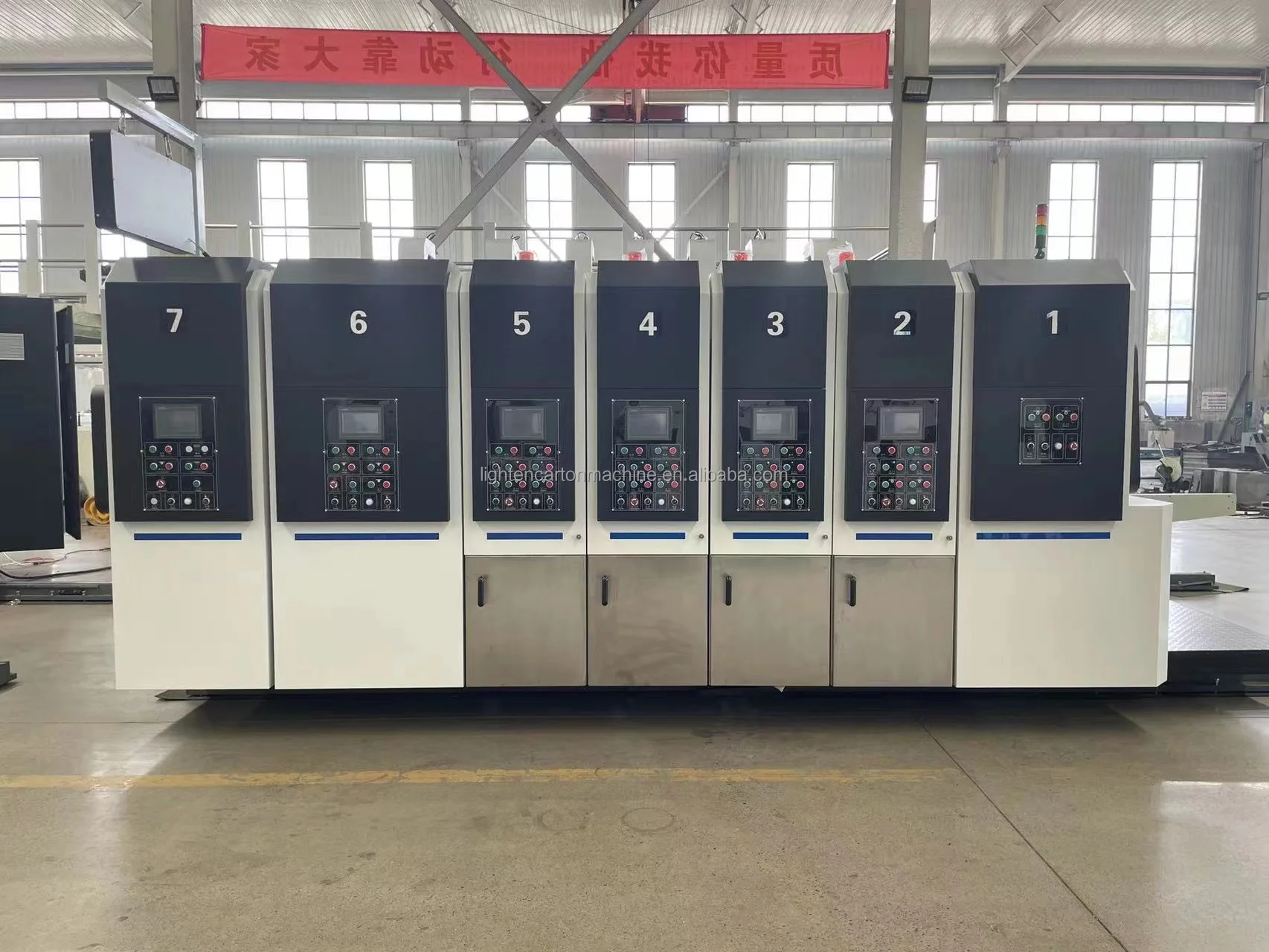

Printing unit
1. Metal anilox roller with rubber roller. Dpi: 220~280
2. Ceramic anolix roller with doctor blade. Dpi: 300~450
3. The printing plate roller adopts the frequency converter to adjust the phase, and the zero return and the plate adjustment speed
are fast, and the adjustment precision is high.
are fast, and the adjustment precision is high.
Slotting unit （Computer adjustment）
1. It is equipped with PLC programmable control to synchronize the axial movement of the left and right synchronous transport, so
that the upper and lower creasing wheel, upper and lower slotter knife, synchronous adjustment, adjust the box height by
electrical, and with memory storage function.
that the upper and lower creasing wheel, upper and lower slotter knife, synchronous adjustment, adjust the box height by
electrical, and with memory storage function.
2. Adjust the knife by computer automatically and correction automatically.
3. Groove interval, box height, PLC and rotary encoder control, automatic adjustment. you can setting the paperboard size on the touch screen, Automatic change order.
4. With touch screen, automatically detect and adjust through the PLC and rotary encoder, and call up the storage menu. The automatic alignment is fast and efficient.
5. Two sets pre-creasing wheel,and one set main creasing wheel, for avoid the paperboard damage when slotting.

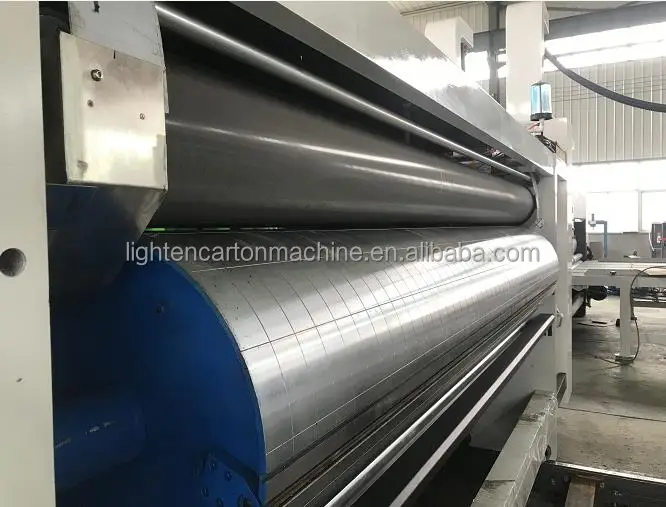

Rotary die cutting unit (Computer adjustment)
1. When the paper is stopped, the soft roll automatically rises to reduce the wear of the soft roller.
2. The gap between the knife mould roller and the rubber padding roller is adjusted by electric power, and the parameters can be set,and the adjustment data can be displayed.
die cutting roller adopts three planetary structure, high precision, large bearing capacity, stop, can be 360 ° electric digital
operation adjustment.
die cutting roller adopts three planetary structure, high precision, large bearing capacity, stop, can be 360 ° electric digital
operation adjustment.
Material

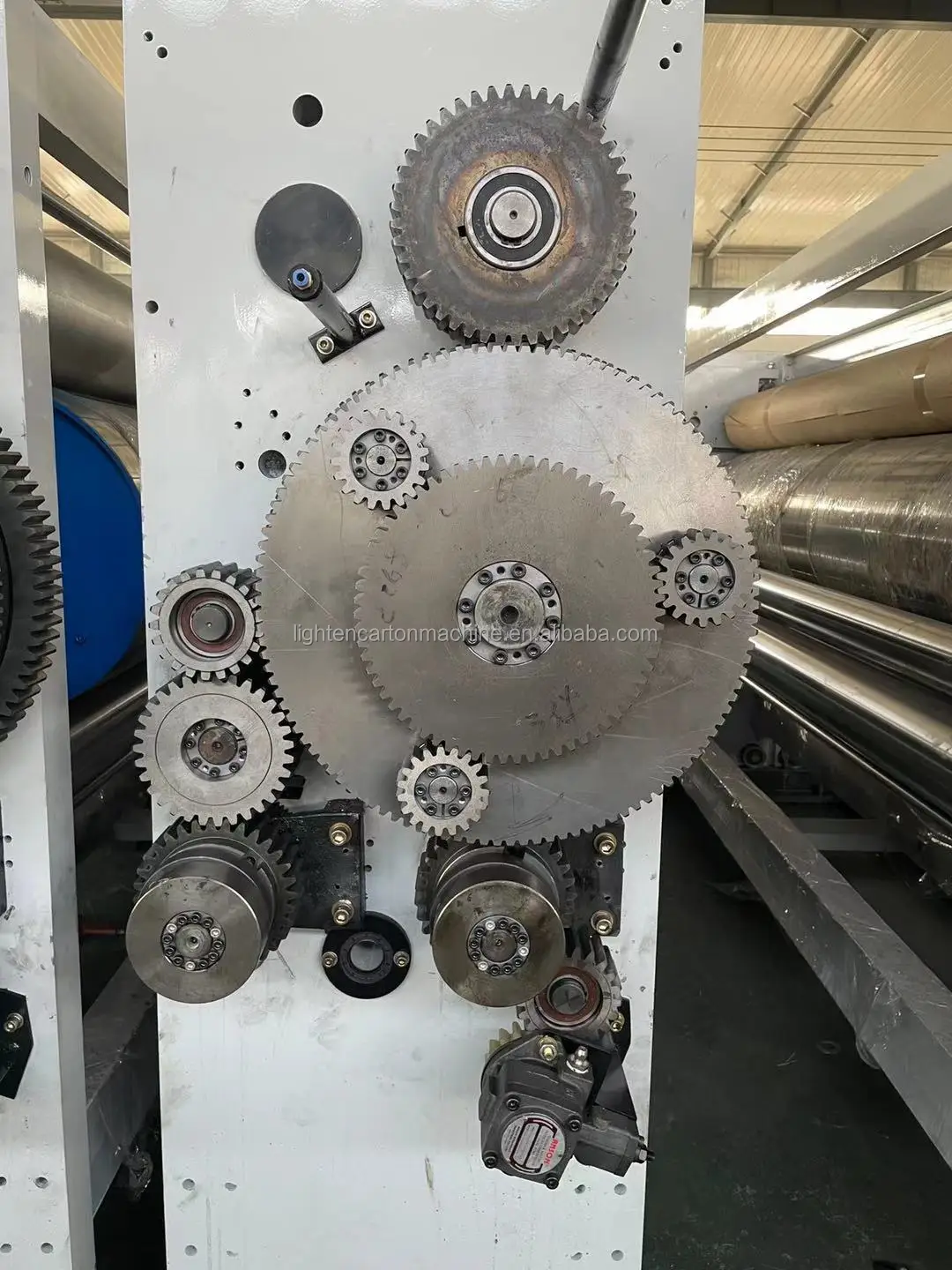

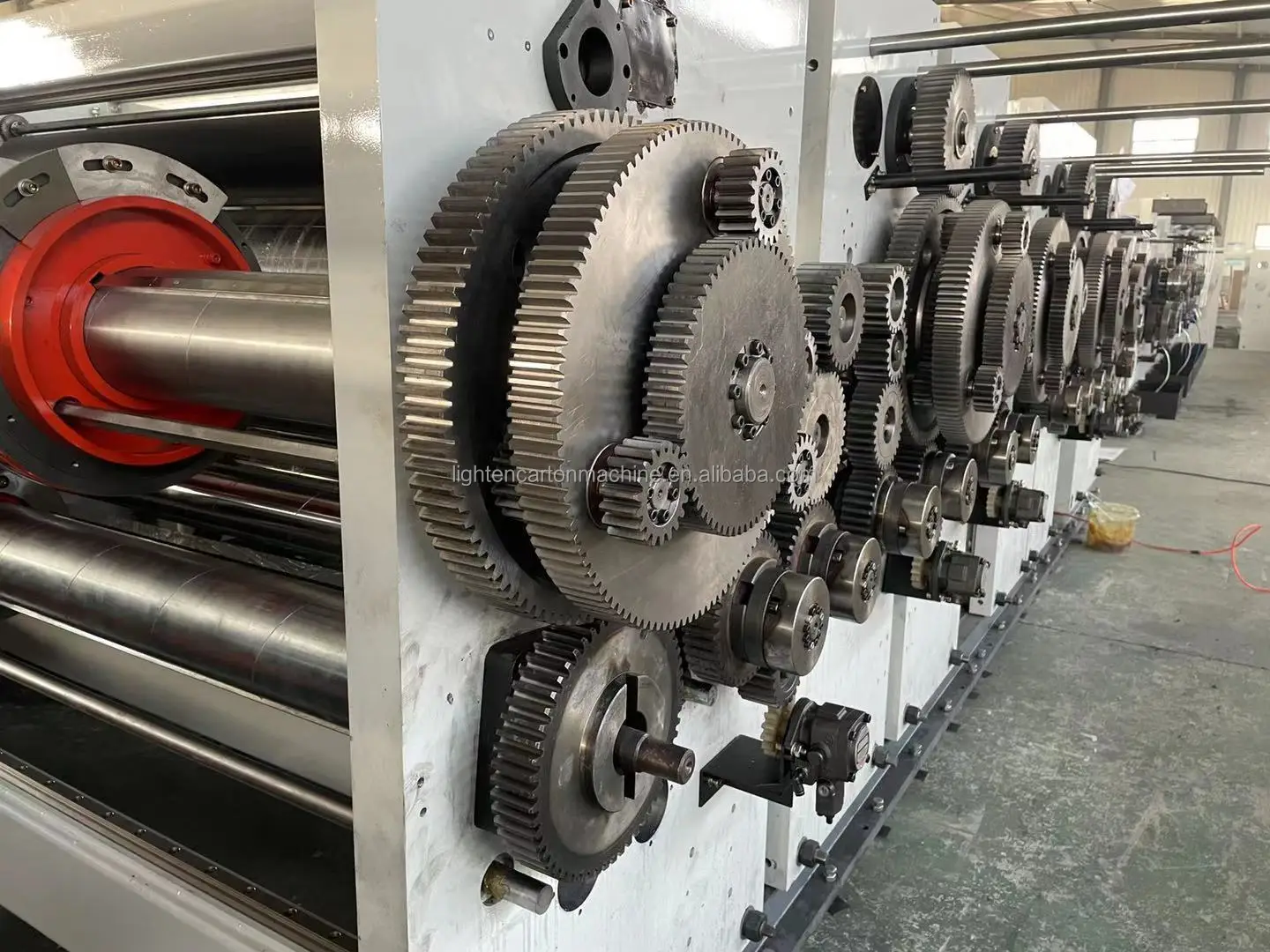

Transmission gear:
High precision grinding teeth.
Printing/Anilox/Rubber/Bottom printing roller:
Computer dynamic balance correction, grinding and hard chromium plating

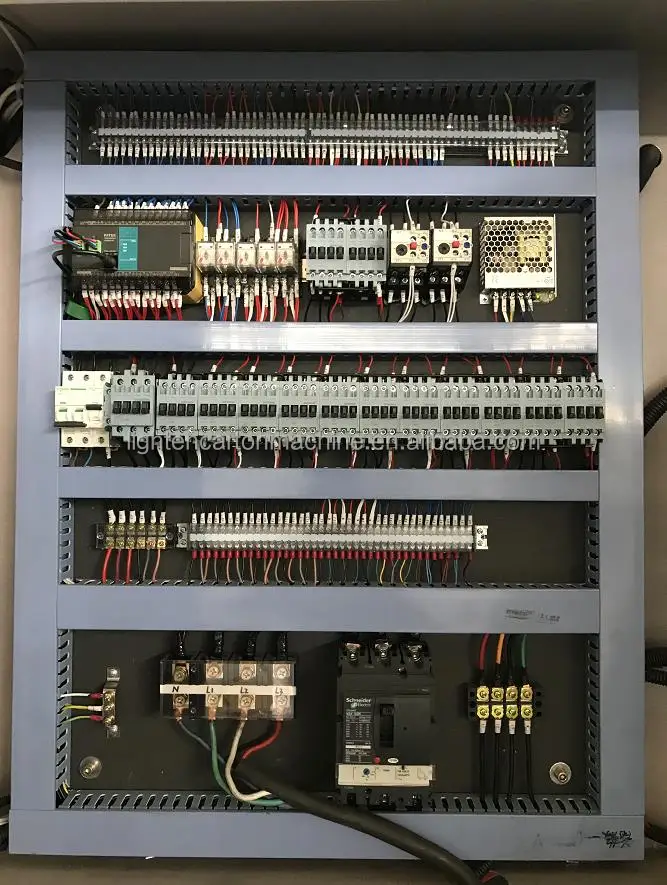

Electrical parts.
Siemens(Germany)
Schneider(Germany)
Delta (Taiwan)
Printing samples
