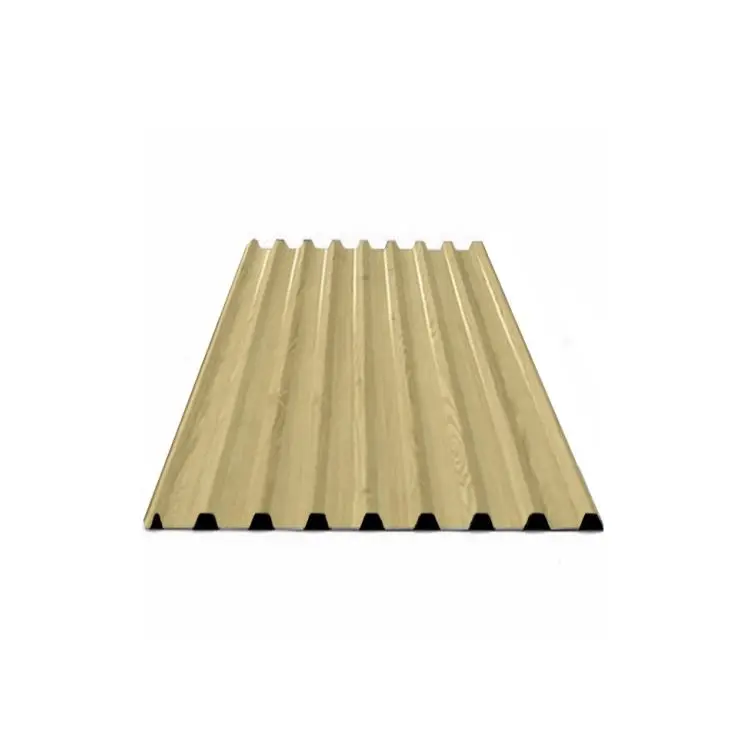

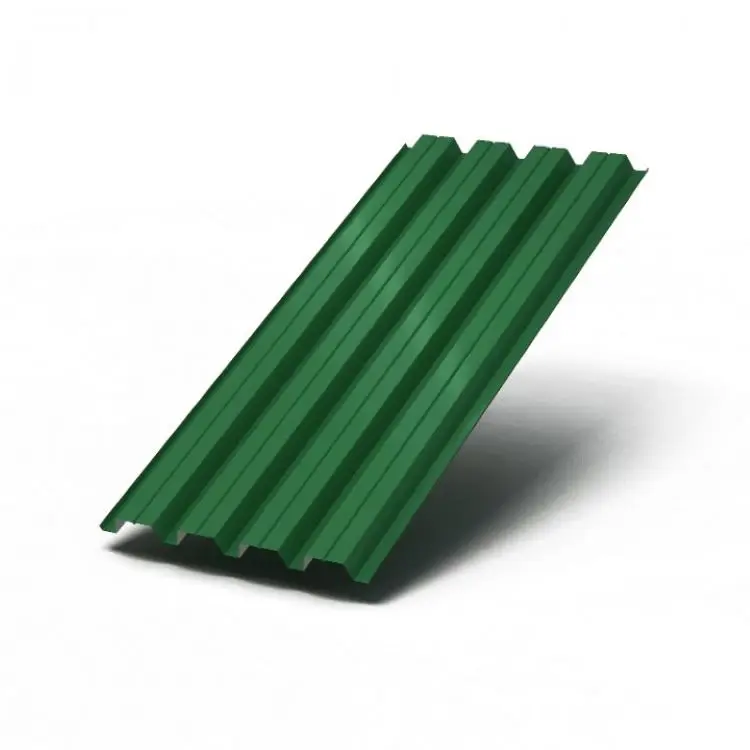

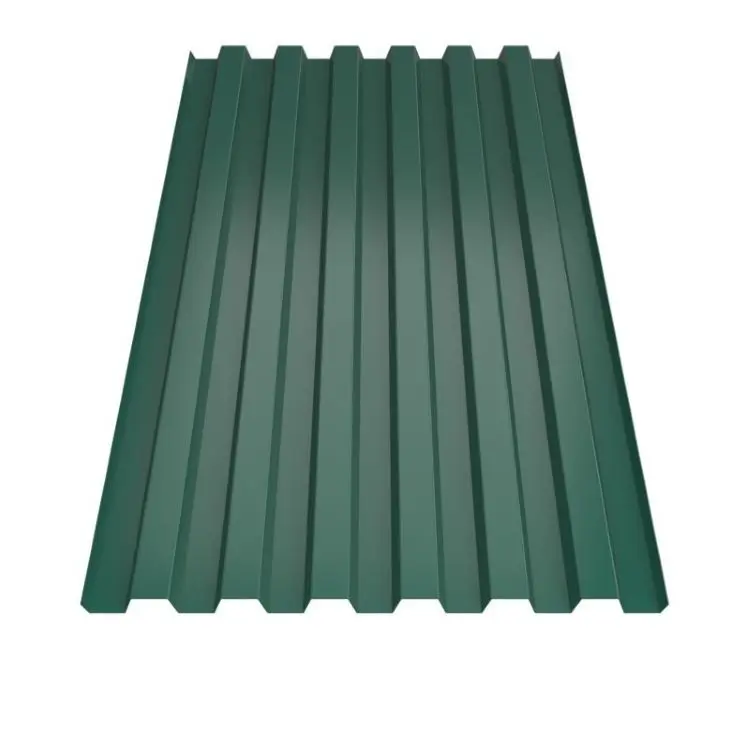

Color Coated Galvanized Steel Corrugated Roofing Sheet As Ral 3002 Astm A527 A526 G90 Z275 Tin Zinc Plate
- Category: >>>
- Supplier: Jinan Xinhua Shengda Steel Tube Co. Ltd.
Share on (1600760189082):
Product Overview
Description
Product description
Color coate corrugated steel plate
Products features
Color-coated steel sheet is a composite metal sheet that uses galvanized steel sheet or cold-rolled steel sheet as the substrate, and is coated with various protective and decorative coatings after surface treatment, also known as color organic coated steel sheet. The structural layers of the color coated steel sheet from the inside to the outside are cold-rolled sheet, galvanized layer, chemical conversion layer, primary coating, finish coating
Brand Name | XINHUASHENGDA | ||||
Place of Origin | shangdong， China | Grade | Dx51D/Dx52D/Dx53D/DX54D/S250GD | ||
Tolerance | ±1% | Special use | High-strength Steel Plate | ||
MOQ | 1 ton | Surface Treatment | Galvanized,PVC,black,color painting,transparent oil,anti-rust oil | ||
Standard | ASTM AISI JIS DIN GB | Payment term | L/C T/T | ||
Width | 200mm-2000mm | Package | Shipping Standard | ||
Delivery Time | 7-15days | Sample | Availiable | ||
Lenth | customization | Certification | CE / CTC / ISO 9001 | ||
Product Name | Galvalume steel coil/GL/Zinc Aluminized steel coil | ||||
Application | Home appliance, building material, roofing sheet,etc. | ||||

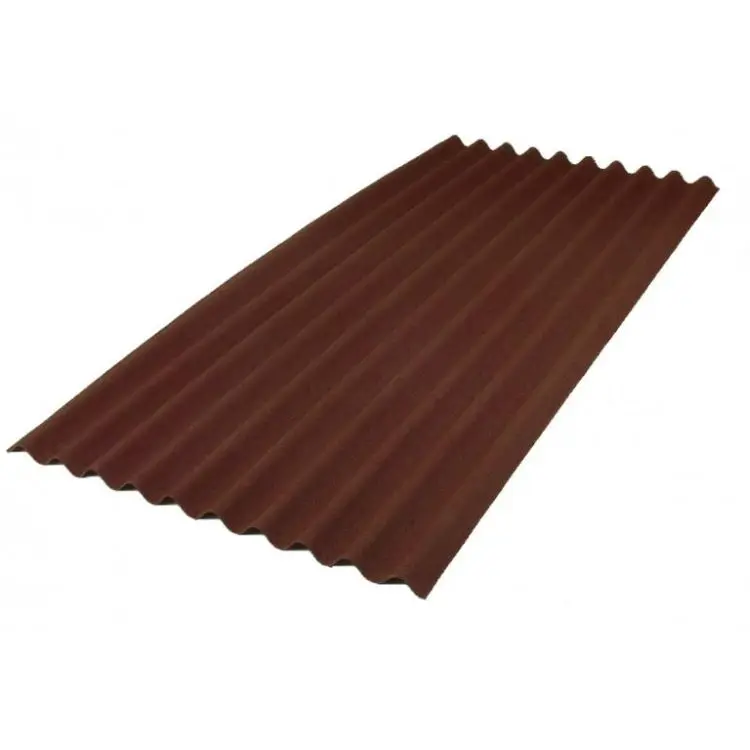

color coated corrugated steel plate
The surface of this sheet is novel in color, strong in adhesion, good in corrosion resistance and decoration, and has good processing performance. It can be sheared, bent, drilled, riveted, and rolled.
The color-coated steel plate is mainly used as the outer wall of the building, and it needs to be used as a thermal insulation layer to form the wall directly; in addition, it can also be used as a roof panel, corrugated board, waterproof and gas-proof sheet, corrosion-resistant equipment and components As well as furniture, car shells, flaps, etc.
The decorative service life refers to the main body fading, chalking, cracking, partial peeling off of the coating and other defects on the surface of the color steel plate. Affects the image and aesthetics of the building, but has not yet reached a level of use where the coating loses its protective effect.
Coating types
1.Coated steel plate
The galvanized steel sheet is used as the base, and the front and back sides are coated to ensure its corrosion resistance. The first layer on the front is a primer, usually an epoxy primer, because of its strong adhesion to metal, and the back is also coated with epoxy resin or acrylic resin; the second layer used to be alkyd resin, generally polyester paint or acrylic paint.
2.PVC steel plate
One is produced by the method of coated paste PVC, called coated PVC steel plate; The other is to have been formed and printed or embossed PVC film on the steel plate, known as coated PVC steel plate.
3.Heat insulation coated steel plate
The thermal insulation coating steel plate is a 15-17mm thick polystyrene foam or rigid polyurethane foam affixed on the back of the color coated steel plate, which can be used to improve the thermal insulation and sound insulation performance of the coated steel plate.
Recommend Products

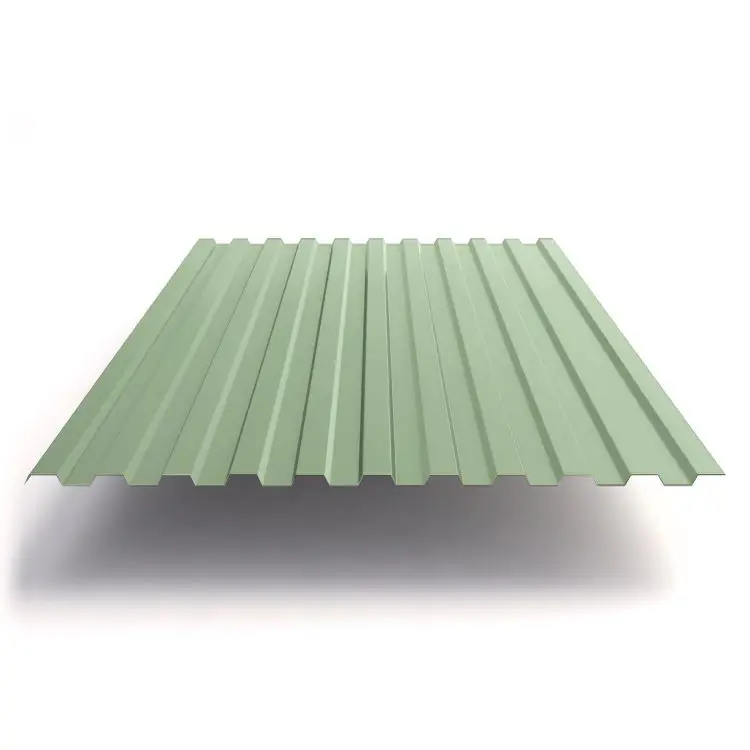

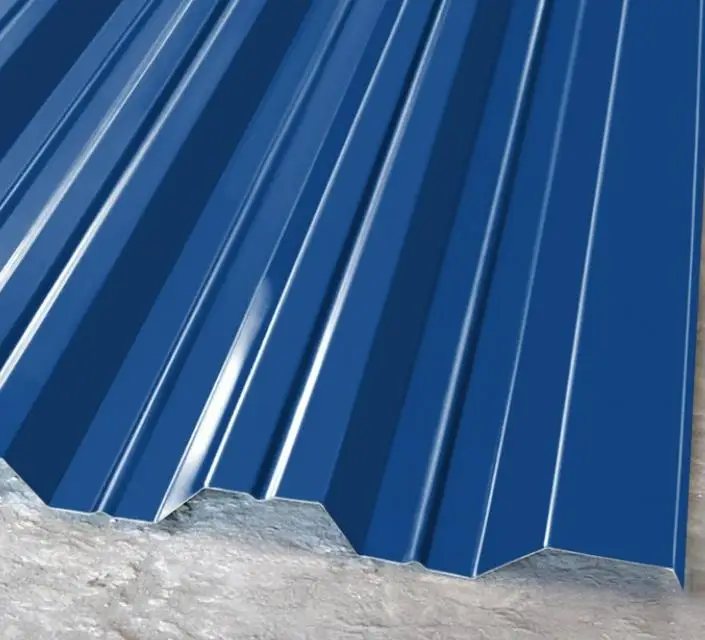

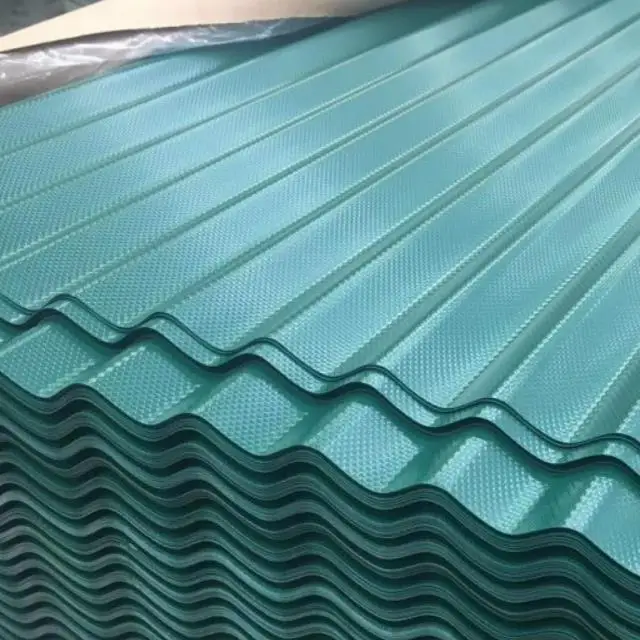

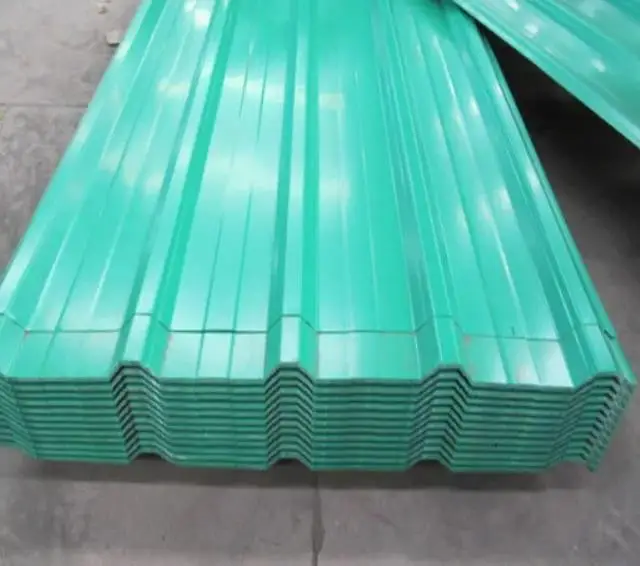

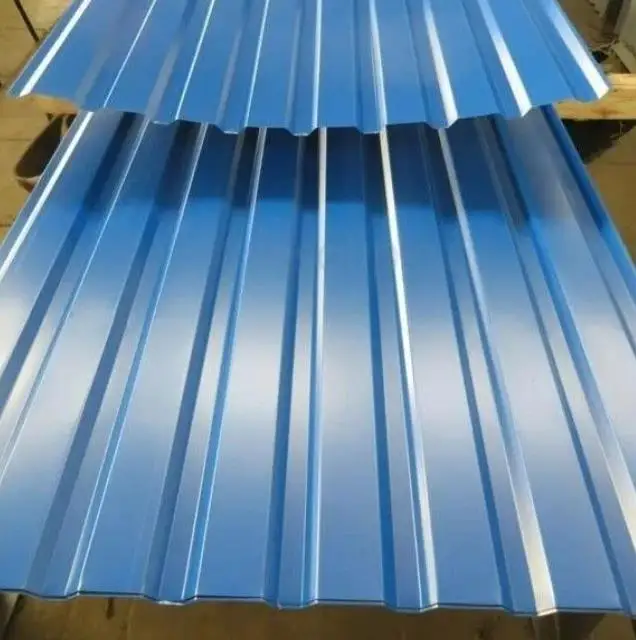

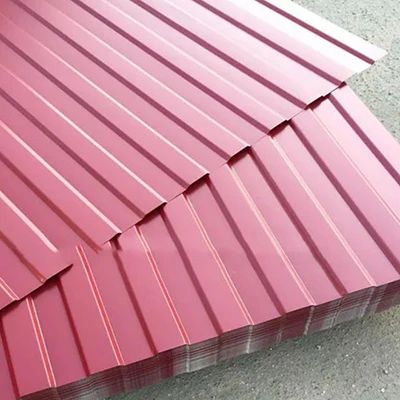

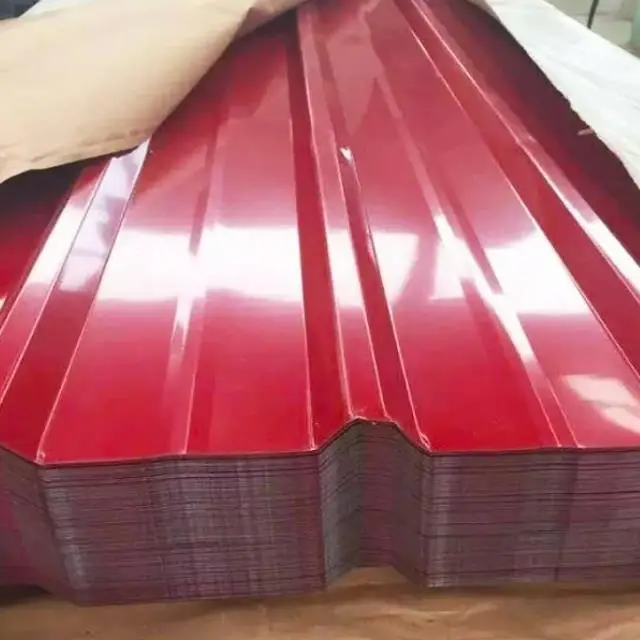

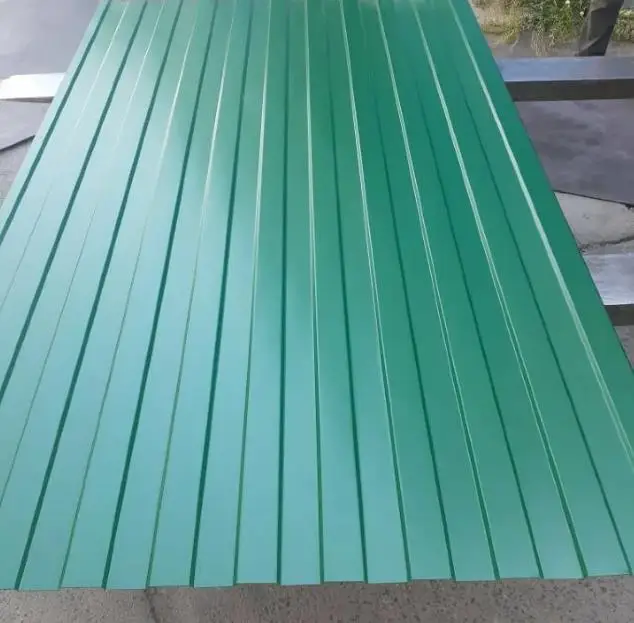

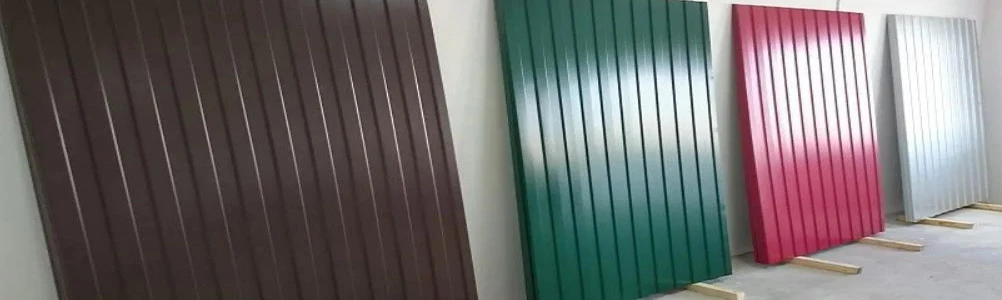

products real shot
Color coated plate, is the color coated steel plate, in the continuous unit to cold rolled steel, galvanized steel strip (electric galvanized and hot galvanized) as the base plate, after surface pretreatment (degreasing and learning treatment), with the roller coating method, coated with a layer or multiple layers of liquid coating, after baking and cooling of the plate is coated steel plate.

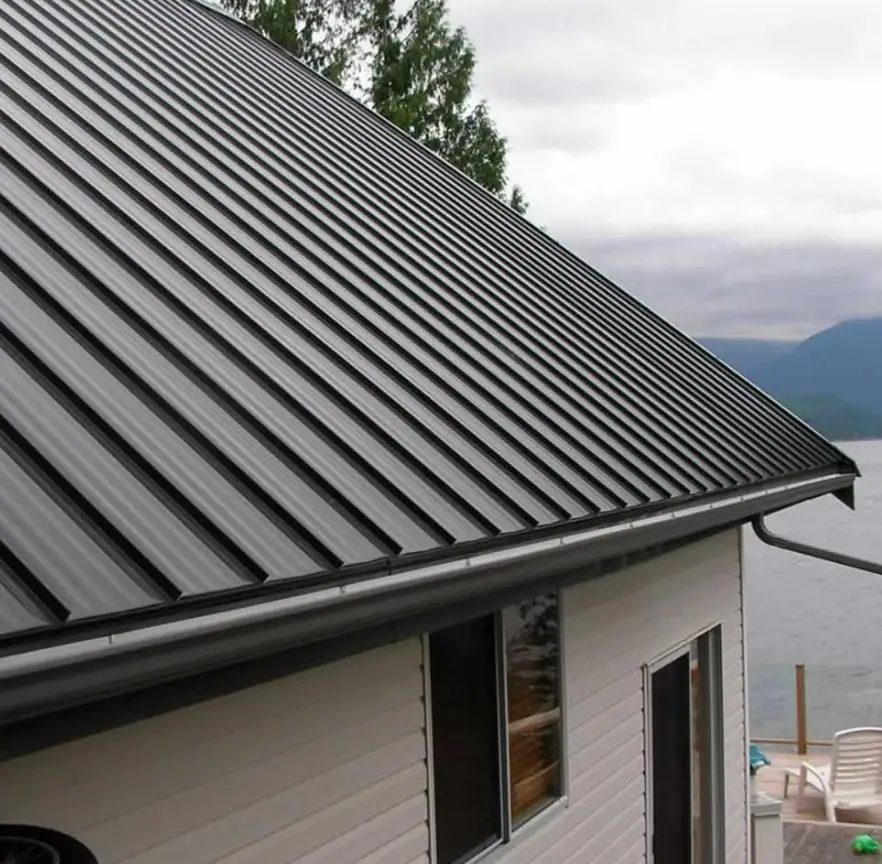

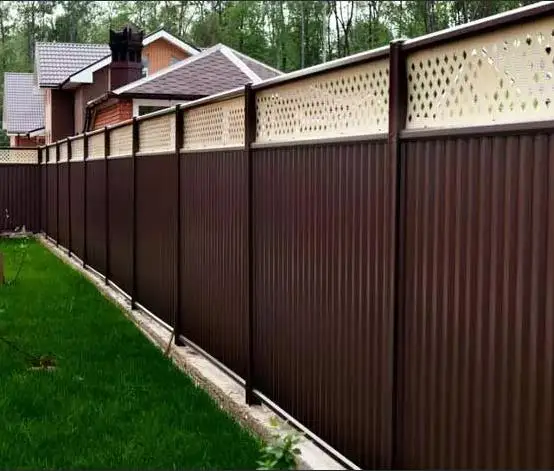

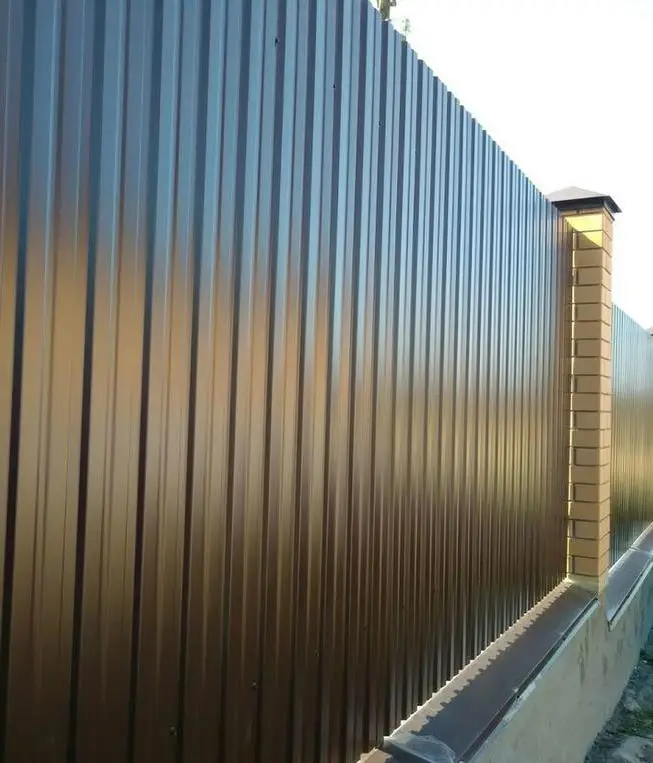

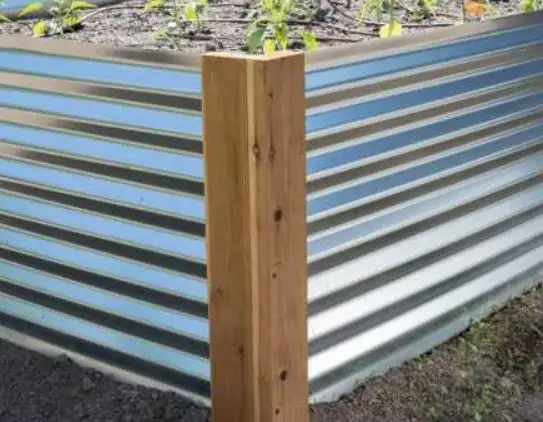

products application
The main uses of prepainted galvanized Corrugated board

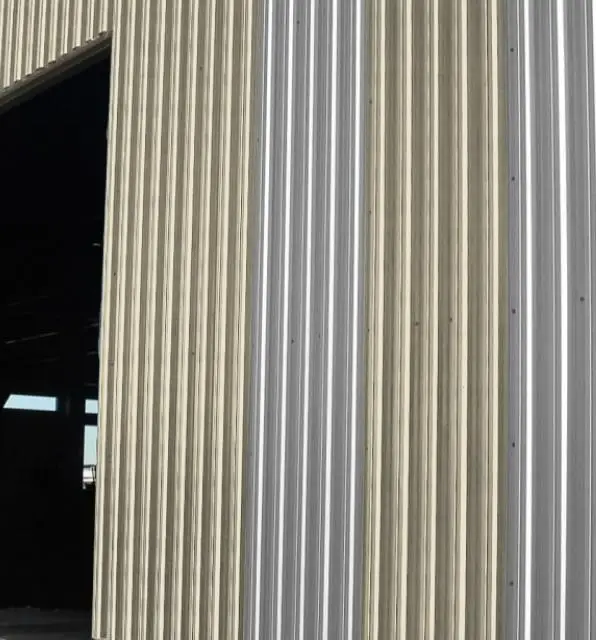

Color coated plate for construction is generally hot-dip galvanized steel plate and hot-dip aluminized zinc steel plate as the base plate. It is mainly processed into corrugated board or sandwich board conforming to polyurethane, and used for the construction of the roof, wall and door of industrial and commercial buildings such as steel structure workshop, airport, warehouse and freezer.
Color coated plate for construction is generally hot-dip galvanized steel plate and hot-dip aluminized zinc steel plate as the base plate. It is mainly processed into corrugated board or sandwich board conforming to polyurethane, and used for the construction of the roof, wall and door of industrial and commercial buildings such as steel structure workshop, airport, warehouse and freezer.
Customer Photos
Company profile
Certificate of qualification
Packing&Delivery
FAQ
Q：How can i contact you？
A：We have 24 hours customer service, patience to solve any problem for you，Click on ‘Chat Now’ or send your message to contact us！
Q: Can I send samples? A: Of course, we can send samples all over the world. Our samples are free, but the customers have to pay for the express
delivery.
Q: What ports of shipment do the goods depart from?
A: we ship from Shanghai, Tianjin, Qingdao, Ningbo ports.
A: we ship from Shanghai, Tianjin, Qingdao, Ningbo ports.
Q: How long is your lead time?
A: Generally speaking, our delivery time is within 15-45 days.
A: Generally speaking, our delivery time is within 15-45 days.
Q: About the price?
A: Prices vary from period to period due to cyclical changes in raw material prices. We can negotiate.
A: Prices vary from period to period due to cyclical changes in raw material prices. We can negotiate.
Q:Why believe us ？
Our principle is to put customers first and operate in good faith. If you are in trouble, we will help you. We have the most
advanced information in China's steel market, so we can offer customers a more reasonable and assured price.
advanced information in China's steel market, so we can offer customers a more reasonable and assured price.
