CSI/GOS BGA Electronic Connector Module X ray Flat Panel Detector
- Category: >>>
- Supplier: Shanghai Haobo Imaging Technology Co. Ltd.
Share on (1600760193754):
Product Overview
Description
Products Description
Name | Whale3025FQI A-Si Fixed Industrial X-Ray Flat Panel Detector |
Model Number | Whale3025FQI |
Sensor | A-Si (Amorphous Silicon) |
Active Area | 250 x 286 mm |
Communication Interface | Optical Fiber/ High Voltage Generator/Power |

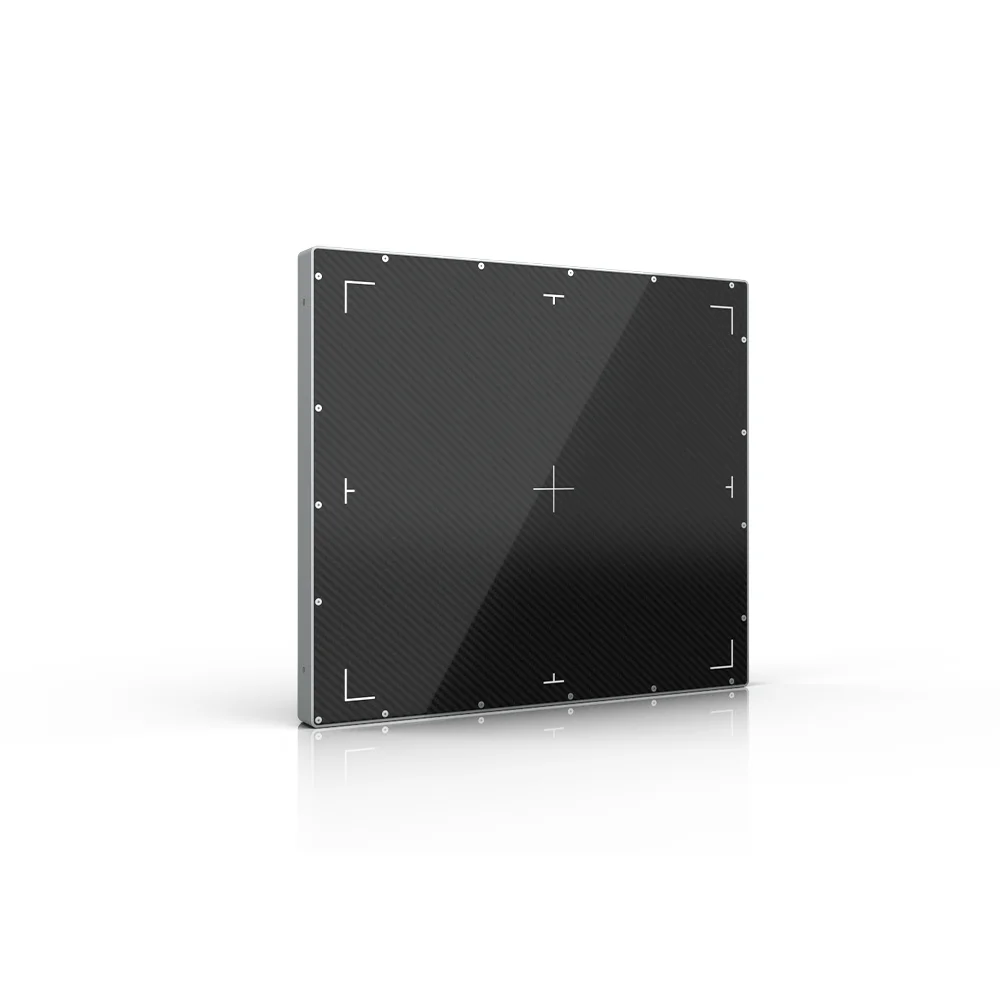

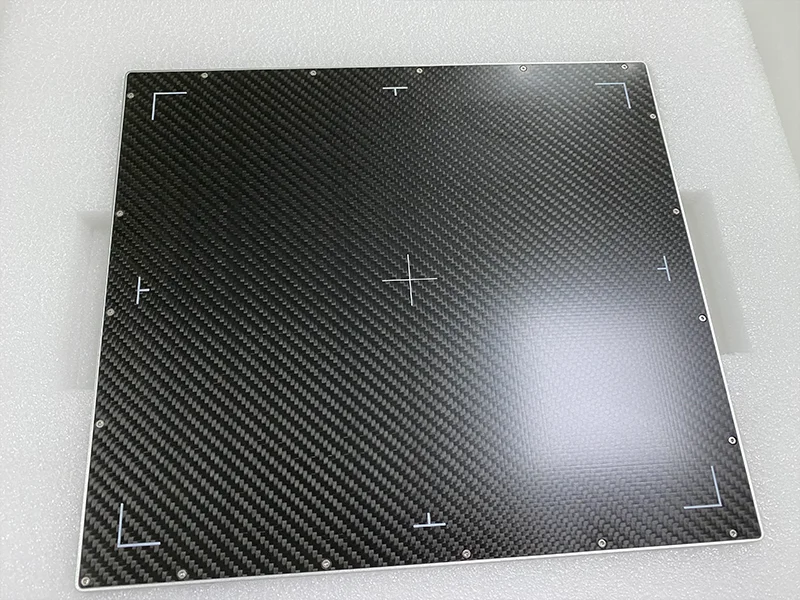

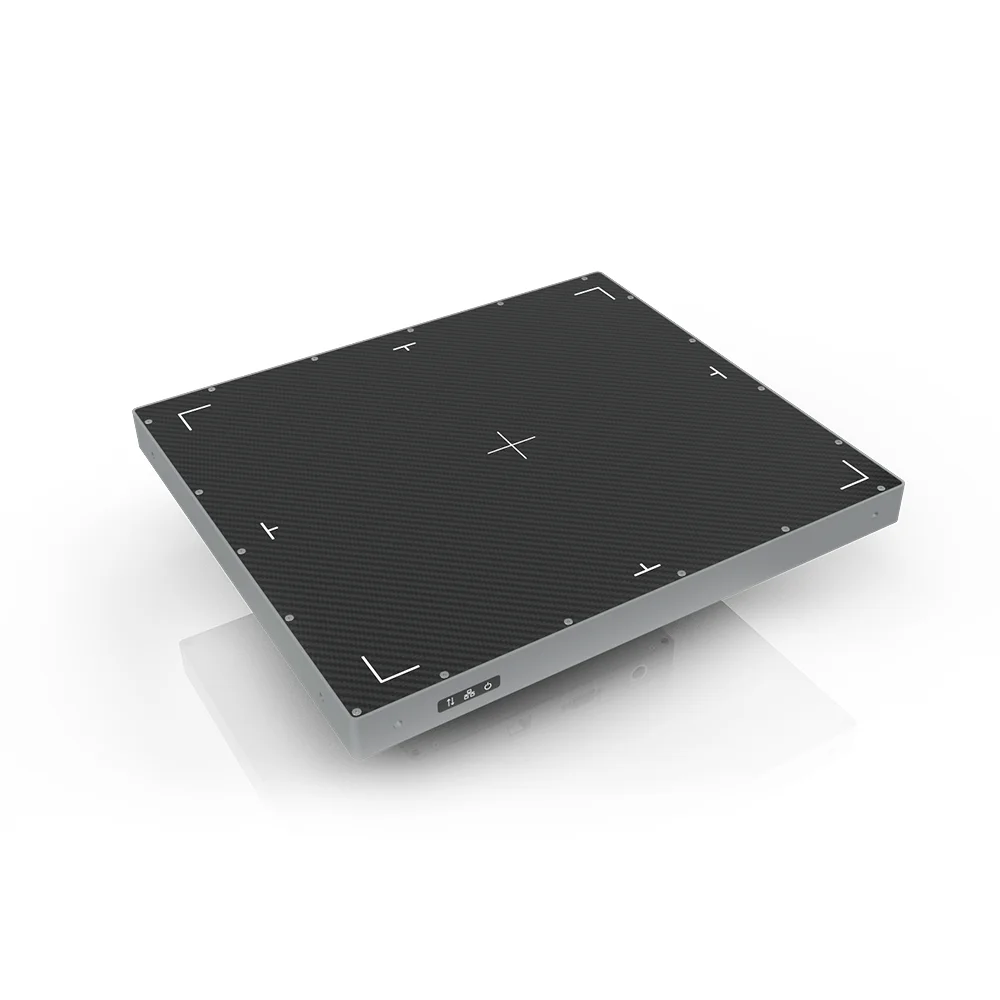

A-Si Fixed Industrial X-Ray Flat Panel Detector---Whale3025FQI
* Pixel Pitch: 140 μm
* Pixel Matrix: 1792 x 2048
* ADC:16-bit
* Gain Stage: Multi-Gain
* Scintillator: CSI/GOS
* Water Proof: IPX0
* Calibration: Firmware, Software
* Pixel Matrix: 1792 x 2048
* ADC:16-bit
* Gain Stage: Multi-Gain
* Scintillator: CSI/GOS
* Water Proof: IPX0
* Calibration: Firmware, Software
Radiation Hardness：≥10000Gy
Sensor Protection Material:
Carbon Fiber
Housing Material:
Aluminum Alloy
Dimension: 322 x 285x 46.5 mm
Weight: 2.5 Kg
Technology | ||
Sensor | A-Si | |
Scintillator | CSI / GOS | |
Active Area | 250 x 286 mm | |
Pixel Matrix | 1792 x 2048 | |
Pixel Pitch | 140 μm | |
AD Conversion | 16 bits | |
Interface | ||
Communication Interface | Gigabit Ethernet | |
Exposure Control | Pulse Sync In(Edge or Level) / Pulse Sync Out(Edge or Level) | |
Mode | Software Mode/HVG Sync Mode/ FPD Sync Mode | |
Frame Speed | 10fps(1x1) | |
Operating System | Windows7 / Windows10 OS 32 bits or 64 bits | |
Technical Performance | ||
Resolution | 3.5 lp/mm | |
Energy Range | 40-160 KV | |
Lag | ≤1% @1st frame | |
Dynamic Range | ≥86dB | |
Sensitivity | 540 lsb/uGy | |
SNR | 48 dB @(20000lsb) | |
MTF | 70% @(1 lp/mm) | |
38% @(2 lp/mm) | ||
21% @(3 lp/mm) | ||
DQE | 58% @(0 lp/mm) | |
41% @(1 lp/mm) | ||
25% @(2 lp/mm) | ||
Mechanical | ||

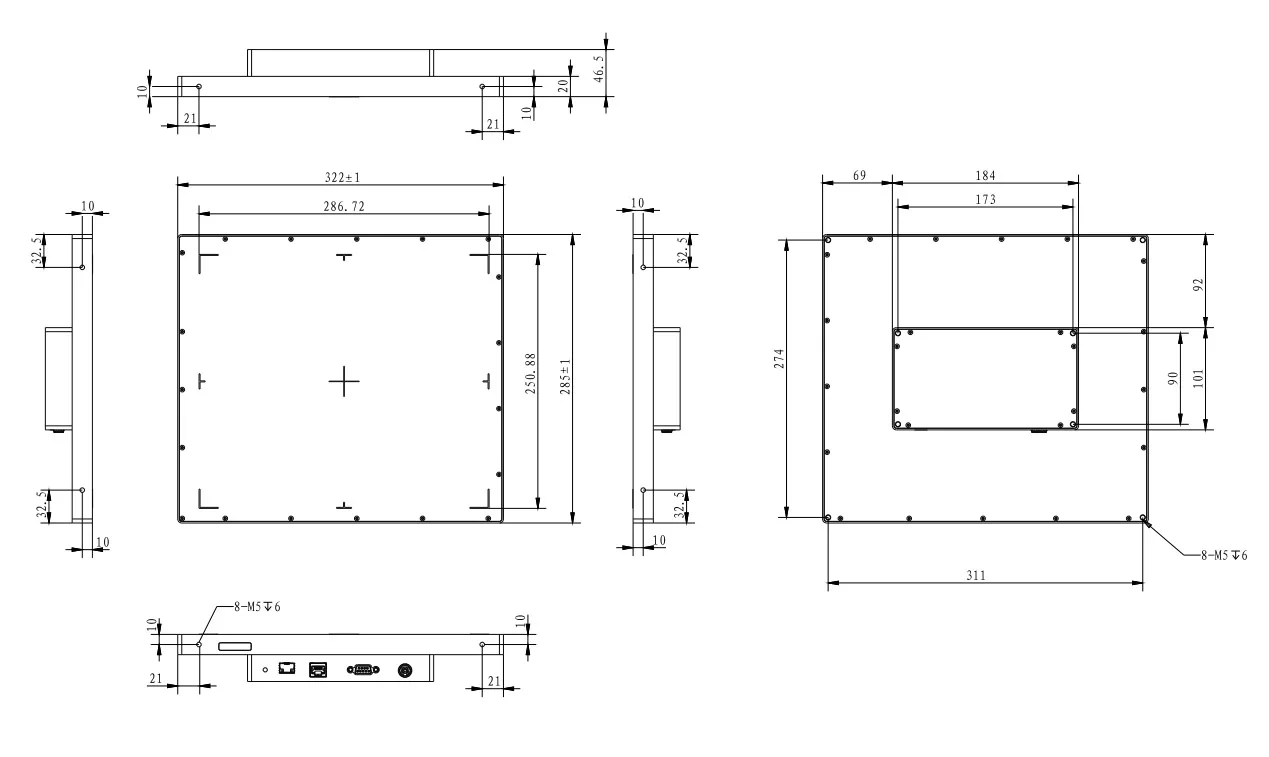

Dimension(H x W x D) | 322 x 285x 46.5 mm | |
Weight | 2.5 Kg | |
Sensor Protection Material | Carbon Fiber | |
Housing Material | Aluminum Alloy | |
Environmental | ||
Temperature Range | 10~35℃(operating);-10~50℃(storage) | |
Humidity | 30~70% RH(non-condensing) | |
Vibration | IEC/EN 60721-3 class 2M3(10~150 Hz,0.5 g) | |
Shock | IEC/EN 60721-3 class 2M3(11 ms,2 g) | |
Dust and Water Resistant | IPX0 | |
Power | ||
Supply | 100~240 VAC | |
Frequency | 50/60 Hz | |
Consumption | 10W | |
Application | ||
Industry | SMT, Electronics, Lithium Battery and Chip Wire Bonding Inspection | |
Product packaging
Accessories

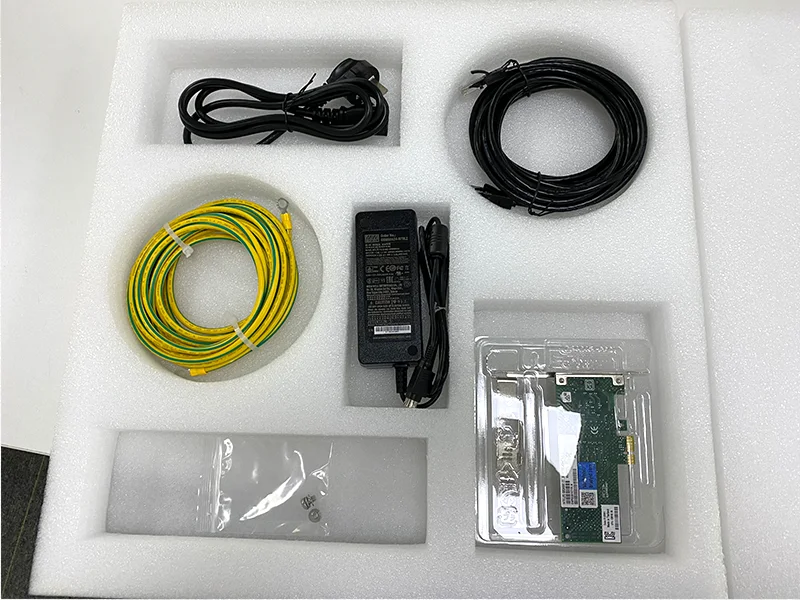

AC Adapter; AC POWER CORD, 5 Meters Network Cable, 5 Meters high-voltage power lines, adapter junction box, USB flash disk, Quality Certificate, warranty card, package list.

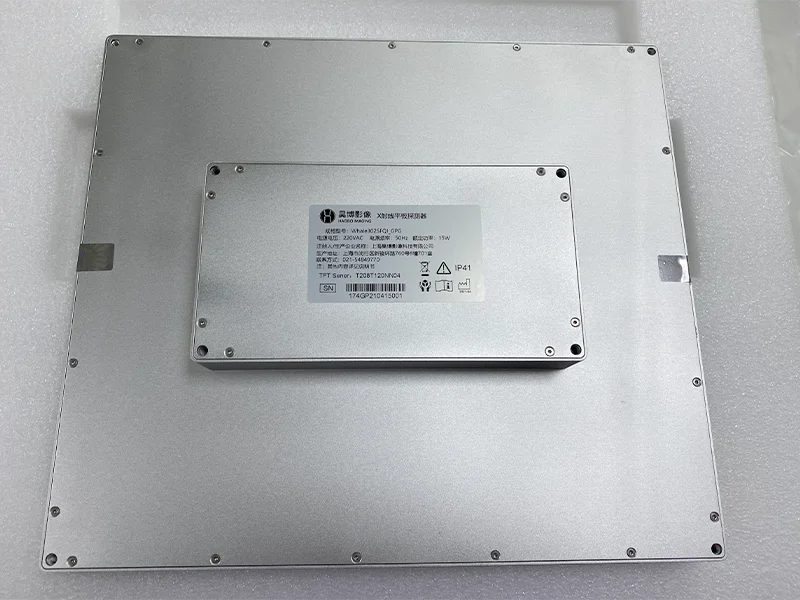

Back Side
