Attractive prices tpgt PCD Turning Inserts pkd cutting tools Diamond tips machining non ferrous metals
- Category: >>>
- Supplier: Beijing Worldia Diamond Tools Co. Ltd.
Share on (1600760199345):
Product Overview
Description
Product Description
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
To meet customers' needs as the goal, we strictly select PCD/PCBN materials to provide a universal,
stable, and efficient cutting effect.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast and efficient
service for domestic and foreign customers to meet their demand for standardized and universalized tools.
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
APPLICATION

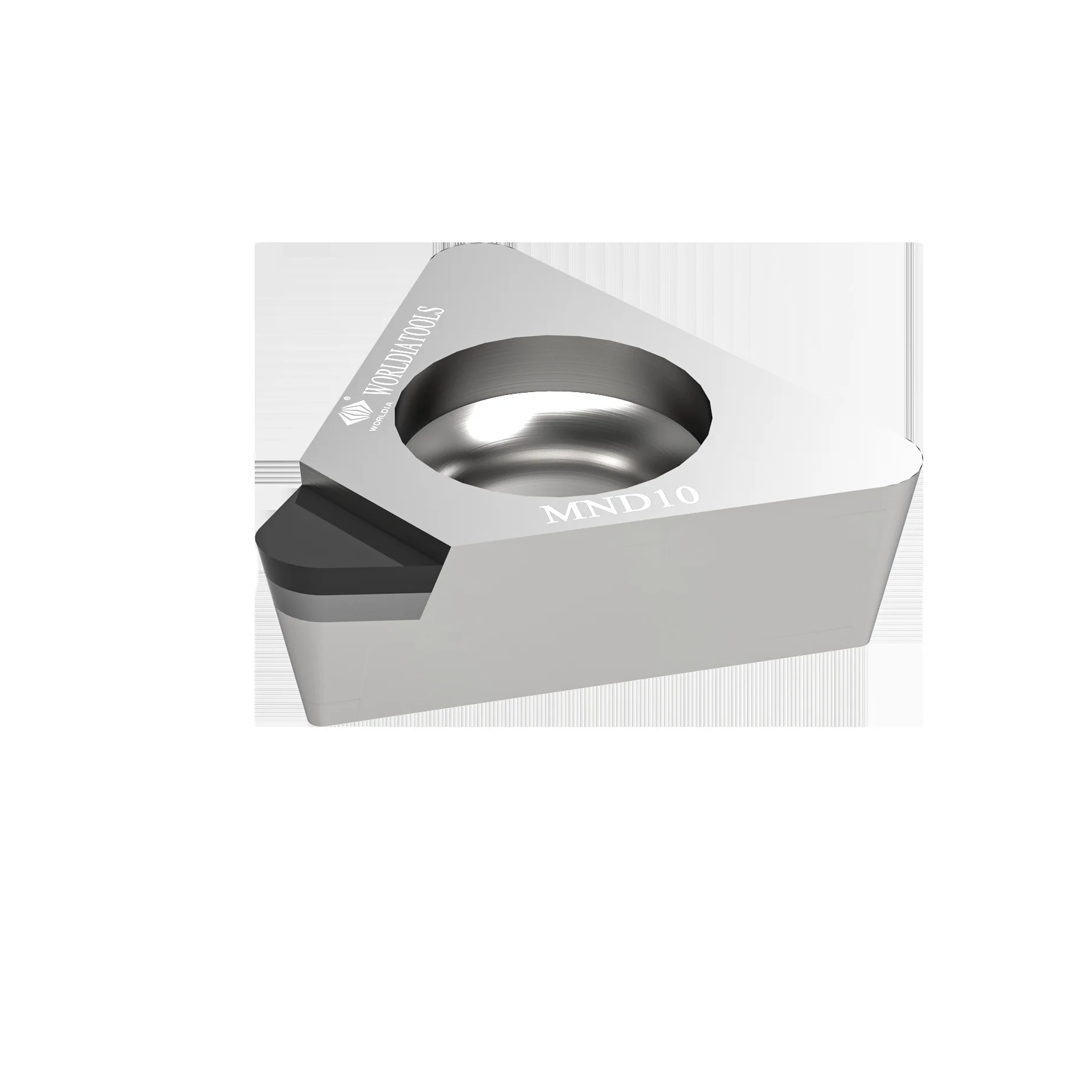

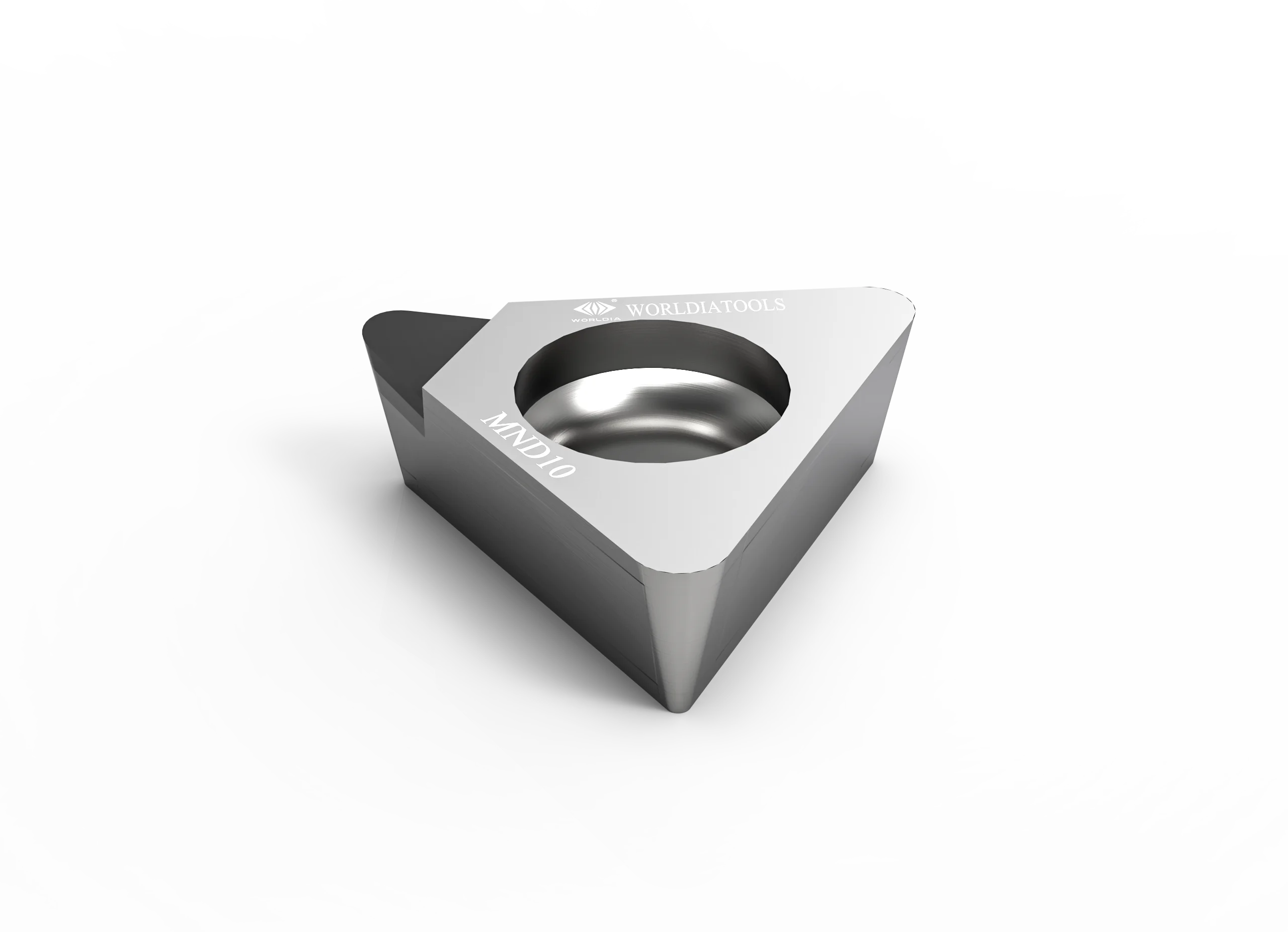

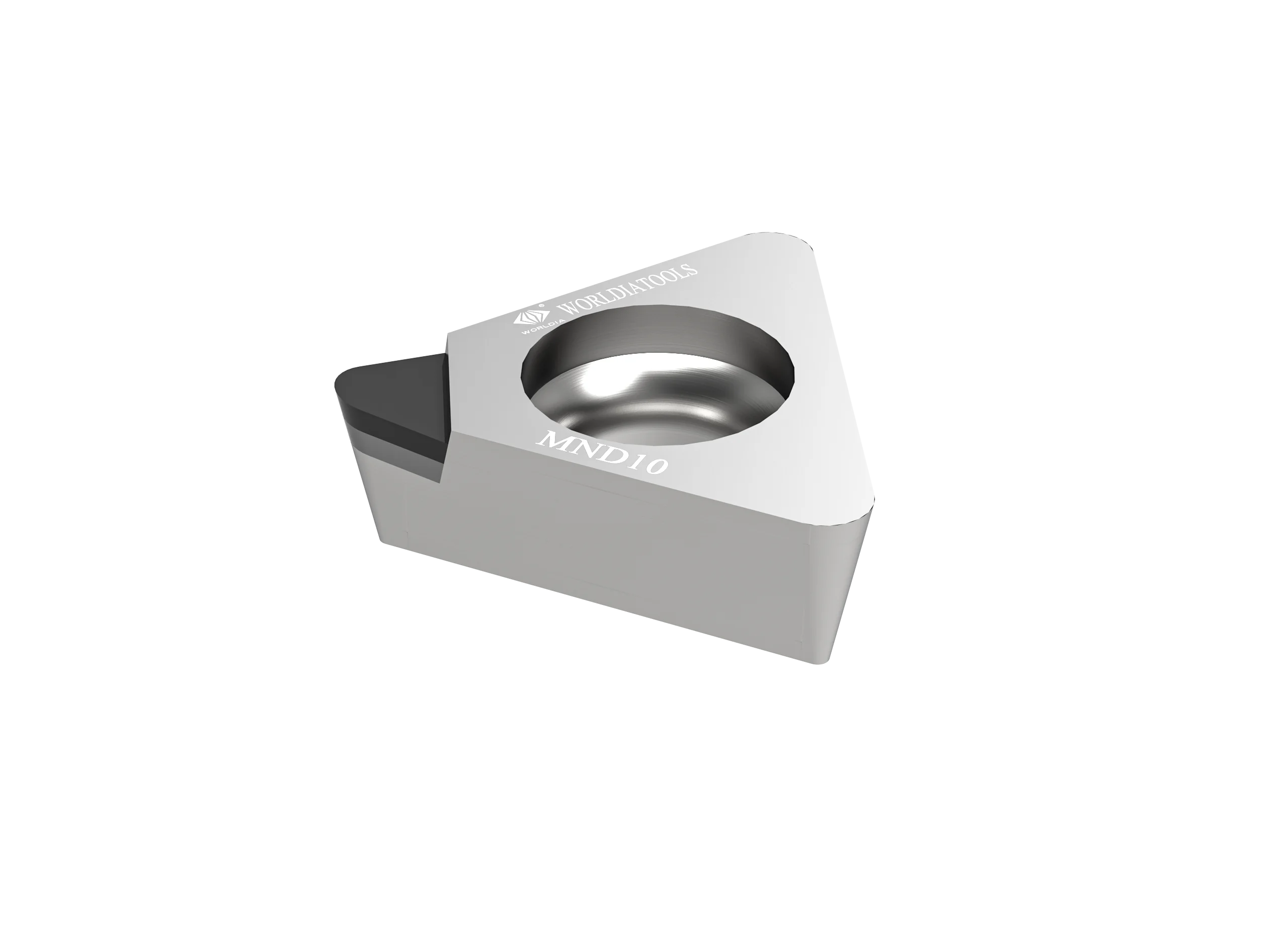

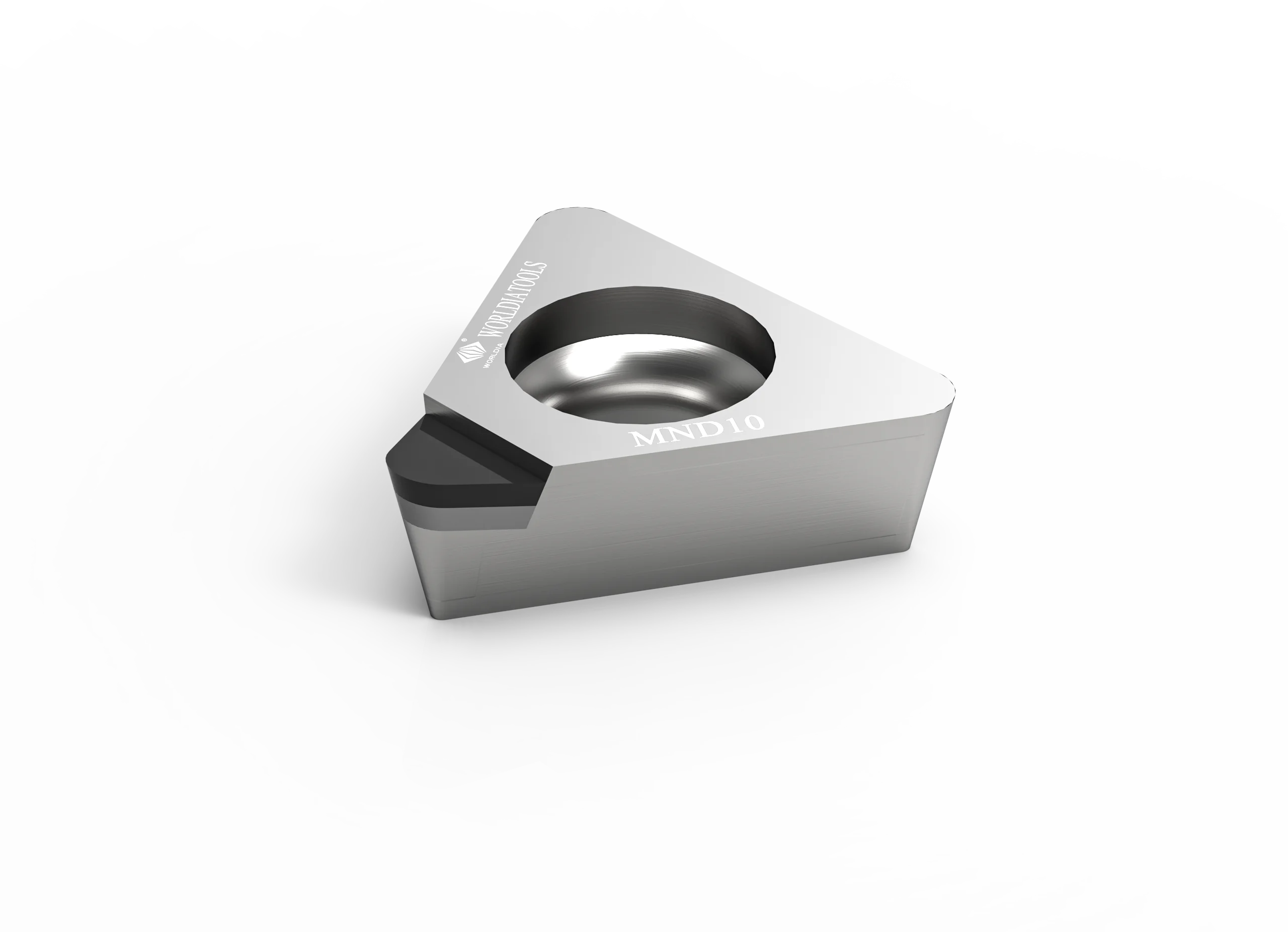

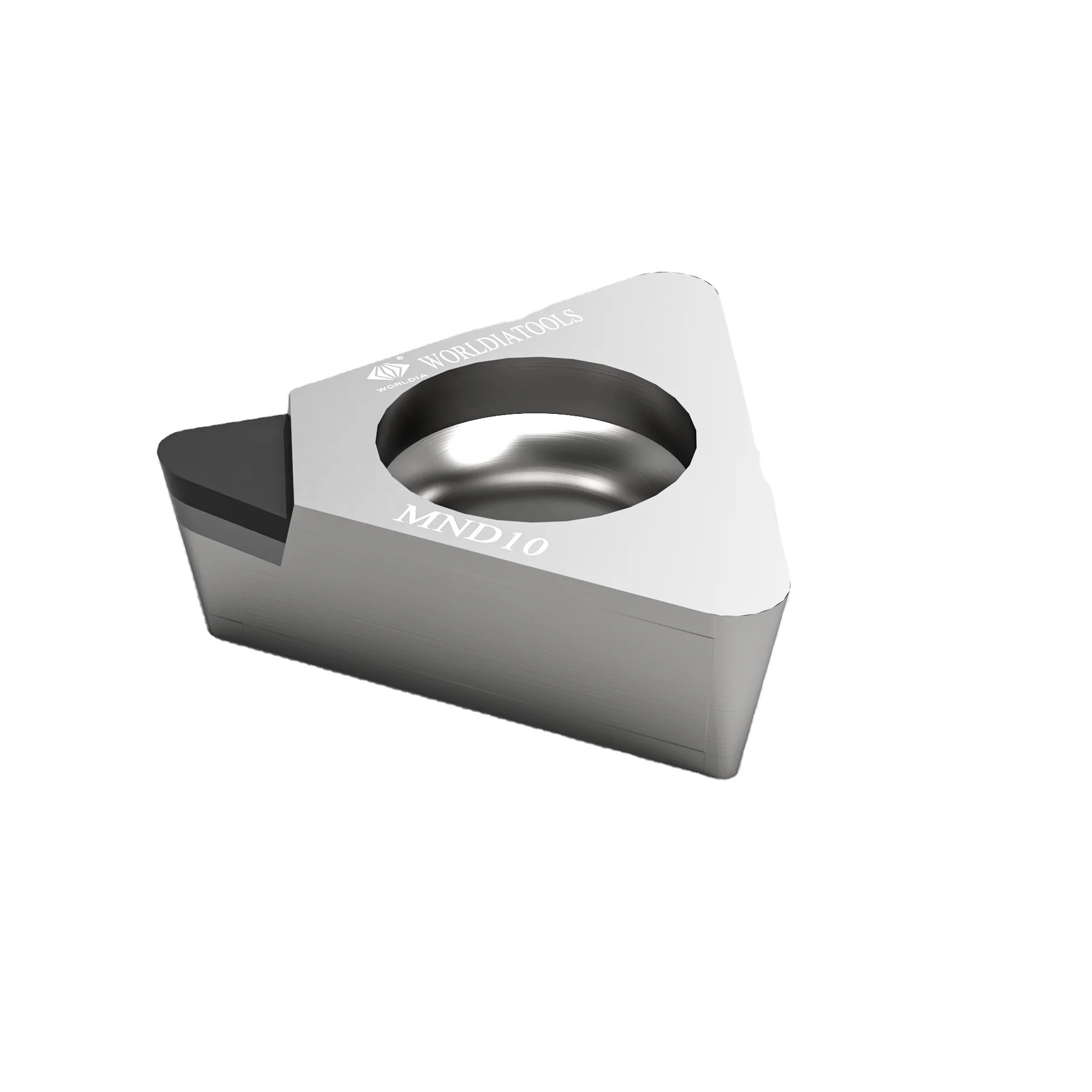

PCD inserts for turning are applied to cut non-ferrous materials such as aluminum alloys, etc.
SPECIFICATION
| Angle | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm | S mm | R mm | Φd mm | LE mm |
| TPGT 22.50.5 | TPGT 110302 | 1N | 6.35 | 3.18 | 0.2 | 3.3 | 2.5 |
| TPGT 22.51 | TPGT 110304 | 1N | 6.35 | 3.18 | 0.4 | 3.3 | 2.5 |
| TPGT 22.52 | TPGT 110308 | 1N | 6.35 | 3.18 | 0.8 | 3.3 | 2.5 |
| TPGT 330.5 | TPGT 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 |
| TPGT 331 | TPGT 160404 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 |
ADVANTAGES
·PCD insert is universal.
·Easy choice is the most significant advantage of Worldia ManaNova PCD insert
·Fast delivery: PCD inserts are all in stock.
Our Services
·Online store service
· Local distributor support
· Technical support
