Блокировка питания Z7B, Расширительная втулка, бесключевые блокировочные устройства в сборе, термоусадочный диск

Product Overview

Description

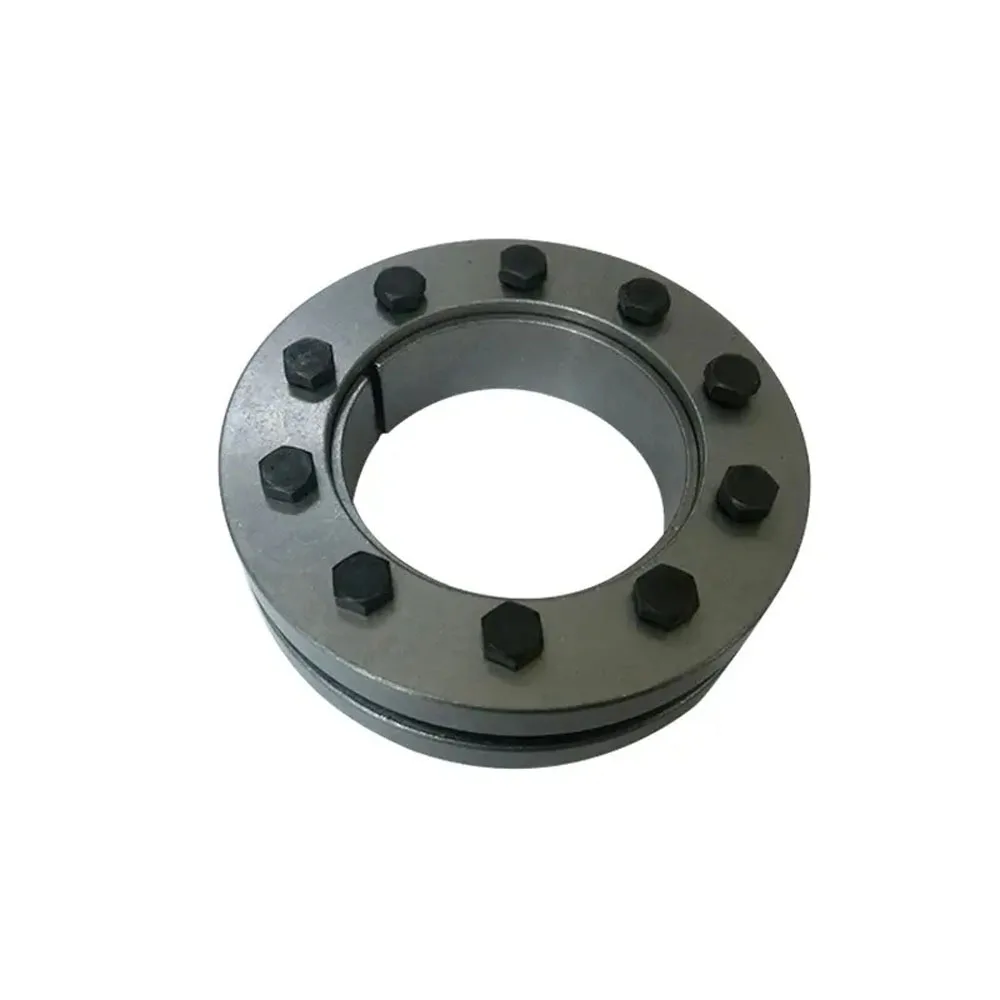

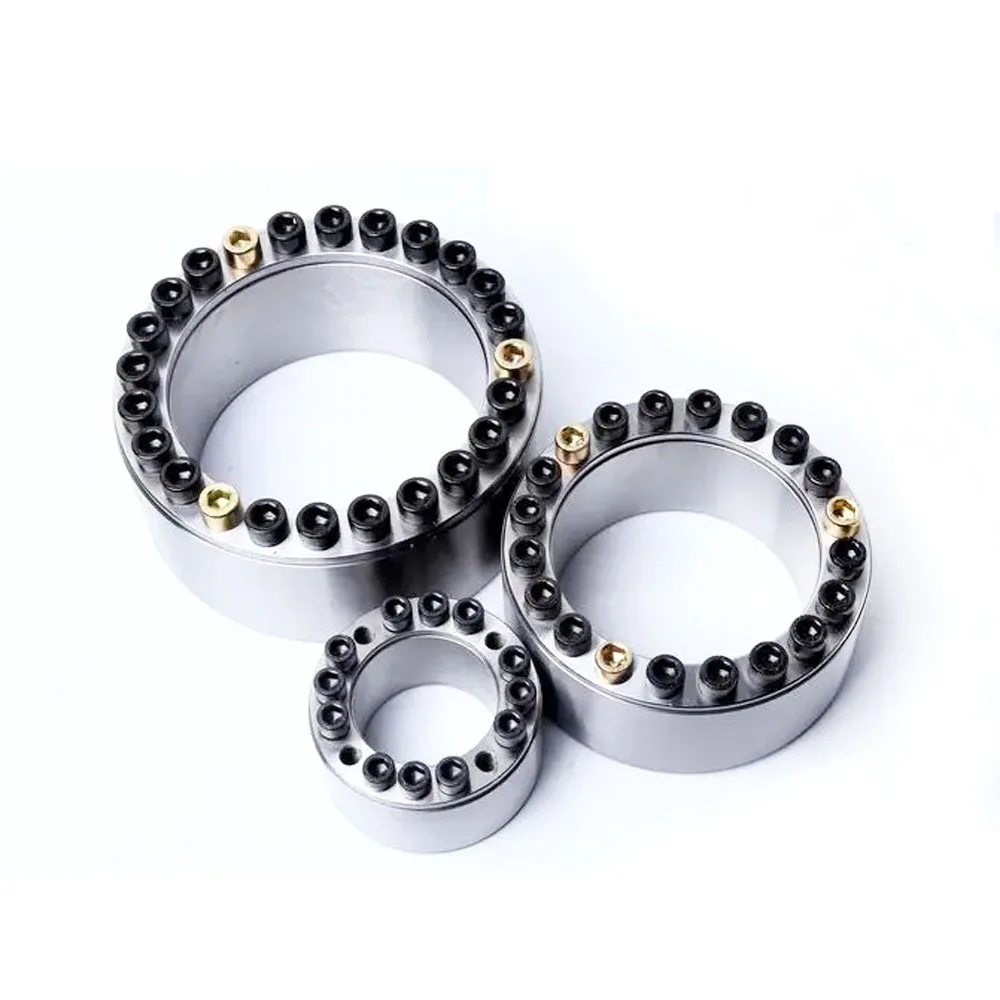

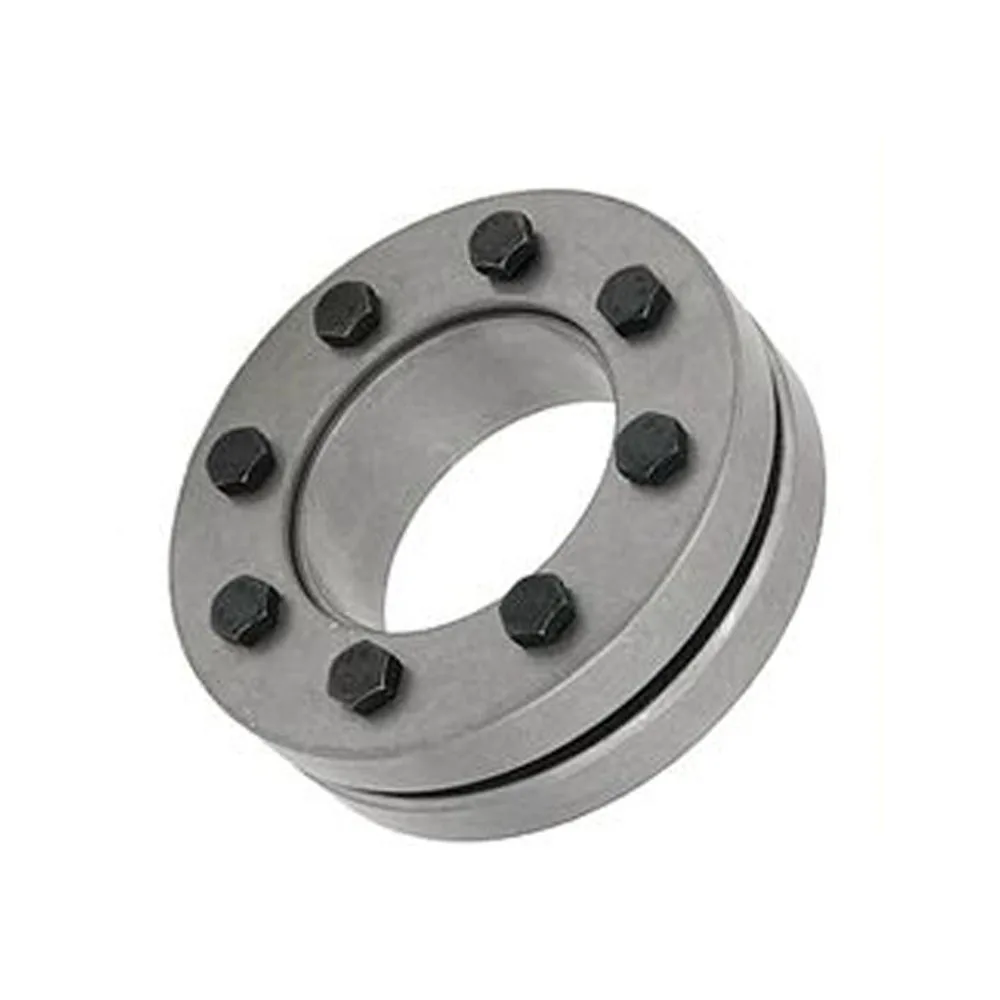

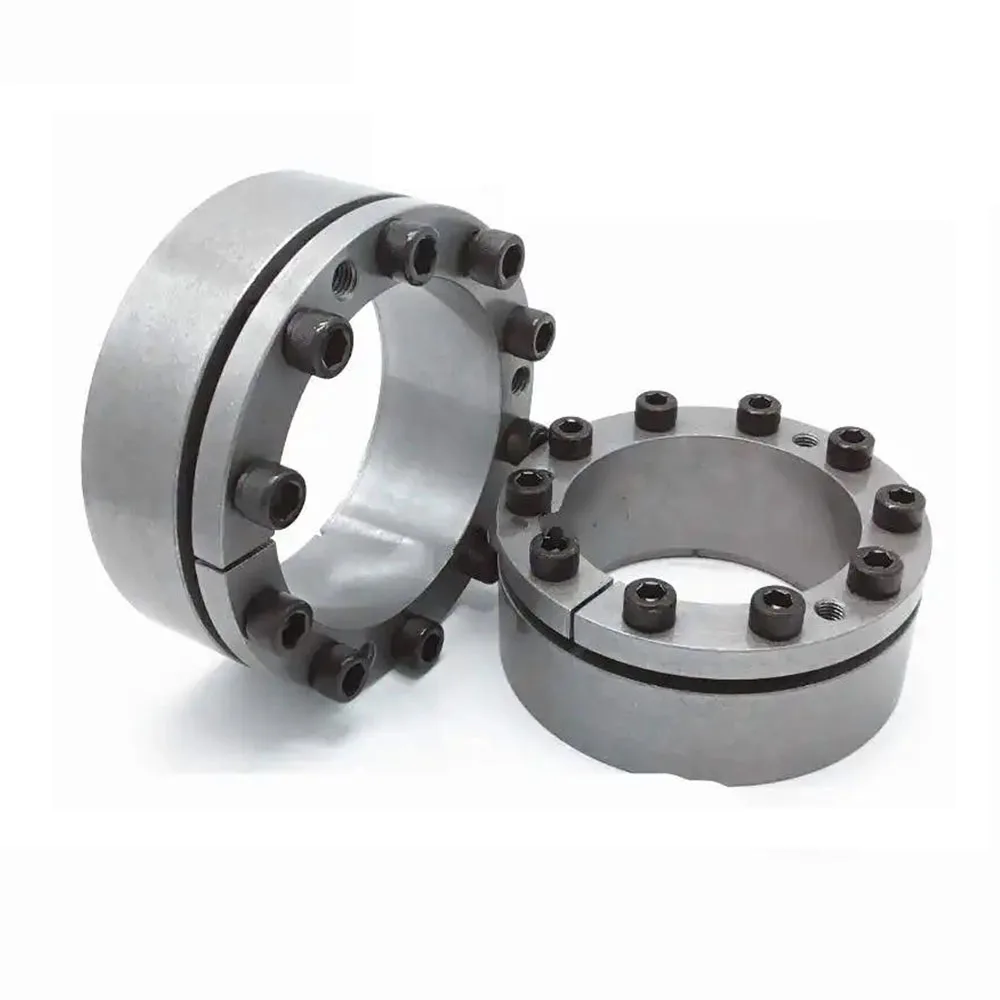

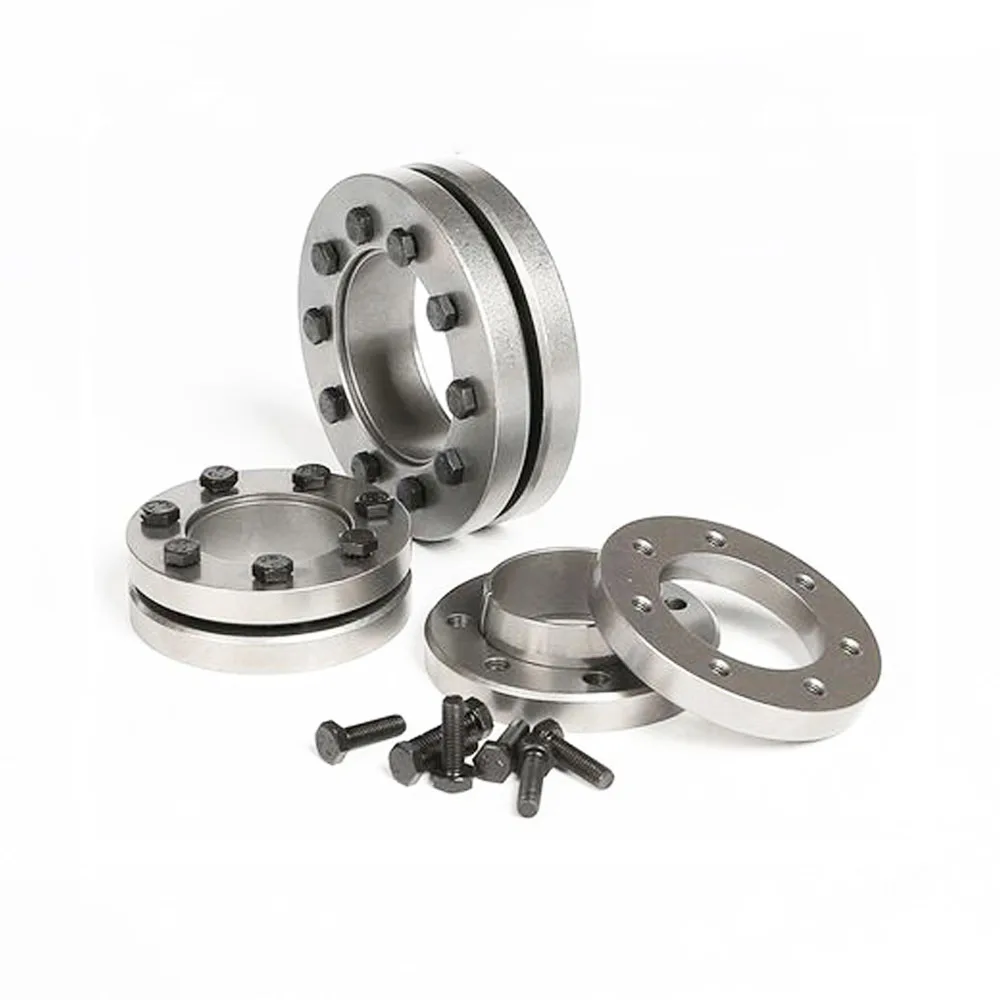

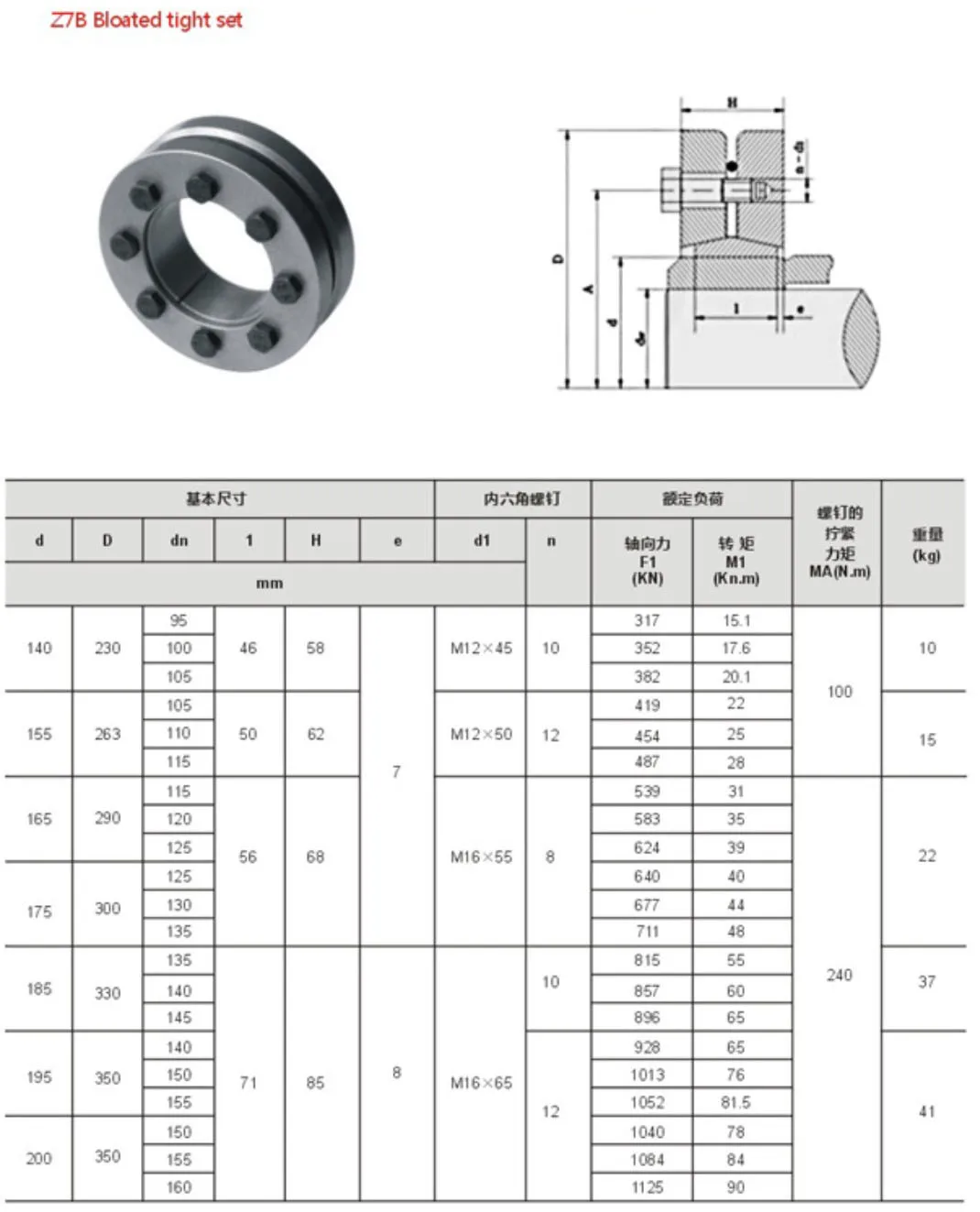

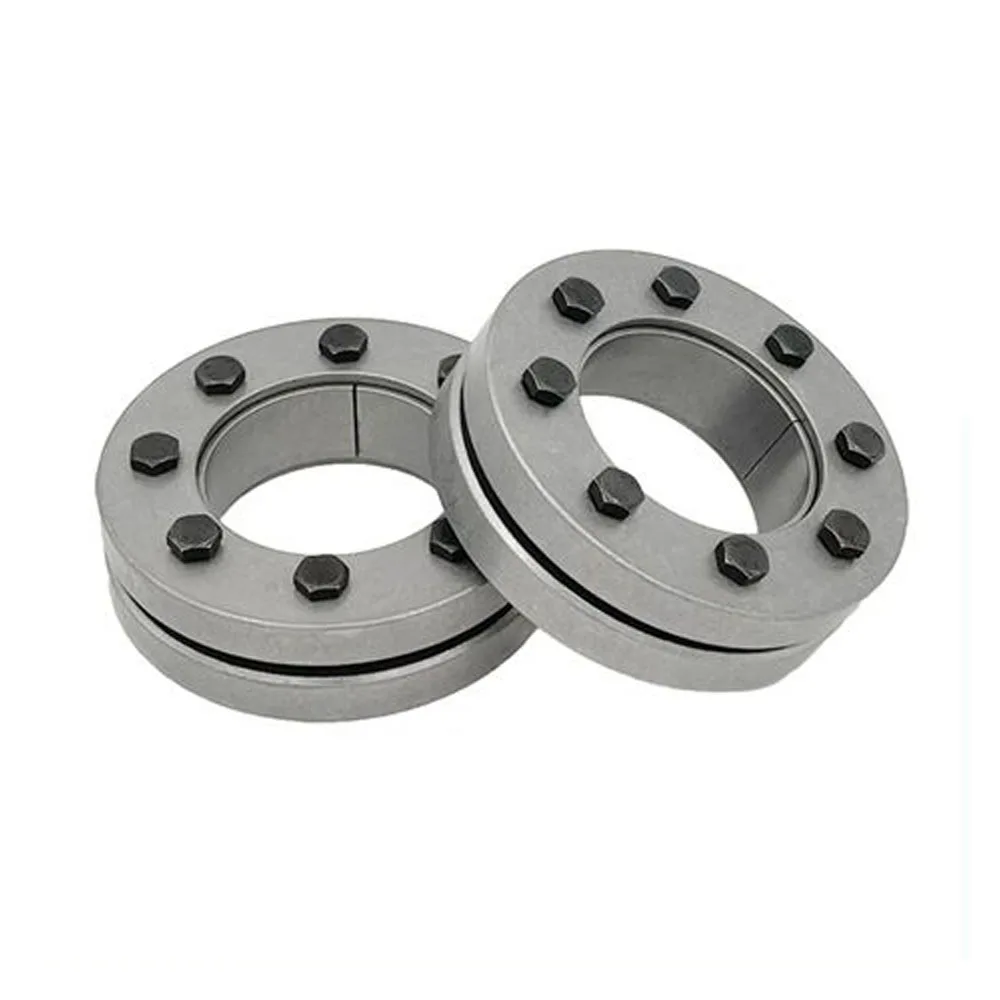

Z7B Power Lock Expansion Sleeve





Item Name	power lock, Shrink Disc	Model	Standard
Series	Z7A, Z7B, Z7C	Application	Glove production line
Material	Steel  C45	Certification	ISO, ANSI, DIN, BS
Packing	Polybag+carton+pallet	Port	Any sea port or airport in China



Product show



Type Z7 is a keyless shaft power lock. It  can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.









 Advantages:

>>It does not need keyway processing for the shaft and hub, and can be used directly to cope with emergency design changes,

>>High alignment accuracy, shaft and hub can be connected at any position,

>>Easy installation, adjustment and disassembly, no damage to shaft and hub, reusable,

>>High strength, stable and reliable connection, suitable for frequent positive and negative rotation,

>>It can protect the equipment from damage when it is overloaded, especially suitable for transmitting heavy loads,

>>It can withstand axial load.
