Предохранительный электромагнитный клапан высокого давления для газа
- Category: Valves >>>
- Supplier: Guangzhou Liancheng Energy Technology Development Co. Ltd.
Share on (1600760265705):
Product Overview
Description

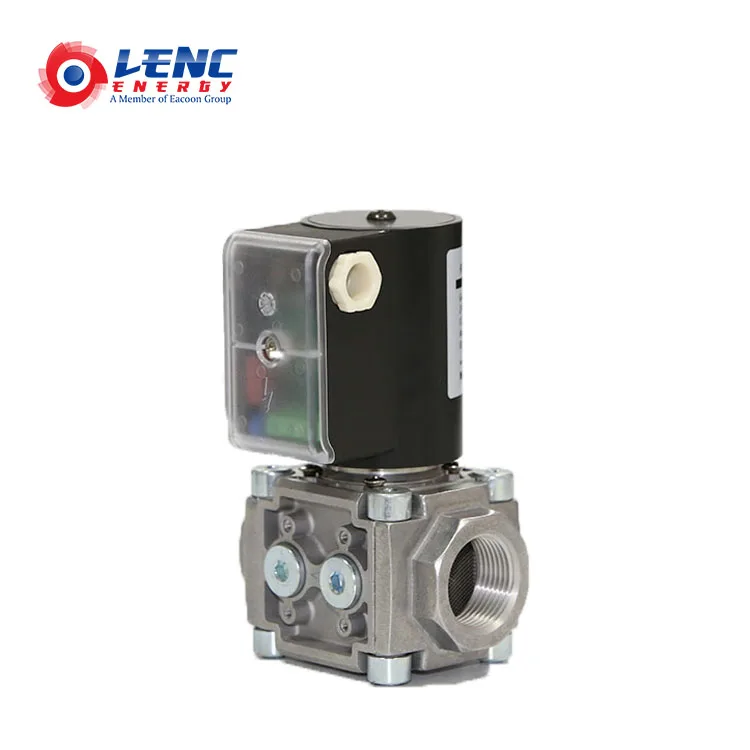

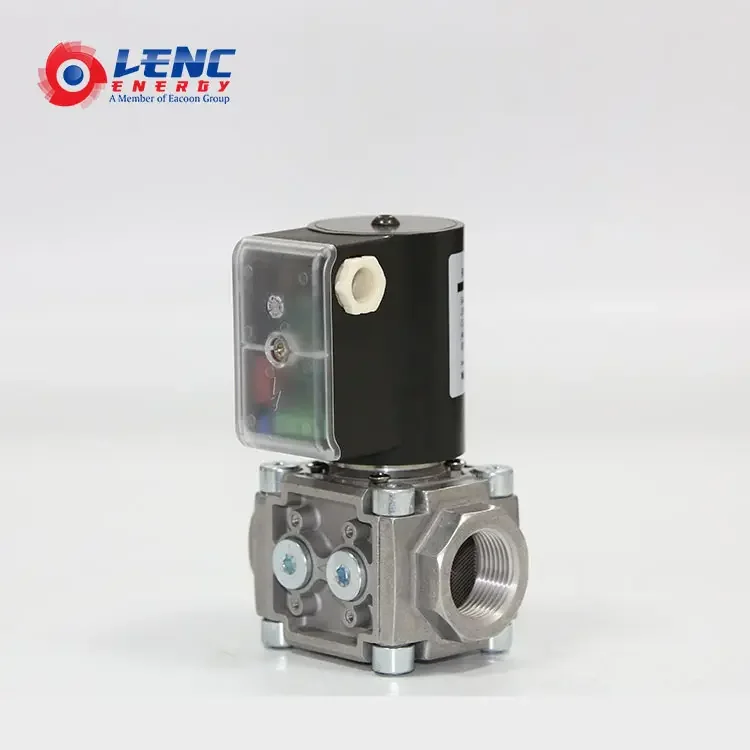

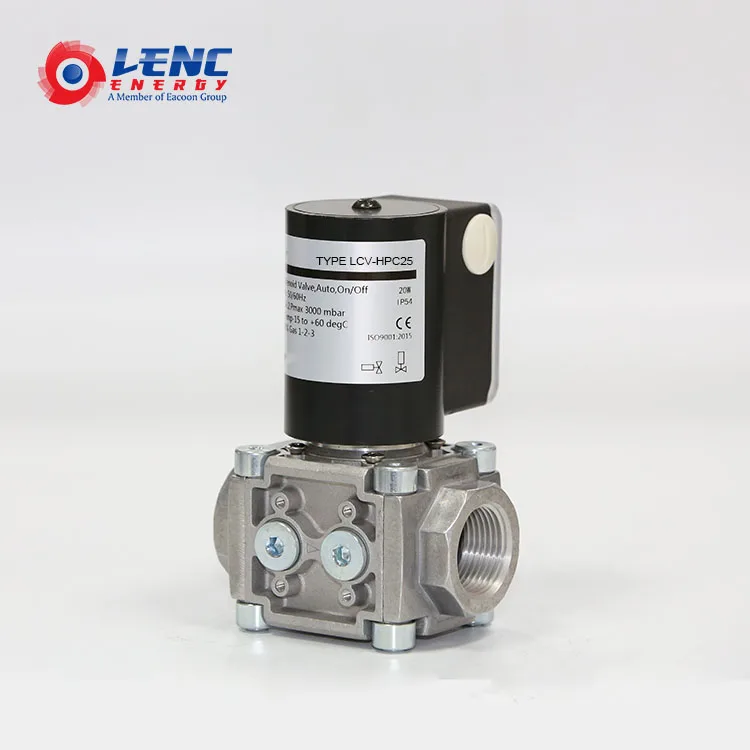

Safety Control High Pressure Solenoid Valve For Gas
Product Description
Product Description
High pressure gas solenoid valve can be widely used in gas safety transmission to provide gas supply for opening and closing or emergency cut-off.
Can be applied to gas, such as natural gas, methane, and liquefied petroleum gas.
Under Pressure between 4-6Kg and below that, it can be automatically opened and closed,
direct-acting fast-opening and fast-closing, and energy-saving design, the power consume while
working is half of when it stars up, and the blue light is displayed after start up to achieve the working
mode visualization.
Adopting a company’s patent, with several appearance and practical patents.
Operation and Installation
Normally closed, fast open when the power is on; close immediately when the power is off.
There are bypass holes on both sides of the valve body, and its diameter is G1/4"
Technology parameter
Technical Parameters
Opening time <1 seconds
Closing time <1 seconds
Maximum operating frequency: 20 times per minute
Maximum working pressure: 5000 mbar
Equipped with G1/4 aperture bypass hole
Built-in filter
Protection level :IP54
Sealing material: Nitrile Rubber
Body material: Aluminum alloy for valve;
AISI 302 steel spring
Ambient temperature: -15 ° C - 60 ° C
Coil temperature: 65 ° C
Standards and certification
Achieving "A" standard
Meet EN161:2002 standard
Meet UK and European gas standards
CE certification
Electrical specification
Rated voltage: 50/60Hz, 230Vac (and other specific)
Coil grade F, can be 360°rotation, can work 100% continuously for a long time.

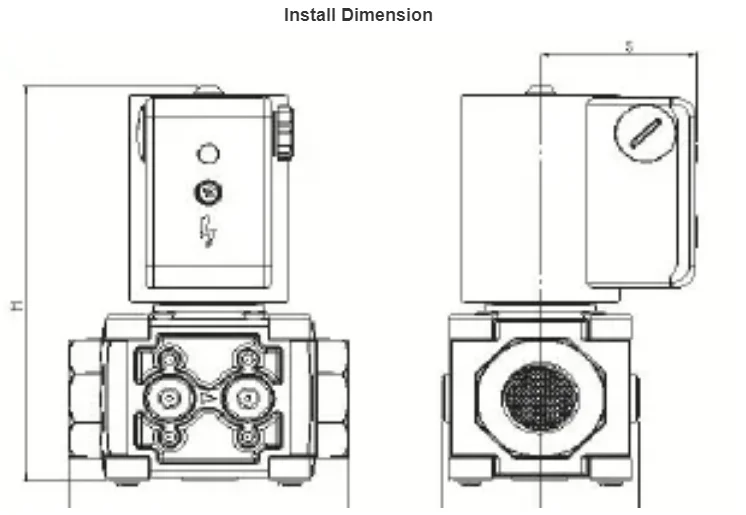

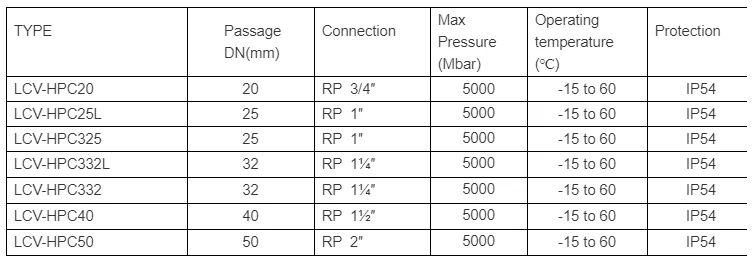

Type | Length L(mm) | Width W(mm) | Height H(mm) | Coil radius of gyration (mm) |
LCV-HPC20 | 100 | 70 | 153 | 56 |
LCV-HPC25L | 100 | 70 | 153 | 56 |
LCV-HPC325 | 112 | 82 | 167 | 59 |
LCV-HPC332L | 112 | 82 | 167 | 59 |
LCV-HPC332 | 150 | 104 | 208 | 68 |
LCV-HPC40 | 150 | 104 | 208 | 68 |
LCV-HPC50 | 150 | 104 | 208 | 68 |
