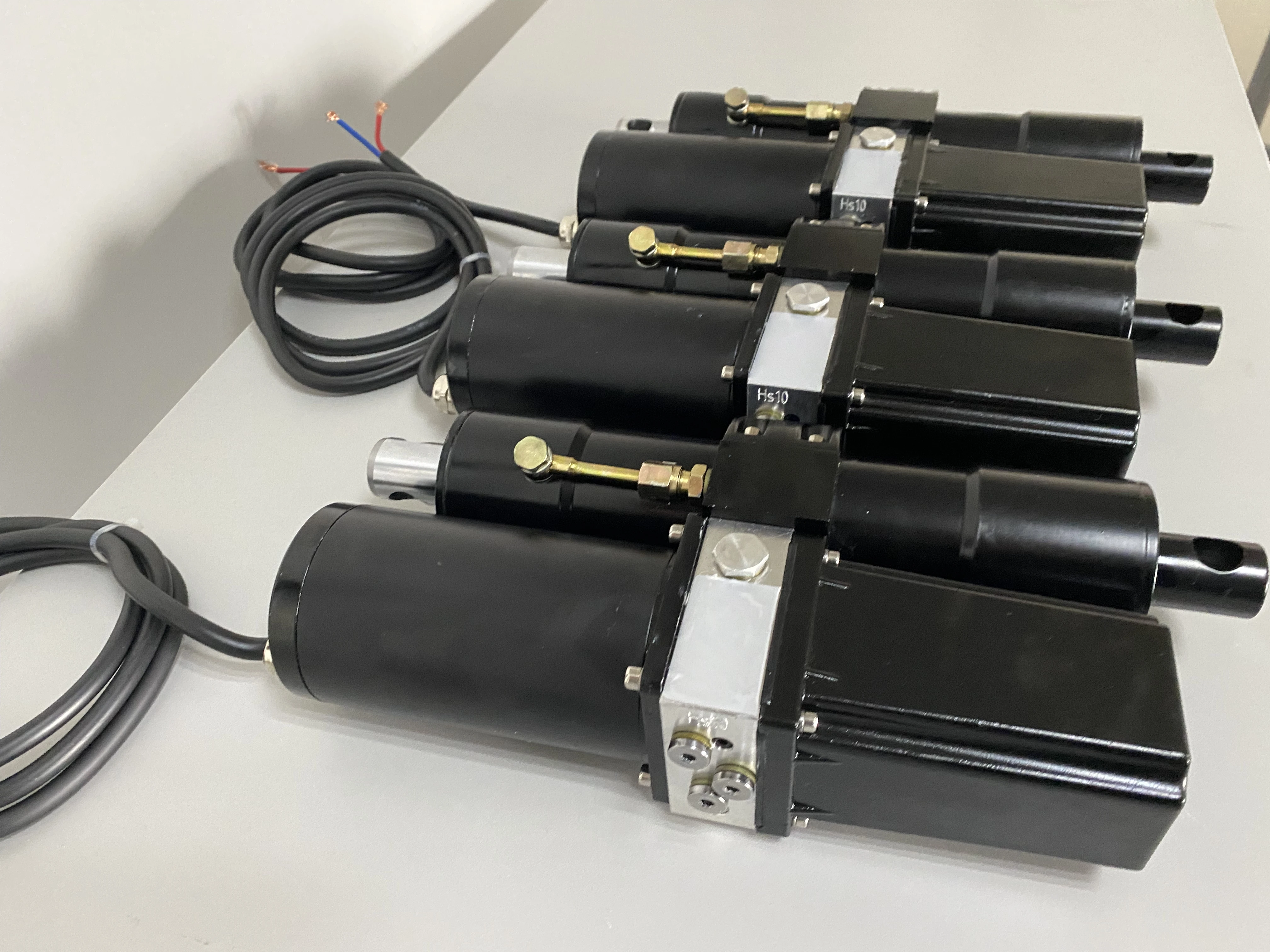

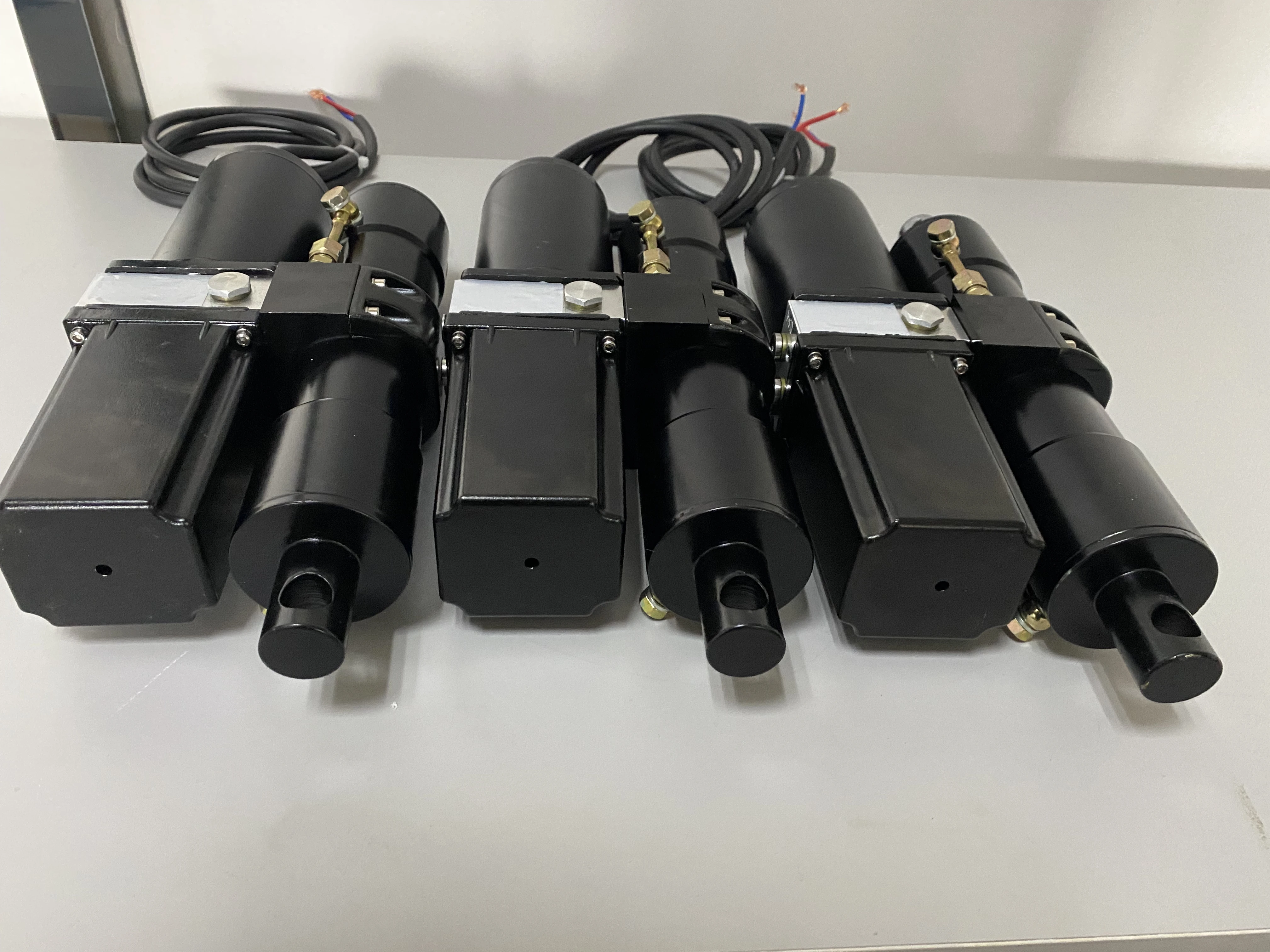

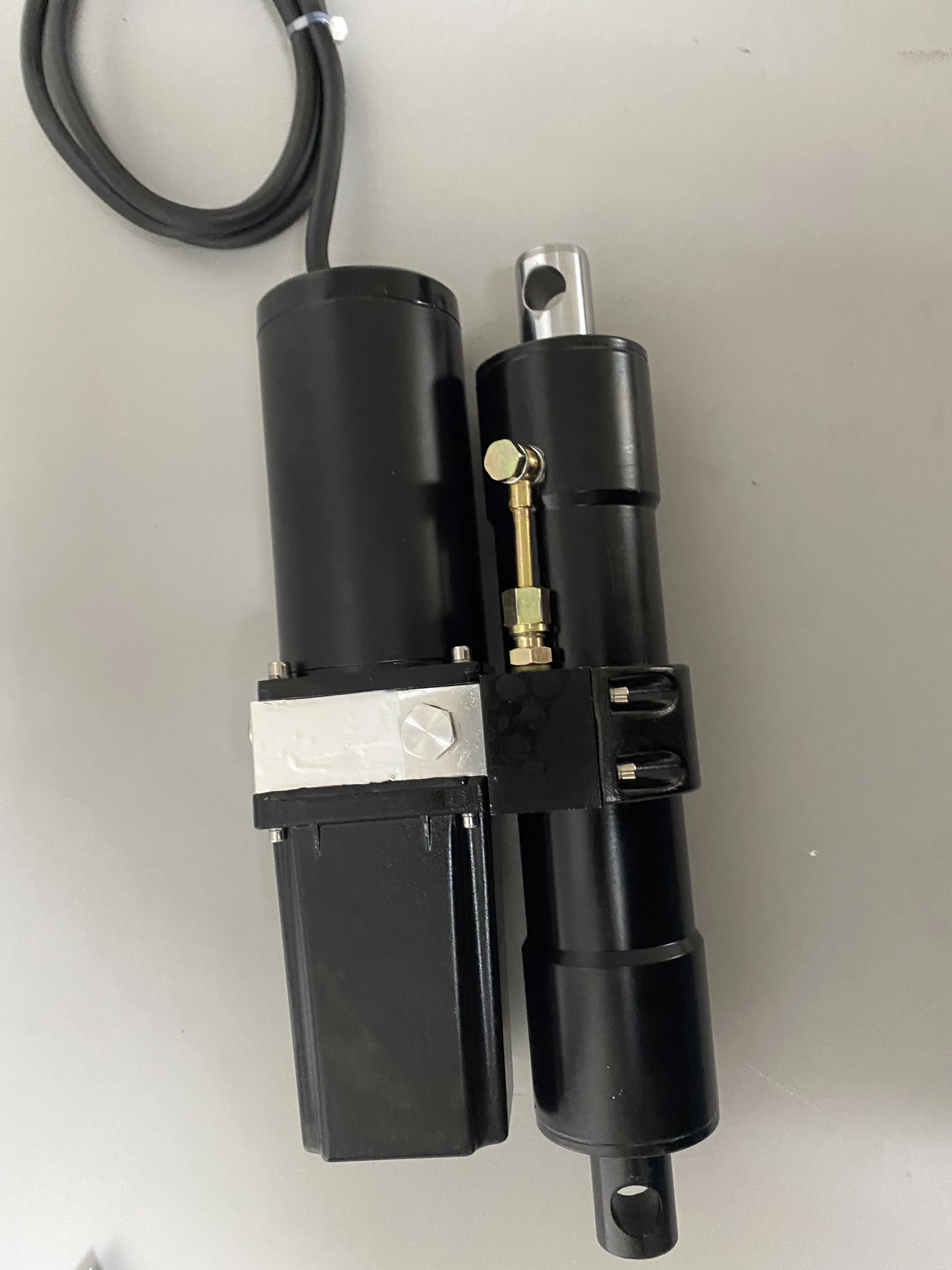

50000N 24V 48VHigh frequency cylinder robot electro hydraulic linear actuator
- Category: >>>
- Supplier: changzhou changxing motion tech co. ltd
Share on (1600760281170):
Product Overview
Description
Product Description
Item | NH63 Customize | NH63 Customize | NH63 Customize |
voltage | DC24V/48V | DC24V/48V | DC24V/48V |
power | 800W | 1000W | 1200W |
displacement | 0.38CC | 0.6CC | 0.88CC |
stroke | 100-600mm | 100-600mm | 100-600mm |
push force | 50000N | 50000N | 50000N |
pull force | 35000N | 35000N | 35000N |
speed | 6-7mm/s | 10-11mm/s | 14-15mm/s |
temperature | -30-70℃ | -30-70℃ | -30-70℃ |
frequency | 6min/ each time | 6min/ each time | 6min/ each time |
waterproof rate | IPX6 | IPX6 | IPX6 |
Company Profile
Our company is a professional manufacturer of linear actuators, we are focusing on providing quality products and satisfied after-sale service for our customers.
After many years developing, now we have high quality products and professional sales man to help our customer make right choice of linear actuators and related products.
Our products now are exported to many countries around the world.
We welcome your coming, build new business relationship and cooperate for mutual benefits
After many years developing, now we have high quality products and professional sales man to help our customer make right choice of linear actuators and related products.
Our products now are exported to many countries around the world.
We welcome your coming, build new business relationship and cooperate for mutual benefits
Related Products
After Sales Service
FAQ
Necessary elements to select a suitable linear actuator type
1） stroke length: the length that shaft moves from one end to another end
2) Travel speed is associated with the load for one type product ,High speed and lower load.
3) Input voltage is DC voltage.
1） stroke length: the length that shaft moves from one end to another end
2) Travel speed is associated with the load for one type product ,High speed and lower load.
3) Input voltage is DC voltage.
