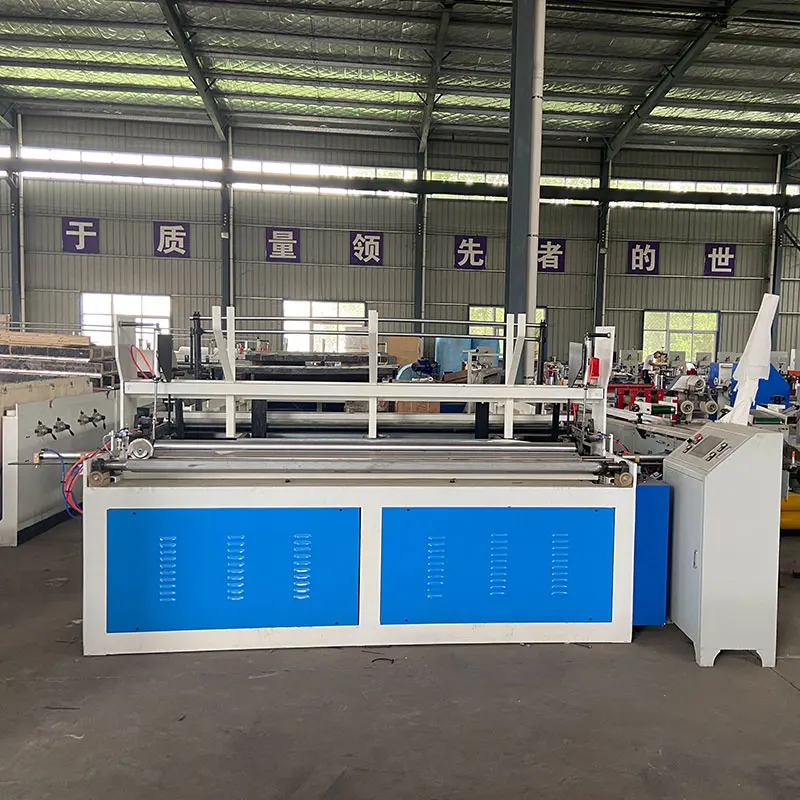

high speed good quality toilet tissue roll making machine toilet paper machine production line
- Category: Paper Product Making Machinery >>>
- Supplier: Henan,Yuancui,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
The application of PLC in automatic rewinding,automatically send the finished,immediately reset rewinding,automatic trimming, adhesive, sealing synchronously in one time. Instead of the traditional line trimming,realizes new traimming margin. Sealing tail technology,products have the 10mm-20mm tail paper,convenient opening. To realize no paper tail loss,thereby reducing the cost. PLC is also applied to the finished product in the rewinding process after the tight loose,solutions for long time storage,paper core loose off phenomenon.
Product Paramenters
Machine Model | YC-1575/1880/2400/2800/3000 |
Raw Paper Weight | 12-40 g/m2 toilet tissue paper jumbo roll |
Finished Diameter | 50mm-200mm |
Finished Paper Core | Diameter 30-55 mm (Please Specify) |
Total Power | 4.5kw-10 kw |
Production Speed | 150-300m/min |
Voltage | 220/380V, 50HZ |
Back Stand | Three layers synchronous transmission |
Perforation Pitch | 80-220mm,150-300mm |
Punch | 2-4 Knife, Spiral Cutter Line |
Hole Pitch | Positioning of Belt and Chain Wheel |
Control System | PLC Control, Variable Frequency Speed Control, Touch Screen Operation |
Embossing | Single Embossing, Double Embossing |
Drop Tube | Manual, Automatic (Optional) |
Our Advantages
Main Features
1.This machine is for making toilet paper rolls,the whole structure is wall-type,which make machine running stable at high
speed,and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system,automatic pushing the log after rewinding,then rewinding the new log again.
4. Automatic edge-trimming,glue spraying and sealing synchronously in one time.Leaving 10-18mm tail,easy to rewind again,so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique,man-machine interface operation,data set and parametric
fault shows om touch screen.
6. Adopts 4 pieces high Precision spiral knives,low noise,clear perforation,adopt gearbox to have bigger range.
7. Two wall type back stands,pneumatic lifting system,with wide driving flat belts;each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper,easy and safe to operate.
speed,and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system,automatic pushing the log after rewinding,then rewinding the new log again.
4. Automatic edge-trimming,glue spraying and sealing synchronously in one time.Leaving 10-18mm tail,easy to rewind again,so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique,man-machine interface operation,data set and parametric
fault shows om touch screen.
6. Adopts 4 pieces high Precision spiral knives,low noise,clear perforation,adopt gearbox to have bigger range.
7. Two wall type back stands,pneumatic lifting system,with wide driving flat belts;each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper,easy and safe to operate.
Why Choose Us

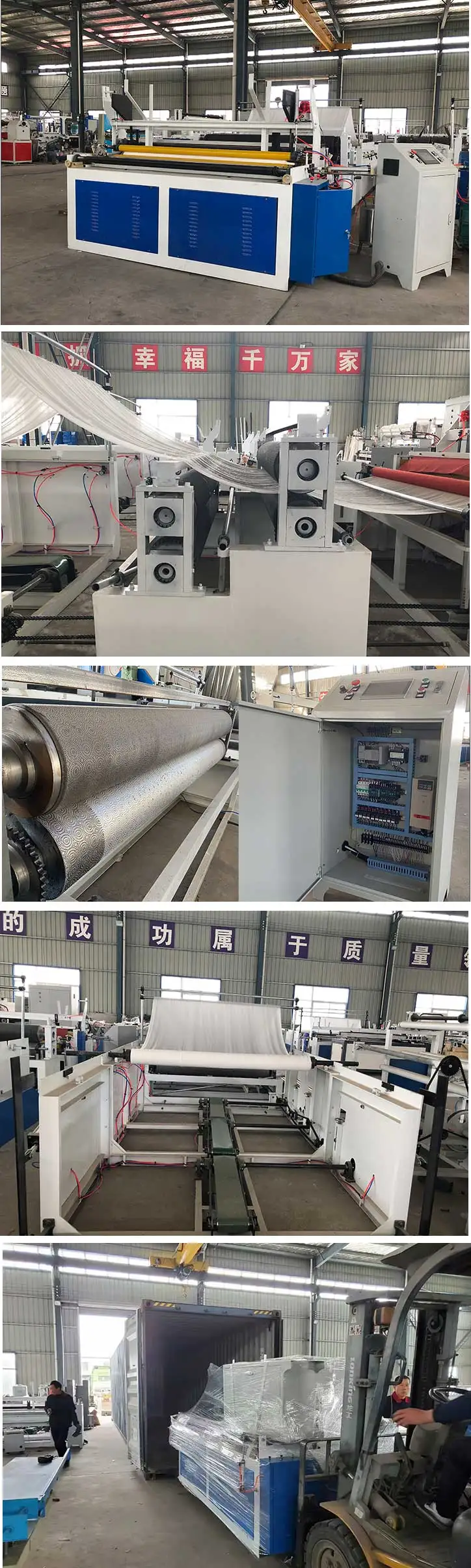

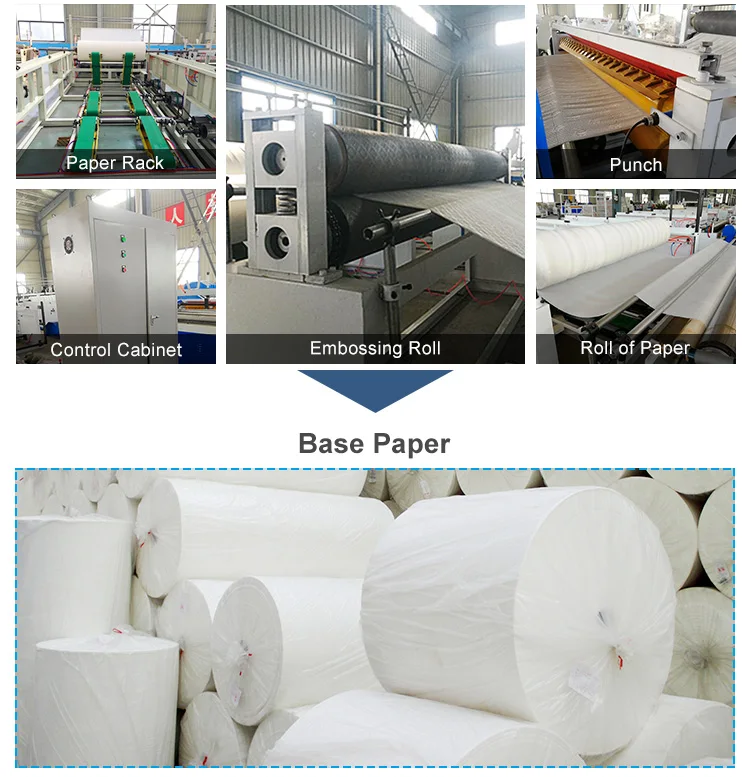

Details Images
Company Profile
Product packaging
FAQ
1. How about the quality?
Generally, we guarantee our products for 1 year, but our customers have already purchased and used our machines for many years without problem.
2. How do you pack machine?
Our machines will be packed into PE film packing or wood case. (We will process the wood case and make sure it reaches export standard)
3. How long is your guarantee?
One year (Calculated from the equipment arrives at the customer’s side.).
If there is any problem within guarantee period (excluding caused by human's wrong action), we will send you spare parts for free.After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happen.
4.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference. Secondly, our company is responsible for
training production workers for you, ensuring that the workers will be independent operation.
5.Can your company do customized machine?
Yes we can. We have 5 experienced engineers to support customized designs.
Generally, we guarantee our products for 1 year, but our customers have already purchased and used our machines for many years without problem.
2. How do you pack machine?
Our machines will be packed into PE film packing or wood case. (We will process the wood case and make sure it reaches export standard)
3. How long is your guarantee?
One year (Calculated from the equipment arrives at the customer’s side.).
If there is any problem within guarantee period (excluding caused by human's wrong action), we will send you spare parts for free.After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happen.
4.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference. Secondly, our company is responsible for
training production workers for you, ensuring that the workers will be independent operation.
5.Can your company do customized machine?
Yes we can. We have 5 experienced engineers to support customized designs.
