oil resistant braid hydraulic steel wire rubber hose/Steel Wire Braided Hydraulic Rubber Hose 905B 8
- Category: >>>
- Supplier: Shaanxi Yanchang Petroleum Northwest Rubber Flexible Pipe Co. Ltd.
Share on (1600760368034):
Product Overview
Description
Products Description
Product Description
GB/T3683/IS01436 WIREBRAIDED HVDRAULIC RUBBER HOSE OFTYPE 1,TYPE2SERIES905A WIRE BRAIDED HYDRAULIC RUBBER HOSE

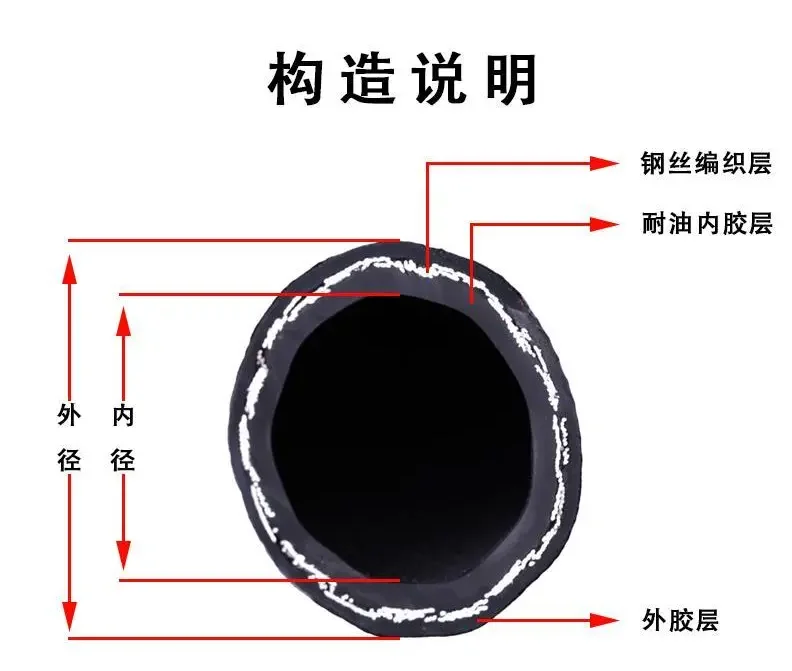

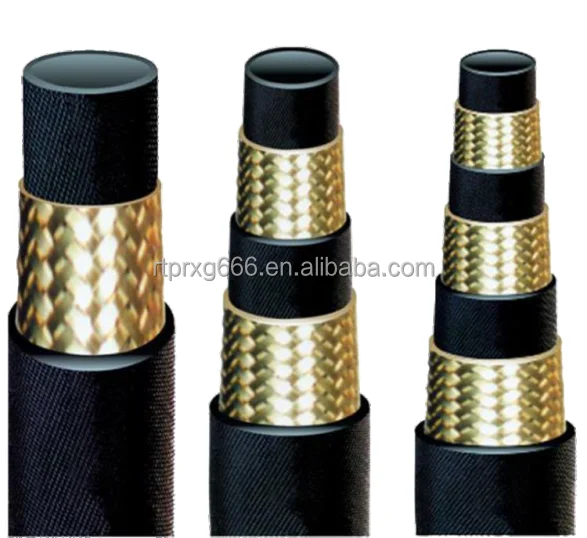

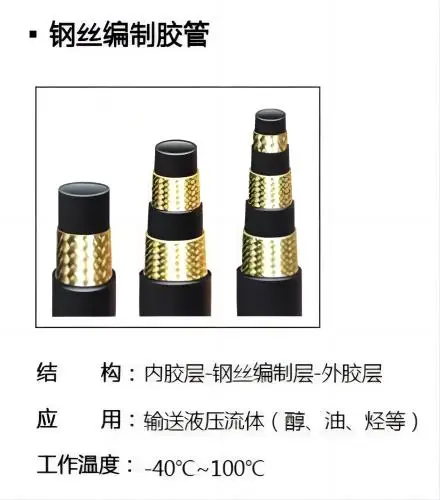

Structure: synthetic rubber tube, 1 to 3 layers with wire braided reinforcement, and the coverlayer is made of synthetic rubber which is well resistant to weathering.
Application: it is widely used into petroleum base and water base of hydraulic system.
Application: it is widely used into petroleum base and water base of hydraulic system.
Temperature range:-40℃ to 100℃
Standard: GB/T3683 ISO1436
Property: under hydraulic systems of engineering mechanism, and its bearing strength is higher than type A605.
Appearance: black, mill finish and wove
Standard: GB/T3683 ISO1436
Property: under hydraulic systems of engineering mechanism, and its bearing strength is higher than type A605.
Appearance: black, mill finish and wove
How to get the best service life:
Operating pressure: The pressure of the hydraulic system should not exceed the maximum operating pressure of the hose.
Minimum burst pressure: The burst pressure is only a reference pressure for the design safety factor and for conducting hose damage tests.
Use temperature range: hose temperature range, refers to the transport medium or the ambient temperature limit value.
Media resistance compatibility: hydraulic hose must have media resistance.
Minimum bending radius: bend or bend the hose, do not be less than the recommended minimum bending radius and torque.
Piping arrangement: reasonable hose alignment arrangement can reduce hose damage.
Hose length: to take into account the working pressure of the hose shrinkage / elongation changes.
Minimum burst pressure: The burst pressure is only a reference pressure for the design safety factor and for conducting hose damage tests.
Use temperature range: hose temperature range, refers to the transport medium or the ambient temperature limit value.
Media resistance compatibility: hydraulic hose must have media resistance.
Minimum bending radius: bend or bend the hose, do not be less than the recommended minimum bending radius and torque.
Piping arrangement: reasonable hose alignment arrangement can reduce hose damage.
Hose length: to take into account the working pressure of the hose shrinkage / elongation changes.
Choose the hose should consider the following points:
1. Hose size includes the inner diameter, outer diameter and length of the hose. Reasonable choice of hose inside diameter can make the pressure loss minimum.
2. Temperature to determine the temperature of the hose inside the transport medium and the hose outside the ambient temperature in two aspects. In the hotter or colder environment when using the hose to consider taking appropriate measures.
3. Media selection hose to consider the hose inside the rubber should be able to match the medium used, the outer rubber can match the contact medium. Need to transport special media can be communicated with the company's technical department.
4. Pressure selection hose is the most important is to clarify the hydraulic system pressure, including the peak hydraulic
pressure. Select the working pressure provided in the catalog should be greater than or equal to the hydraulic system pressure.
5. Flow rate and flow rate in the newly designed or modified hydraulic system to select the hose should be based on the flow rate and flow requirements of different oil circuits to project the selection of the appropriate hose inside diameter.
6. Application to meet the application requirements, but also need to consider the following issues:
a. Where the hose is used? What is the type of equipment?
b. Whether for suction conditions (with negative pressure requirements)?
c. Can the hose arrangement to meet the minimum bending radius requirements? Will it wear the hose? Is there an abnormal mechanical load?
7. Other:
7.1 insulation or conductivity: some cases in order to prevent the passage of electric current, the hose has the requirement of insulation. In other cases, in order to discharge static electricity, the hose may be required to have good electrical
conductivity.
7.2 permeation: When the hose is used for gas, liquefied gas or gas, refrigerant, gas will be permeated from the inside of the
hose to the outside. It will make the hose outer rubber bulge and leave the layer. Infiltration may produce high concentrations of combustible, explosive, toxic gases, loss of fluids and other situations.
7.3 environment: must ensure that the hose and the environmental conditions compatible, environmental conditions include:ultraviolet radiation, heat, ozone, humidity, water, salt water, chemical substances, air pollutants, etc. may lead to hose performance degradation or cause early failure of factors.
1. Hose size includes the inner diameter, outer diameter and length of the hose. Reasonable choice of hose inside diameter can make the pressure loss minimum.
2. Temperature to determine the temperature of the hose inside the transport medium and the hose outside the ambient temperature in two aspects. In the hotter or colder environment when using the hose to consider taking appropriate measures.
3. Media selection hose to consider the hose inside the rubber should be able to match the medium used, the outer rubber can match the contact medium. Need to transport special media can be communicated with the company's technical department.
4. Pressure selection hose is the most important is to clarify the hydraulic system pressure, including the peak hydraulic
pressure. Select the working pressure provided in the catalog should be greater than or equal to the hydraulic system pressure.
5. Flow rate and flow rate in the newly designed or modified hydraulic system to select the hose should be based on the flow rate and flow requirements of different oil circuits to project the selection of the appropriate hose inside diameter.
6. Application to meet the application requirements, but also need to consider the following issues:
a. Where the hose is used? What is the type of equipment?
b. Whether for suction conditions (with negative pressure requirements)?
c. Can the hose arrangement to meet the minimum bending radius requirements? Will it wear the hose? Is there an abnormal mechanical load?
7. Other:
7.1 insulation or conductivity: some cases in order to prevent the passage of electric current, the hose has the requirement of insulation. In other cases, in order to discharge static electricity, the hose may be required to have good electrical
conductivity.
7.2 permeation: When the hose is used for gas, liquefied gas or gas, refrigerant, gas will be permeated from the inside of the
hose to the outside. It will make the hose outer rubber bulge and leave the layer. Infiltration may produce high concentrations of combustible, explosive, toxic gases, loss of fluids and other situations.
7.3 environment: must ensure that the hose and the environmental conditions compatible, environmental conditions include:ultraviolet radiation, heat, ozone, humidity, water, salt water, chemical substances, air pollutants, etc. may lead to hose performance degradation or cause early failure of factors.
Specification
Company Profile
Company Profile
Shaanxi Yanchang Petroleum Northwest Rubber Co., Ltd. is a state-owned enterprise reorganized from the former Northwest Rubber General Factory and its subordinate Northwest Kaidi Company, which is the largest and strongest rubber enterprise in Northwest China with strong comprehensive strength. The company has dozens of production equipment and testing instruments imported from abroad, advanced production process and testing means, and its technical center has become a provincial scientific research and technology center. The company passed the ISO9001:2000 and GJB9001A-2001 quality system certification in March 2003, and was awarded the first-class quality inspection organization by China Petroleum and Chemical Industry Association. The company has seven series of products: rubber products, rubber products, sheet series, sealing products, hoses, polyurethane hoses(anti-corrosion lining, oil well sealer, oil storage bladder and oil pipeline), reinforced thermoplastic hoses and other new series of products. Mainly for aerospace, petroleum, chemical, steel, automotive, engineering machinery, coal and other industries supporting. As long as you provide the parameters and application fields, various product specifications, materials and colors can be customized.
FAQ
Q: ARE YOU MANUFACTURER OR TRADING COMPANY?
A: Founded in 1997 we are one of leading manufacturer in China with more than 100 employees. Q: Where is your location?
A: Our location is in Xianyang City Shannxi Province.It is 30 minutes to Hangzhou Airport，2.5 hours to xi‘an and 2 hours to Ningbo Port by car. We would like to pick you up from any of the station and airport in these cities.
A: Our location is in Xianyang City Shannxi Province.It is 30 minutes to Hangzhou Airport，2.5 hours to xi‘an and 2 hours to Ningbo Port by car. We would like to pick you up from any of the station and airport in these cities.
Q: How's your core competence?
A:There are 4 experience engineers in our R&D department and 10 employees for quality control department. Most of our equipment is advanced production line.
Q: What certificates does your company have？
A: Quality certificate lSO 9001:2015. Environmental certificates lSO 14001
Q: WHERE IS YOUR MAIN MARKET?
A: Beside Chinese market our products mostly export to North Europe，WestEurope，Central Europe，North America and South America.
A: Beside Chinese market our products mostly export to North Europe，WestEurope，Central Europe，North America and South America.
Q: lf you accept OEM production and how you make it?
A:Yes. We need a sample or drawings from you. Before sample production we will provide all the technical specification and discuss testing requirement to reach the top quality. The sample delivery time normally takes 20 days.
Q:How long is your delivery time?
A:15-30 days.
Q:What payment terms do you support?
A:Ali safe payment as priority as well as T/T, 100% L/C at sight, Cash are all accepted if you have other payment,please contact me.
