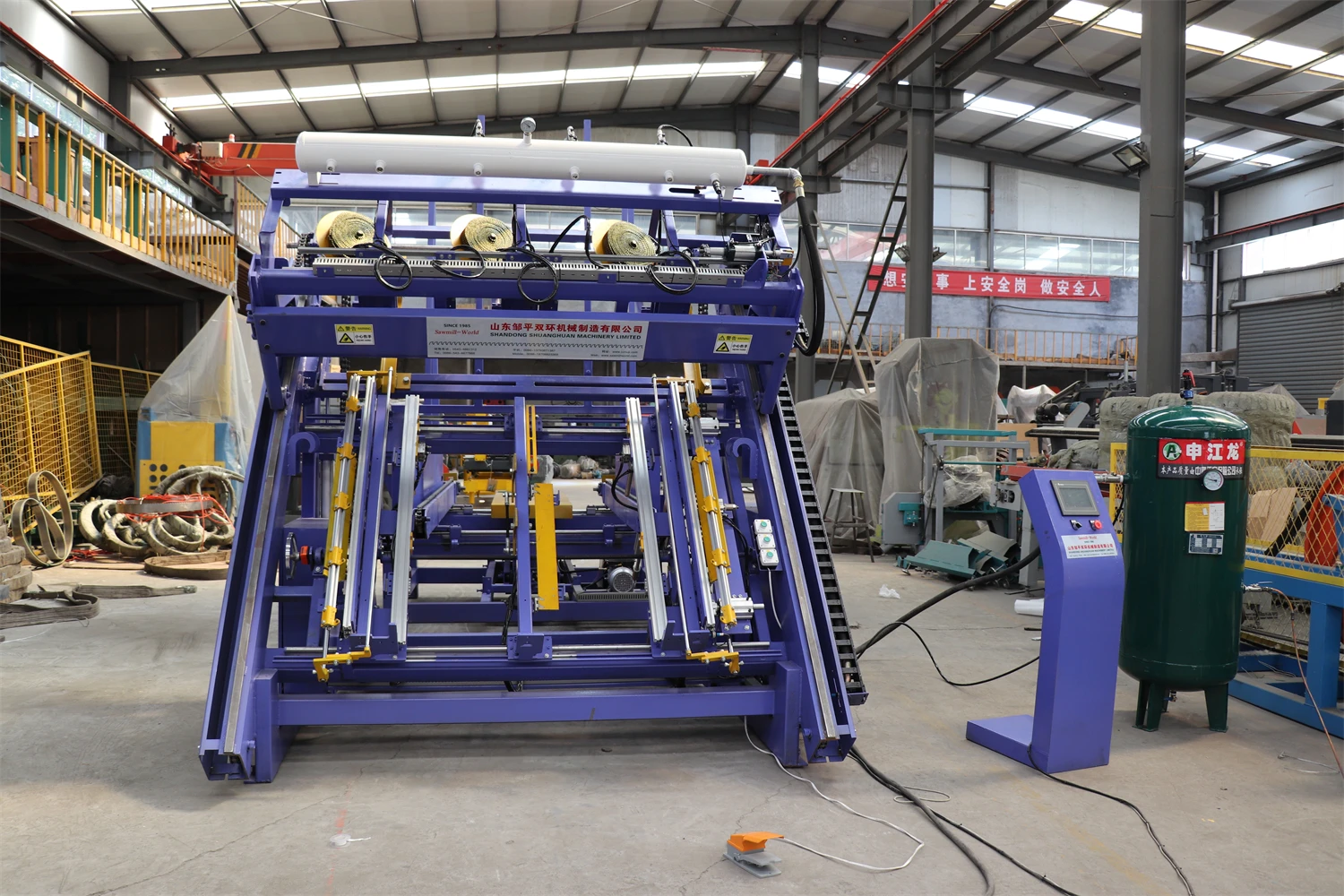

Nailing machine for making AWPN 1300 pallet nailing machine pallet machine

Share on (1600760386007):


Price:$20,000.00 - $20,400.00

Quantity:


Product Overview

Description



Product Description




Name
Automatic wooden pallet nailing machine
Keyword
Pallet marking machine
Model
AWPN-1300
Wood pallet length
600-1300mm
Wood pallet width
800-1300mm
Working mode
Automatic feeding and stacking
Operation mode
Touch screen
Operational mode
Pneumatic operation
Voltage and power
220V/ 2kw Servo motor
Air pressure
0.8MPA
Tank size
0.2 cubic
Nail gun speed
7 times /second.
Production effciency
1-2pcs /min
Apply a nail
Less than 90mm
Number of nail guns
3P OR 4P
Weight
2000kg
Size
Host machine 1660*1970*2217mm
Stacking 2945*2054*1410

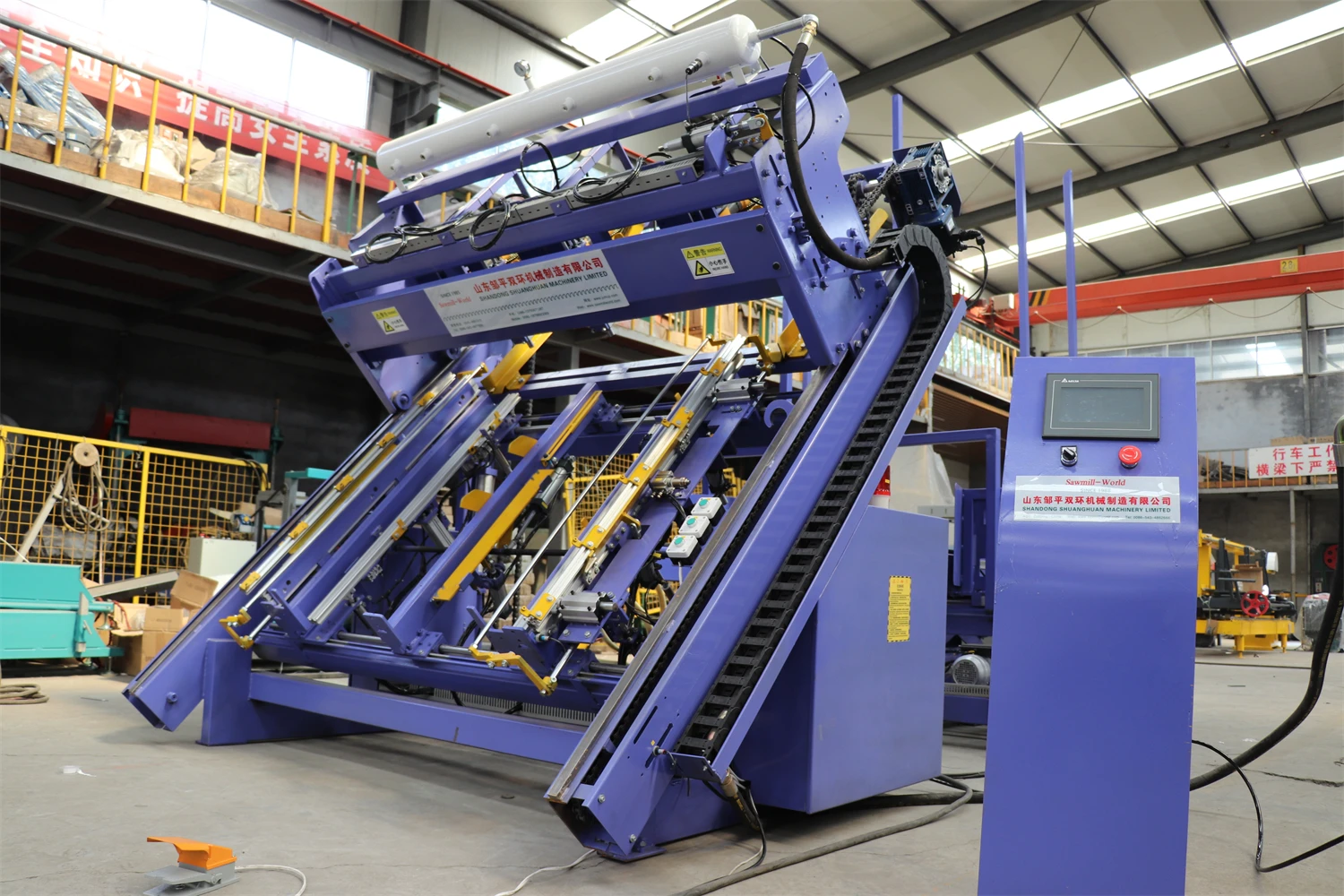

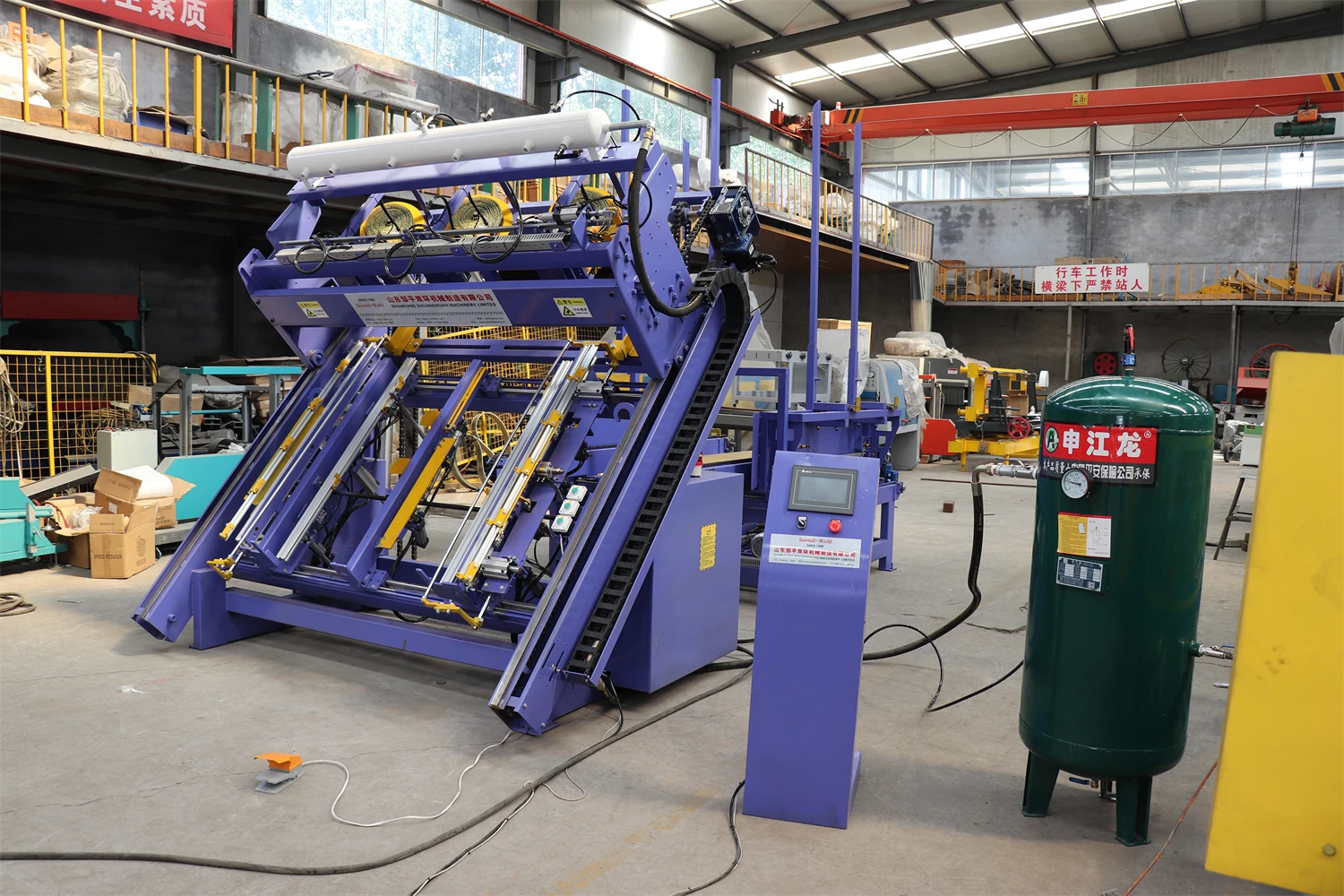

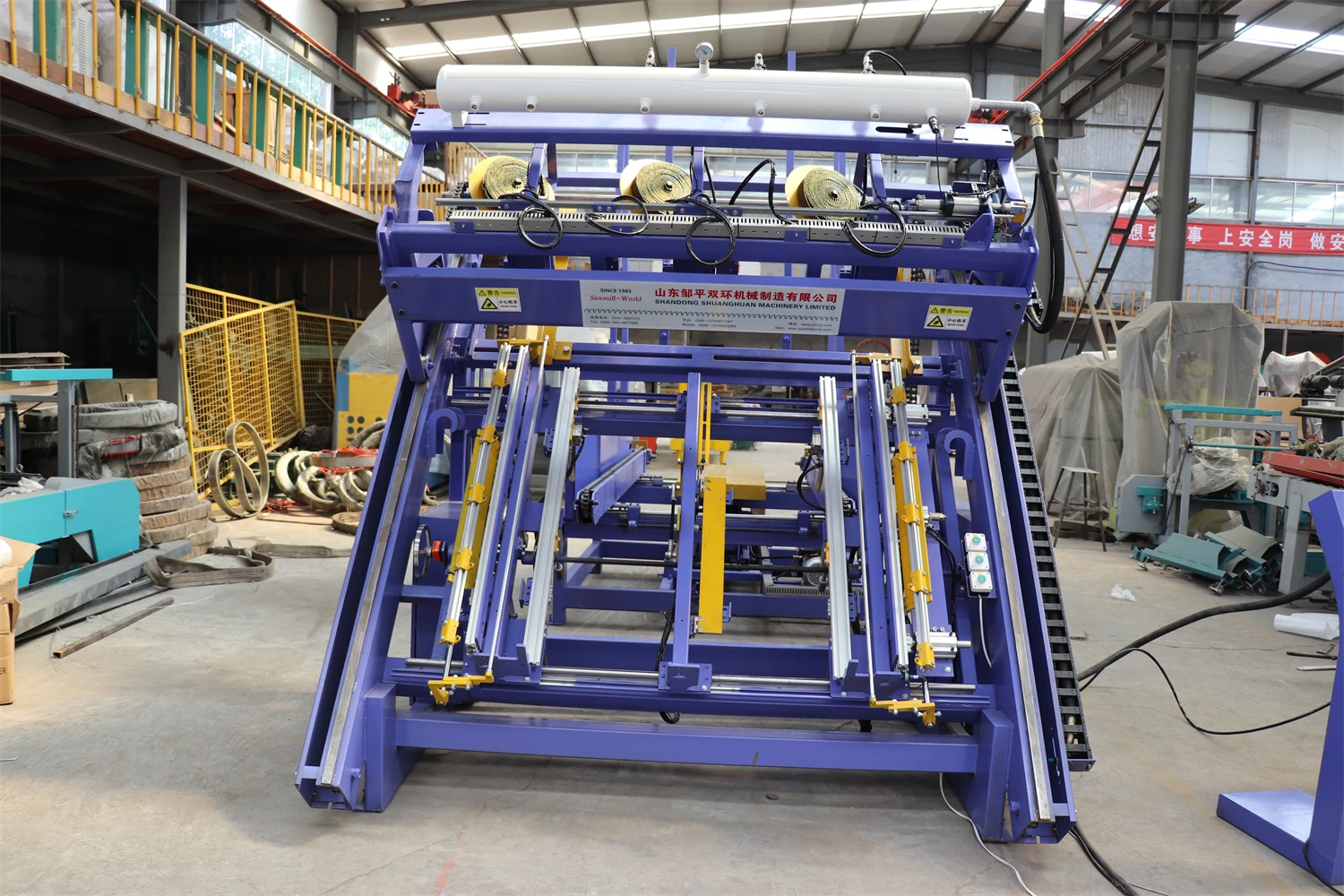

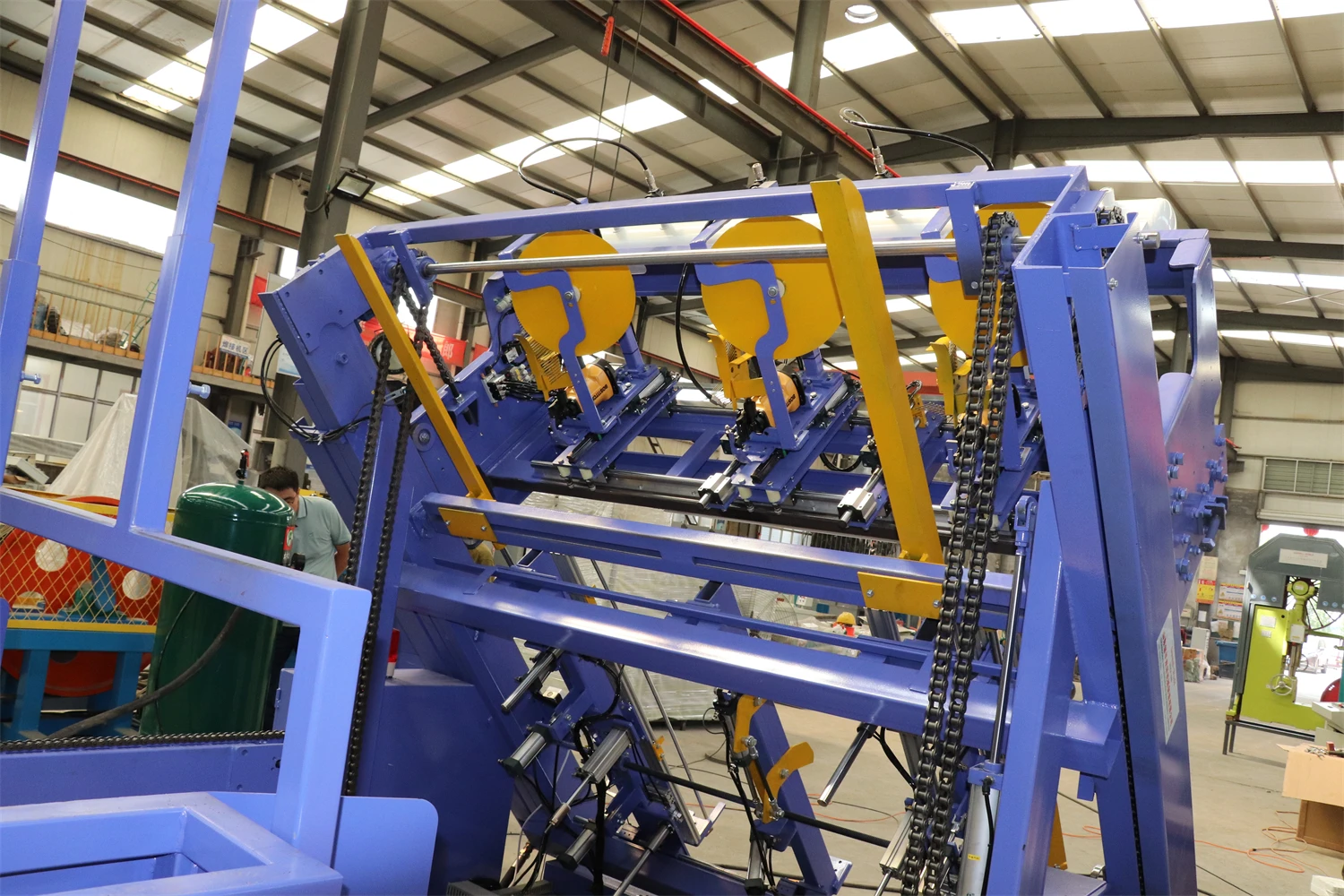

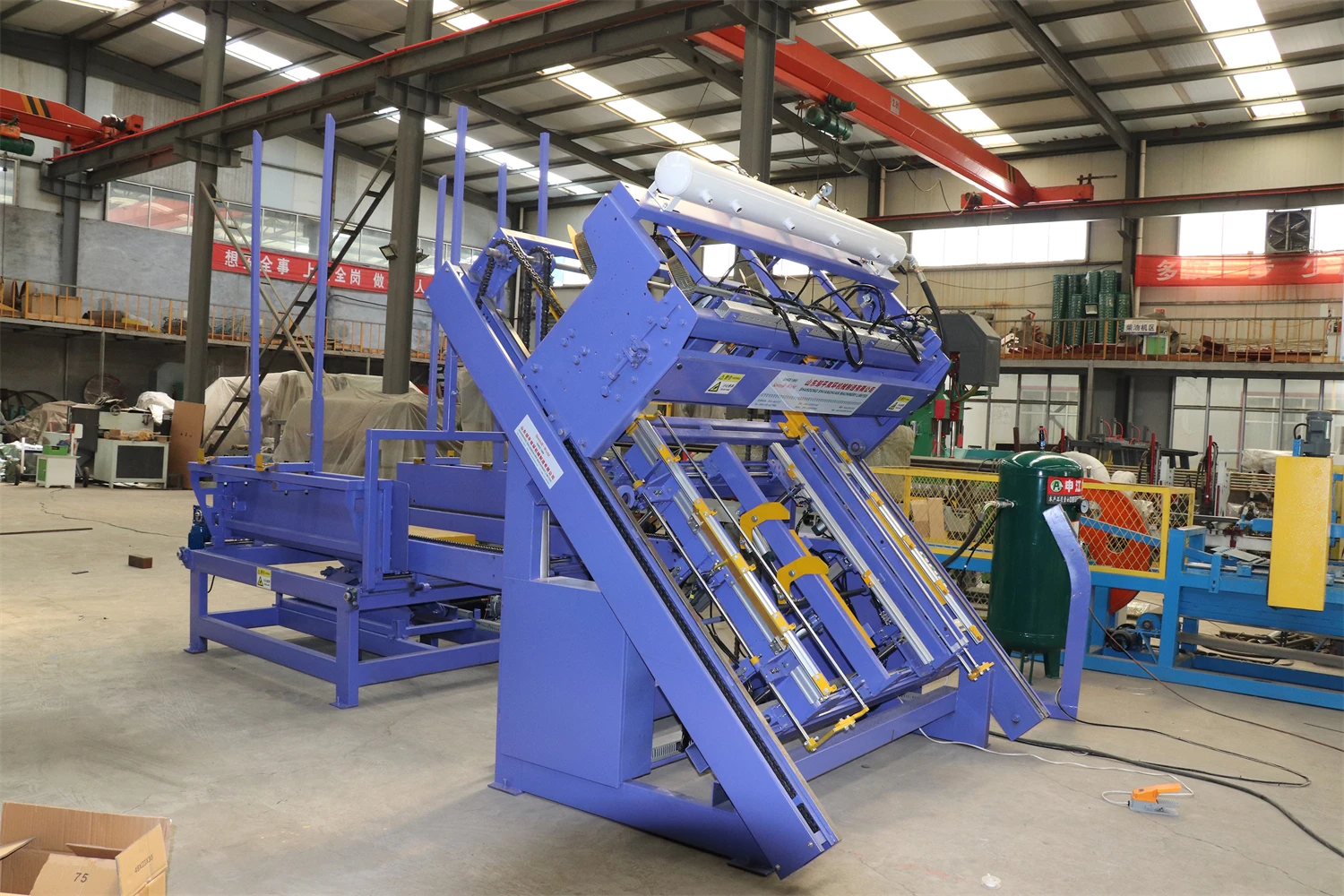

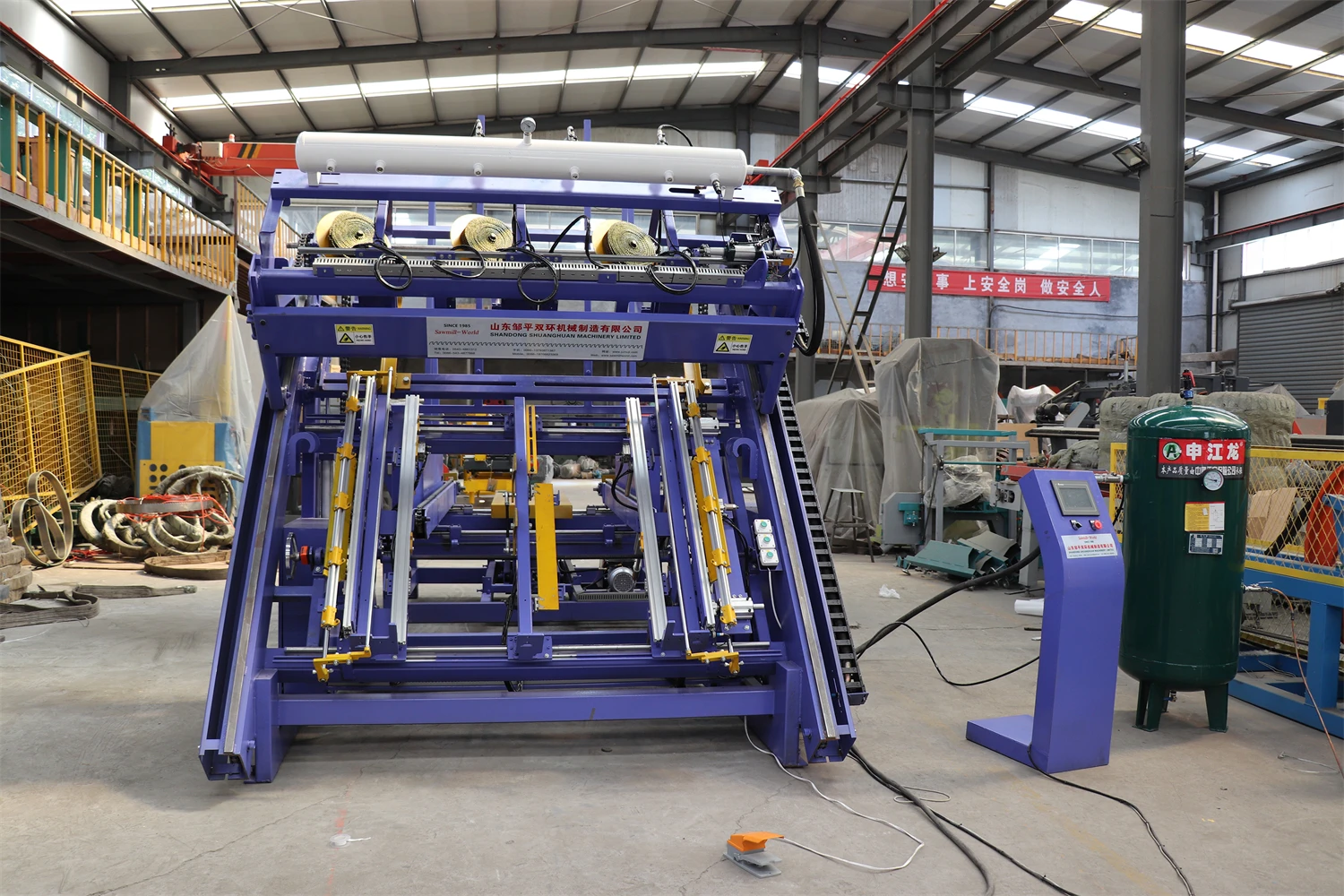

Pallet Nailing Machine
Automatic wooden pallet nailing machine is mainly used in the production of American wood pallets and European wood pallets.

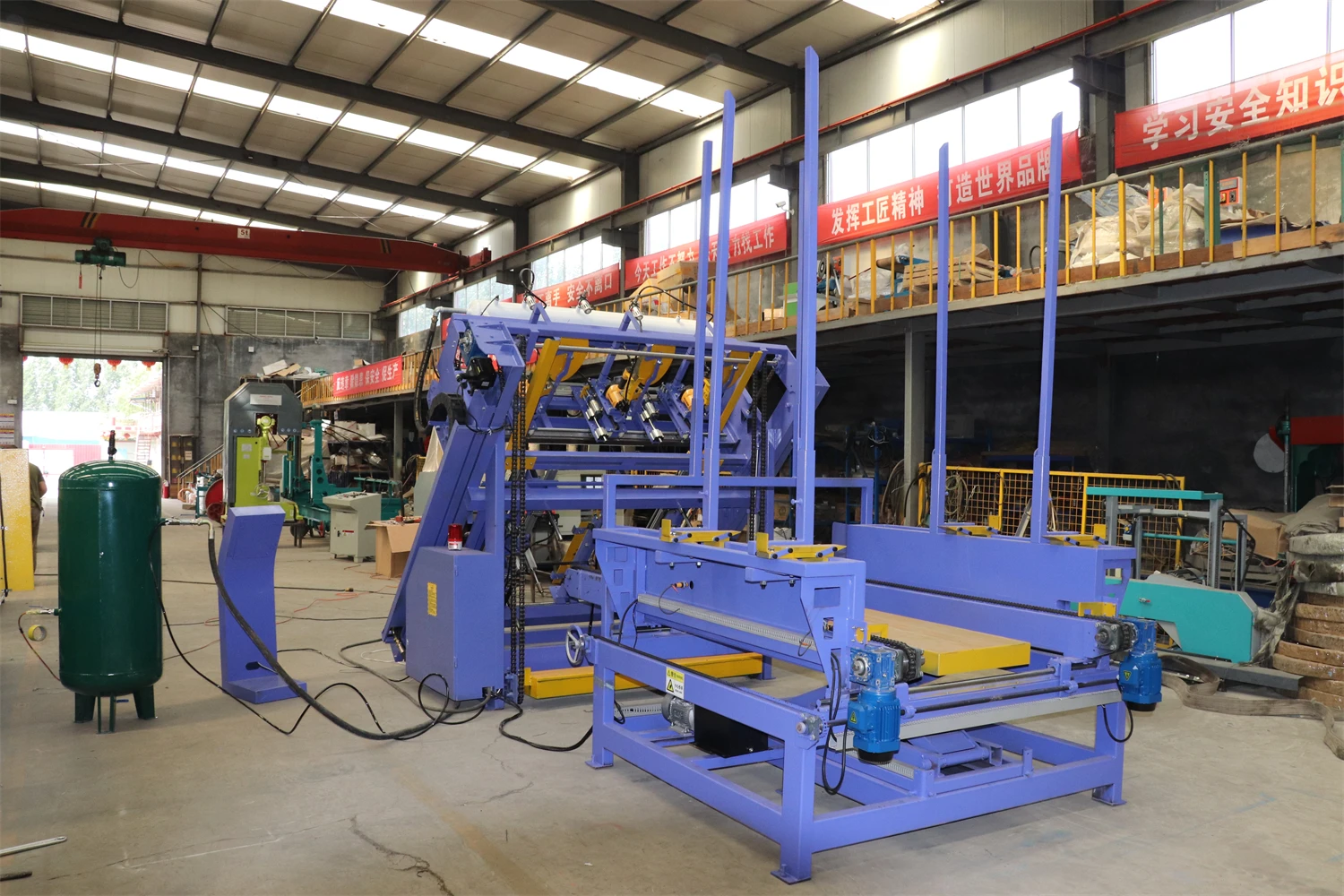

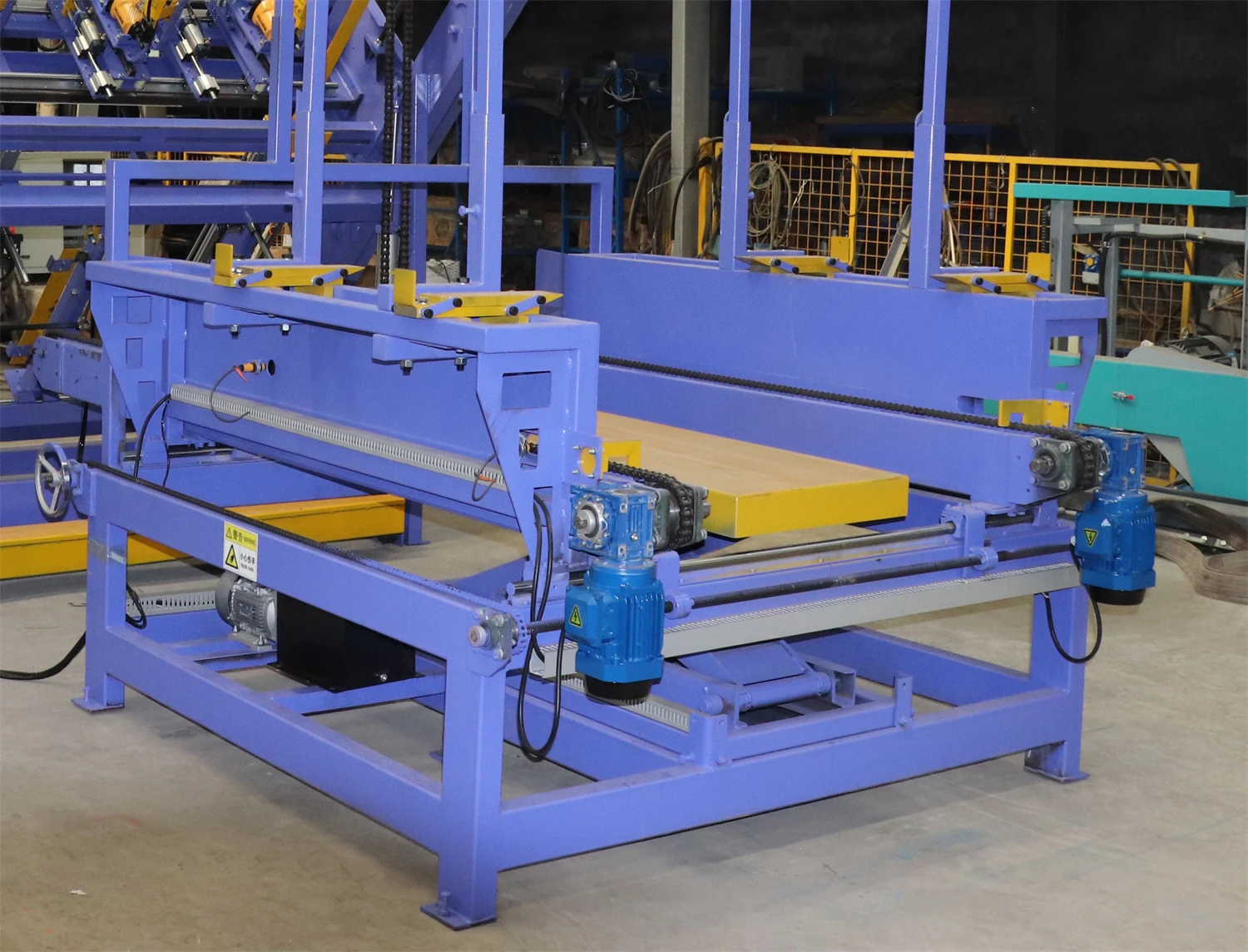

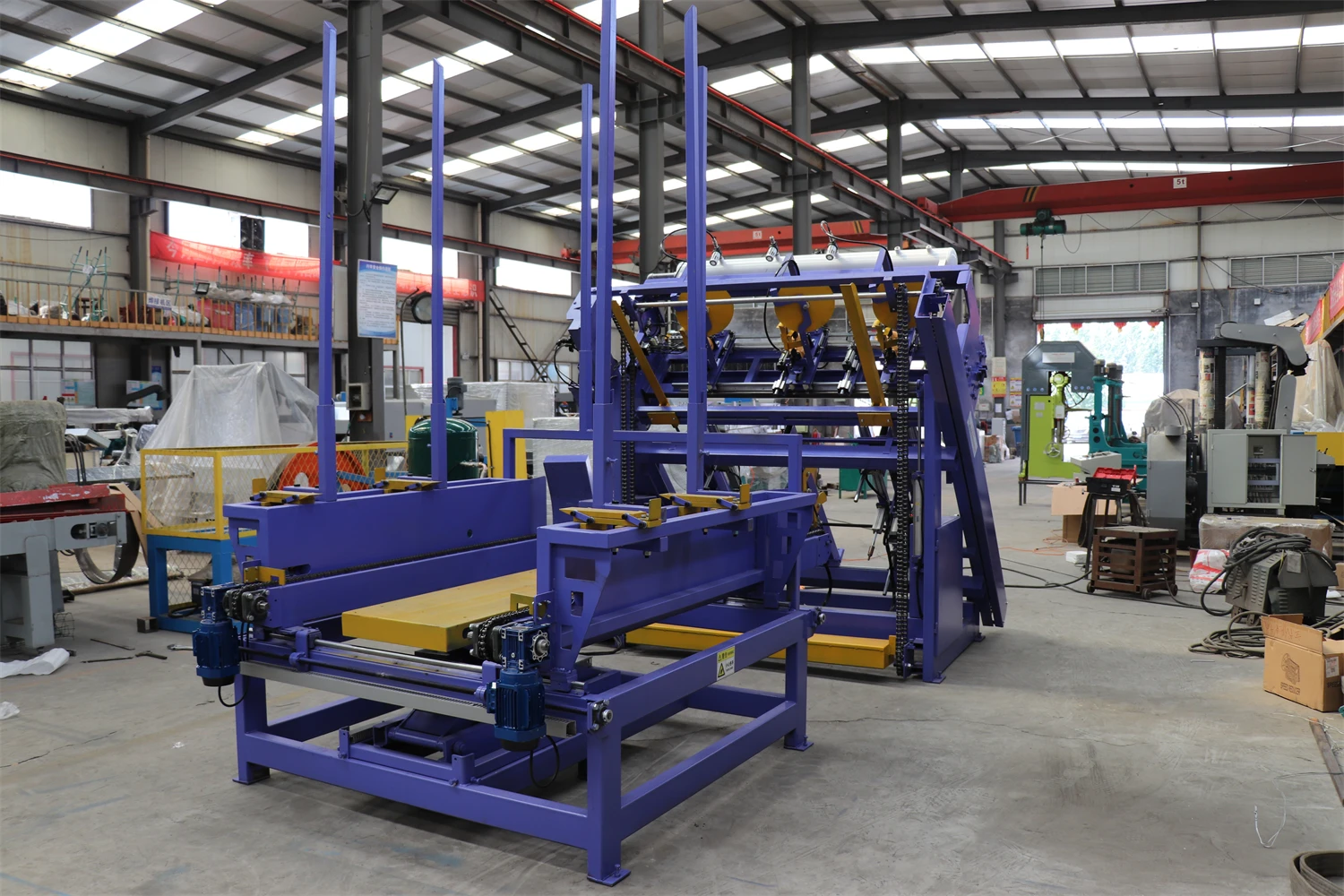

This machine is equipped with a pallet finished product turning and picking device, which has a high degree of automation and a smooth and compact process. It can be equipped with an automatic stacking for one-stop nailing and stacking production.

Compared to the domestic conventional production technology, multiple processes are completed at one time, which greatly improves the work efficiency.






Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

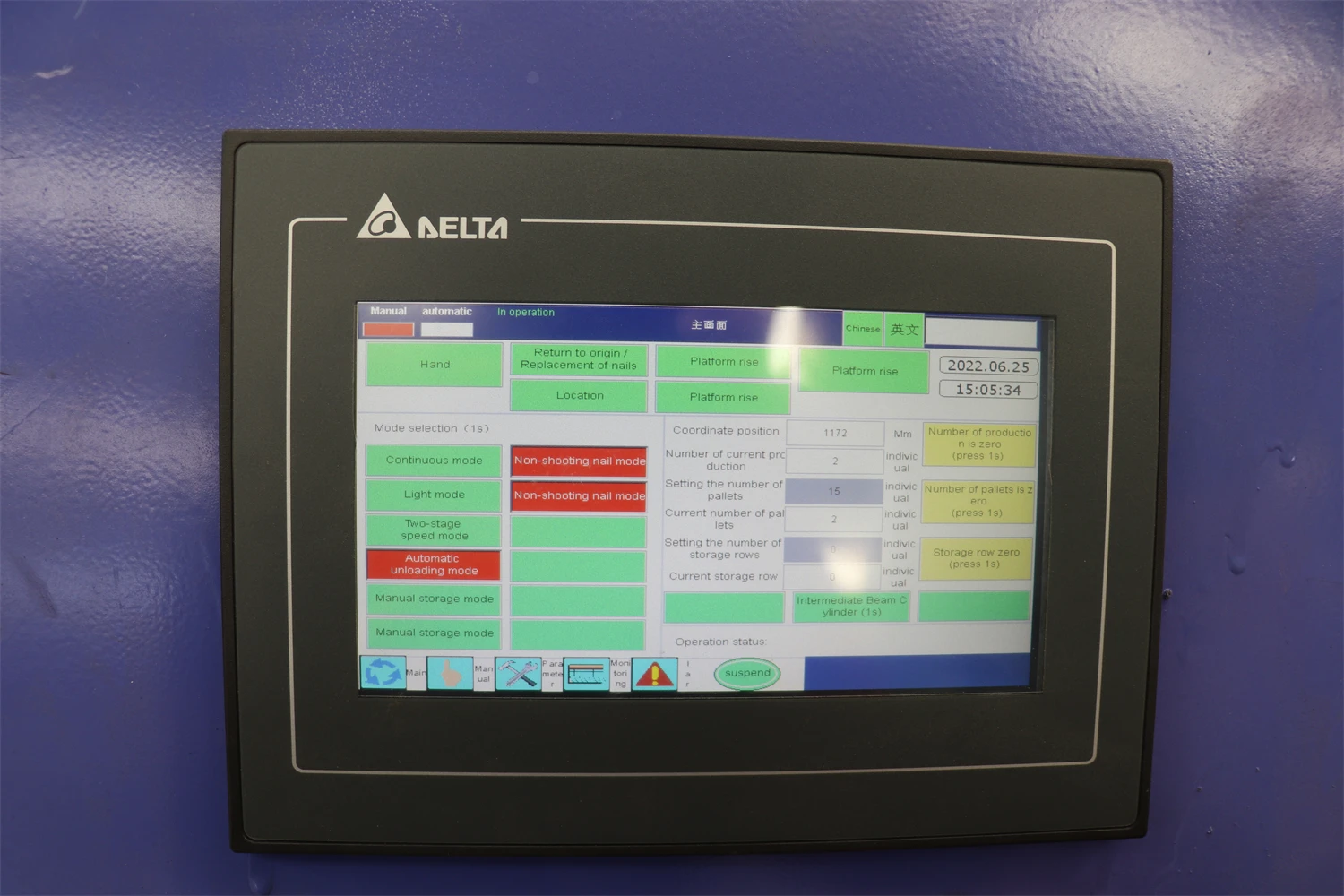

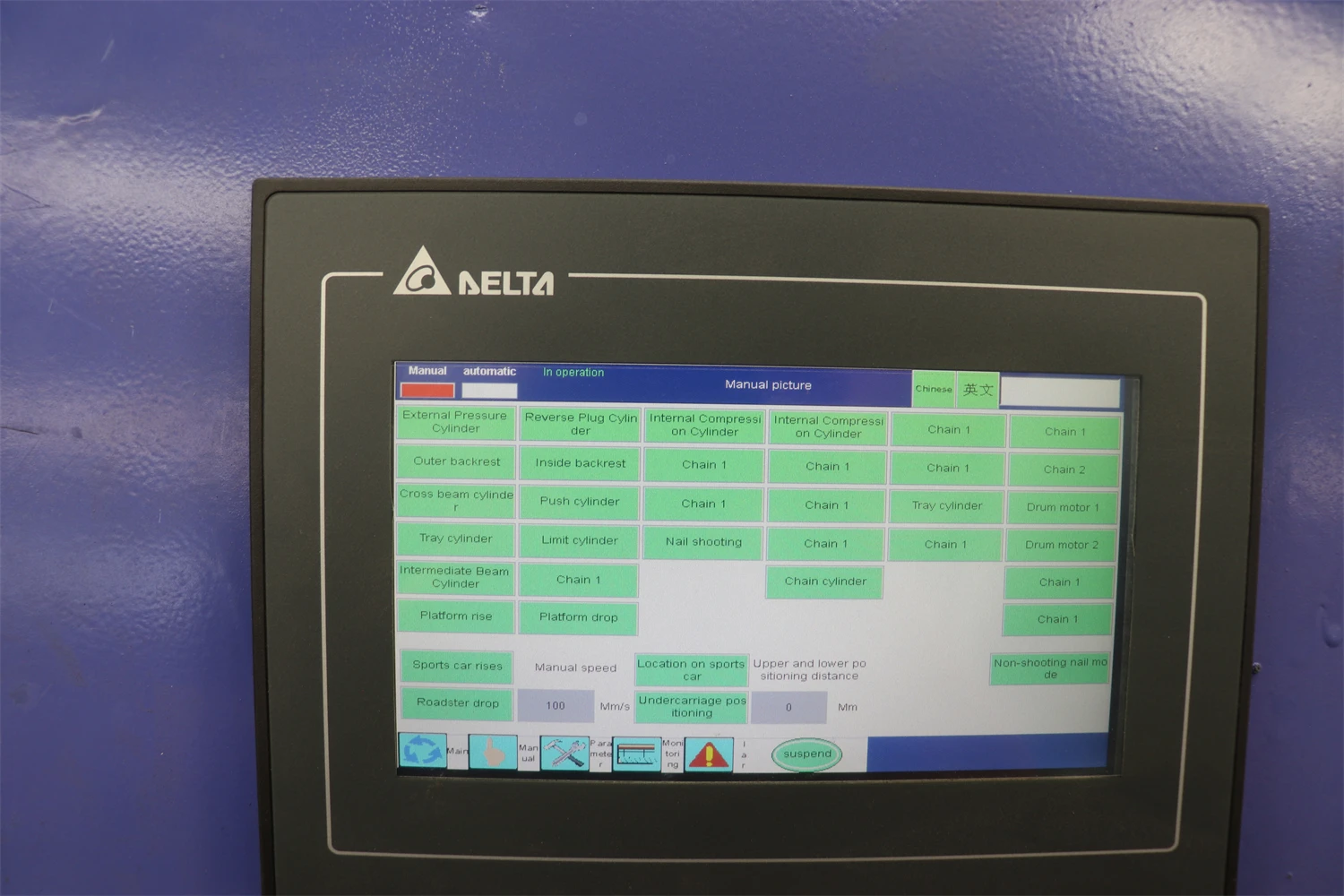

Control platform




The whole machine adopts fully automatic program, the operating system adopts imported PLC control, the touch screen is simple to operate, the control is convenient, and the nailing position is standard.


Package&Delivery


We usually pack the wood pallet cutting band saw in standard export wooden cases. If you have special request, please contact us in time.Have two modes of transportation: sea and air. We can also deliver the wood pallet cutting band saw to your agent in China if you have.

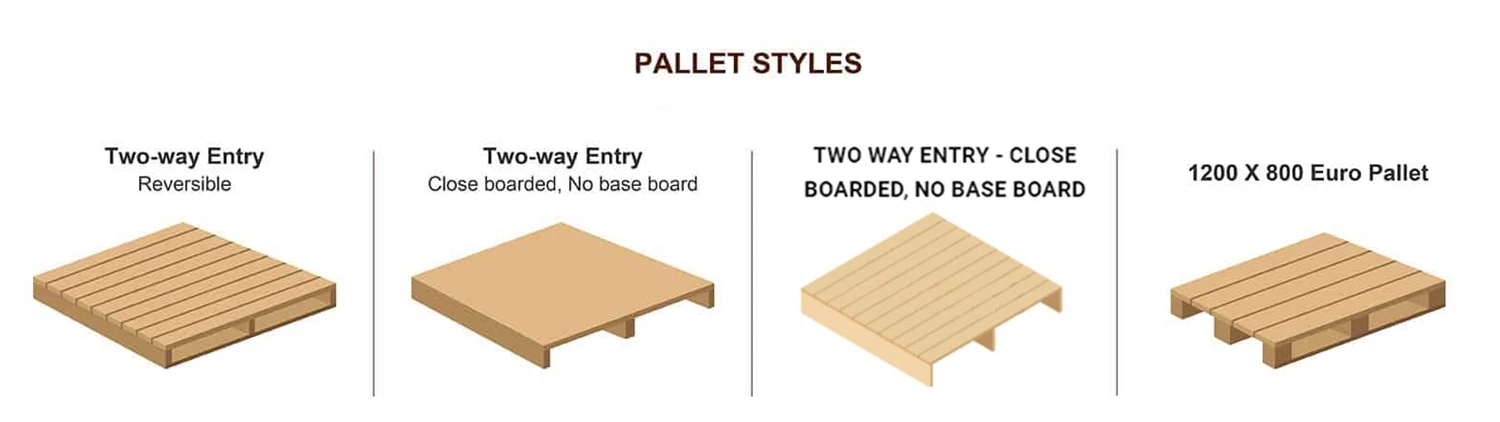

Finished product


All types of trays can be made




Related Product


Production line
American pallet nailing machine is divided into automatic and pneumatic two kinds, and the difference between European pallet nailing machine is that American pallet nailing machine does not need even pier machine.






Automatic Wood Cut Off Saw Maine
Labor saving
Woodsaving
High machining precision
Numerical control programming, free wood processing parameters
Wood Pallet Notcher
Labor saving
Wood saving
High machining precision
Numerical control programming , free wood processing parameters

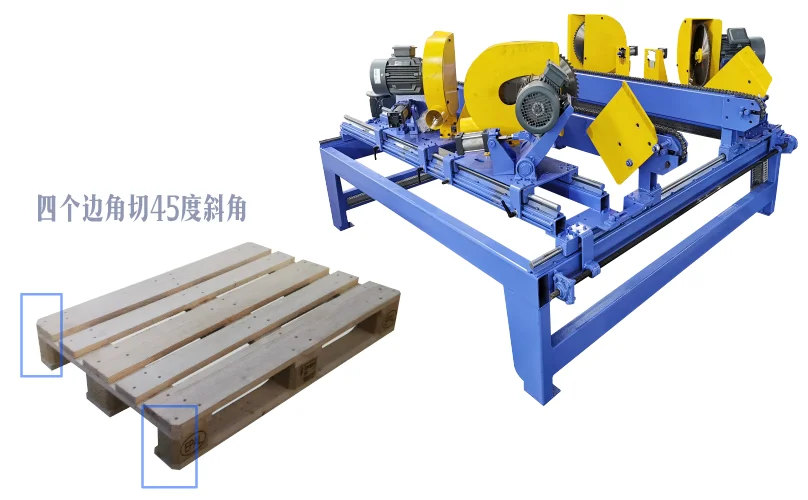

Pallet Angle Cuting Machine
Great versatility
Easy to operate and safe
High cutting precision and fast efficiency
Automatic Timber Stacker
High efficiency,
Low energy consumption
Stack shape neat and beautiful
Easy to maintain and repair
