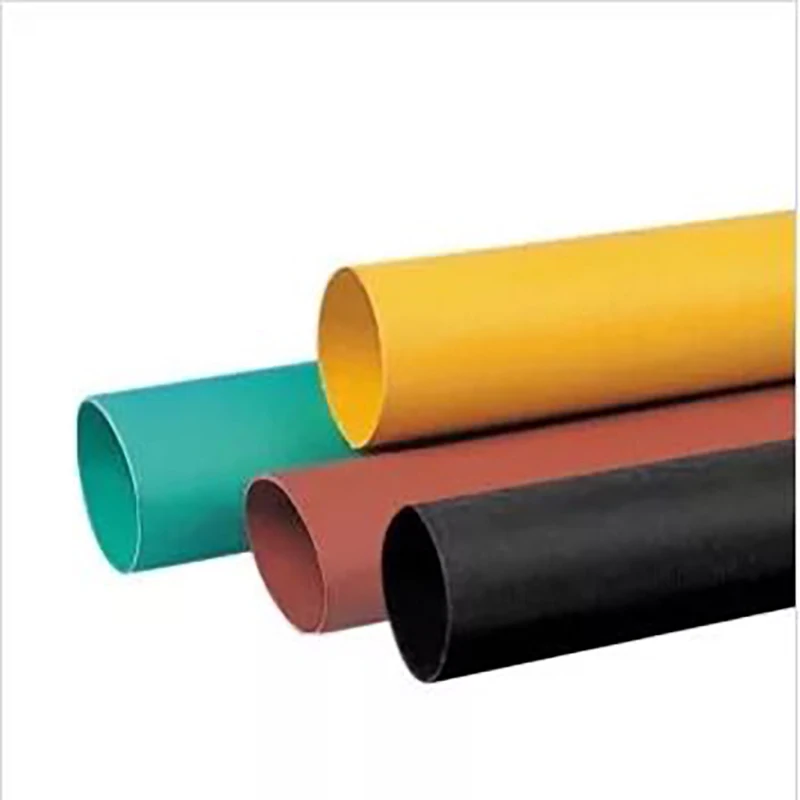

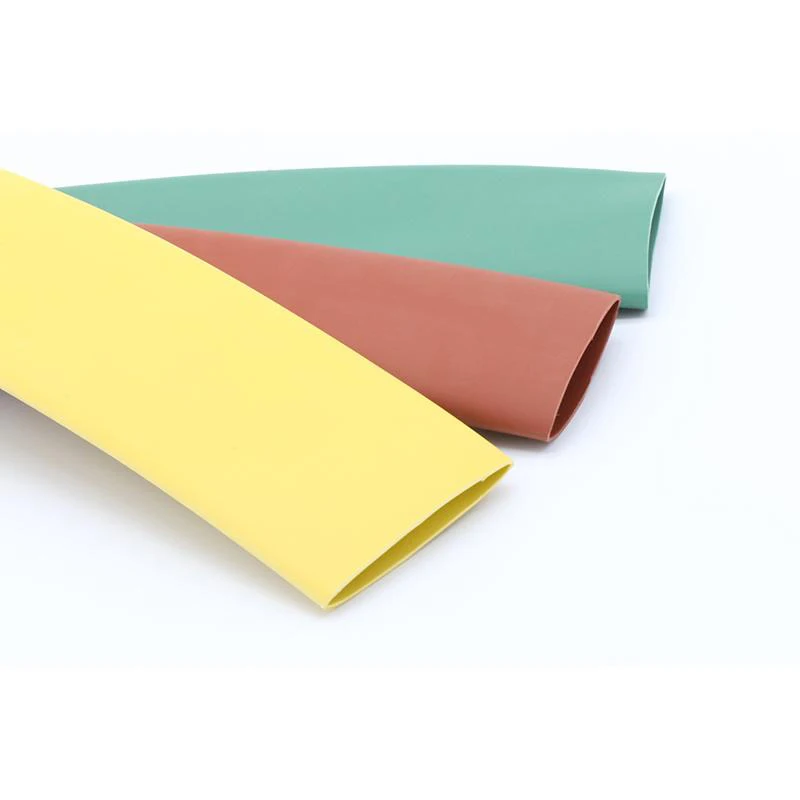

1~35KV Electrical Heat Shrink Copper Busbar Protective Sleeve Busbar Insulation Heat Shrink Tube
- Category: >>>
- Supplier: Changzhou Longchuang Insulating Material Co. Ltd.
Share on (1600760387216):
Product Overview
Description

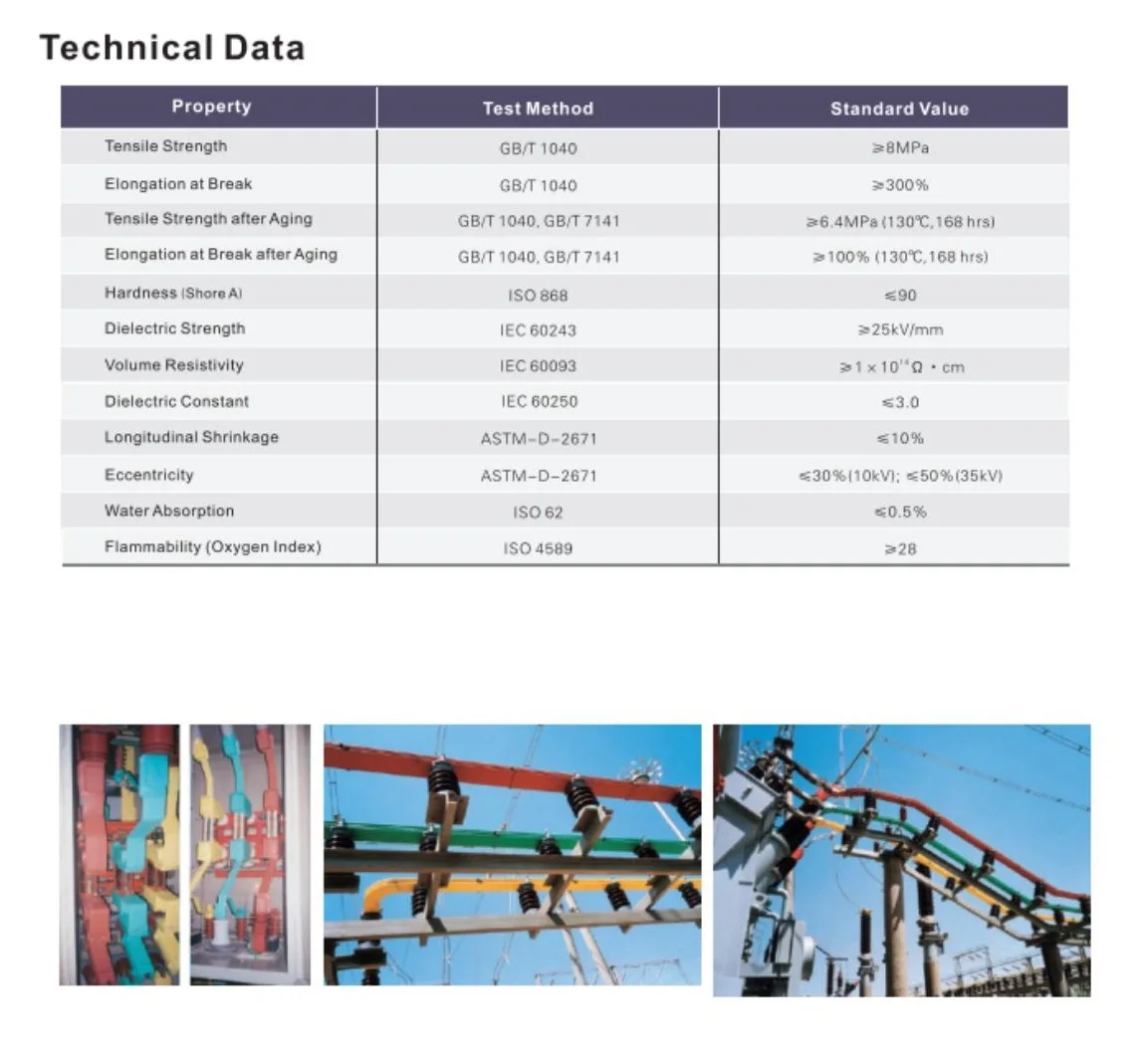

Product Description
| Executive standard | DL/T 1059-2007 |
| Heat shrinkage ratio | 2:1 (1KV, 3KV busbar) |
| 2.5:1 (10KV busbar) | |
| Features | Electricity resistance, low smoke, high strength, softness, flame retardant |
| Tightening temperature | ≥84℃ |
| Final shrinkage temperature | ≥120°C |
| Use temperature | -55℃~125℃ |
| Environmental protection characteristics | Compliant with EU RoHs directive |
| Breakdown Strength | ≥20KV/MM |
| ensile strength | ≥8.0 MPa |
| Elongation at break | ≥300% |
| Flame retardant test (O.1.> 30%) | PASS |
| Color | red yellow green black |
Features
• Manufactured from cross-linked polyolefin
• Used to offer insulation protection for busbar in switchgear and substation
• Protects against short circuit and electrical leakage cause by small animals
• Reduces busbar clearance requirements
• RoHS compliant
• Shrink temperature: start at 70X5. and fully recovered at 125X5

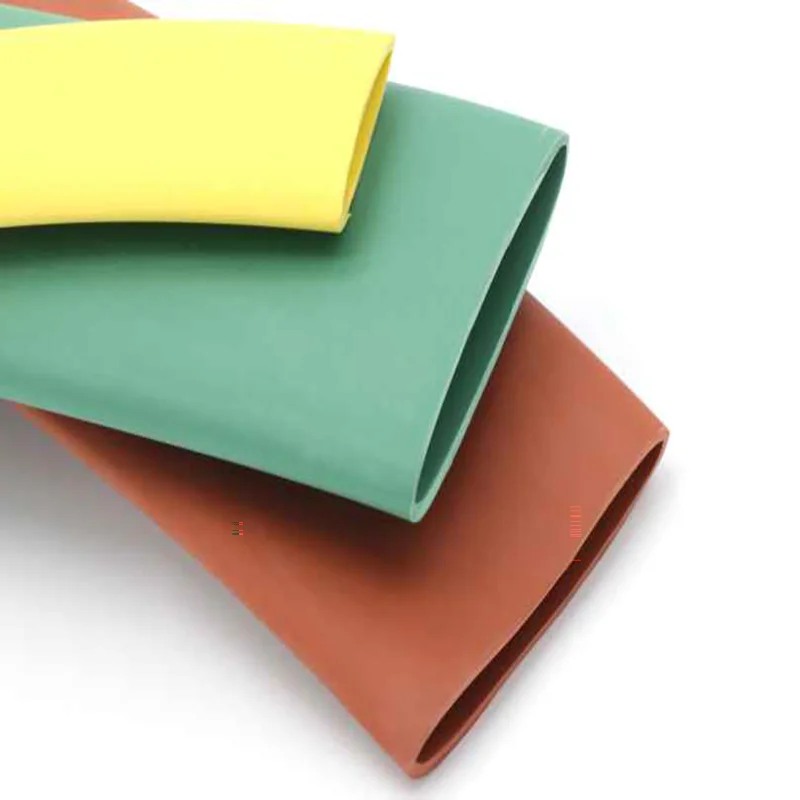

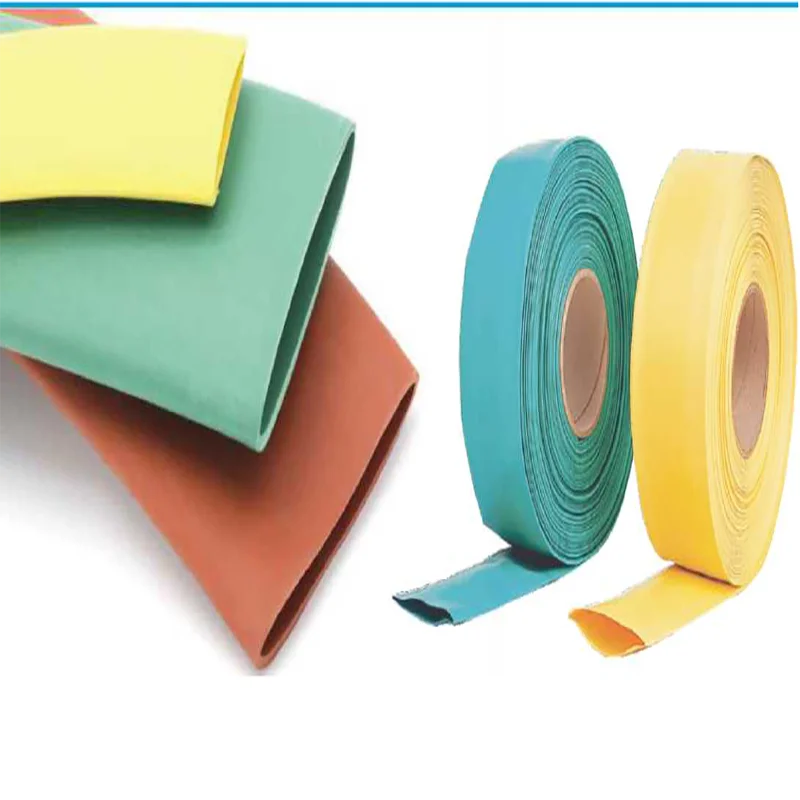

• Color: yellow, red, green, blue, black

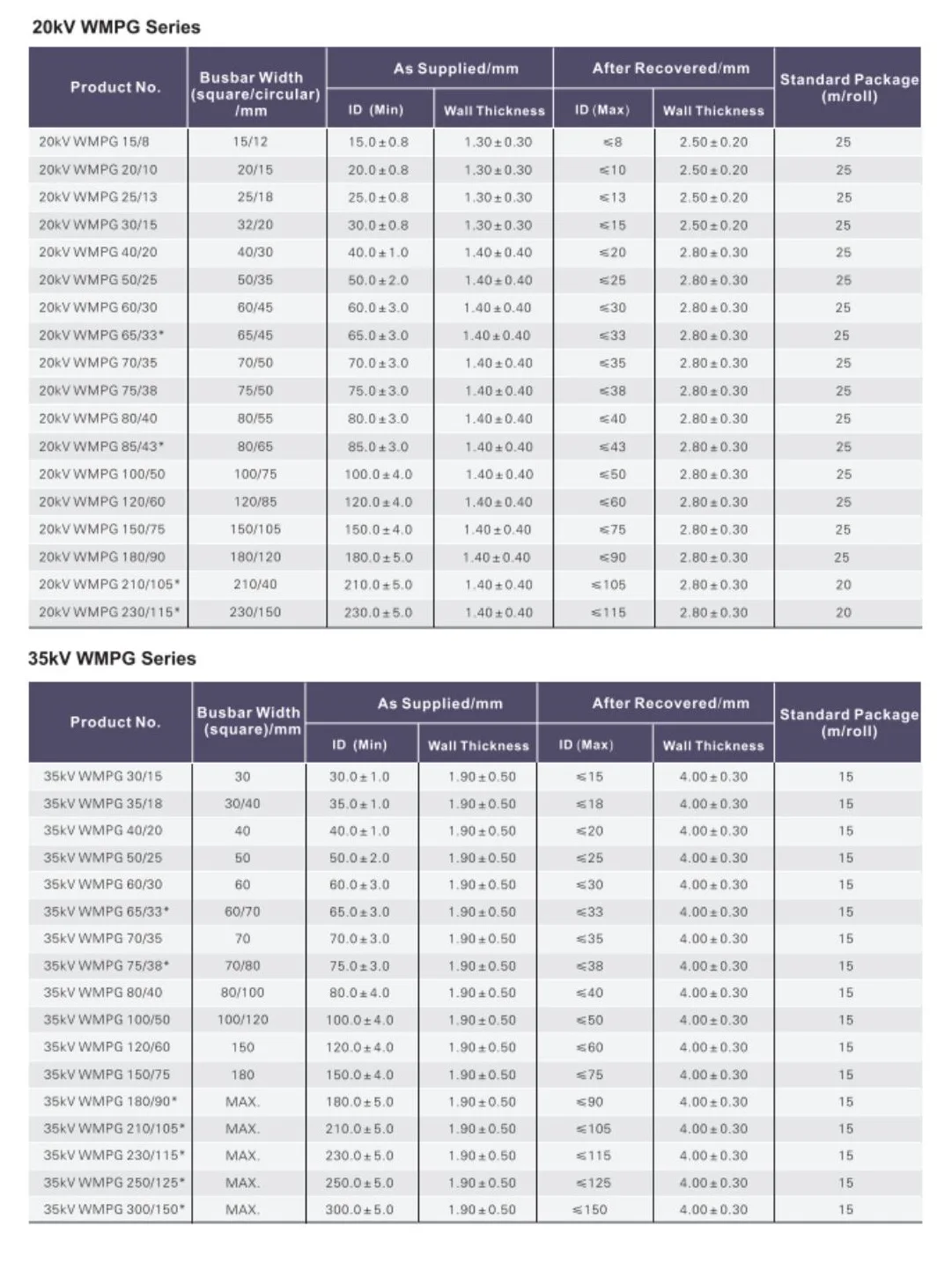

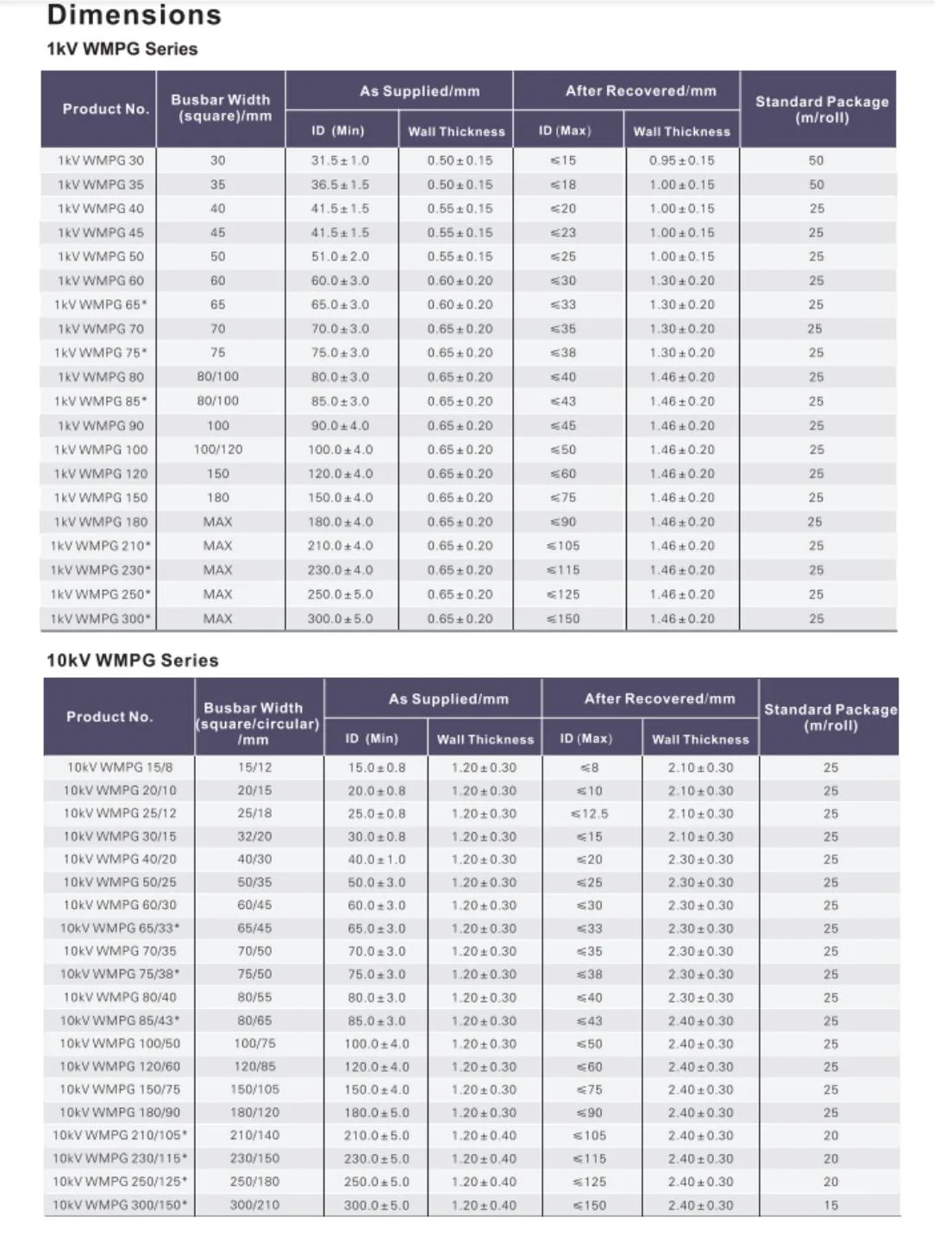

Dimensions
