Multi plate automatic screw press Automatic spiral stacked sludge dewatering machine equipment for printing and dyeing
- Category: Environmental Machinery >>>
- Supplier: Xinxiang,Yixin,Environmental,Engineering,Co.,Ltd.
Share on:
Product Overview
Description
Specification
item | value |
Condition | New |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2023 |
Warranty of core components | 1 Year |
Core Components | Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC |
Place of Origin | China |
Warranty | 3 years |
Productivity | 50000L/Hour |
Weight (KG) | 1200kg |
Product name | Sludge Dehydrator |
Material | SS304 or SS316 |
Size | Different models have different sizes |
Certification | CE ISO |
core components | Gears, Bearings, Motors |
Feature | energy saving |
operate | fully automatic |
Capacity | 0.25-100 cubic meters per hour |
Usage | wastewater treatment |

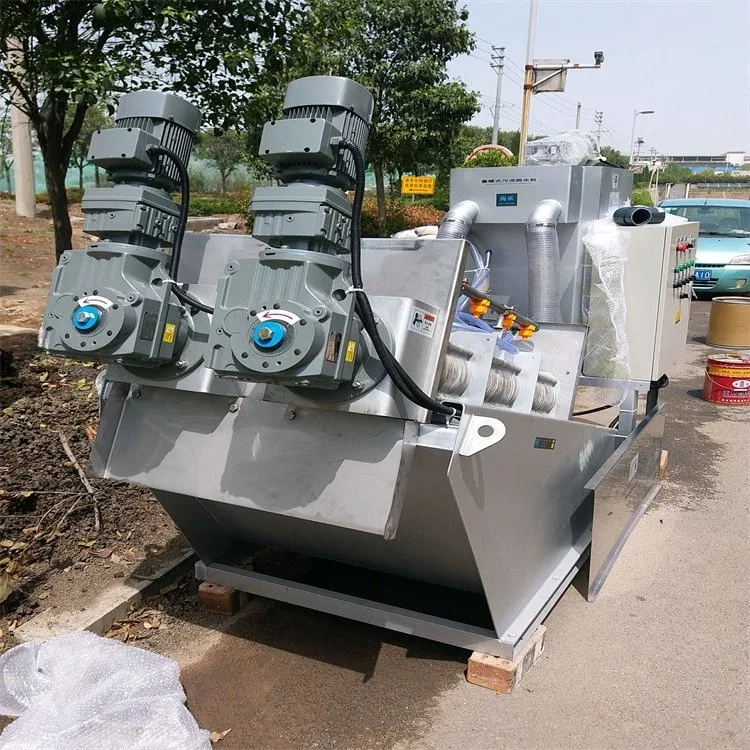

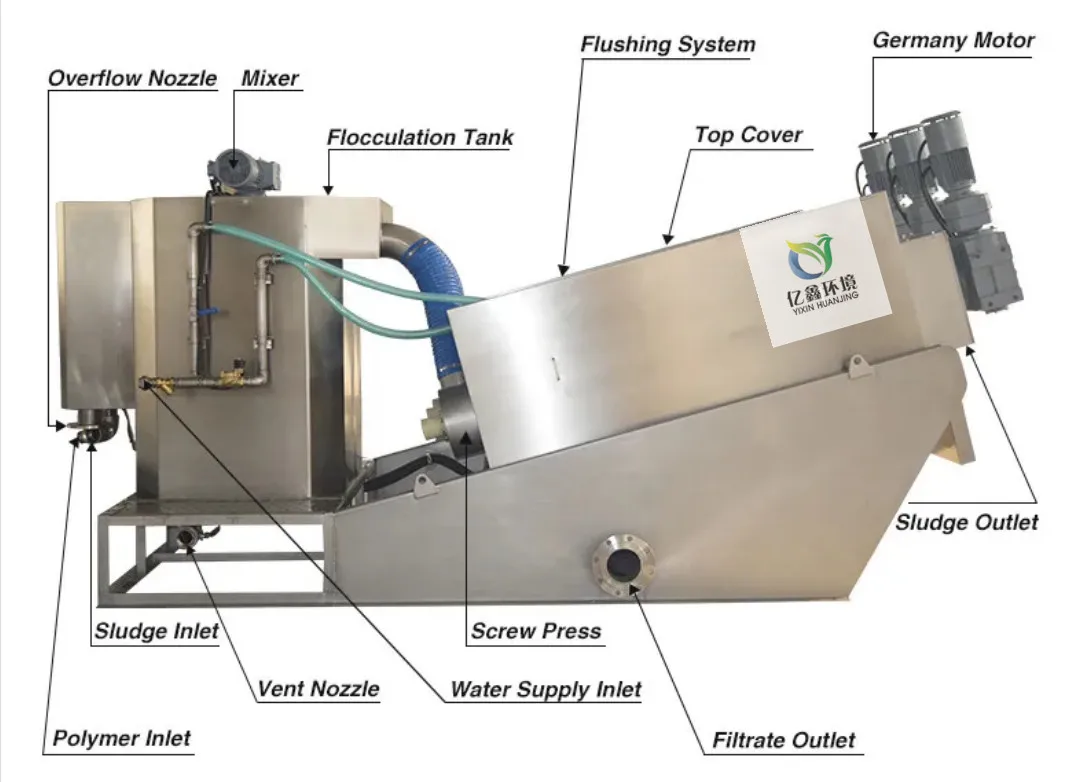

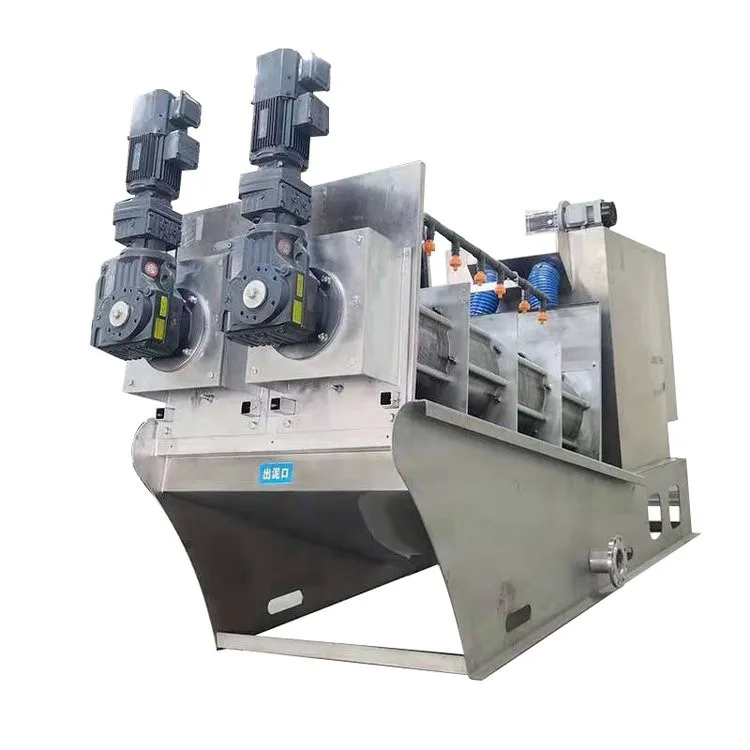

Product Image
The screw press sludge dewatering machine is a new type of solid-liquid separation equipment developed based on the principle of screw extrusion. It achieves the purpose of extruding dewatered sludge by changing the strong extrusion pressure of the screw diameter and distance, and moving and fixing the small spacing between the annular plates.

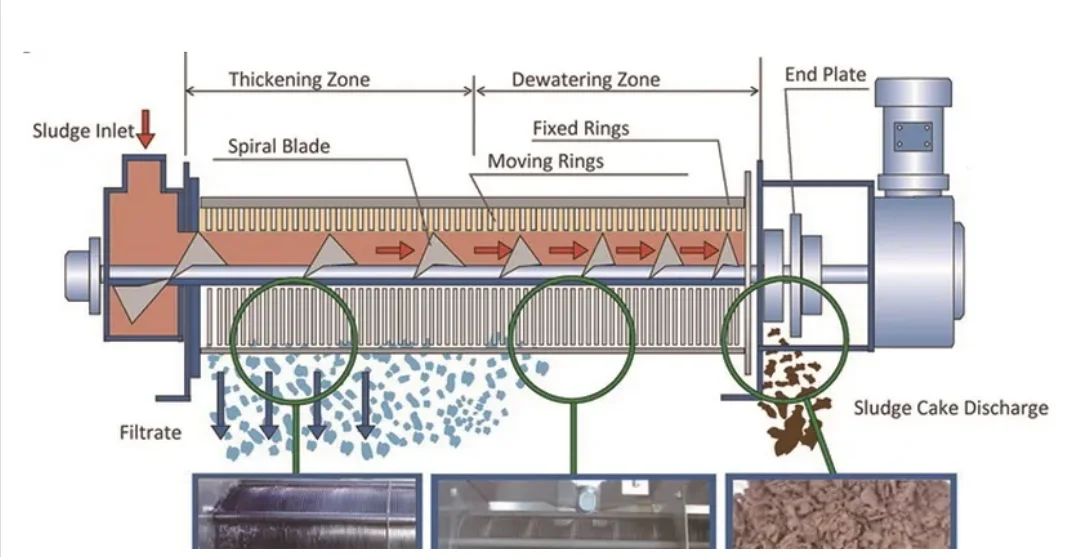

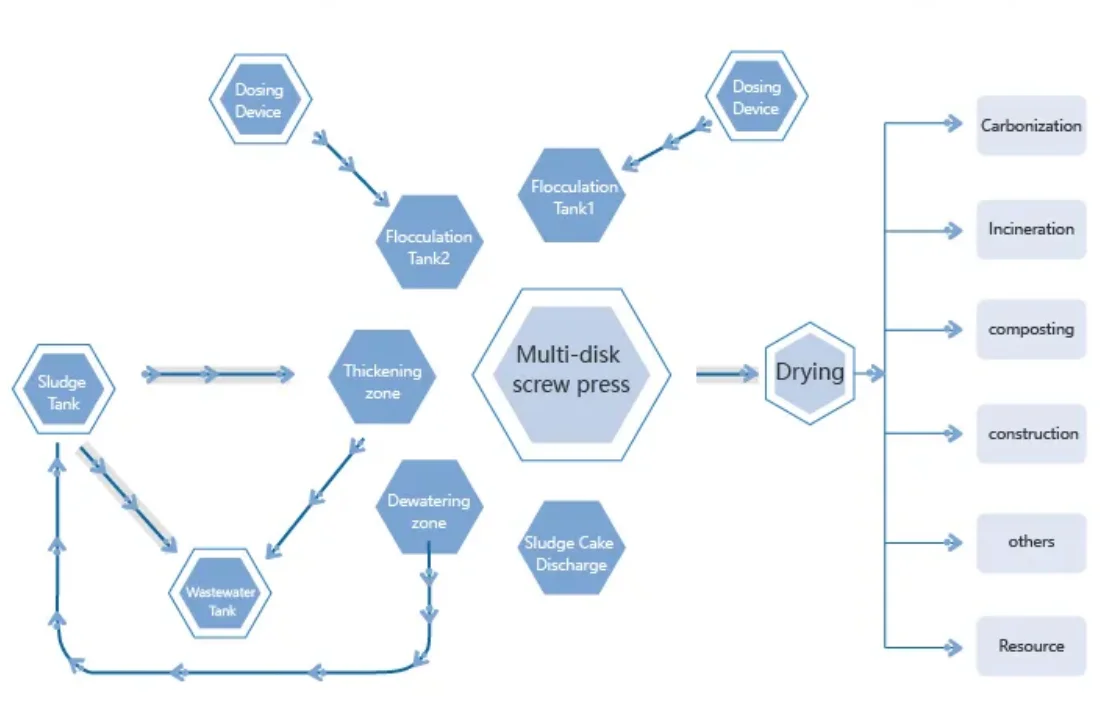

Technological process
use effect
Before Treatment
*Moisture Content Range: 99.8~92%
*Directly Treat Sludge in the tank
*No need for sludge thickening tank
After Treatment
*Oultet Moisture Content:75~85%
*Compacy design, simple structure
* Saving cost of civil engineering
Application Scenario
Multi-disk screw press is a new type of solid-liquid separation equipment. The pitch of the screw and the gap between the rings are reduced, increasing its internal pressure, thereby achieving dehydration. Can be widely used in sludge dewatering in municipal sludge, food and beverage, slaughtering and breeding, printing and dyeing petrochemical, papermaking, leather pharmaceutical and other industries The unique dehydration principle makes this equipment suitable for high and low concentration sludge (from 2000mg/L) , creating a precedent for direct dehydration of low-concentration sludge. The innovative structural design makes the equipment suitable for all kinds of high and low viscosity sludge, especially oily sludge, which can be called a sharp tool for dewatering oily sludge!
Due to the innovation of structural design, it is very suitable for various high and low concentration sludge (2000mg/L-500000mg/L), especially oily sludge.
Due to the innovation of structural design, it is very suitable for various high and low concentration sludge (2000mg/L-500000mg/L), especially oily sludge.
Product advantages
High degree of equipment automation, saving time and effort

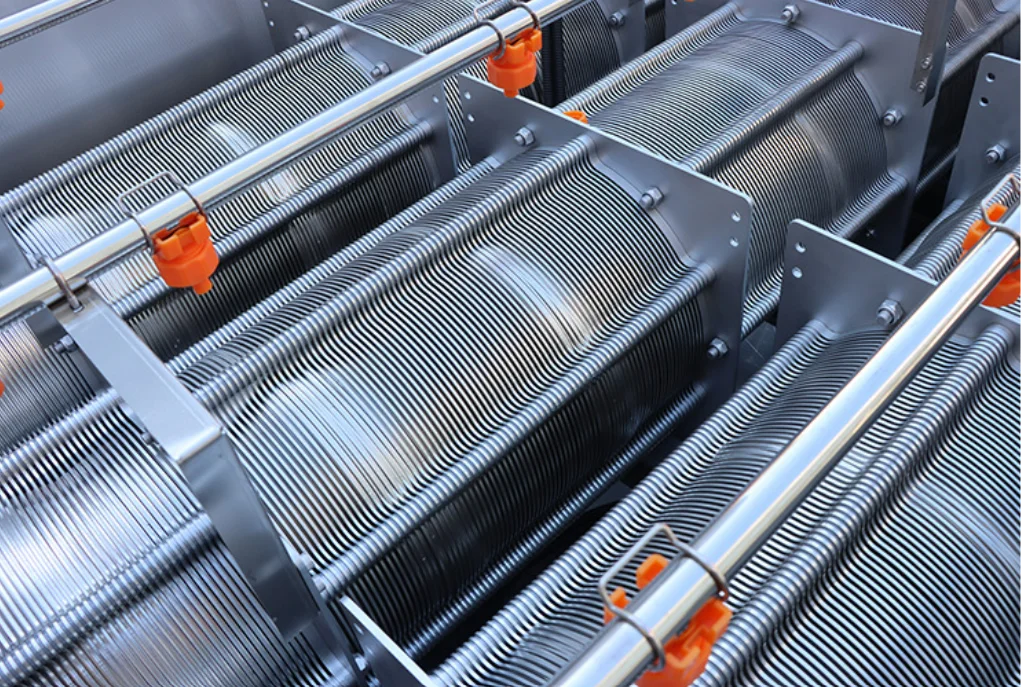

Careful material selection, ring piece 304 material, long life and durability
Careful material selection, ring piece 304 material, long life and durability
Personalized design, laser cutting of the main body of the equipment, bending and forming, the overall appearance can be customized according to customer needs, adding personalized services for customers
* Low operation cost: below 40 % of belt press & filter press , 20% of centrifuge.
* Power-saving: less than 20% of centrifuge & filter press, 25% o belt press,
* Water-saving: less than 0.1% of belt press & filter press.
* Compact: saving more than 660% of the investment for dehydra tion room.
* Non-clogging: processing the fats & oils and fiber sludge perfeo ctly
* Saving-drugs saving around 60%. than belt press & filter press

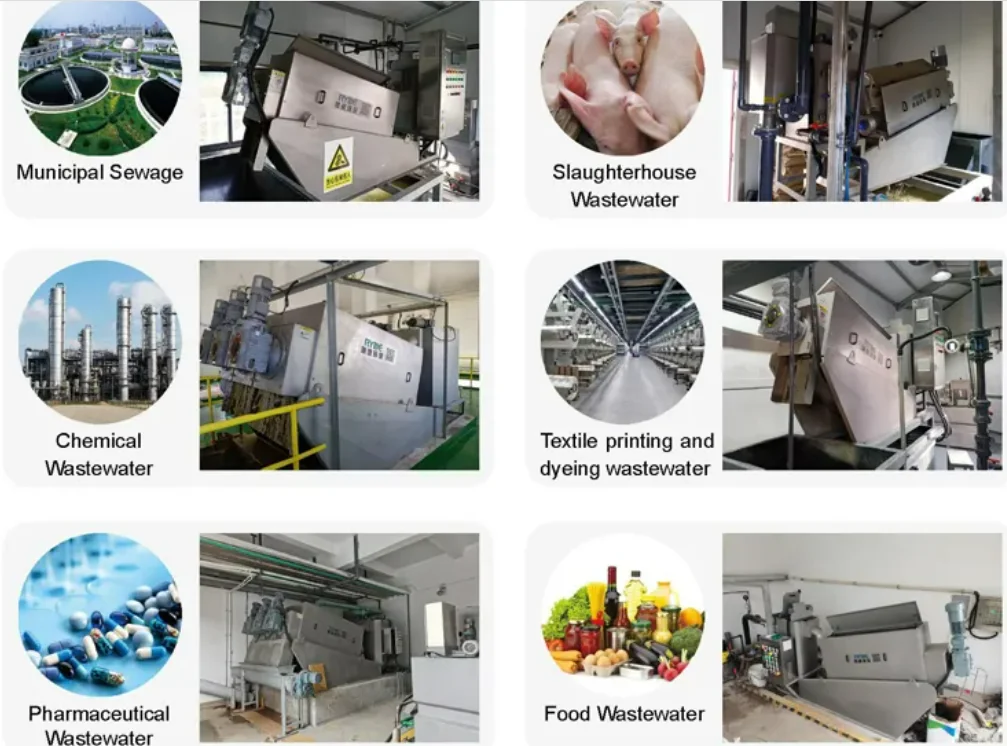

Application & Successful Cases
Payment & Shipping

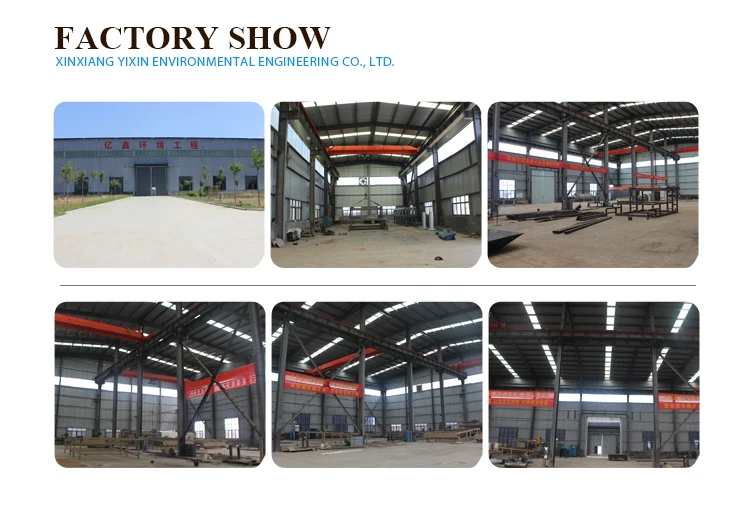

1. who are we?
We are based in Henan, China, start from 2012,sell to Domestic Market(40.00%),Southeast Asia(20.00%),South
America(10.00%),Africa(5.00%),Eastern Asia(3.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Dewatering Belt Filter Press,MBR Membrane Bio Reactor,Submersible Aerator,Submersible Mixer,Plug Flow Aerator
4. Why should you buy from us not from other suppliers?
It can not only customize the various non-standard environmental protection equipment and engineering design according to user needs, but also provide fast engineering installation and equipment operation commissioning.
5. What services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
