QS138 4000W 90H V3 With Internal Gear Mid Drive Motor with Fardriver Controller ND72530/72680
- Category: >>>
- Supplier: Jiashan Neopower International Trade Co. Ltd.
Share on (1600760433123):
Product Overview
Description
QS Motor 4000W 138 90H with Internal Gear Mid Drive Motor with Fardriver Controller ND72530/72680
Package List:

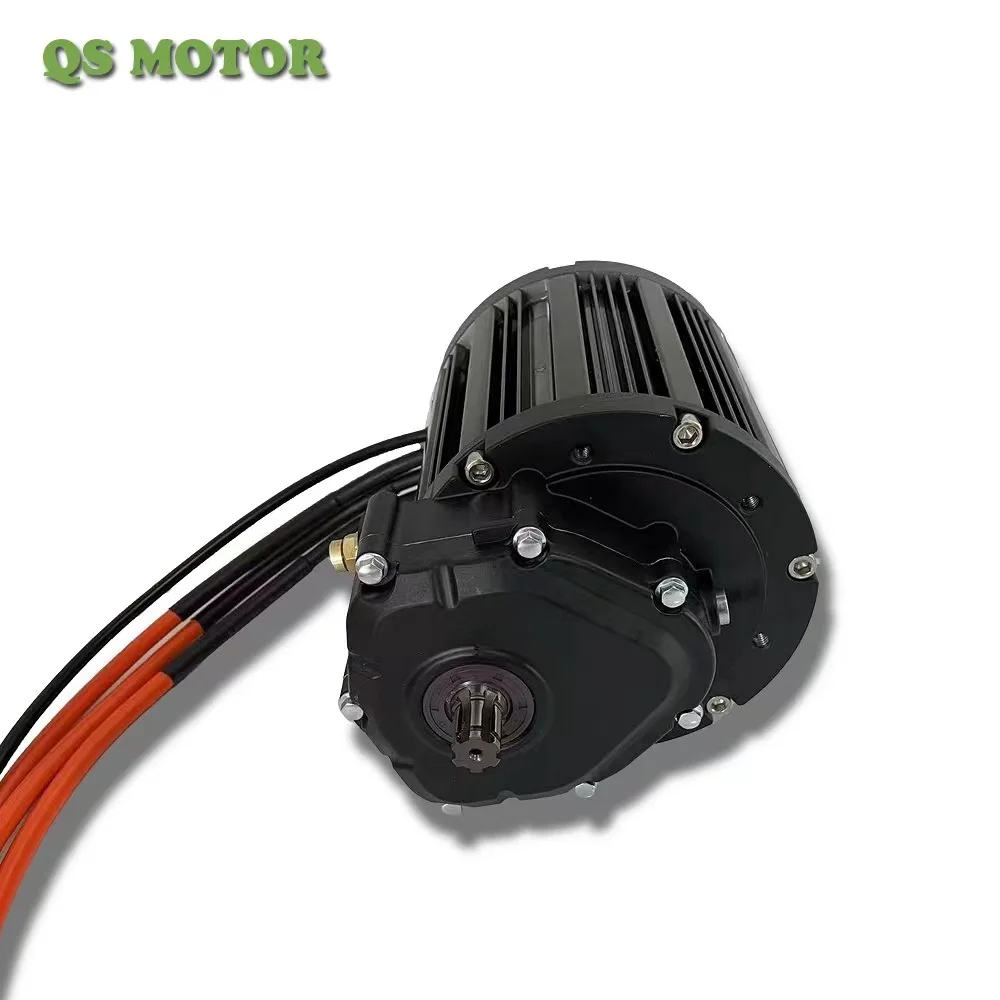

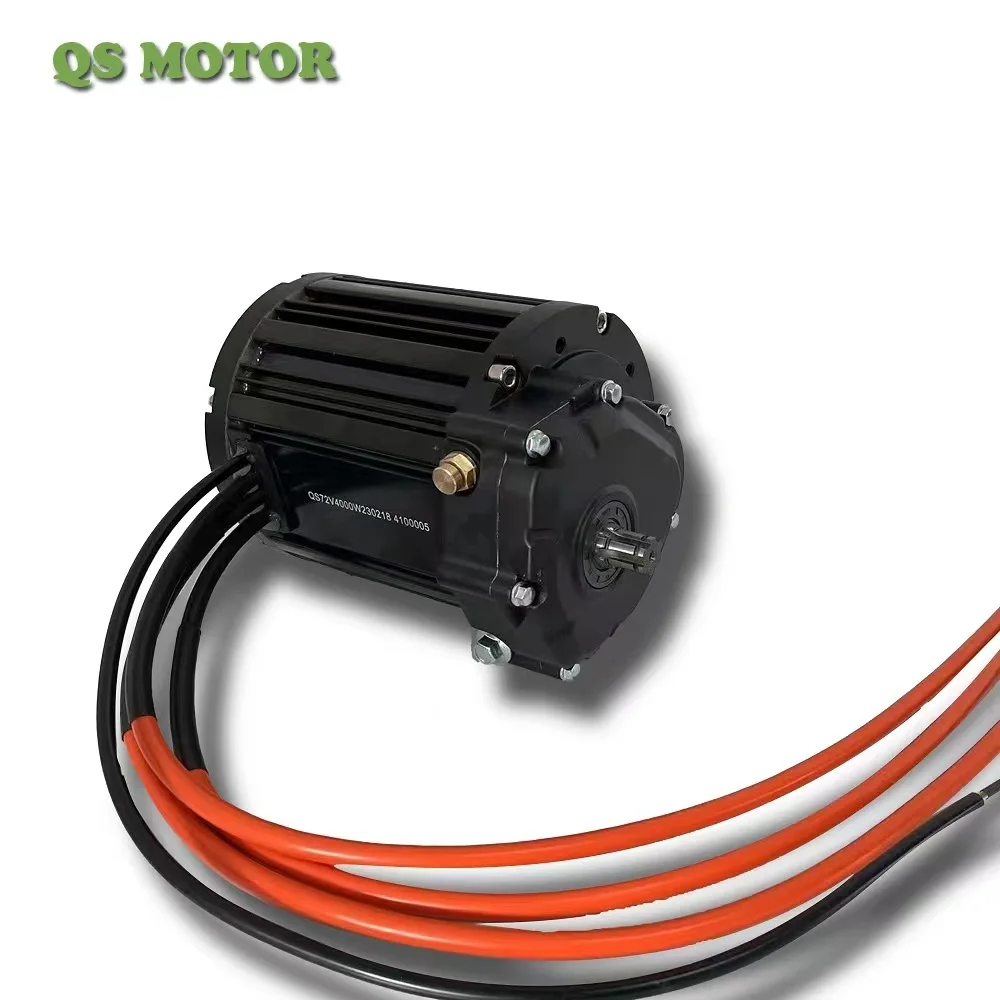

4000W 138 90H Mid-Drive Motor with Internal Gear
FarDriver ND72530/72680 Controller
Bluetooth Device
Twist Handle throttle
DKD 061 LCD Speedometer

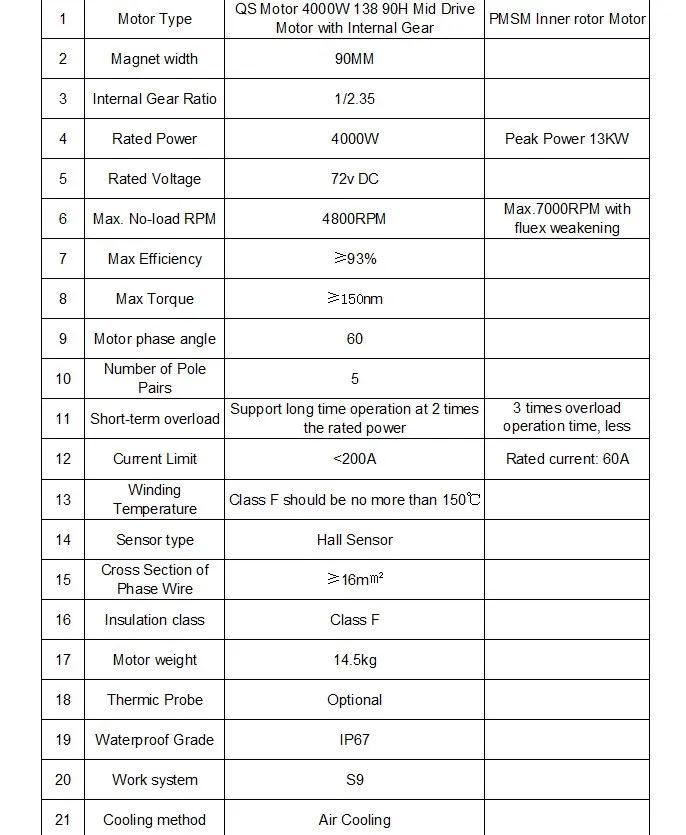

Motor Spec.:

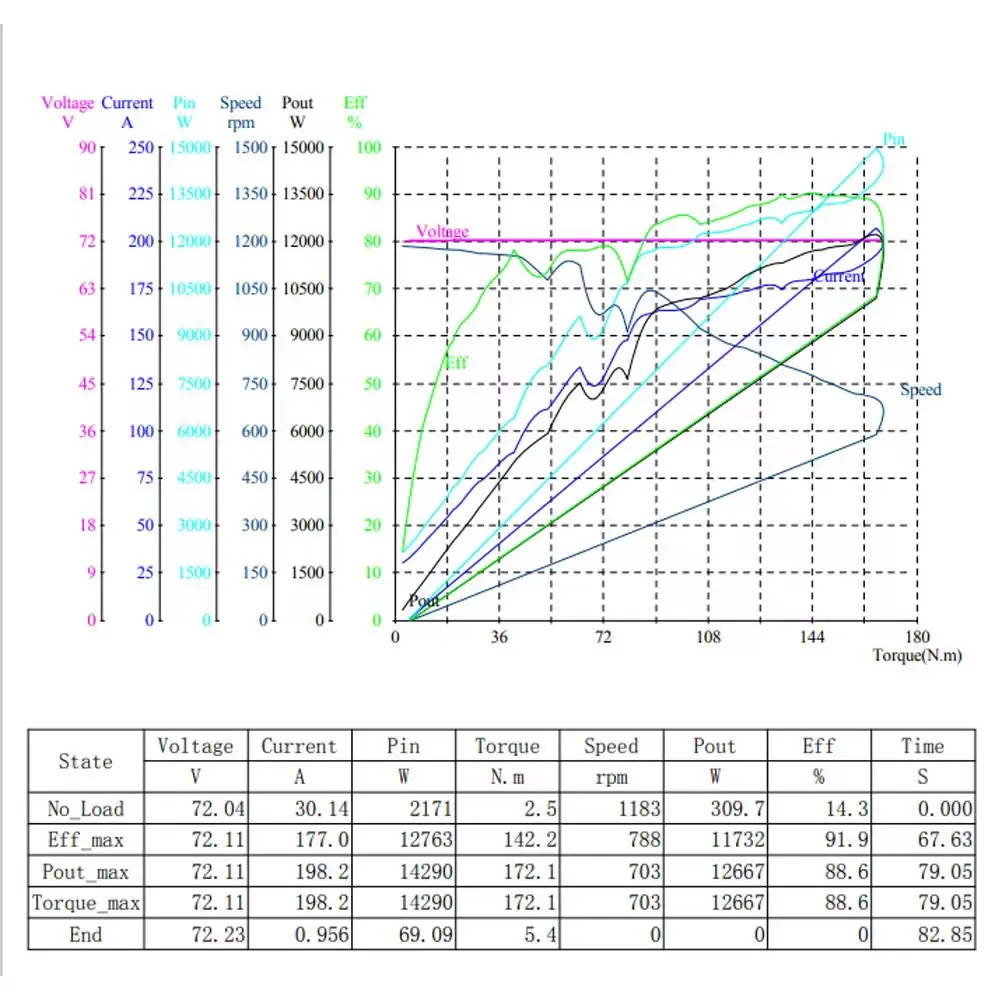

Test Report:
Image:

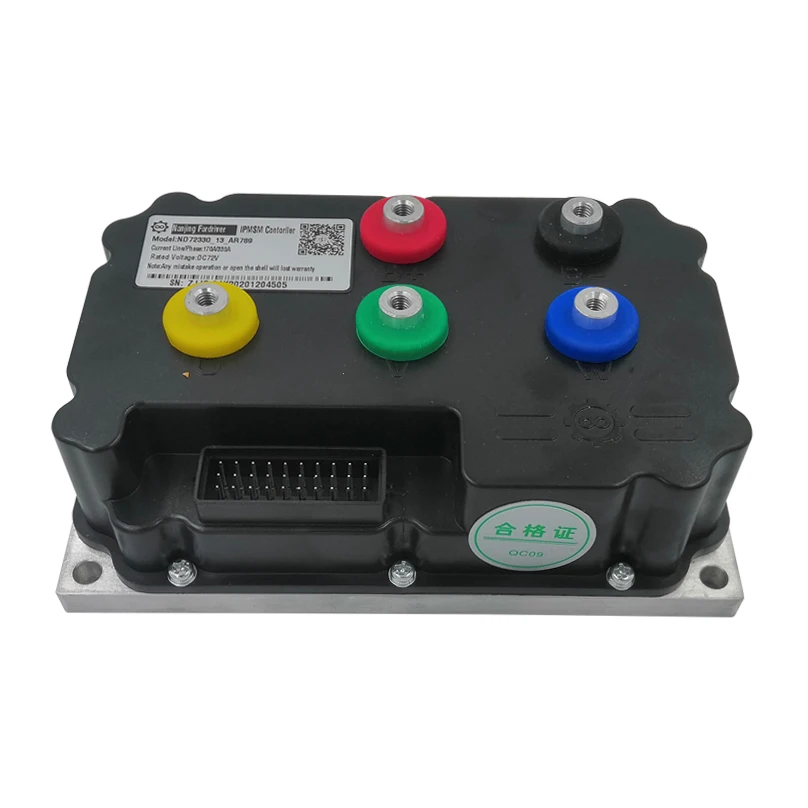

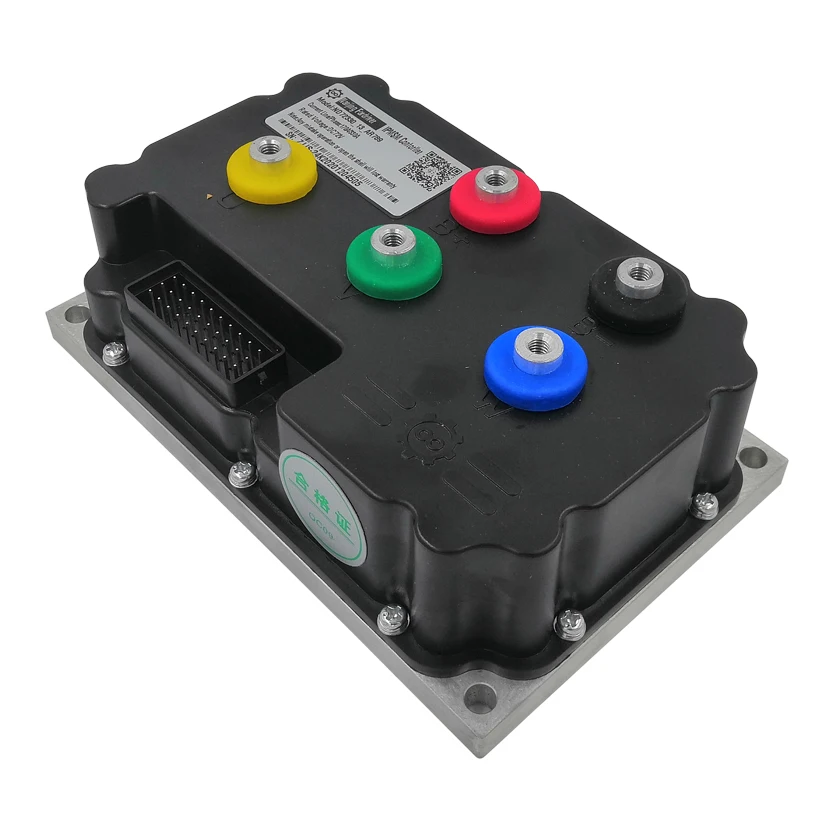

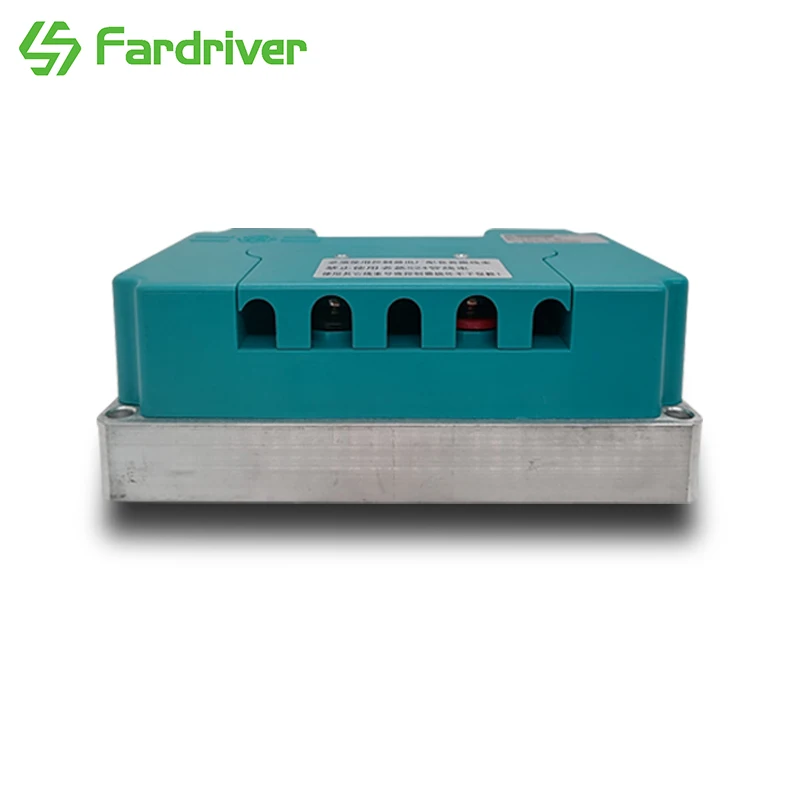

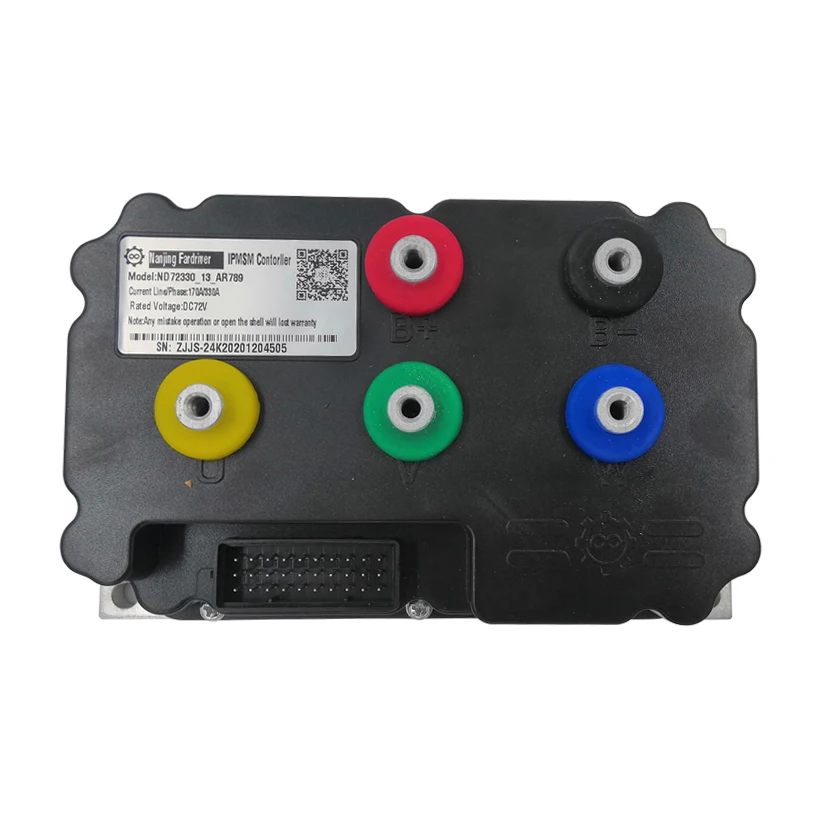

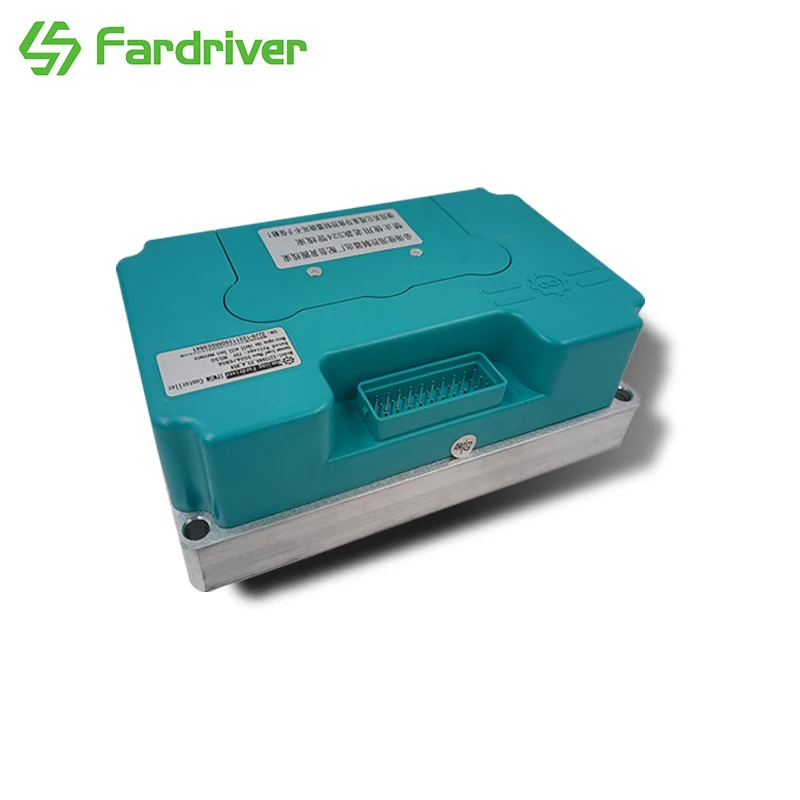

Controller Specification
The controller can be selected ND72530 or NS72680.
The Controller package included parts as below,
1 Controller ND72530/72680
1 Bluetooth mould for Cell Phone
1 Complete wiring1 Software(Will be sent by Email)
Main Specification of ND72530:
1. Controller Type: Sine Wave FOC Controller
2. Model Number: ND72530
3. Max. Line Current:350A
4. Max. Phase Current:660A
5. Working Voltage:48V/60V/72V
6. Compatible Motor Power: 3000W-5000W

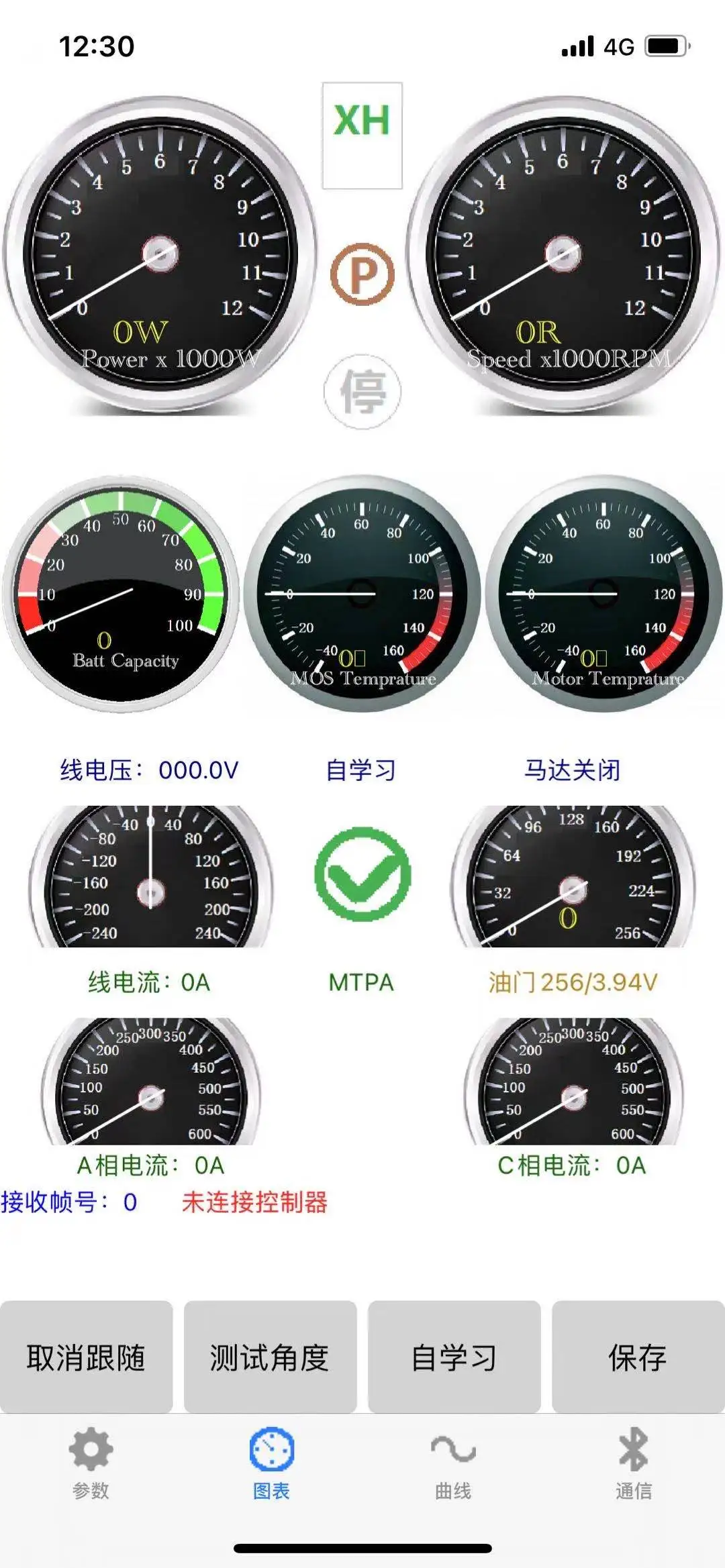

Controller APP Monitor(Only for Android system)
The color of controller will be sent in randomly.
Main Specification of NS72680:
1. Controller Type: Sine Wave FOC Controller
2. Model Number: NS72680
3. Max. Line Current:350A
4. Max. Phase Current:680A
5. Working Voltage:48V/60V/72V
6. Compatible Motor Power: 3000W-5000W

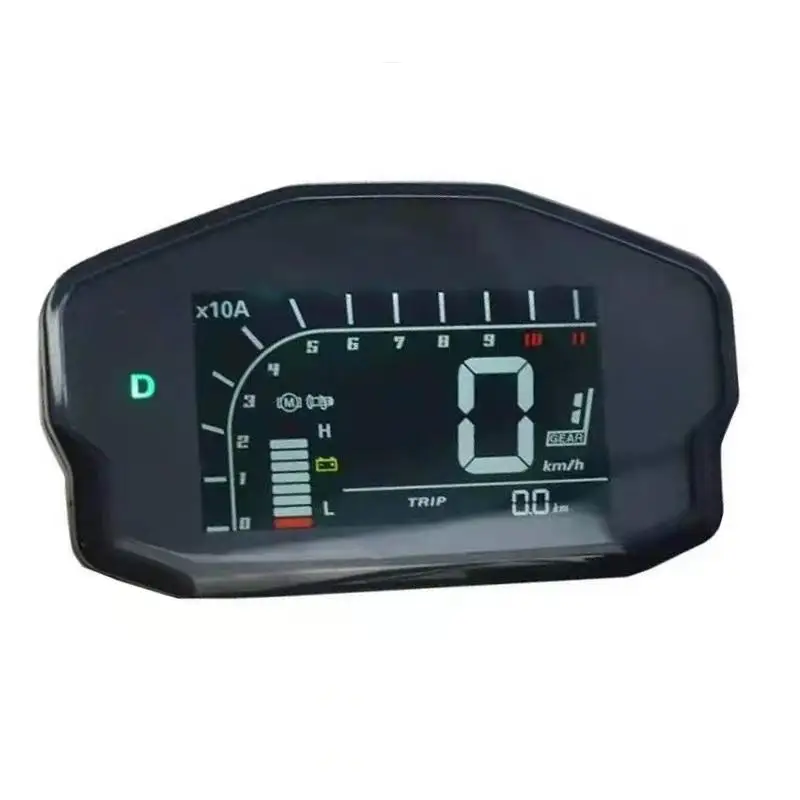

DKD Display:
Model: 061 Adjustable Speedometer
Display: LCD 4.3inch
Voltage:48V,60V,72V(72V as default)
Protection: IP67
Size:Length-162.5mm, Width-93.7mm
Functions:
Displays Fault Code,Travel range, Speed, Battery volume, lighting and so on
Adjustable settings
Support CAN conmmunication,ONE-LIN (ONE-LIN as default)
Dimensions:

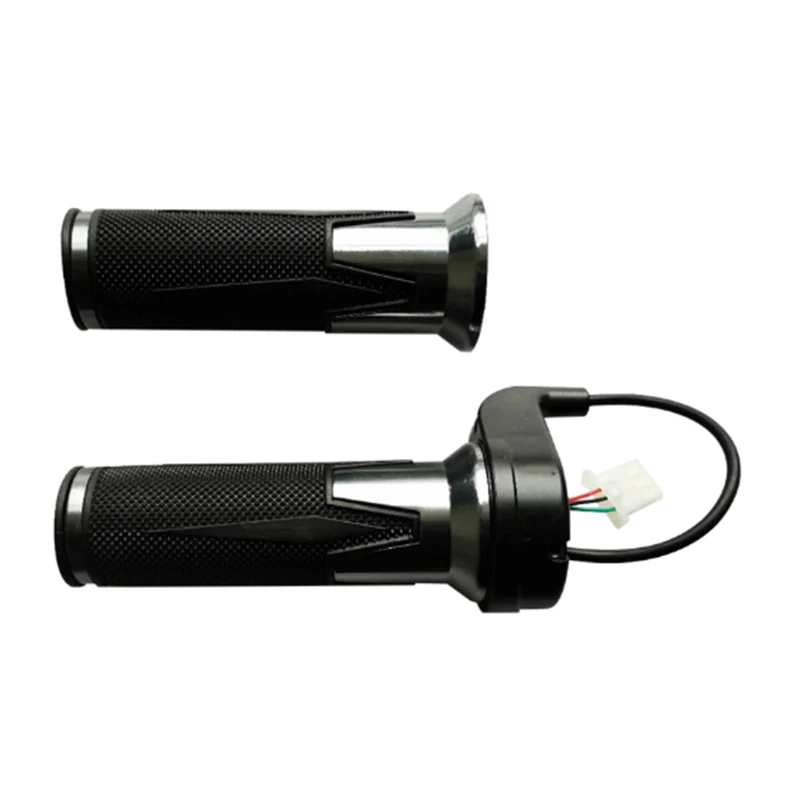

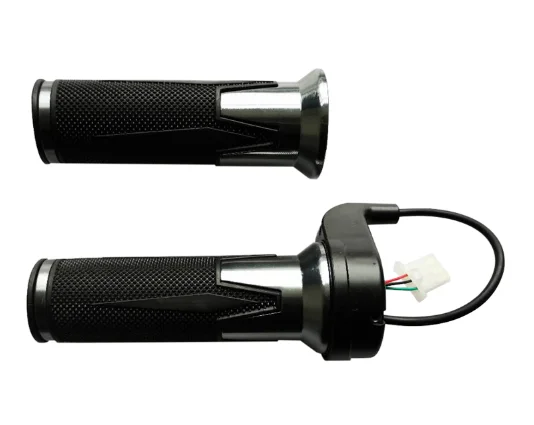

Twist Throttle:
Inner Hole diameter 2.3mm
Throttle bar length 15CM
Wires definition
Thin Red wire +5V
Black wire GND
White wire Hall Signal
The throttle can be fitted to any electric scooter or electric motorcycle.
The Throttle color will be randam delivery
