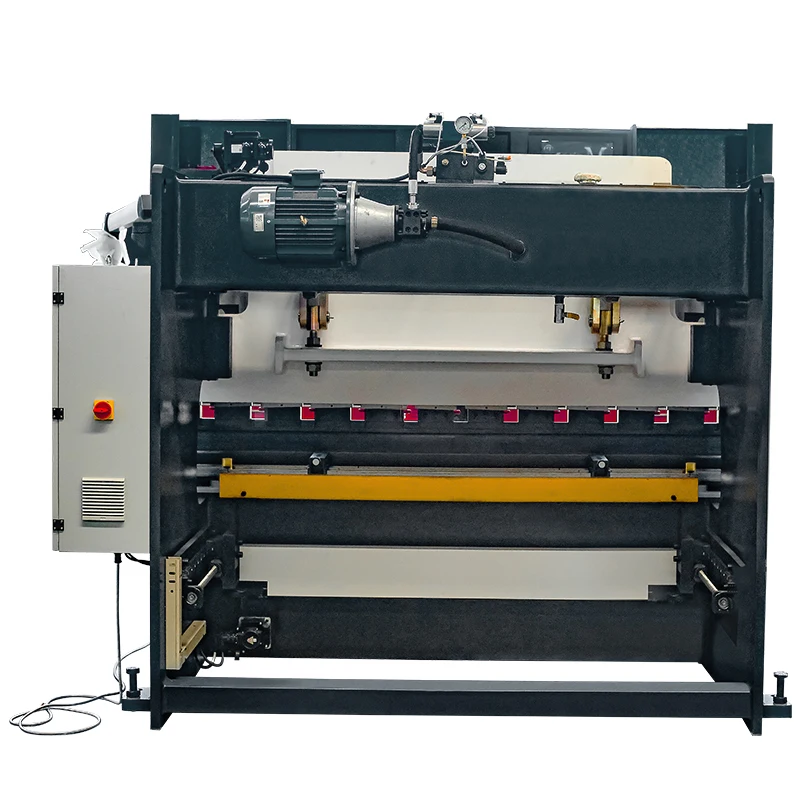

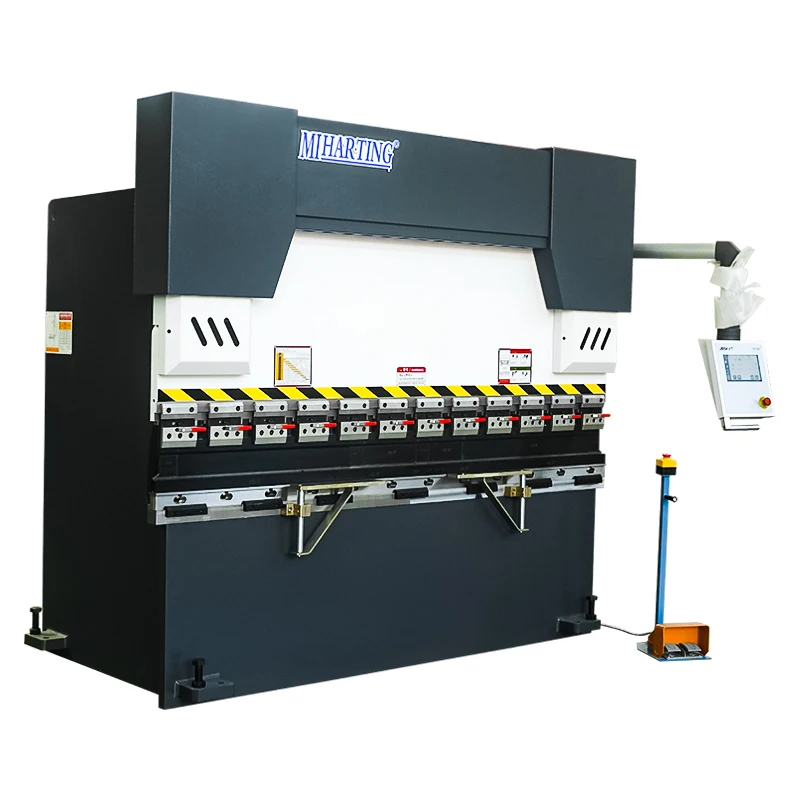

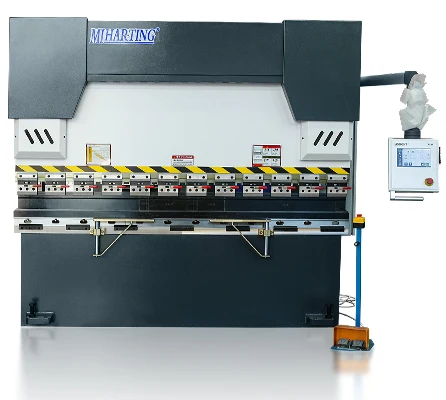

High cost effective CNC press brake machine from China factory
RUNNING SMOOTHLY HIGH PRECISION
Factory direct sales, you can buy with confidence
Standard Configuration

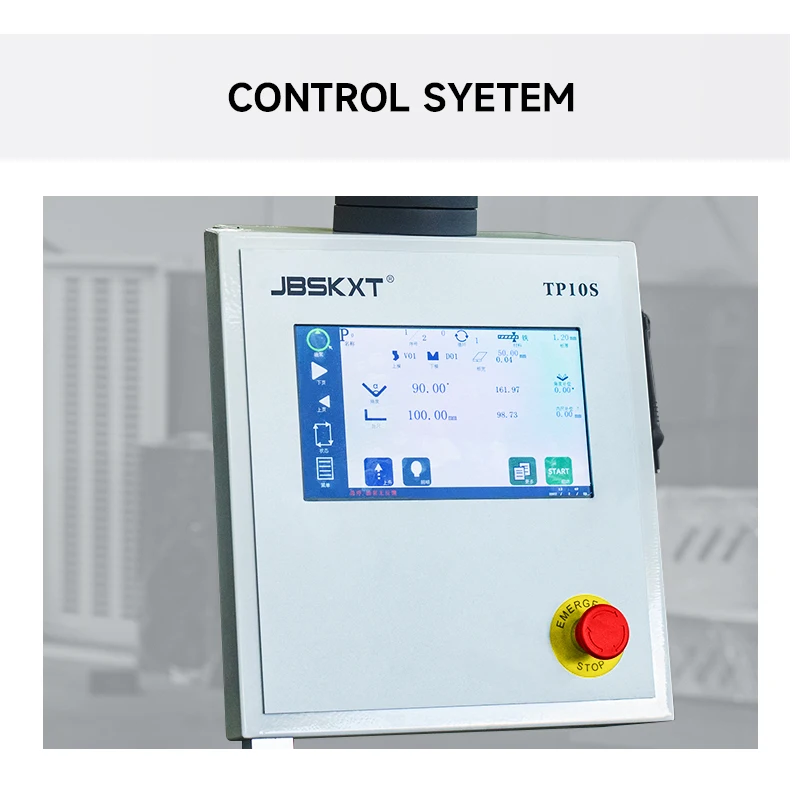

TP10S CNC SYSTEM
1.10 inch TFT 256K color touch screen\u2029
2.The standard Y,X1 axis servo motor\u2029
3.Support angle programming,the system automatically calculate the depth of plate bending
4.Slider(Y axis)position control\u2029
5.Position control of rear stopper (X1 axis)\u2029
6.220 programs, each program 24 steps\u2029
7.Soft limit function \u2029
8.Power off memory\u2029
9.Matching support X2,R1,R2.Z1,Z2
\u202910.Matching support for the degree of compensation
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment
American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system
It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping,etc
Press Brake toolings are made from 42CrMo materials with hardness up to 42 degrees to ensuring die service life

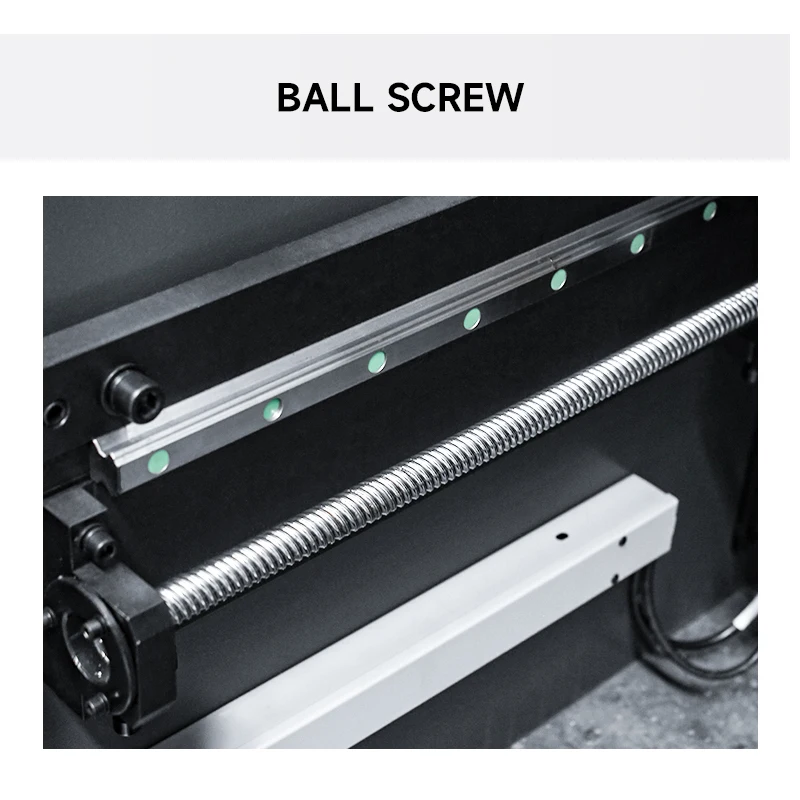

Imported ball screw drive, linear guide rail guide, double linear guide construction, to ensure the positioning accuracy.
Multistage stops to increase the positioning range, make the bending more convenient

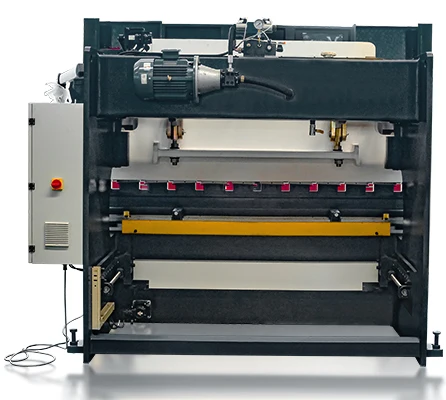

German Bosch modular hydraulic system special for press brakes, full loop controlling the synchronization of ram. High frequency hydraulic system, low failure rate, machine will run fast and stably
Good-looking structure and reduce the possibility of oil leakage
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the world
Double servo motor can make the control speed,position accuracy is very accurate,can convert voltage signal into torque and rotational speed to drive control object
Polished rod and high precision ball screw can improve the accuracy of back gauge

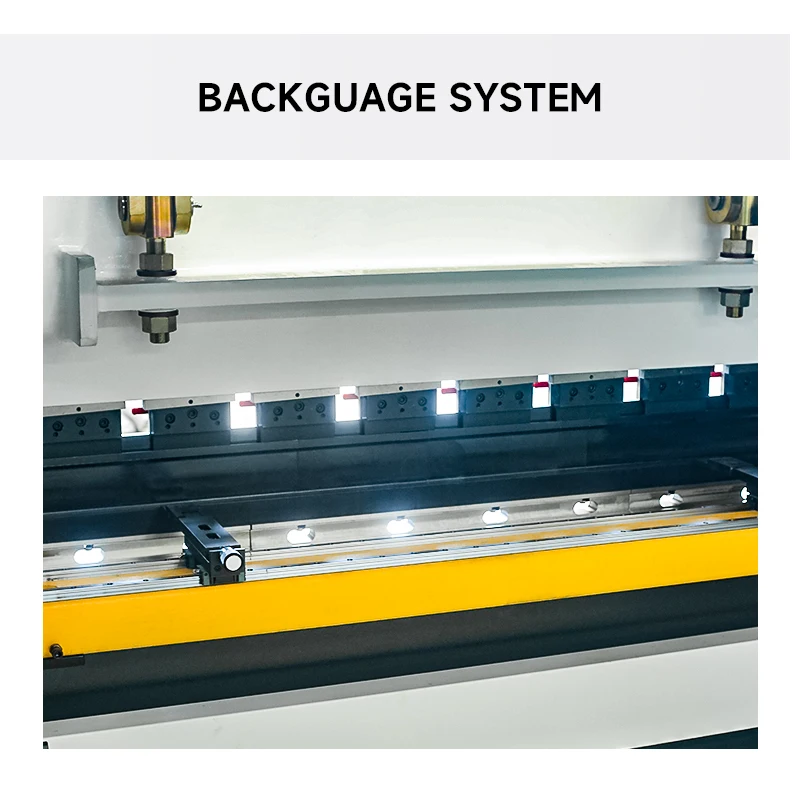

High-precision back gauge device,improving limit accuracy
Type( WC67K series) | Nominal Force (KN) | Bending Length (mm) | Poles distance(mm) | Throat Depth(mm) | Back-Gauge Range(mm) | Ram Strokes(mm) | Max Open(mm) | Power(KW) |
30T1600 | 300 | 1600 | 1200 | 180 | 20-400 | 80 | 250 | 3 |
40T1600 | 400 | 1600 | 1200 | 220 | 20-500 | 100 | 320 | 5.5 |
40T2200 | 400 | 2200 | 1800 | 220 | 20-500 | 100 | 320 | 5.5 |
40T2500 | 400 | 2500 | 2000 | 220 | 20-500 | 100 | 320 | 5.5 |
63T2500 | 630 | 2500 | 2000 | 260 | 20-600 | 100 | 370 | 5.5 |
63T3200 | 630 | 3200 | 2500 | 260 | 20-600 | 120 | 370 | 5.5 |
80T3200 | 800 | 3200 | 2500 | 320 | 20-600 | 120 | 380 | 7.5 |
80T4000 | 800 | 4000 | 3100 | 320 | 20-600 | 120 | 380 | 7.5 |
100T2500 | 1000 | 2500 | 2000 | 320 | 20-600 | 140 | 380 | 7.5 |
100T3200 | 1000 | 3200 | 2500 | 320 | 20-600 | 140 | 380 | 7.5 |
Company Profile
MIHARTING is one of Chinese leading manufacturers in the field of sheet metal working machinery with over 15 years experience.We are specialized in sheet metal processing in China.
We manufacture various kinds of NC and CNC press brake, shearing machine,power press,rolling machine and other related machines.Our products are shipped to over 50 countries,Annual sales growth of more than 30%.we have got 20 distributors until the end of the year of 2021.
We have a research and development team with expertise, which can guarantee a high quality of the machines. We have a professional sales team with passion and confidence,which always offer every client the best service.
MIHARTING is not only a professional manufacturer,but also an expert who share the technology ,We are waiting for you and expecting to establish the long term cooperation.
We manufacture various kinds of NC and CNC press brake, shearing machine,power press,rolling machine and other related machines.Our products are shipped to over 50 countries,Annual sales growth of more than 30%.we have got 20 distributors until the end of the year of 2021.
We have a research and development team with expertise, which can guarantee a high quality of the machines. We have a professional sales team with passion and confidence,which always offer every client the best service.
MIHARTING is not only a professional manufacturer,but also an expert who share the technology ,We are waiting for you and expecting to establish the long term cooperation.
Certifications

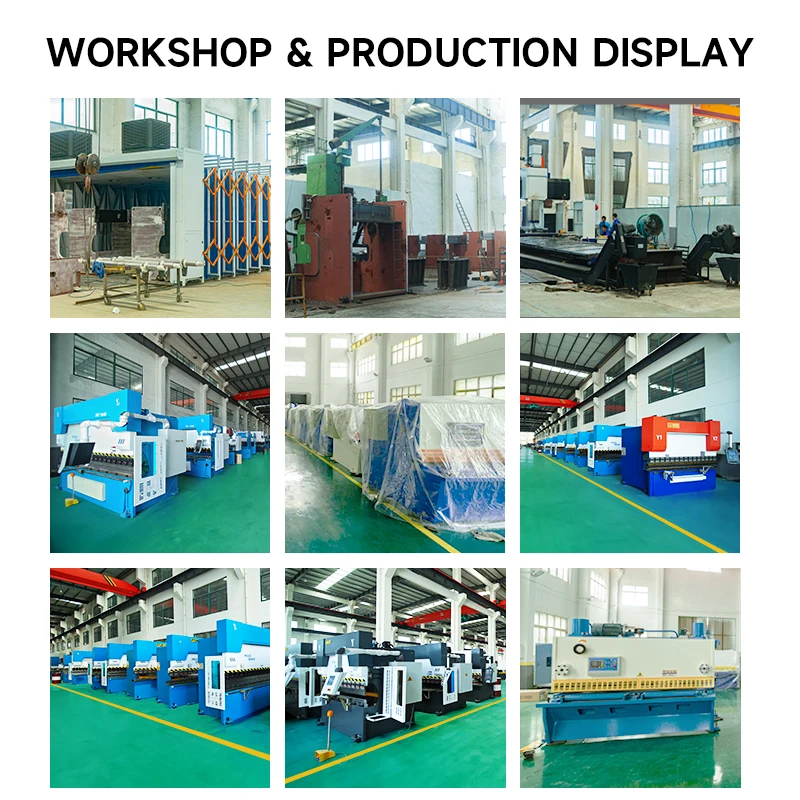

Our Workshop
MIHARTING is one of the leading manufacturers of sheet metal processing machinery in China
Our Teams
Exhibition
Product packaging
Why Choose Us
OUR SERVICES
1、Warranty period is 24 months after receiving the machine;any quick-wear part is available for free during guarantee period under proper operation, customers only need to pay for the freight of the replaced new parts.
2、Installation and training service is optional for customers, any client can ask for this service from Miharting, they should assume the air fare and accommodation for our engineer during the journey. Meanwhile, the service salary for each engineer is USD100 per day.
3、All mails will be replied within 12 hours, all social software message will be handle in real time.
4、Any question or concern, please do not hesitate to connect us, below is the contact information.
