Hydraulic Drive Borehole Drilling Rig For Quarry
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (1600760449062):
Product Overview
Description
Product Overview
DTH Blasting Hole Crawler Drilling Rig
Crawler type hydraulic DTH drilling rigs are mainly used for drilling and blasting in quarry,mine,open pit coal mining, road construction, it is multipurpose rig,also can use for Anchor
FEATURES AT A GLANCE
Humanized design
Safety frame
Simple control
Easy maintenance and Low maintenance
Multipurpose ( Blasting hole,Anchor.....)
Compact dimensionsAcceptable Customization

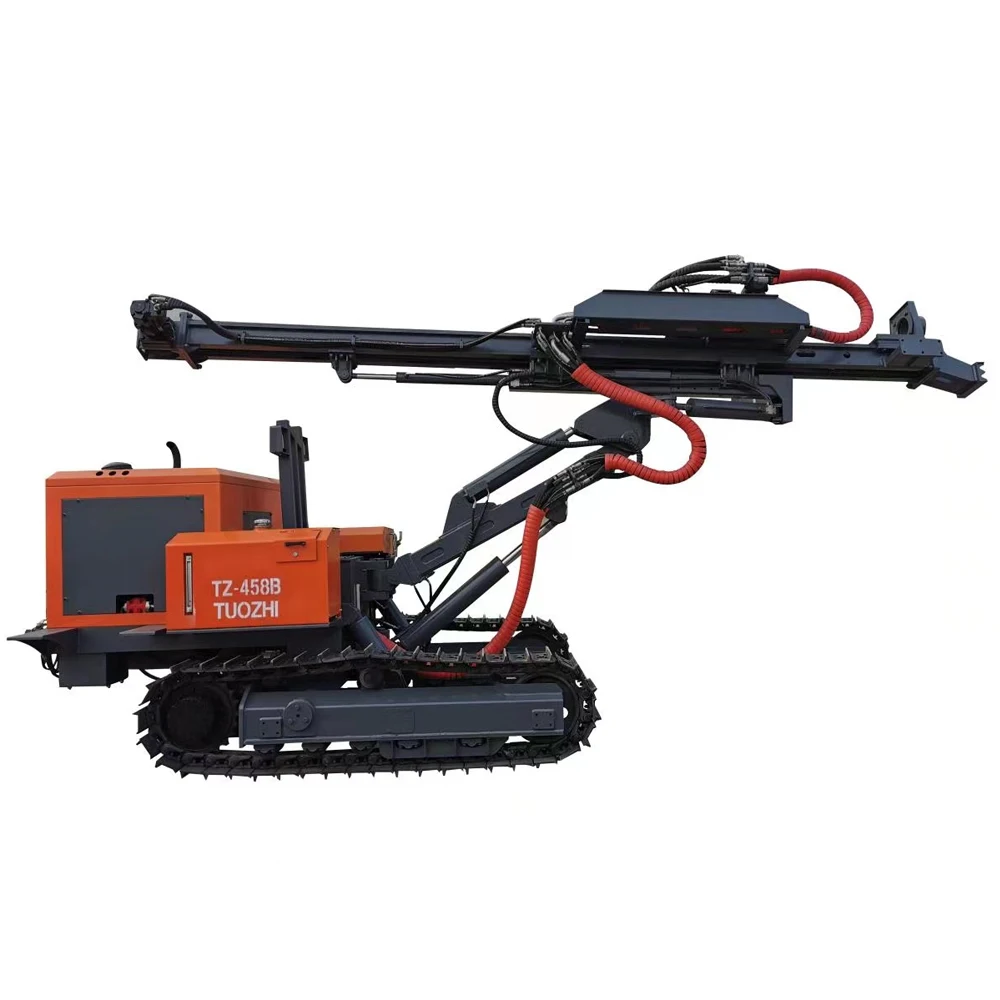

Right elevation

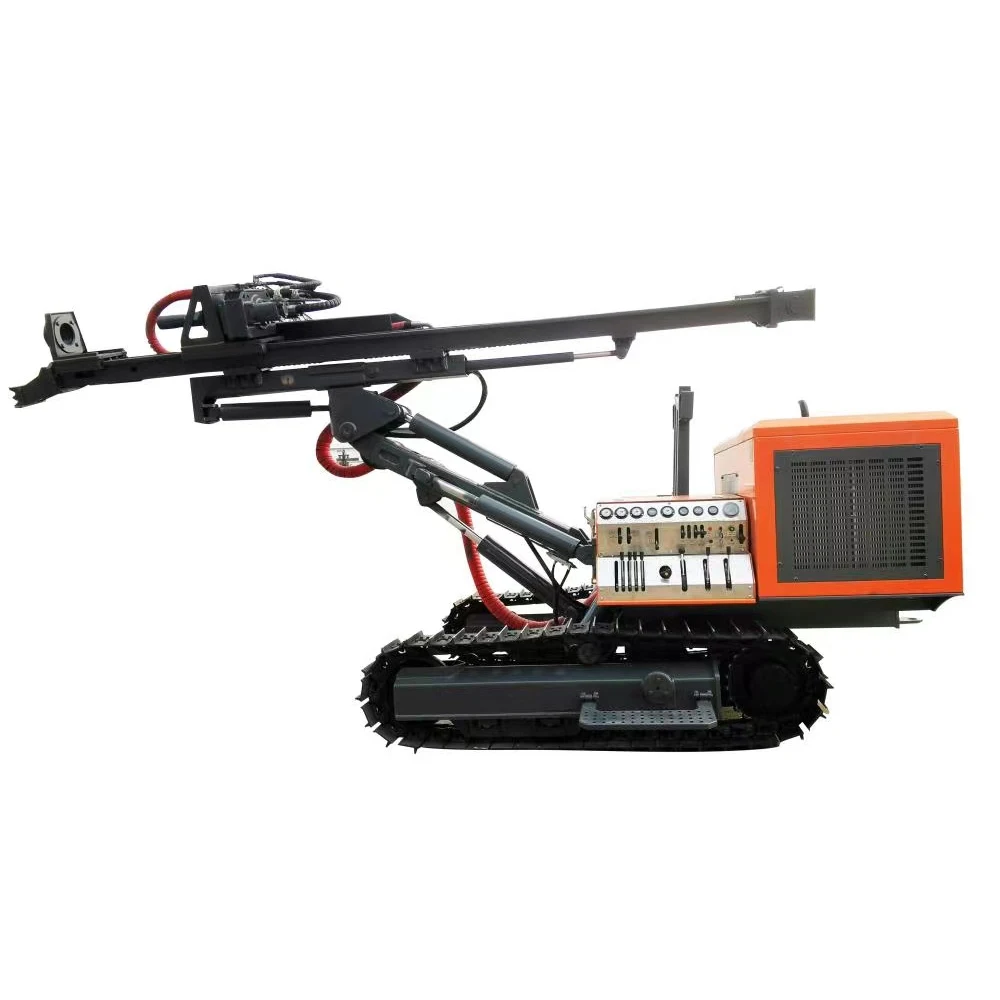

Left elevation
Back elevation
PRODUCT SPECIFICATIONS
Model | TZ-458 |
Max Hole diameter (mm) | 254mm |
Max Drill depth (m) | 40m |
Walking speed (km/h) | 2.5km/h |
Gradeability | 25° |
Max Rotary torque | 3600/4500/6000N.m |
Lifting power | 2T |
Drill rod length | 3M |
Forwarding length | 4.1M |
Sliding frameworks wing angle | right:45,left:15 |
Drill hand swing angle | right/left:45 |
Max horizontal drilling height | 3.6M |
Working Pressure (Mpa) | 1-3Mpa |
Air consumption (M3/min) | 10-30m³/min |
Engine power(KW) | 75Kw |
Weight | 6800kg |
L x W x H | 6700×2200×2750 |
PRODUCT CONFIGURATION
High Power Engine
Control Panel
Hydraulic Motor
Successful Project
With wet collector use for construction
With dry collector use for Quarry
With dry collector use for Mine
SIMILAR PRODUCTS
FAQ
Q1：Do you accept customization?
A1：Yes,sure
Q1：Is there any option for rig? Wet collector or Dry collector?
A1：Yes,there are options for wet collector or dry collector
