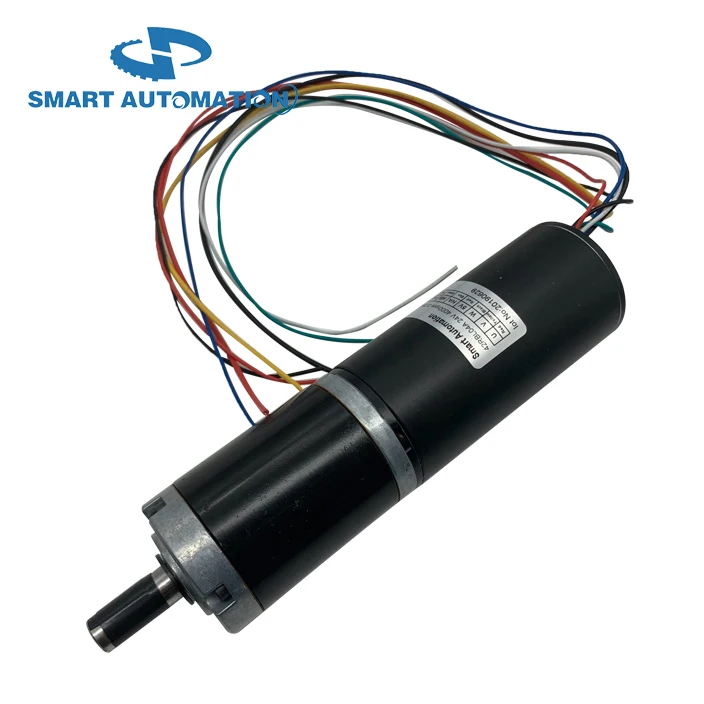

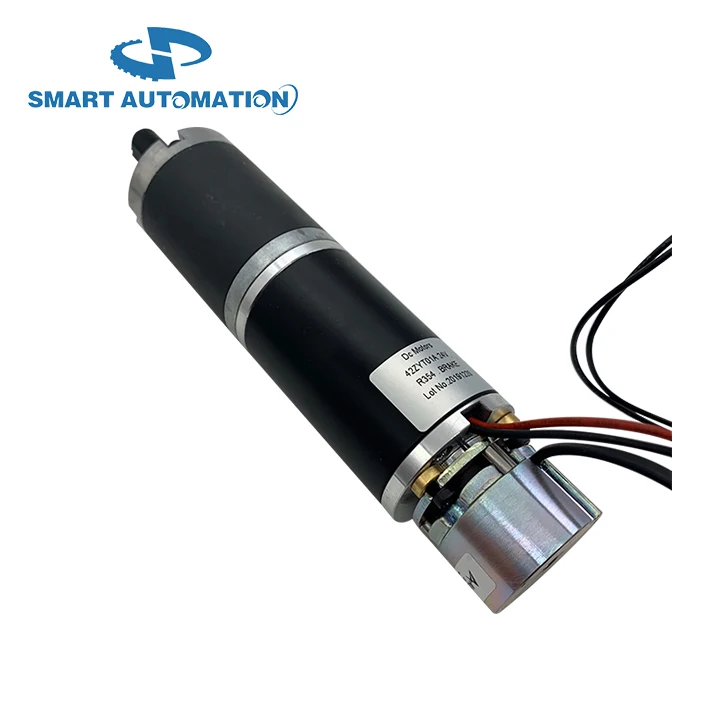

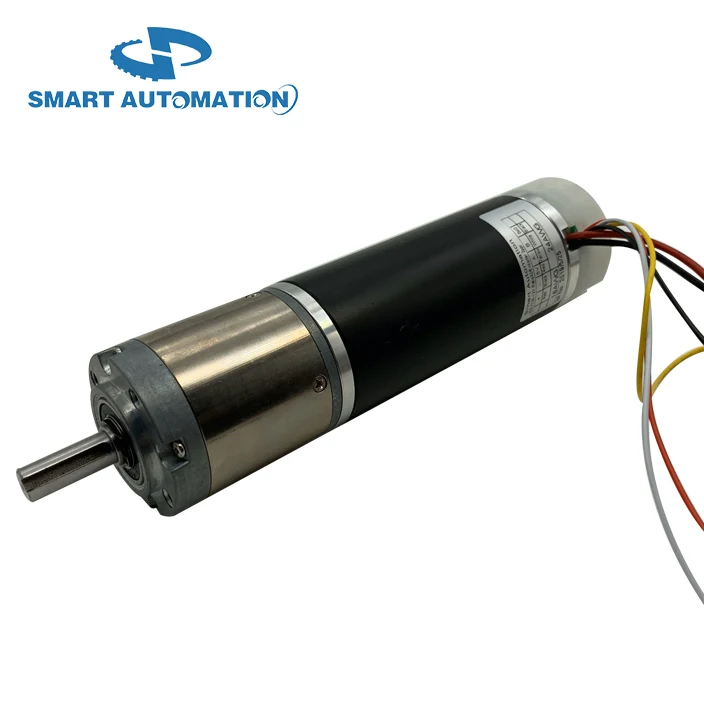

customized performance Brushless dc planetary gear motor used for pedestrian and vehicle access control gates and doors opening
customized performance Brushless dc planetary gear motor used for pedestrian and vehicle access control gates and doors opening
customized performance Brushless dc planetary gear motor used for pedestrian and vehicle access control gates and doors opening
customized performance Brushless dc planetary gear motor used for pedestrian and vehicle access control gates and doors opening
customized performance Brushless dc planetary gear motor used for pedestrian and vehicle access control gates and doors opening

customized performance Brushless dc planetary gear motor used for pedestrian and vehicle access control gates and doors opening

Share on (1600760452333):


Price:$20.00

Quantity:


Product Overview

Description


size 42mm electric dc brushless motor,


12v 24v 36v 48v option for planetary gearhead, optical encoder, electric brake assembly

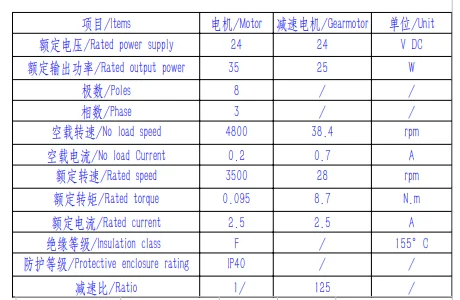

 paste-pic-dp_uuid_s8a1i

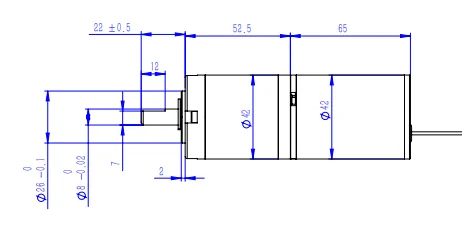

paste-pic-dp_uuid_gw7gy








Electric connection:































































Lead NO.



Lead Color



Lead Gauge



Function



DESCRIPTION



1



Red



UL1007/26AWG



VCC



SUPPLY VOLTAGE FOR HALL SENSORS



2



Black



GND



GROUND FOR HALL SENSORS



3



Yellow



HALL A







4



Green



HALL B







5



Blue



HALL C







6



Yellow



UL1007/20AWG



PHASE U







7



Green



PHASE V







8



Blue



PHASE W







219
