GCE High Voltage BMS 165S 528V 250A lifepo4 energy storage battery system work with solar inverter for solar energy UPS ESS
- Category: >>>
- Supplier: Hunan Gce Technology Co. Ltd.Hunan Ltd.
Share on (1600760458019):
Product Overview
Description
Product Specification
Product Name

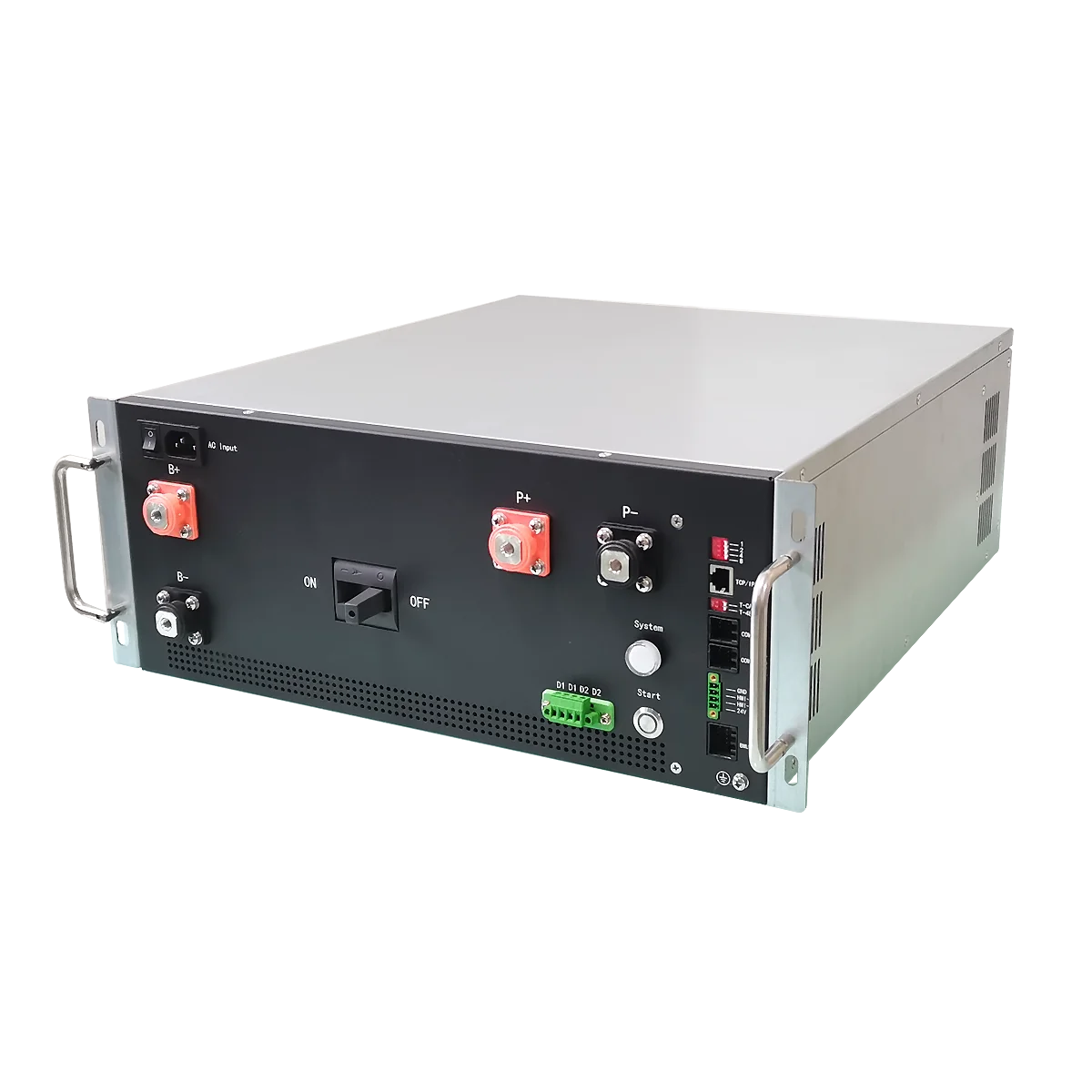

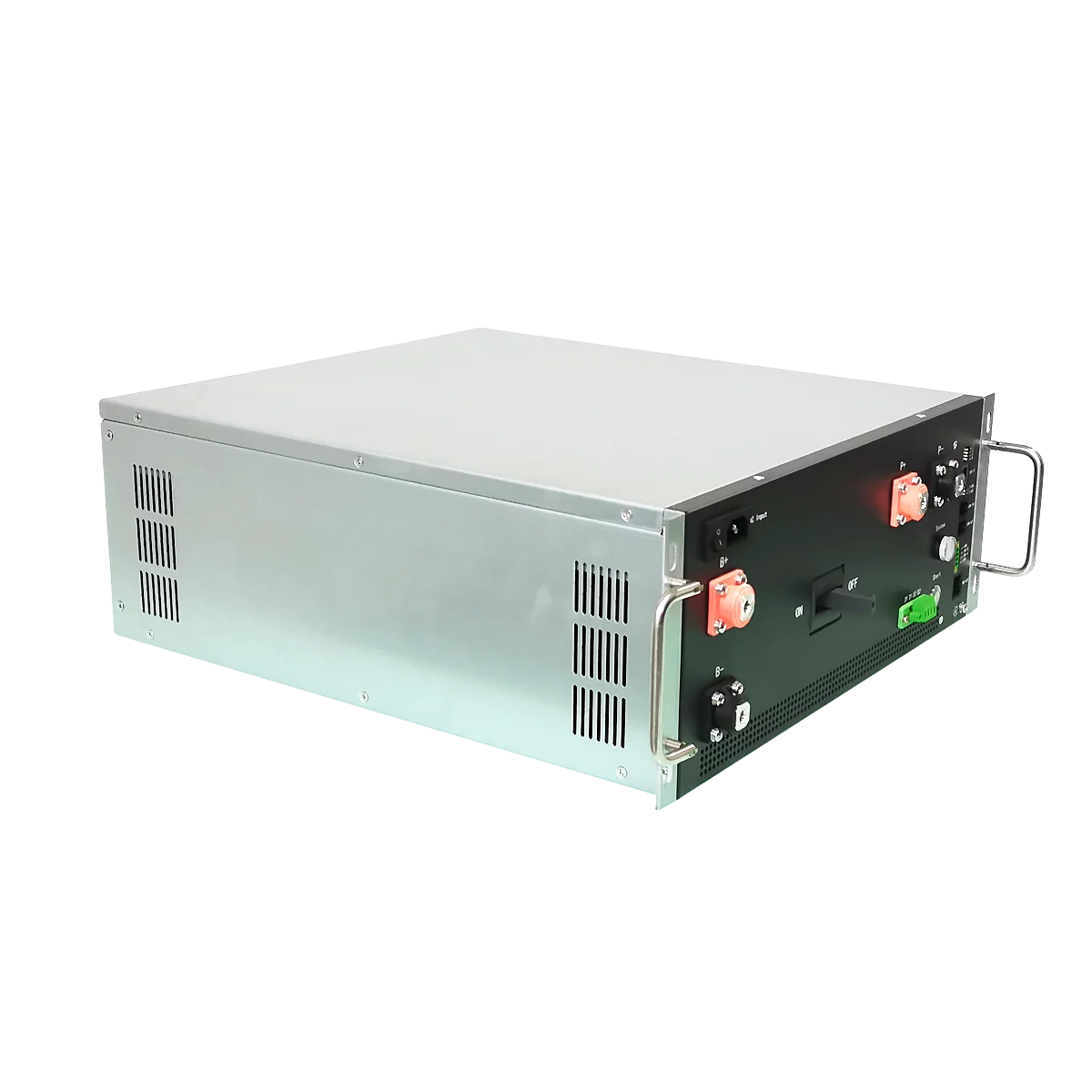

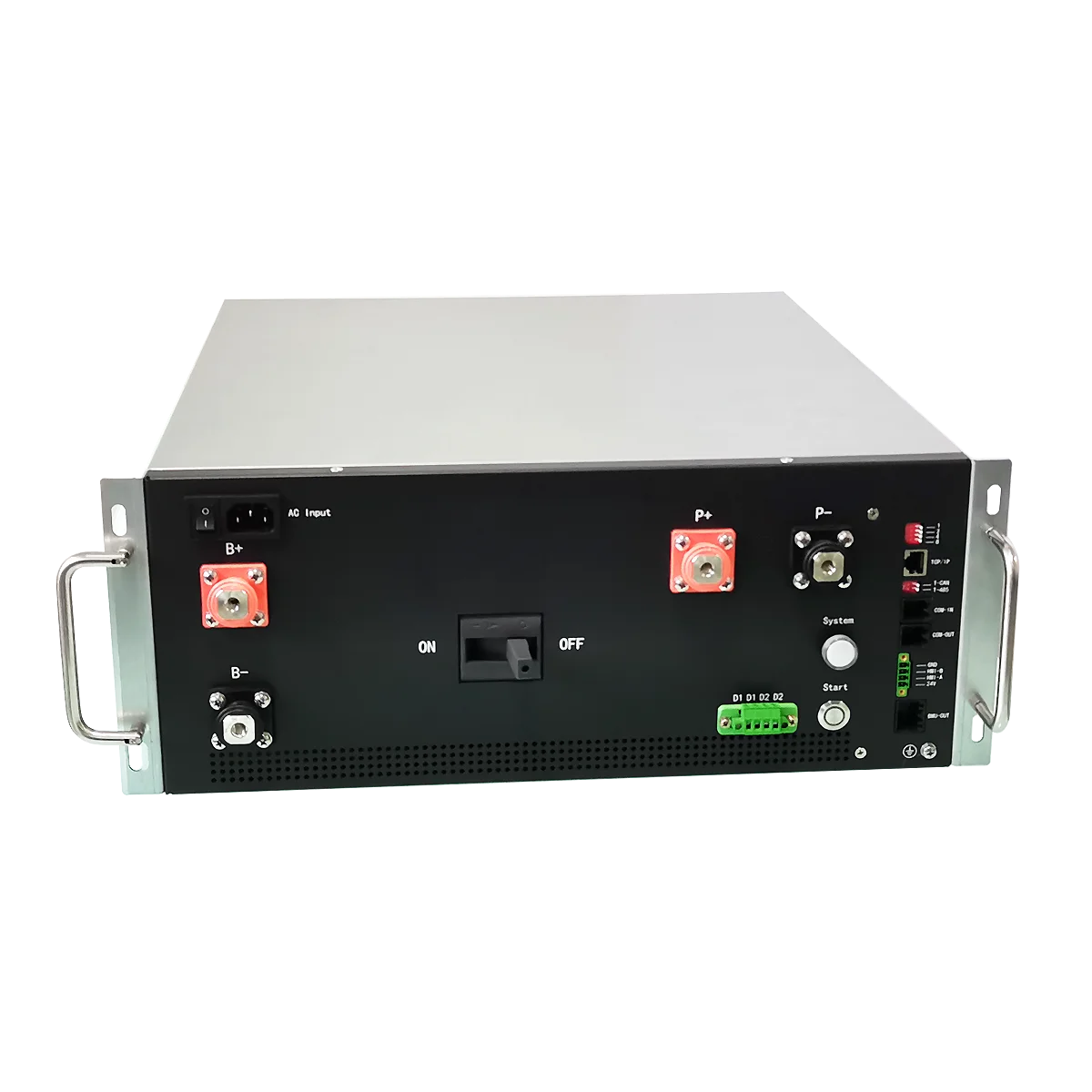

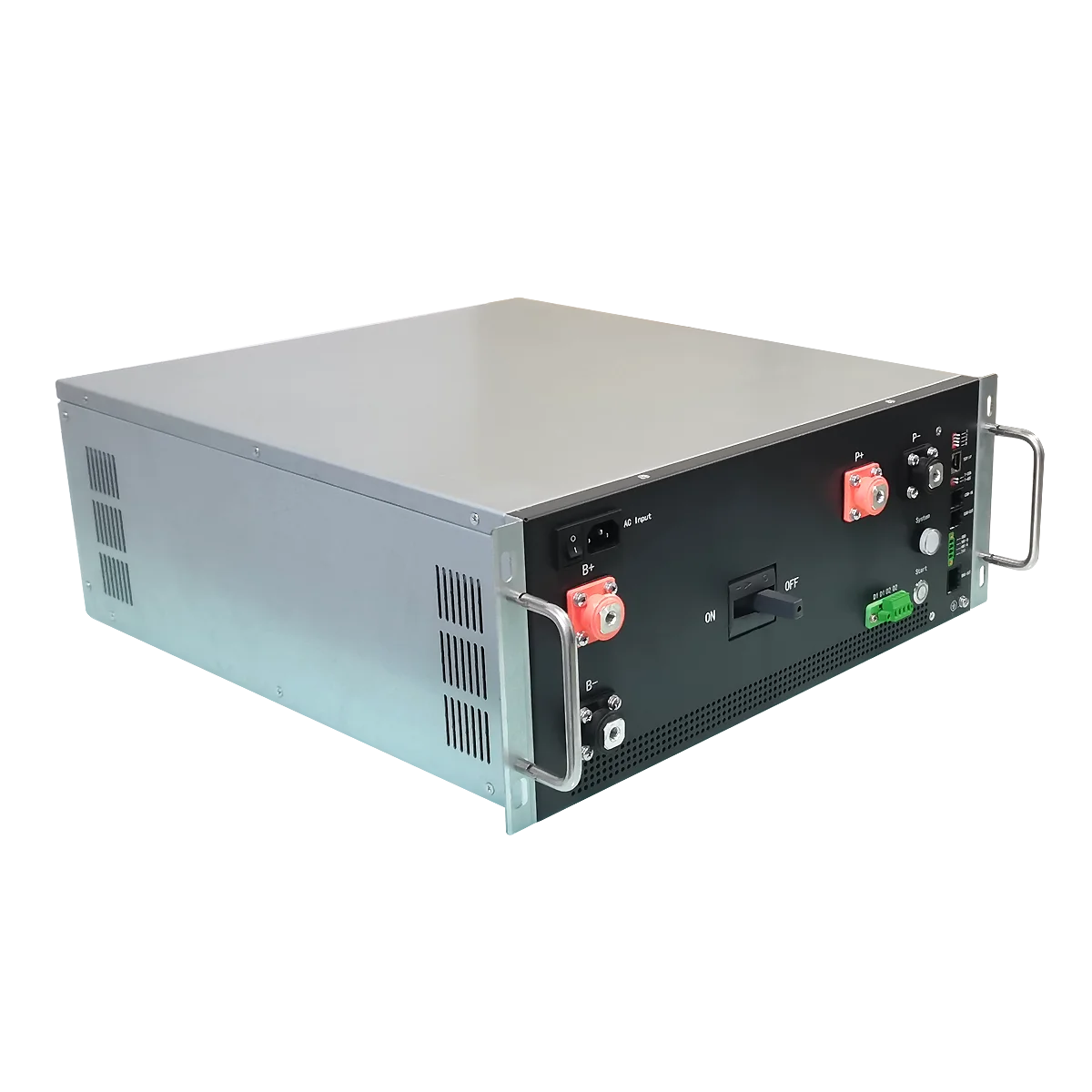

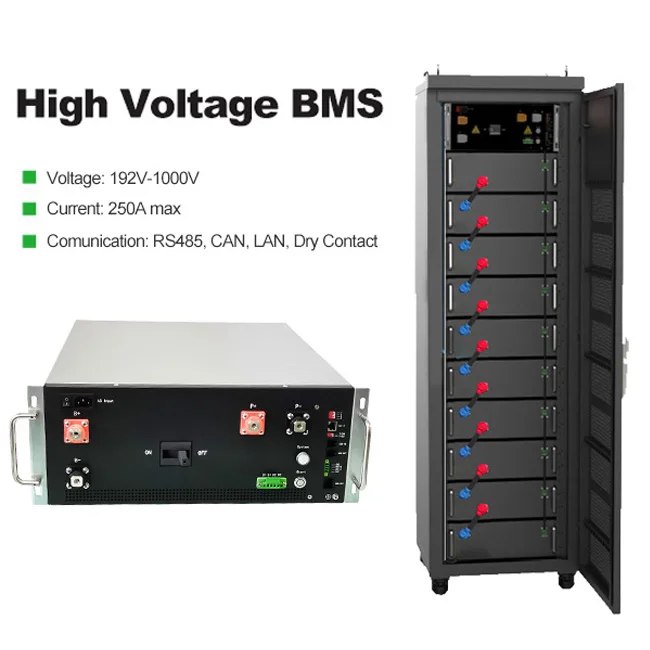

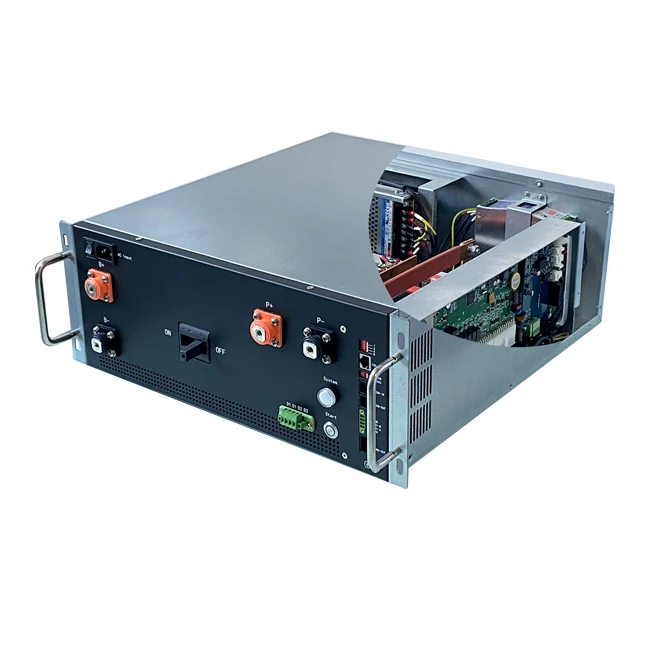

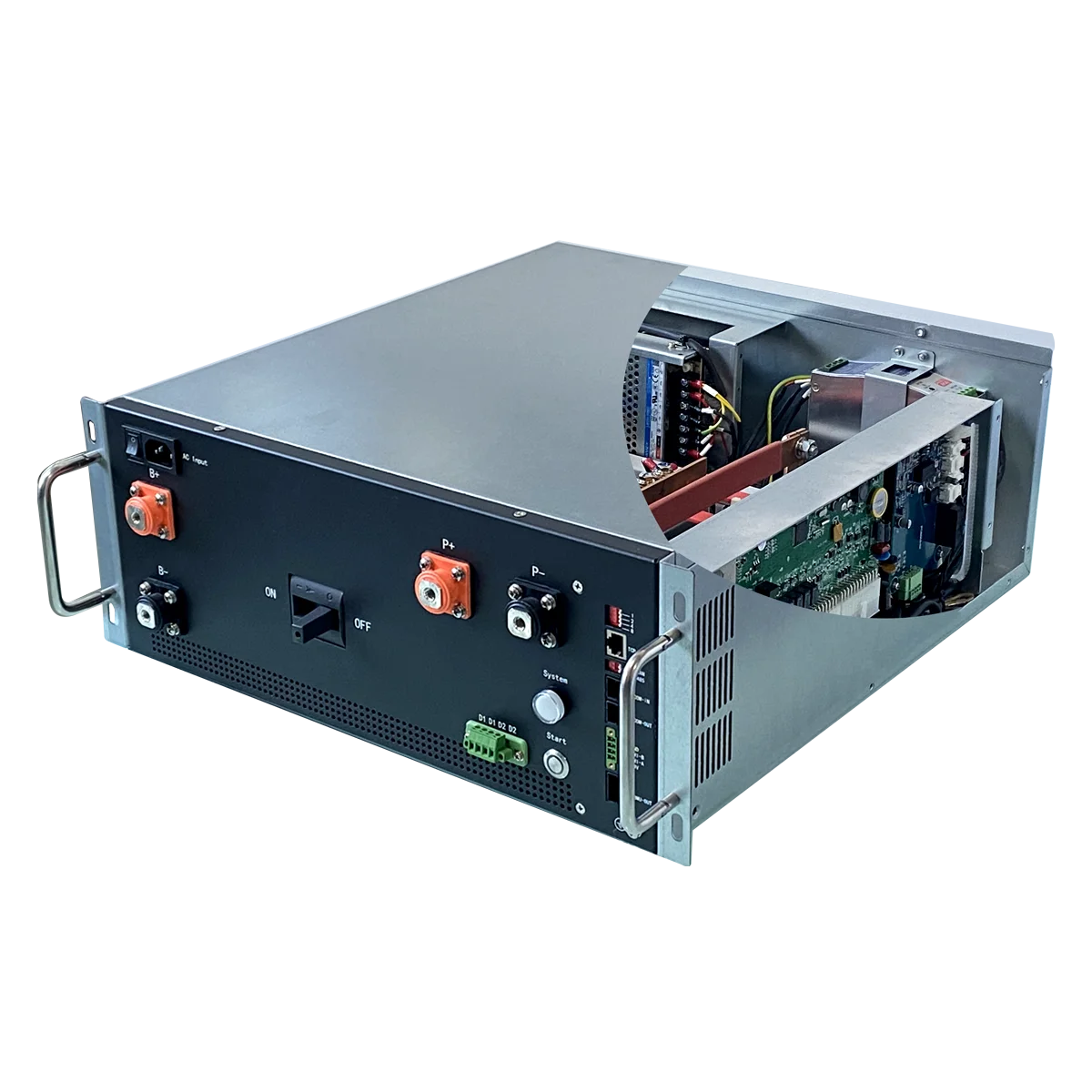

GCE High Voltage BMS 165S 528V 250A lifepo4 energy storage battery system work with solar inverter for solar energy UPS ESS
Models (4U Master BMS For your Choice)
Model No | rated Current | Number of strings | number of Rack | |
RBMS07S2-3-160A144V | 160A 200A 250A are optional | 45S | Single | Special design and requirement also available, Please contact us for more details! |
RBMS07S2-0-250A192V | 125A | 60S | Single | |
RBMS07S2-0-250A240V | 125A | 75S | Single | |
RBMS07S2-0-250A288V | 125A | 90S | Single | |
RBMS07S2-0-250A336V | 125A | 105S | Single | |
RBMS07S2-0-250A384V | 125A | 120S | Single | |
RBMS07S2-0-250A432V | 125A | 135S | Single | |
RBMS07S2-0-250A480V | 125A | 150S | Single | |
RBMS07S2-0-250A528V | 165S | Single | ||
RBMS07S2-0-250A576V | 180S | Single | ||
calculation method for Voltage
taking the of lithium iron phosphate(nominal 3.2V) as an example, the calculation method of
the actual rated voltage of the system is as below:
Eg 1: 15 cells connected in series for a module, 5sets of 15S battery modules in series.
System rated voltage: 5*15*3.2=240V
Eg 2: 15 cells connected in series for a module,8sets of 15S battery modules in series.
System rated voltage: 8*15*3.2=384V
the actual rated voltage of the system is as below:
Eg 1: 15 cells connected in series for a module, 5sets of 15S battery modules in series.
System rated voltage: 5*15*3.2=240V
Eg 2: 15 cells connected in series for a module,8sets of 15S battery modules in series.
System rated voltage: 8*15*3.2=384V
Specification & Technical data
Item | Decriptions | ||
Product Name | 4U RBMS ( BMS master and slave are separated) | ||
Model No | RBMS07S2-0-250A528V | ||
Max Rated Current | 160A/ 200A/250A are optional | ||
System Max Voltage | 350V, 700V（according to the rated voltage） | ||
operating voltage | RBMS has two voltage levels: 350V operating voltage range: 120-350VDC. 700V operating voltage range: 260-700VDC | ||
Number of strings | 165S（528/3.2） | S for Single Rack D for multiple racks in parallel connection | |
Power Consumption | ≤15W | ||
Protection level | IP20 | ||

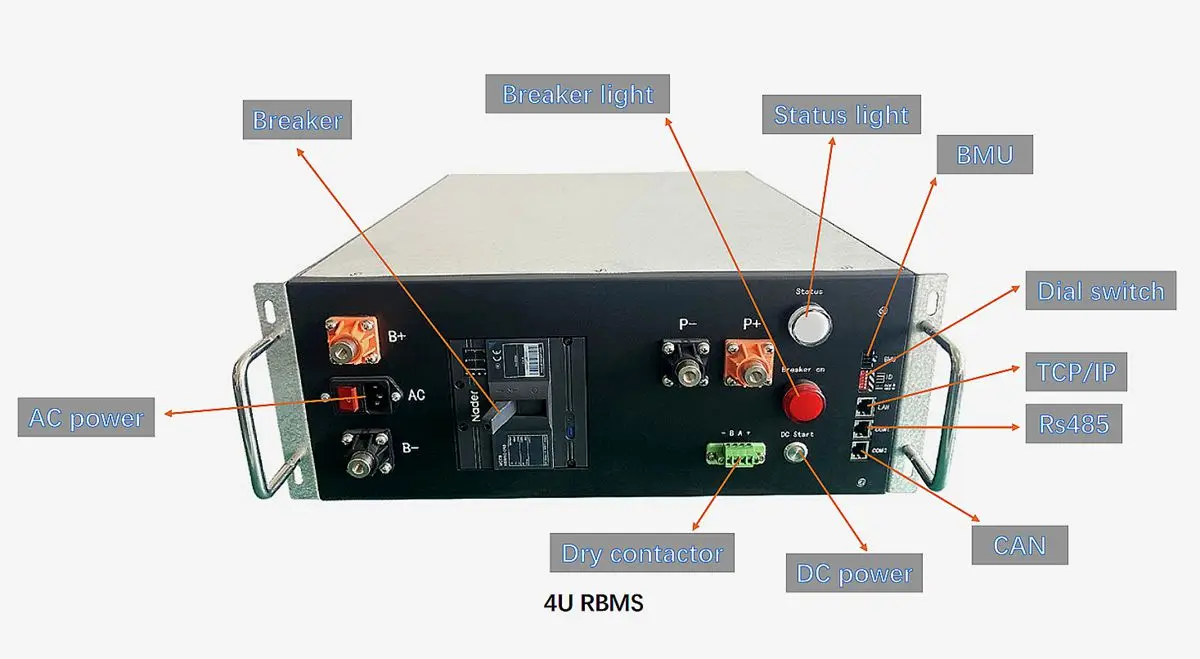

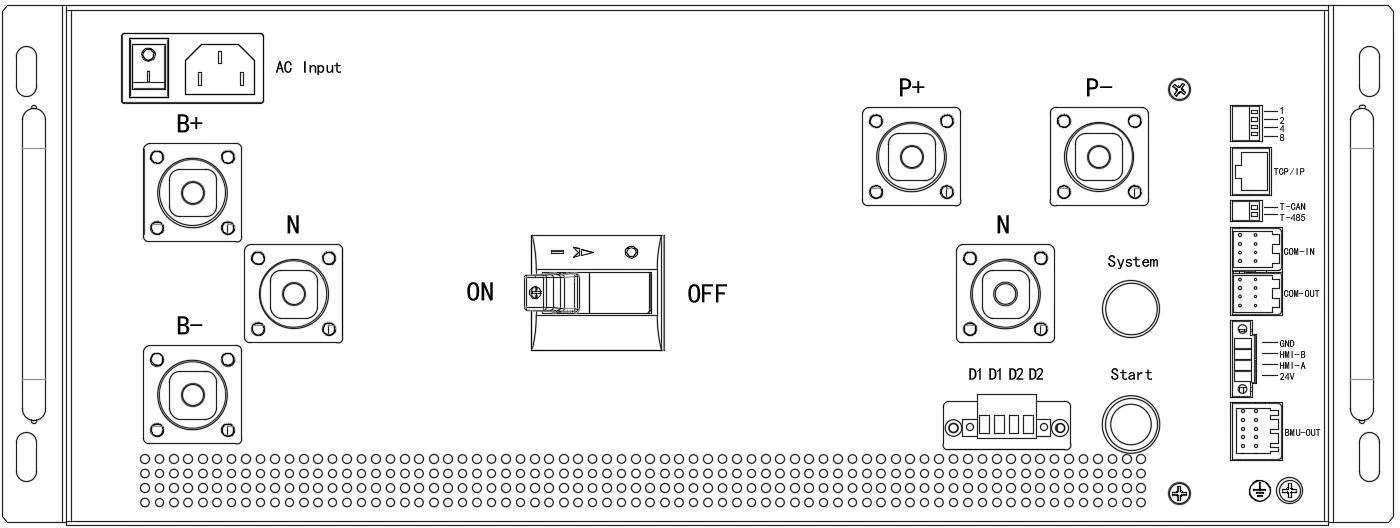

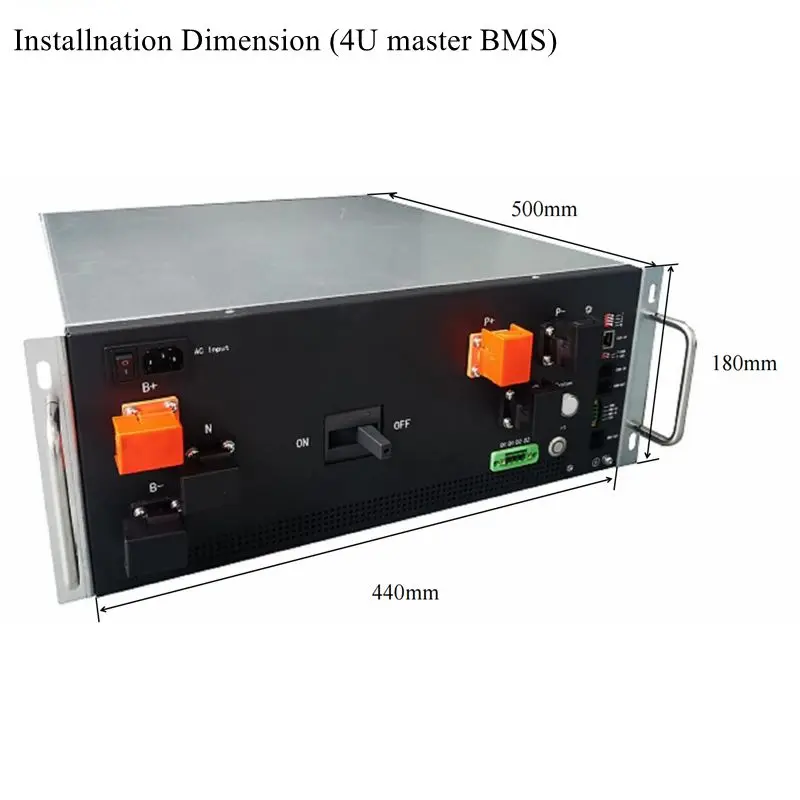

Size（W*H*D） | 482*132*500（mm） | ||
Communication Interface | Communication port with BMU | can | |
Communication port with UPS | RS485/CAN | ||
Communication port with SBMS | RS485/CAN | ||
Communication with monitoring software | Ethernet | ||
Current sampling accuracy | 1%FSR | ||
Basic Function | Battery charge & discharge management Available | 25 for 0%-25% 50 for 25%-50% 75 for 50%-75% 100 for 75%-100% | |
Battery temperature management Available | |||
IAP Upgrade Available | |||
System protection parameter setting Available | |||
Short circuit protection | Available（6KA 20ms） | ||
Pre-charge function | Available | ||
Parallel circulation control | Available | ||
Event record | Available(5000) | ||
DC start | Available（Battery powered，Mains supply is only for the signal to start on and off the BMS） | ||
Optional function | Insulation detection | Applicable to system voltage ≧300V | |
HMI display | 3.5 inches（embedded inside the cabinet） | ||
Stand-alone or parallel function | Set up before leaving the factory | ||
Dry contact | Maximum 2 dry contact outputs | ||
Power Consumption | ≤15W | ||
Withstand voltage rating | 2800VDC ＜1mA 1min | ||
Safety certification | Comply with CE certification standards | ||
Operating Temperature | -20℃~60℃ | ||
Installation method | Suitable for standard 19- inch cabinet installation | ||
Incoming and outgoing line mode | Front side in and front side out | ||
Operating ambient humidity | 5%~75%RH | ||

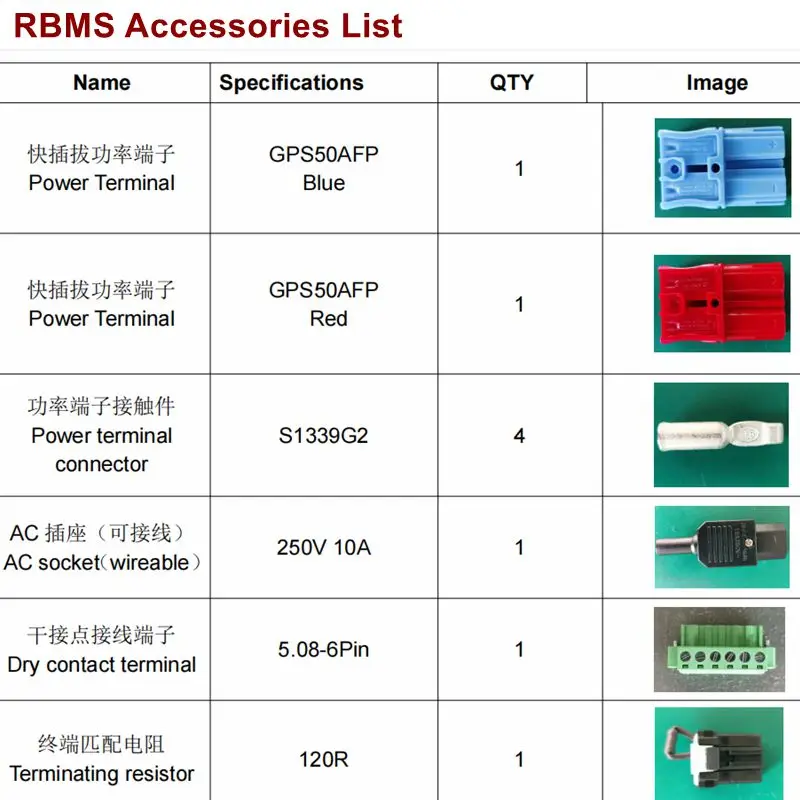

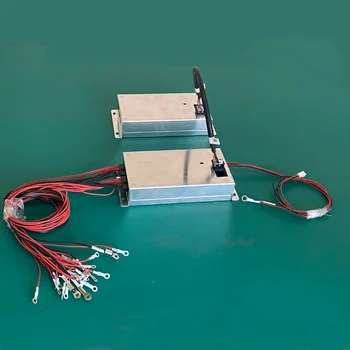

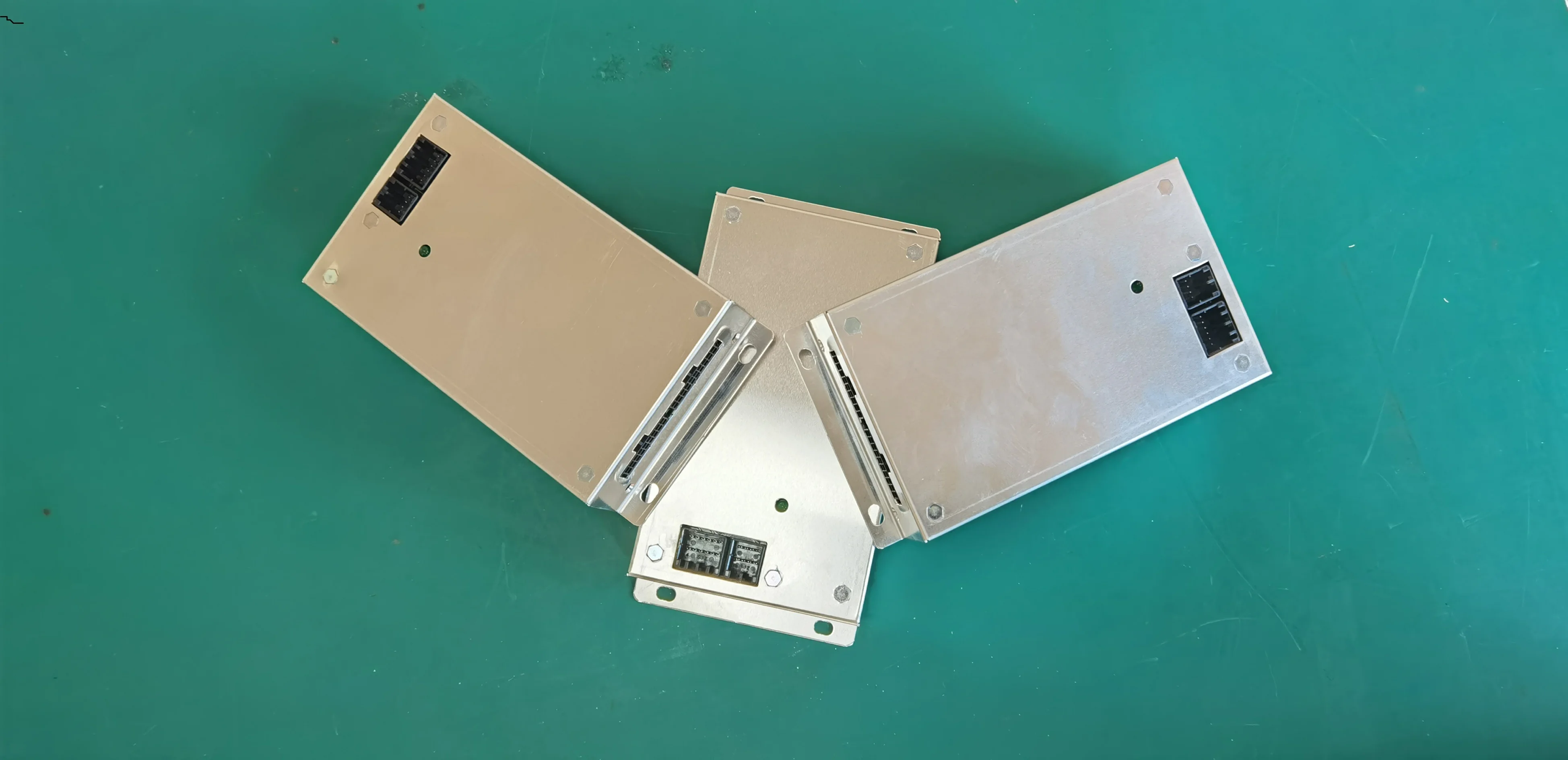

BMU (Slave BMS) & Wire Harness
Application
1.Photovoltaic power station energy storage.
2.Island off-grid energy storage.
3.ESS.
4.Micro-grid.
5.UPS power supply.
6. Power System 220V DC power supply
3.ESS.
4.Micro-grid.
5.UPS power supply.
6. Power System 220V DC power supply

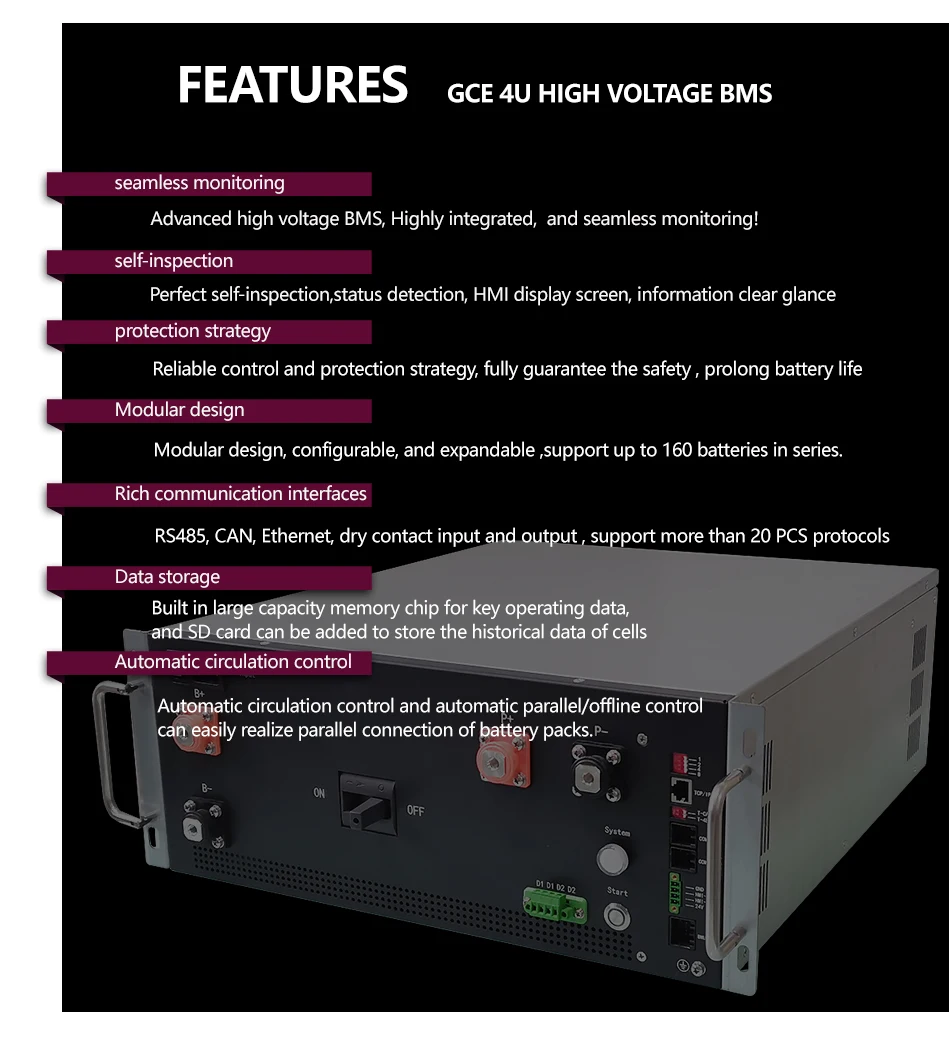

Product Feature
1.Advanced battery management system---The highly integrated battery management system can realize seamless monitoring.
2.Perfect self-checking and running status checking function, with HMI display screen, system running information is clear at a glance.
3.Complete and reliable system control and protection strategies, comprehensively
guarantee battery safety, and escort to extend the life of battery packs .
4.Modular design, configurable and expandable---multiple energy storage units can be flexibly combined and expanded into a larger energy storage system.
5.Abundant communication interfaces---multiple RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS and monitoring servers on the market.
6.The communication interface protocol is flexible.--the factory comes with the company's communication protocol, and it can also be adapted to the PCS of different manufacturers according to customer needs.
7.The built-in large-capacity memory chip can store a large amount of key operating data and an SD card can be added to realize battery historical data storage.
8.Automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of battery packs.
3.Complete and reliable system control and protection strategies, comprehensively
guarantee battery safety, and escort to extend the life of battery packs .
4.Modular design, configurable and expandable---multiple energy storage units can be flexibly combined and expanded into a larger energy storage system.
5.Abundant communication interfaces---multiple RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS and monitoring servers on the market.
6.The communication interface protocol is flexible.--the factory comes with the company's communication protocol, and it can also be adapted to the PCS of different manufacturers according to customer needs.
7.The built-in large-capacity memory chip can store a large amount of key operating data and an SD card can be added to realize battery historical data storage.
8.Automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of battery packs.
Company Profile
Hunan GCE Technology Co., Ltd.
A high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. We produce BMS voltage from 48V to 1000V with master and slave three-level structure solution.
Our BMS products adopt a distributed architecture, modular design concept, are highly configurable, easy to assemble, debug, and maintain, and can meet the needs of a variety of projects. Intelligent modular high-voltage BMS which is suitable for LFP & NMC batteries in BESS, UPS, EV & For energy storage
system Lithium-ion battery solution Off grid Solar Energy Storage System as well as Telecom Base Station battery Storage .
system Lithium-ion battery solution Off grid Solar Energy Storage System as well as Telecom Base Station battery Storage .
We are factory,welcome to visit us!
Certification
Packaging and Shipping
FAQ
1. Are you a manufacturer or simply a trading company?
We are a manufacturer, and we sincerely welcome you to visit our factory.
2.Can I get some samples?
Yes, a sample order is available for quality checking and market testing.
3. What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO
4. How about the delivery time?
The delivery time will usually take about 15 to 20 working days accordingly to the specification of your order and quantity.
5.What are your terms of payment?
For sample order or small orders usually will require full payment in advance. For Big amount orders can be 30%-50% deposit and the rest payment should be finished before shipping .
We are a manufacturer, and we sincerely welcome you to visit our factory.
2.Can I get some samples?
Yes, a sample order is available for quality checking and market testing.
3. What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO
4. How about the delivery time?
The delivery time will usually take about 15 to 20 working days accordingly to the specification of your order and quantity.
5.What are your terms of payment?
For sample order or small orders usually will require full payment in advance. For Big amount orders can be 30%-50% deposit and the rest payment should be finished before shipping .
Advanced T/T is the main payment term, and other payment terms are negotiable.
11.What benefits do customers get?
Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
6.What are your warranty terms?
We offer a 3-year warranty for RBMS,1-year warranty for PCB.
7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small adjustments.
8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
9. What Trade Terms are available?
No limitation for trade terms. EXW/FOB/CFR are all available.Moreover,we can send BMS via DHL&UPS&FEDEX quickly and easily.other shipping ways can also be negotiable and available.
10. Is your BMS easy and convenient to install&test?
This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.
We offer a 3-year warranty for RBMS,1-year warranty for PCB.
7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small adjustments.
8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
9. What Trade Terms are available?
No limitation for trade terms. EXW/FOB/CFR are all available.Moreover,we can send BMS via DHL&UPS&FEDEX quickly and easily.other shipping ways can also be negotiable and available.
10. Is your BMS easy and convenient to install&test?
This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.
11.What benefits do customers get?
Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
