24G mmWave FW Human Presence Radar Sensor Motion Module HLK LD1115H
- Category: >>>
- Supplier: Shenzhen Shinyo Technology Co. Ltd.
Share on (1600760469575):
Product Overview
Description
Products Description

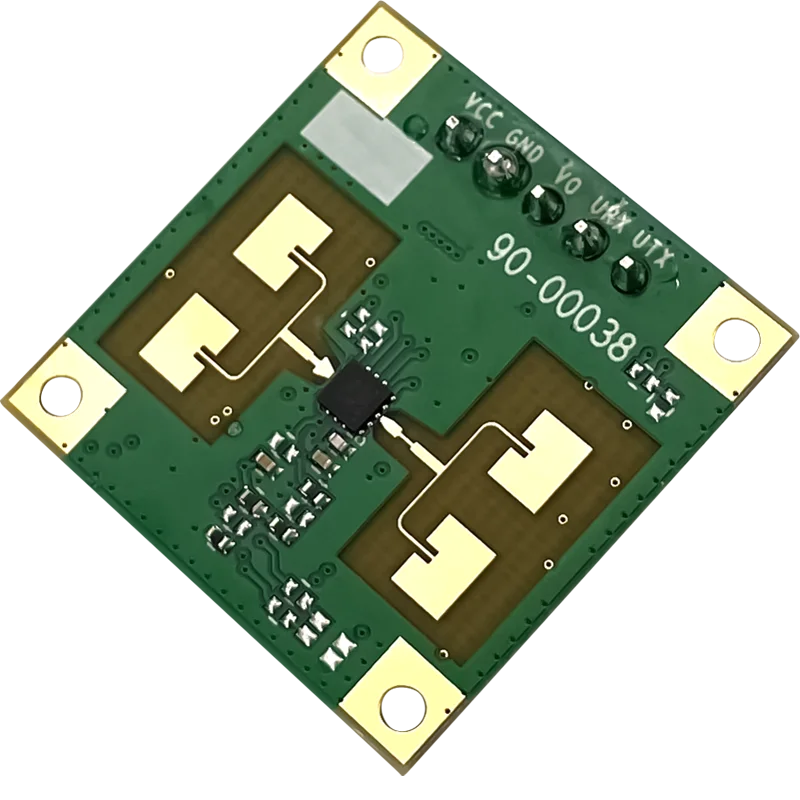

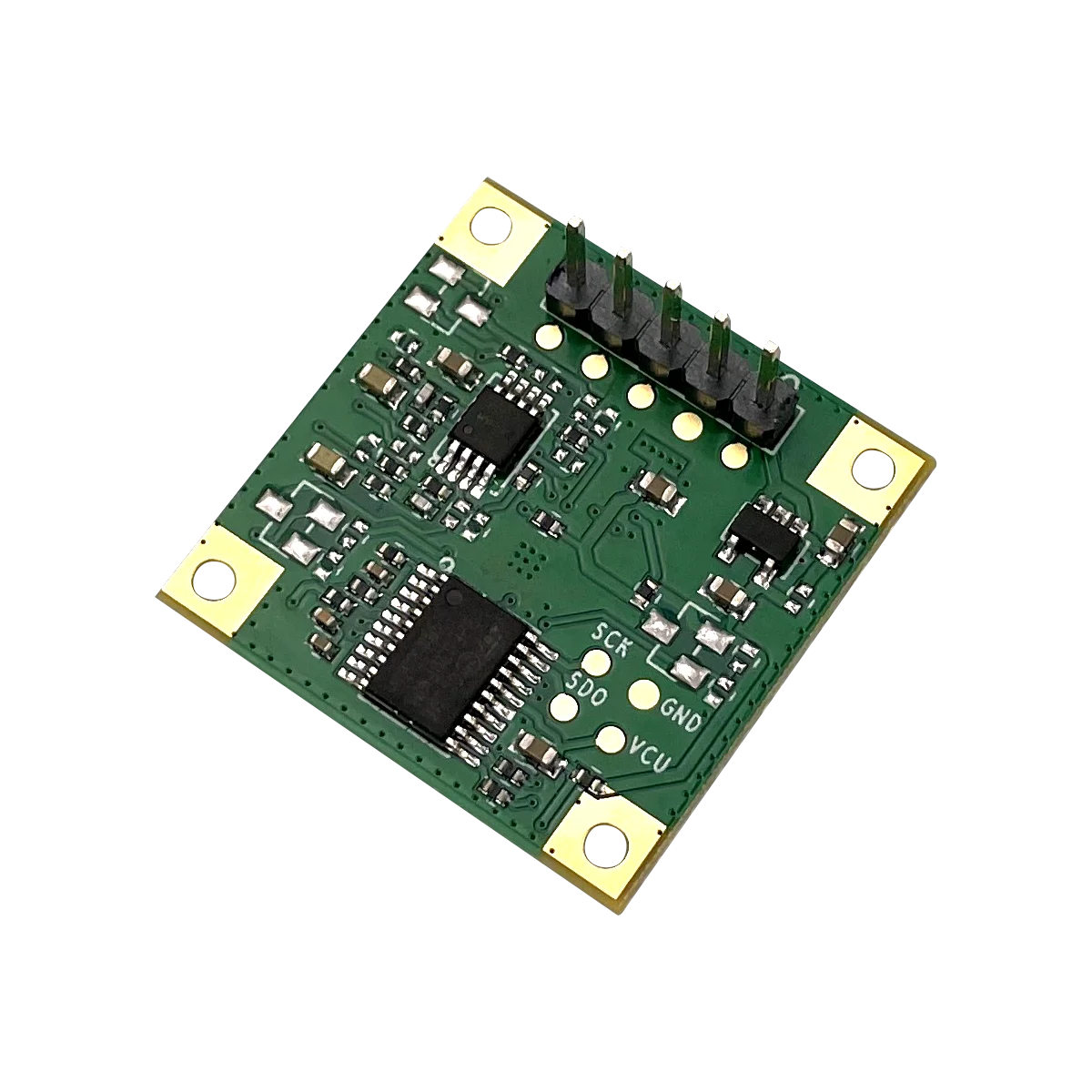

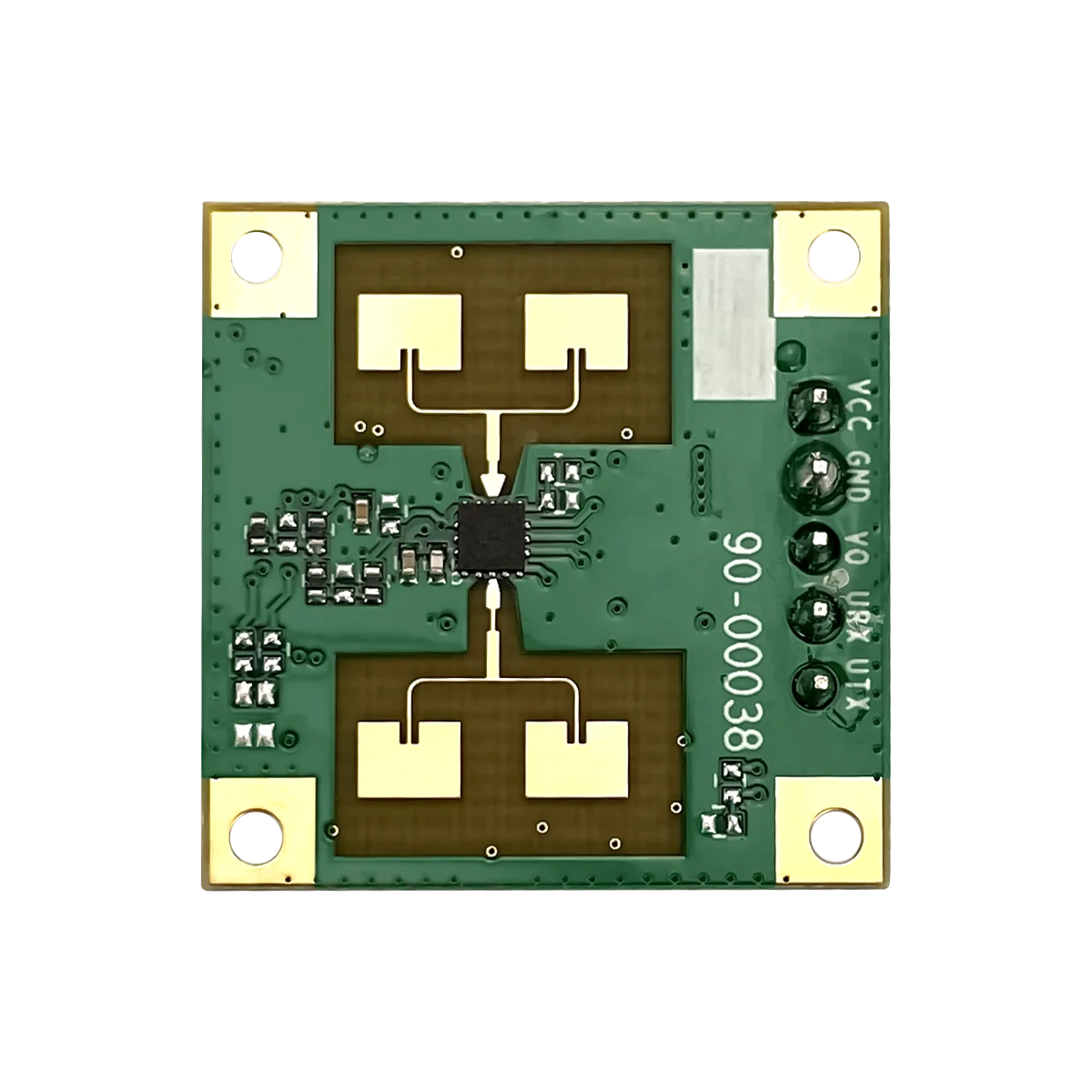

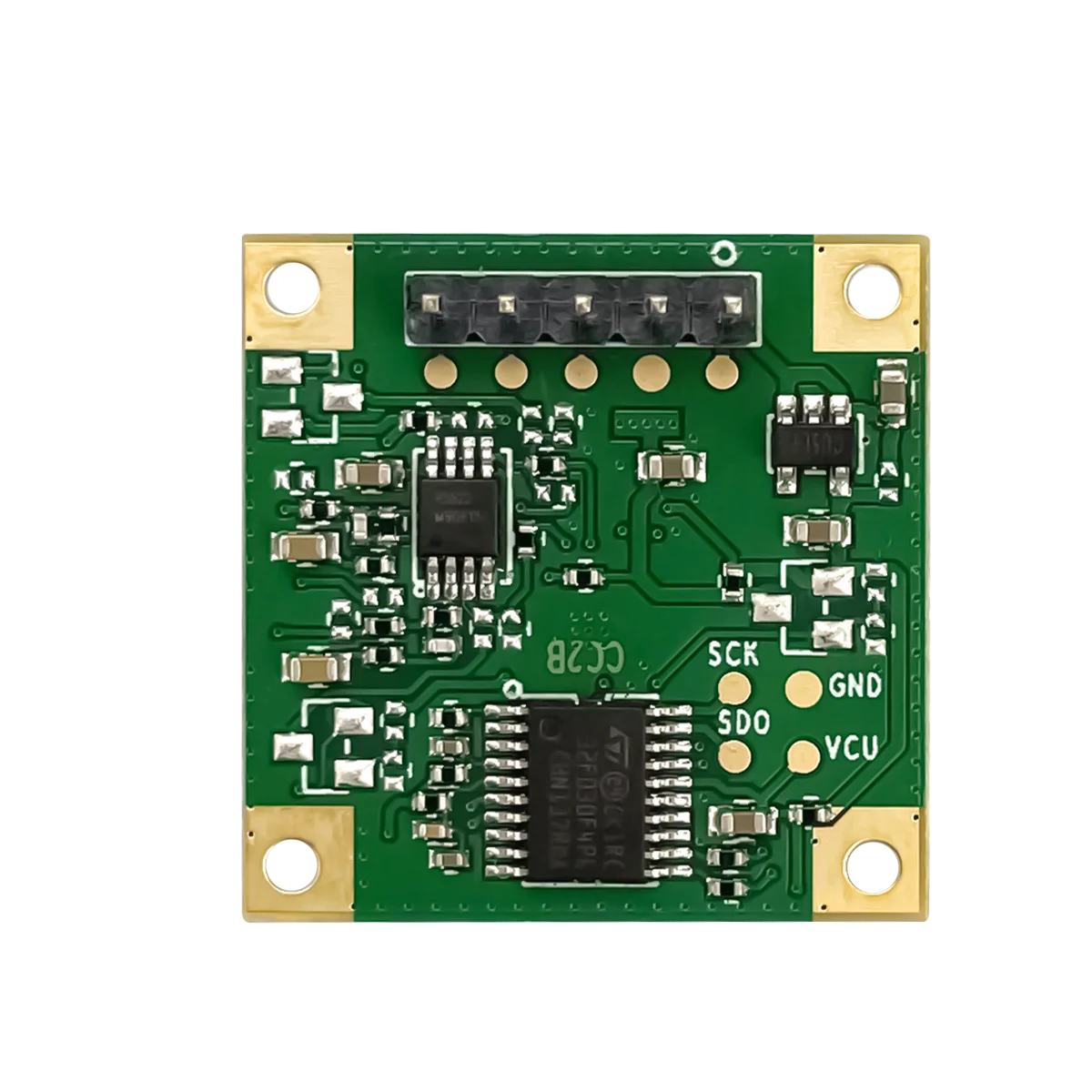

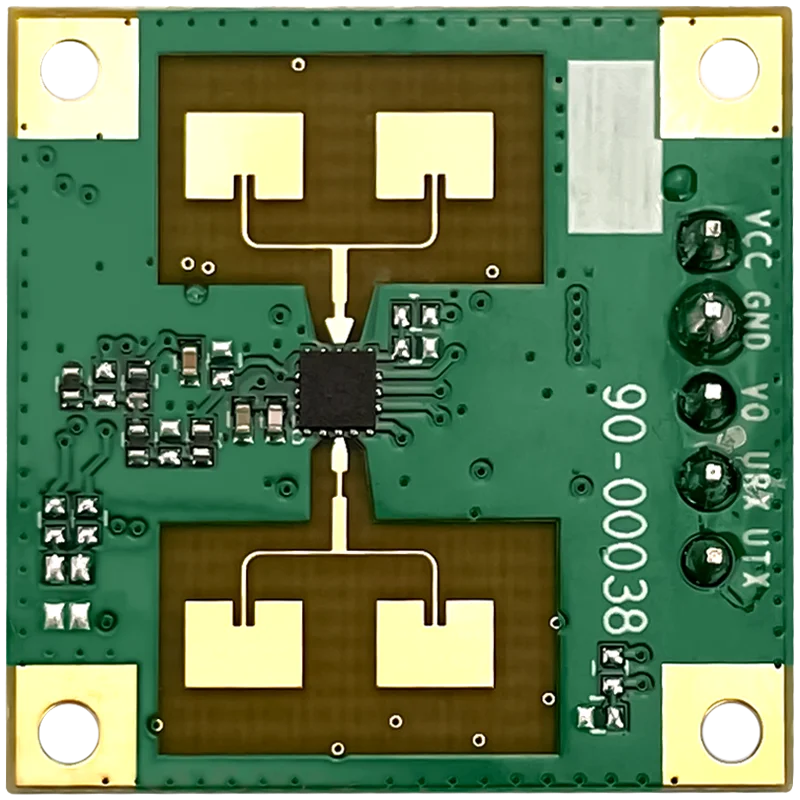

24G mmWave FW Human Presence Radar Sensor Motion Module HLK-LD1115H
Overview：
HLK-LD1115H is a high sensitivity 24GHz millimeter wave human presence detection radar module.Different from the traditional radar, which judges the existence of the human body by detecting the large-scale movements of the human body or the small-scale body movements, the main feature of this module is that on the basis of the functions of the traditional human-body induction radar, it also has the ability to detect and accumulate small-scale movements such as human respiration, to determine the function of the existence of the human body.Therefore, compared with traditional Doppler radar, it has presence detection within a certain range, with higher accuracy, and is not easy to miss reports.
Items | value |
Model Number | HLK-LD1115H-24G |
Usage | Position Sensor |
Theory | Inductance Sensor |
Output | Switching Transducer |
Output Type | |
Current - Supply | 70mA |
Sensing Range | 0.01-12m |
Transmit frequency | 24G |
Size / Dimension | 25*25mm |
Input voltage | 3.6-5V |
Output voltage | 3.3V |
Hanging height | 3m |
Start time | 15S |
FAQ
Are you manufacturer ? | Yes, we are manufacturer. | ||||||
How long is your delivery time? | Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable. | ||||||
If the products can't work after receiving it, what should I do? | We will replace new items for you at once and then we make the judgement for the issue. | ||||||
What is the warranty? | 1-3 months to replace new items for free. 1-2 years repairing free according to different products. | ||||||
Do you accept OEM design? | Yes, we do. We can design according to your requirement, MOQ usually 2-10. | ||||||
Do you accept pay 30% in advance? | Yes, we do. We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment. | ||||||
What payment terms you accept? | We accept Alibaba Trade Assuarce, T/T, PayPal, Western Union, Wechat, Alipay, in Cash (RMB or USD). | ||||||
