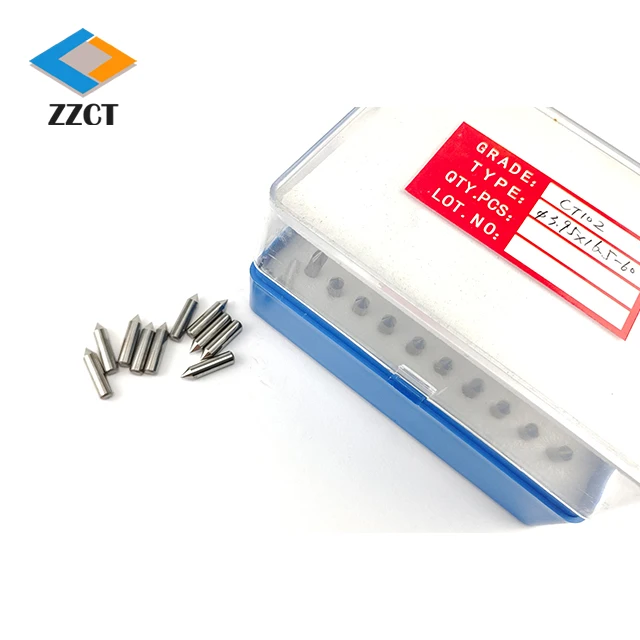

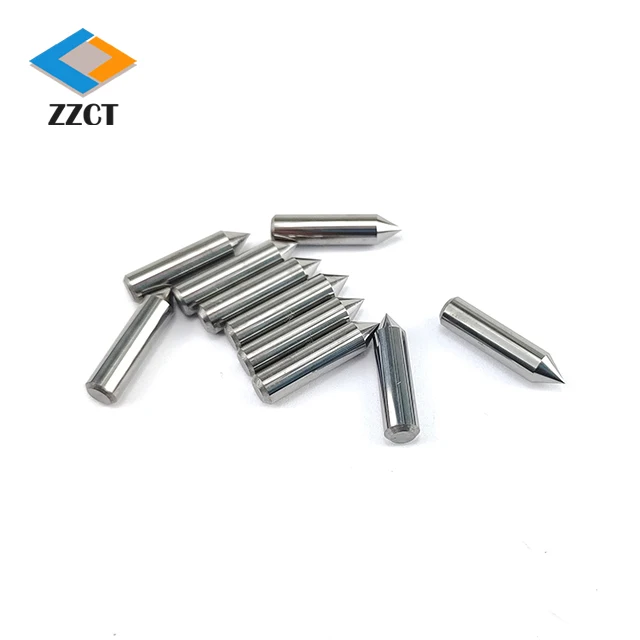

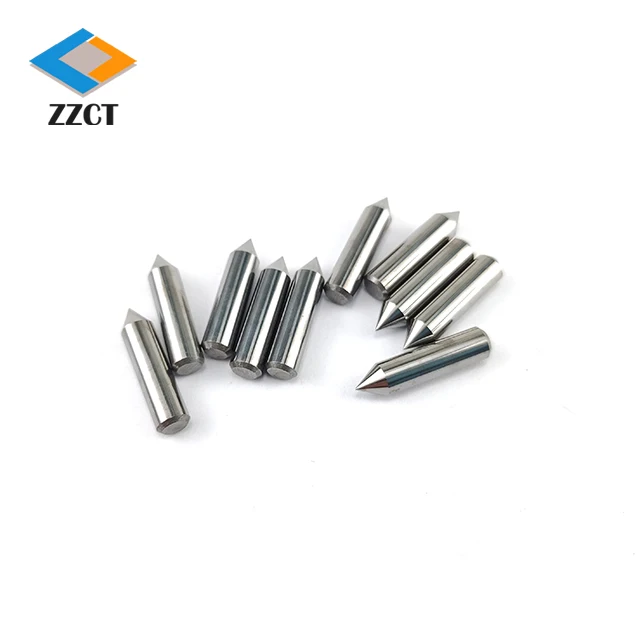

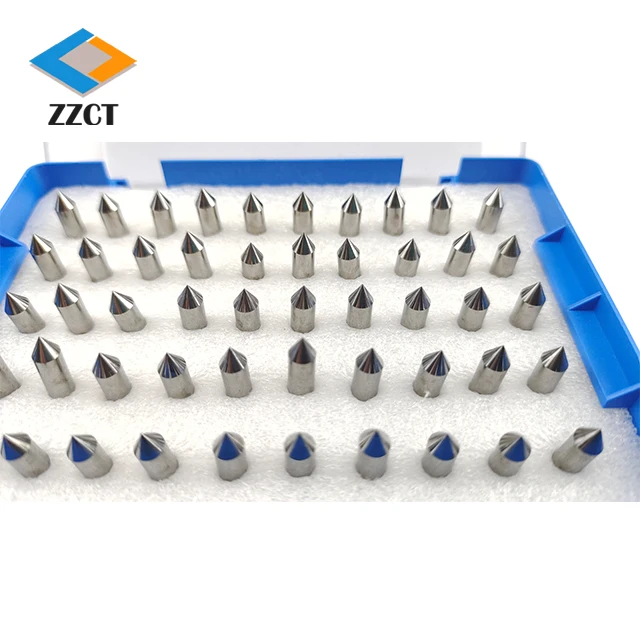

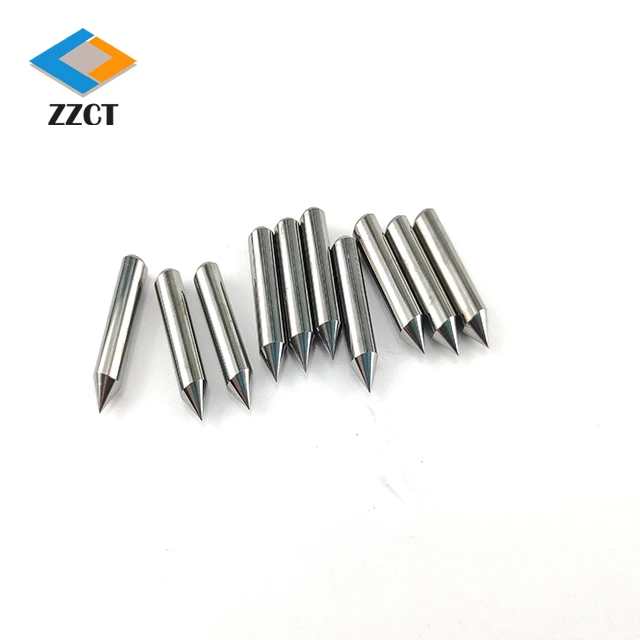

YG10X Tungsten Carbide Needles/Carbide Engraving Tip/YG8 Tungsten Carbide Solid Rod



Product Description





We offer different size carbide tips&pins depending on your needs.





The carbide tips&pins have wide applications:





1. As scriber tips, they are assembled on tool heads for engraving or scribing very hard items such as aluminum, brass, bronze, metal, steel, glass, ceramic, hardwood, plastic, concrete, etc.





2. As glass breaker, they're designed for breaking glass or hard surface when emergency.





3. As Bush Hammer carbide tips, they're mounted on an 11-inch or 9-inch plate, to be run under a concrete floor grinder. The tool is designed to break down difficult coatings, and leaves a textured surface to promoted bonding of future coatings or overlays.





What can Bush Hammers do?


a.Surface Prep for coatings


b.Quickly expose large aggregate


c.Remove hard coatings and overlays Ideal for use on exterior spaces and creating anti-slip surfaces. They also work great for removal of thin coatings when prepping the floor for epoxy application.





4. Sandwich device for making lathes and peripheral grinders





Specification













































Grade



Density


g/cm3



T.R.S


Mpa



Hardness


HRA



Grain Size µm






Performance&Application



Equal to


to ISO



YG6X



 14.95



2600



92.0



1.0



For making all kinds of carbide rotary cutting tools which are


used in cast iron, hot resistant alloy steel, non-ferrous metal


and nonmetal. At the same time it can be used for wear


resistant parts.



K10



YG8



14.80



2800



90.0



1.2



For making carbide wear resistant parts, rods and molds,


meanwhile it can be used for semifinishing and finishing


cutting tool at low speed for cast iron, nonferrous metal,


nonmetal material.



K20-K30



YL10.2



14.50



4000



 92



0.6



It is suitable for indexable tool with  submicro gain size


with wide application. Used for processing of stainless steel,


hot resistance steel, Cr, Ti, Ni alloy, synthetic material, non


metal material , alloy steel even woods.



K20-K30

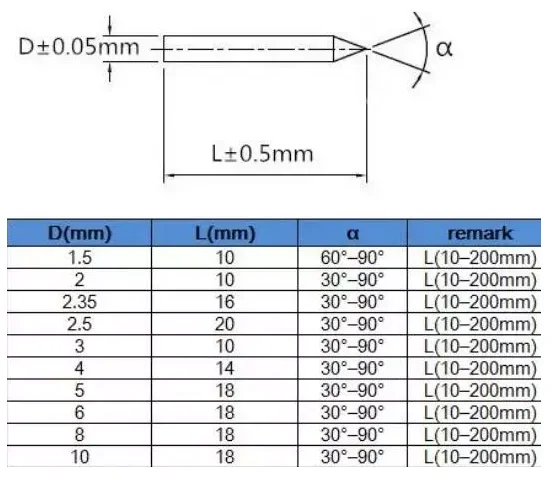

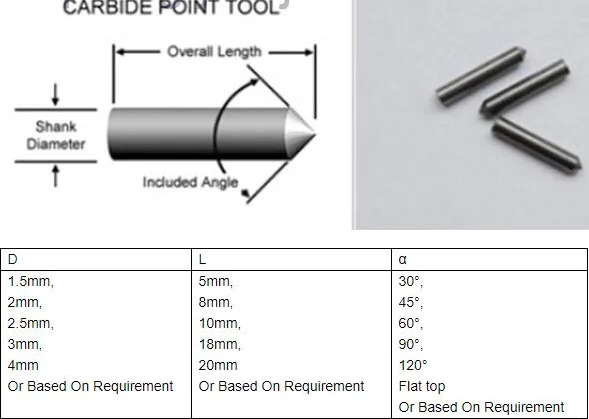

Tungsten Carbide Bush Hammer Pin Needle Tips for Litchi Surface and Safety Hammer


.png


 Tungsten Carbide Bush Hammer Pin Needle Tips for Litchi Surface and Safety Hammer

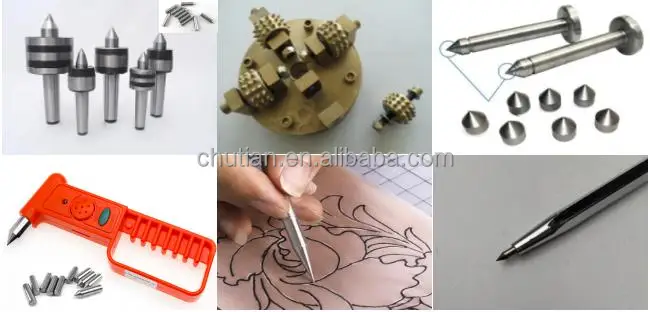

Application










Packaging & Shipping


Yg6 Tungsten Carbide Bush Hammer Pin Needle Tips for Litchi Surface and Safety Hammer

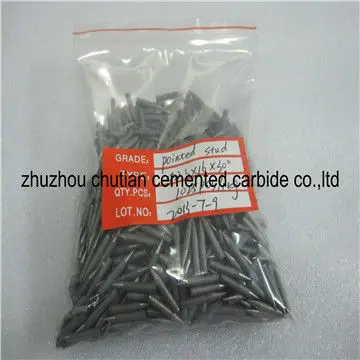

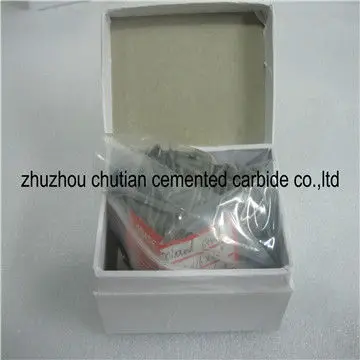

details packing photos:


   038.jpg 040.jpg 039.jpg 667.jpg



Company Information


Zhuzhou Chutian Cemented Carbide Co., Ltd. is a high-tech enterprise of cemented carbide products. We were founded in May 2005. We offer our customers high-quality cemented carbide products and technical service. We produce not only cemented carbides and carbide strips & plates, disc cutters, CNC inserts, carbide rods, cold heading dies, milling tools, micrometer calipers, alloy crushing grains, non-magnetic alloy, heavy alloy(fishing sinker), chromium carbides, casting tungsten carbide grains, welding rods and others, but also high-precision tungsten carbides and inspection facilities, integrating development, manufacture and sale. Taking a broad view to the new fields in the world, our products refer to the different fields such as mould, mining, machinery, oil and IT industry. We are the first one-stop supplier of carbide materials and wear-resistant materials in China. We stick to our tenet of "new, characteristic, and reliable" and insist on our motto of "the way of characteristics and top quality". We integrate the resources to meet the needs of customers' individual orders.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

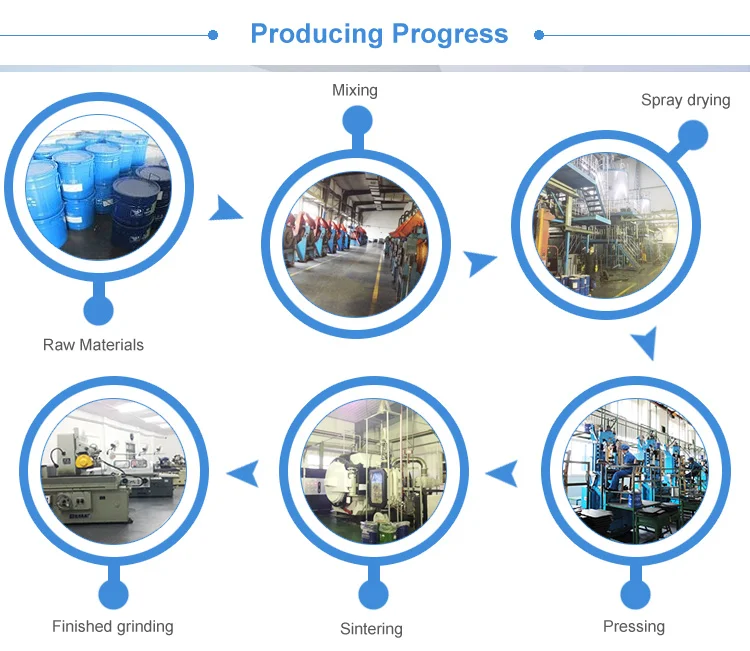

Produce Progress.jpgTesting Equipment.jpg
