Best Product For Home Appliances 2022 solar flat panek water heater 100l 200l 300l hotel school
- Category: >>>
- Supplier: Haining Meisheng New Energy Co. Ltd.
Share on (1600760492899):
Product Overview
Description
Products Description
Type | Heat pipe collector | ||||||
Manifold (interior) | Red copper | ||||||
Manifold (exterior) | Aluminum alloy | ||||||
Tube Material | Super conducted heat pipe | ||||||
Vacuum Tube Size(mm) | 58/1800 (diameter/length) | ||||||
Tube Number | 9/10/12/15/18/20/24/30/32/36/40 | ||||||
Frames (Stand Parts) | Galvanized plate, Stainless steel or Aluminum alloy | ||||||
Insulation Layer | High quality polyurethane foam made by advanced high pressure foam machine | ||||||
Heat pipe | Anti-freezing > -35℃ | ||||||
Max pressure | 12 bar | ||||||

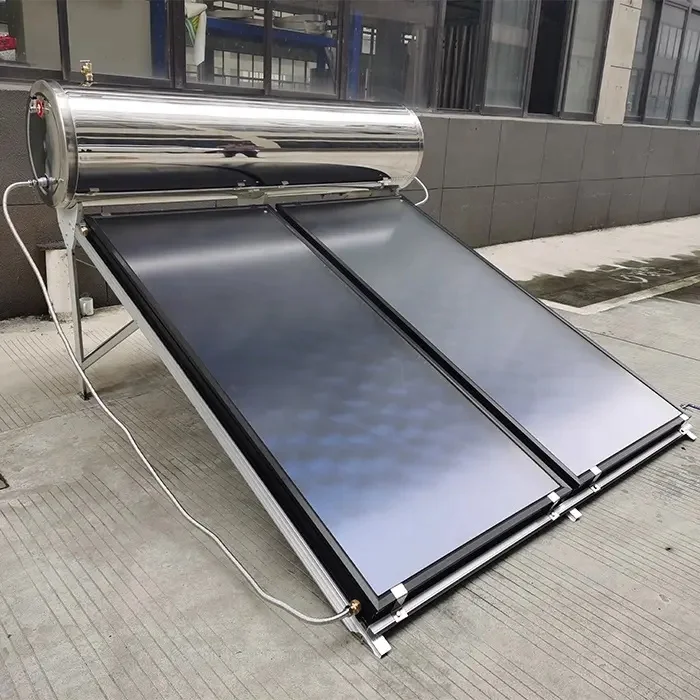

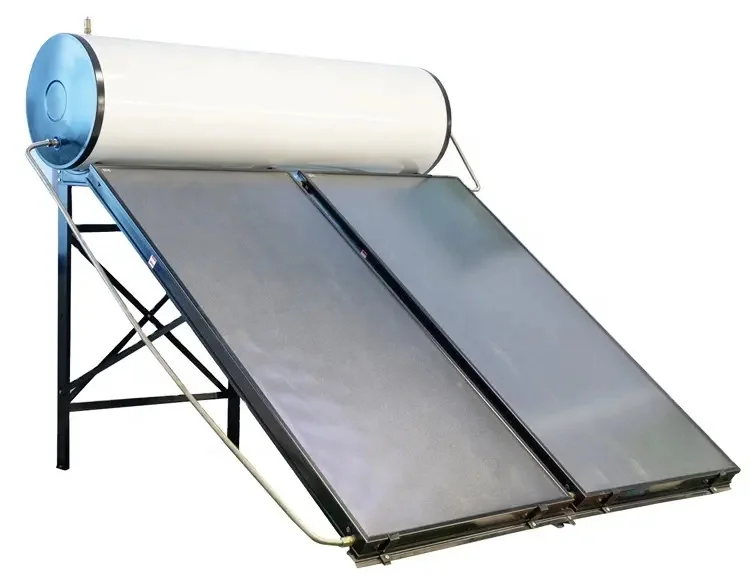

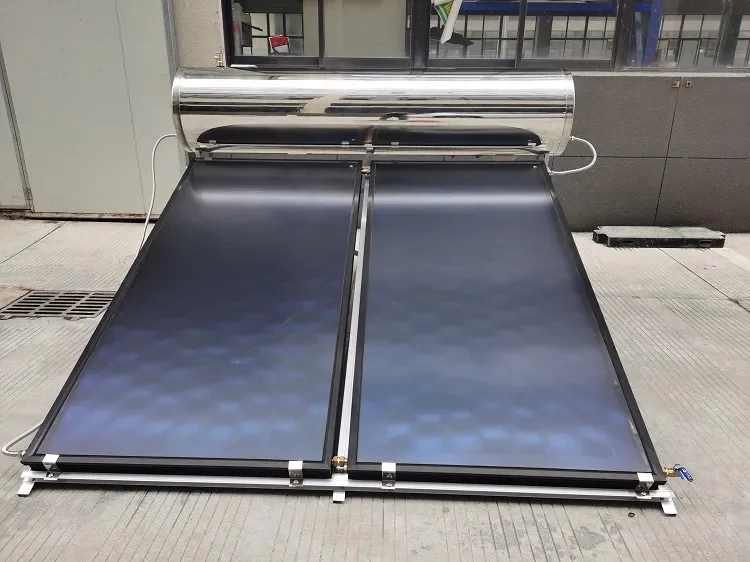

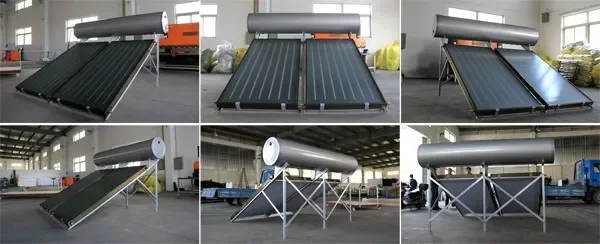

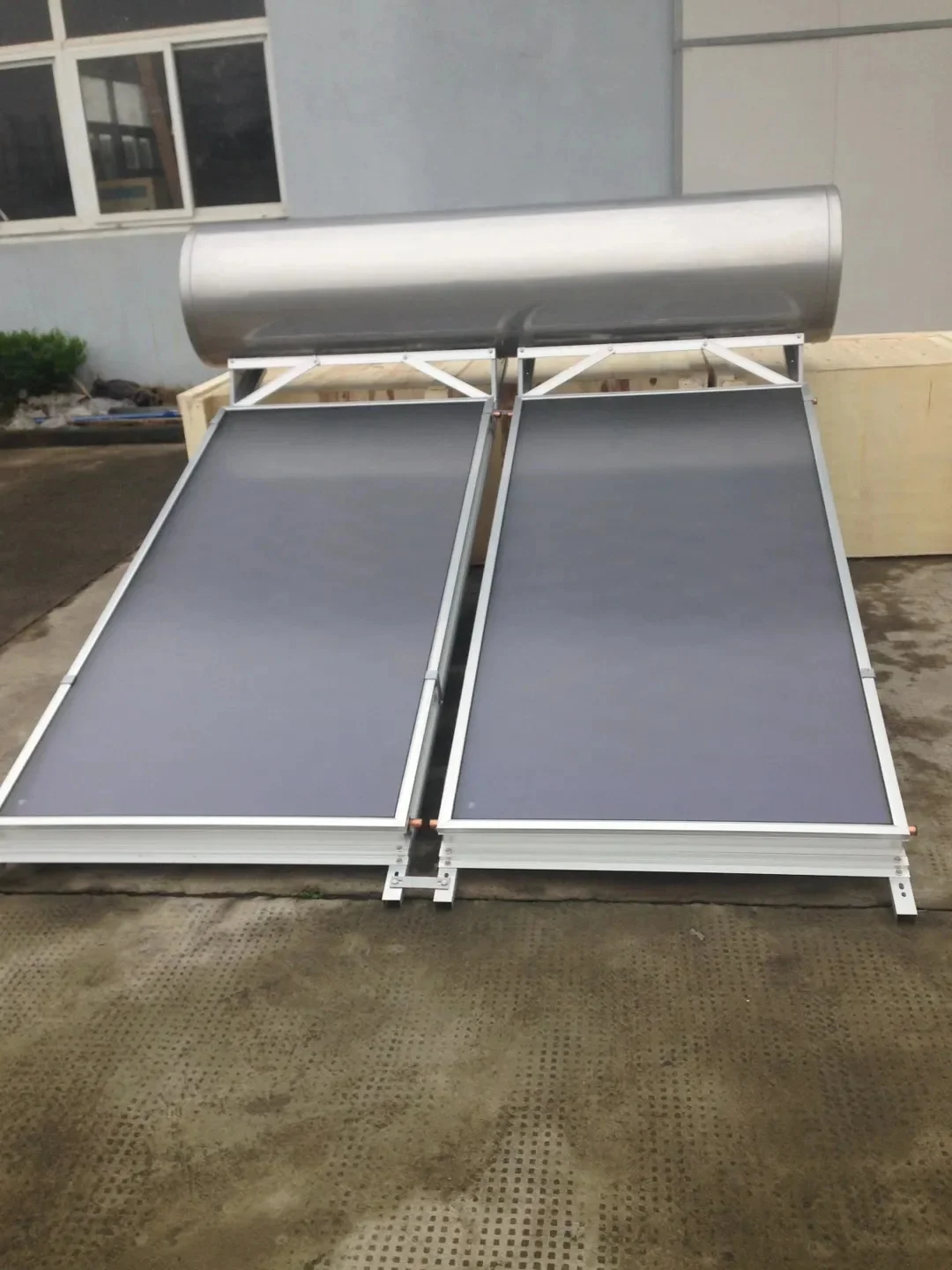

1. Pressurized solar water heater product show
2.Features and advantages
Flat Plate Solar Water Heater Features:1.Using patent advanced coating technology with high efficiency performance.
2.High strength aluminium-alloy structure with surface varnish baking
3.High visual shape ,easy installation ,maintenance free
4.Can be combined with existing energy source
Advantage:
1.12 years sale experience
2.Certificate:CE,ISO9001-2008,SRCC,Solar keymark,SGS,CCC
3.Life span:Approximate to 15 years
4.We can customize according to customers' requirement
5.Warranty time :5 years
Advantages of no welding:
Welding is a damage to stainless steel. We wrap the cover on the main inner tank, there is no welding, so there is no leaking.
3.Specifications of Non-welding Pressure Flat Plate Solar Water Heater
Description | Flat plate pressure solar water heater | ||||||||||||
Material of inner tank | Food grade SUS 304 stainless steel, 0.4mm (Diameter:360mm) | ||||||||||||
Material of outer tank | Galvanized, 0.4mm (Diameter:460mm) | ||||||||||||
Tank insulating layer | 50mm high-density polyurethane foamed | ||||||||||||

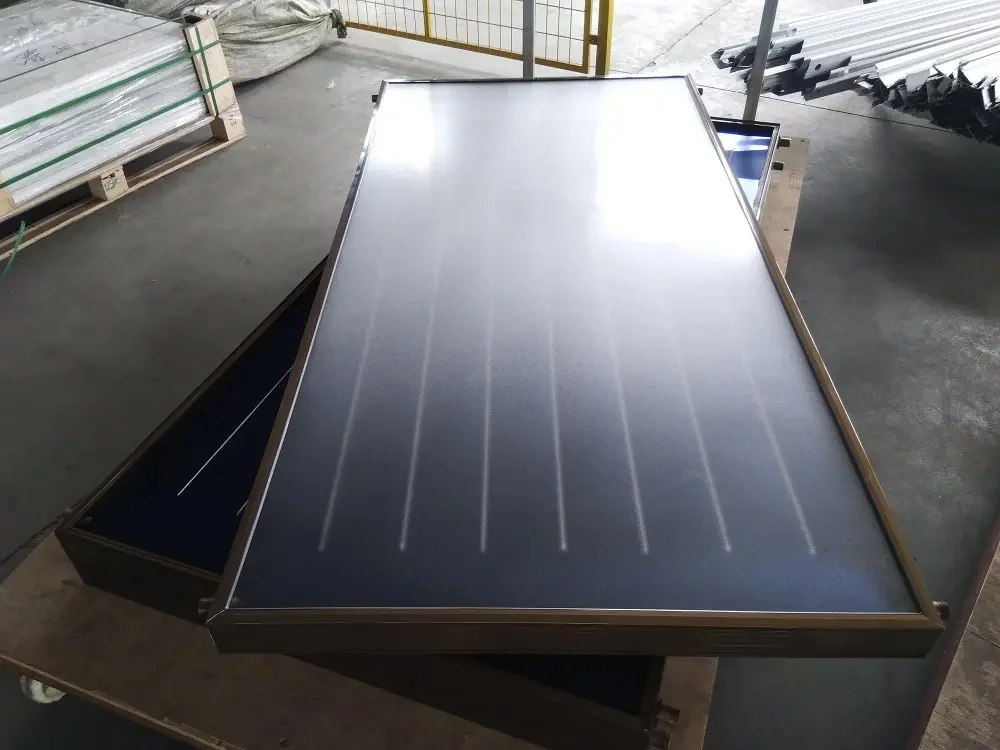

Flat-plate collector | solar collector(Black chrome,2000*1000*80mm) | ||||||||||||
Bracket | Stronger galvanized steel sheet (25°, 30°, 35°, 45°, 50°) | ||||||||||||
Fastening pieces | Stainless steel screws & nuts | ||||||||||||
Heat preservation | 72 hours | ||||||||||||
Certification | passed CE/ISO9001/CCC | ||||||||||||
Capacity/L | 100(1 pc) 150(1 pc) 200(2pcs) 250(2 pcs) 300(3pcs) | ||||||||||||

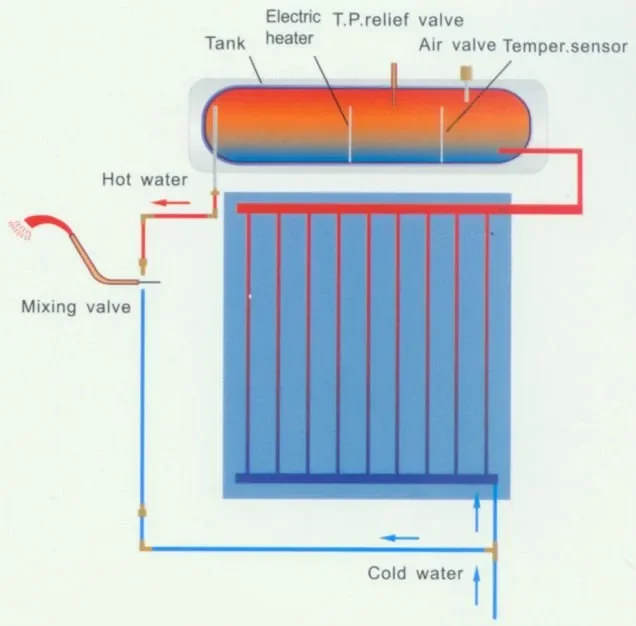

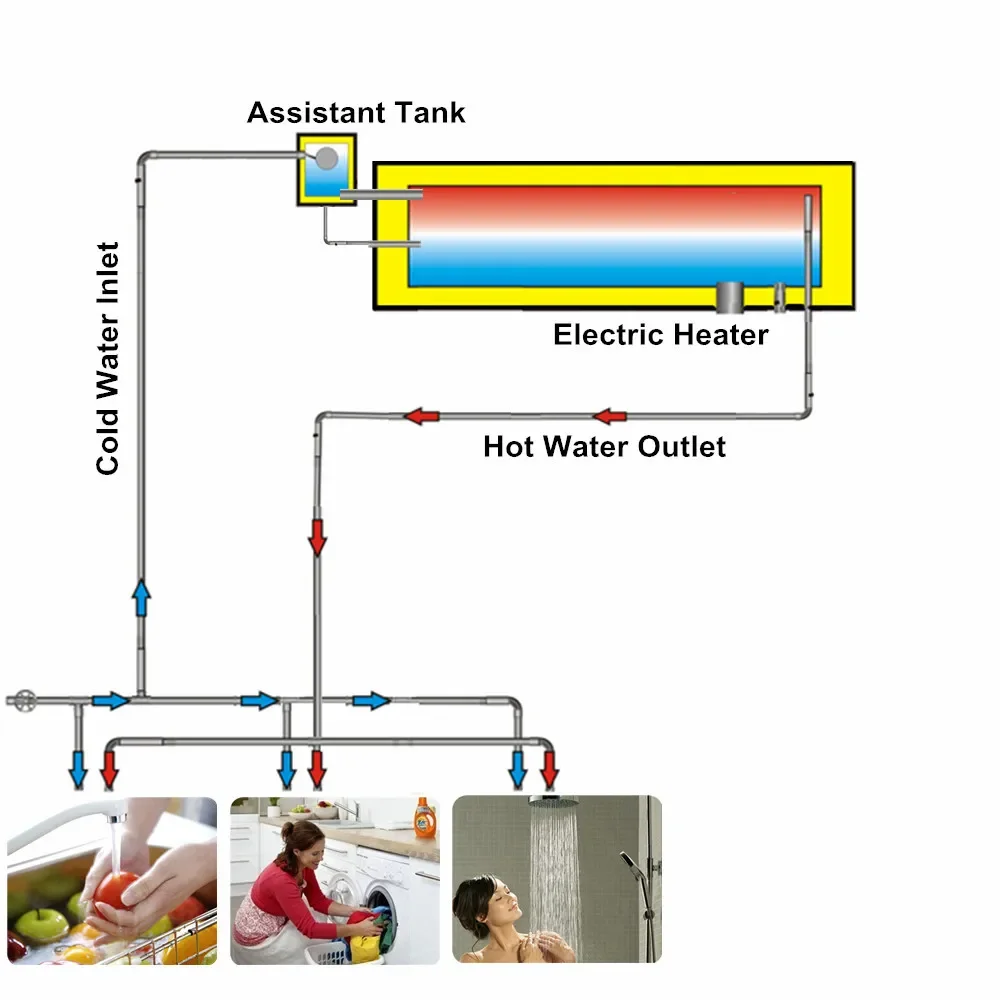

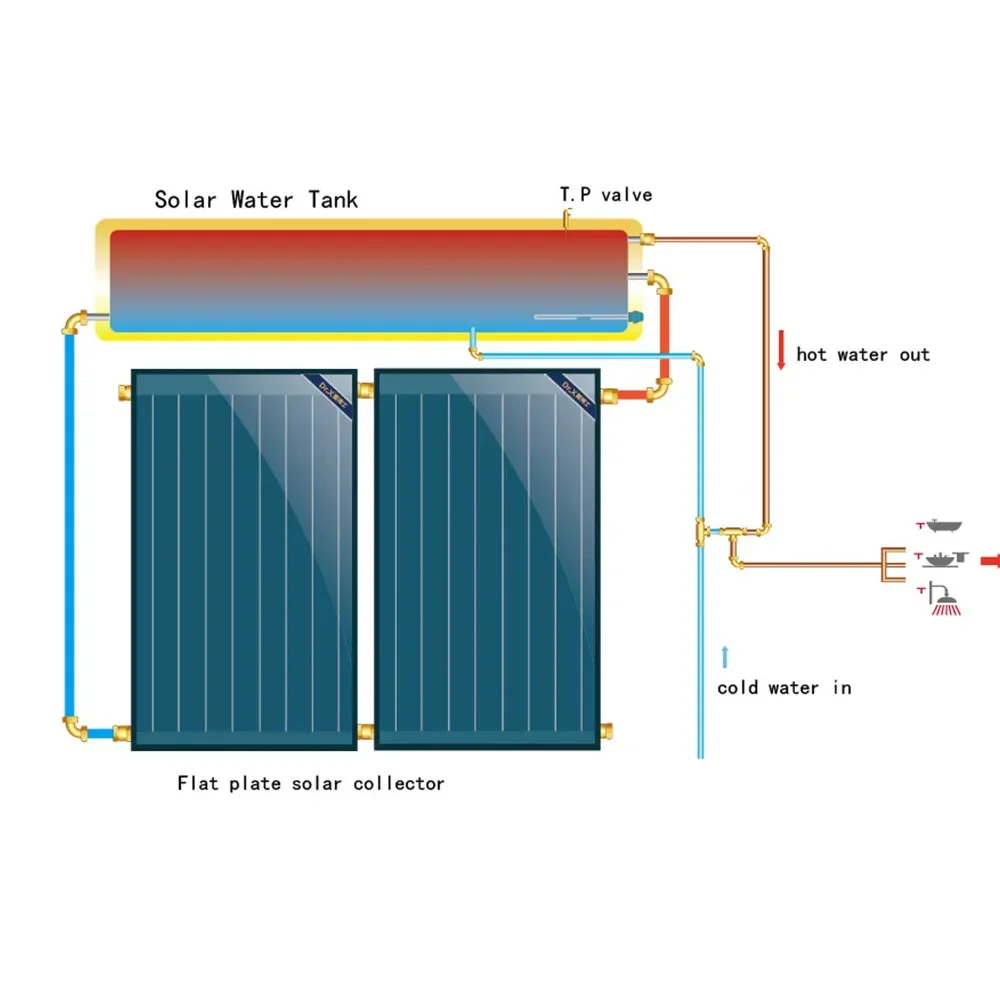

Principle

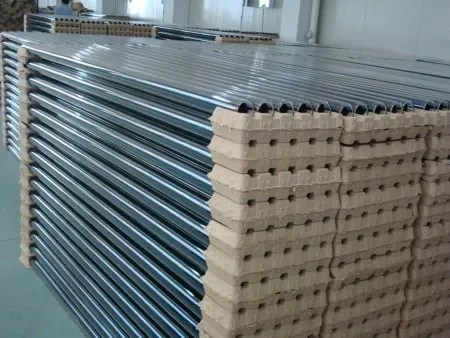

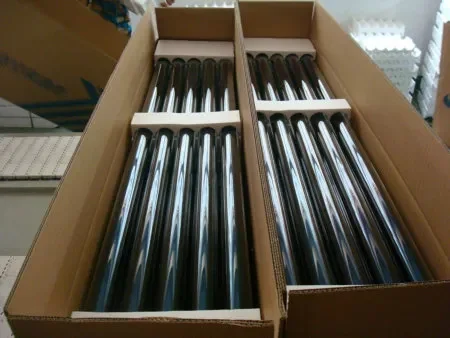

Product packaging
Company Profile
Zhejiang Mysun new energy Co., Ltd is the leading solar water heater and solar thermal equipment manufacturer in China, provide
high-quality solar water heaters, production lines and related accessories. Our company has a number of highly qualified technical
persons, internationally advanced testing equipment and the first-class production equipment and technology and operates a perfect
after-sales service system. our products are exported to overseas countries and regions such as Mexico, USA, Turkey, Australia,
Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc.over
50 countries, and have found favor in the eyes of customers. We also provide design-system or customized products which is
suitable for customers local market. If you are interested in our products, please do not hesitate to contact us with more
information. We are looking forward to cooperating with you!
high-quality solar water heaters, production lines and related accessories. Our company has a number of highly qualified technical
persons, internationally advanced testing equipment and the first-class production equipment and technology and operates a perfect
after-sales service system. our products are exported to overseas countries and regions such as Mexico, USA, Turkey, Australia,
Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc.over
50 countries, and have found favor in the eyes of customers. We also provide design-system or customized products which is
suitable for customers local market. If you are interested in our products, please do not hesitate to contact us with more
information. We are looking forward to cooperating with you!
Why Choose Us
1.Zhejiang Handa new energy Co., Ltd Have top engineers and technicians in the industry can providing invaluable product design
experience. We make solar manufacturing equipment for solar production line raw materials if needed. 2.Competitive price 3.Focus
on High Quality, reliable manufacturing products 4.We have many stable and cooperative foreign companies, understand foreign
markets and characteristics 5.We listen to our customers, and constantly work to provide better and better products and services
that we are suited to local climates and market. 6.We provide design-system or customized products which is suitable for customers
local market. 7.Commitment to fair labor practices, career advancement and open communication throughout the company
experience. We make solar manufacturing equipment for solar production line raw materials if needed. 2.Competitive price 3.Focus
on High Quality, reliable manufacturing products 4.We have many stable and cooperative foreign companies, understand foreign
markets and characteristics 5.We listen to our customers, and constantly work to provide better and better products and services
that we are suited to local climates and market. 6.We provide design-system or customized products which is suitable for customers
local market. 7.Commitment to fair labor practices, career advancement and open communication throughout the company
