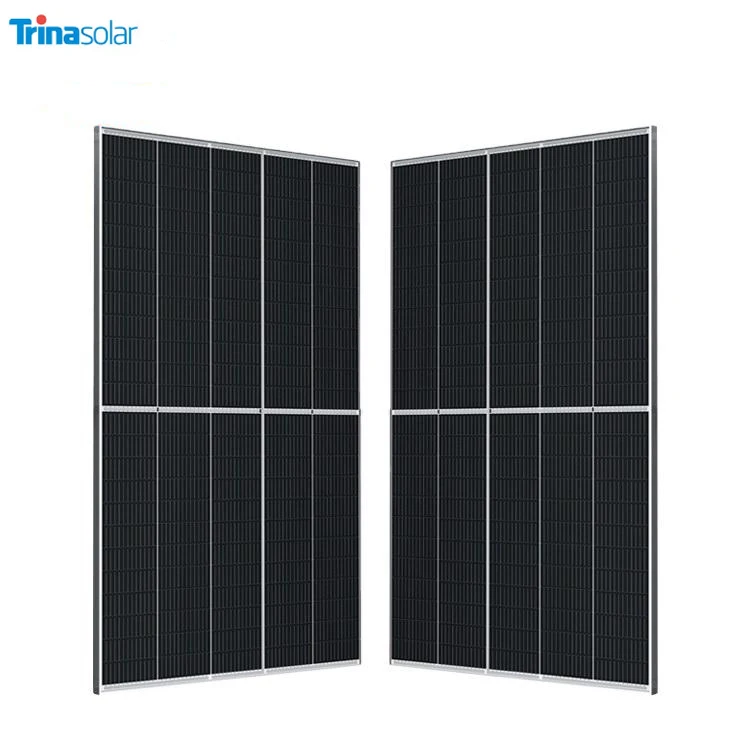

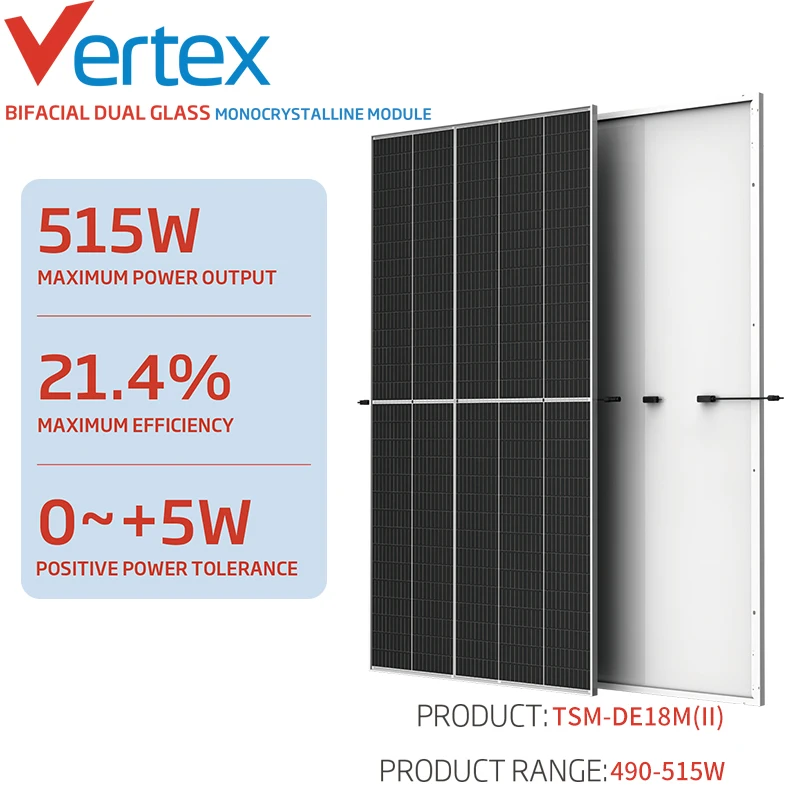

Trina TSM DE18M(II) 485W 490W 495W 500W 505W 510W 515W with Multi busbar technology PV solar system panels
- Category: >>>
- Supplier: Shenzhen Yifang Technology Co. Limited
Share on (1600760522671):
Product Overview
Description
Specification

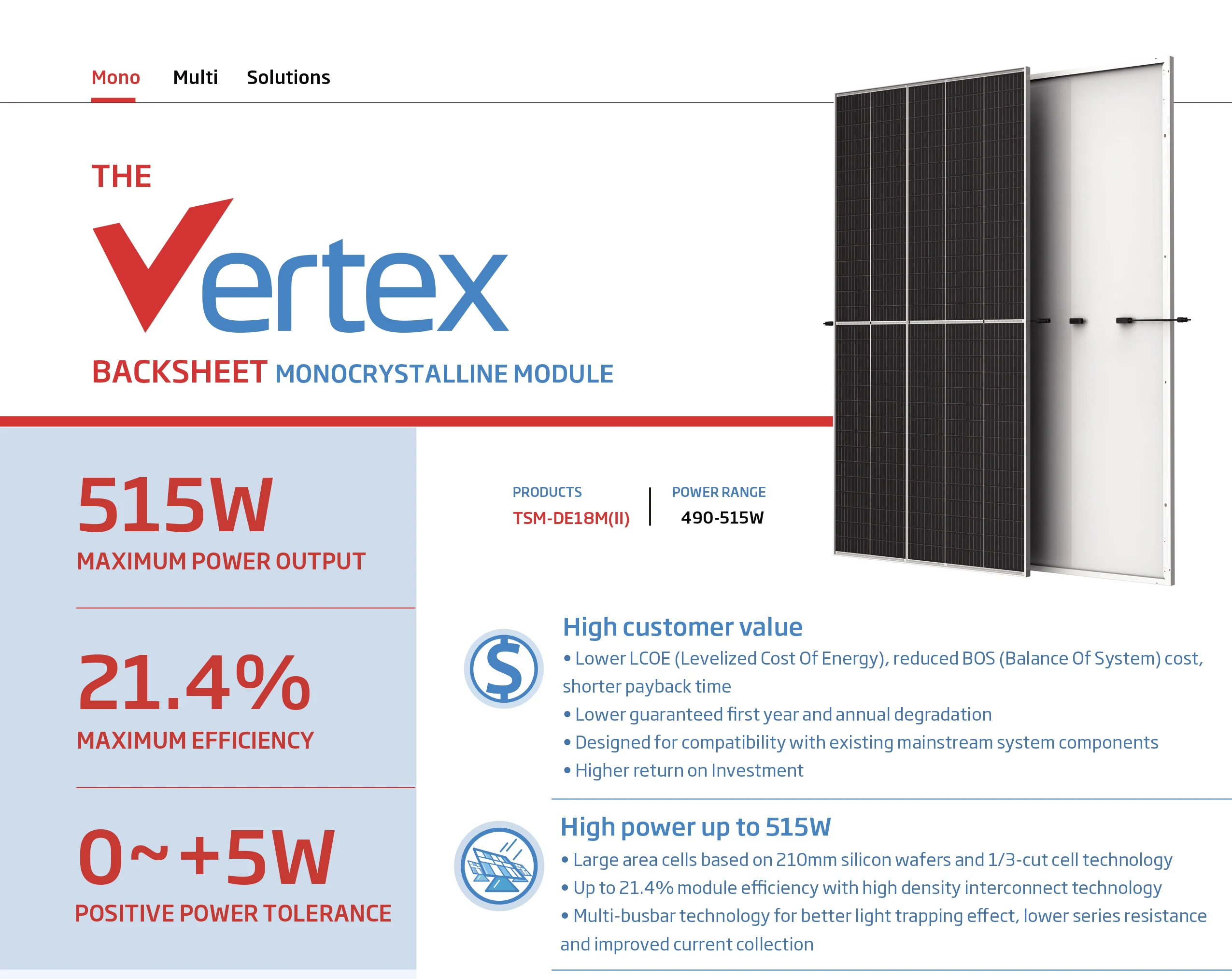

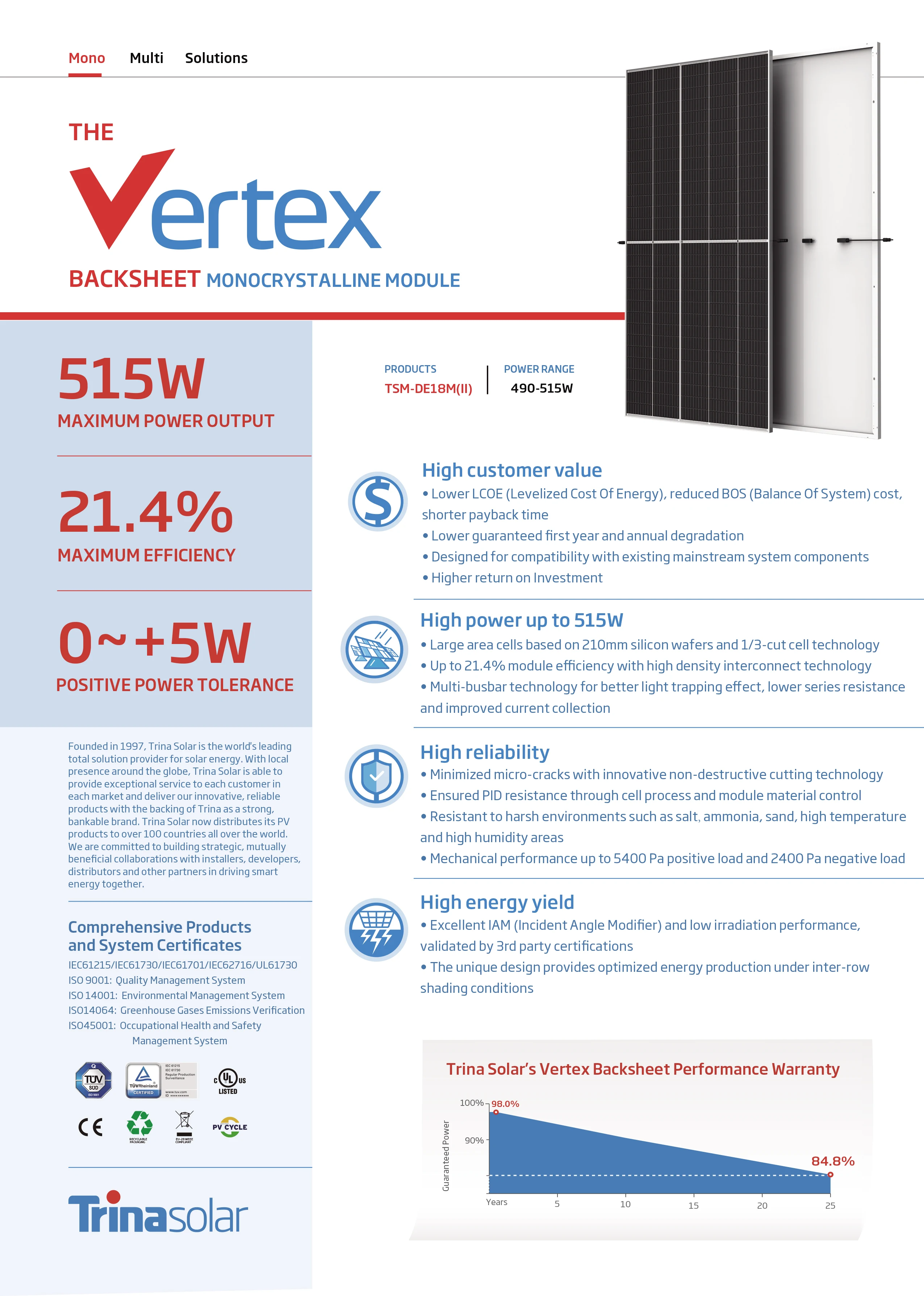

High customer value：
• Lower LCOE (Levelized Cost of Energy), reduced BOS (Balance of System) cost, shorter payback time
• Lowest guaranteed first year and annual degradation;
• Designed for compatibility with existing mainstream system components
• Higher return on Investment
High power up to 515W:

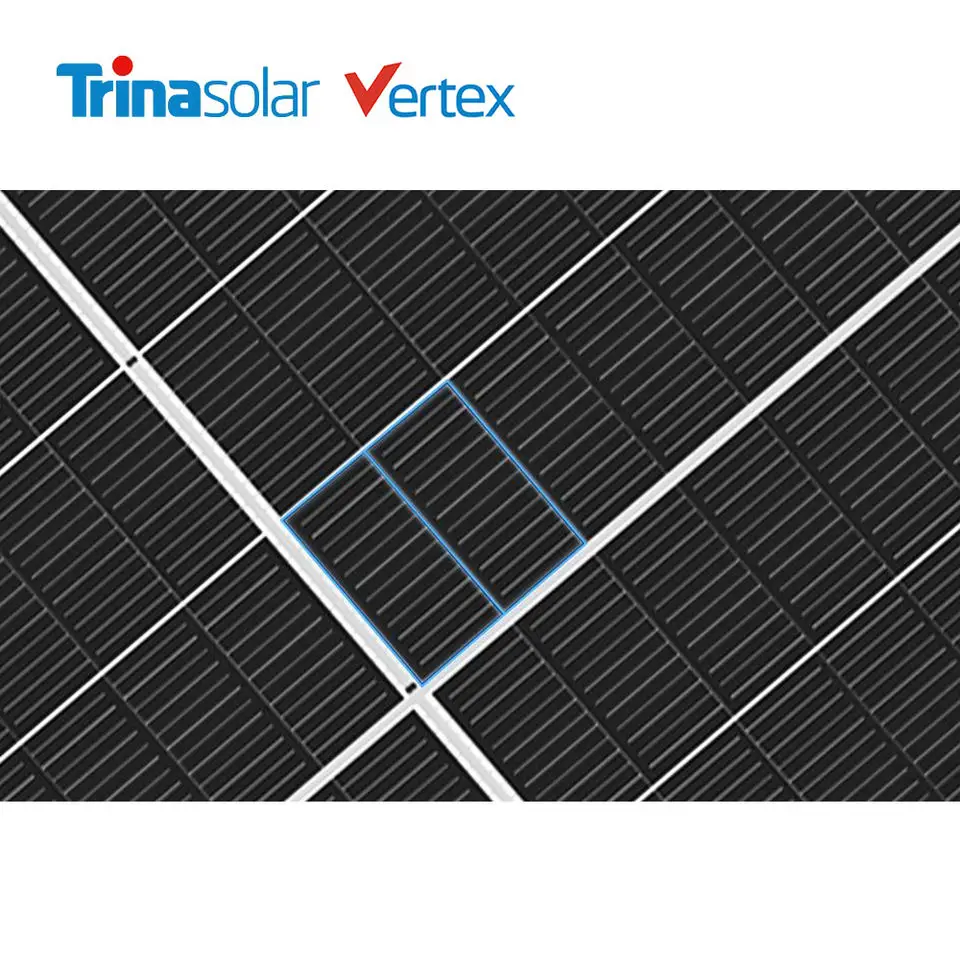

• Large area cells based on 210mm silicon wafers and 1/3-cut cell technology
• Up to 21.4% module eciency with high density interconnect technology
• Multi-busbar technology for better light trapping eect, lower series resistance and improved current collection

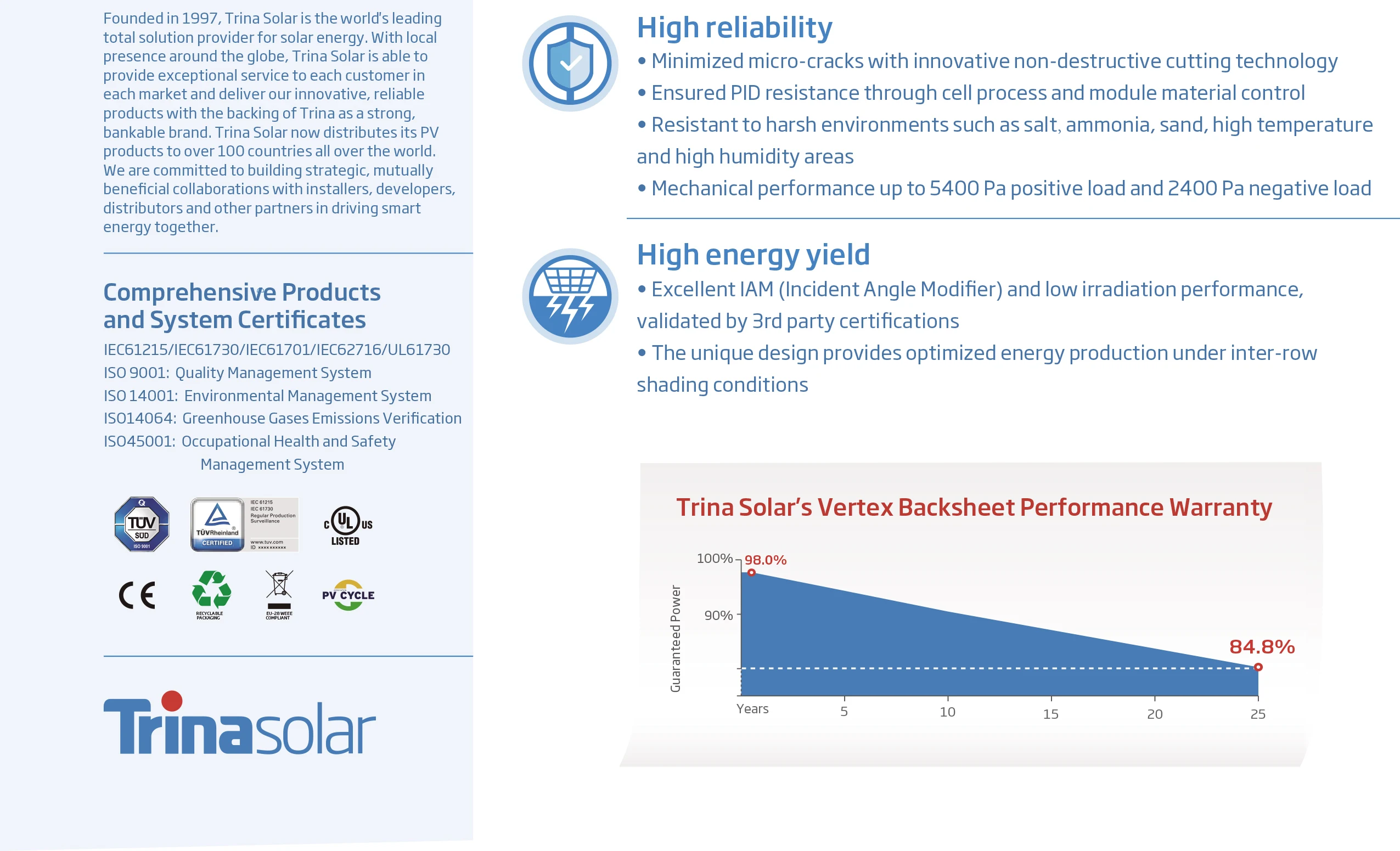

High reliability
• Minimized micro-cracks with innovative non-destructive cutting technology
•Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt, ammonia,sand, high temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
High energy yield:
• Excellent IAM (Incident Angle Modier) and low irradiation performance, validated by 3rd party certifications
• The unique design provides optimized energy production under inter-row shading conditions
Mechanical Data | ||
Solar Cells | Monocrystalline | |
No. of cells | 150 cells | |

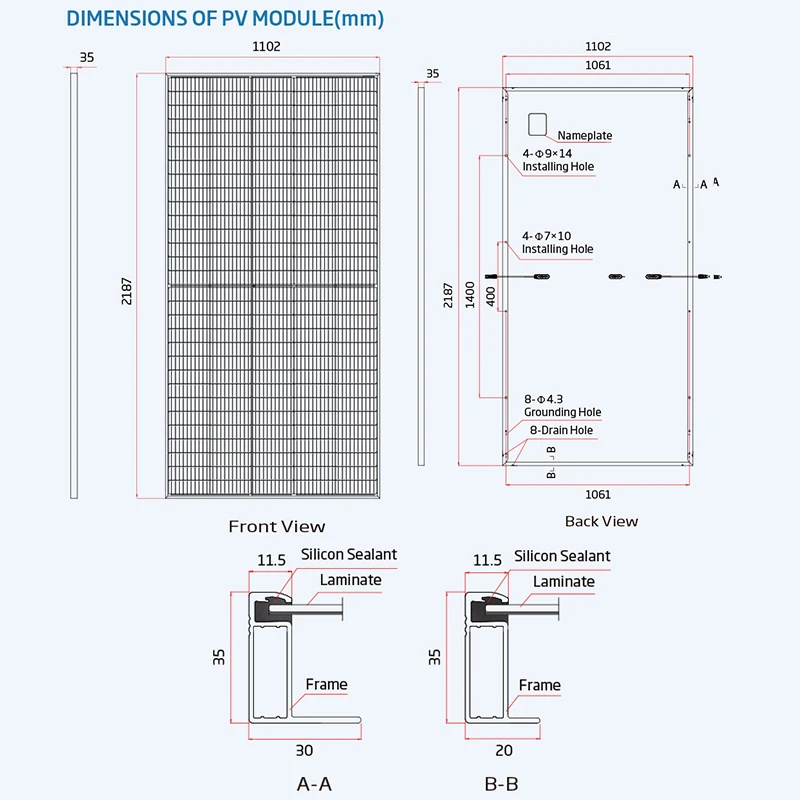

Module Dimensions | 2187×1102×35 mm | |
Weight | 26.3kg | |
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass | |
Encapsulant material | EVA/POE | |
Backsheet | White | |
Frame | 35mm(1.38 inches) Anodized Aluminium Alloy | |
Junction Box | IP68 rated | |
Cable | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),Portrait: 280/280 mm(11.02/11.02 inches) Landscape: 1400/1400 mm(55.12/55.12 inches) | |
Connector | MC4 EVO2 / TS4* | |
PACKING CONFIGURATION | ||
Module per pallet | 31pcs/pallet | |
Module per 40'HQ container | 620pcs/40hq | |
ELECTRICAL DATA (STC) | ||||||||||||
Peak Power Watts-PMAX (Wp) | 490W | 495W | 500W | 505W | 510W | 515W | ||||||
Maximum Power Voltage-VMPP (V) | 42.4 | 42.6 | 42.8 | 43 | 43.2 | 43.4 | ||||||
Maximum Power Current-IMPP (A) | 11.56 | 11.63 | 11.69 | 11.75 | 11.81 | 11.87 | ||||||
51.3Open Circuit Voltage-VOC (V) | 51.3 | 51.5 | 51.7 | 51.9 | 52.1 | 52.3 | ||||||
Short Circuit Current-ISC (A) | 12.14 | 12.21 | 12.28 | 12.35 | 12.42 | 12.49 | ||||||
Module Efficiency(%) | 20.3 | 20.5 | 20.7 | 21 | 21.2 | 21.4 | ||||||
Product Description
Why Choose Us
Company Profile
Shenzhen Yifang Technology Co., Limited ,founded in 2012, is professional company specialized in energy-saving and new energy emergency power industry.such as Portable Solar Generators, Portable Solar Energy, Lithium Battery, and other related battery products.
The company now has 2000 square metes of modern production base in Dongguan City,Which provides one-stop service from design, research, molding, production, assemble, testing and products solution from battery cell to finished products whole complete OEM&OEM.
All products have passed CE, FCC, RoHS,PSE certification to satisfy customer's requirements. With continuous innovation and rapid response, Yifang Technology has established the strategic alliance for the technology and market, and got into new markets.
The R&D team has accumulated near 20 years experience in lithium battery and BMS(Battery Management System) tech,who wanted to prove that lithium battery is better than lead acid battery in portable Power areas.
Our company regards customer demand as the guidance.We are looking forward to establishing long-term relationships with worldwide customers .
The company now has 2000 square metes of modern production base in Dongguan City,Which provides one-stop service from design, research, molding, production, assemble, testing and products solution from battery cell to finished products whole complete OEM&OEM.
All products have passed CE, FCC, RoHS,PSE certification to satisfy customer's requirements. With continuous innovation and rapid response, Yifang Technology has established the strategic alliance for the technology and market, and got into new markets.
The R&D team has accumulated near 20 years experience in lithium battery and BMS(Battery Management System) tech,who wanted to prove that lithium battery is better than lead acid battery in portable Power areas.
Our company regards customer demand as the guidance.We are looking forward to establishing long-term relationships with worldwide customers .
