BST106 B66 Cheap Factory Price LED Ration Weight Packaging Indicator, Packing Scales Controller
- Category: >>>
- Supplier: Hangzhou Tuoheng Weighing Instrument Co. Ltd.
Share on (1600760564487):
Product Overview
Description
BST106-B66 Cheap Factory Price LED Ration Weight Packaging Indicator, Packing Scales Controller
Main Features:
² Suitable for Ration Packing Scale. Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode],
Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.
² EMC design with high anti-jamming capability, suitable for industrial environment.
² 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
² 6+8 Red LED digital tubes for English character and digit display.
² 4-key English keypad.
² Menu&Shortcut mode operation with key tone.
² 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
² Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong
vibration on the load receptor, and the rapid response capability when the weight signal changes.
² Max. Connection Quantity: 4 Loadcells (350Ω).
² Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration
functions available.
² Optional Data Calibration function.
² Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
² 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
² Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and
Inching Feeding Mode.
² 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
² Optional ‘Fall Value Auto Correction’ function.
² Optional ‘Auto Pause for Deviation Alarm’ function.
² Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop
automatically].
² 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
² With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
² Suitable for Ration Packing Scale. Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode],
Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.
² EMC design with high anti-jamming capability, suitable for industrial environment.
² 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
² 6+8 Red LED digital tubes for English character and digit display.
² 4-key English keypad.
² Menu&Shortcut mode operation with key tone.
² 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
² Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong
vibration on the load receptor, and the rapid response capability when the weight signal changes.
² Max. Connection Quantity: 4 Loadcells (350Ω).
² Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration
functions available.
² Optional Data Calibration function.
² Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
² 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
² Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and
Inching Feeding Mode.
² 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
² Optional ‘Fall Value Auto Correction’ function.
² Optional ‘Auto Pause for Deviation Alarm’ function.
² Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop
automatically].
² 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
² With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

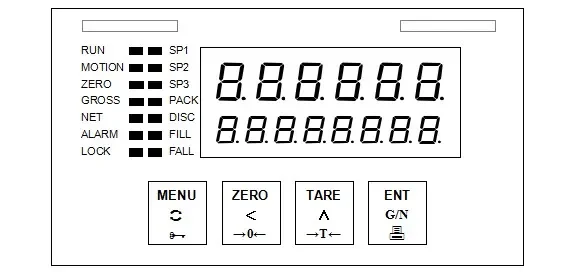

Model Panel-mounting Operation Interface

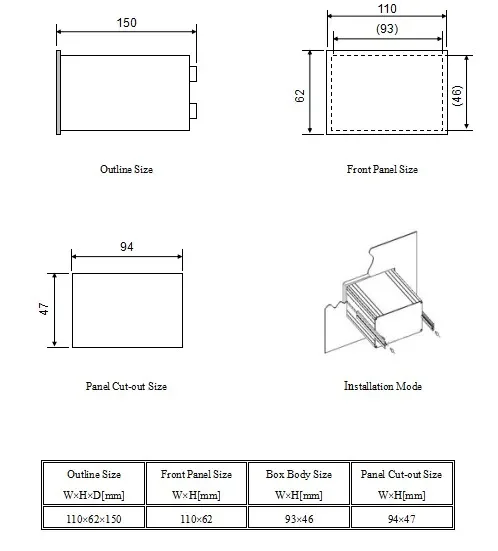

Model Panel-mounting Installation

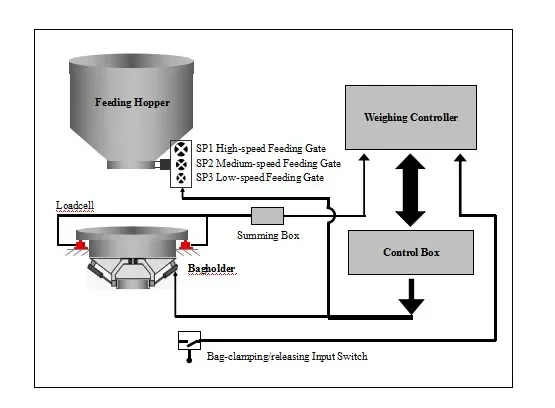

System Diagram for APP2 Bag-weighing Mode
Recommend Products
Company Profile
Certifications
Product packaging
FAQ
1. What is the MOQ?
If we don’t have it in stock, the MOQ is different according different models.
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don’t have it in stock, the lead time will be 10-30 days normally.
3. What is the payment terms?
T/T, Western Union, Paypal, Escrow alibaba is acceptable.
Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods. If we don’t make the shipment, you still can take back your money.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: by sea, by air transport .If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it
successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And youwill pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
If we don’t have it in stock, the MOQ is different according different models.
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don’t have it in stock, the lead time will be 10-30 days normally.
3. What is the payment terms?
T/T, Western Union, Paypal, Escrow alibaba is acceptable.
Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods. If we don’t make the shipment, you still can take back your money.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: by sea, by air transport .If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it
successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And youwill pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
