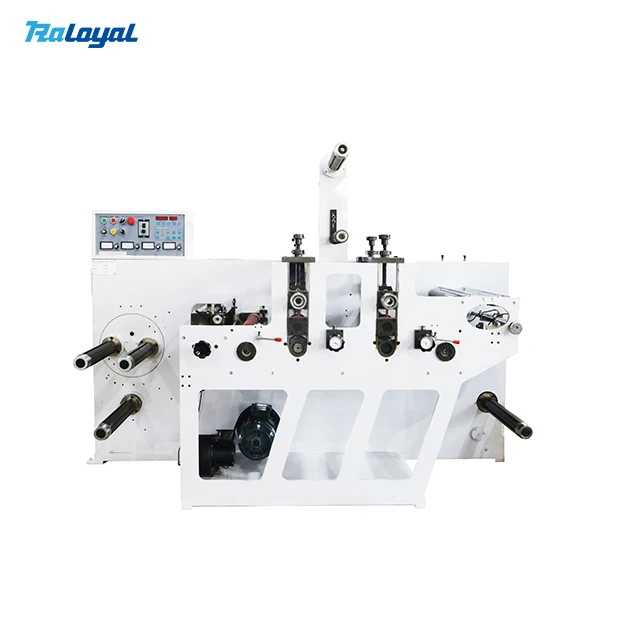

Raloyal 320 mm Automatic Adhesive Label Sticker 2 units two Die Cutting Section Rotary Die Cutting Machine
- Category: >>>
- Supplier: Ruian Loyal Machinery Co. Ltd.
Share on (1600760708228):
Product Overview
Description
Products Description
Application:
This type of machine is the most ideal machine for label slitting. It has other functions such as automatic inspection, automatic correcting, automatic counter, etc, can be finished in once process.
Advantage:
1. Synchronous belt transmission can assure the noise much smaller.
2. 1 inch, 2 inch, 3 inch tube all can be used for this type of machine.
3. Air shaft rewinding.
4. Taper tension controller adopted for more friendly tension control of unwinding and rewinding unit.
5. Photocell correction is used in EPC/LPC.
2. 1 inch, 2 inch, 3 inch tube all can be used for this type of machine.
3. Air shaft rewinding.
4. Taper tension controller adopted for more friendly tension control of unwinding and rewinding unit.
5. Photocell correction is used in EPC/LPC.
Technical Parameter
Machine model | HC-320B2 | HC-420B2 |
Slitting speed | 120m/min | 120m/min |
Die-cutting speed | 80m/min | 80m/min |
Max unwinding width | 320mm | 420mm |
Rewinding roller diameter(2 rollers) | φ220mm | φ220mm |
Rewinding roller diameter (1 roller) | φ480mm | φ480mm |
Unwinding roller diameter | φ550mm | φ550mm |
Machine precision | ±0.15mm | ±0.15mm |
Voltage | 220V±10% | 220V±10% |
Main motor power | 2.5kw | 2.5kw |
Machine weight | 500kg | 600kg |
Machine overall dimension | 1600*1100*1700mm | 1600*1200*1700mm |

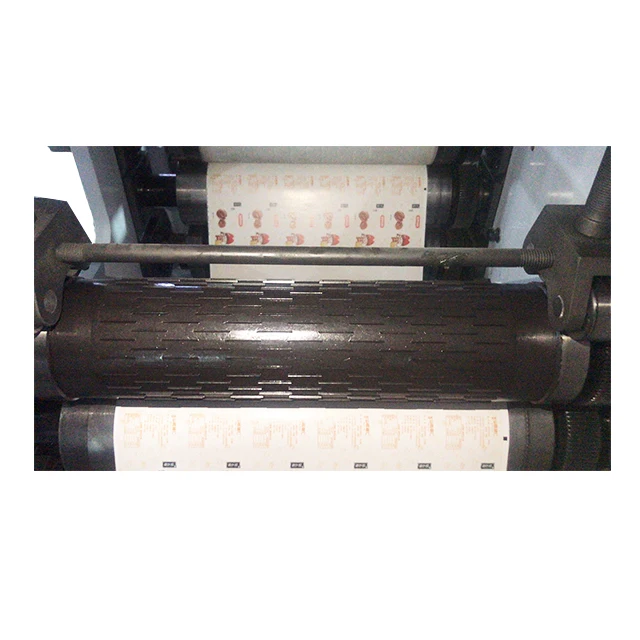

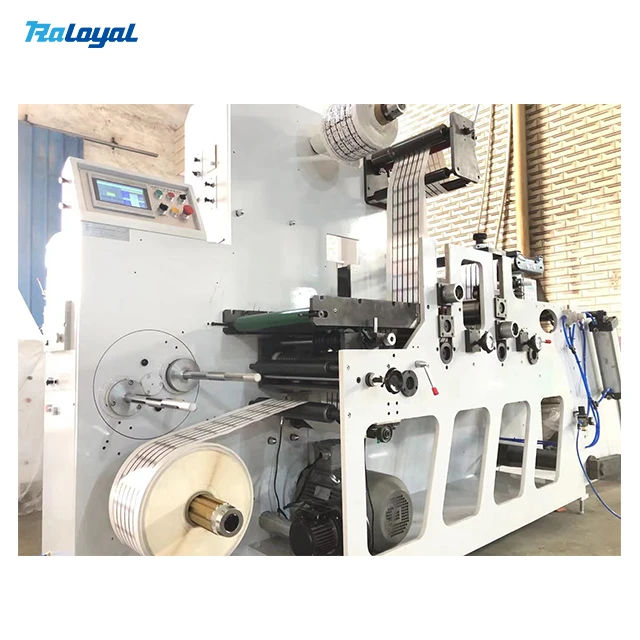

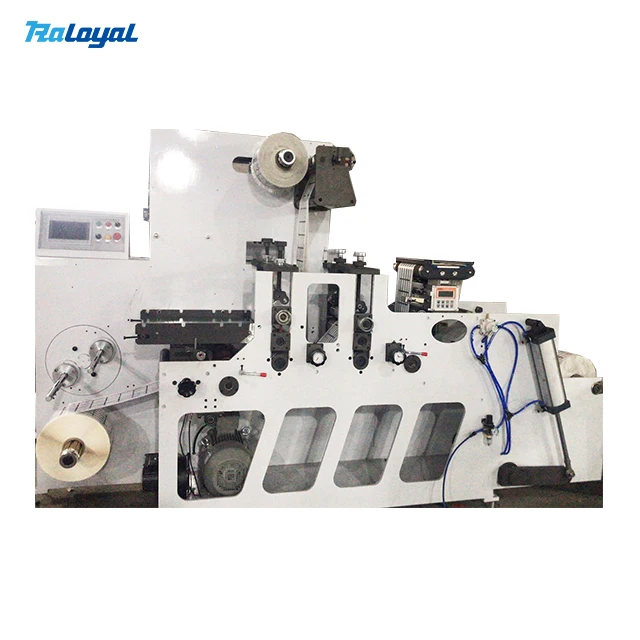

Details Images
Related Products
Why Choose Us
1. Quality Control
Incoming Quality Control
Our quality team will inspect the incoming parts before storage by sampling.
Process Quality Control
Our quality team will pick the first pcs of each kind part to inspect before assembly and also inspect randomly on site.
Outgoing Quality Control
Our quality team will inspect the machine’s appearance, features and characteristic etc. before delivery to meet and exceed client’s expectation.
2. Packing & Delivery
3. Certifications
4. Our Service
Inquiry and consulting support.
Sample material testing support.
Lead the customer to visit our factory if required.
12 months guarantee, life-long time technic maintenance and support.
Online Guidance support. Spare parts supports.
24 Hours * 7 days service online.
Company Profile
COMPANY PROFILE
Ruian Loyal Machinery Co.,Ltd located in Ruian city, southeast of China, specializing in the slitting machine, die cutting machine, printing machine making for more than 10 years in the application of label /flexible packing /electric protector film/new energy and paper industry.
RaLoyal have been always devoted to provide a global solution to the demands of markets in constant development with competitive and tailored equipment including the latest solutions in innovation, technology and sustainability for customers. We have set agent in Germany,Venezuela, which can provide immediate technical support available to minimize the waiting time for customers.
We deeply believe that Raloyal will become your loyal partner and supplier once we have a chance to start the cooperation!
