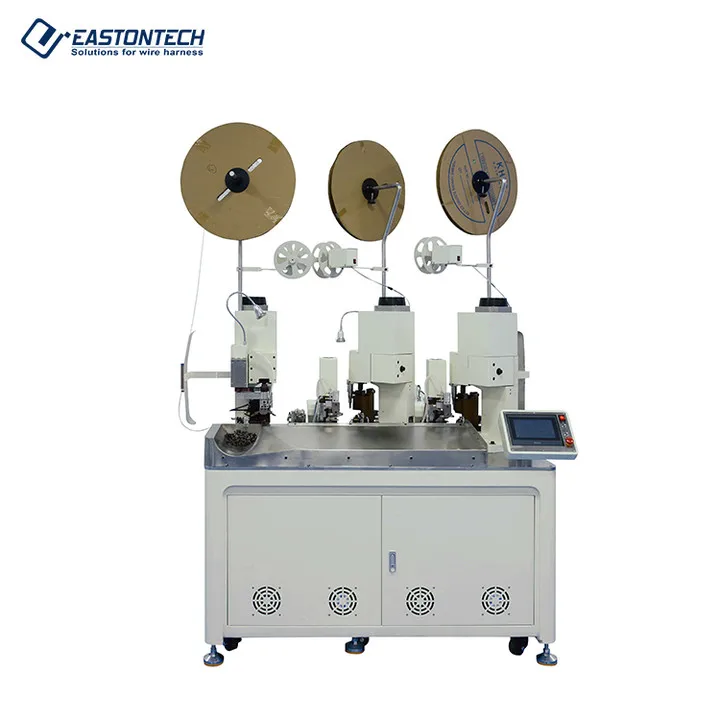

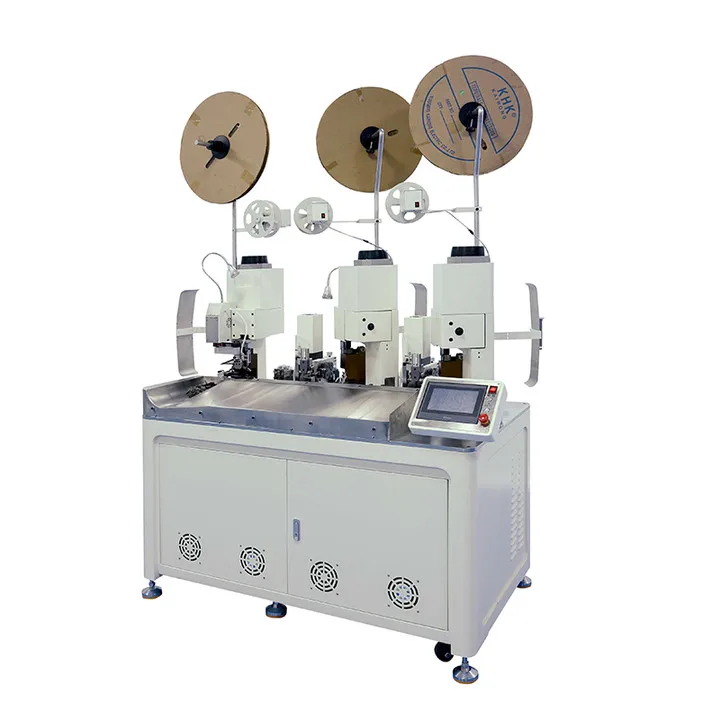

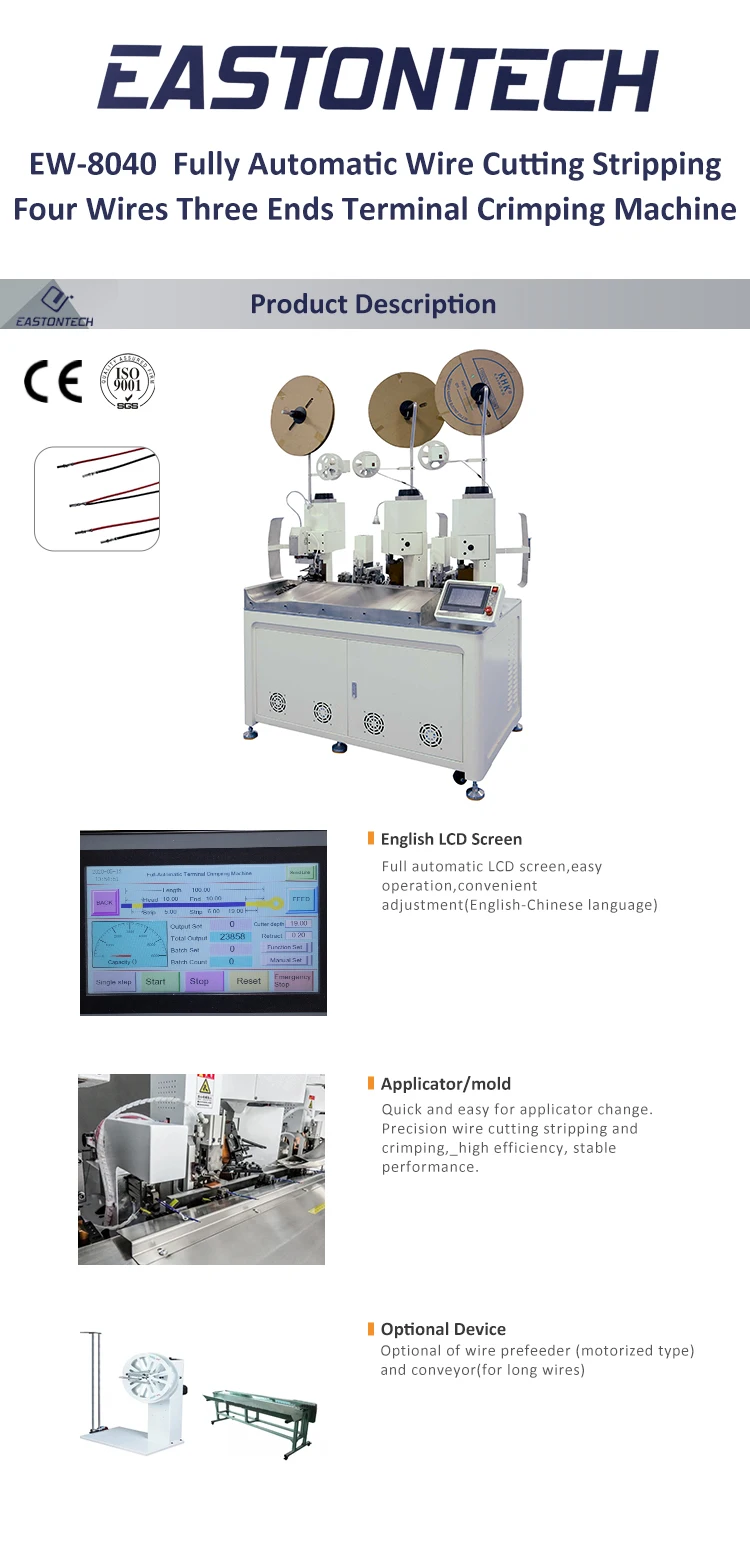

EW 8040 Fully Automatic electric wire cutting stripping and terminal crimping machine four wire joint connect machine

Product Overview

Description

Terminal Crimping Machine Function:



Wire size cutting, end stripping, single end half stripping, single wire single end crimping, single wire double end crimping, double wire crimping, double wire single end crimping, 4 wire joint crimping machine. We also have 2 ends joint crimping machine, 3 ends joint crimping machine or more wires joint crimping machine.

Just tell us your requirement so that we can offer you a suitable model to meet your requirement.

Customized terminal crimping machine is acceptable.

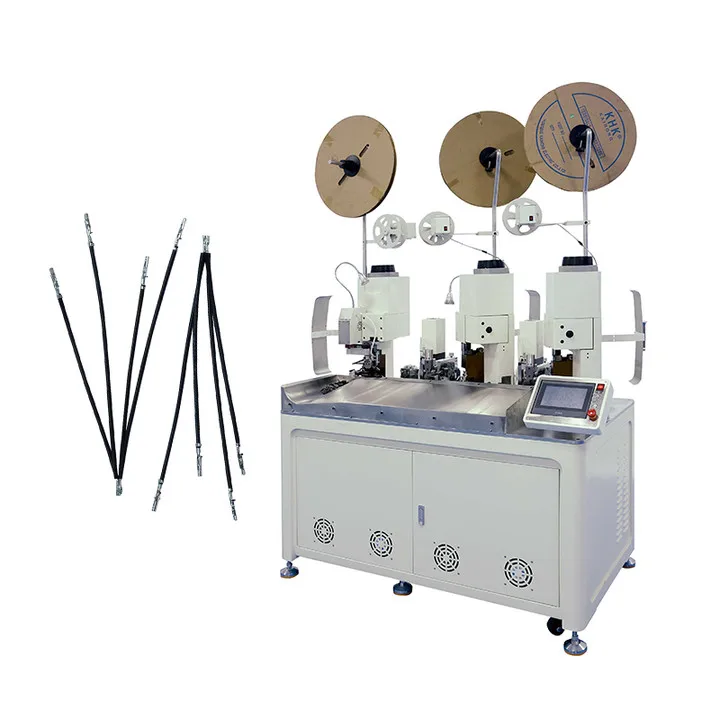

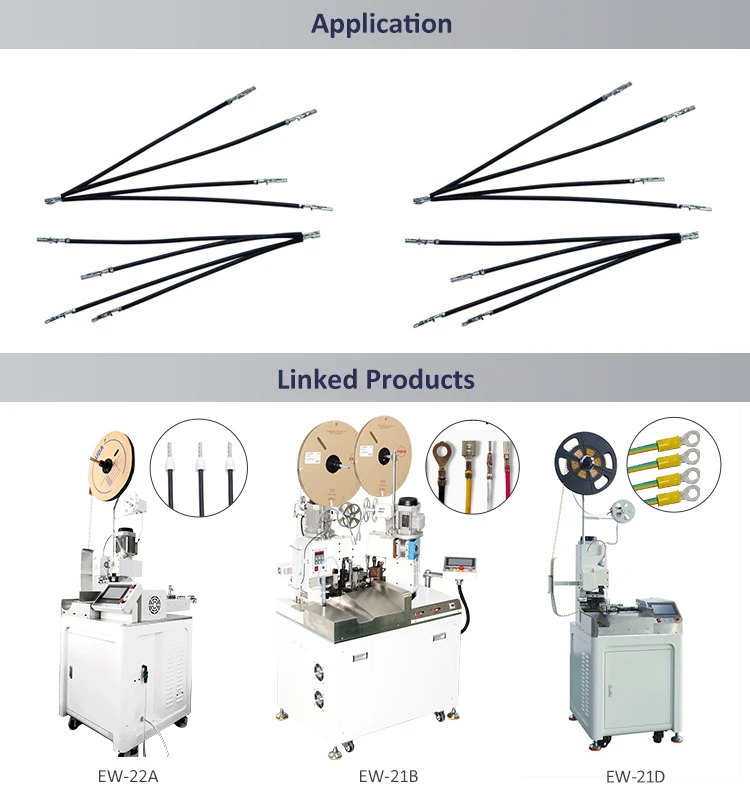

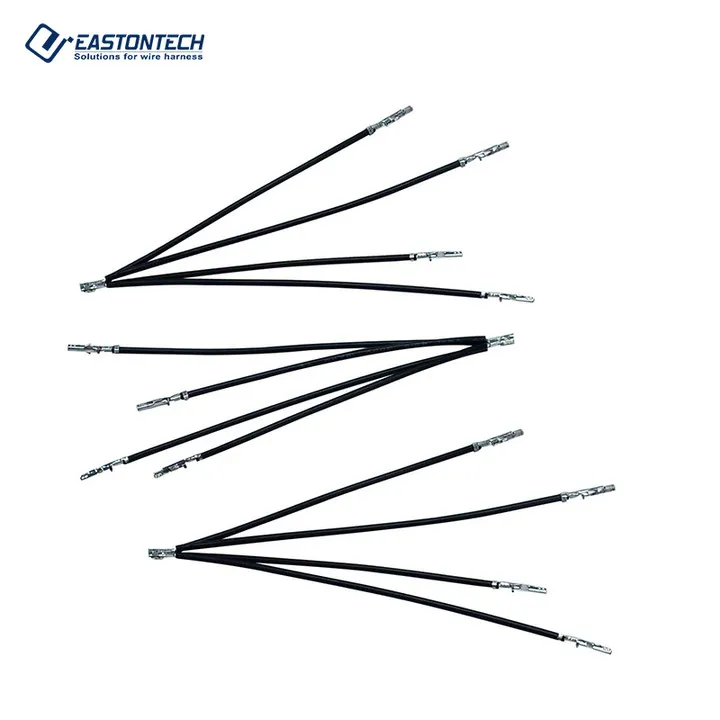

Finshed products below for reference:

Model	EW-801
Applicable wire range	AWG28-AWG12
Stripping length	0-10mm
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	45-9999mm
Capacity	3000-4500pcs/hour
Crimping force	2.0T
Applicators	30mm or 40mm strokes for optional
Air pressure	0.4-0.6Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Display language	Chinese/English
Dimension	700*800*1500mm
Weight	358Kg
Power cord plug	European, USA, Chinese plug
