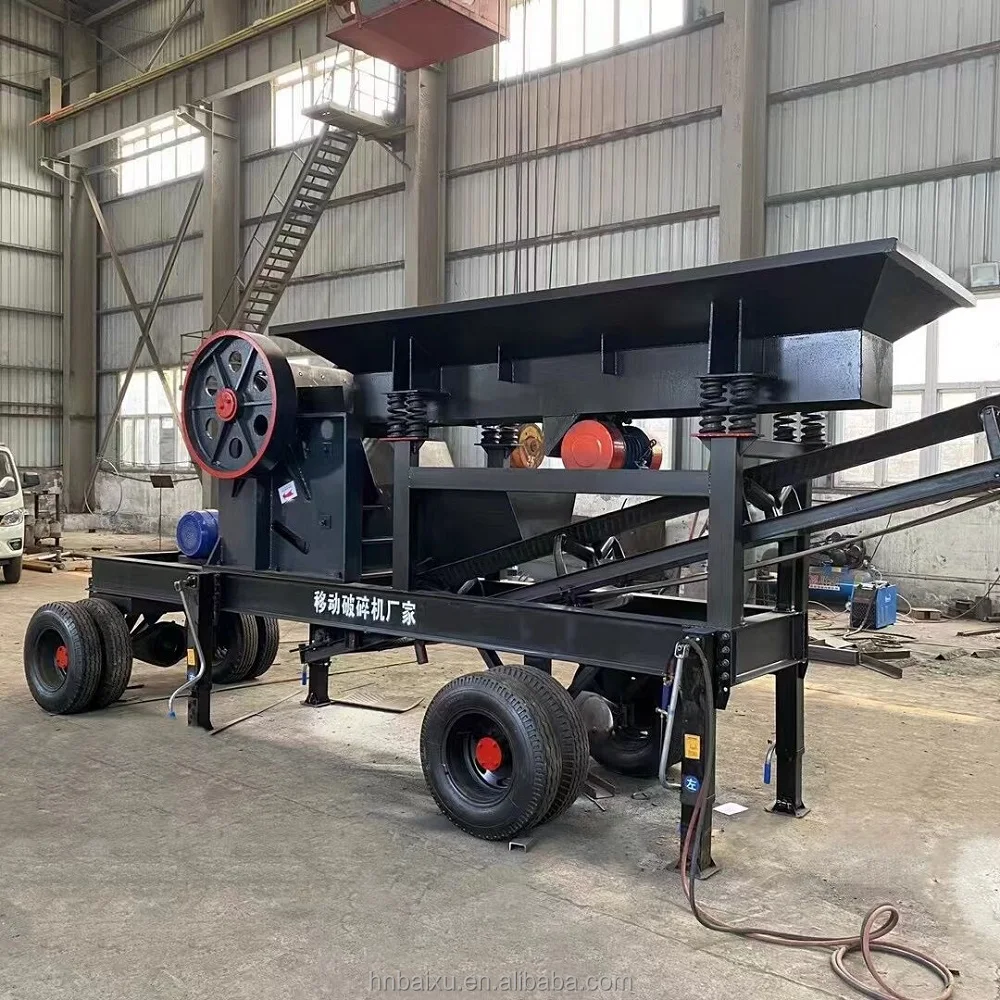

Factory price mobile jaw crusher machine for the stone rock mini gravel Marble jaw crusher
- Category: >>>
- Supplier: Henan,Baixu,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Jaw crusher
Jaw crusher, also known as stone crusher, is widely used in mining, metallurgy, building materials, highway, railway, water conservancy, chemical industry and other industries. For all kinds of ore, rock large materials of medium size crushing, crushing compressive strength in 147~245MPa has coarse, medium and fine.

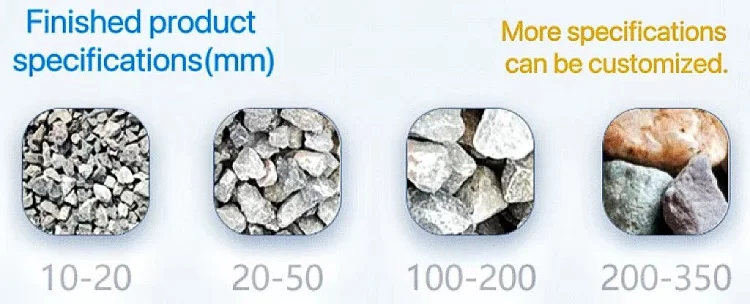

Stone, limestone, pebbles, river pebbles, quartzite, basalt, iron ore, granite, shale, gypsum and so on
The working mode of jaw crusher is grinding and extrusion. Its working principle is：
Electric drive belt and pulley, through the eccentric wheel to move jaw up and down, when jaw rising elbow plate to fixed jaw plate close, and at the same time the material is crushed or split, to achieve the purpose of crushing; When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor and crushing motor jaw to do periodic movement crushing and discharge of materials, to achieve mass production.
CAD: Single device

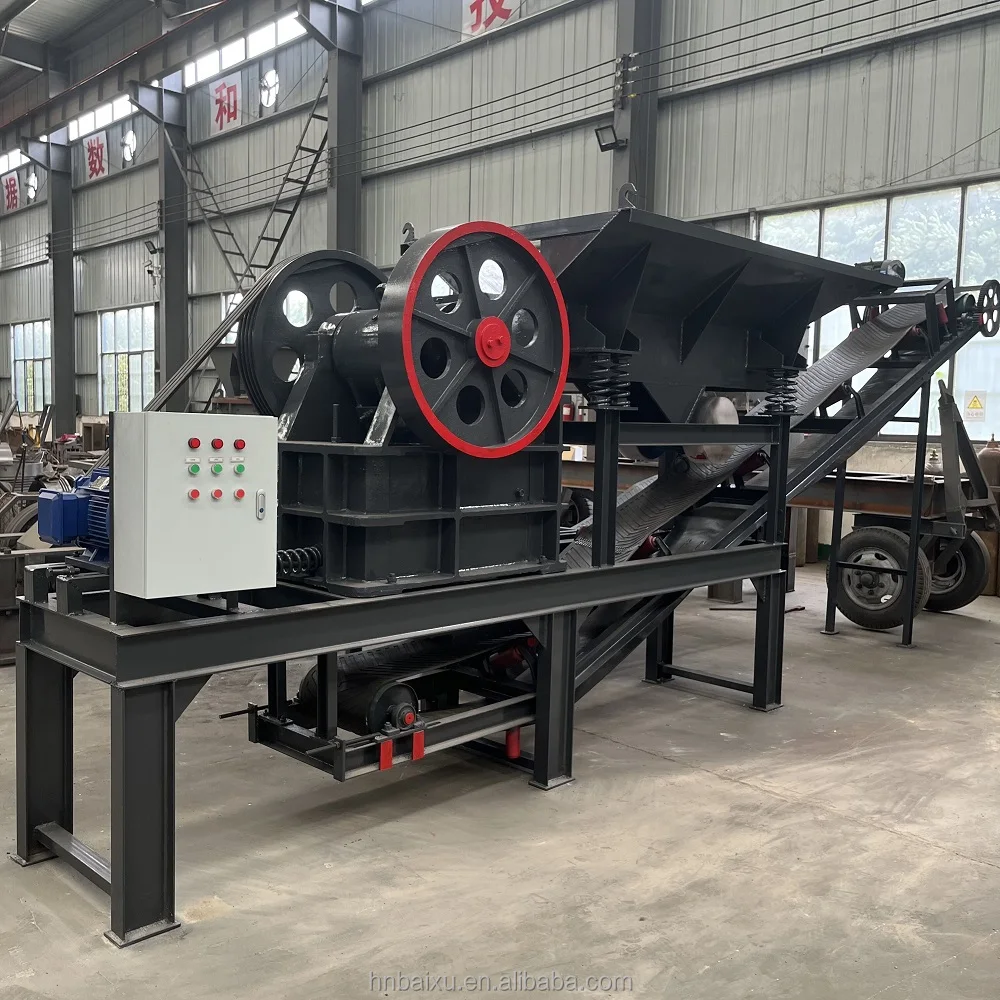

CAD: Complete set of equipment

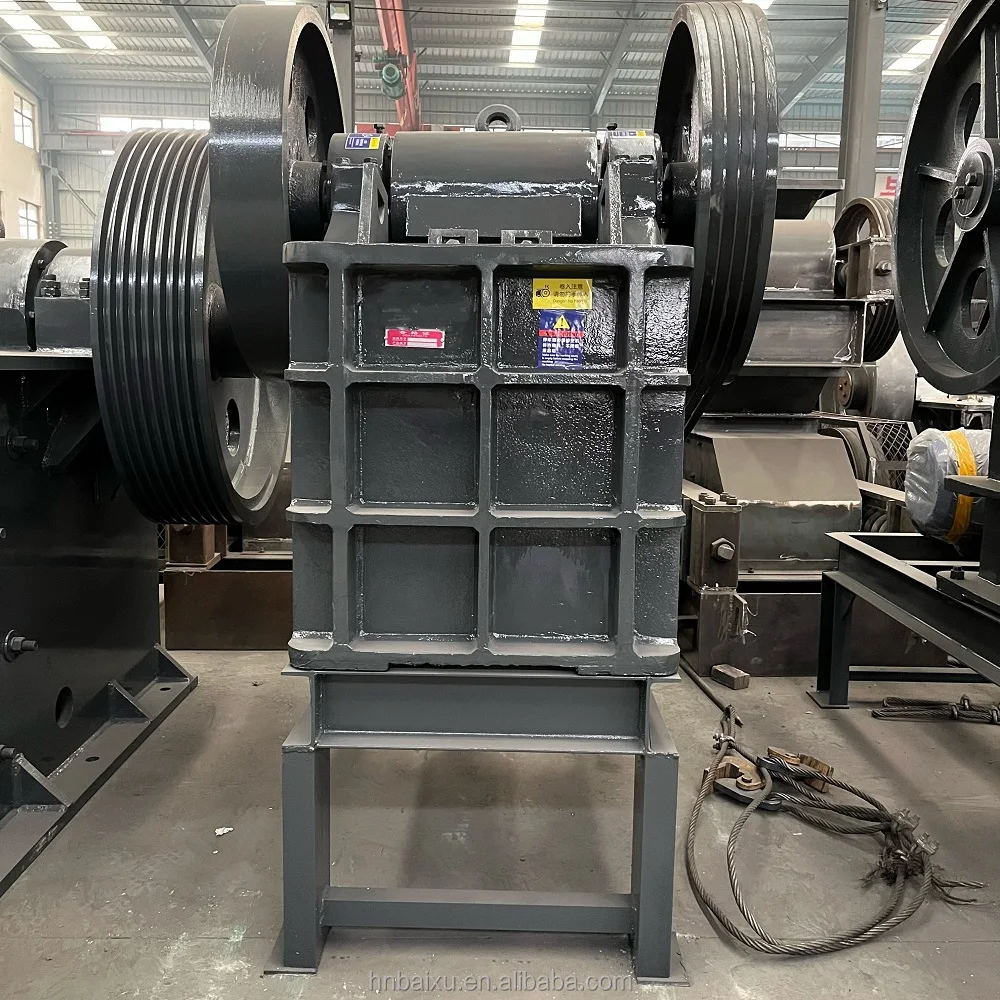

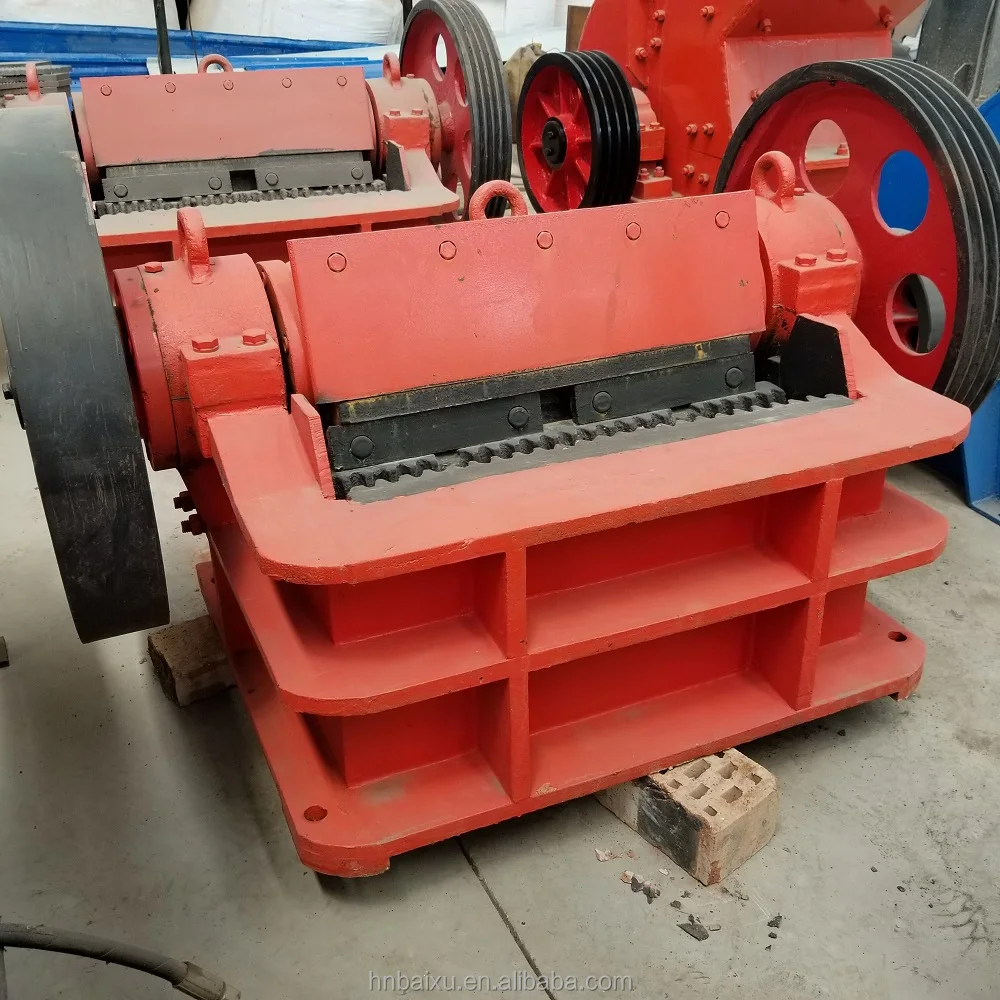

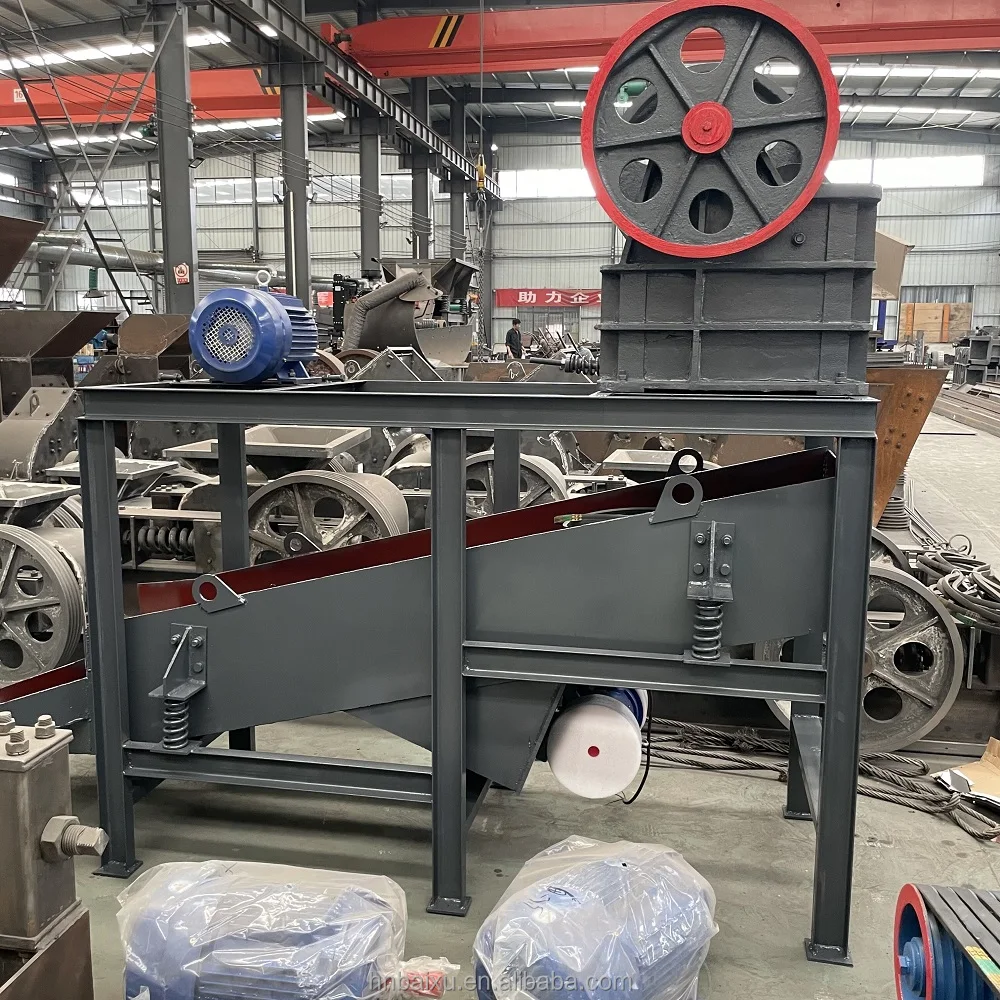

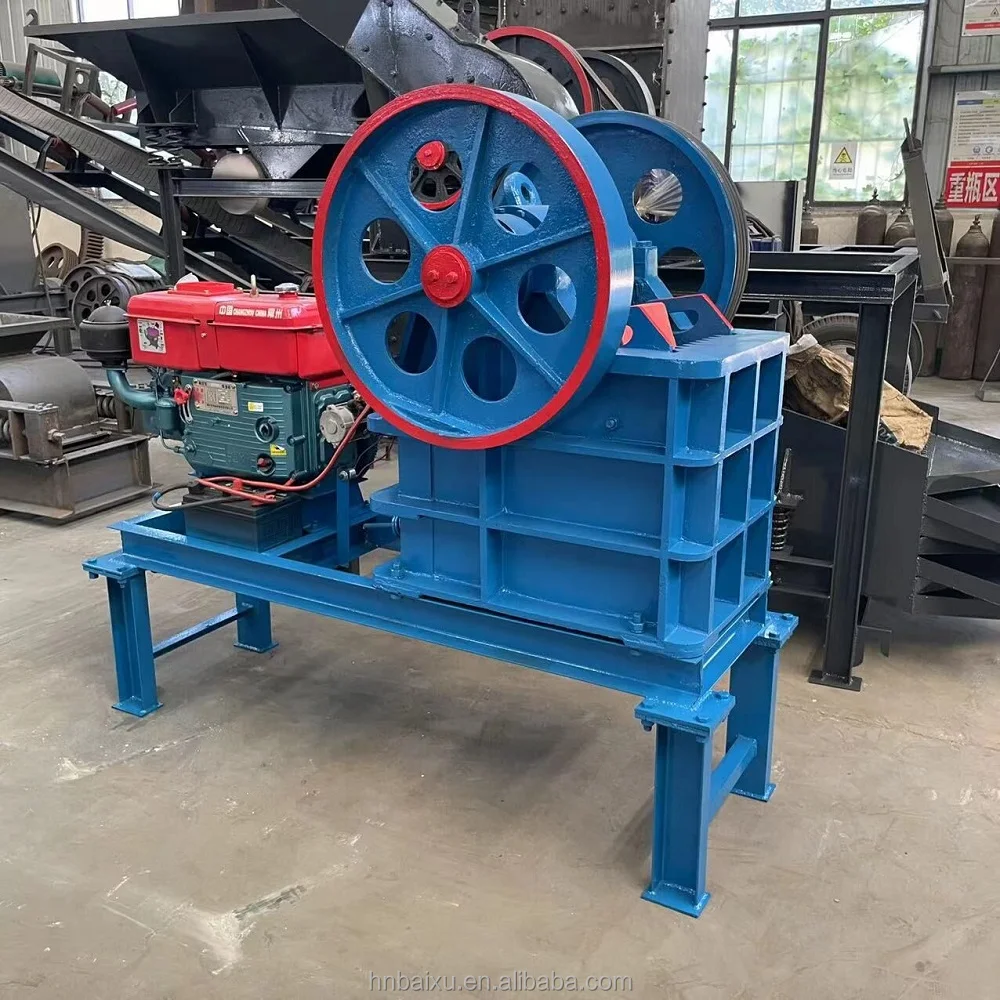

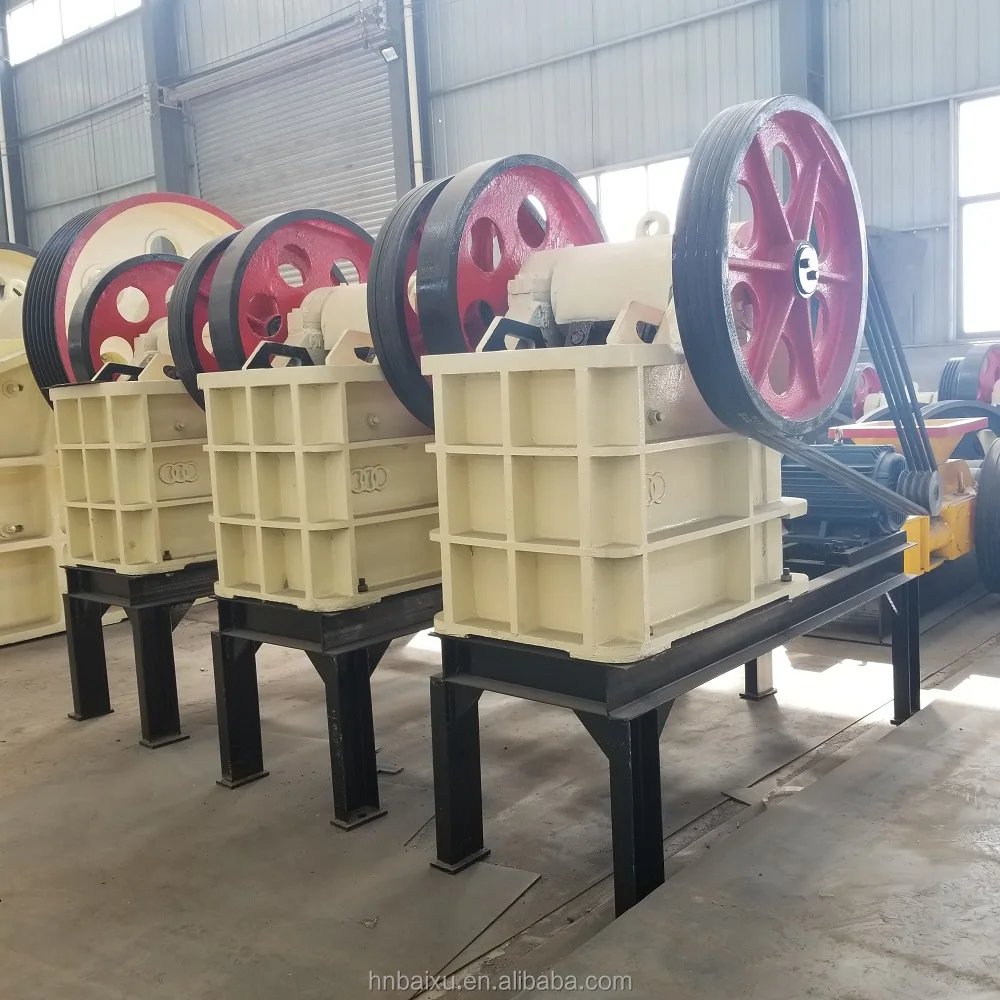

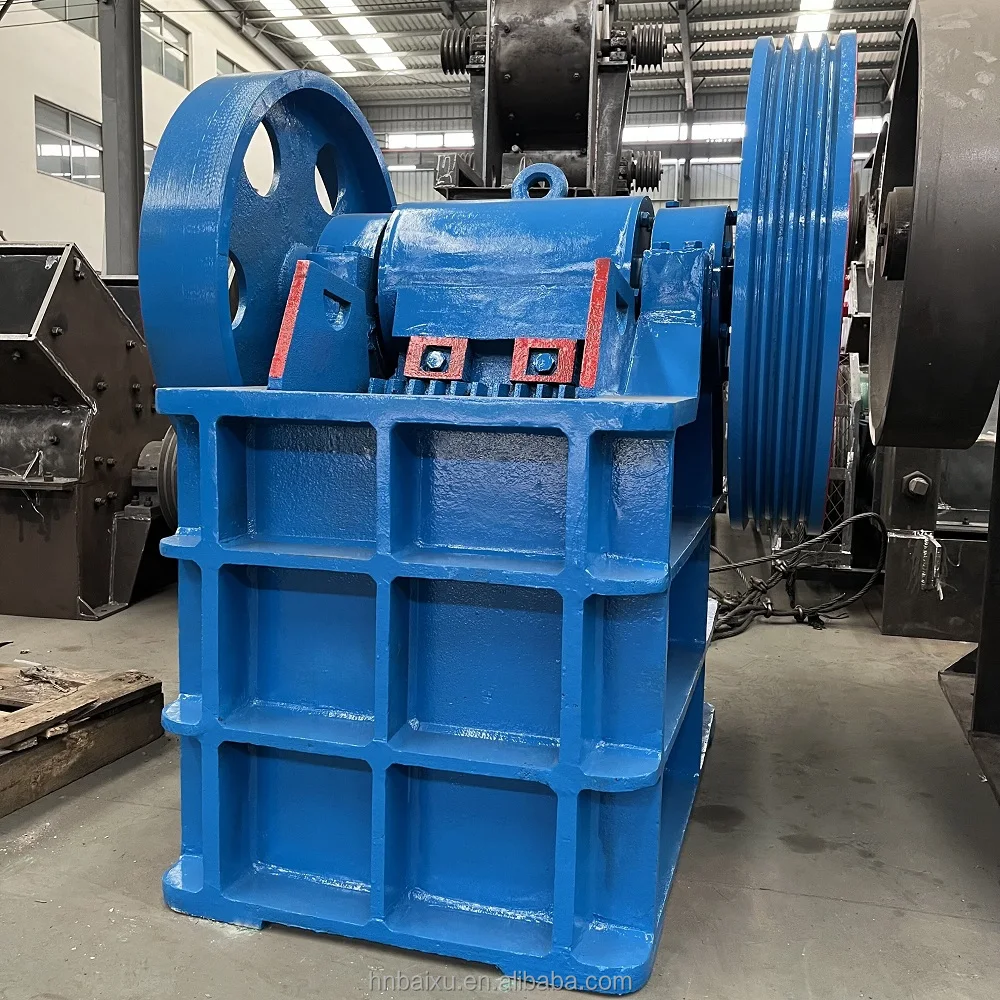

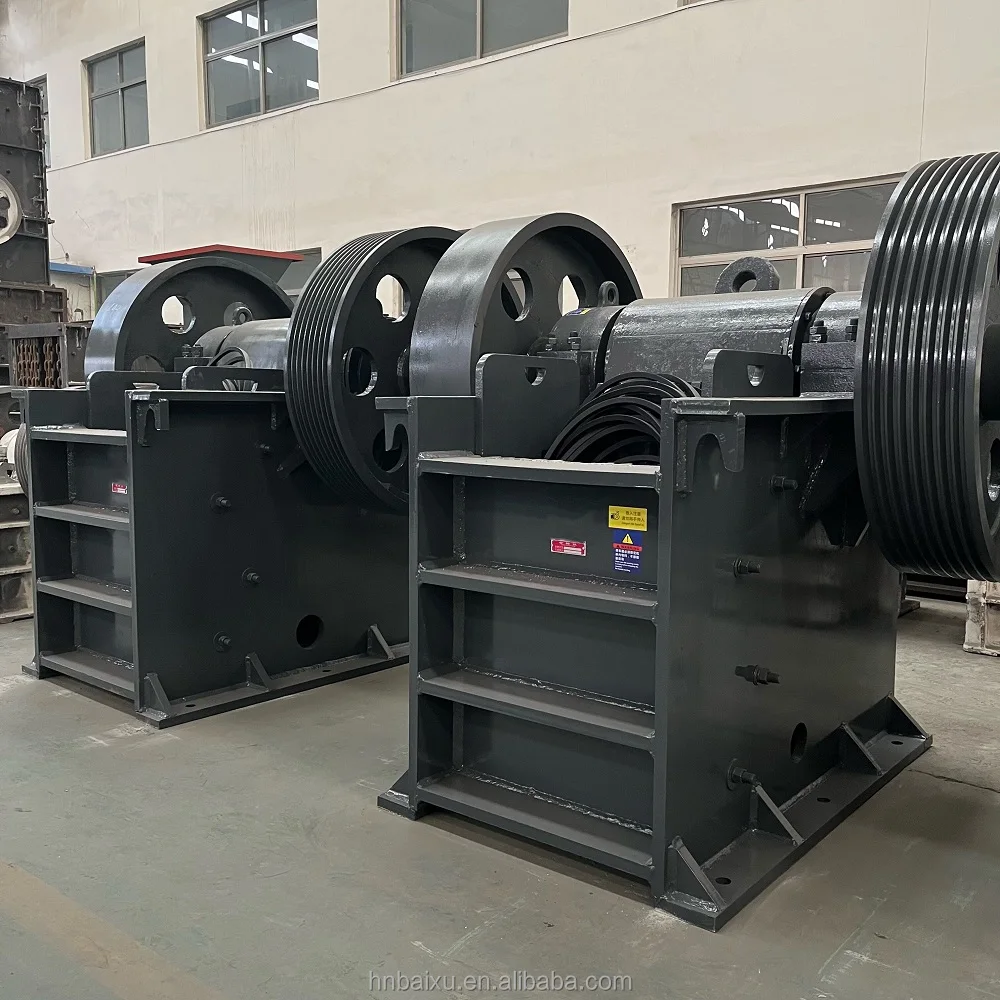

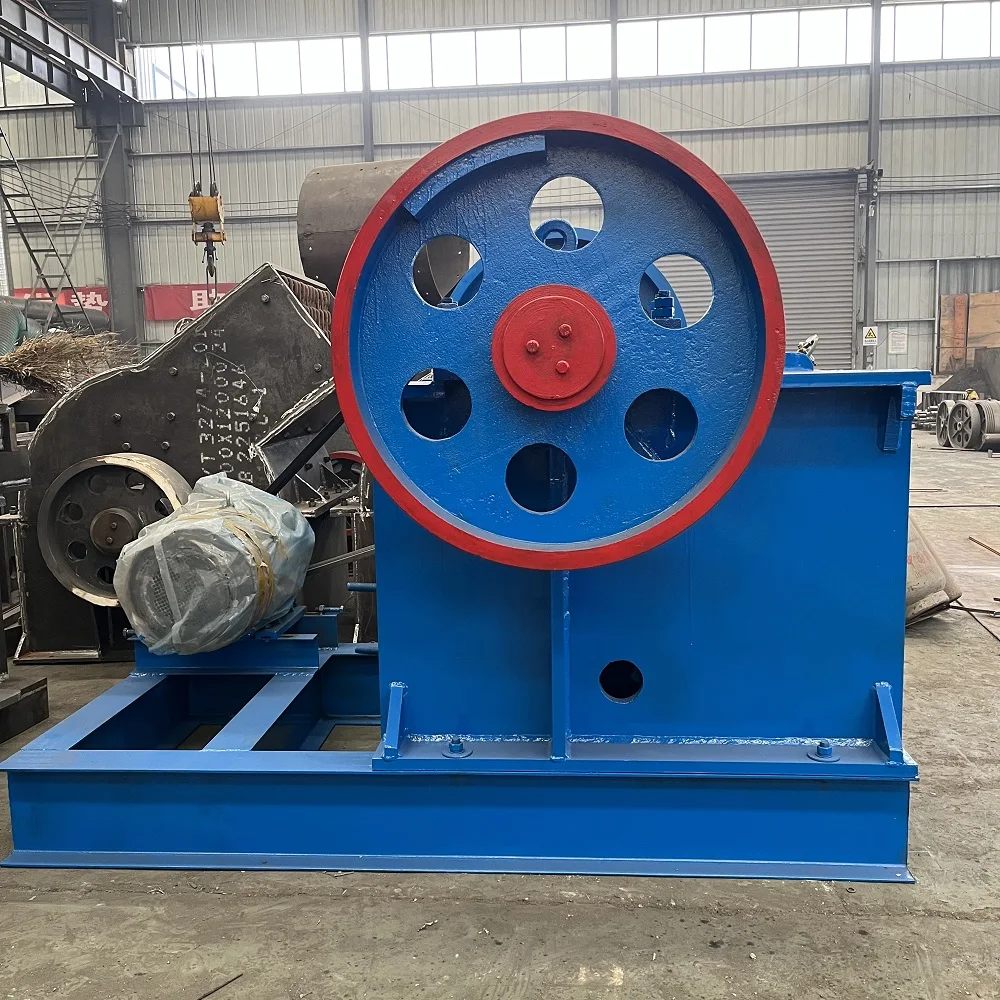

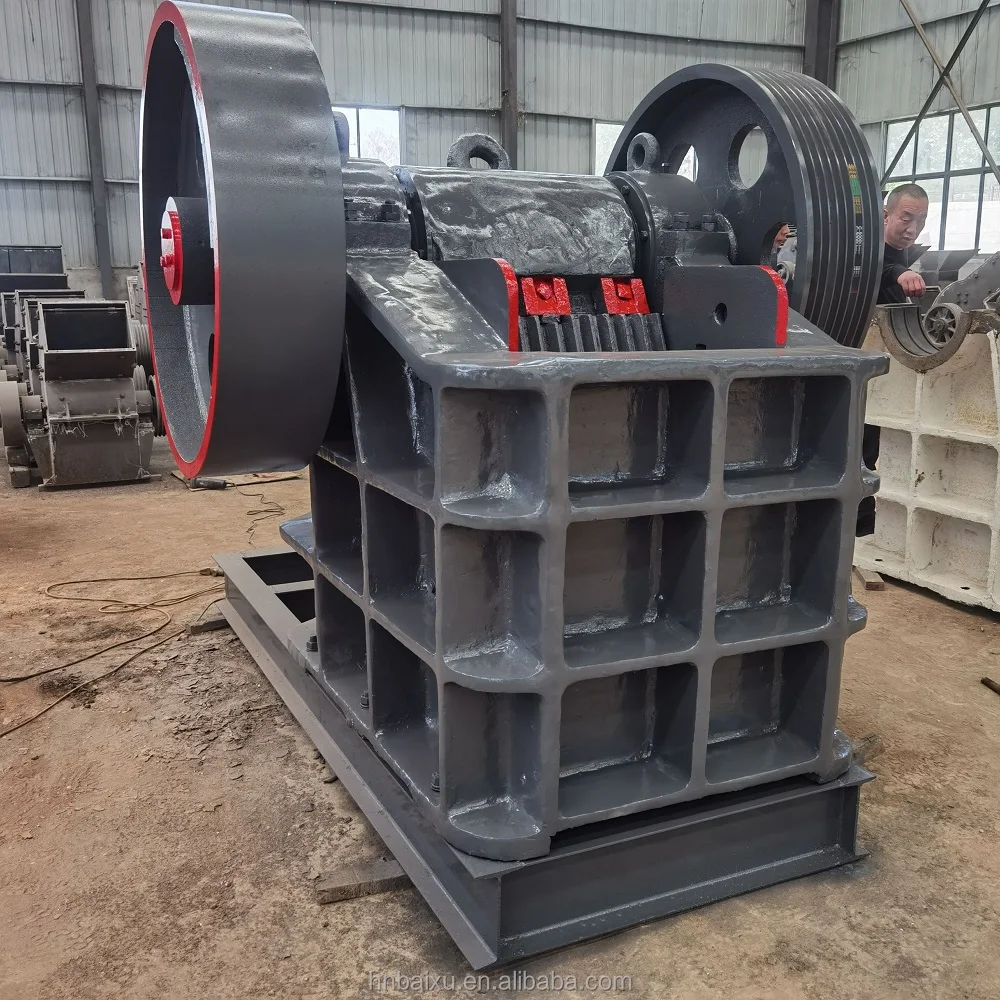

Real picture of large, small, medium jaw crusher:

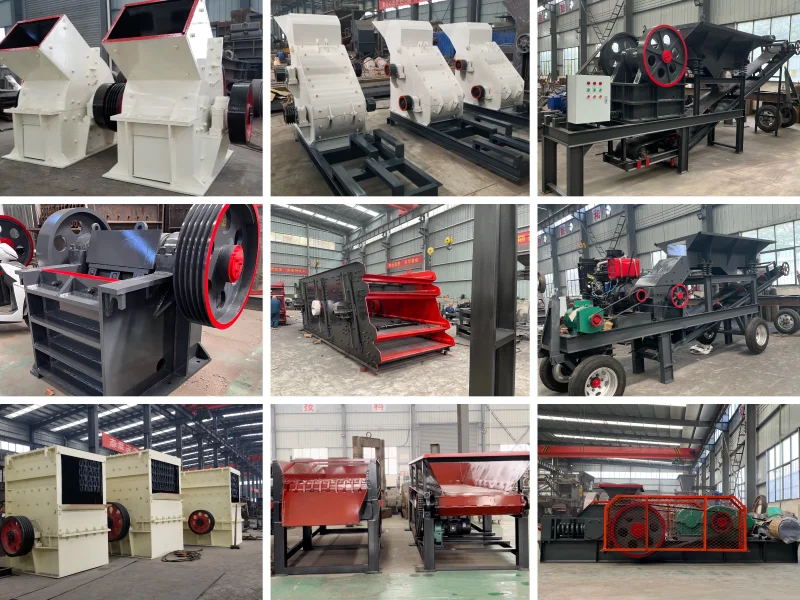

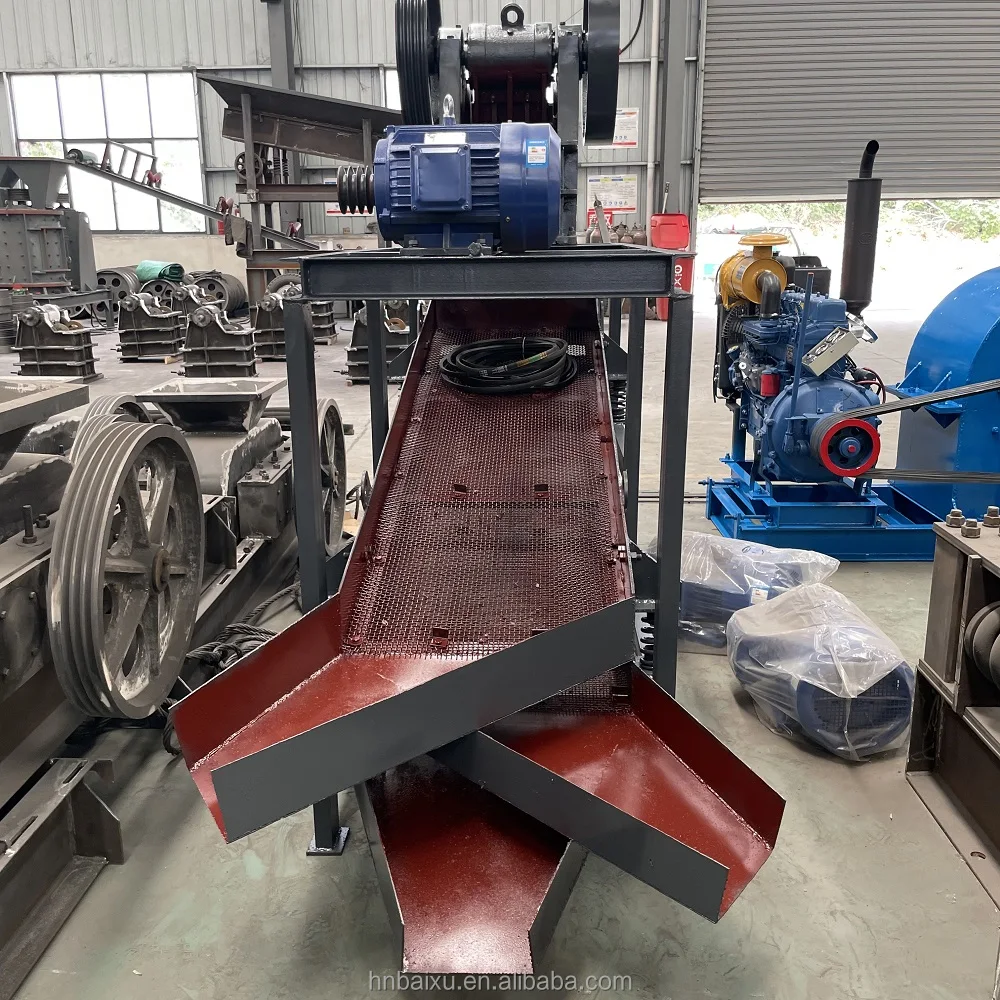

More crushing equipment recommended：
Technical parameter
Model number | Feed port size (mm) | Maximum feed size (mm) | Discharge port adjustment range (mm) | yield（t/h) | Motor power (kw) | weight(t) | Dimension (Length x width x height)(mm) |
PE-150x250 | 150x250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720x660x850 |
PE-200x300 | 200x300 | 180 | 15-50 | 2-6 | 7.5 | 1.2 | 910x750x990 |
PE-220x350 | 220x350 | 180 | 18-70 | 3-10 | 11 | 1.5 | 1000x870x990 |
PE-250x400 | 250x400 | 210 | 20-60 | 5-15 | 15 | 2.8 | 1300x1090x1270 |
PE-300x500 | 300x500 | 280 | 25-80 | 5-20 | 18.5 | 3.5 | 1500x1500x1450 |
PE-400x600 | 400x600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730x1730x1630 |
PE-500x750 | 500x750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980x2080x1870 |
PE-600x900 | 600x900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190x2206x2300 |
PE-750x1060 | 750x1060 | 630 | 80-140 | 110-320 | 110 | 29 | 2660x2430x2800 |
PEX-100x600 | 100x600 | 80 | 10-30 | 5-15 | 7.5 | 2.8 | 900x1250x920 |
PEX-150x750 | 150x750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200x1530x1060 |
PEX-250x750 | 250x750 | 210 | 25-60 | 13-35 | 22 | 5.5 | 1380x1750x1540 |
PEX-250x1000 | 250x1000 | 210 | 25-60 | 16-52 | 30 | 7 | 1560x1952x1390 |
PEX-250x1200 | 250x1200 | 210 | 25-60 | 20-61 | 37 | 9.7 | 2140x1660x1500 |
PEX-300x1300 | 300x1300 | 250 | 20-90 | 16-105 | 55 | 15.6 | 2720x1950x1600 |
Product advantage
1. Tight fabrication materials
2. More convenient discharge port
3. High crushing strength, high yield, wear resistance
4. Large bearing specifications, stronger bearing capacity
5. Spare parts, collective detachable, convenient maintenance, after-sales service
2. More convenient discharge port
3. High crushing strength, high yield, wear resistance
4. Large bearing specifications, stronger bearing capacity
5. Spare parts, collective detachable, convenient maintenance, after-sales service
1. Moving jaw guard plate
2. Side guard plate

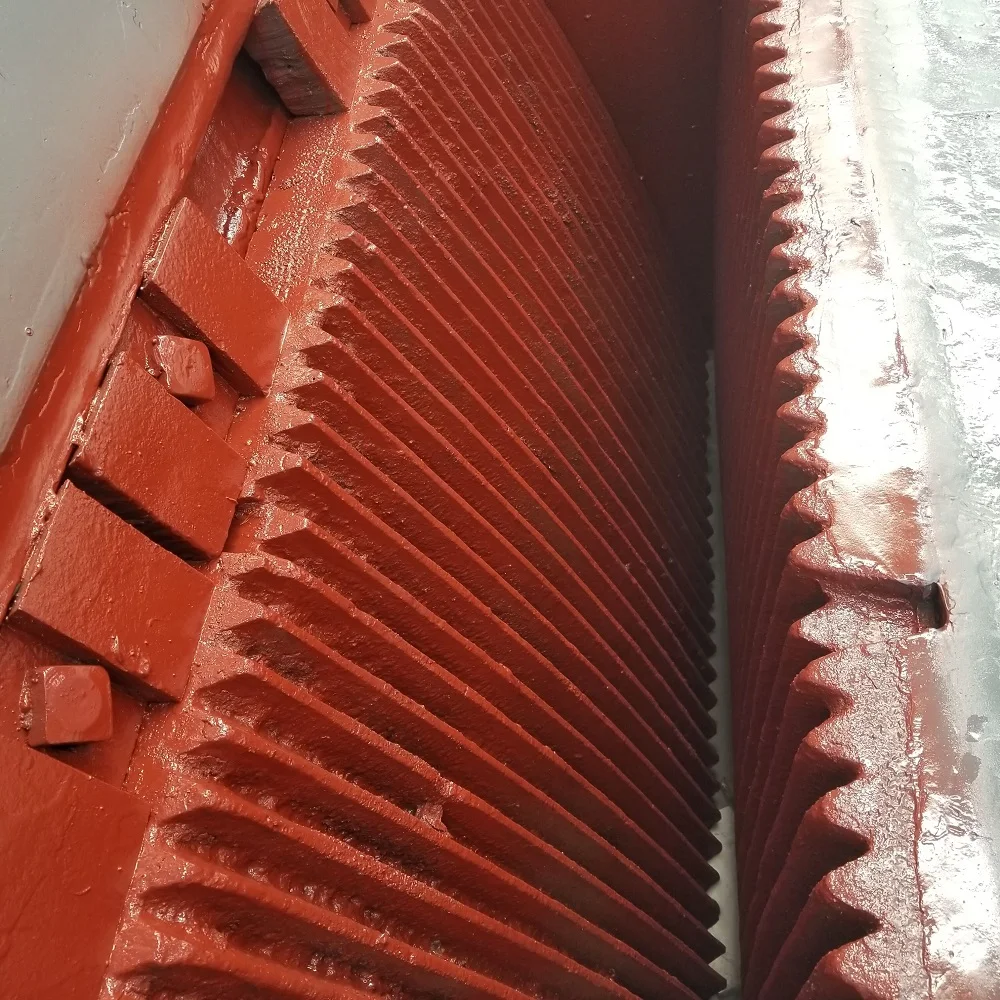

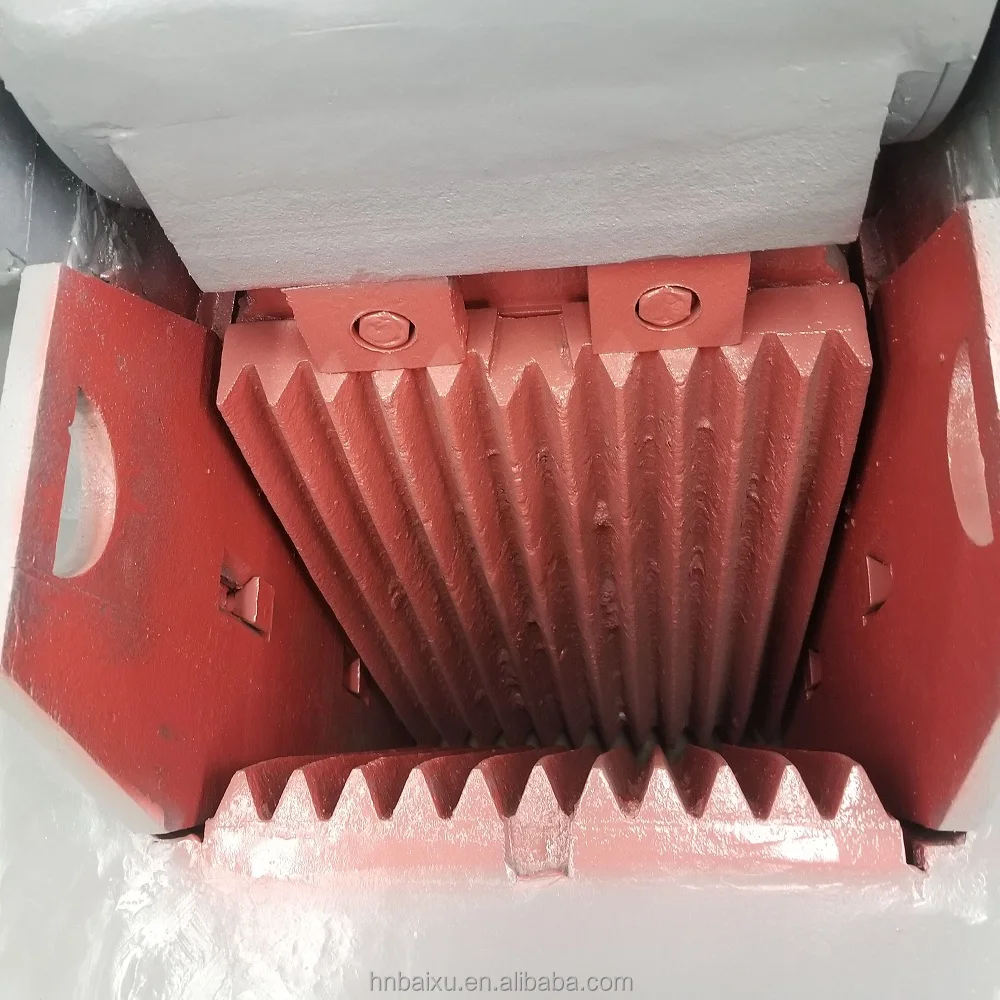

3. Fix the jaw plate
4. Movable jaw plate
2. Side guard plate
3. Fix the jaw plate
4. Movable jaw plate
5: Rack
6. Move your jaw
7. Adjust the seat
8. Spring
9. Elbow boards
10. Move jaw pull plate
6. Move your jaw
7. Adjust the seat
8. Spring
9. Elbow boards
10. Move jaw pull plate
Company introduction

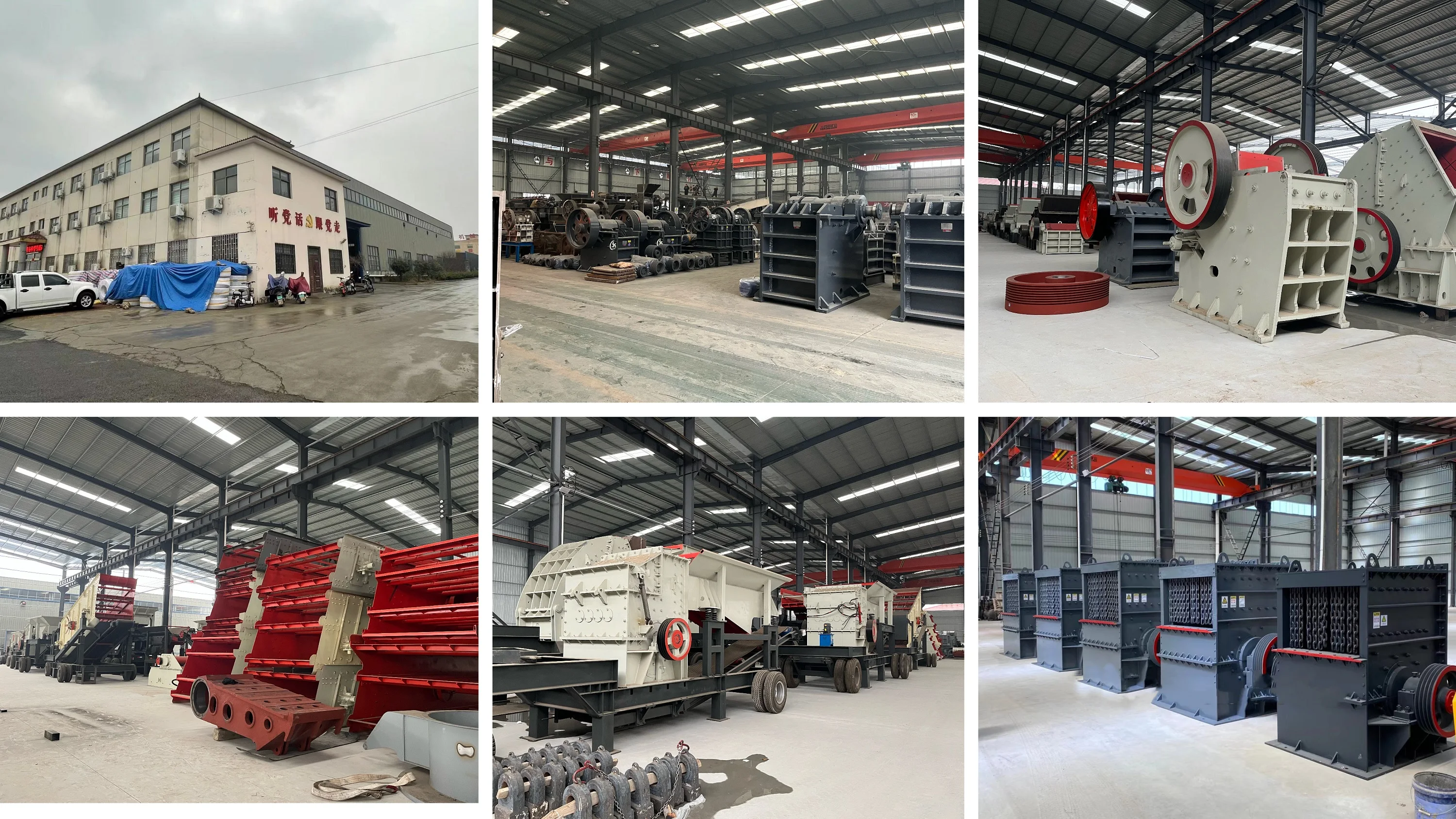

Henan Baixu Machinery Equipment Co., LTD., located in Gongyi City, Henan Province, the pearl of Central Plains, Songshan Mountain, the bank of the Yellow River, mainly produces jaw crusher, hammer crusher, impact crusher, vibrating screen, engineering and building materials machinery and other products. In its stone crushing, construction sand, mineral processing technology equipment business fields are at a very high level. Business and service agencies throughout the country, and exported to Eastern Europe, Central Asia and other countries.

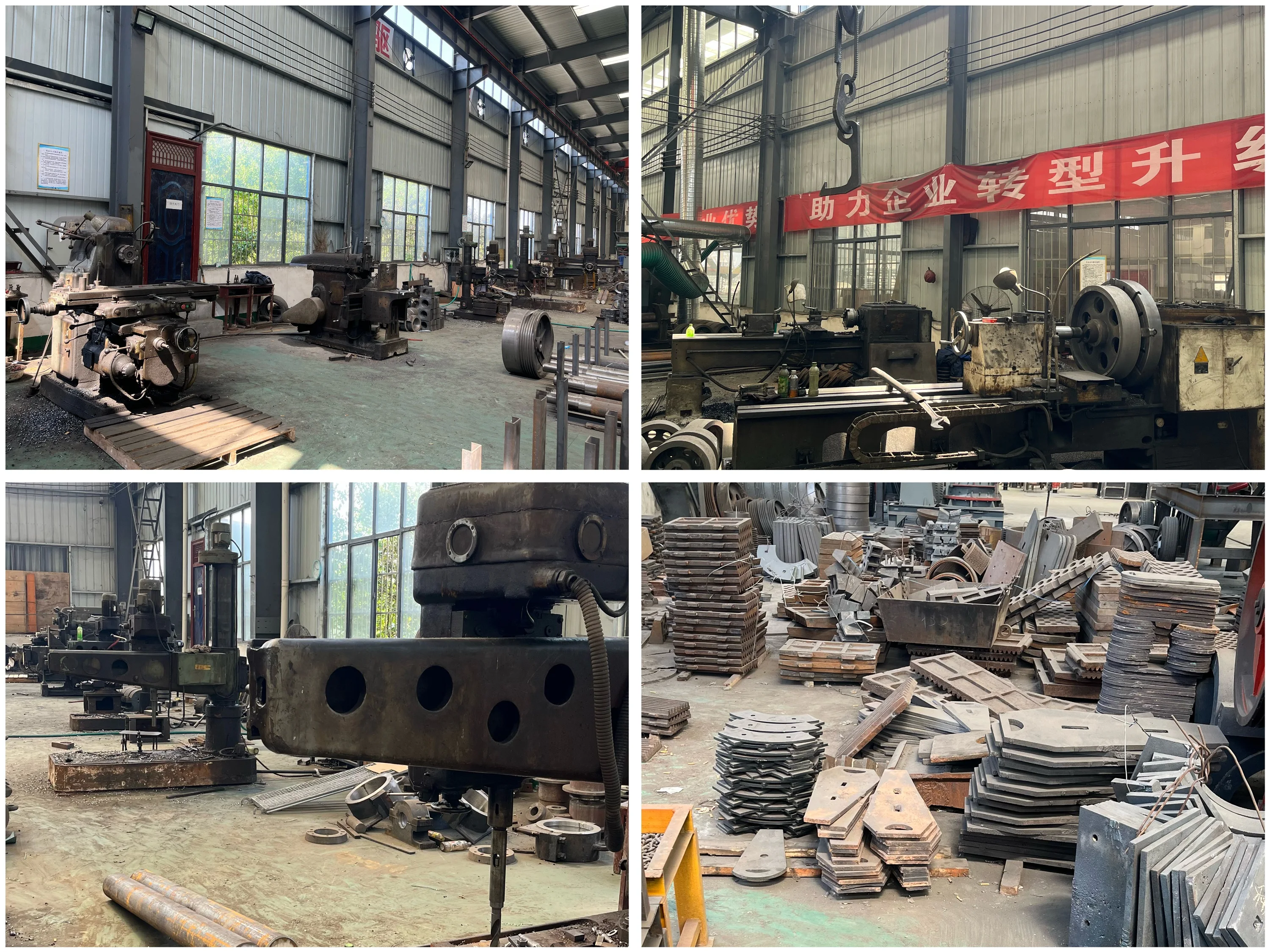

Perfect production equipment system：

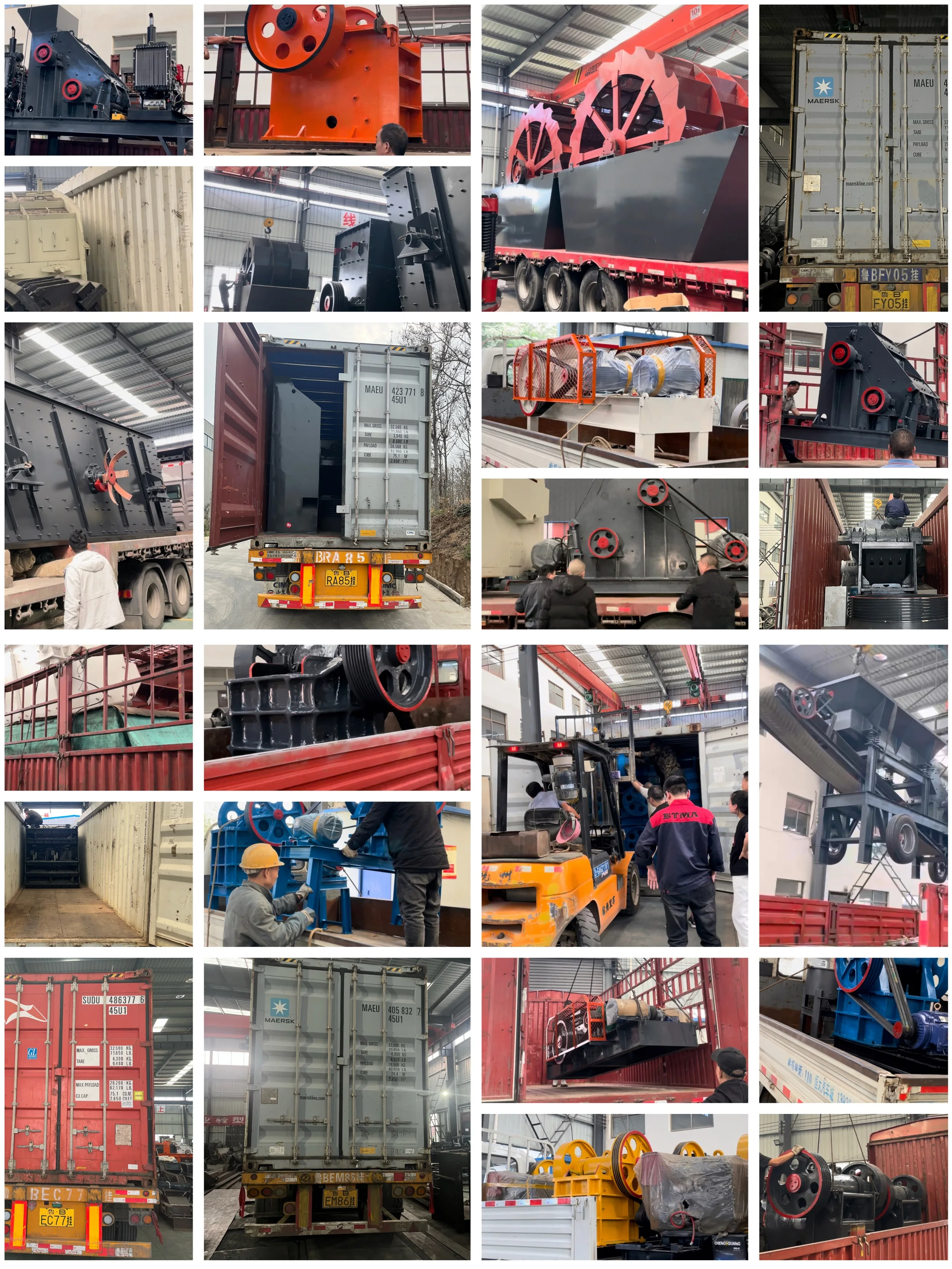

Factory delivery routine：
Packing and transportation
Wooden case packing
By ship
FAQ
Q: What materials can be broken by jaw crusher?
A: Jaw crusher can break pebbles, granite, cement block and a series of hard materials.The material can be broken into small pieces, the size is optional.
A: Jaw crusher can break pebbles, granite, cement block and a series of hard materials.The material can be broken into small pieces, the size is optional.
Q: How can I see the crushing effect I want?
A: You can tell me the material you want to be broken. I will find it and shoot a trial video for you in the factory
A: You can tell me the material you want to be broken. I will find it and shoot a trial video for you in the factory
Q: Are the wearing parts of the crushing equipment durable?
A: First of all, the wearing parts need to be replaced within a certain period of time. I can let you sell the wearing parts at factory price
A: First of all, the wearing parts need to be replaced within a certain period of time. I can let you sell the wearing parts at factory price
Q: Is it easy to replace the wearing parts of crushing equipment?
A: Yes, we can provide you with video guides if you need them
A: Yes, we can provide you with video guides if you need them
Q: How do I help customers install equipment?
A: They are usually assembled and ready to use when they are delivered. Video instructions will be provided if required
A: They are usually assembled and ready to use when they are delivered. Video instructions will be provided if required
