Price:$5,150.00 - $5,350.00

Quantity:


Product Overview

Description



-------------Fully Automatic Barbed Wire Fence Making Machine--------------

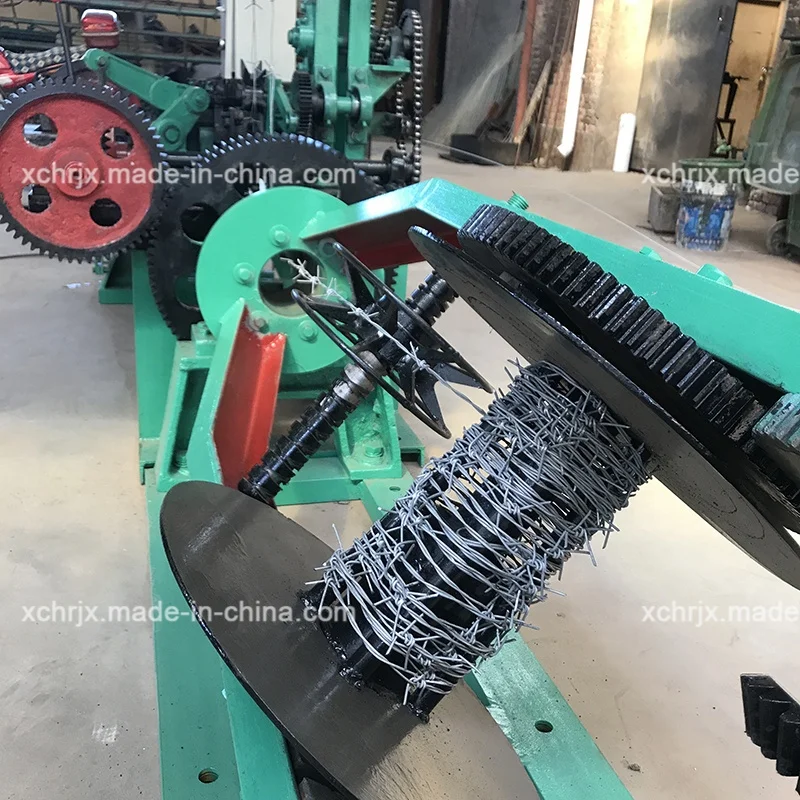

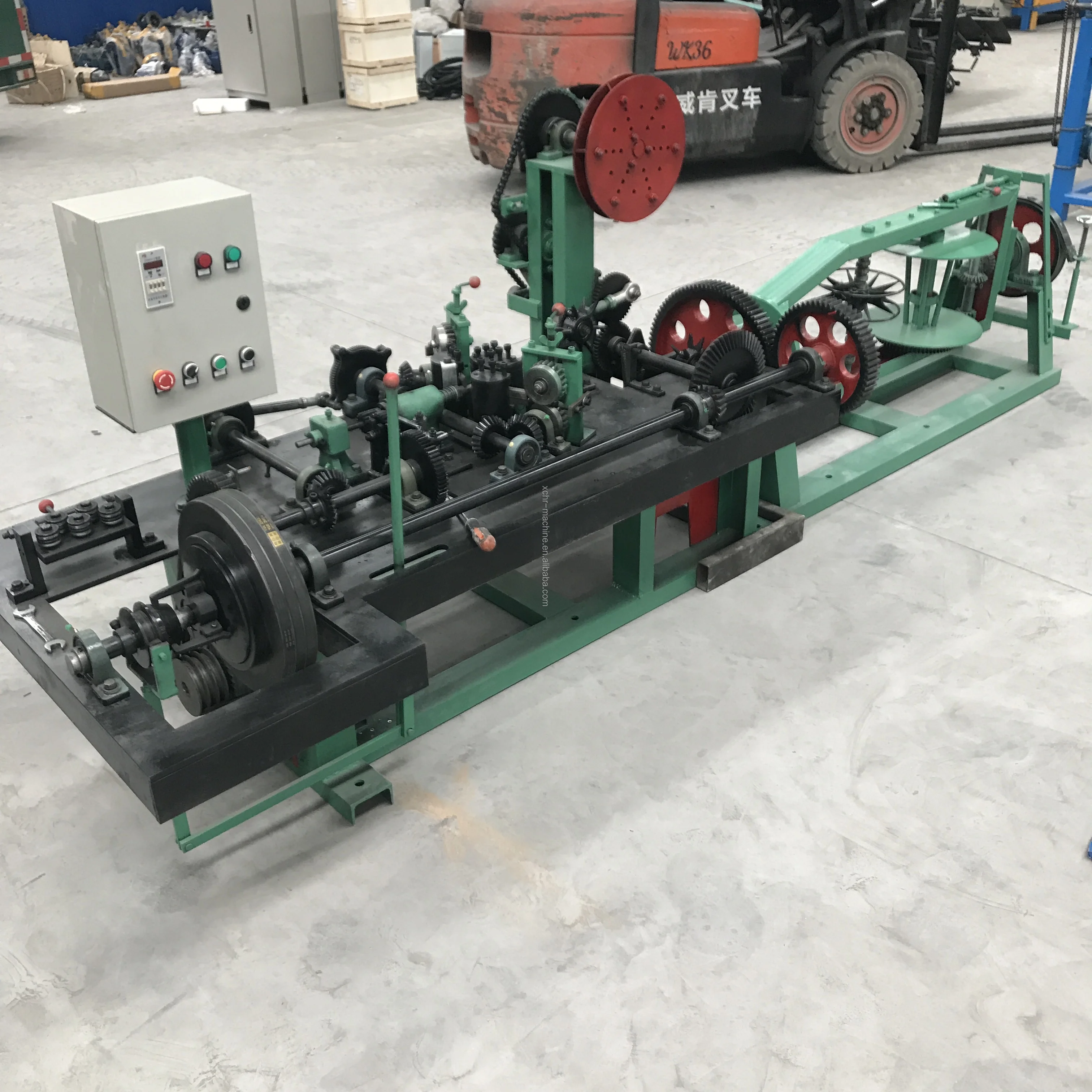

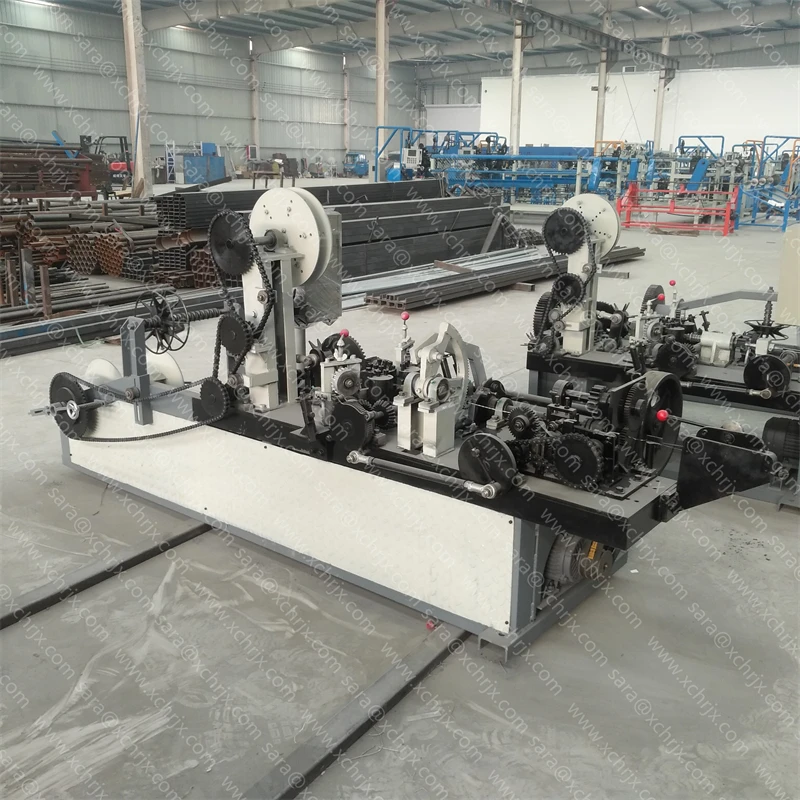

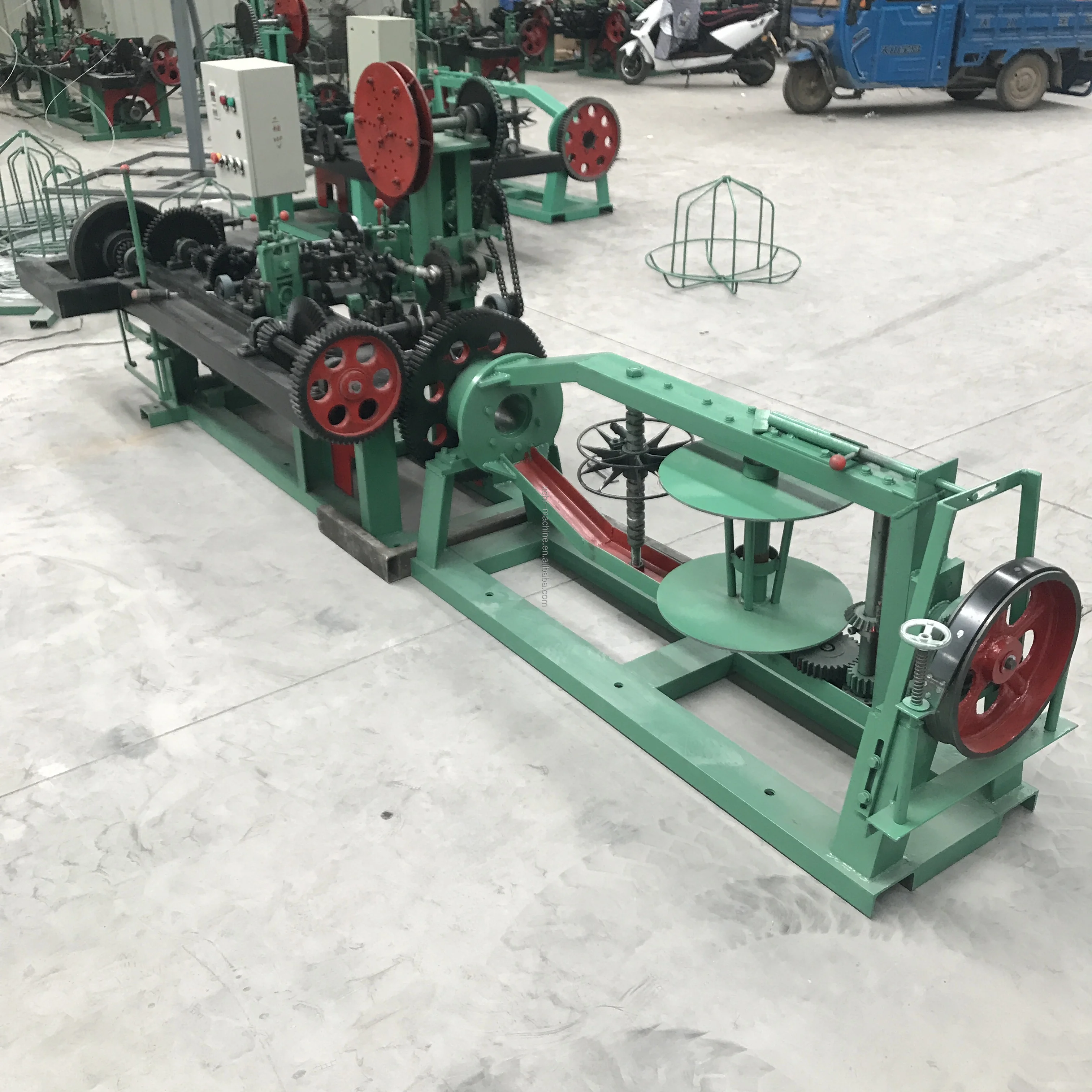

1. Barbed wire Making Machine--------

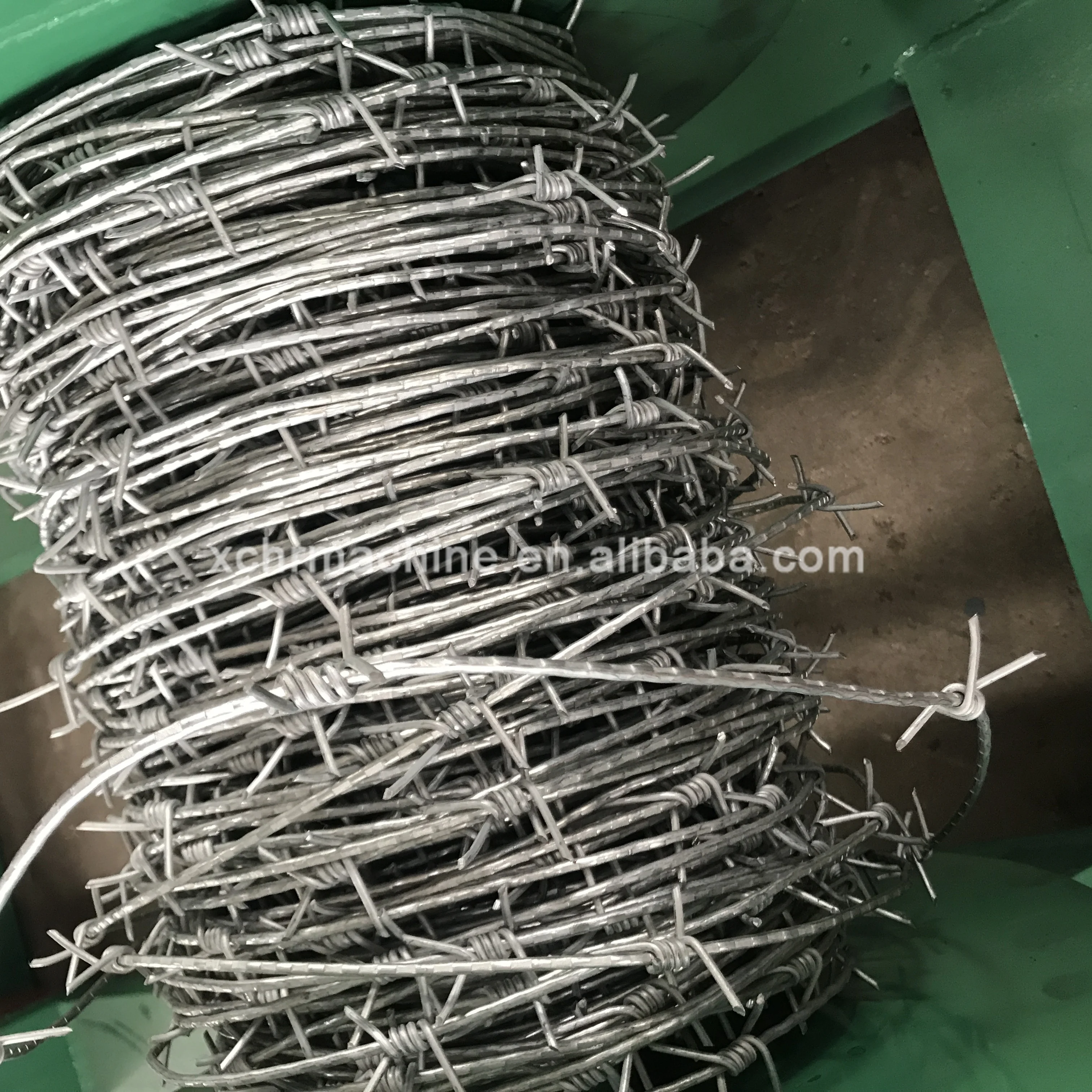

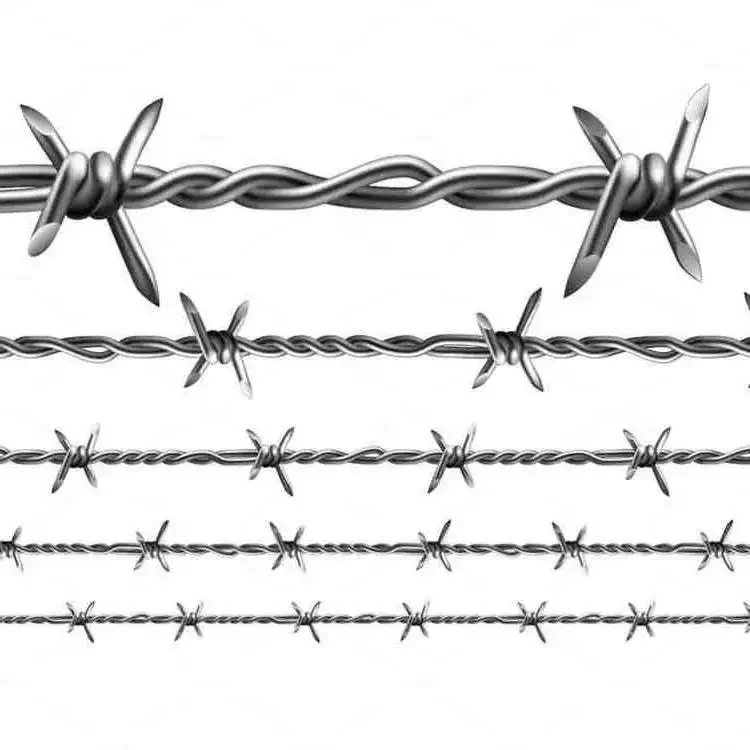

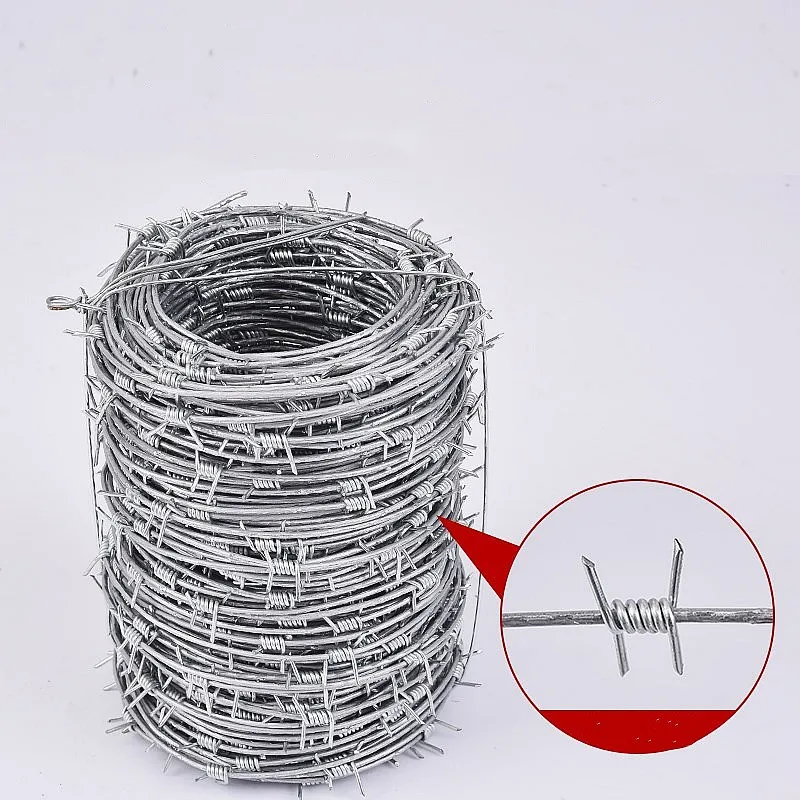

This machine can produce barbed wire which is widely used in national defense, military, railway, highway, agricultural, animal
husbandry and other industries.it is suitable for low-carbon wire,galvanized wire,PVC coated wire.

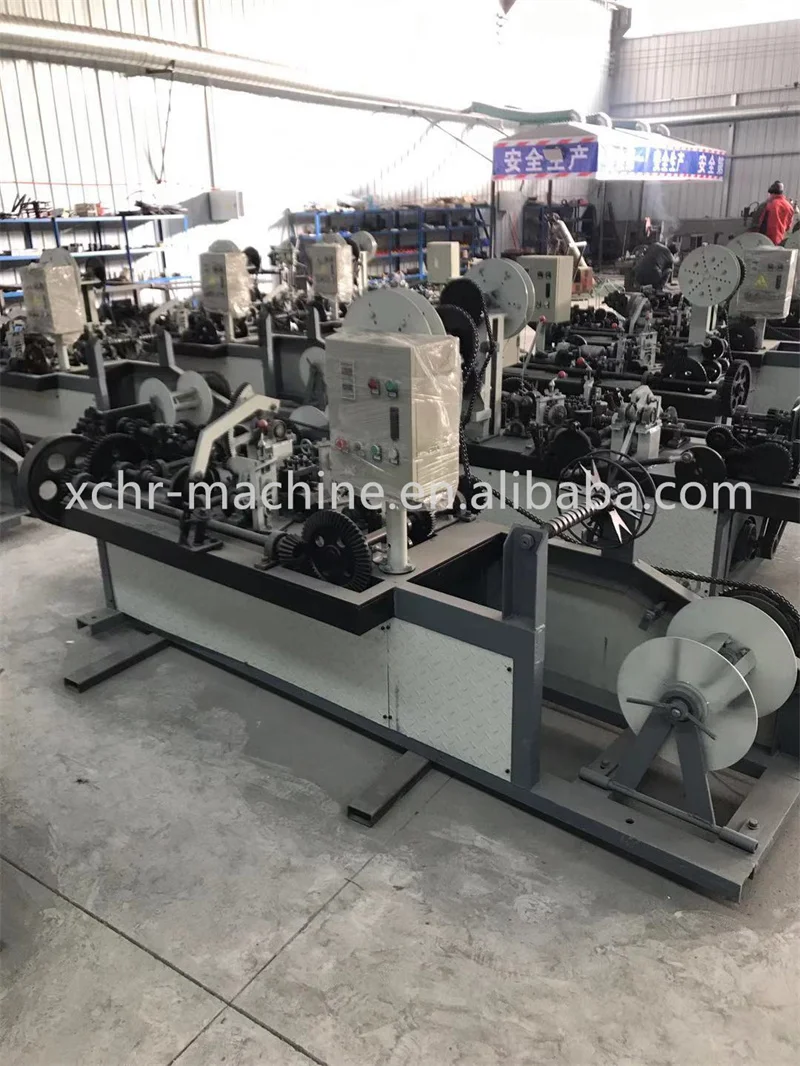

------workshop------






------Main Technical parameters------


Item
Single Barbed wire Machine
Double twisted barbed wire machine
Reverse double twisted barbed wire machine
Motor
2.2kw
3kw
2.2kw
Rated output
70kg/h
100kg/h
50kg/h
Wire diameter
2.2-3.0mm
2.0-3.0mm
1.6-2.8
Barbed wire diameter
1.8-2.2mm
1.7-2.6
1.3-2.3
Barb space
3'', 5'',
3",4"
4", 6"
Weight
800kg
1500kg
1200kg
Overall Dimension
3100*1000*1150
3000*1000*1200
3000*1000*120


The surface of the feeding wheel has been specially treated, which is durable. It can smooth the wire and reduce faults.
The screw thread system has the advantages of simple structure, convenient operation and easy replacement of twisted head.

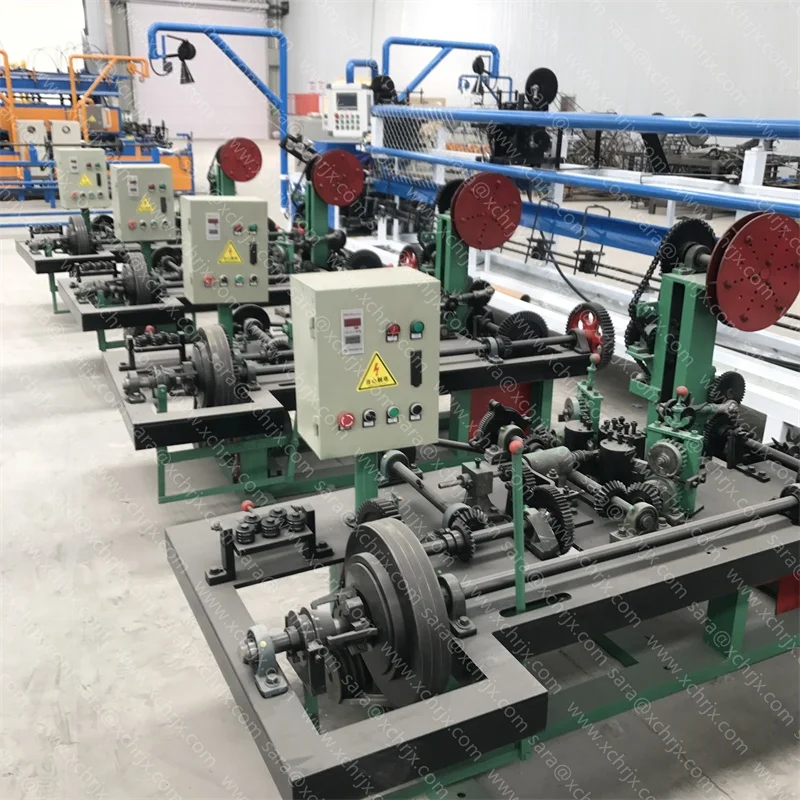

There are start button, stop button and emergency stop button on the electric box. The counter can set the output automatically.
The mechanical parts are made of alloy steel to ensure the long-term operation and overall service life of the machine.


Traverse device can automatically move the position to make the take-up more uniform and beautiful.
Take up reel can be customized according to customer requirements, including the size and diameter of the reel.

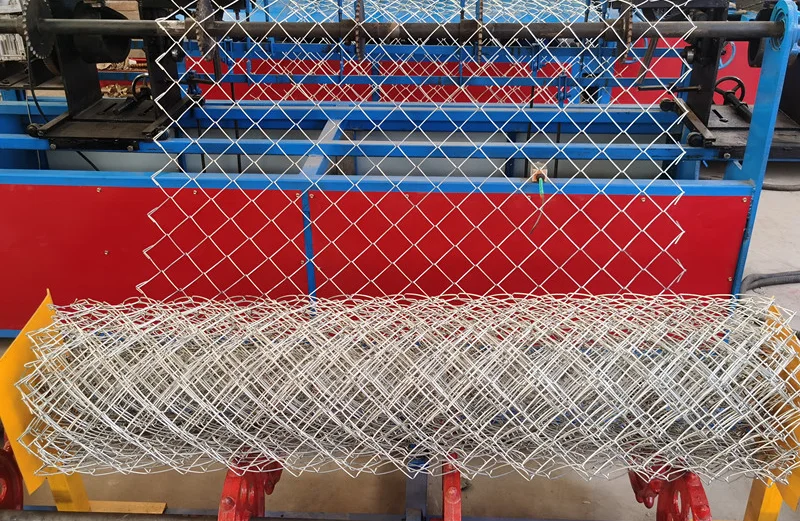

--------Chain Llink Mesh Fence Making Machine---------
Chain link fence machine also called chain link fencing machine, chain link fence making machine, chain link fence weaving machine,diamond wire mesh machine, the chain link fence netting machine including double wire fully automatic chain link fence machine , single wire fully automatic chain link fence machine.semi automatic chain link fence machine, the width could make from
2m to 6m fence wire mesh machine.

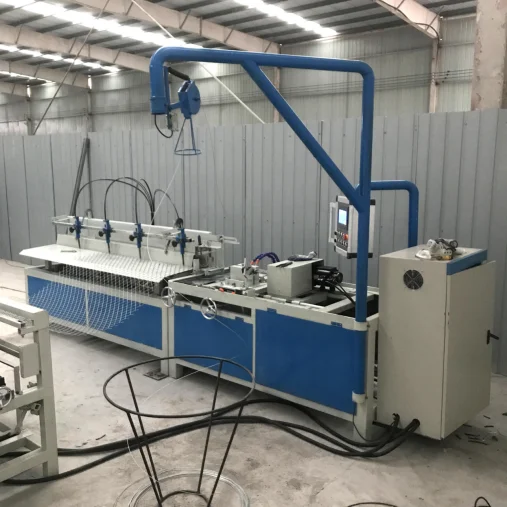

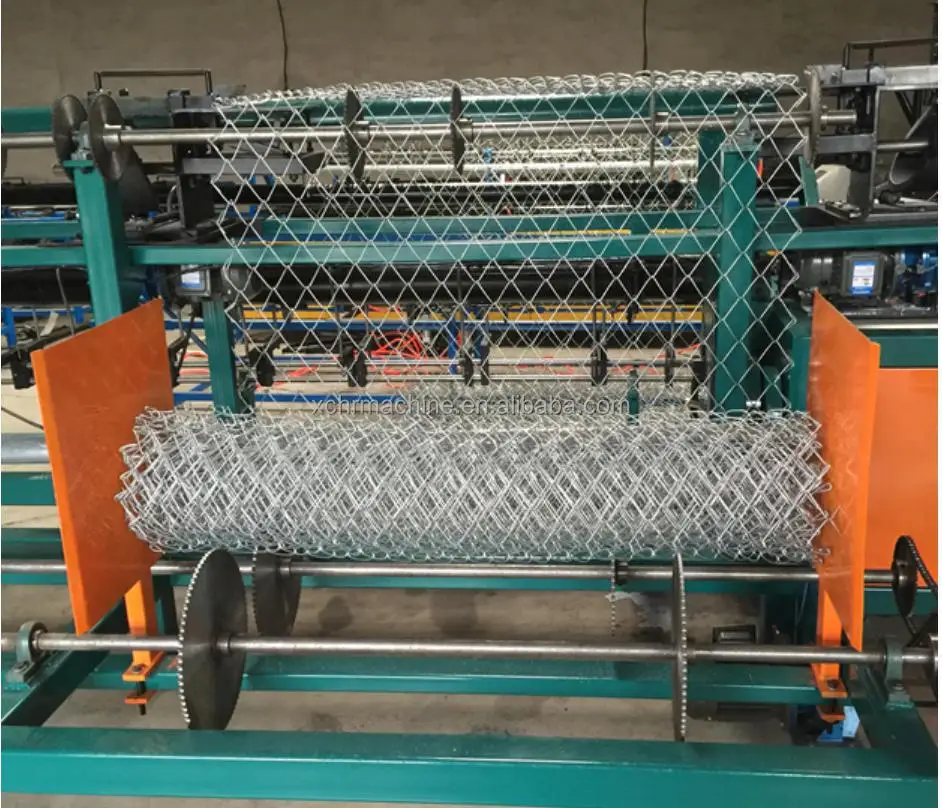

Fully automatic chain link fence machine can produce many different hole size of the meshwith different molds.The machine is
controlled by PLC,we can set the length of the fence by PLC.The machine only need one worker
for operating.

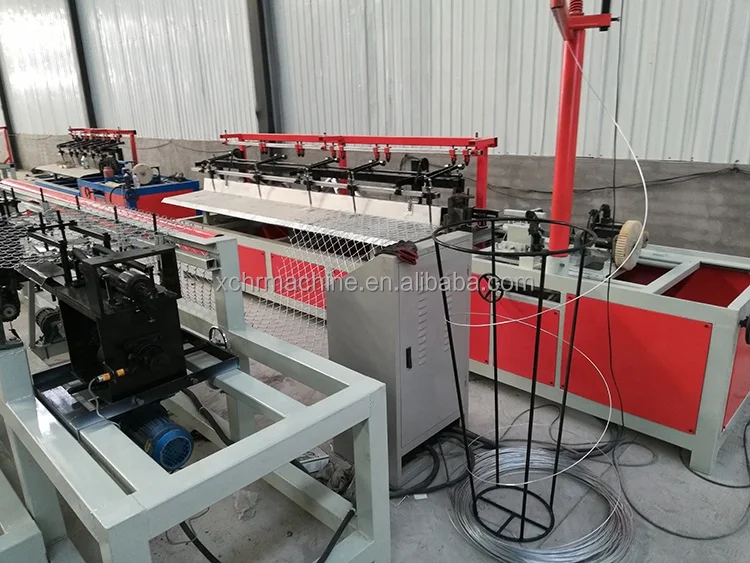

Whole chain link fence machine line include:main machine,chain link fence weaving machine,mesh rolling machine,border wire twisted and wind machine,PLC control cabinet,and all related accessories.It could start roduction directly after installation.

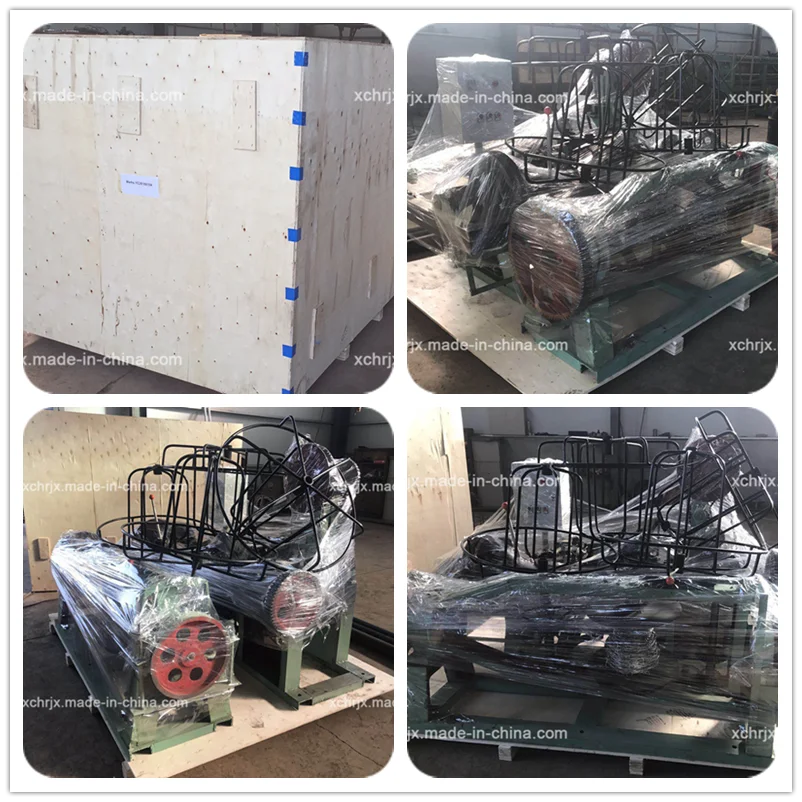

------SHIPMENT PICTURES------




Company Profile




Xuchang Huarui Machinery Co., Ltd
Xuchang Huarui Machinery Co., Ltd. was established in 1990, specializing in producing barbed wire making machine more than 30 years. After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.

Our Company Serivice
1. Two-year guarranty.
2. If quality problems happen within guarantee period, our company will repair for free.
3. 100% test and adjust the machine before delivery, and production pictures will be sent to clients, to help them know the machines better.
4. Additionally, our company provides technical support and fittings for life.
5. After-sales service is available any time.
6. If needed, our technician is available overseas to help you.




FAQ


Q: Are you trading company or manufacturer ?
A: We are factory. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q: Warranty? A: Two Years

Q: Do you do OEM? A:Yes

Q: I know nothing about the import, can you help me?
A: This will not be a problem. If you do not know how to import, our cooperated freight forwarder will help you to import. You
only have to pay a small money to them and they will take care of everything. It is very easy and simple.

Q: What should i do if we feel hard to use the machine?
A:If you need ,at any time, we can send our engineers to your factory for training, debugging machine and maintenance. Operating
Instruction&Maintenance Manual attached with the machine.we will send you the solution by email or phone within 24 hours,When we
receive your service repuest. We can send you video for learning

Q:If the parts was broken, how about the solution?
A:1)Non-artificial damage parts, within warranty period, can be provided free of charge 2)Custom-made parts with detailed drawing
can be provided
