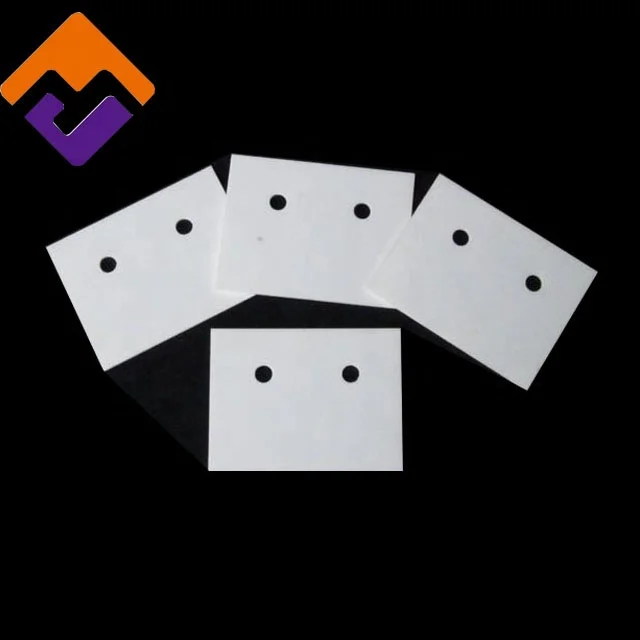

Factory Price Industrial 96% AI2O3 Metalized Alumina Oxide Ceramic Plate Substrate
- Category: >>>
- Supplier: Shenzhen Jiamei Photoelectric Technology Co. Ltd.
Share on (1600761414904):
Product Overview
Description
What are Engineering Ceramics?
Engineer ceramics are components of ceramic to provide solutions for engineering conditions with special requirements.Ceramicsoffer many advantages compared to other materials. They aremore heat and corrosion resistant than metals or polymers; less dense than most metals and their alloys; and their raw materials are both plentiful and inexpensive. These good properties facilitate their use in many different product areas.The common engineer ceramics include alumina ceramic, steatite ceramic, zirconia ceramic, cordierite ceramic and titanium ceramicetc.If you are looking for a material that has a longer working life and can stand up to wear, corrosion and high temperature, the engineering ceramic is the answer.

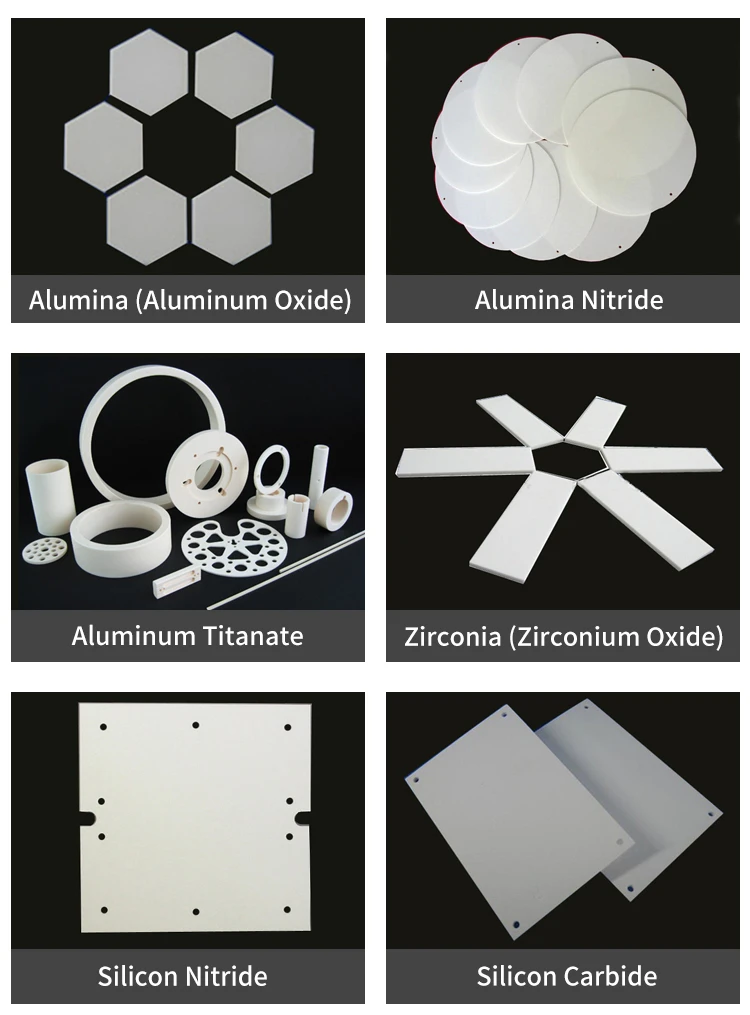

We manufacture products in following materials
1-Alumina (Aluminum Oxide) 2-Alumina Nitride 3-Aluminum Titanate4-Zirconia (Zirconium Oxide) 5-Silicon Nitride 6-Silicon Carbide
Aluminum nitride ceramic substrate, ALN ceramics features:
1.High hardness , diversity 2.High precision and density 3.High reliability and stability
4.High thermal conductivity 5.Extremely abrasive resistance performance 6.Wide scope of application
1.High hardness , diversity 2.High precision and density 3.High reliability and stability
4.High thermal conductivity 5.Extremely abrasive resistance performance 6.Wide scope of application
Product Description
Product name | Factory Price Industrial 96% AI2O3 Metalized Alumina Oxide Ceramic Plate Substrate | ||||||
Type | Ceramic substrate | ||||||
Material | Alumina/zirconia | ||||||
Color | White | ||||||
Size & Shape | Customzied | ||||||

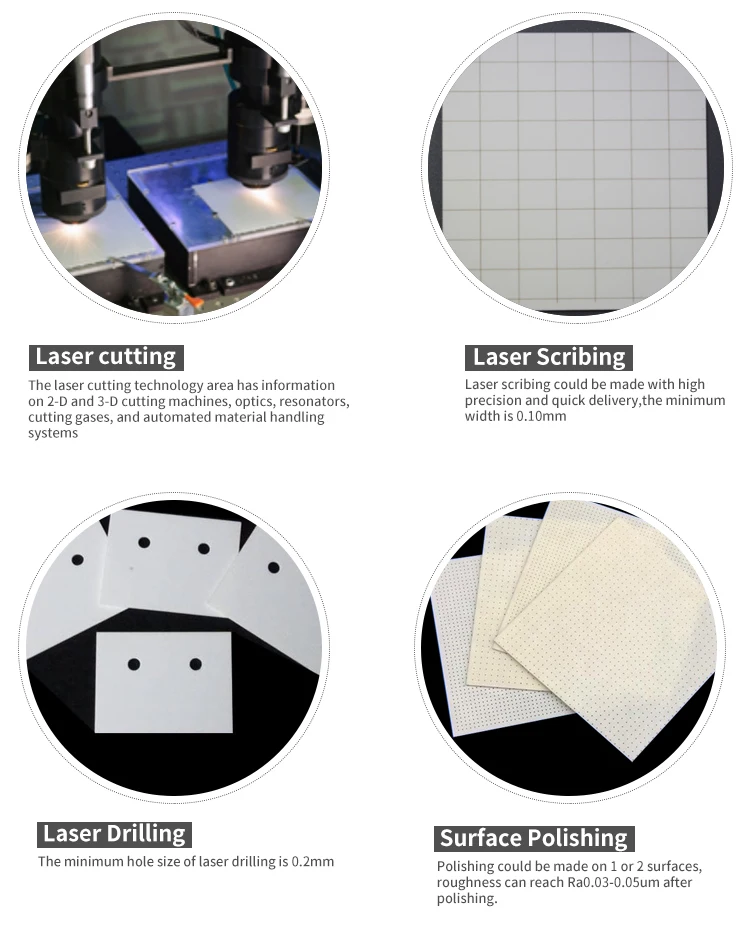

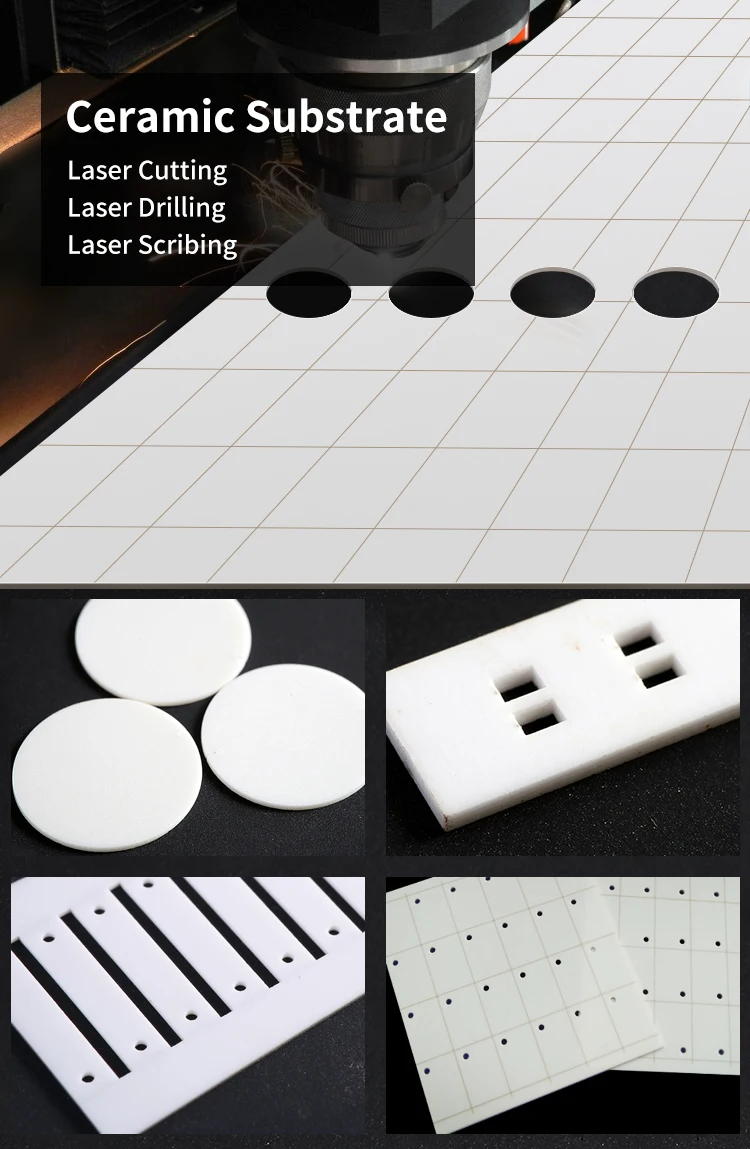

machining Method | Laser cutting/laser scribing/laser drilling | ||||||
MOQ | 10pieces | ||||||
Delivery time | Standard Product: Within 3 days New developed items: 15days | ||||||
Features | 1. Many kinds of insulated ceramics available 2. It can satisfy constant's technical request 3. Good lead-heat capability, Good compressive strength 4. High resistance, Good air tightness 5. High temperature and high voltage resistant | ||||||
Product Picture
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Related Product

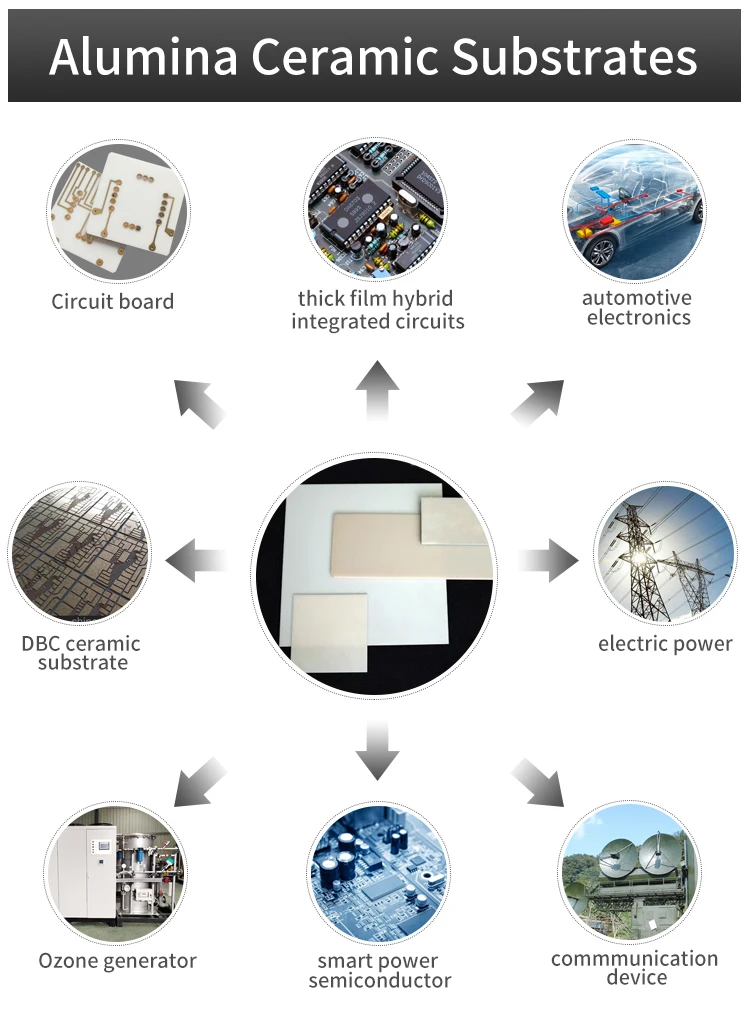

Parameter & Application
Technical parameter for Alumina Ceramic Substrate/Plate
Properties | Unit | 95 Alumina | 99 Alumina | Zirconia |
Density | g/cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
Water absorption | % | 0 | 0 | 0 |
Coefficient of Thermal Expansion | 10-6/k | 7.9 | 8.5 | 10.5 |
Modulus of Elasticity Young's Mod | Gpa | 280 | 340 | 210 |
Poisson's Ratio | / | 0.21 | 0.22 | 0.33 |
HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
Flexural Strength @ 700 ℃ | Mpa | 220 | 230 | 210 |
Compressive Strength @ Room Temperature | Mpa | 2000 | 2200 | 2000 |
Fracture Toughness | Mpa*M0.5 | 3.8 | 4.2 | 10 |
Heat Conductivity @ Room Temperature | W/m*k | 18 - 25 | 26 - 30 | 2.0-2.2 |
Electrical Resistivity @ Room Temperature | *mm2/m | > 10（15） | >10(16) | > 10（15） |
Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
Resistance to Acid Alkaline | / | High | High | High |
Dielectric Constant | / | 9.5 | 9.8 | 26 |
Dielectric Strength | KV/mm | 16 | 22 | / |
Thermal Shock Resistance | T(℃) | 220 | 180 - 200 | 282 - 350 |
Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |

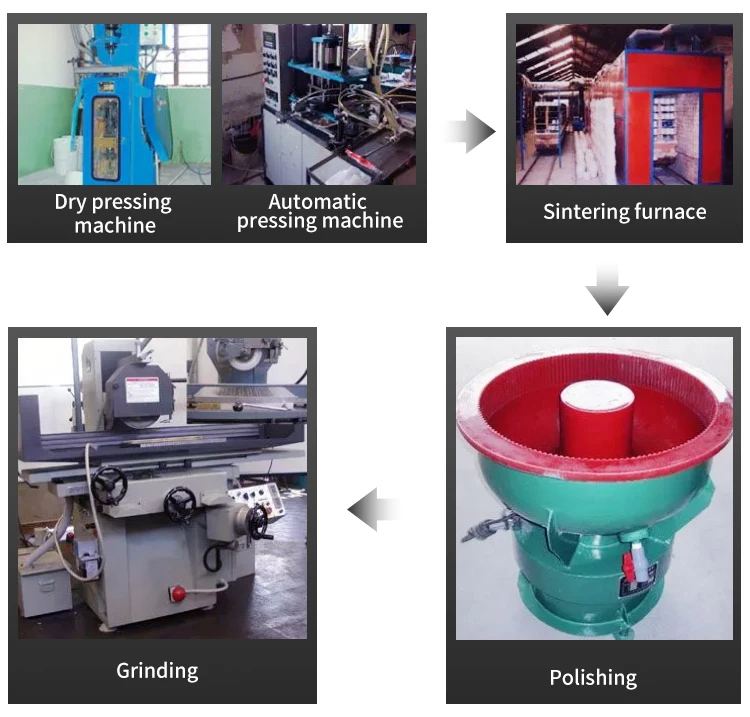

Production workshop
Packing & Delivery
Company Information
Customer Photos
FAQ
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.
(2) If you have your own express number, it's great.
If not, we could assist you to deliver. Freight=USD25.0(the first weight) + USD12.0/kg
Q: What's the delivery time?
(1) For the standard products such as ball lens, powell lens and collimator lens:
For inventory: the delivery is 5 workdays after order.
For customized products: the delivery is 2 or 3 workweeks after order.
(2) For the off-standard products, the delivery is 2 or 6 workweeks after you place the order.
Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 5pcs-20pcs.
It depends on quantity and technics
Q: How to pay?
T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance on Alibaba and etc..
Q: Do you have inspection report for material?
We can supply ROHS report and reach reports for our products.
Q: Do you received OEM/ODM?
Yes, we have more than 9years OEM experience.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
