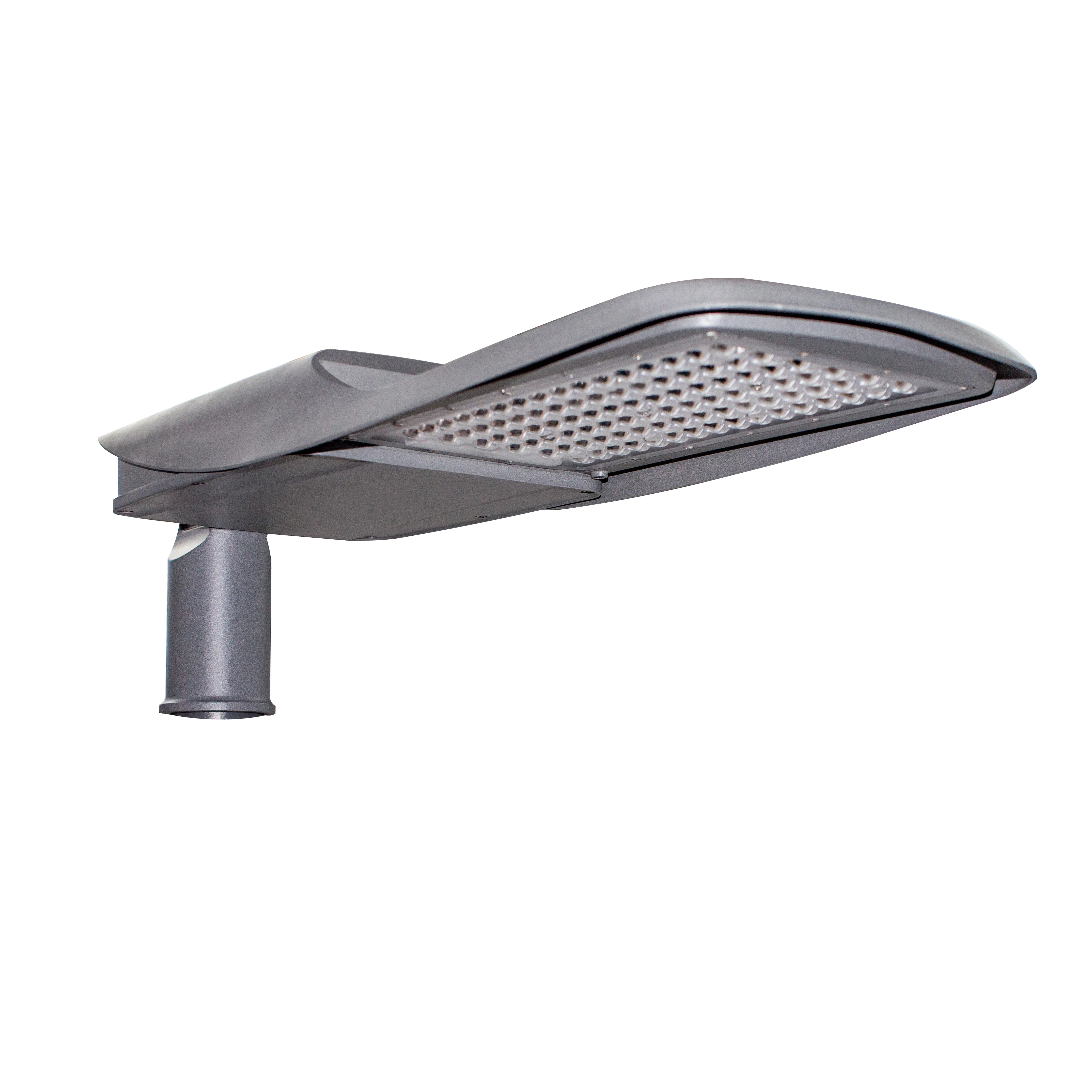

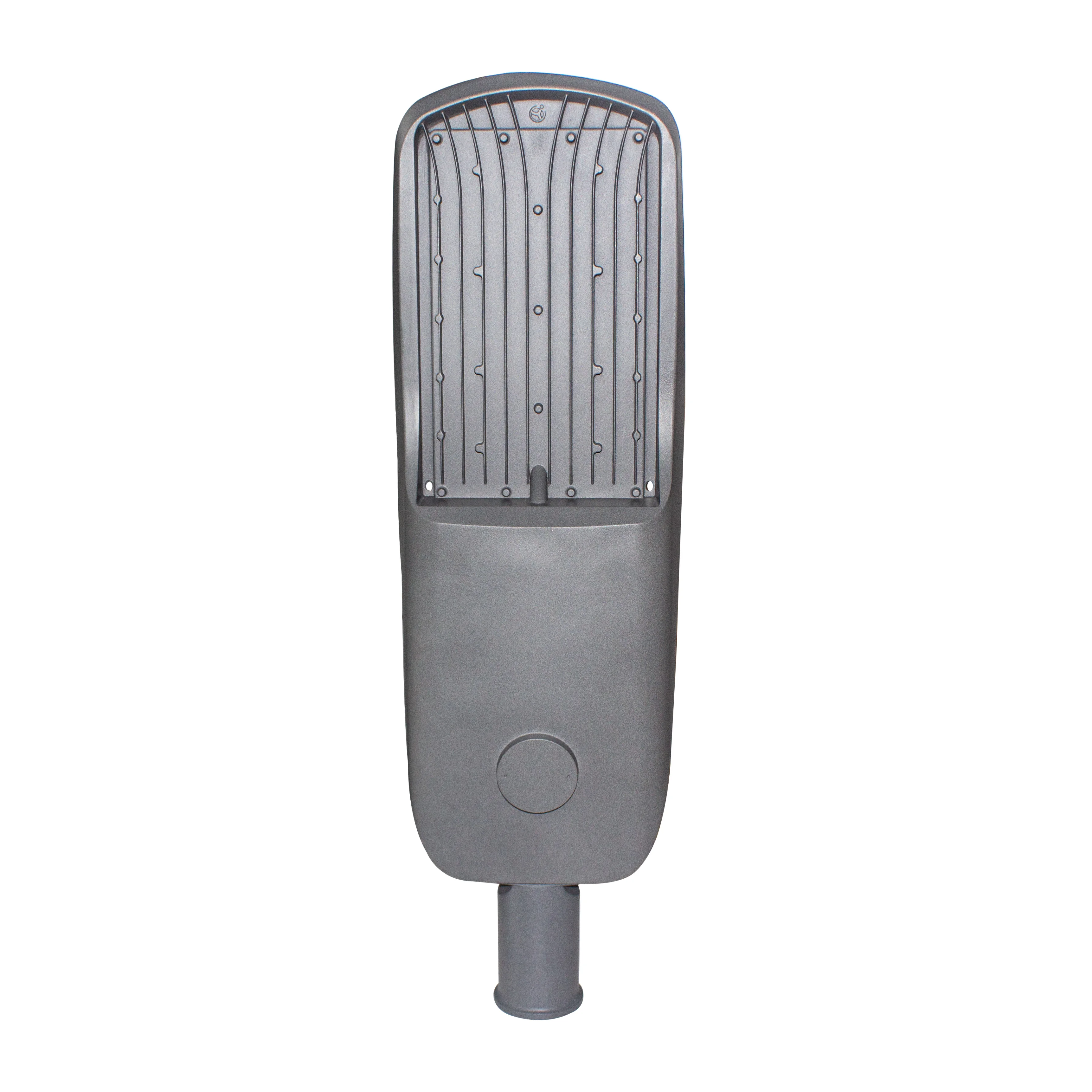

AC100 277V IP66 JYL06M 100W economical LED street lighting
- Category: >>>
- Supplier: Zhejiang Jinyuan Optoelectronics Co. Ltd.
Share on (1600761456677):
Product Overview
Description
Product Description
AC High light efficiency CB CE Certification Aluminum SMD 100W Outdoor LED Street Light
AC100-277V IP66 JYL06M 100W economical LED street light
At Jinyuan optoelectronics, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects.
Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the outdoors that are made in Jinyuan using precision engineered led lighting components and designs that will always look great from the moment they are installed to years later.
This is our new series of LED street light.

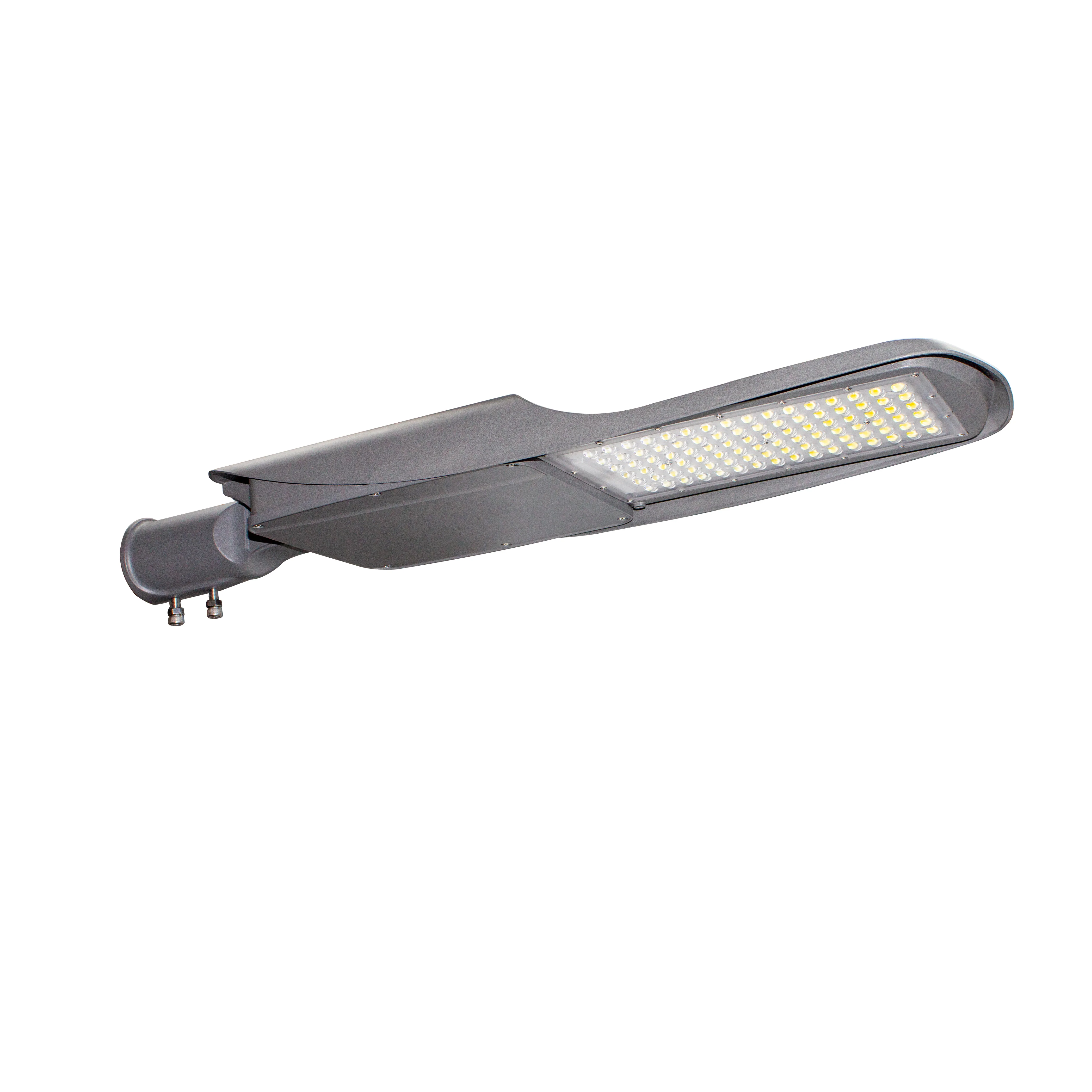

JYL06M series High light performance 100W led Street light

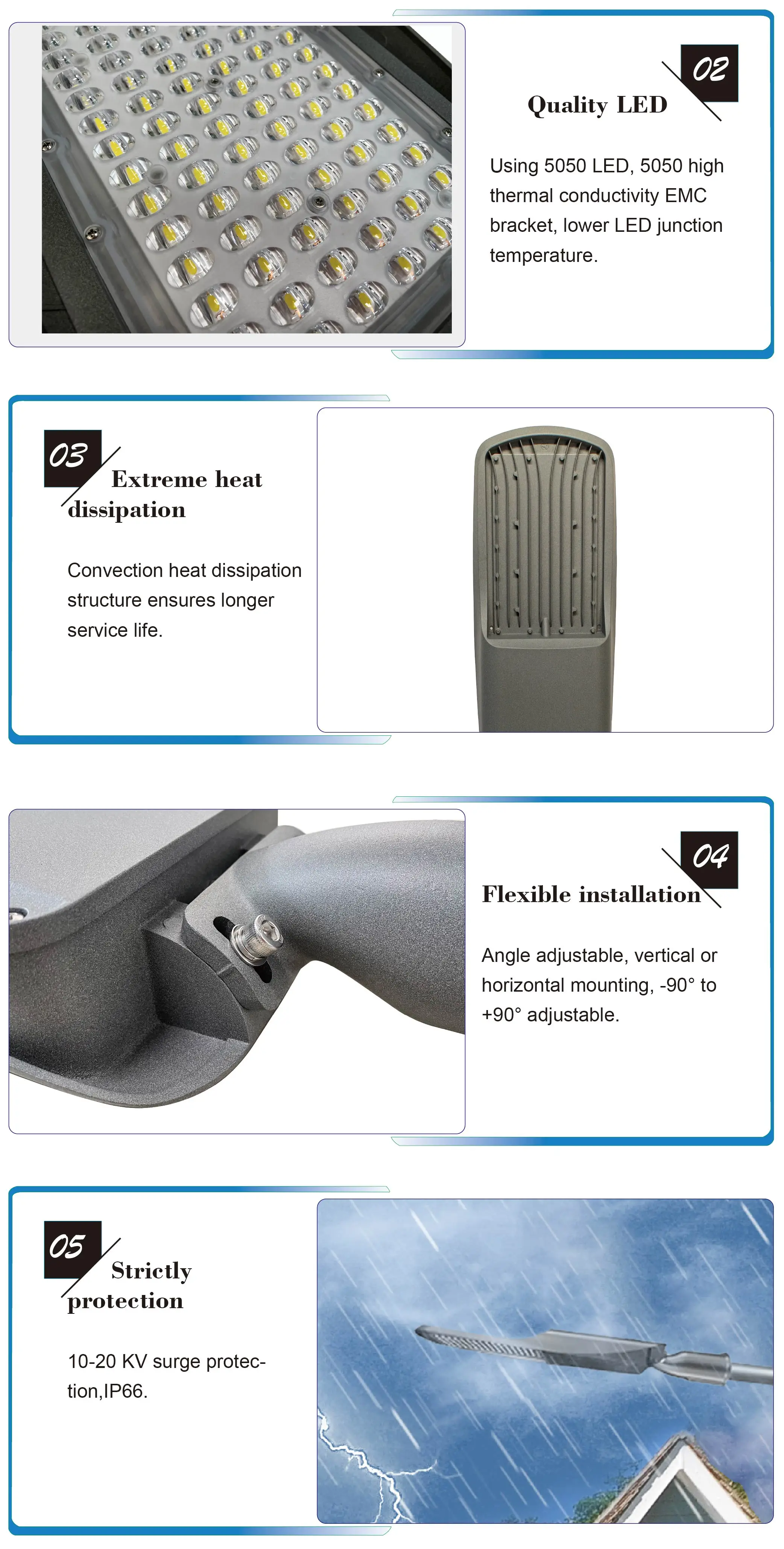

Product features:
♦ Patented technology, integrated structure design
♦ Convection heat dissipation structure
♦ Using 5050 EMC bracket with high thermal conductivity

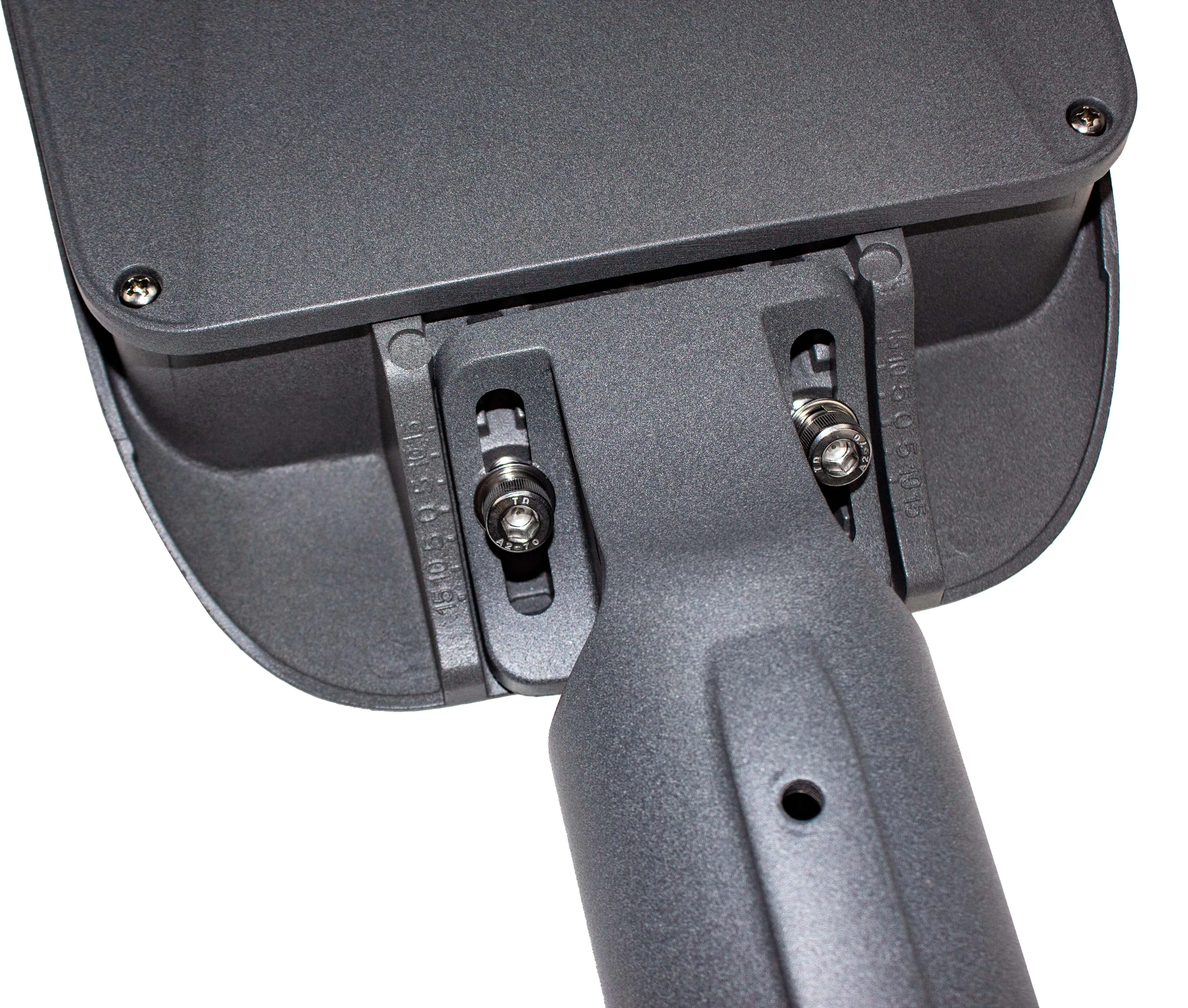

♦ Vertical or horizontal installation ,-15° to +15° angle adjustable
♦ Human efficacy light distribution
At Jinyuan optoelectronics, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects.
Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the outdoors that are made in Jinyuan using precision engineered led lighting components and designs that will always look great from the moment they are installed to years later.
This is our new series of LED street light.
JYL06M series High light performance 100W led Street light
Product features:
♦ Patented technology, integrated structure design
♦ Convection heat dissipation structure
♦ Using 5050 EMC bracket with high thermal conductivity
♦ Vertical or horizontal installation ,-15° to +15° angle adjustable
♦ Human efficacy light distribution
| Model | JYL06-100M | JYL06-120M | JYL06-150M | JYL06-200M |
| Work voltage | AC100-277V 50/60HZ | |||
| Power | 100W | 120W | 150W | 200W |
| Driver efficiency | ≥90% | |||
| Power factor | ≥0.95 | |||
| LED quantity | 96pcs | |||
| LED TYPE | 5050 | |||
| Light efficiency | 140-170lm/W | |||
| Color temperature | 2700K-6500K | |||
| CRI | Ra70 | |||

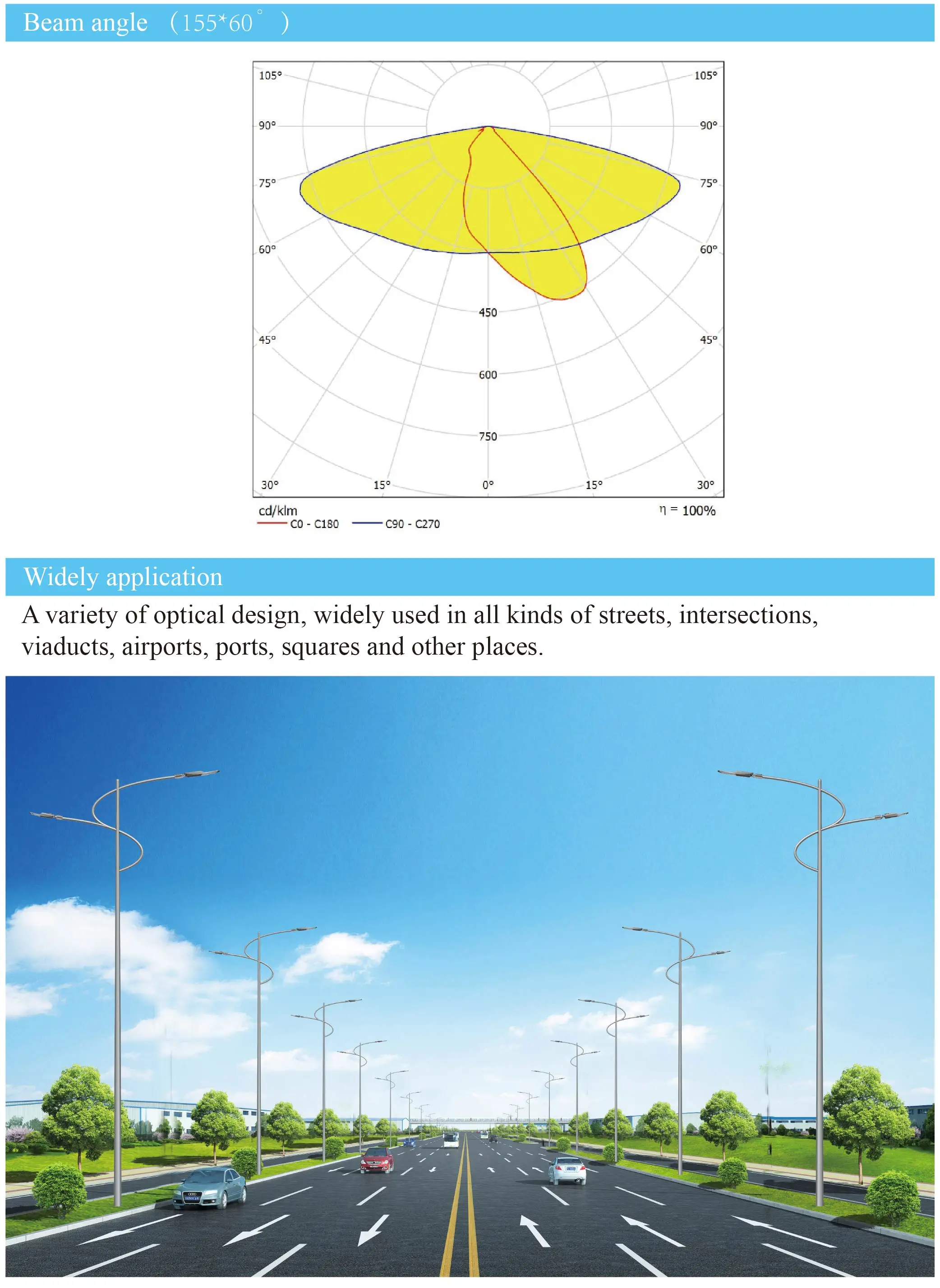

| Beam angle | 155*60° | |||
| Pin temperature rise | ≤45℃ | |||
| Operating temperature | -30℃~+45℃,10%~90%RH | |||
| Storage temperature | -30℃~50℃ | |||
| LED life | >50000 h | |||
| Luminous flux Maintenance rate | 5 years ≥90% | |||
| Surge voltage | ≥4KV | |||
| Body material | Aluminum+PC | |||

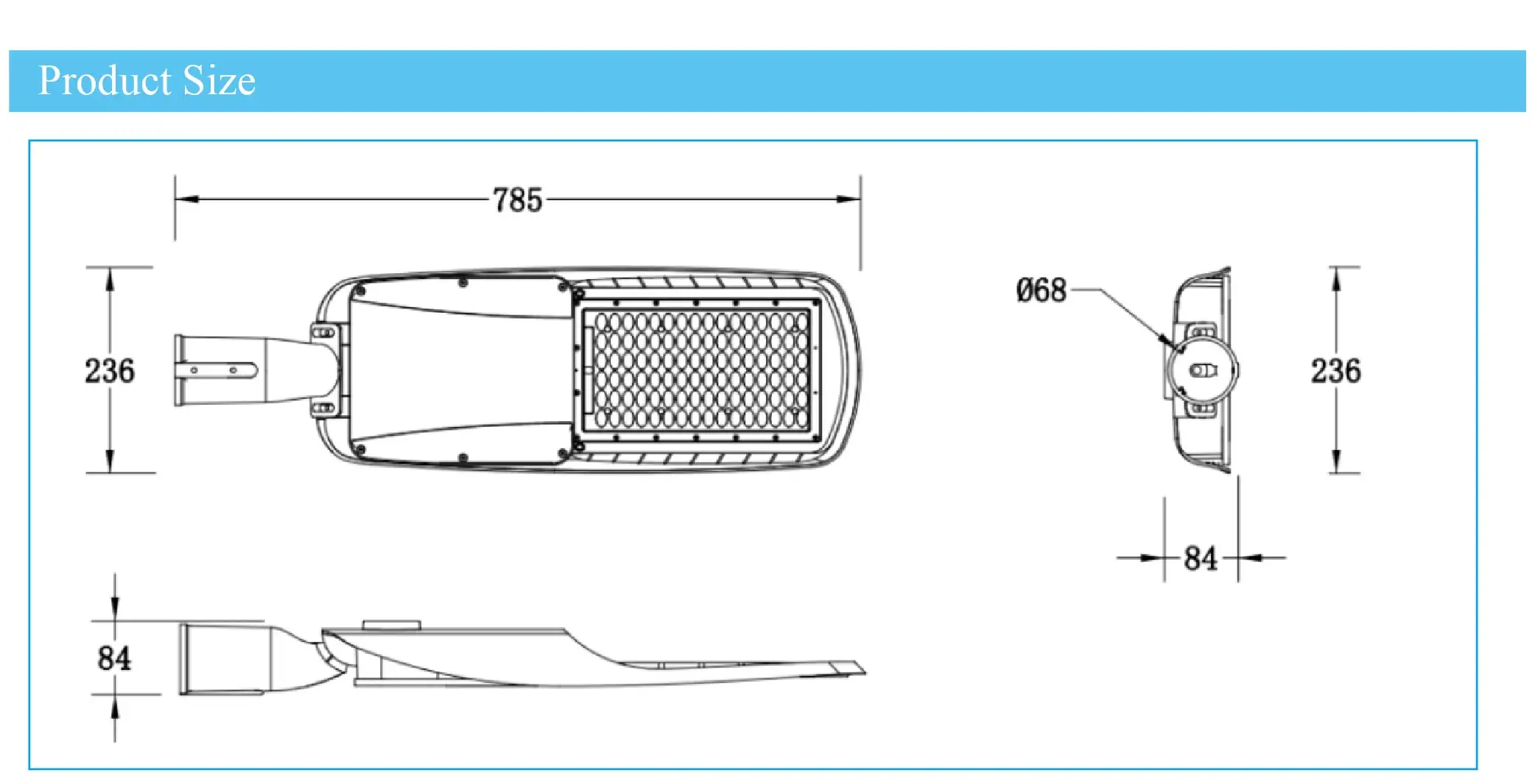

| Product size(mm) | 785*236*84 | |||
| Packing size(mm) | 800*250*120 | |||
| N.W.(KG) | 3.24~3.8 | |||
| IP | IP66 | |||
| Electric Shock Protection Class | Ⅰ | |||
| Service Life | ≥5years | |||
We welcome you to purchase our superior line of led outdoor streetlights, flood lights, path lights, wall washer lights, garden lights which are all crafted for professional results.
Pls contact us directly for OEM/ODM business of lighting.
Pls contact us directly for OEM/ODM business of lighting.
