50hp 4 compressor system water cooled water chiller

Product Overview

Description





HTI-W series Water cooled industrial chiller is mainly applied in Plastic & Rubber industry; It can accurately control the molding temperatur

e and shorten the molding cycle, increase the product quality and improve the production efficiency.They are also widely used in Metal working,

Mechanical & Engineering, Chemical & Pharmaceutical, Food &Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing,

Water jet, Vacuum coating,Construction and Military.





 Design Features

Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy

consumption, low noise and long service life;

adopted aluminum fin/copper tube type condenser, easy for cleaning and installation;

5C to 35C optional temperature range;

R22 charged, CFC free type R407C, R410A for option, high cooling efficiency;

Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature;

Microcomputer control system offering accurate temperature stability within ±1℃;

Low noise and big volume air blower;

Standard equipped Iron pump, stainless steel or high lift pump for option;

Multi-protection devices ensure the chiller unit running safely;



The innovative evaporator-in-tank configuration ensures a steady water temperature offered, as the evaporator also cools the tank itself,

reduces ambient heat gain, and increases the efficiency.

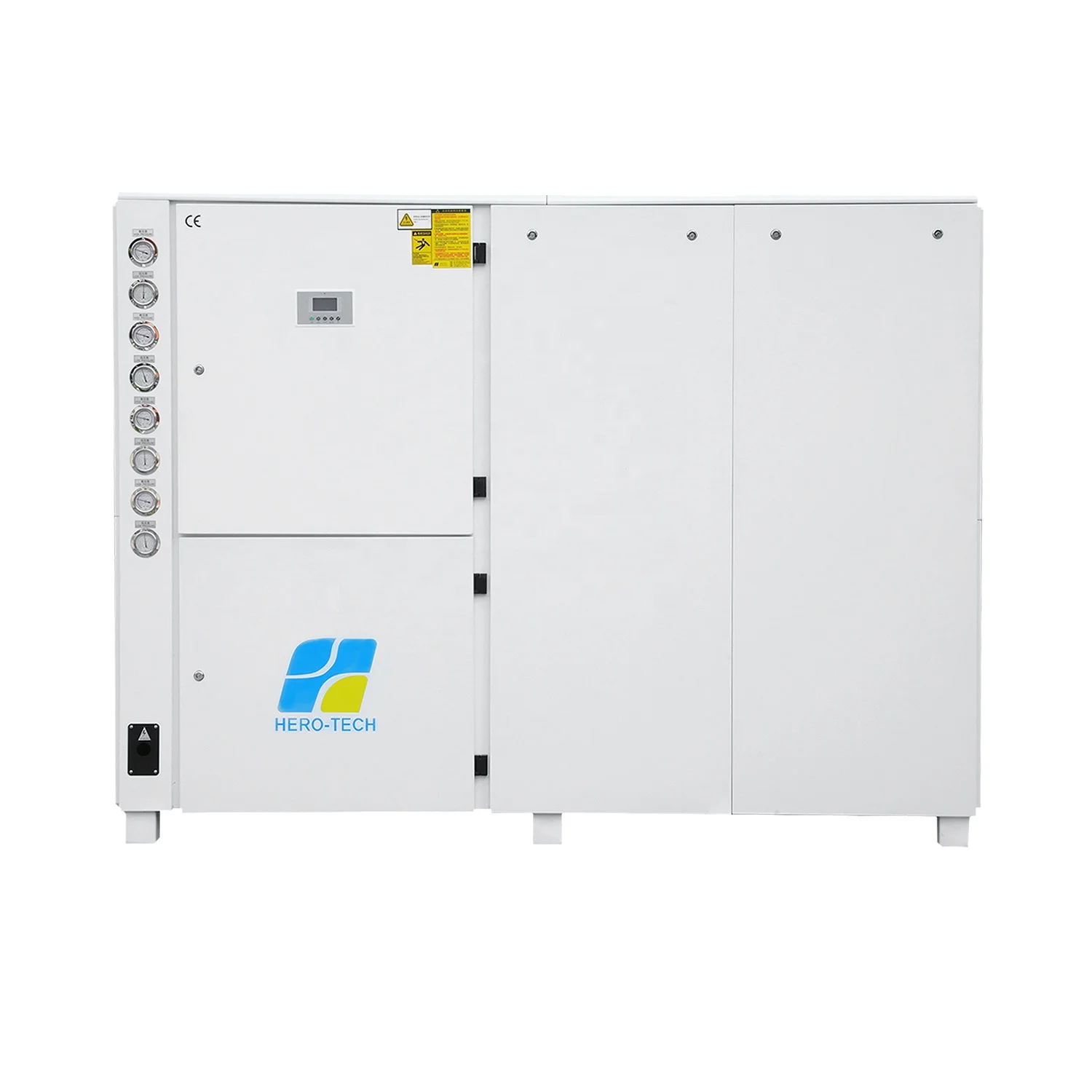

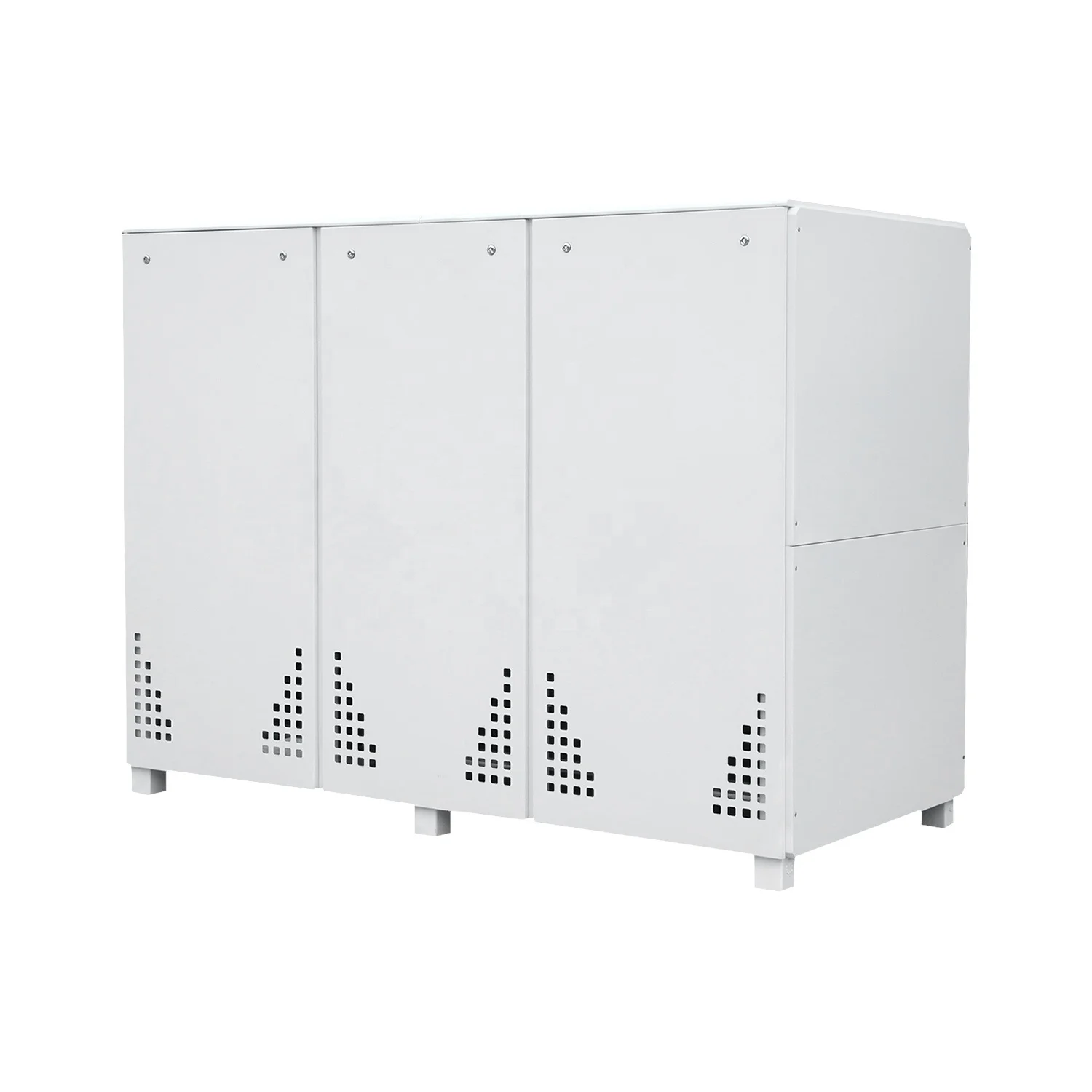

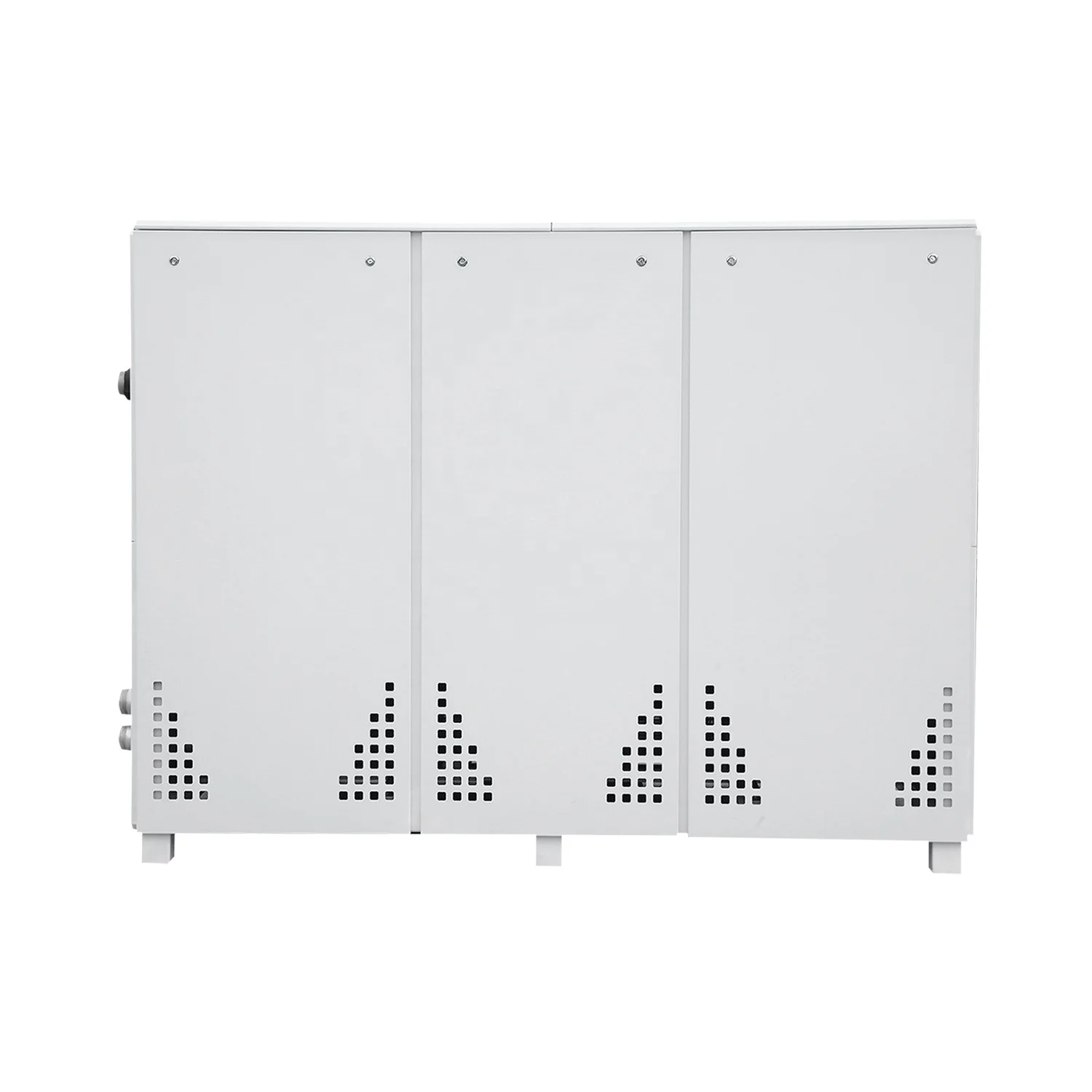

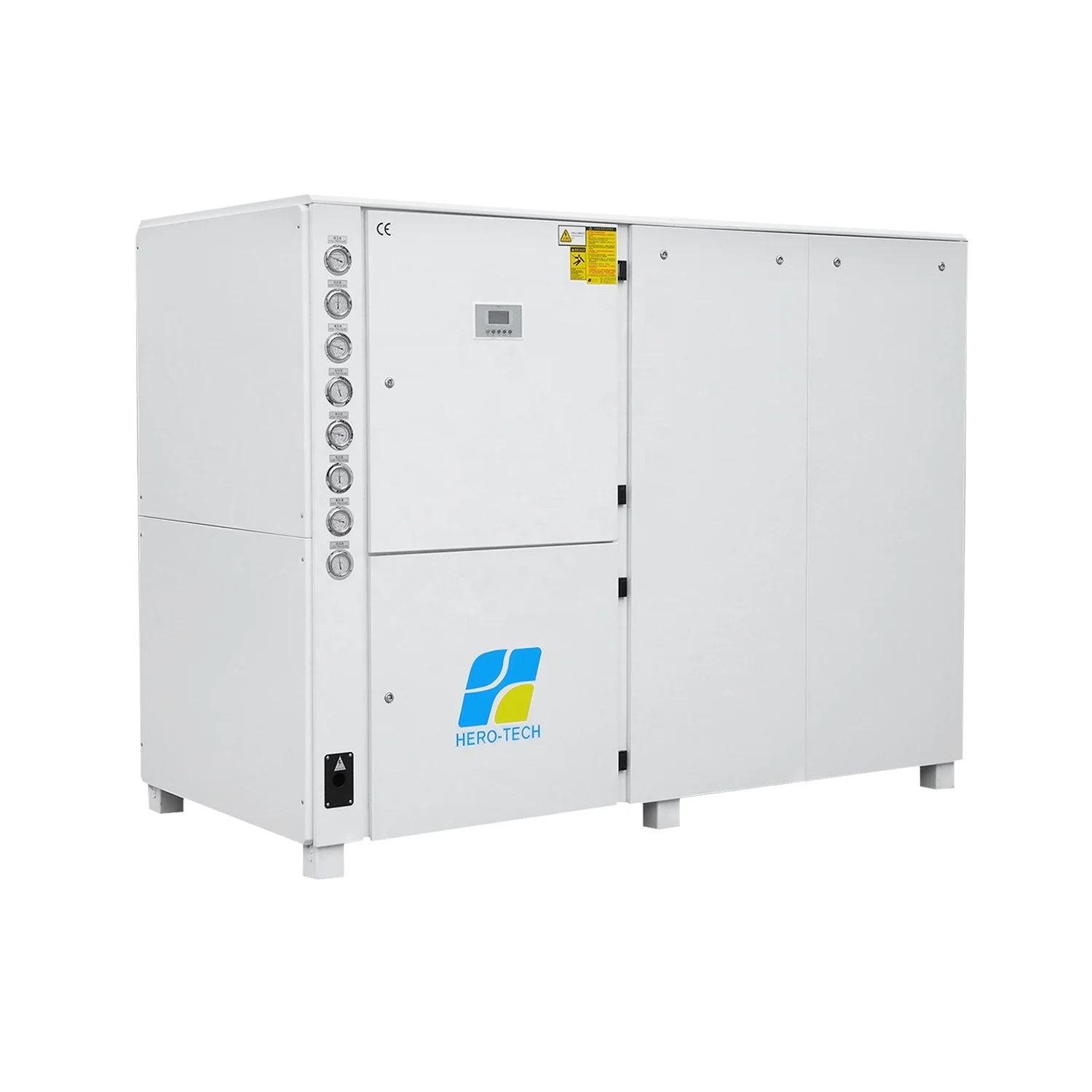

 HTI-50WF Water Cooled Industrial Chiller

Model			HTI-50WF
Nominal Cooling Capacity		Kcal/h	141900
		KW	165
Max Power Consumption		KW	34.1
Power Source			3PH 380V/50HZ
Refrigerant	Type		R22
	Control		Thermal expansion valve
Compressor	Type		Hermetic Scroll
	Power	KW	7.6×4
Condenser	Type		Shell and tube
	Cooling Water Volume	m3/h	30.9
	Pipe Connection	Inch	3
Evaporator	Type		Shell & tube
	Coolant Flow	m3/h	25.7
	Tank Volume	Litre	--
	Inlet and Outlet Connection(BSP)	Inch	3
Pump	Power	KW	4
	Head	m	20
Unit Protection Modules		Compressor Overheating, Motor Overload, High&Low Pressure, Chilled Water Over Temperature, Tank Water Level
Dimension	Length	mm	2510
	Width	mm	1190
	Height	mm	1900
Weight		KG	980

NOTE: The specifications based on the following design conditions:

l Chilled water supply/return temperature: 12℃/17℃

l Cooling water inlet/outlet temperature: 25℃/30℃

 We reserve the right to modify the specifications without further notice.







Company photos



 Certificate

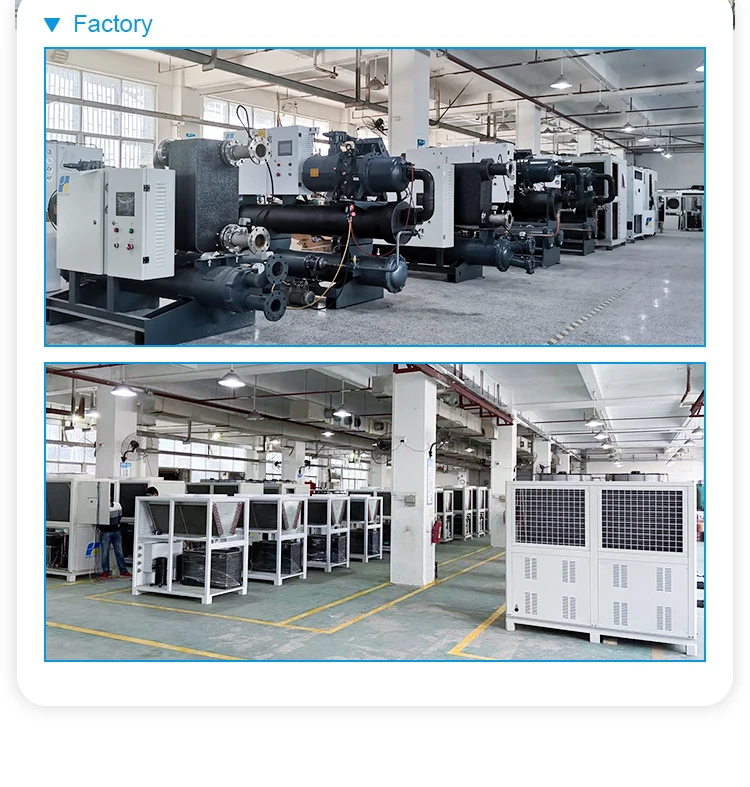

Company Show
