Product Overview
Description
Product Overview

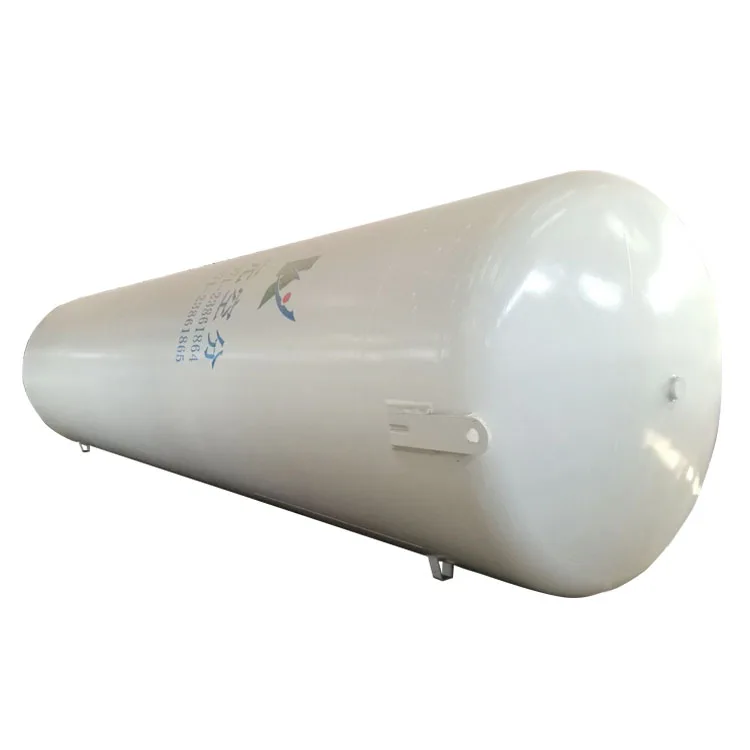

CRYOGENIC LIQUID VACUUM STORAGE TANK
Cryogenic liquid vacuum storage tank is designed to store industrial gases such as liquid oxygen, liquid nitrogen, liquid argon, carbon dioxide, LNG, ethylene, etc. It features large storage capacity, automatic pressure regulation, low evaporation rate, liquid level display, high safety and reliability and other advantages. It mainly consists of inner tank and outer tank, interlayer filled with expanded perlite and vacuum, pipeline system and safety accessories. It is widely used in such projects as industrial centralized gas supply, LNG filling station, LNG gasification station, LNG storage and distribution station and LNG peak shaving station.
FEATURES AT A GLANCE
Characters of cryogenic liquid storage tank:
1. Cryogenic liquid vacuum tank is for storing industrial such as liquid oxygen, nitrogen, argon, CO2, natural gas, ethylene, etc.2. It can be combined with liquid pump and vaporizer to form a gas filling station, with simple operation, small footprint and low investment cost. Meet the different needs of customers.
3. Kaiyuan is skilled in manufacturing thermosiphon vacuum tanks, which are safe, economic, highly efficient and environment
friendly. Based on the client‘s needs, it can be customized with in the range of 0.2-4.0 MPa working pressure and 5-250 M3 volume.
3. Kaiyuan is skilled in manufacturing thermosiphon vacuum tanks, which are safe, economic, highly efficient and environment
friendly. Based on the client‘s needs, it can be customized with in the range of 0.2-4.0 MPa working pressure and 5-250 M3 volume.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
List of models and technical specifications of cryogenic liquid storage tank
Model(CFL/W) | KY5 | KY10 | KY15 | KY20 | KY30 | KY50 | KY100 | KY200 | KY250 | ||||||||
Inner tank/outer tank material | S30408/Q345R(CO2inner tank:16MnR) | ||||||||||||||||
Operation pressure | 0.2/0.8/1.2/1.6/2.8 MPa | ||||||||||||||||
Volume (m3) | 5 | 10 | 15 | 20 | 30 | 50 | 100 | 200 | 250 | ||||||||
Inner tank size (m) | 1.4 | 1.8 | 1.8 | 2.0 | 2.2 | 2.5 | 3.0 | 3.5 | 3.6 | ||||||||
Outer tank size (m) | 1.9 | 2.3 | 2.3 | 2.5 | 2.7 | 3.0 | 3.5 | 4.0 | 4.1 | ||||||||
Daily evaporation | 0.4 | 0.36 | 0.35 | 0.33 | 0.29 | 0.23 | 0.16 | 0.13 | 0.12 | ||||||||
Successful Project
Large-scale centralized gas supply device
Large-scale LNG gasification station and peak shaving station
Cryogenic liquid tank gas station
