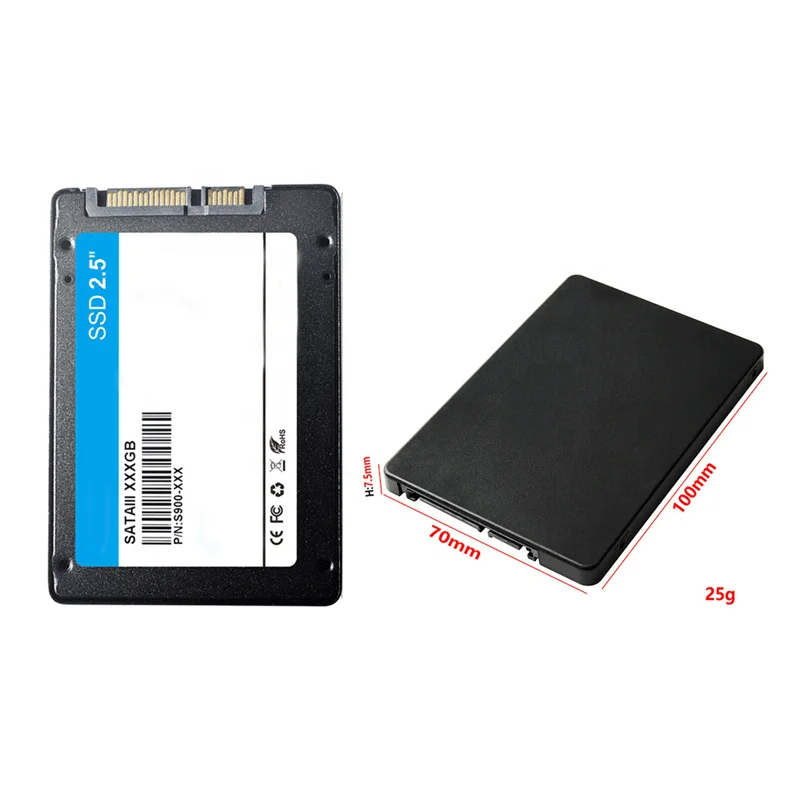

Enterprise class SATA 3 2.5\

Category: Hard Drives >>>
Supplier: Wahtron,Electronic,(shenzhen),Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Products Description

Solutions

PS3112-S12

Capacity

128GB

256GB

512GB

1TB

2TB

4TB

8TB

16TB

Interface

SATA III 6Gb/s

Form Factor

2.5"

Nand Flash

3D TLC/QLC

Sequential Read

550 MB/s

Sequential Write

530 MB/s

255 MB/s

450 MB/s

490 MB/s

500 MB/s

4K Random Read

98K IOPS

35K IOPS

65K IOPS

77K IOPS

85K IOPS

4K Random Write

91K IOPS

61K IOPS

81K IOPS

84K IOPS

85K IOPS

Operating Temperature

0-70℃

Non-Operating Temperature

-0-85℃

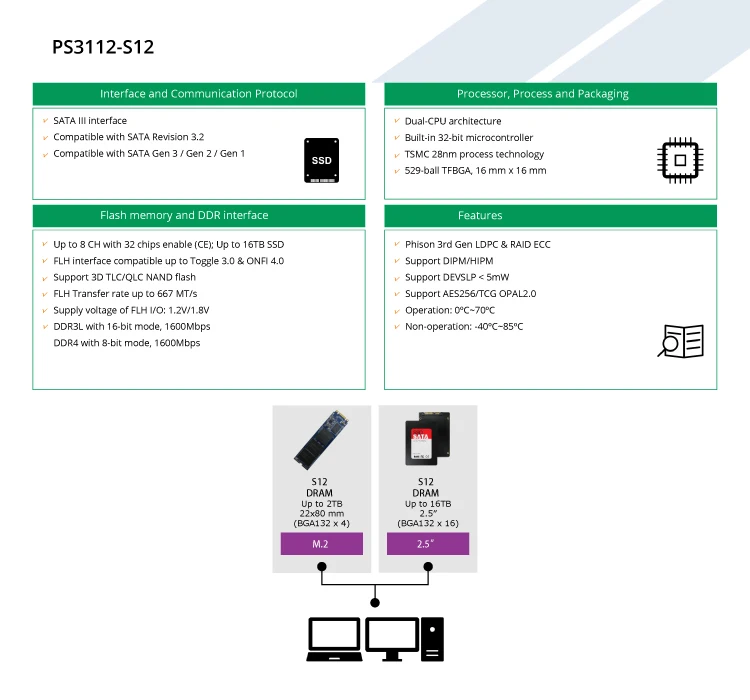

Controller	PS3112-S12
Host Interface	 SATA III interface  Compatible with SATA Revision 3.2  Compatible with SATA Gen 3 / Gen 2 / Gen 1
Processor	 Dual-CPU architecture  Built-in 32-bit microcontroller  TSMC 28nm process technology  529-ball TFBGA, 16 mm x 16 mm
Flash Controller	 Up to 8 CH with 32 chips enable (CE); Up to 16TB SSD  FLH interface compatible up to Toggle 3.0 & ONFI 4.0  Support 3D TLC/QLC NAND flash  FLH Transfer rate up to 667 MT/s  Supply voltage of FLH I/O: 1.2V/1.8V  DDR3L with 16-bit mode, 1600Mbps DDR4 with 8-bit mode, 1600Mbps
DRAM Controller	DRAM
Feature	Phison 3rdGen LDPC & RAID ECC Support DIPM/HIPM Support DEVSLP < 5mW Support AES256/TCG OPAL2.0 Operation: 0ºC~70ºC Non-operation: -40ºC~85ºC

Company Profile

Certifications

ISO9001:2015

ISO14001:2015

ISO14064

Exhibition

CES 2021

CES 2019

Supplier award

FAQ

Q: Where are your SSDs made?

A: Our SSDs are made in Taiwan.

Q: What are your qualifications as an OEM?

A: We have Tier-1 OEM qualifications world-wide.

Q: What kind of custom ASICs have you completed?

A: We have completed custom ASICs in SSD, USB, UFS, and eMMC.

Q: What are you investing in for the future?

A: We are investing in storage R&D, including 12nmFFC and beyond.

Q: What leading features do your products have?

A: Our products have several leading features, including MRAM interface capabilities and artificial intelligence security algorithms developed through a partnership with Cigent.
