Factory price sell Barium Titanate BTO Crystal Substrates 110 111 001 100
- Category: >>>
- Supplier: Hefei,Single,Crystal,Material,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

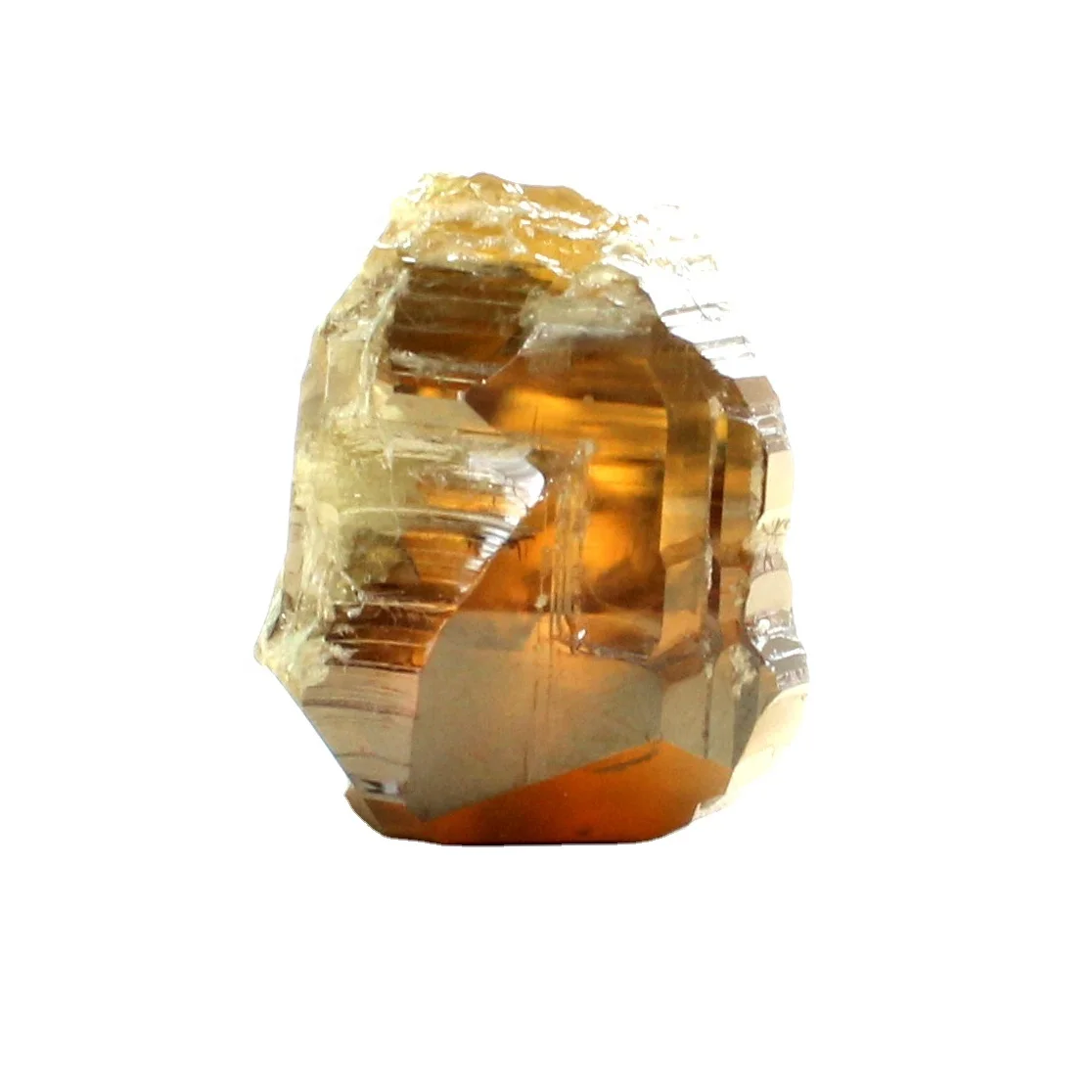

Barium Titanate(BaTiO3) single crystal product description
Barium Titanate(BaTiO3) single crystal is an excellent photorefractive material which has high SPPC (Self pumped Phase Conjugation) reflection and two wave mixing (optical amplification) efficiency, It is important for information processing and image storage.Besides that it is also an important substrate material for some special film as its unique ferroelectric and other properties.
Product Paramenters
Barium Titanate(BaTiO3) single crystal Specifications | ||||||||
Crystal Structure | Tetragonal(4m) 13oC | |||||||
Cell parameter | a=3.99Å,c=4.04Å,(at 26 oC) | |||||||
Melting Point | 1891 oK | |||||||
Density | 6.06 g/cm3 (at 26 oC) | |||||||
Specific Heat | 0.527J/g·k(300°K) | |||||||
Thermal conductivity | 6 W/m·k(300°K) | |||||||
Thermal expansion | 15.7∥a 6.2∥c | |||||||
(10-6k-1） | ||||||||
Dielectric constant（εr） | εa=3000 εc=800 | |||||||
Hardness（Mohs） | 4.5 | |||||||
Growth Method | TSSG(Top Seeded Solution Growth) | |||||||
Index of Refraction | 515 nm | 633 nm | 800 nm | |||||
no | 2.4912 | 2.416 | 2.3681 | |||||
ne | 2.4247 | 2.363 | 2.3235 | |||||
Transmission wavelength | 0.43 - 6.30 um | |||||||
Electro Optic Coefficients | rT13=8+/-2 pm/V | |||||||
rT33=105+/-10 pm/V | ||||||||
rT42= 1300+/-100 pm/V | ||||||||
Reflectivity of SPPC | 50-70 % (Ce: BaTiO3) for lamda = 515 nm | |||||||
( at 0 deg. cut ) | 40-60% (PureBaTiO3) for lamda = 515 nm | |||||||
50-80 % (Ce: BaTiO3) for lamda = 633 nm | ||||||||
40-60% (PureBaTiO3) for lamda = 633 nm | ||||||||
Two-wave mixing coupling constant | 10-40 cm-1 | |||||||
Absorption loss | Lamda: 515 nm 633 nm 800 nm | |||||||
a: 0.285cm-1 0.108cm-1 0.033cm-1 | ||||||||
Wavelength range for photo refractive effect | Undoped BTO :for visible | |||||||
Ce:BTO:480-780nm | ||||||||
Rh:BTO:720-1060nm | ||||||||
Product Advantage
The followings are important for the use of BaTiO3, both for the bulk device and substrate:
1.The tetragonal BaTiO3 single crystal (the useful phase for both photorefractive effect and substrate) will change the phase when its temperature is lower than 13℃ or higher 125℃, so it is necessary to keep its temperature in the safe range during its using, storage and transportation.
2.The extra force such as compacting, cracking will cause a phase transition.
3.Poling is needed for (001)orientation substrate, while is not necessary for （100）、（110）、（111）orientations.
4.Normally the maximum size for BaTiO3 substrate is 10x10mm; the thinnest thickness is 0.3mm.
1.The tetragonal BaTiO3 single crystal (the useful phase for both photorefractive effect and substrate) will change the phase when its temperature is lower than 13℃ or higher 125℃, so it is necessary to keep its temperature in the safe range during its using, storage and transportation.
2.The extra force such as compacting, cracking will cause a phase transition.
3.Poling is needed for (001)orientation substrate, while is not necessary for （100）、（110）、（111）orientations.
4.Normally the maximum size for BaTiO3 substrate is 10x10mm; the thinnest thickness is 0.3mm.
Product application
Barium titanate crystal substrates have excellent photorefractive properties, high self-pumped phase conjugate reflectance and two-wave mixing (optical amplification) efficiency, and have huge potential application prospects in optical information storage.They are also important substrate material.
Barium titanate crystal substrates are used in the following applications:
– Optical information storage
– Uncooled sensors for thermal cameras
– Optical information storage
– Uncooled sensors for thermal cameras
Why Choose Us
Company Profile

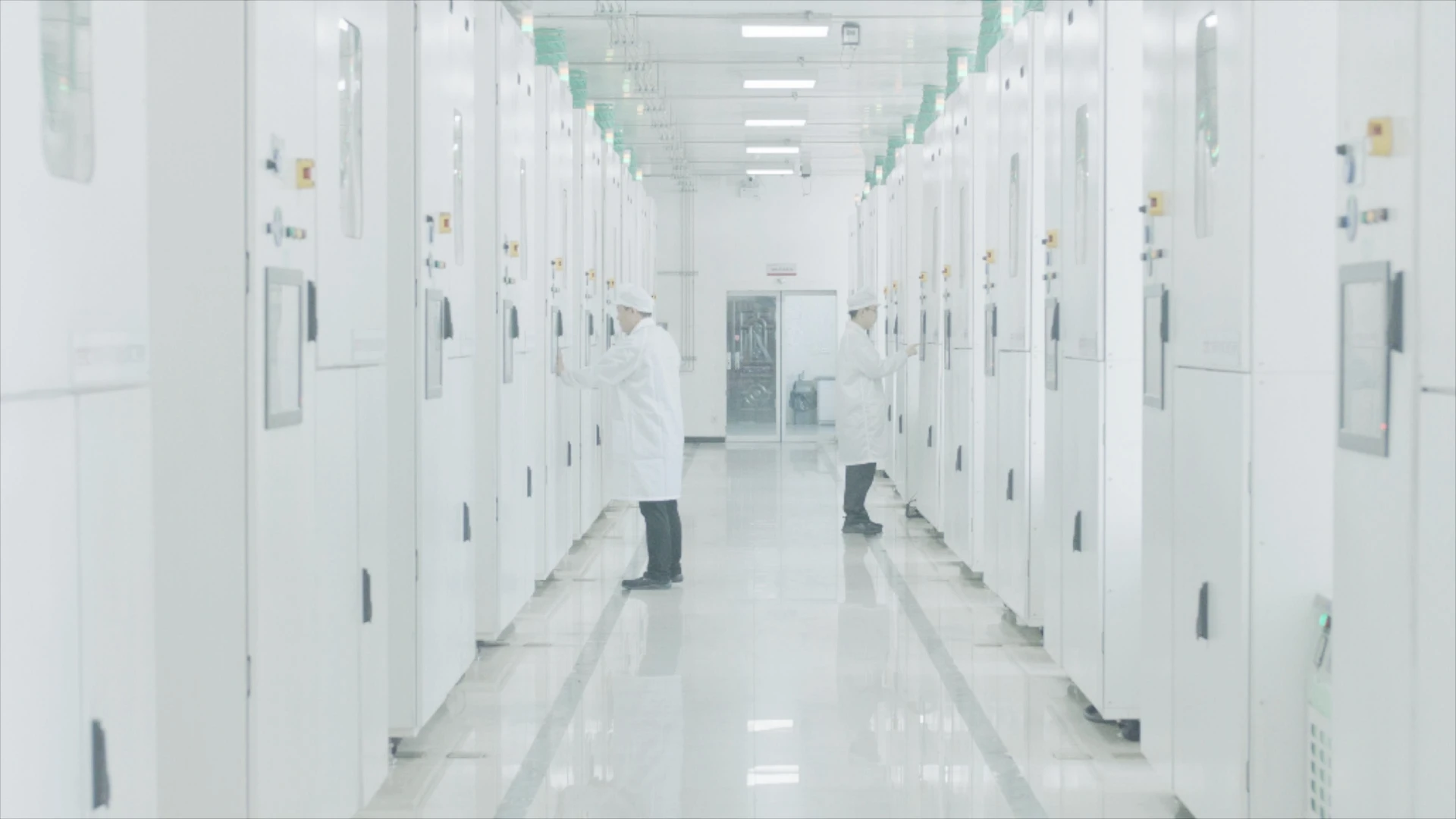

Hefei Single Crystal Material Technology is a technology and market oriented, the main advanced materials company.
