Product Overview

Description

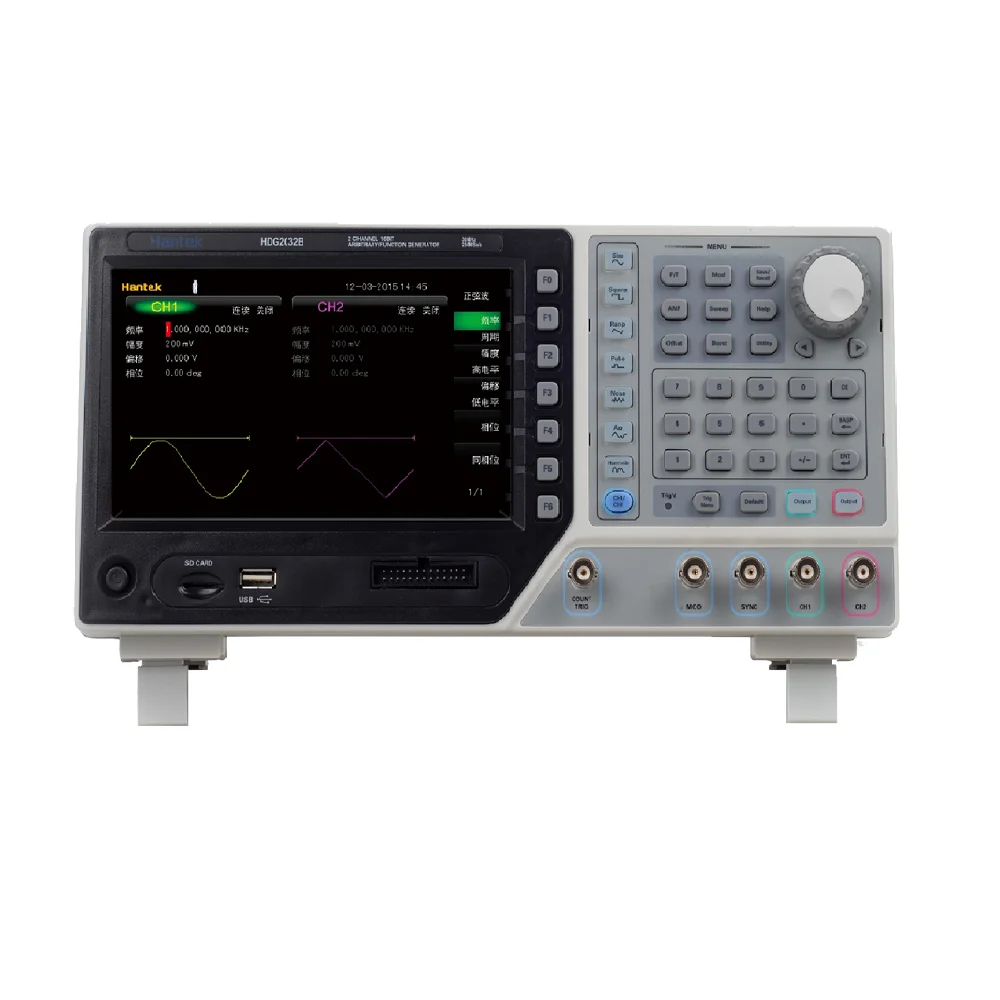

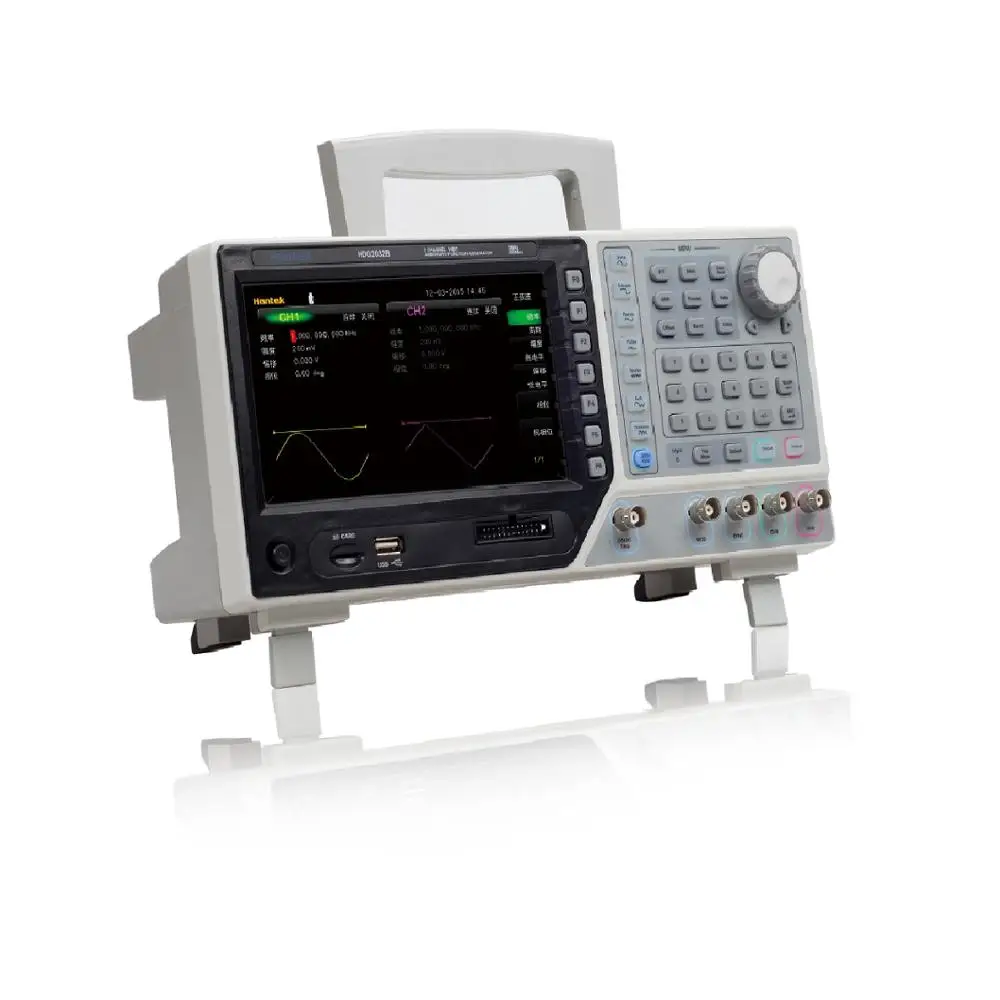

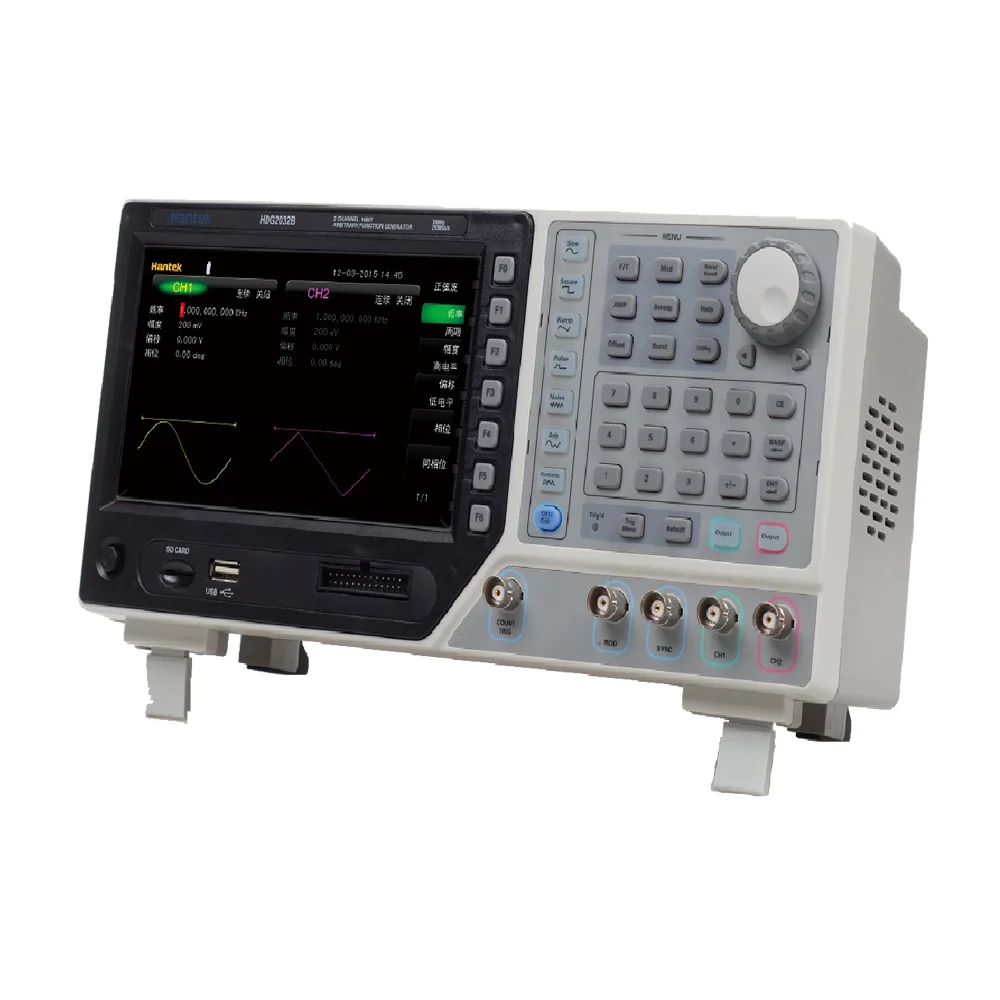

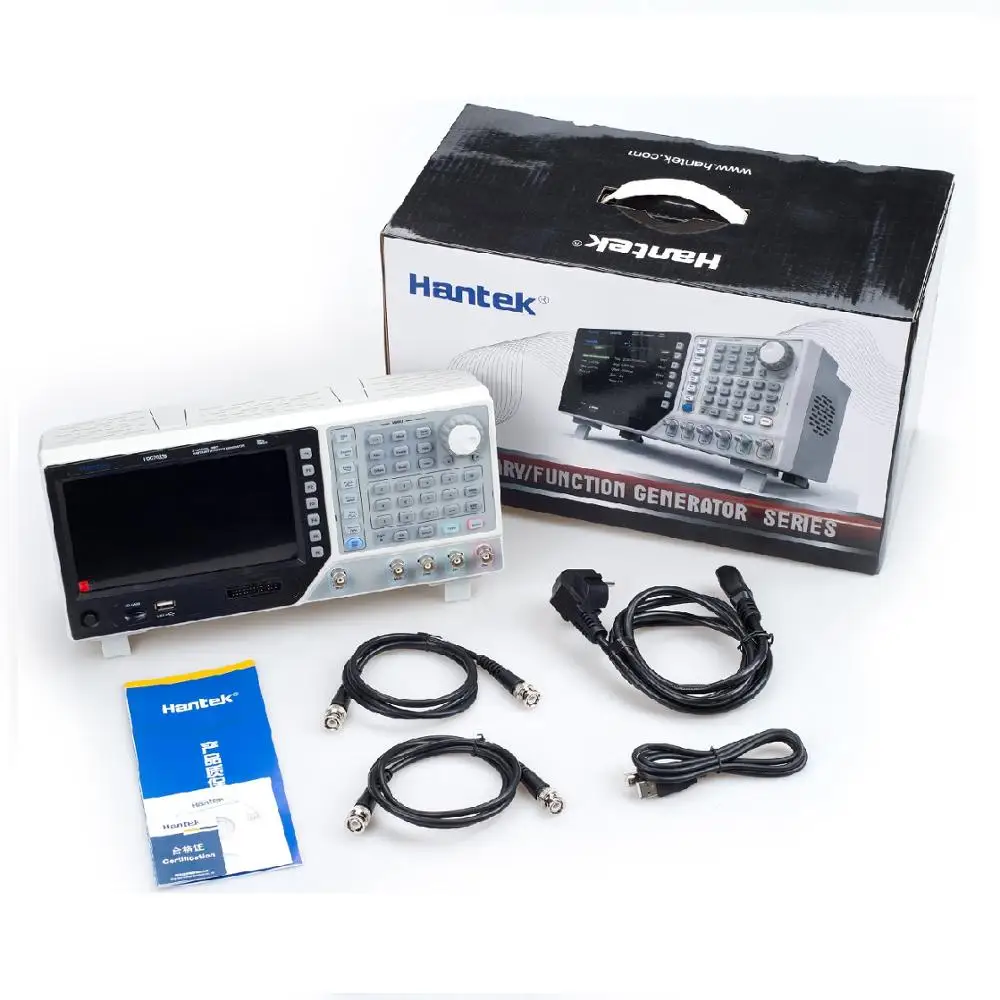

Hantek HDG2062B Benchtop Generator Signal with 2 Channels DDS function Arbitrary Waveform USB LCD Digital Function Generator

HDG2000B Series

16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth; 16 channels digital output, 7 inch, 64K true color TFT display, WVGA(800X480)

Overview

· 16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth;

· 100/80/60/30MHz. Sine Output Frenquency;

· 16 channels digital output, together with the analog channel can rebuild the more mixed signals in daily practice

· Support AM, FM, PM, ASK, FSK, PSK and PWM modulations

· TCXO timebase standard, OCXO optional for ultra-high stability

· 7 inch, 64K true color TFT display, WVGA(800X480)

· Plenty of interfaces: USB Host, USB Device, LAN

· 80M Frequency Counter;

Parameters

Model	HDG2102B	HDG2082B	HDG2062B	HDG2032B
Main Features
Channel	2	2	2	2
Memory Depth	64M	64M	64M	64M
Frenquency	100MHz	80MHz	60MHz	30MHz
Sample Rate	250MSa/s
Voltage Resolution	16Bit
Digital Output	16 Channels output
Frenquency Characteristic
Standard Waveforms	Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC
Sine	1uHz~Max.
Square	1uHz~30MHz
Pluse	1uHz~15MHz
Ramp/Triangle	1uHz~4MHz
White Noise	1uHz~Max.
Arb.	1uHz~20MHz	1uHz~20MHz	1uHz~20MHz	1uHz~20MHz
Resolution	1uHz
Accuracy	±50ppm, 18~28℃
Sine Wave Spectrum Purity
Harmonic Distortion	Typical(0dBm)DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc; 10MHz-100MHz: <-50dBc
Total Harmonic Distortion	<0.1% (10Hz-20kHz, 0dBm)
Spurious signal	Typical(0dBm):≤10MHz: <-65dBc;
(non-hormonic)	>10MHz <-65dBc+6dB/spectrum phase
Phase Noise	Typical(0dBm,10kHz offset,) 10MHz: ≤-115dBc/Hz
Square
Rise/Down time	<10ns	<11ns	<12ns	<14ns
Overshoot	<3%(100KHz, 1Vpp)
Duty Cycle	≤10MHz: 20.0%~80.0%;			8.0%~92.0%
	10MHz~40MHz: 40.0%~60.0%;
	>40MHz: 50.0%
Non-symmetry	1% of period+5ns
Jitter(rms)	Typical(1MHz,1Vpp, 50Ω)≤5MHz: 2ppm+500ps; > 5MHz: 500ps
Ramp
Linearity	≤1%(1KHz, 1Vpp)
Symmetry	0%~100%
Pluse
Period	33.33ns~1Ms	40ns~1Ms	40ns~1Ms	50ns~1Ms
Pulse	≥12ns	≥14ns	≥14ns	≥16ns
Leading Edge Time	≥8ns	≥9ns	≥10ns	≥10ns
Overshoot	<3%(1VPP)
Jitter(rms)	Typical(1MHz, 1Vpp, 50Ω)
	≤5MHz 2ppm+500ps
	> 5MHz 500ps
Arb. Wavefrom Generator
Waveform Length	64M Point
Vertical Resolution	16 Bit
Sample Rate	250MSa/s
Rise/Fall time	Typical(1Vpp):<6ns
Jitter	Typical(1MHz, 1Vpp, 50Ω)
	≤5MHz 2ppm+500ps;
	> 5MHz 500ps
Amplitude characteristic
Amplitude Range	≤20MHz:2mVpp - 20Vpp;≤60MHz:2mVpp -15Vpp;≤80MHz:2mVpp -10Vpp;
	≤90MHz:2mVpp - 5Vpp;≤100MHz:2mVpp - 2Vpp
Accuracy	Typical(1kHz Sine, 0V deviation, >10mVpp, Auto); ±1% of setting ±2mVpp
Amplitude Flatness	≤10MHz:±0.1dB;≤60MHz:±0.2dB;≤100MHz:±0.4dB
Resolution	1mv or 4 digits
Impedance	50Ω
Offset Characteristic
Range	|Voffset| < Vmax – Vpp/2
Accuracy	±(1% of setting + 5mV + 0.5% of amplitude)
Modulation Characteristic
Modulation Type	AM, FM,PM,2ASK,2FSK,2PSK,PWM
AM
Carrier Waveforms	Sine, Square, Ramp, Arb. (except DC)
Source	Internal/External
Modulating Waveforms	Sine, Square, Ramp, Noise, Arb
Frequency	1Hz~500KHz
Depth	0%~120%
FM
Carrier Waveforms	Sine, Square, Ramp, Arb. (except DC)
Source	Internal/External
Modulating Waveforms	Sine, Square, Ramp, Noise, Arb
Frequency	1Hz~500KHz
Frequency Deviation	0~360
PM
Carrier Waveforms	Sine, Square, Ramp, Arb. (except DC)
Source	Internal/External
Modulating Waveforms	Sine, Square, Ramp, Noise, Arb
Frequency	1Hz~500KHz
Frequency Deviation	0%~120%
2ASK
Carrier Waveforms	Sine, Square, Ramp, Arb. (except DC)
Source	Internal/External
Modulating Waveforms	Square of 50% duty cycle
Code Rate	1Hz~500KHz
2FSK
Carrier Waveforms	Sine, Square, Ramp, Arb. (except DC)
Source	Internal/External
Modulating Waveforms	Square of 50% duty cycle
Code Rate	1Hz~500KHz
2PSK
Carrier Waveforms	Sine, Square, Ramp, Arb. (except DC)
Source	Internal/External
Modulating Waveforms	Square of 50% duty cycle
Code Rate	1Hz~500KHz
PWM
Carrier Waveforms	Sine, Square, Ramp, Arb. (except DC)
Source	Internal/External
Modulating Waveforms	Sine, Square, Ramp, Noise, Arb.
Code Rate	1Hz~500KHz
Width Deviation	0% to 100% of Pulse Width
Burst Characteristic
Burst Count	1~2000000000
Gated Source	External trigger
Trigger Source	Internal, External or Manual
Sweep Characteristics
Type	linear
TypeDirection	Up
Sweep time	280 000s
Hold/Return time	280 000s
Trigger Source	Internal, External, Manual
Mark	Falling Edge of Sync signal(programmable)
General Specifications
Interface	USB host, USB Device, LAN optional
Display	7’’ 64K Color TFT Display, 800*480
Power Voltage	100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ; 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
Power Consumption	<60W
Output Current	0.15A
Size	305mm x 100mm x 130mm(L x W x H)
Weight	3KG
