High temperature resistance 260 corrosion resistance acid and alkali resistant plastic tube FEP tube high transparent tube
- Category: >>>
- Supplier: Taizhou Fustren Rubber Co. Ltd.
Share on (1600762045686):
Product Overview
Description

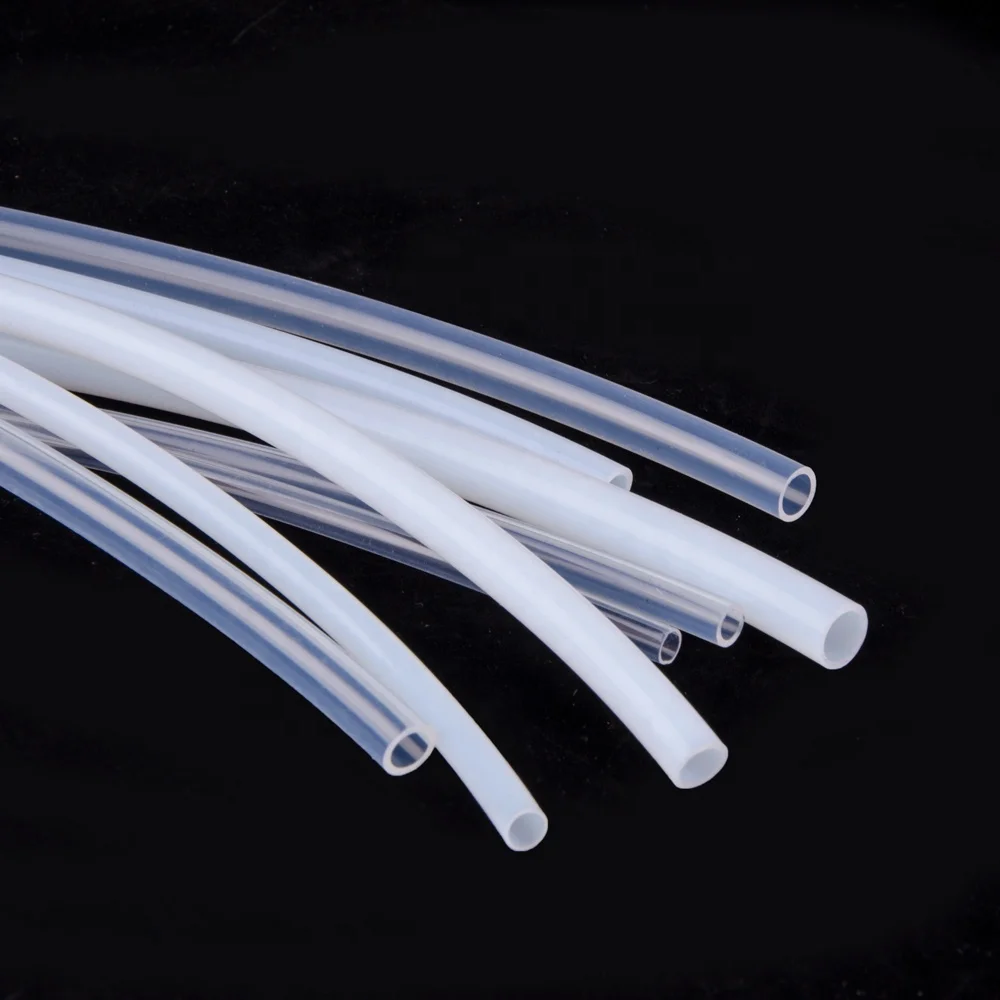

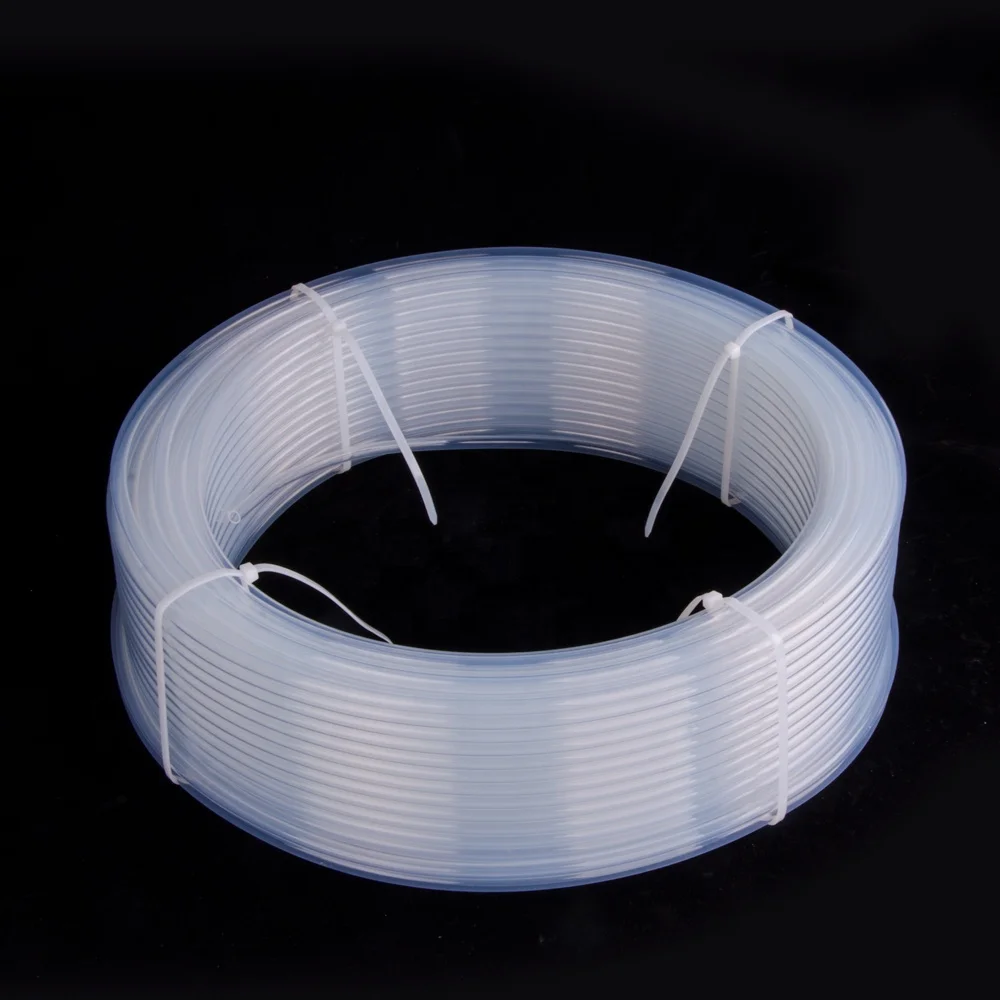

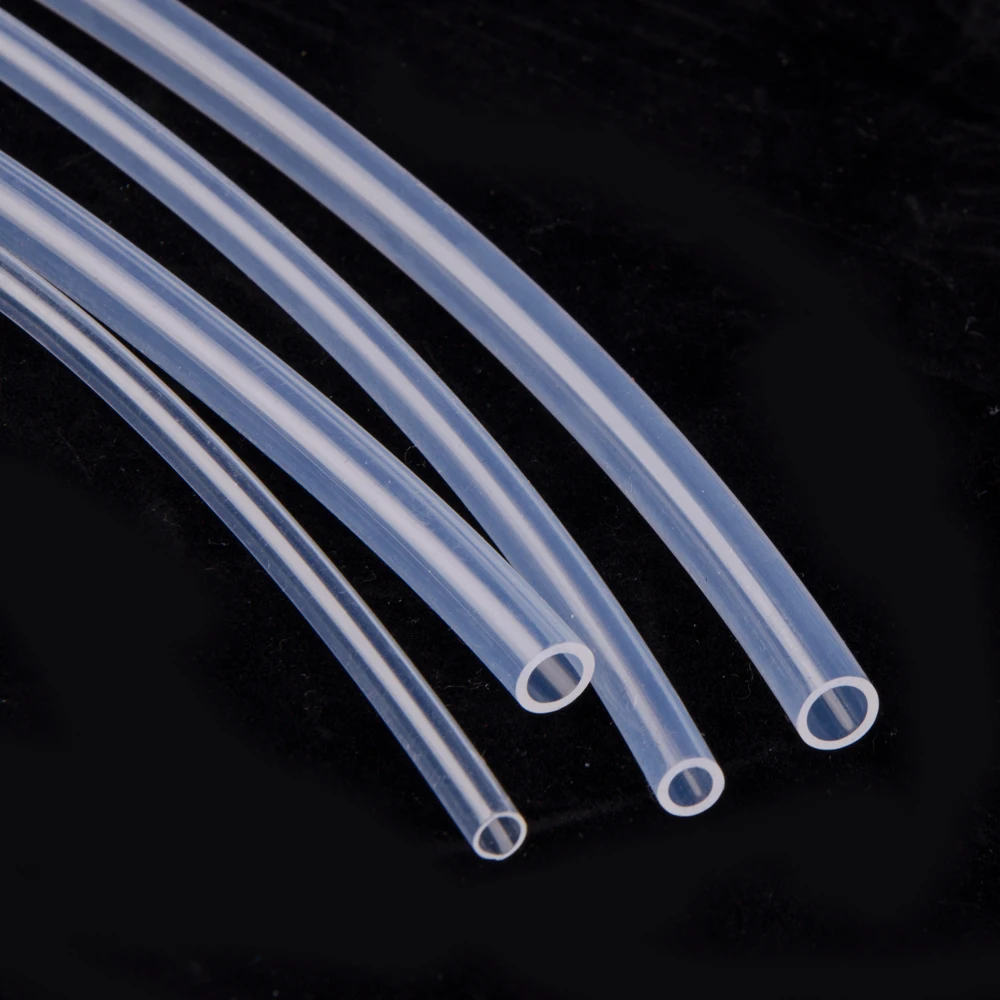

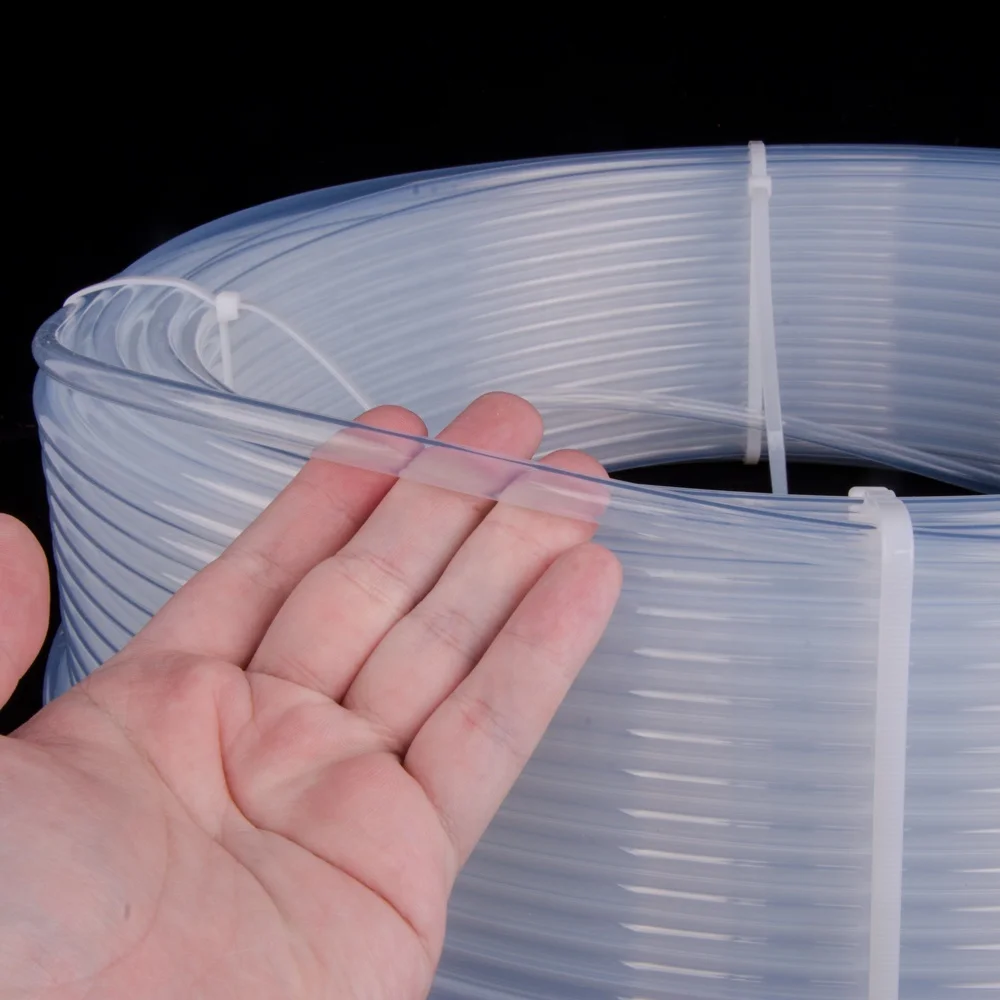

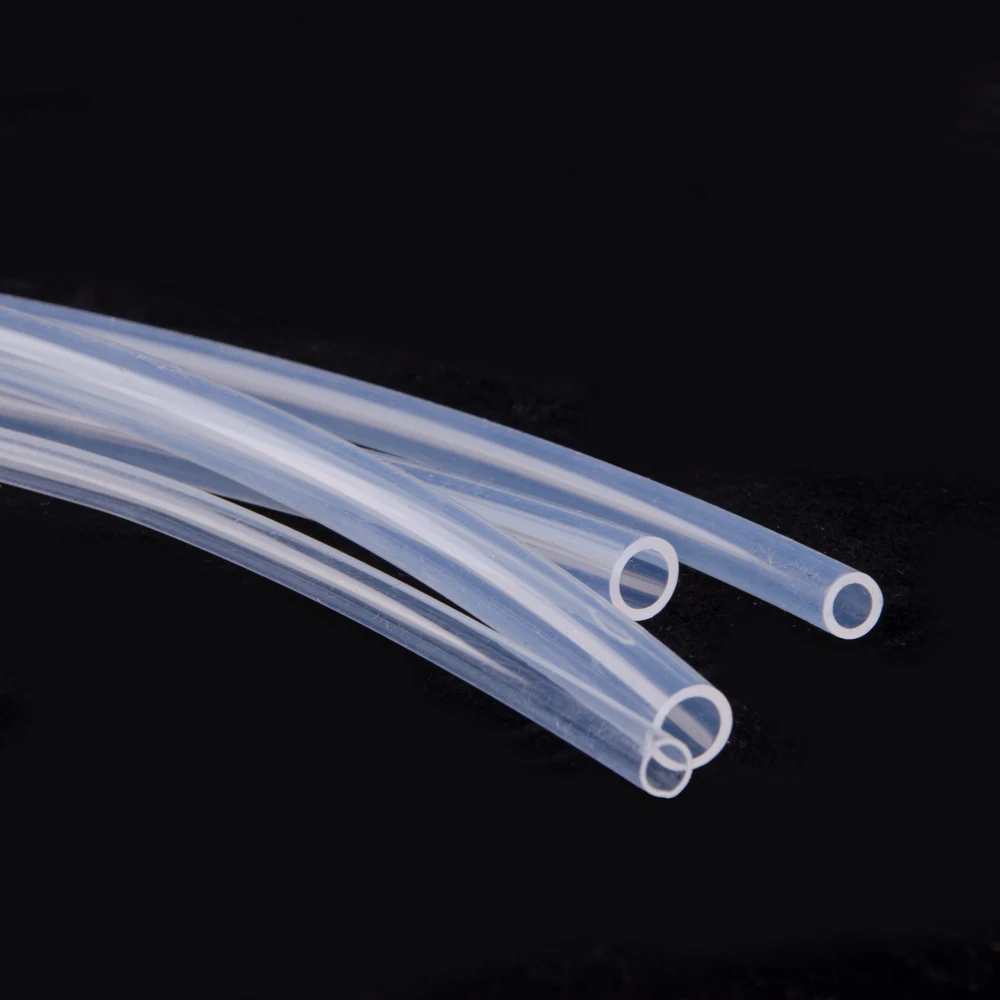

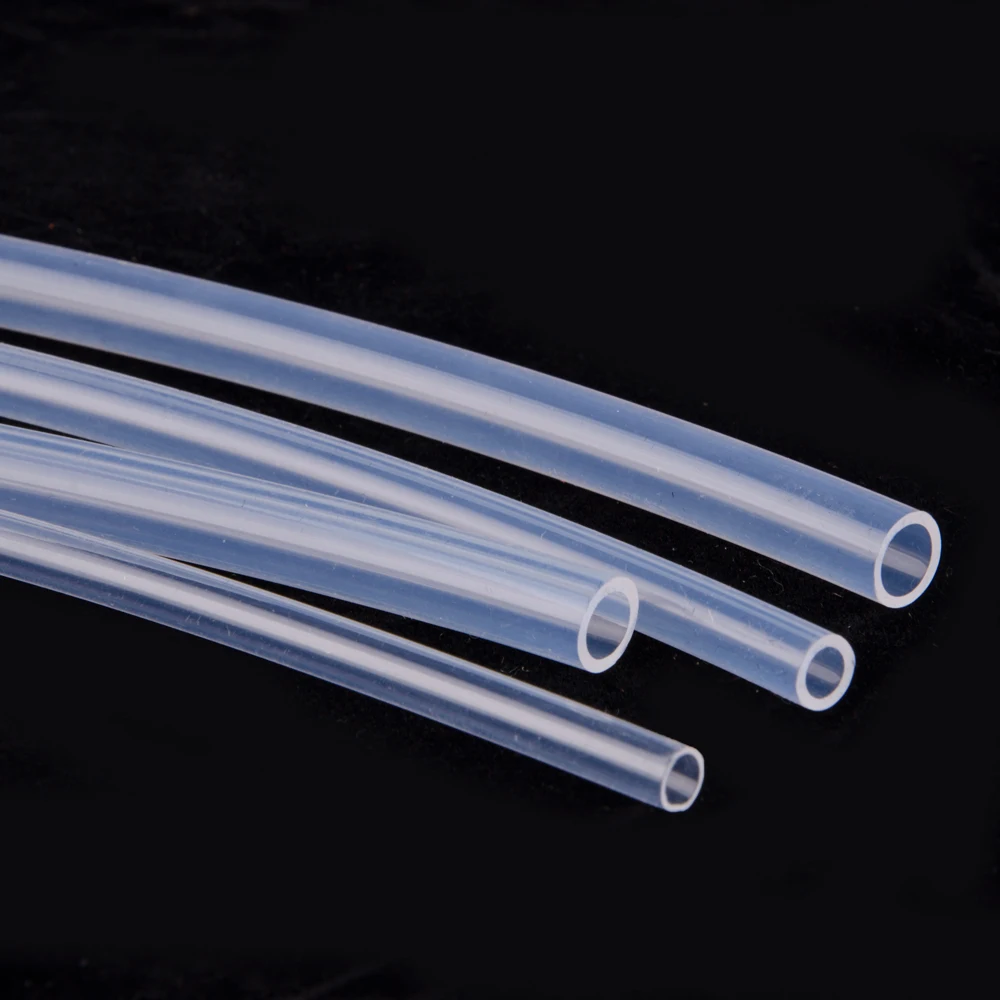

1、Product Name and material: Fluorine plastic FEP Tube (transparent)
2、FEATURES
High and low temperature resistance :-100~+200℃
Non-viscous, high insulation;
Non-viscous, high insulation;
Corrosion resistance, oil resistance, chemical solvent resistance, only at high temperature element fluorine, alkali metal and it works, on all other concentrated, dilute inorganic organic acids, alkali, ester have no effect;
Non-toxic: has physiological inertia;
Non-toxic: has physiological inertia;
Incombustible: does not burn in the air;
High transparency: the lowest refractive index of light in all plastics;
Easy secondary processing: self-sealing, self-welding, flanging
3、Application
Liquid crystal manufacturing unit
All-body single-ended light-emitting single-core optical fiber tube
Heat exchanger, steam piping
High purity reagent deliverytube
All kinds of corrosive media (harsh solvent) conveying pipeline
All kinds of frequency wire and cable sheath, trough insulated tube
Pipe for wiring harness assembly of air conditioner
Full package fluoro - plastic type 0 sealing ring pipe
4、Specification List
ID*OD（mm) | Inch | ID*OD(mm) | Ich |
2*4 | 8*10 | ||
2.5*4 | 8*12 | ||
4*6 | 9*12 | ||
4.35*6.35 | 1/4 | 10*12 | |
5*7 | 10*13 | ||
5*8 | 12.7*9.6 | 1/2 | |
6*8 | 12*14 | ||
6.35*9.52 | 3/8 | 12*16 | |
6*10 | 13*16 | ||
6.5*10 | 14*16 | ||
7*9 | 16*18 | ||
7*10 | 15.88*19.05 | 3/4 | |
7.5*10 | 22.2*25.4 | 1 |
5、Tolerance for diameter and wall thickness: ±0.1mm

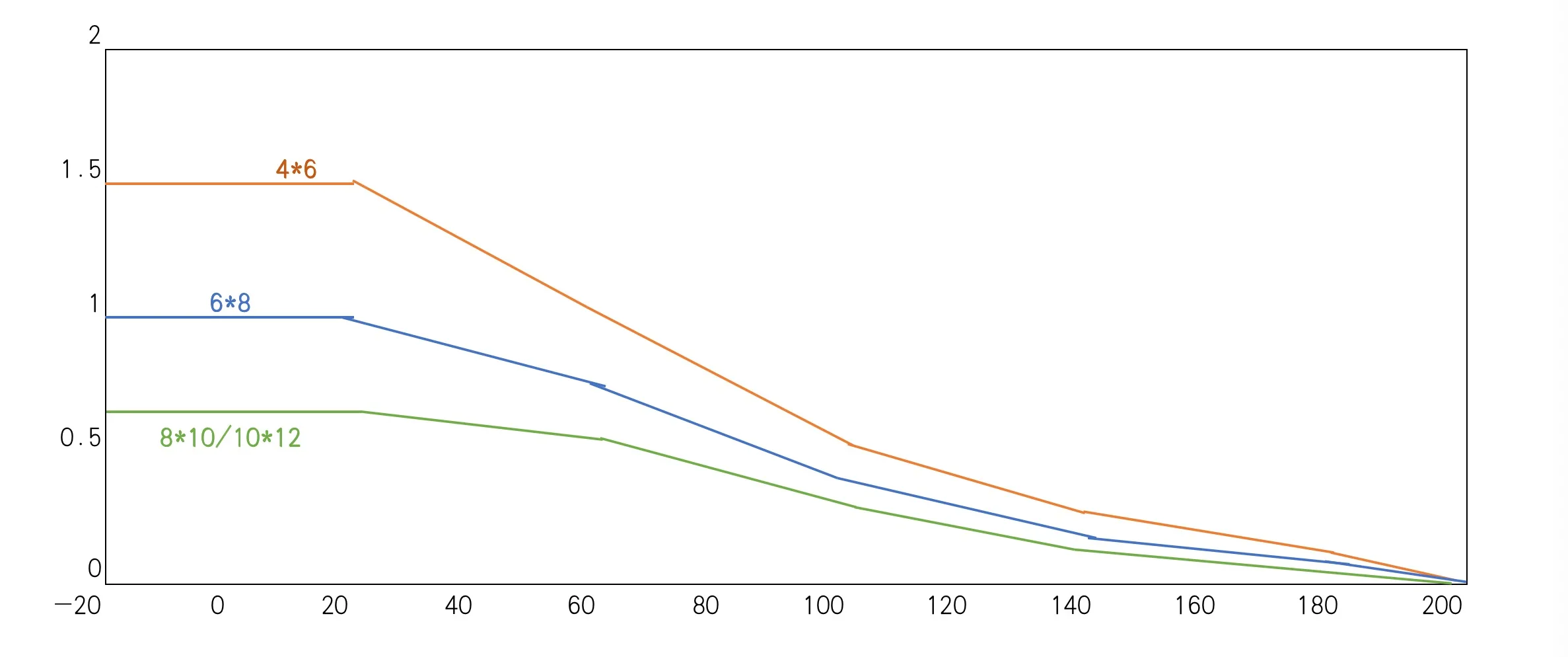

6、Reference chart of maximum operating pressure for typical specifications
Mpa
Note: The maximum operating pressure will be different if the outside diameter is the same and the inside diameter is different.
