Roller glass coating machine
US $10000-$13000

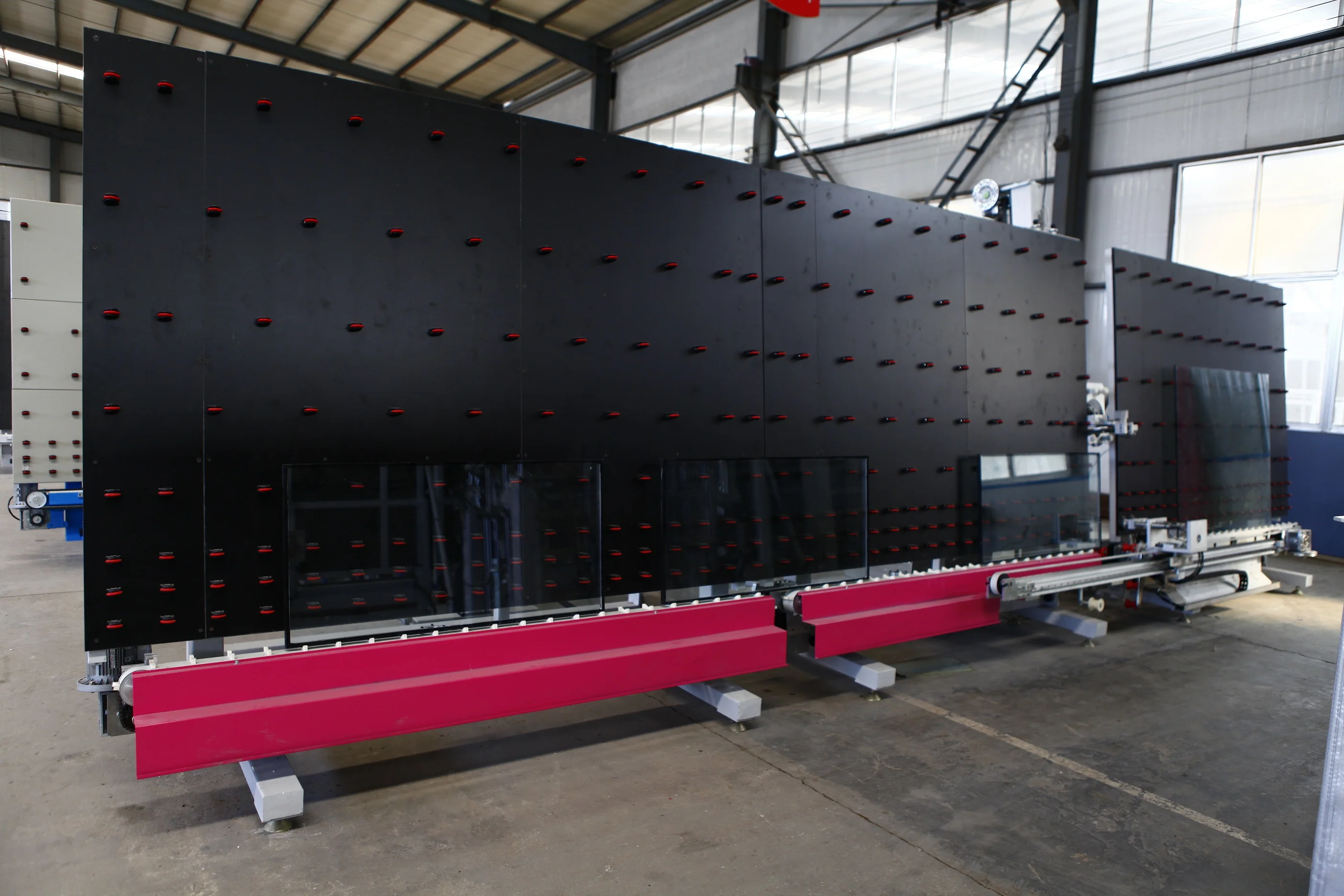

High end automatic vertical glazing silicone sealant extruder machine insulating glass sealing line
- Category: >>>
- Supplier: Jinan Ever View Machinery Technology Co. Ltd.
Share on (1600762397937):
Product Overview
Description

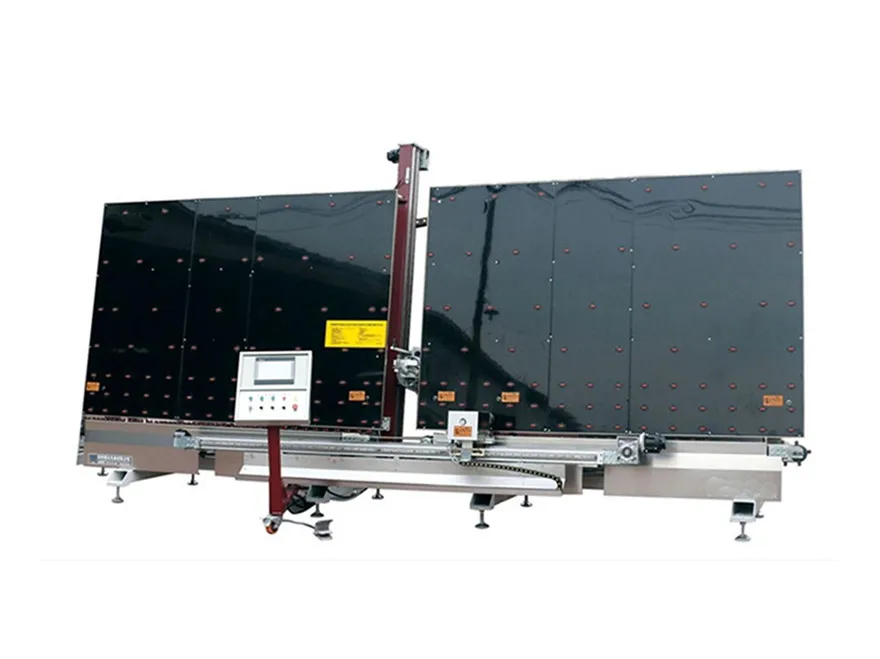

Insulating glass production line double glazing sealing machine
Products Description
Automatic sealing line is special designed for insulating glass production line, which work instead of hand sealant, greatly improve working efficiency and ensure quality of IG glass sheet.
Product Parameters
Parameters of Automatic Sealing Production line | ||||||
Model | CAAS2025 | CAAS2030 | CAAS2540 | |||
Total power | 11KW | 12KW | 14KW | |||
Max glass sheet | 2000x2500mm | 2000x3000mm | 2500×4000mm | |||
Process glass scale | Min glass sheet | 260×400mm | ||||
Original glass thickness | 3~18mm | |||||
IG glass sheet thickness | 12-48mm | |||||
Insulation thickness | 6-24mm | |||||
Gluing ability | Gluing depth | 3-18mm | ||||
Gluing pressure | 35MPa | |||||
Working speed | Gluing speed | 5-40m/min | ||||
Dimension L×W×H (mm) | 7800x3000x2750mm | 9500x3000x2750mm | 11600×3000×3450mm | |||
Power supply | 380V 50Hz 3P (or customized) | |||||
Note: various model with other processing scal customized available. | ||||||
Product detail
Product featues

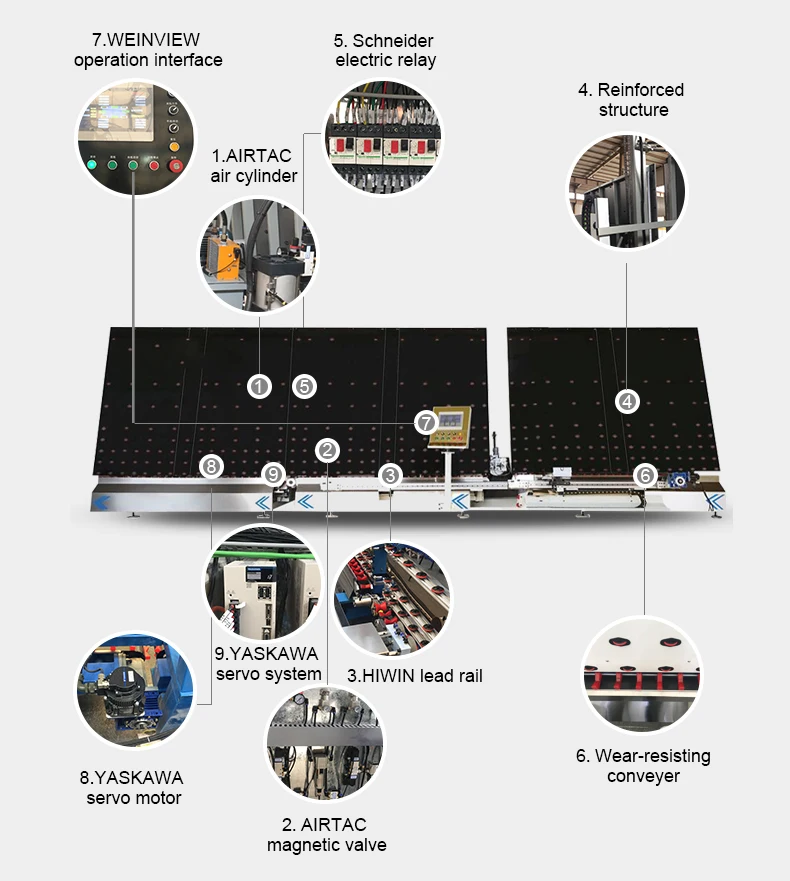

1, YASKAWA servo system and world famous brands of key components, ensure stable operation and long service life;

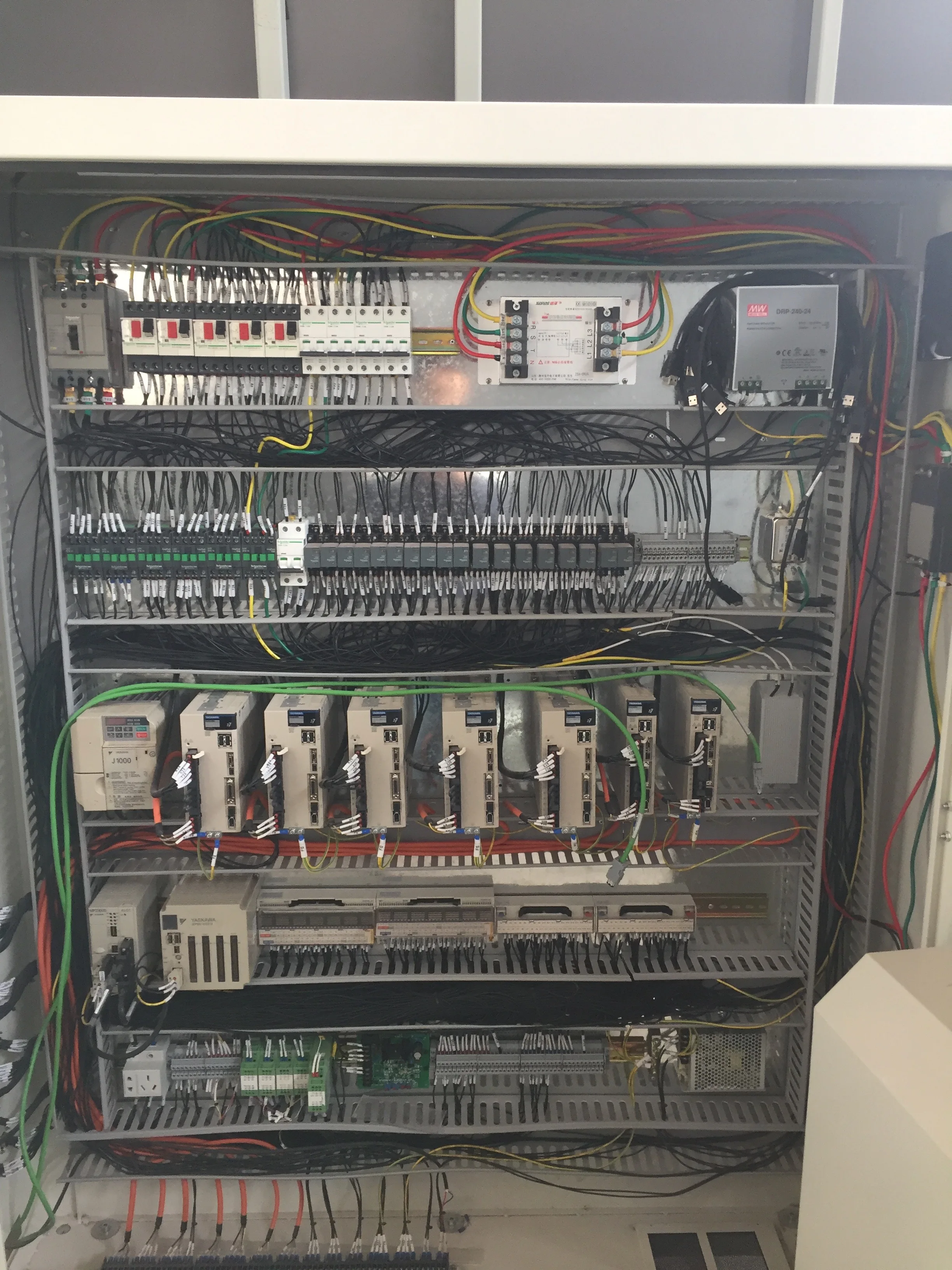

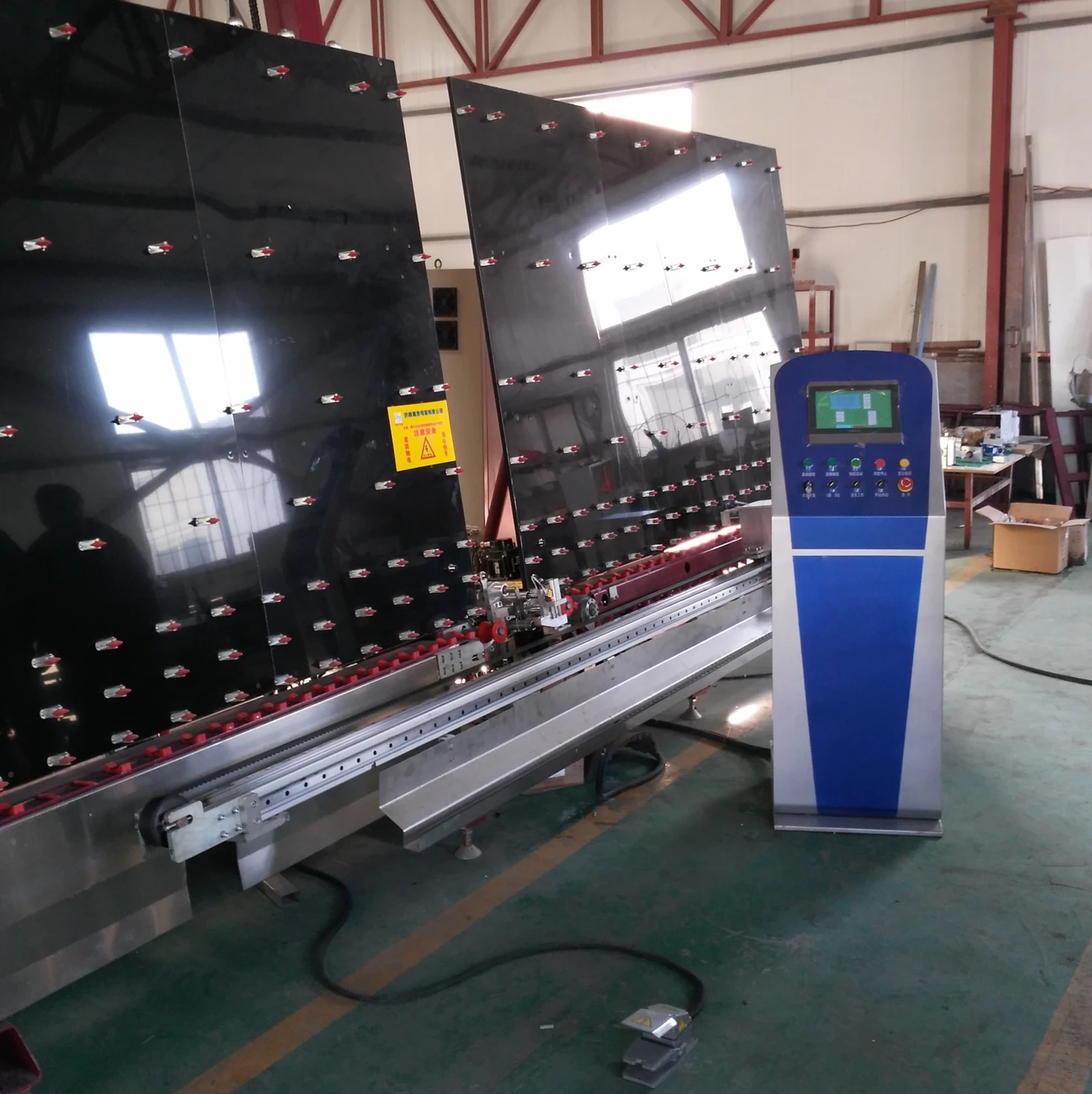

2, PLC controlling system, touching screen operation;

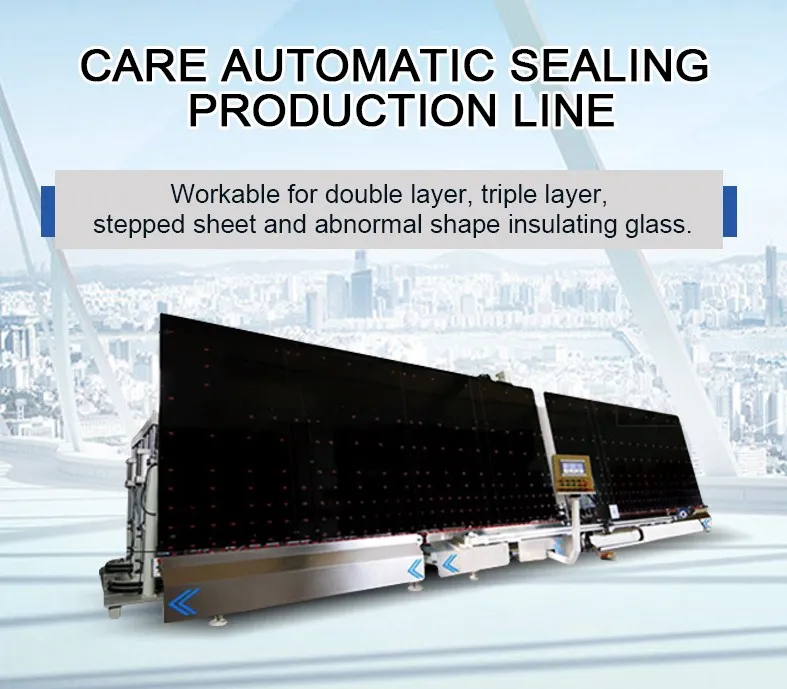

3, Workable for single and double insulation sealant(double layer and triple layer glass sheet);
4, Two sets of sealant glue supply systems and work independently; one key touching to switch between each other;
5, Timing automatic glue diecharging, avoid glue blocking;

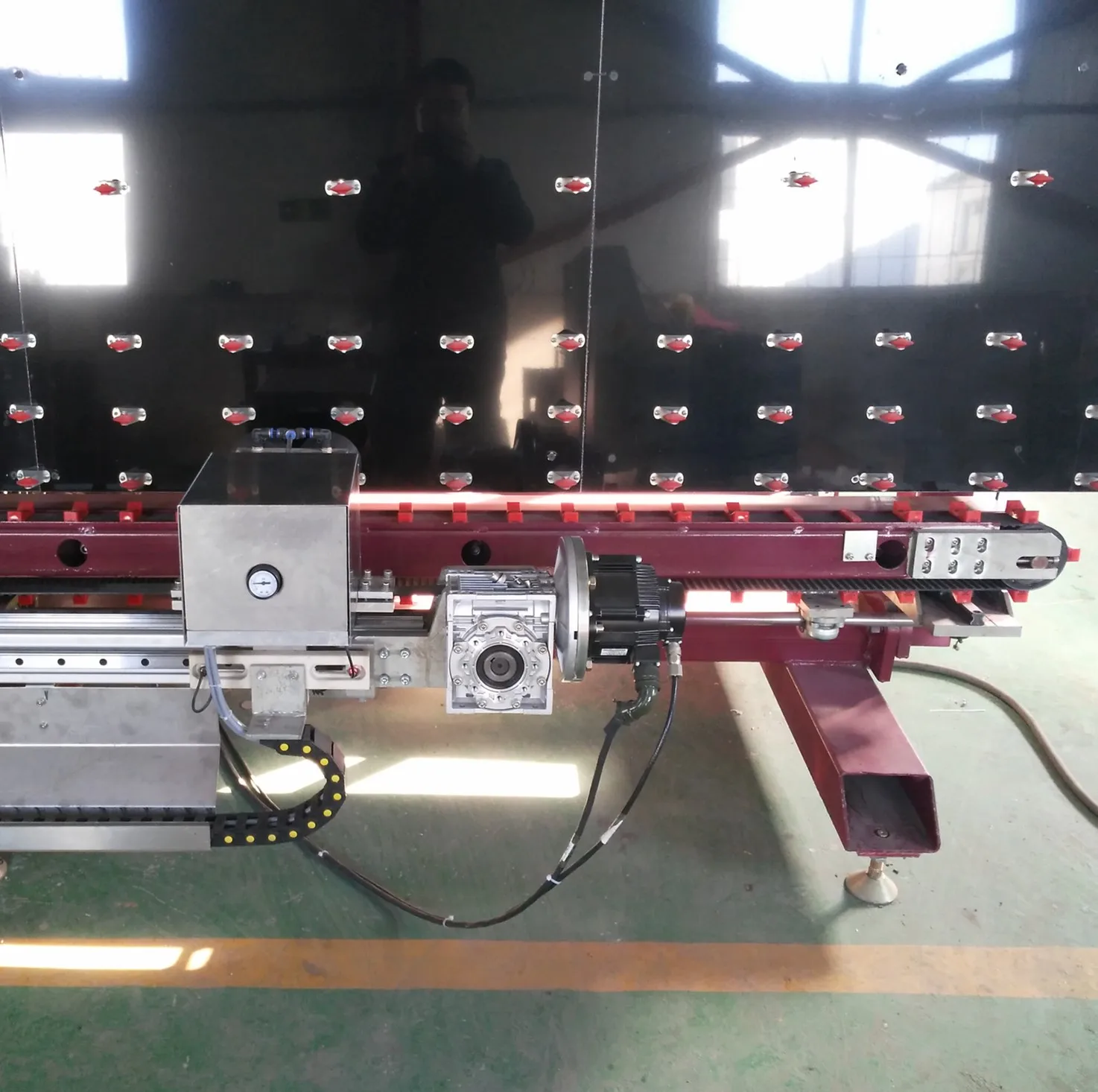

6, V-type rubber belt for transportation, easily replaced once worn;
7, Programmable memory function, one key touching to different size of glass sheet processing;
8, Compact outlook design, saving working area;
2, PLC controlling system, touching screen operation;
3, Workable for single and double insulation sealant(double layer and triple layer glass sheet);
4, Two sets of sealant glue supply systems and work independently; one key touching to switch between each other;
5, Timing automatic glue diecharging, avoid glue blocking;
6, V-type rubber belt for transportation, easily replaced once worn;
7, Programmable memory function, one key touching to different size of glass sheet processing;
8, Compact outlook design, saving working area;
