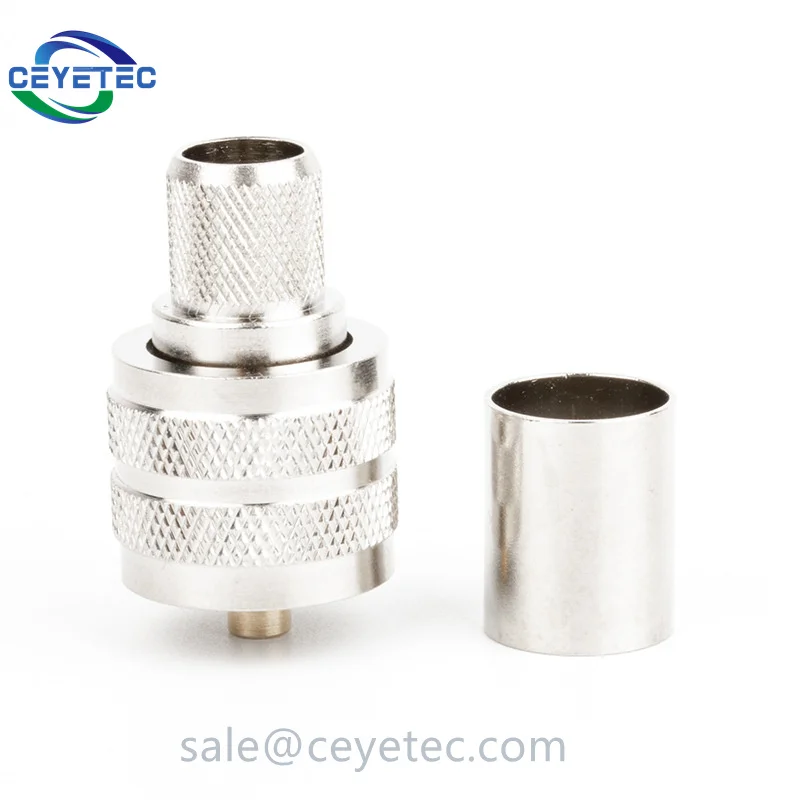

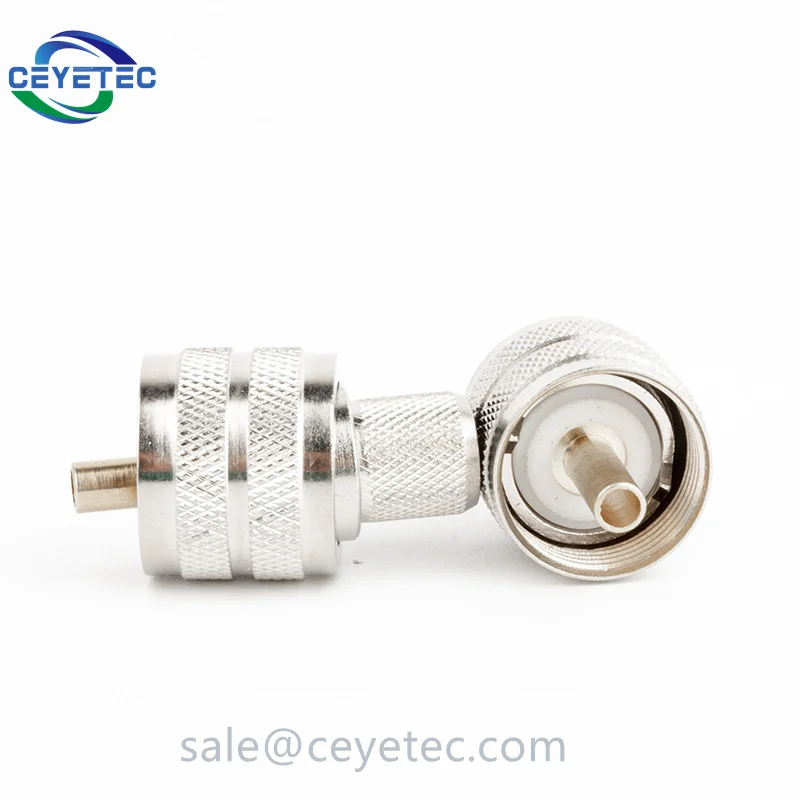

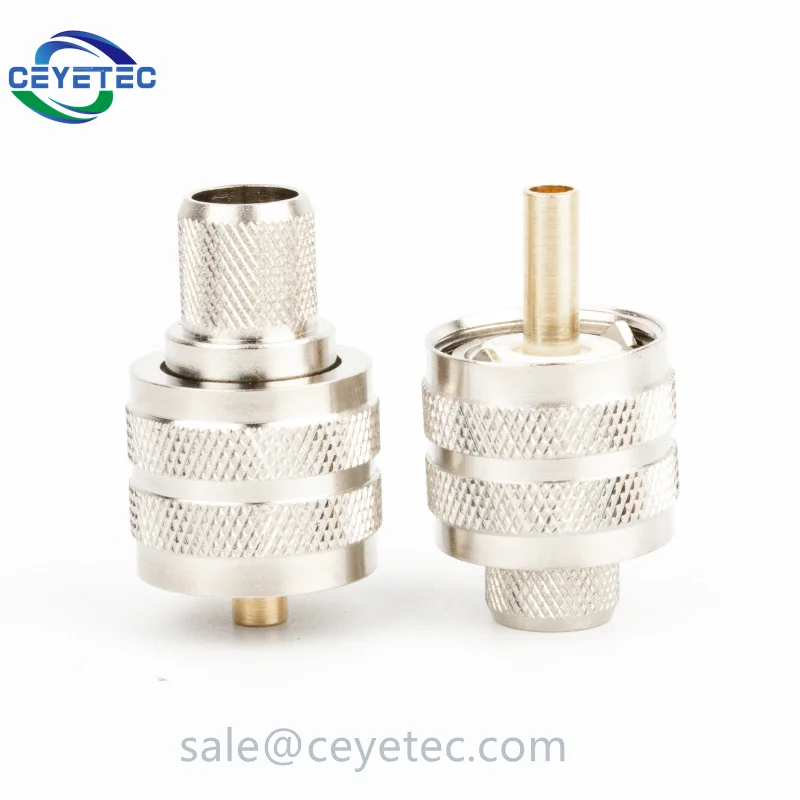

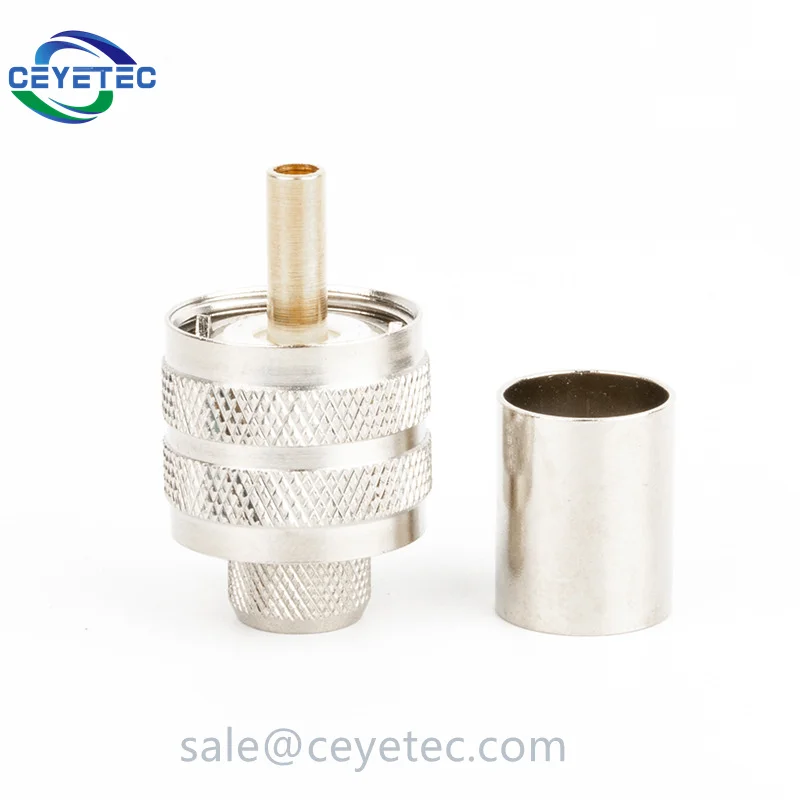

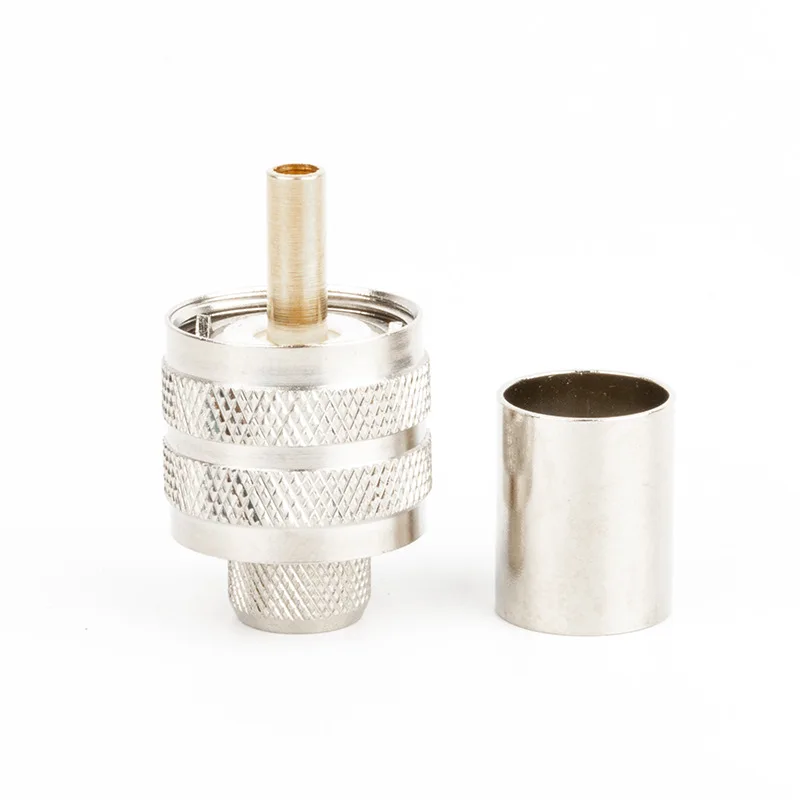

Ceyetec UHF Crimp Plug Male Connector PL259 for rg58 Cable
- Category: >>>
- Supplier: Jingzhou Chenyue Technology Co. Ltd.
Share on (1600762623156):
Product Overview
Description
Product Description
Features and Benefits
Optional reducing adapters accommodate a wide range of popular coaxial cables
Solder termination types require no special assembly tools
Crimp termination types provide a lower cost installation method
Large-size threaded coupling is a rugged design
Non-demanding specifications and low cost
Solder termination types require no special assembly tools
Crimp termination types provide a lower cost installation method
Large-size threaded coupling is a rugged design
Non-demanding specifications and low cost
UHF Connector Applications
Antennas
Military
Distributed Antenna Systems (DAS)
Public Address Systems
Low-Frequency Applications
Military
Distributed Antenna Systems (DAS)
Public Address Systems
Low-Frequency Applications
Specification
UHF Connectors Specifications | ||
Impedance | Non-Constant | |
Frequency Range | DC - 300 MHz (DC - 1 GHz on Extended Range Designs) | |
Voltage Rating | 500 Volts RMS Max Continuous | |
Dielectric Withstanding Voltage | 1500 VRMS Max | |
Insulation Resistance | 5000 MΩ Min | |
Power Handling | 500 W @ 100 MHz @ 25ºC | |
Temperature Range | −55°C to +149°C | |
Mating Cycles | 500 Min | |
Coupling Mechanism | Threaded | |
Interface Specification | Hand Tighten | |

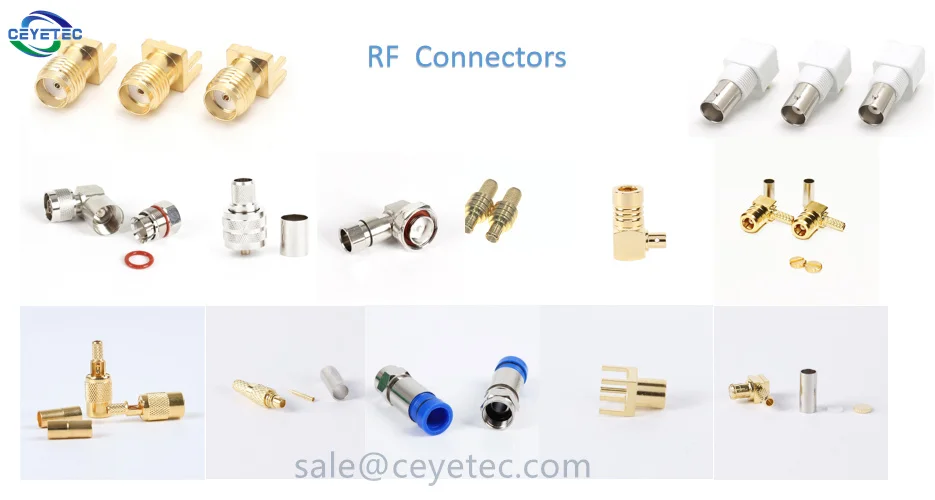

Related Products
UHF Female Right Angle for Cabel
UHF Male for Cable
UHF Male for Cable
N Female for Cable
N Female Flange
N Male for Cable
TNC Female for Cable
TNC Male Right Angle for Cable
TNC Male Clamp for Cable
If need any model, pls contact me freely
Email: helen@ceyetec.com
Phone: +86 15927192638
Application

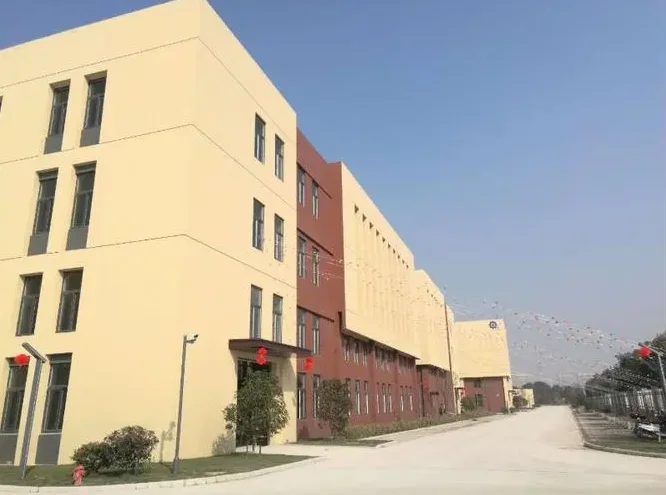

Company Profile
About us
Ceyetec specializes in operating businesses electronic components, like RF connectors, Adapters and Cables, and also the related models.
Our mainly products are welcomed by nearly 80 countries customers. Chenyue-Tec offers a wide range of premium machined, rugged, higher reliability connectors for harsh environments in industrial, medical, military and computer markets.
Our mainly products are welcomed by nearly 80 countries customers. Chenyue-Tec offers a wide range of premium machined, rugged, higher reliability connectors for harsh environments in industrial, medical, military and computer markets.
Vision statement:
Innovation and development, Continual improvement, Quality foremost, and Customer satisfaction
Mission statement:
Our mission is to promote and support high quality products to ensure engineering quality is at the forefront of product design, production and operation for all our customers.

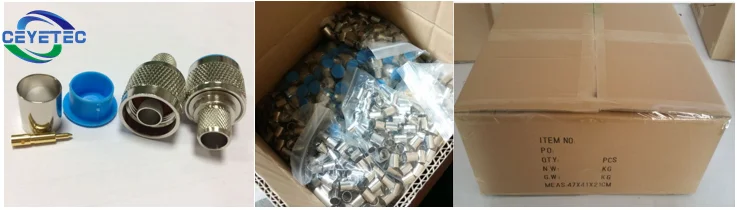

Packing & Delivery
Shipment
Loading Port: Shenzhen, China
Sample Delivery: 3-5days after order confirmed
Mass Production Delivery:10-15 days after order confirmed
The excellent after-sale service team provide to you with broader service platform. Please contact us anytime, if you have any questions or requirements.
Sample Delivery: 3-5days after order confirmed
Mass Production Delivery:10-15 days after order confirmed
The excellent after-sale service team provide to you with broader service platform. Please contact us anytime, if you have any questions or requirements.
FAQ
1. How do you guarantee the quality of your products?
We will have two times QC before shipment, the production line and before packaging, Pls no worry
about the quality. All of our products have 12 months warranty.
about the quality. All of our products have 12 months warranty.
2. The price on the link is the actual transaction price, Is there room for negotiation?
Yes, most price of the products on the link are the real price. But if you have mass qty, then the price can be negotiated.
3. How about the delivery time, how do you ensure on time delivery?
Delivery time depends on the exact models.
Stock: 0-5 working days.
No Stock: 10-15 working days.
Customized product: Evaluating according to the actual situation.
Stock: 0-5 working days.
No Stock: 10-15 working days.
Customized product: Evaluating according to the actual situation.
4. What Payment do you support?
Bank Transfer, Alipay, PayPal, Credit card.
5. Can you provide free sample?
Yes, free sample can be offered with stock products and qty less then 5pcs. Others, need to
be negotiated.
be negotiated.
