Growatt Inverter Wholesale 10KW Solar Inverter 8KW 9KW On Grid Growatt Solar Inverter
- Category: >>>
- Supplier: TTN New Energy Technology (Wenzhou) Co. Ltd.
Share on (1600762638828):
Product Overview
Description
Products Description

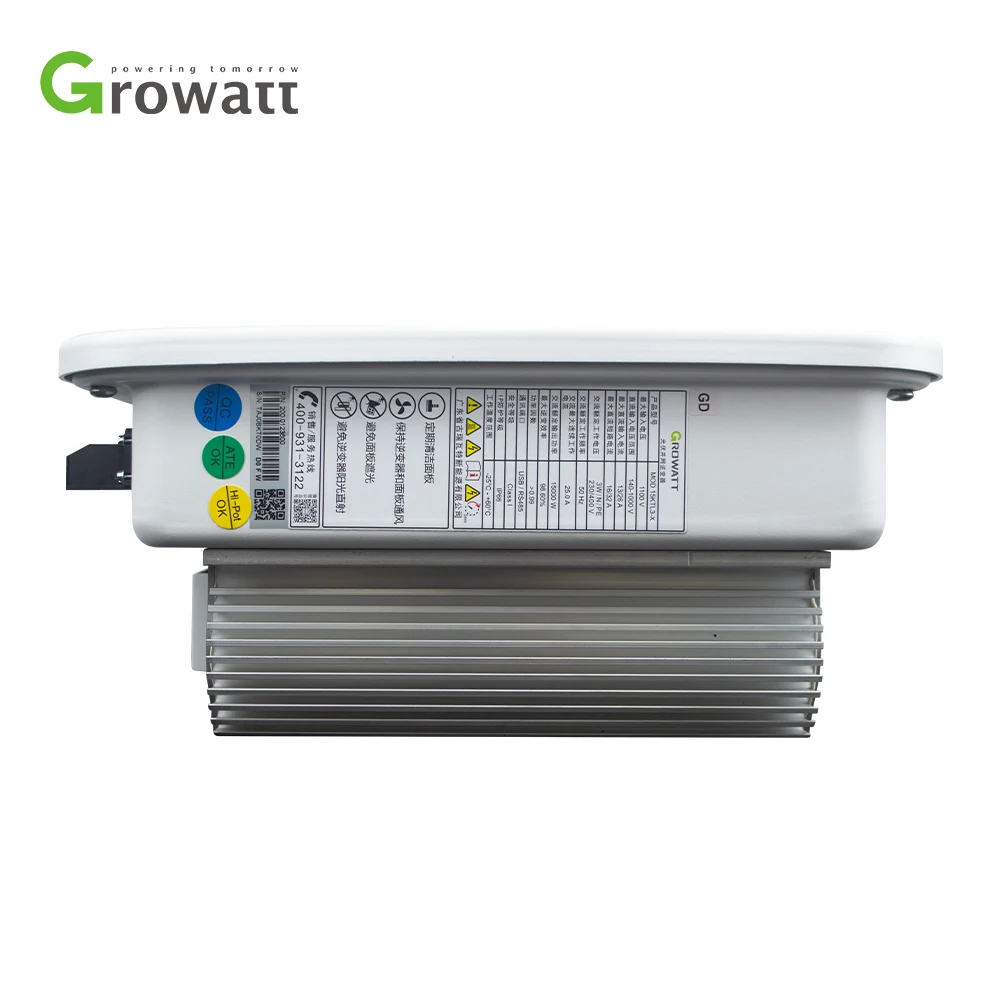

Growatt Solar Inverter
GLOBAL LEADING DISTRIBUTED ENERGY SOLUTION PROVIDER
Residential Inverter Supplier GLOBAL NO.1
PV Inverter Supplier GLOBAL ТОP3
User Side Energy Storage Inverter Supplier GLOBAL NO.1

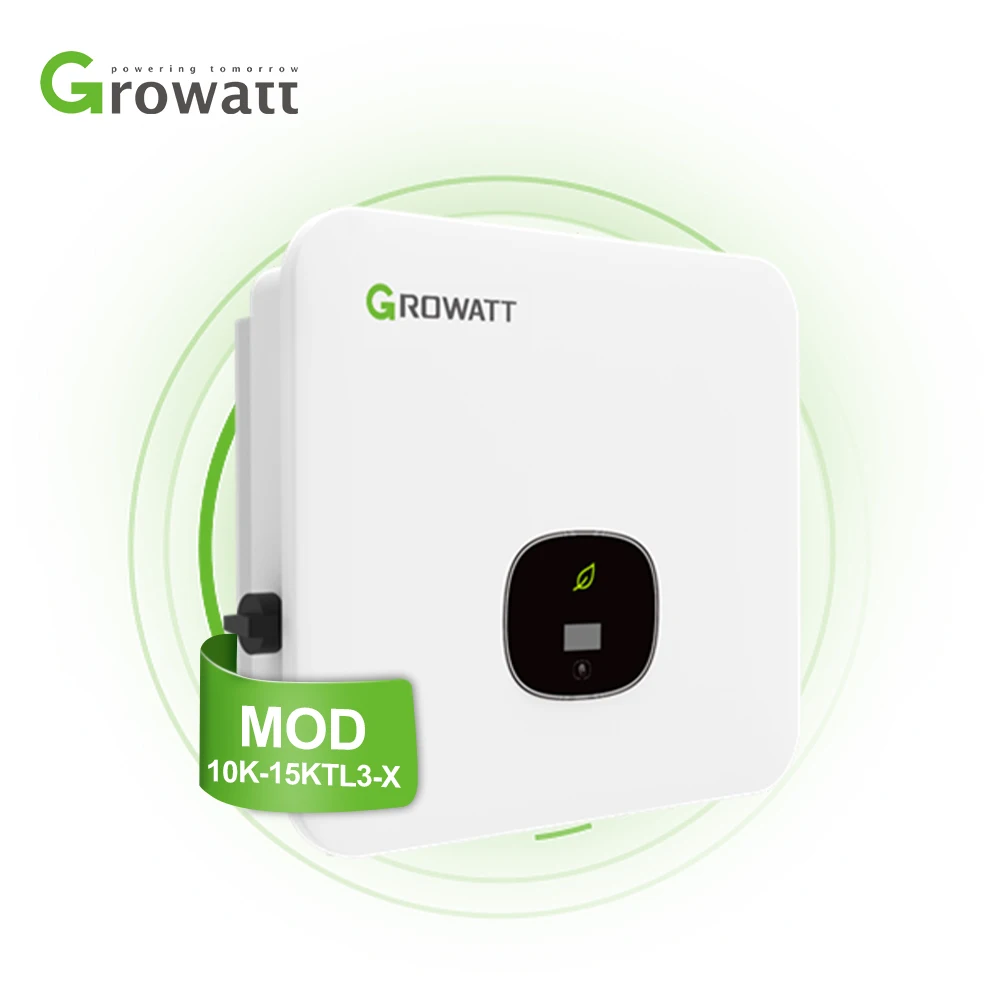

MOD 3-15KTL3-X/XH
Residential PV Inverter
3-15kW 2 MPPTs Three Phase
* Max. efficiency 98.6%
* OLED and Touch button
* Type II SPD on DC and AC side
* String Monitoring
* AFCI optional
* OLED and Touch button
* Type II SPD on DC and AC side
* String Monitoring
* AFCI optional
The Growatt MOD inverters have 2 MPPT, Type II SPD on DC and AC side, string monitoring, and Arc-Fault Circuit Interrupter (AFCI) function. The Growatt MOD inverters have a 10 years product warranty.
The Growatt MOD series is the latest 3-phase inverter solution designed specifically for residential use. The MOD series features an aesthetically pleasing, compact design that will add visual appeal to your home. With an outstanding efficiency of up to 98.3%,the Growatt MOD 3-phase inverter is a smart choice that offers great performance at an excellent price point.
Datasheet | MOD 3000 TL3-X | MOD 5000 TL3-X | MOD 7000 TL3-X | MOD 9000 TL3-X | MOD 10000 TL3-X | MOD 13000 TL3-X | MOD 15000 TL3-X | |||||||
Input data (DC) | ||||||||||||||
Max. recommended PV power (for module STC) | 4500W | 7500W | 10500W | 13500W | 15000W | 19500W | 22500W | |||||||
Max. DC voltage | 1100V | |||||||||||||
Start voltage | 160V | 200V | ||||||||||||
Nominal voltage | 580V | |||||||||||||
MPPT voltage range | 140V-1000V | |||||||||||||
Output data (AC) | ||||||||||||||
AC nominal power | 3000W | 5000W | 7000W | 9000W | 10000W | 13000W | 15000W | |||||||
Max. AC apparent power | 3300W | 5500W | 7700W | 9900W | 11000W | 14300W | 16500W | |||||||
Nominal AC voltage（range*） | 220V/380V, 230V/400V (340-440V) | |||||||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||||||
Max. output current | 5.0A | 8.3A | 11.7A | 15.0A | 16.7A | 21.7A | 25.0A | |||||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||||||
Efficiency | ||||||||||||||
MAX. efficiency | 98.3% | 98.3% | 98.6% | 98.6% | 98.6% | 98.6% | 98.6% | |||||||
European efficiency | 97.5% | 97.5% | 98.1% | 98.1% | 98.1% | 98.2% | 98.2% | |||||||
MPPT efficiency | 99.9% | |||||||||||||
General data | ||||||||||||||
Dimensions (W / H / D) | 425/387/147mm | 425/387/147mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | |||||||
Weight | 12.5kg | 12.5kg | 14kg | 14kg | 14kg | 16kg | 16kg | |||||||
Operating temperature range | –25°C ... +60°C | |||||||||||||
Protection degree | IP66 | |||||||||||||
Relative humidity | 0~100% | |||||||||||||
Altitude | 4000m | |||||||||||||
Display | OLED+LED/WIFI+APP | |||||||||||||
Inverter power: 3000W, 4000W, 5000W, 6000W, 7000W, 8000W, 9000W, 10KW, 11KW, 12KW, 13KW, 15KW. For more models, please contact customer service.

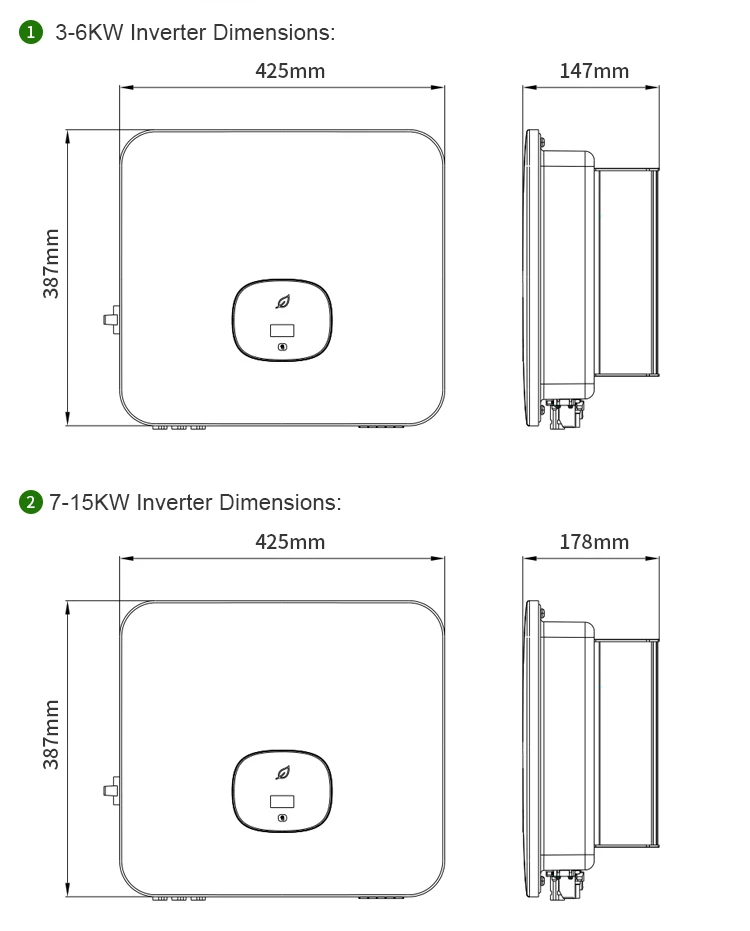

Size and weight | ||||||||
Model | Height (H) | Width (W) | Depth (D) | Weight | ||||
MOD 3-6KTL3-X | 387mm | 425mm | 147mm | 12.5kg | ||||
MOD 7-11KTL3-X | 387mm | 425mm | 178mm | 14kg | ||||
MOD 12 - 15KTL3 - X & MOD 7- 11KTL3-X-AU | 387mm | 425mm | 178mm | 16.0kg | ||||

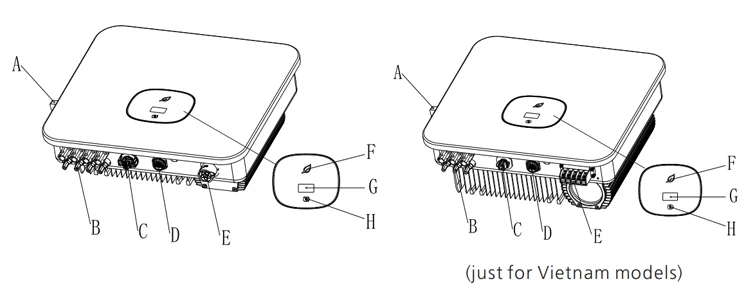

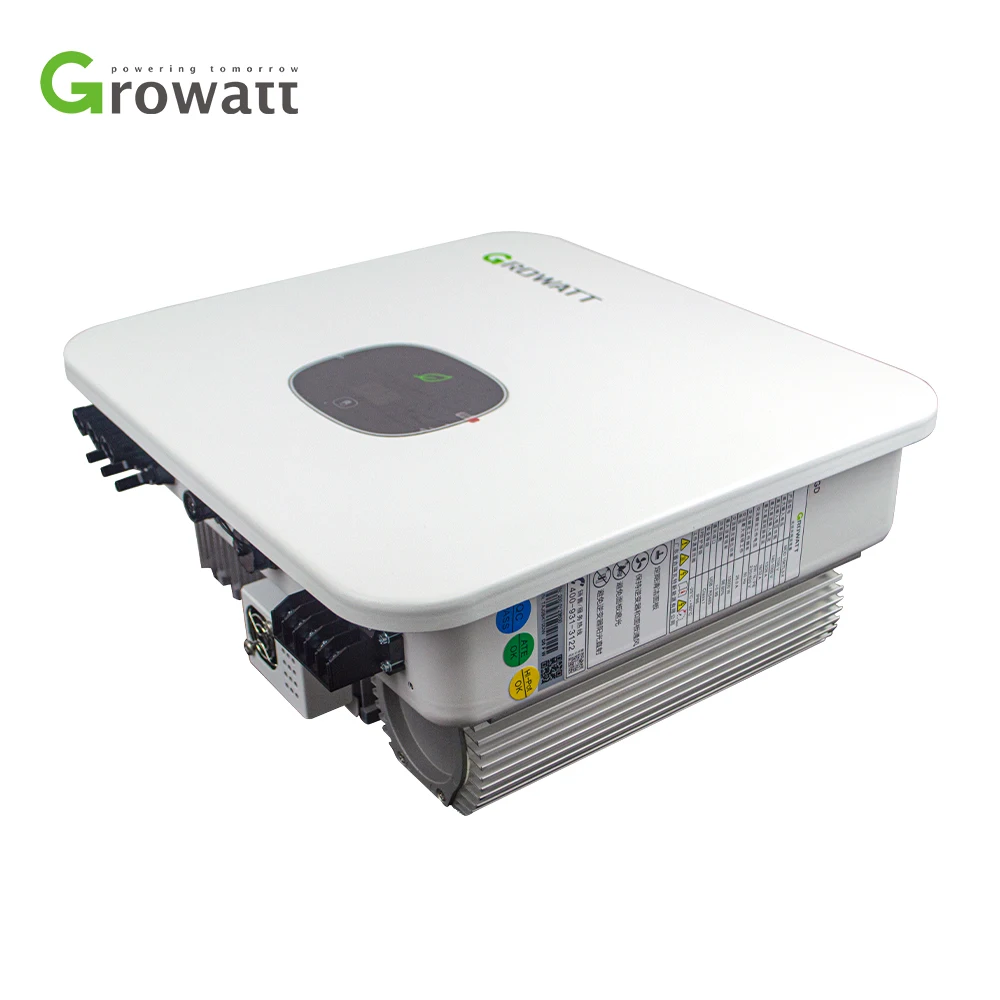

The appearance instructions are as follows: | ||||||
No. | Name | No. | Name | |||
A | DC switch | E | AC terminal | |||
B | PV terminal | F | LED indicator | |||
C | RS485 port | G | LCD screen | |||
D | USB port | H | Touch button | |||

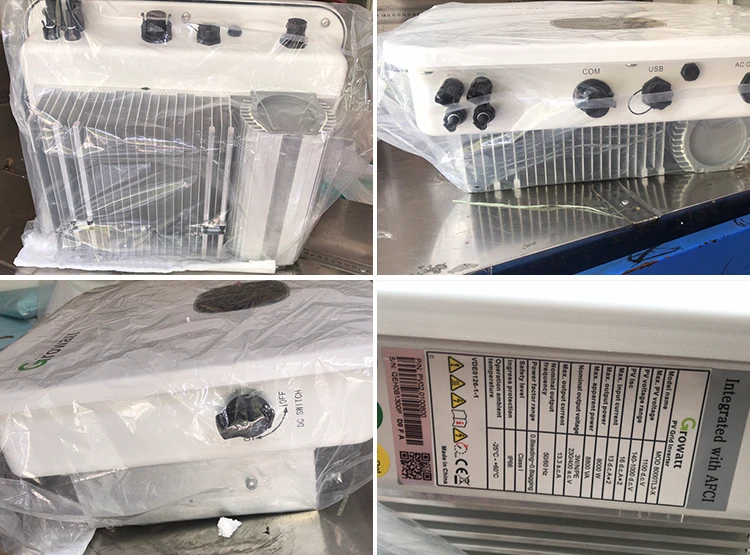

Product Details

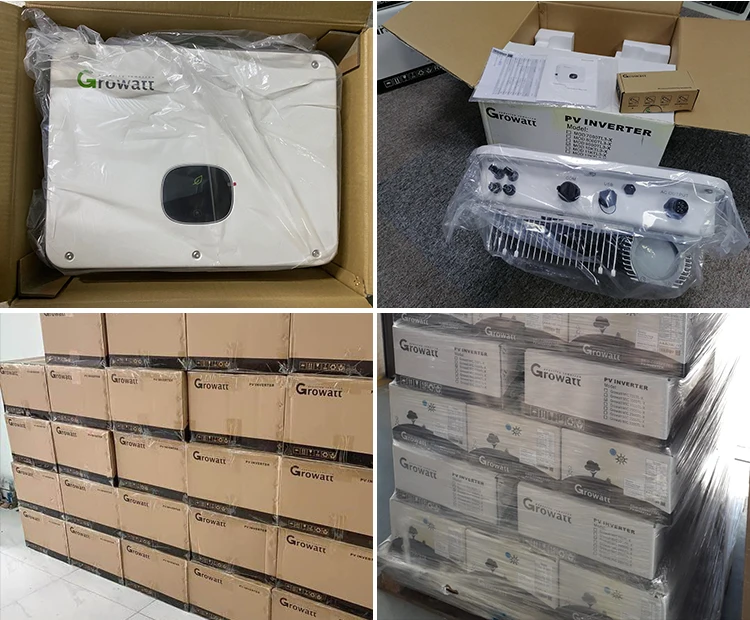

Product packaging
