Оптовая цена, профессиональная высококачественная домашняя солнечная черепица, солнечные панели
- Category: >>>
- Supplier: Nanjing Amso Solar Technology Co. Ltd.
Share on (1600762648076):
Product Overview
Description
Wholesale Price Professional High-Quality Home Shingled Solar Roof Tiles Solar Panels

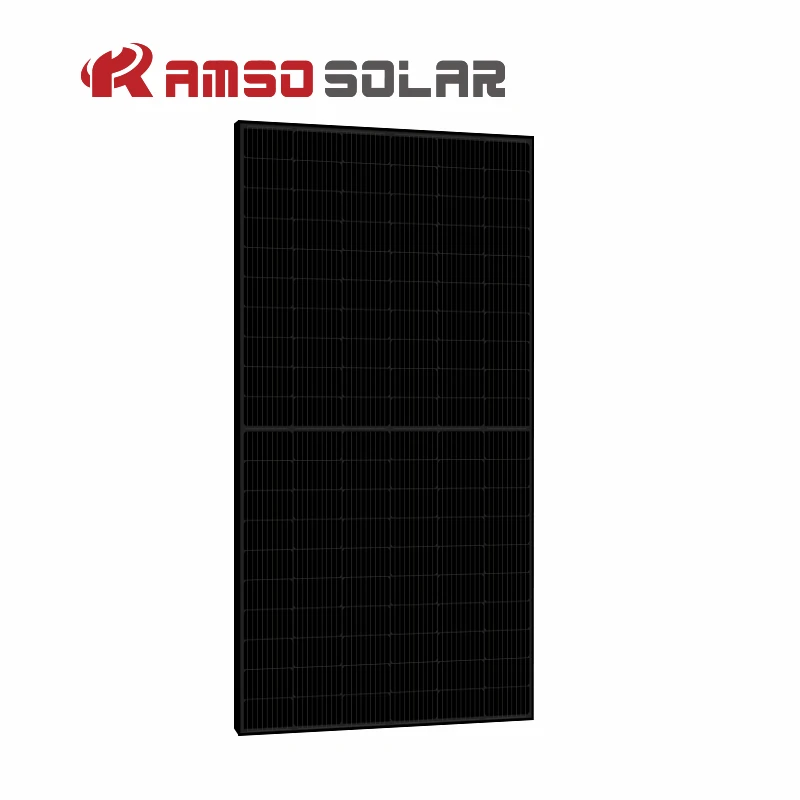

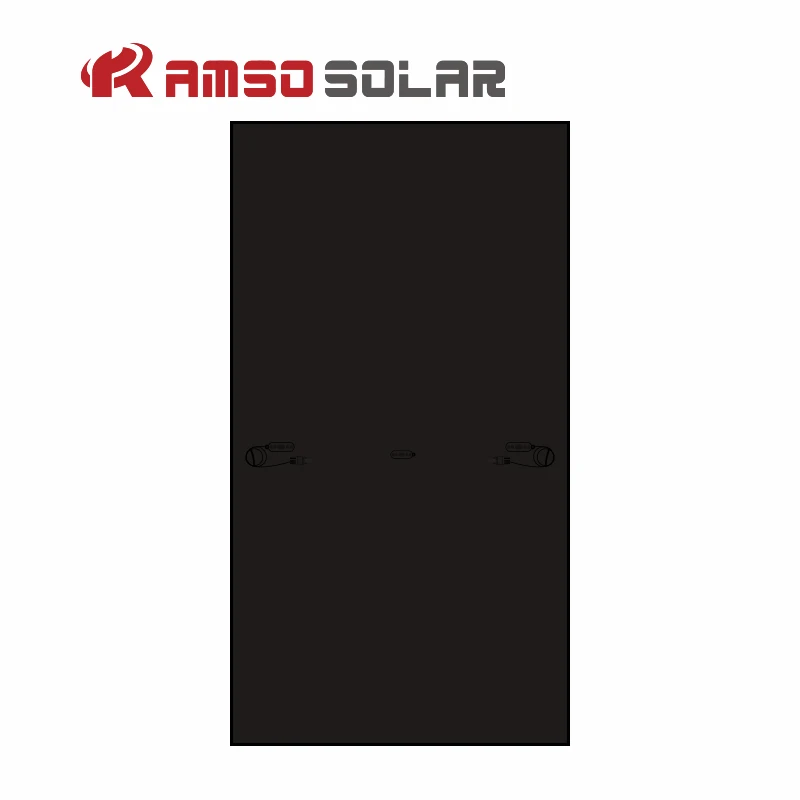

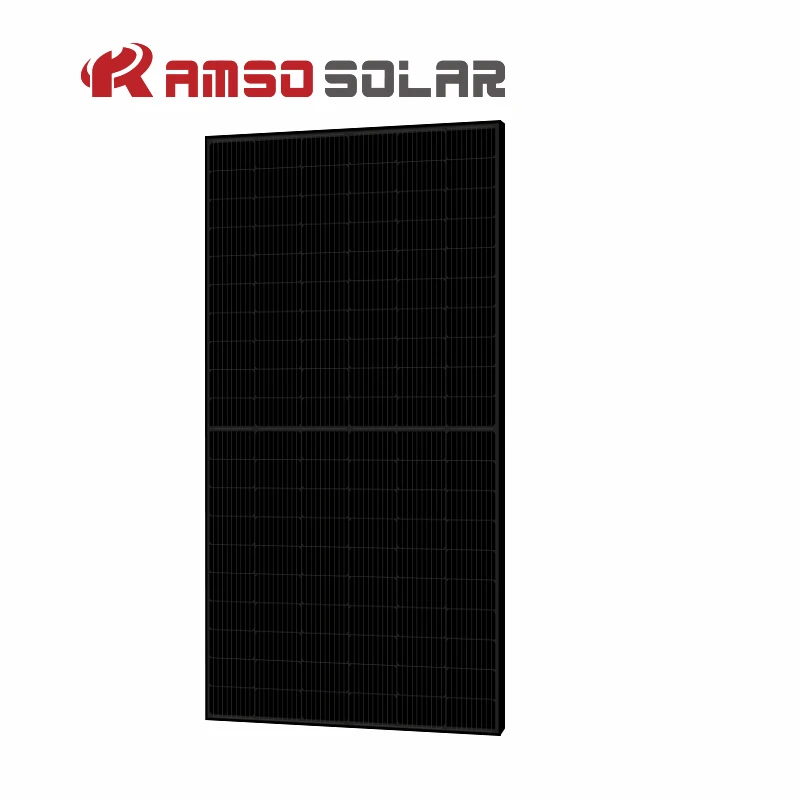

Product Display
Product Paramenters
Model Type | Power(W) | Number of Cells | Dimensions(MM) | Weight(KG) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) | ||||||||
AS650S9 | 650 | 132 | 2411*1303*40 | 34.5 | 37.9 | 17.15 | 45.5 | 18.32 | ||||||||
AS660S9 | 660 | 132 | 2411*1303*40 | 34.5 | 38.0 | 17.37 | 45.6 | 18.32 | ||||||||
AS670S9 | 670 | 132 | 2411*1303*40 | 34.5 | 38.1 | 17.59 | 45.7 | 18.33 | ||||||||
AS680S9 | 680 | 132 | 2411*1303*40 | 34.5 | 38.2 | 17.80 | 45.8 | 18.56 | ||||||||
AS690S9 | 690 | 132 | 2411*1303*40 | 34.5 | 38.3 | 18.02 | 45.9 | 18.79 | ||||||||
AS700S9 | 700 | 132 | 2411*1303*40 | 34.5 | 38.4 | 18.23 | 46.0 | 19.02 | ||||||||
Standard test conditions:measured values(atmosphiric mass AM.5,irradiance 1000W/m2,battery temperature 25℃) | ||||||||||||||||
Temperature rating | ||||||||||||||||
Rated battery operating temperature | 45±2℃ | |||||||||||||||
Maximum power temperature coefficient | -0.4%/℃ | |||||||||||||||
Open circuit voltage temperature coefficient | -0.29%/℃ | |||||||||||||||
Short circuit current temperature coefficient | -0.05%/℃ | |||||||||||||||
Limit parameter | ||||||||||||||||
Operating temperature | -40-+85℃ | |||||||||||||||
Maximum system voltage | 1000/1500VDC | |||||||||||||||
Maximum fuse rated current | 25A | |||||||||||||||
Why Choose Us
Certifications

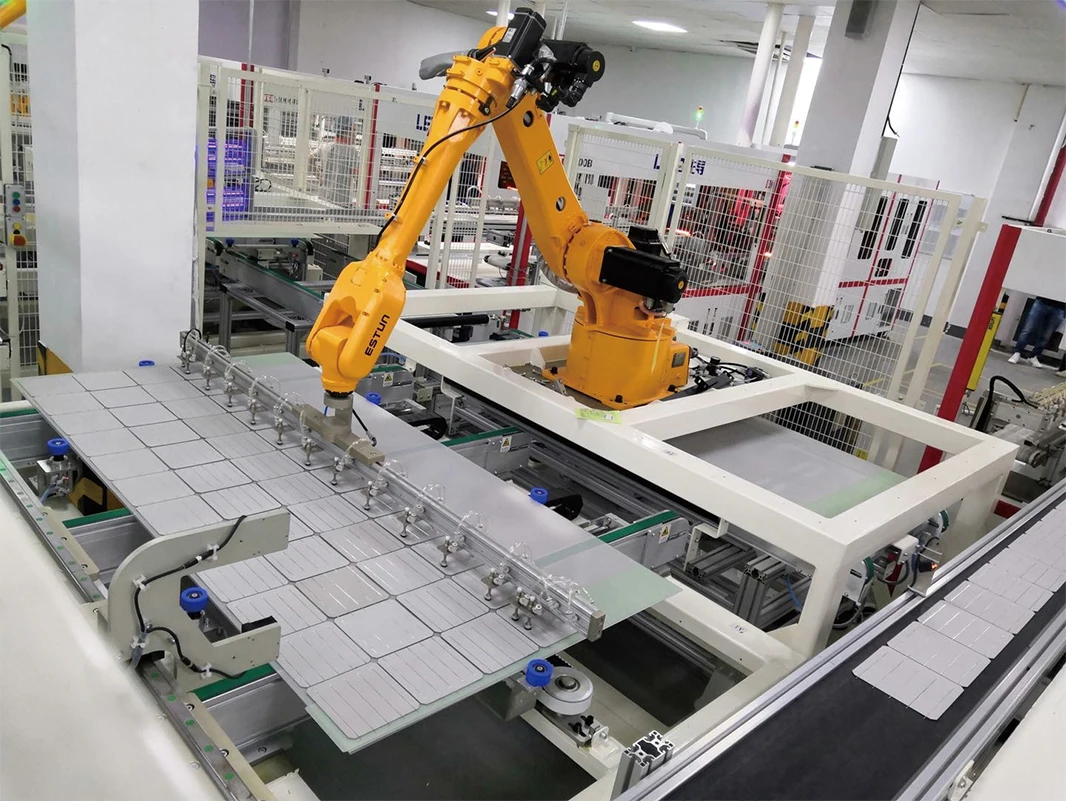

Company Profile
