IKE industrial veggies washing and cutting potato washer machine potato chip machine slicer potato machine
- Category: >>>
- Supplier: Foshan IKE Science & Technology Co. Ltd.
Share on (1600762665271):
Product Overview
Description
Product Description
IKE Root Vegetable Processing Line is suitable for Processing variety of root vegetables .
Such as: Potato ,carrot,taro,yam,ginger,Lotus root,kudzu,Sweet potato,etc.
Root Vegetable Processing Line | ||||
Washing Peeling Machine DS-WN150、DS-WN450、KW-WN150) | Washing | Cleaing product in a short time. | ||
Washing+Peeling | Adjust the time to cleaning and peeling the product. | |||
Cleaning+Polishing | Replacement of soft brush, can cleaning and polishing. | |||
Conveying Machine (DS-E040) | Conveying | Can adjust the speed. | ||
Cutting Machine （DS-S150） | Slicing | Replacement knife plate can slicing or shredding or dicing. （Replacement can be completed within 5 minutes） | ||
Shredding | ||||
Dicing | ||||
Certification | ISO，CE | |||
Warranty | 1 year | |||
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. 2, For established customers, we will offer more favorable payment terms. | |||
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. 2, We can also offer CIF to those in need. 3, We can also help in container consolidation. | |||
Machine Details
1.Washing and Peeling Machine DS-WN150 | Material | Stainless Steel 304/201 | ||
Power Input | 220V/380V | |||
Voltage | 1.5KW | |||
Capacity | 800-1200KG/H | |||
Machine Dimension(L*W*H) | 1500*820*980mm | |||
Net Weight | 250KG | |||
2. Conveying Machine DS-E040 | Material | Stainless Steel 304/201 |
Power Input | 220V/380V | |
Voltage | 0.375KW | |
Machine Dimension(L*W*H) | 1800*800*1200mm |
3. Cutting Machine DS-S150 | Material | Stainless Steel 304/201 |
Power Input | 220V/380V | |
Voltage | 1.5KW | |
Capacity | 300-1000KG/H | |
Machine Dimension(L*W*H) | 600*500*900mm | |
Slice thickness | 2-10mm | |
Strip thickness | 2-10mm | |
Cubic size | 8,10,12,15mm | |
Control type | Switch |
Product Description
Potato Root vegetable processing Line Parameter | ||||||||
Machine Mane | Power | Voltage | Weight | Dimension | ||||
Potato Washing Peeling Machine | 0.75kw | 380V/3phase/50Hz | 245kg(G.W) | 1100*820*980mm | ||||
Conveyor and Screening Belts | 0.4kw | 380V/3phase/50Hz | 150kg(G.W) | 1800*800*1200mm | ||||
Slicing Machine | 1.5kw | 220v/1phase/50Hz | 160kg(G.W) | 740*740*1050mm | ||||

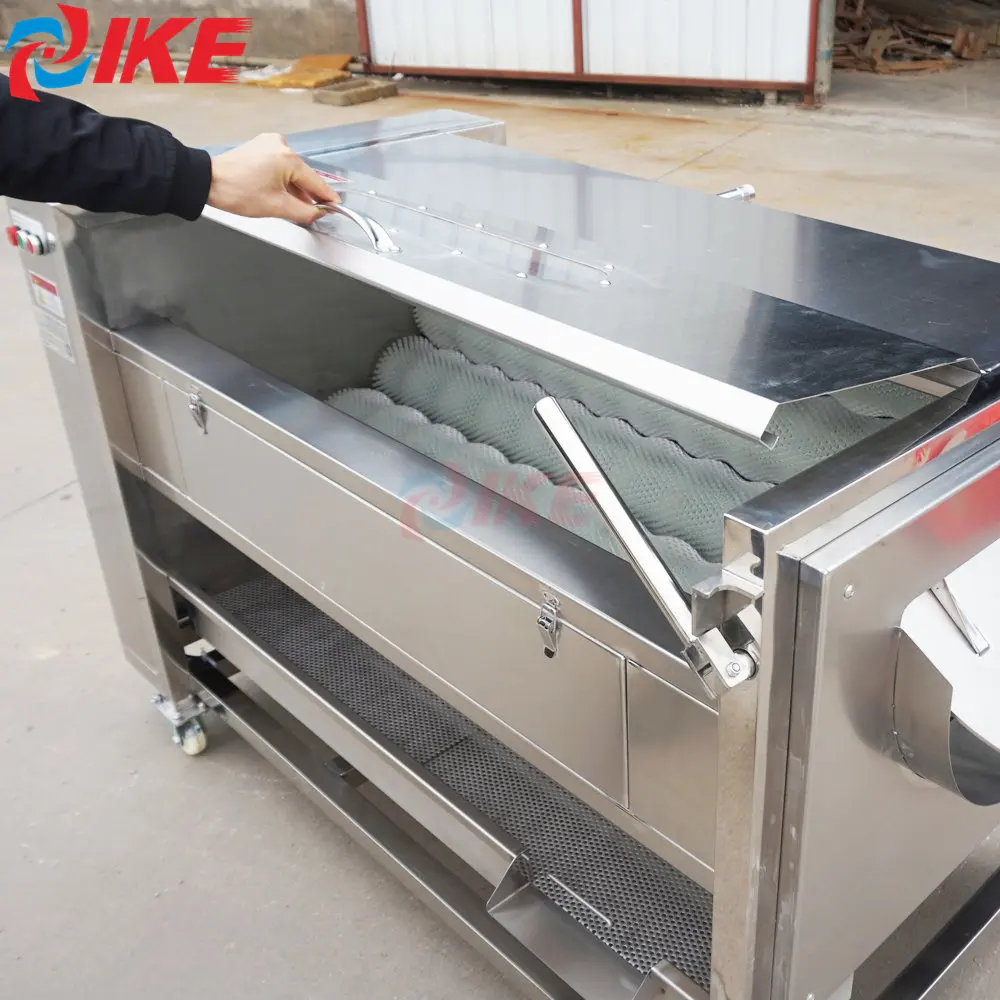

Potato brush roller peeling and washing machine
Function: For poptato cleaning and peeling.
* Washing and peeling integrated machine
* The machine can wash and peel potato at the same time
* High peeling rate up to 98%
* Suitable for potato in different seize
* Easy to operate and clean
* Low electricity consumption
* Food grade stainless steel 304
* Various processing capacity you can choose
* With screw feeding system
* Washing and peeling integrated machine
* The machine can wash and peel potato at the same time
* High peeling rate up to 98%
* Suitable for potato in different seize
* Easy to operate and clean
* Low electricity consumption
* Food grade stainless steel 304
* Various processing capacity you can choose
* With screw feeding system
Model | Power | Capacity | Weight | Dimension |
DS-WN075 | 0.75kw/380v/50Hz | 300-800kg/h | 245kg | 1100*820*980mm |
DS-WN150 | 1.5kw/380v/50Hz | 800-1200kg/h | 310kg | 1500*820*980mm |
DS-WN300 | 3kw/380v/50Hz | 2500-3000kg/h | 450kg | 2100*920*1100mm |
DS-WN450 | 4.5kw/380v/50Hz | 3500-4000kg/h | 680kg | 2880*880*1360mm |
Potato cutting machine
Function: Cutting whole potato into potato chips or potato strips.
* Easy to operate and clean
* Low electricity consumption
* Food grade stainless steel 304
* Thickness and size of french fries can be ajustable
* Avaliable for potato chips and french fries
* Smothly cutting process to ensure no broken chips
* Big feeding port easily to connected with washing and peeling machine
* High processing capacity of this machine and at low cost
* Easy to operate and clean
* Low electricity consumption
* Food grade stainless steel 304
* Thickness and size of french fries can be ajustable
* Avaliable for potato chips and french fries
* Smothly cutting process to ensure no broken chips
* Big feeding port easily to connected with washing and peeling machine
* High processing capacity of this machine and at low cost

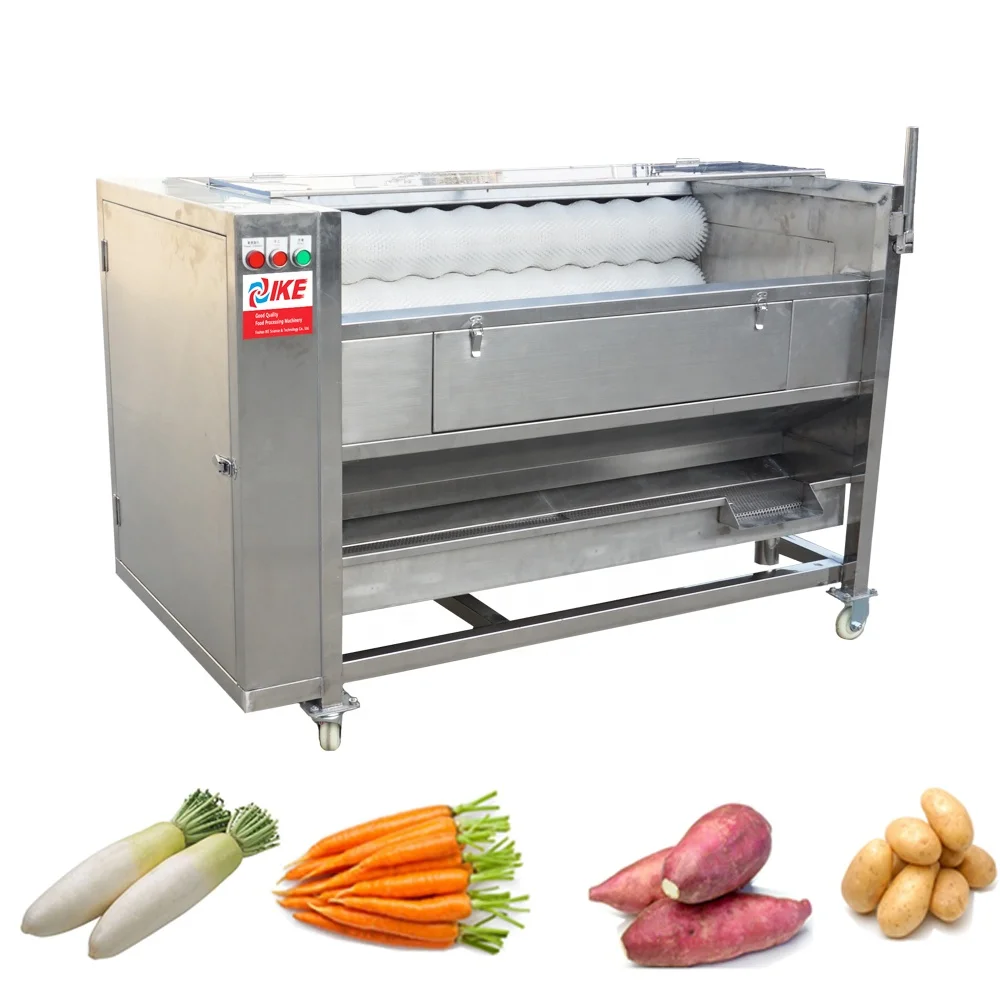

Washing and Peeling Machine
Washing/Peeling/Polishing Root Vegetable.

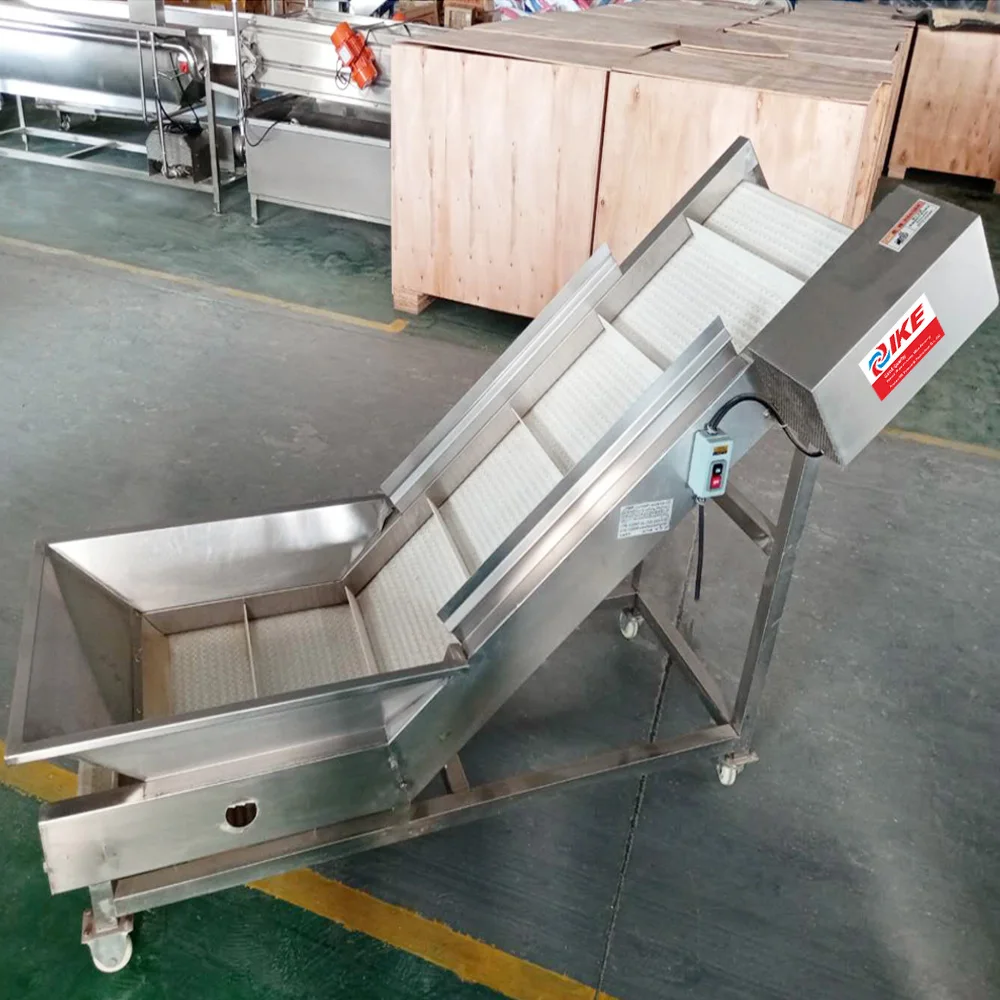

Conveying Machine
Conveying Speed can be adjusted.

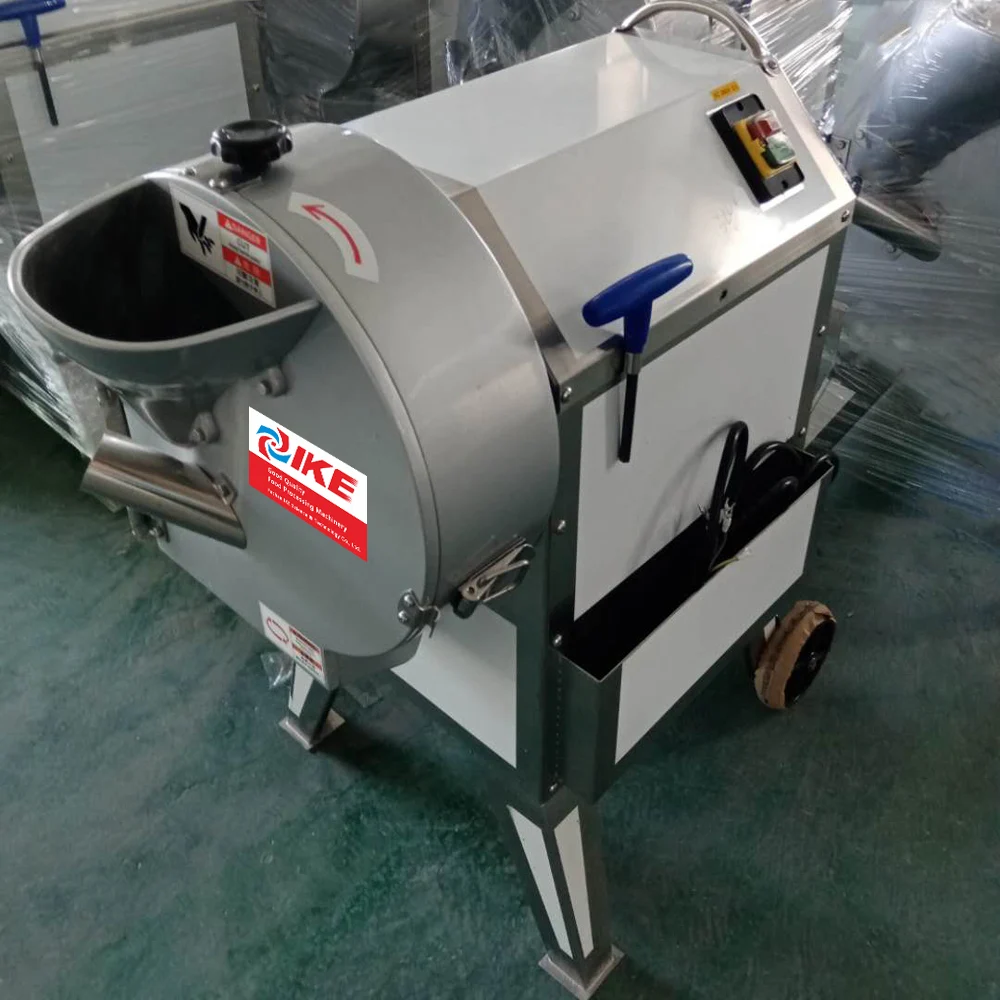

Cutting Machine
Replacement knife plate can slicing or shredding or dicing.

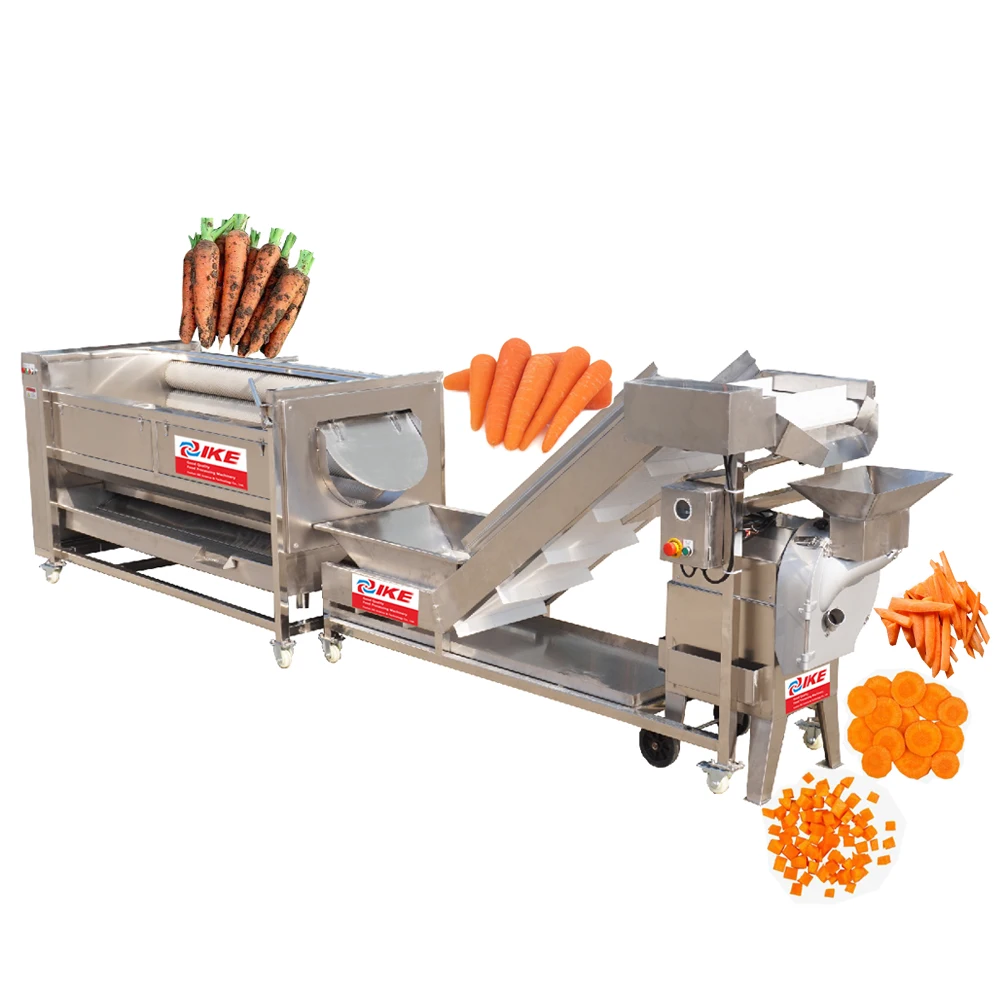

Root Vegetable Processing Line
Cleaning+Peeling+Conveying+Slicing/Shredding/Dicing.
Custom production line
We can customize various production lines according to your needs
Company Introduction
IKE factory,Over 29 years of R&D experience since 1994; Production plant covers an area of 110,000 sqm;
Monthly output 10,000 sets of food dehydrators; 200 in-house production workers.
We have attended 5~6 overseas exhibitions every year.
