CE ISO Certificate M44 Hex Nut Square Nut 200Tons Hot Forging Bolts Production Line Hot Heading Machine
- Category: >>>
- Supplier: Baoding Xiaoguo Intelligent Equipment Co. Ltd.
Share on (1600762685342):
Product Overview
Description
Manipulator Description
Walking Beam Type Manipulator
Coordinate Type Manipulator
Easy operation : controlled by buttons, adjust the manipulator movement on the
touch screen, no need to remove the jaws when changing the mold;
touch screen, no need to remove the jaws when changing the mold;
Multiple functions : there is a single punch action, that is, the punch press produces one finished product every 2 times, which is suitable for producing larger products. It can move the manipulator first and then the punch. It can produce products with a height of about 55. With alarm function, some faults can be alarmed and stopped equipment;
Less failures and easy maintenance: the core parts are purchased parts (see the list for details), with long service life and low failure rate. There is a fault prompt function,
Less failures and easy maintenance: the core parts are purchased parts (see the list for details), with long service life and low failure rate. There is a fault prompt function,
the cause of the fault is easy to detect, and the maintenance is convenient.
Application

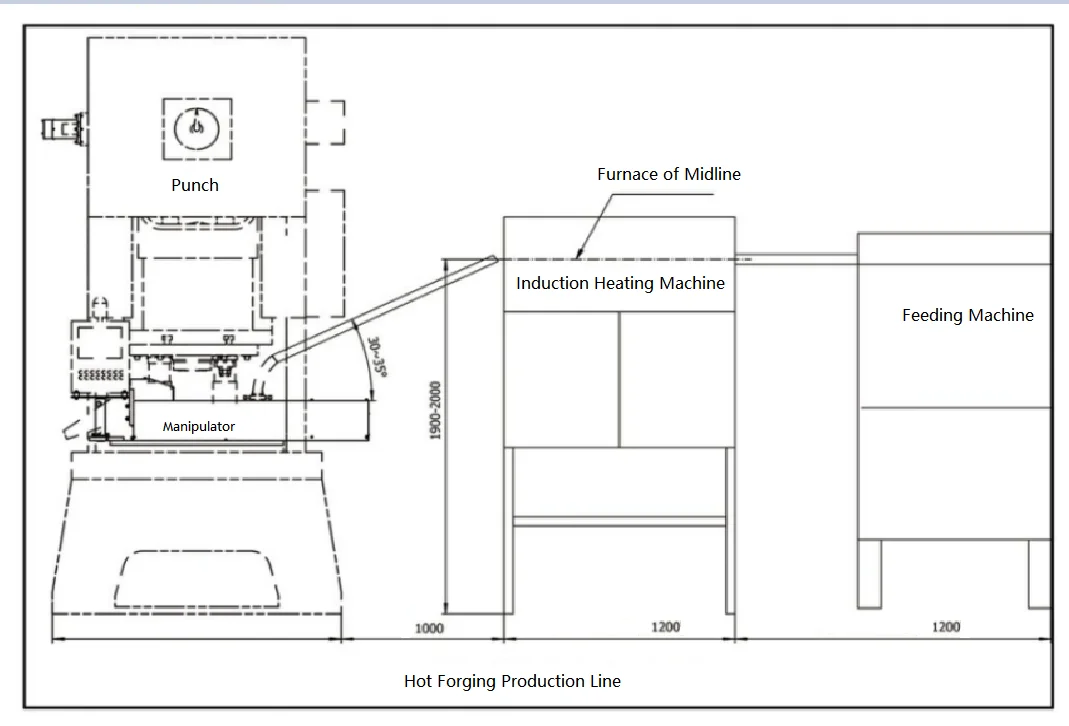

Production Line Location

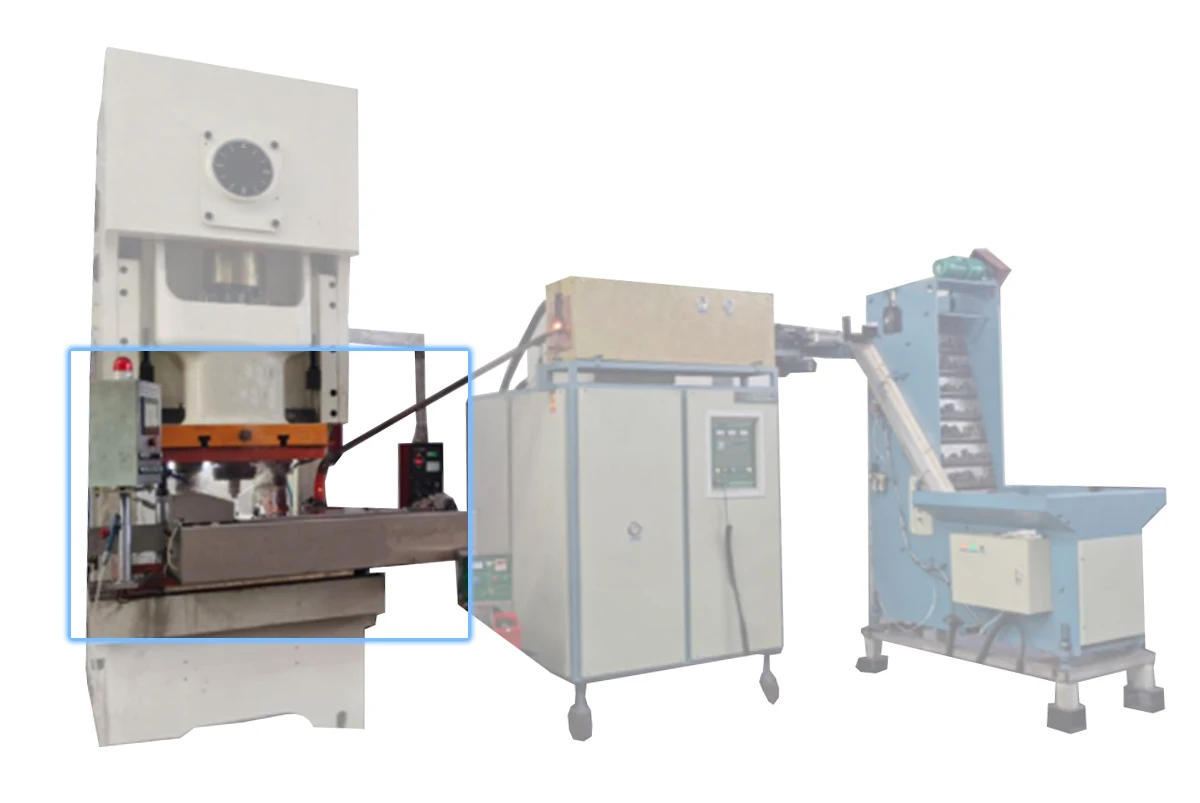

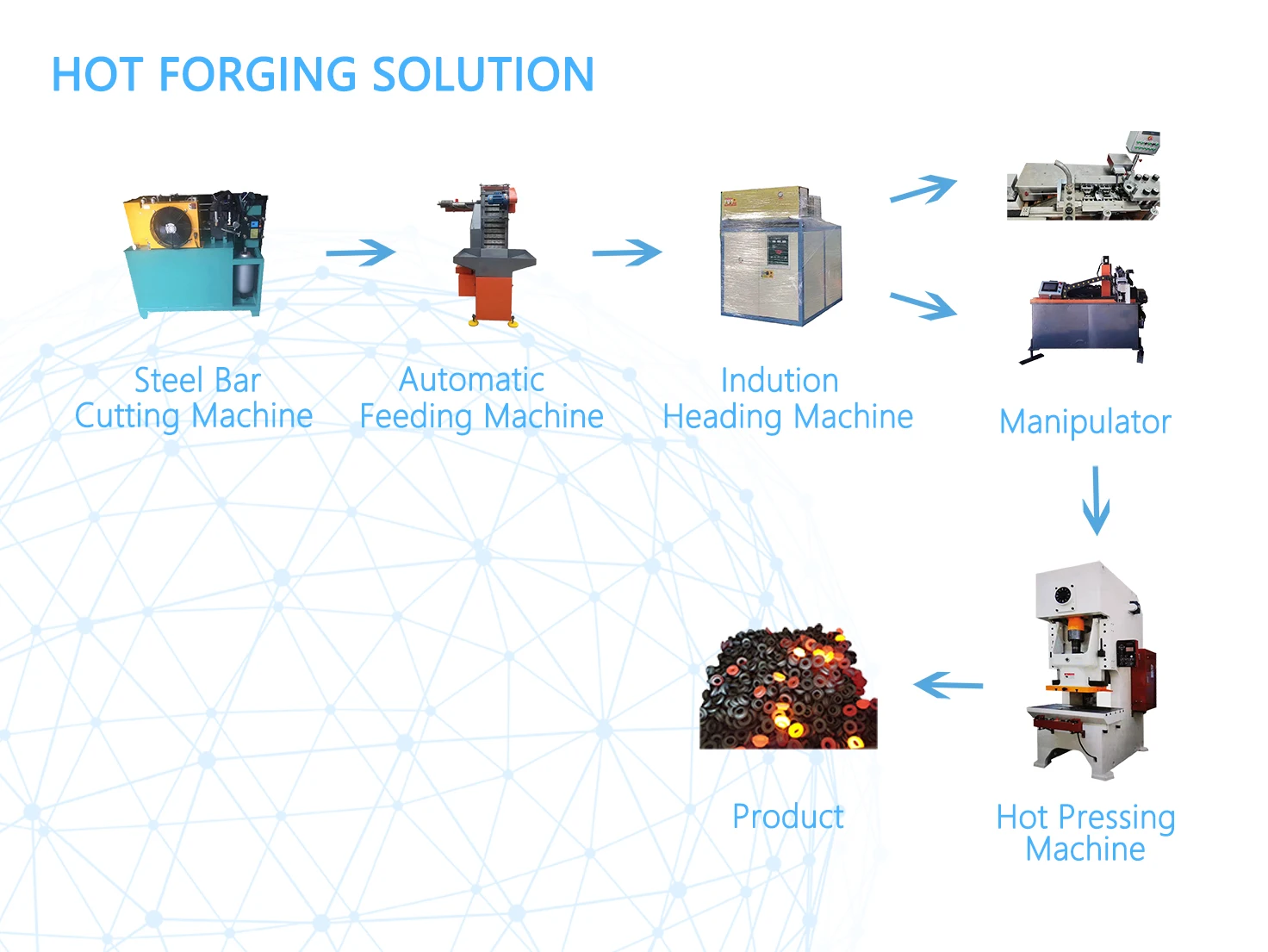

Production Line Introduction
1. The raw material is bar steel, and the automatic bar steel cutting machine is used to cut the material. The cut material is flat at both ends. The head and end materials of the bar are automatically separated and enter the waste area. The good materials is conveyed into the storage bin of the fully automatic feeding machine.
2. The automatic feeding machine will push the material into the hearth furnace position of the induction heating machine
according to the set frequency, and automatically push it out after heating, without the need for human supervision.
3. The heating equipment adopts induction heating, and the material is pushed into the heating furnace by the automatic feeder, and the frequency is automatically heated according to the heating progress.
4. The heated workblank is also slid into the guide tube of the hot forging CNC synchronous manipulator from the intermediate frequency protection control exit through the slide, and the manipulator clamps the workblank into the mold and heat-acid-formed.
5. Install the control buttons of the shearing machine, intermediate frequency and automatic feeding machine near the operator. One nut hot forging production line only needs one person to operate (one person can take care of the feeder and the CNC).
2. The automatic feeding machine will push the material into the hearth furnace position of the induction heating machine
according to the set frequency, and automatically push it out after heating, without the need for human supervision.
3. The heating equipment adopts induction heating, and the material is pushed into the heating furnace by the automatic feeder, and the frequency is automatically heated according to the heating progress.
4. The heated workblank is also slid into the guide tube of the hot forging CNC synchronous manipulator from the intermediate frequency protection control exit through the slide, and the manipulator clamps the workblank into the mold and heat-acid-formed.
5. Install the control buttons of the shearing machine, intermediate frequency and automatic feeding machine near the operator. One nut hot forging production line only needs one person to operate (one person can take care of the feeder and the CNC).
Specifiacion
Model | RN190-160C | RN220-200C | RN250-250C | RN250-315C | RN300-400C | ||
Molds Distance | Ton | 190 | 220 | 250 | 250 | 300 | |
Press Power | times/min | 160 | 200 | 250 | 315 | 400 | |
Press Speed | pcs | 55 | 50 | 40 | 40 | 35 | |
Capacity when double press | mm | ≤43 | ≤40 | ≤30 | ≤30 | ≤25 | |
Can produce the hex nut | mm | ≤50across flats of nuts(single≤55) | ≤60across flats of nuts(single≤65) | ≤65across flats of nuts(single≤80) | ≤70across flats of nuts(single≤90) | ≤75across flats of nuts(single≤100) | |
Package Size L*W*H | cm | 160X140X110 | 190X145X110 | 190X155X110 | 190X155X110 | 200X170X110 | |
Weight | kg | 1600 | 1800 | 2500 | 2800 | 3500 | |
If you need to produce bigger size parts, please contact with us.

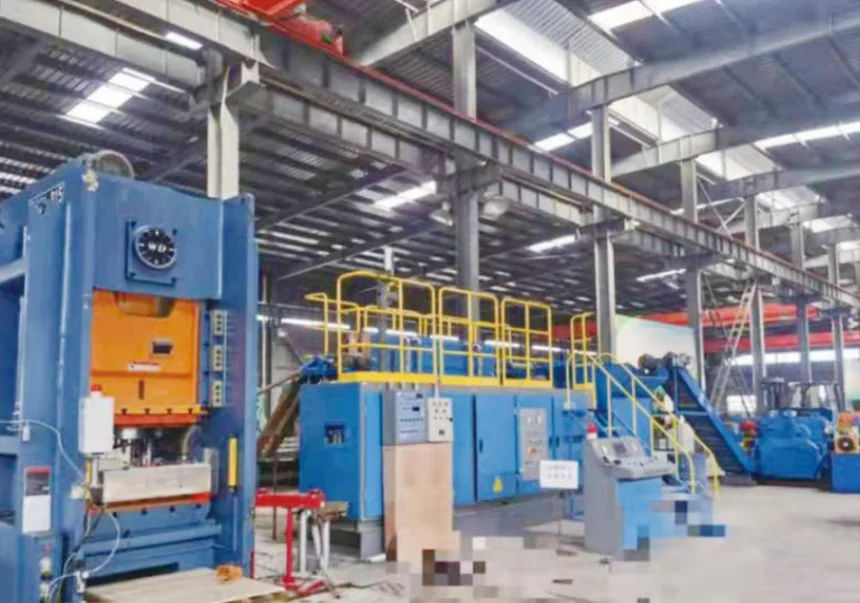

Case
