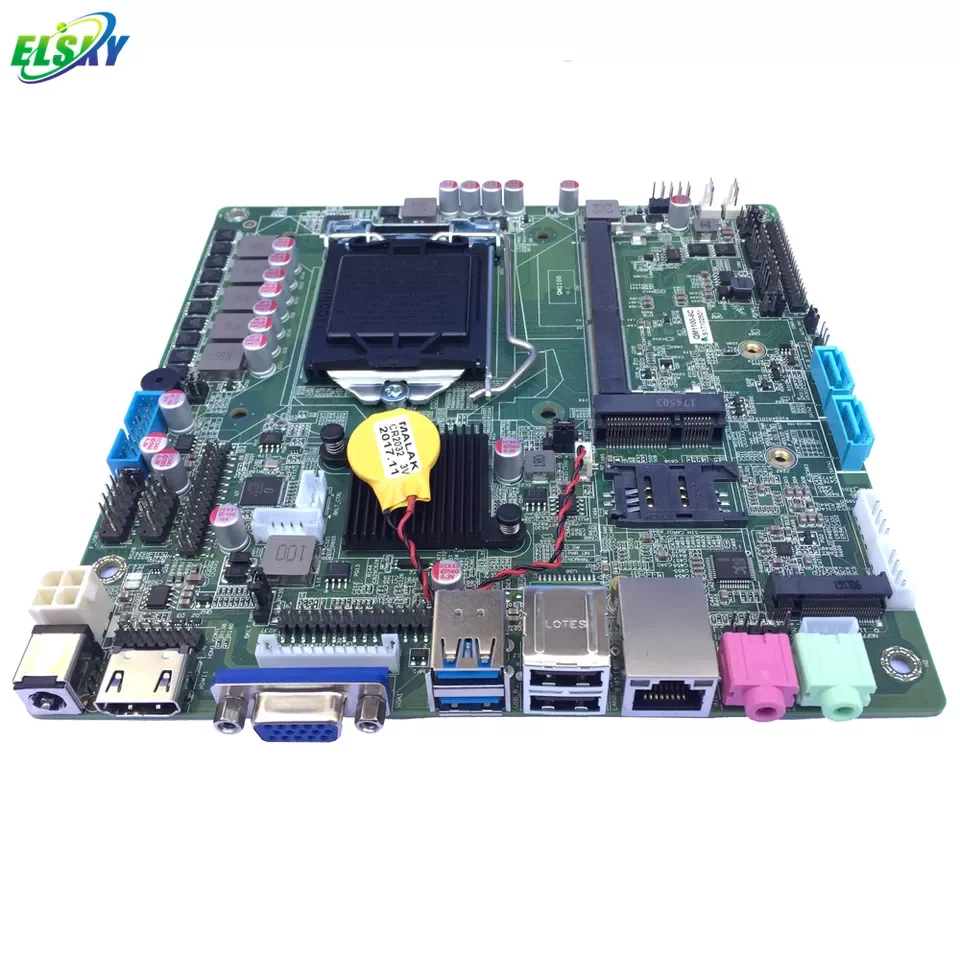

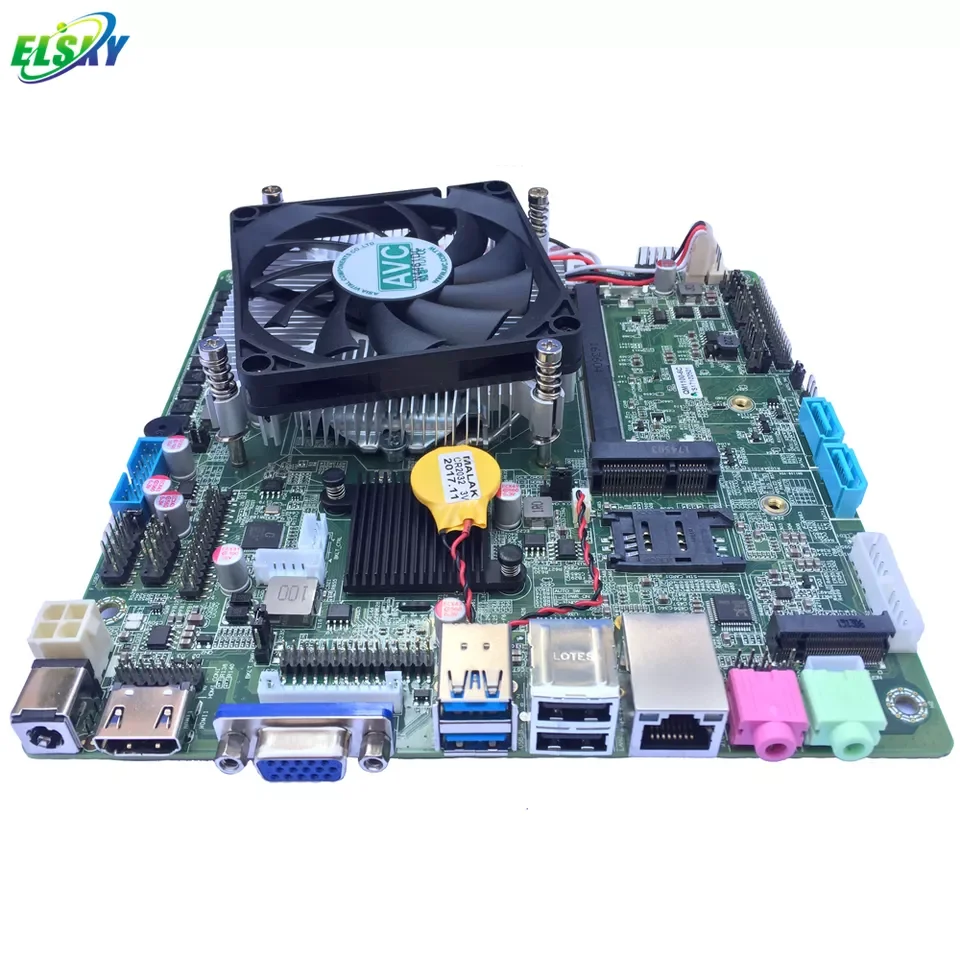

Support 6th 7th Gen i3 i5 7500 i7 CPU 4K 60Ghz FCLGA1151 Chipset H110 motherboard Mini ITX for Desktops

QM1100 Motherboard Spec.

 Processor

Skylake 6th Gen.I3 6100 I3 6300 I5 6400 I5 6500 I7 6700;

Kaby lake 7th Gen. LGA1151 PIN Core I3 7100 I3 7300 I5 7500 I7 7700.

Chipset

H110

BIOS

Support LAN boot rom,Wake On LAN,Power ON,Watch dog,etc functions.

Display core

Built-in GPU

Display Output

Having EDP/LVDS/VGA/HD-MI Pin or Interfaces;

Support Independent three display;

Support Synchronous&Asynchronous Dual Panel and Three panel Display.

1*EDP PIN;

1*LVDS PIN;

1*VGA PIN;

1*HD-MI PIN.

Memory

1*DDR4 2133/2400 DIMM slot,Support Max.16GB

Sound effect

On-board HD Audio Sound Card,support 6 Sound Channel.

Network card

1*RTL8111F (RJ45 LAN).

Storage

2*SATA3.0(standard interface+2 set SATA Power);

1*Mini-PCI-E long card slot(Support WIFI/3G/4G/M-SATA functions);

1*M.2 slot(Support M.2 SATA protocol and PCIE(NVMe)protocol.

USB

6*USB2.0;

4*USB3.0.

Power

1*DC-in 12V or 19V(Interface:the inside diameter of 2.5mm);

On-board 4PIN socket.

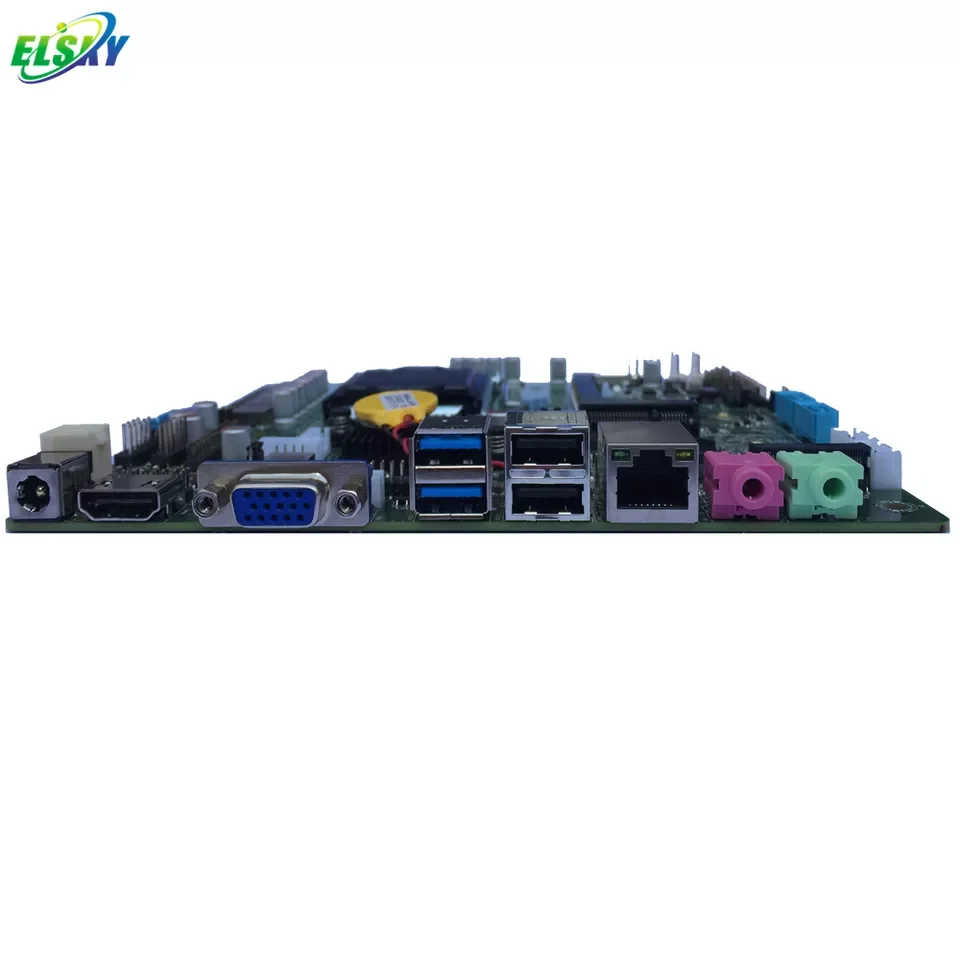

Rear I/Ointerfaces

2*USB2.0

2*USB3.0

1*VGA interface

1*HD-MI interface

1*RJ45_LAN interface

1*AUDIO pin

1*DC

Built-in I/O interfaces

1*4Pin ATX

1*AUDIO PIN

2*SATA hard disk interface

2*USB2.0 PIN

1*USB3.0 PIN

1*INT_SPK PIN(Power Amplifier)

1*CPU FAN PIN

1*SYS FAN PIN

1*F_PANEL PIN

6*COM PIN

1*SIM Card Slot

Temperature

Work:-20°C ~60°C

Humidity

5%~90%,Non-Condensation.

Size

170*170mm
