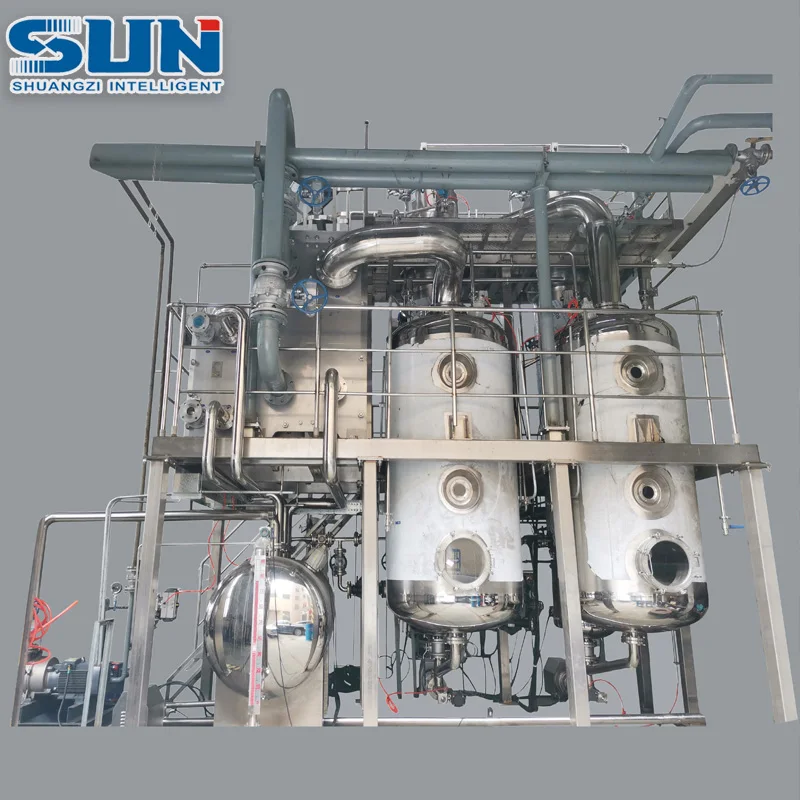

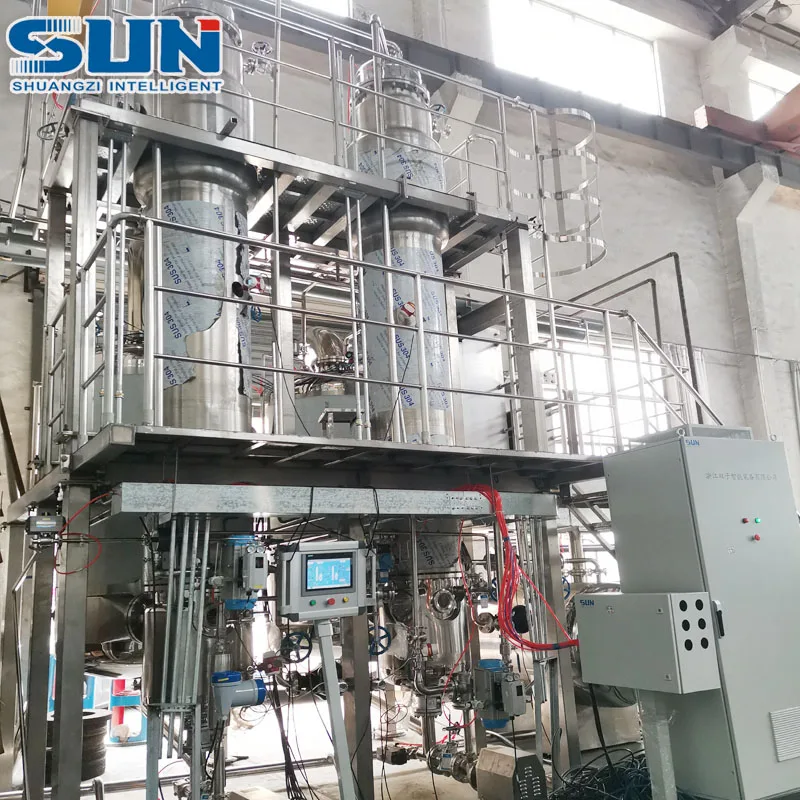

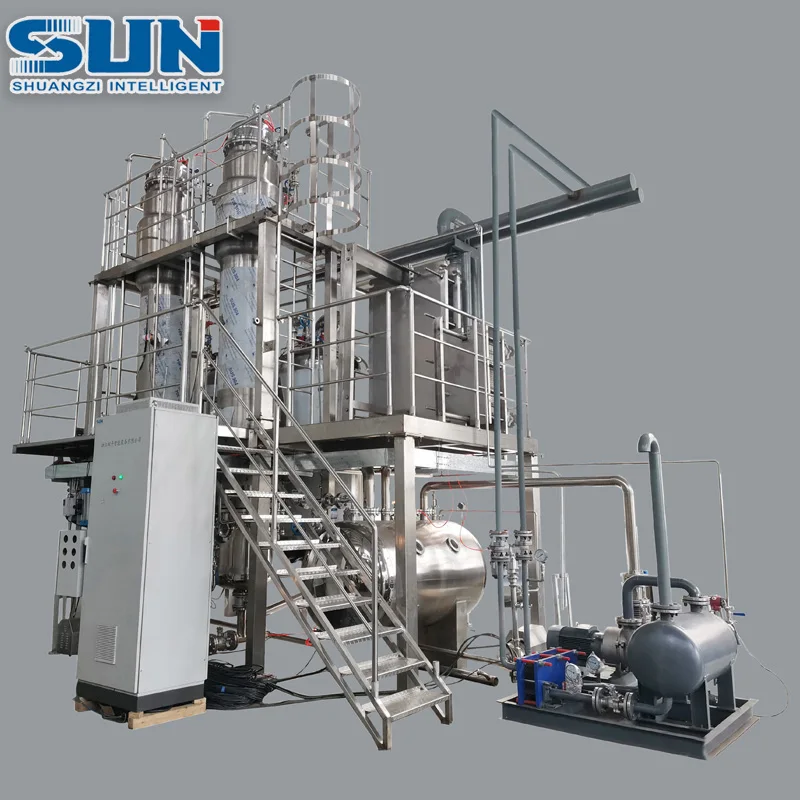

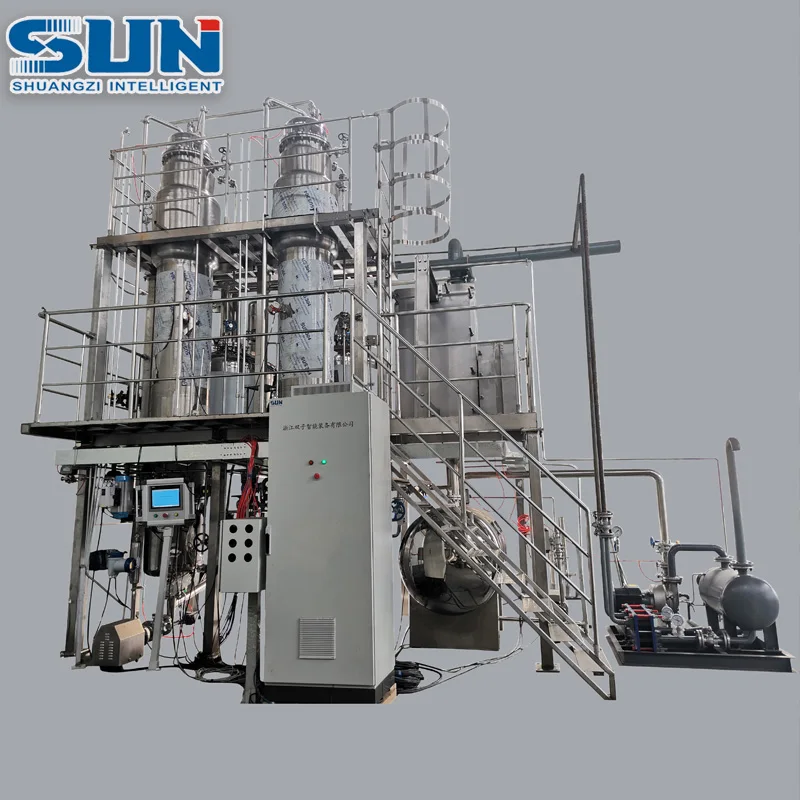

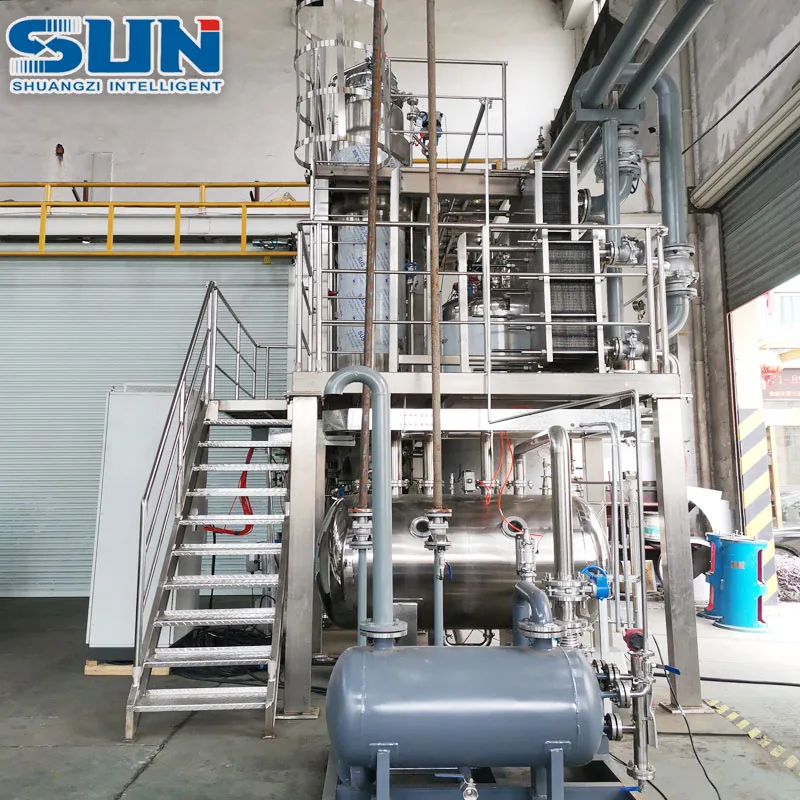

Chinese Medicine Double Effect Falling Film Evaporator Chemical Organics Multi effect Evaporation Equipment
- Category: >>>
- Supplier: Zhejiang Shuangzi Intelligent Equipment Co. Ltd.
Share on (1600762774652):
Product Overview
Description
Product Description
Double Effect Fall Film Evaporator Customized Concentration System For Pharmaceutical And Chemical industry is suitable for the concentration of biochemistry, pharmacy, milk, juice, camel milk, goats milk, sheep milk,horse milk,flavoring, food additives etc. It is especially suitable for heat sensitive products. With the function of continuous feeding and discharging, the fall film evaporator is stable and easy to operate. When the system starts to work, it only needs to adjust various parameters as required in the initial feeding stage and ensure continuous and stable supply of materials at the same time, then it can concentrate the product continuously, stablely, efficiently to reach qualified gravity requirements. The solvent can be recovered at the same time. We can design and produce it as one effect type, two effect type and three effect type according to the different requirements of different customers. The more effects, the more energy saving. The whole system of the fall film evaporator can be automatically controlled by PLC.
High Effect Three Effect Bone Protein Evaporator is specially designed for the customer who does not have enough room to place it. The whole system of the evaporator is placed in one 40HQ container and this container will be used as a removable factory. The whole system is assembled well in the container before shipping and you can use it directly when you receive this machine without too much work on installing. So the installation of this system is very simple for customer.
Items | SJM3-1200 | SJM3-3200 | SJM3-4800 | SJM3-5400 | SJM3-6300 | SJM3-7000 | |||||
Evaporation Capacity (kg/h) | 1200 | 3200L | 4800 | 5400 | 6300 | 7000 | |||||
Product In Concentration % (Made to order) | 11.5-12 | ||||||||||
Product Out Concentration % (Made to order) | 45-48 | ||||||||||
Steam Pressure (Mpa) | 0.6-0.8 | ||||||||||
Steam Consumption kg/h | 800 | 1200 | 1600 | 1790 | 2060 | 2200 | |||||
Evaporating Temperature (C) | 1st Effect | 70 (Can be designed according to customer's demand) | |||||||||
2nd Effect | 57 (Can be designed according to customer's demand) | ||||||||||
3rd Effect | 45 (Can be designed according to customer's demand) | ||||||||||
Heating Temperature (C) | 1st Effect | 80 | |||||||||
2nd Effect | 70 | ||||||||||
3rd Effect | 57 | ||||||||||
Cooling Water Consumption (kg/h) | 15 | 21 | 36 | 41 | 47 | 52 | |||||
Electric Total Power (KW) | 28.5 | 32.5 | 32.5 | 44 | 44 | 46 | |||||
Dimension (L*W*H) m | 7.3*2.5*9 | 7.3*2.5*10 | 7.3*2.5*12.3 | 7.3*2.5*13.3 | 7.6*2.6*15.3 | 7.6*2.6*16 | |||||
Main Features
2. High Effect Three Effect Bone Protein Evaporator is an energy saving system
3. High Effect Three Effect Bone Protein Evaporator is a very efficient solvent recovery equipment
Detailed Images
Certifications
Factory Equipment & Workshop
Sample Projects
We Zhejiang Shuangzi have our own lab. We can supply small scale and middle scale test for our customers before designing the production line. We can get the key technical data during the testing, ensuring the high quality of the technical process and design level.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
* Visit customers abroad
After-Sales Service
* 6 engineers and 15 workers has USA visa, no problem to go to USA, Canada and any other countries to do technical support
*Technical trainning, Technical documents, *Customers field installation, field debugging
*One year quality guarantee
Package & Delivery
Big Tank Package
The big tank (reactor) will be wrapped by thick cloth and fitted in container directly.
Big Equipment Package
The big equipment will be wrapped by thick cloth and fitted in container directly.
Small Equipment Package
The small equipment will be packed in standard plywood cases
