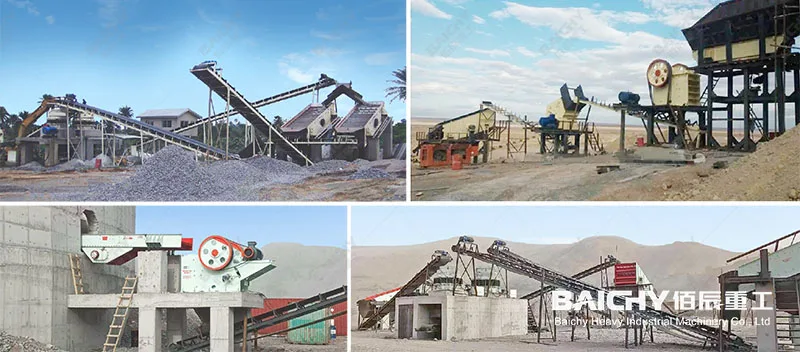

In the production line, the PE600×900 jaw crusher is usually used in conjunction with other equipment to form a complete crushing, screening, and conveying system. The following is an example of a typical production line configuration:

1. Feeder: The ZSW9638 feeder, is used to feed the raw material into the jaw crusher evenly and continuously to ensure the stable operation of the crusher.

2. Jaw crusher (PE600×900): As a primary crushing device, it crushes large pieces of material into smaller particles.

3. Secondary crushing equipment: As needed, an impact crusher or a cone crusher can be configured as a secondary crushing device to further reduce the material particle size. For example, the PF-1210 impact crusher is a common choice, and its output matches the PE600×900 jaw crusher, and the feed particle size meets the jaw crusher's discharge particle size.

4. Vibrating screen: Such as the 2YK1548 vibrating screen, is used to screen the crushed material and separate products of different particle sizes.

Equipment model and capacity range

• There are many types of jaw crushers, and different types of stone crushers have obvious differences in production capacity.

• The smallest model of jaw crusher has a production capacity of 5-20t/h, while the largest model PE-1500×1800 coarse jaw crusher has a production capacity of 520-1100t/h.

• It can be seen that the adaptability of jaw crushers in production capacity is very wide.

Discharge particle size of jaw crusher

• The discharge port of the jaw crusher can be adjusted in size, and the particle size of the material can be controlled by adjusting the size of the discharge port.

• The adjustment range of the discharge port of the jaw crusher is generally between 10~300mm, and the specific range may vary depending on the model and specifications.

• The width of the discharge port can be changed by manually rotating the bolts on the discharge port or adjusting the wedge.

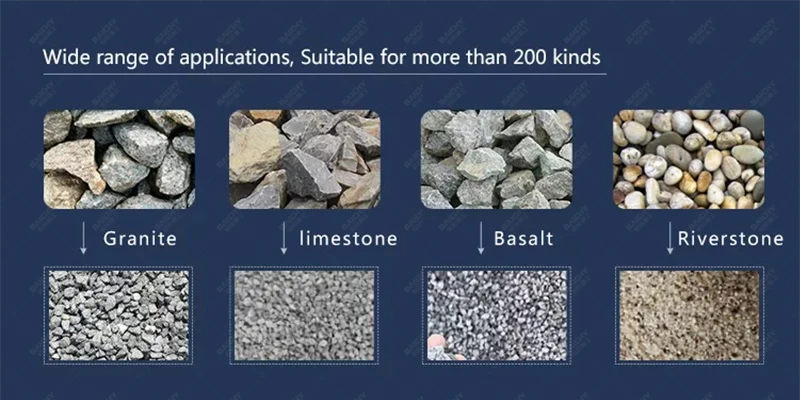

Jaw crusher is suitable for processing various materials with a particle size not exceeding 1200mm and a compressive strength not exceeding 320MPa.

Ore: such as granite, quartz, river pebbles, calcite, dolomite, iron ore, silica ore, basalt, etc.

Rock: including rocks of various hardness. Because of its large crushing ratio and uniform product particle size, it is particularly suitable for the initial crushing of large rocks.

Construction waste: such as concrete fragments, bricks, construction waste, etc., which can be crushed into recycled aggregates or recyclable materials.

Industrial raw materials: such as limestone, marble, etc., these materials are widely used in many industrial fields, and jaw crushers can effectively handle and meet their processing needs.

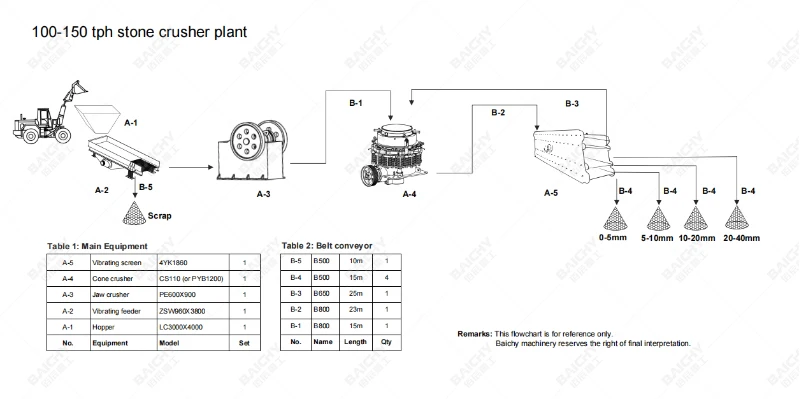

Stone crushing production line with a capacity of 100-150 tons/hour is a relatively medium-sized production system, which covers several key equipment to ensure an efficient and continuous production process.

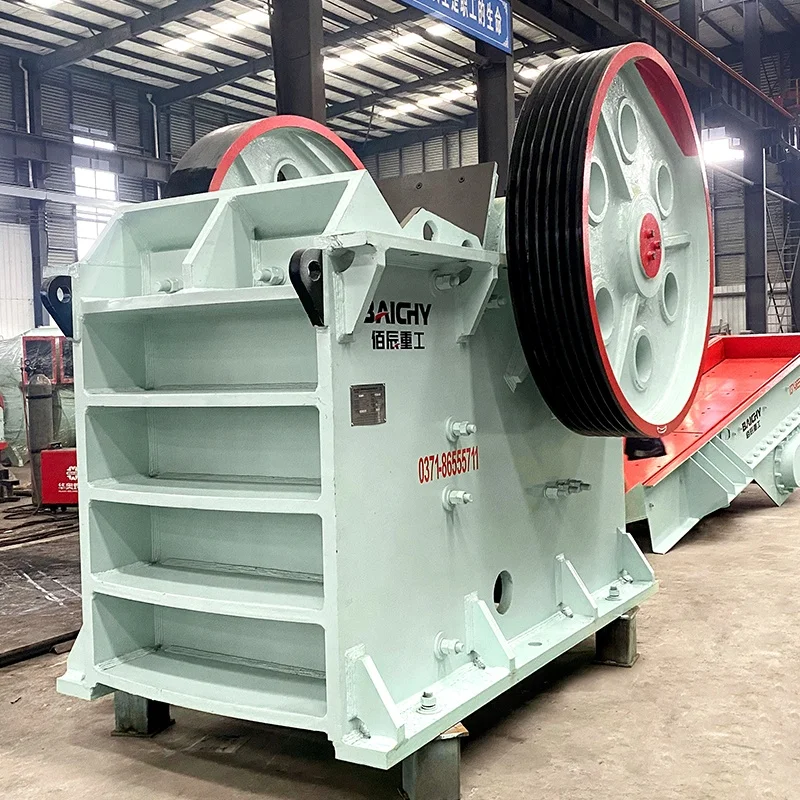

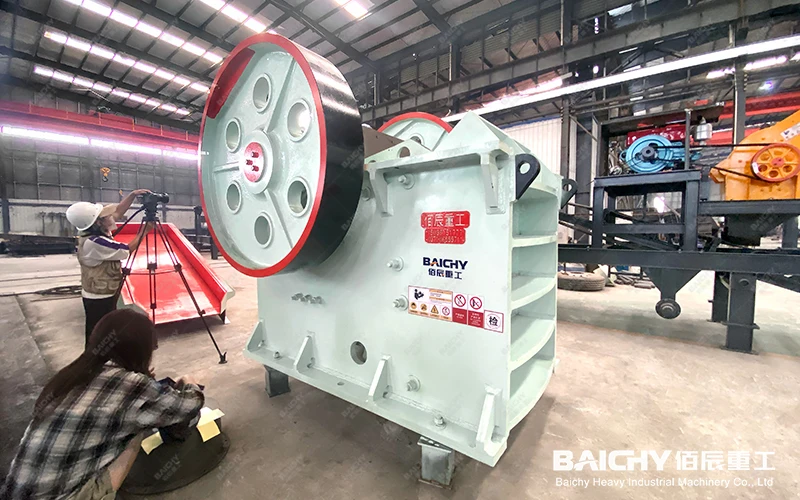

PE600x900 jaw crusher is usually used as primary crushing equipment to crush large stones into smaller particles to provide suitable raw materials for subsequent crushing. Jaw crushers are widely used in various crushing production lines due to their simple structure, reliable operation, and easy maintenance.

Cone crusher or impact crusher is used as secondary or tertiary crushing equipment. Choose the appropriate type according to the characteristics of the stone and the final product requirements. A cone crusher is suitable for hard rock crushing, while an impact crusher is better at handling medium-soft materials and can produce better particle shapes.

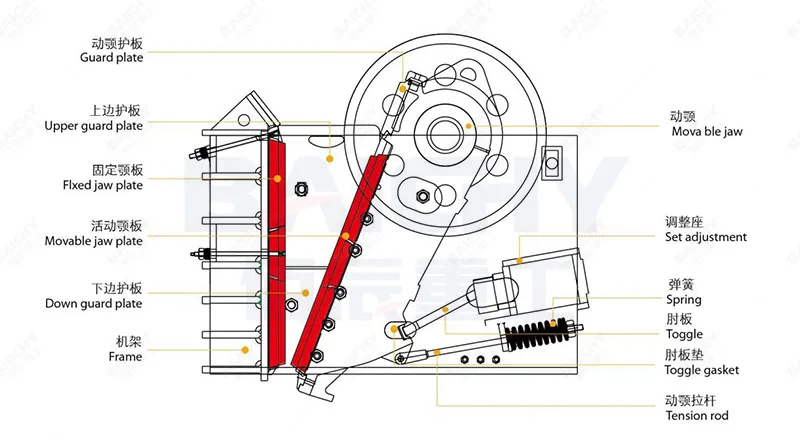

Working principle

The working mode of this series of PE600x900 jaw crushers is crank extrusion type. Its working principle is: the motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the toggle plate and the movable jaw are clamped. The angle becomes larger, thereby pushing the movable jaw plate to approach the fixed jaw plate, and at the same time, the material is crushed or chopped to achieve the purpose of crushing.

When the movable jaw moves down, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw leaves the fixed jaw under the action of the pull rod and the spring, and the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the movable jaw of the crusher will do periodic motions to crush and discharge the materials, realizing mass production.

Perfect after-sales service

Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.

The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.

To prevent the rights and interests of customers from being infringed, Baichy Heavy Industry reminds customers: please contact our customer service staff through the official website of Baichy Heavy Industry , or add WhatsApp: 15093222637 ; or send an email to: , we will get in touch with you as soon as possible and provide you with the most professional service in the industry.

Baichy Heavy Industrial Machinery Co., Ltd is a professional mining machinery manufacturer mainly engaged in producing stone crushers, powder grinding mills, mobile crushing plants, and mineral processing equipment. It covers a total area of 200,000 square meters, including a standardized workshop, modern office building, R&D center, and sales and aftersales center.

Our company has more than 100 middle and senior technicians. Over the years, based on professional technology, a complete scientific and quality management system(CE, ISO9001) , and high-quality products, Baichy Machinery has quickly grown into an important production and export base of China mining machinery. The products have been exported to over 150 countries and are widely used in the global mining and construction industry.

All our products are strictly manufactured according to ISO/CE standards, affordable, and of unmatched quality. We focus on product quality and will take responsibility for any defects. OEM/ODM services are available. We have rich experience in export and project management and can 100% ensure the safety of your order.
